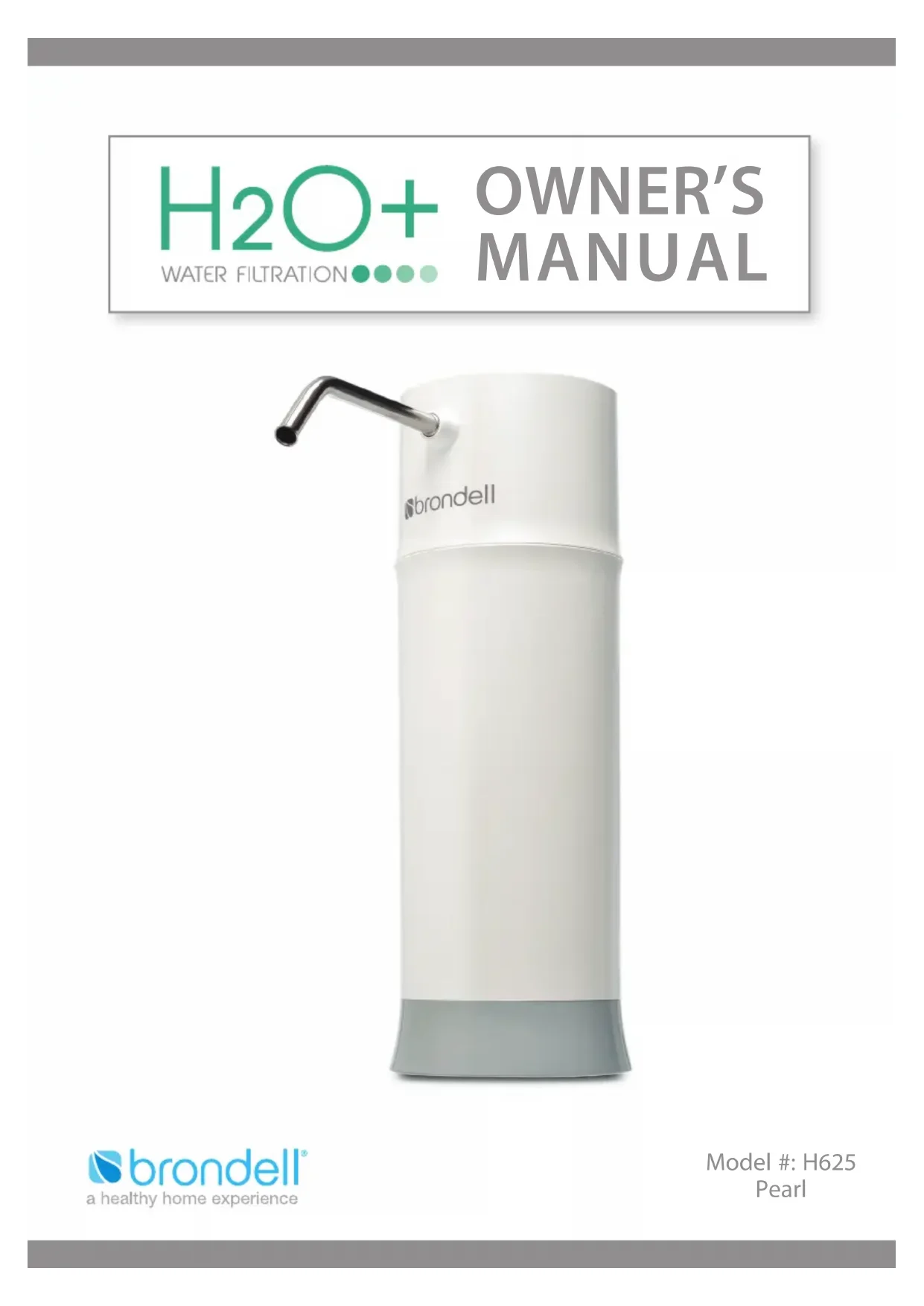

USER MANUAL H625 Brondell

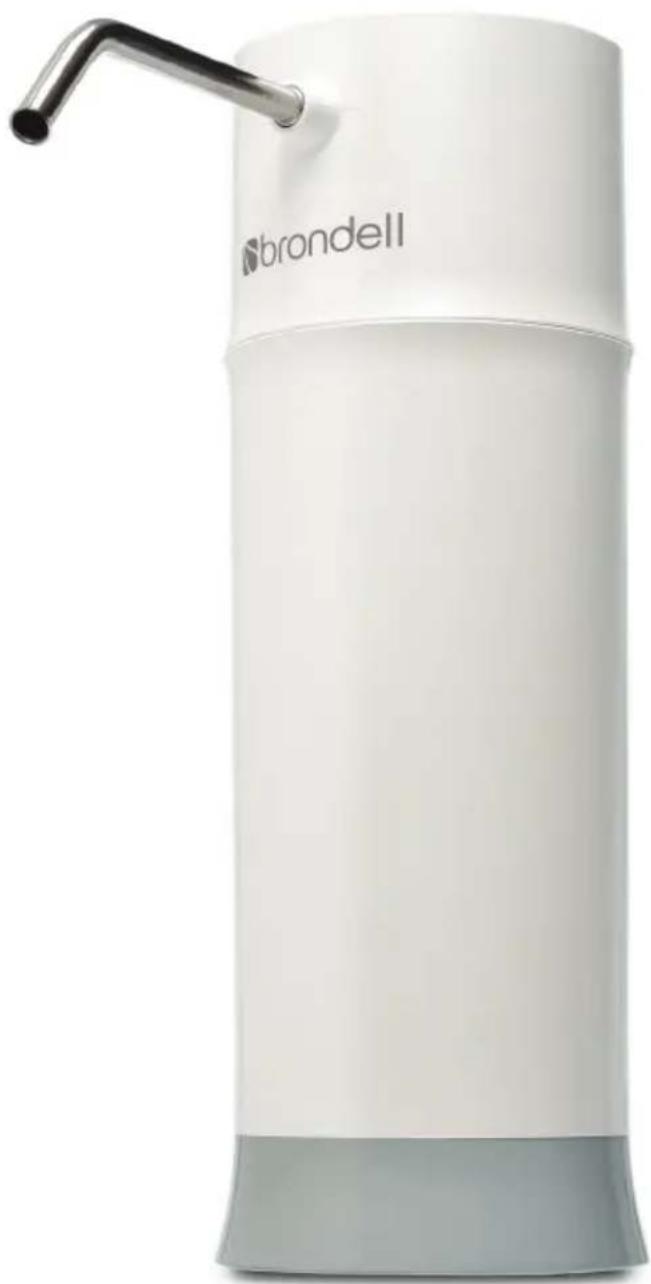

White cylindrical water dispenser with a metal handle extending upward, no visible text or symbols on the device itself.

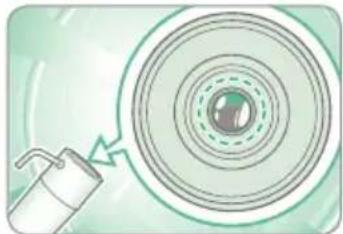

FEATURES

1. Advanced carbon block technology

Powerful filter reduces harmful contaminants while permitting passage of important minerals

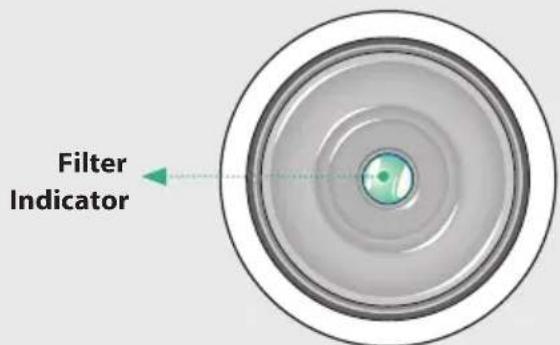

2. Filter replacement indicator

No need to worry about remembering to replace the filter. The filter replacement indicator will let you know when it's time to change the filter.

3. Stylish and compact design

Save space without giving up quality with the compact filtration system.

4. Instant & consistent water flow

Direct connection to the faucet provides instant water flow without the need for a water storage tank.

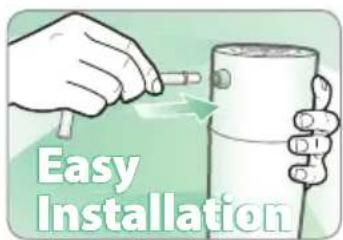

5. Quick and easy installation

Easy installation with faucet adapter kit, no additional plumbing work required.

Illustration of a medical device emitting a circular device with concentric rings (no text or symbols)

Illustration of a water dispenser with measurement scale and green triangular indicators (no text or symbols)

Illustration of a faucet with a magnified inset showing a person walking (no text or symbols)

THANK YOU FOR YOUR PURCHASE!

Thank you for your purchase of this Brondell H20+ Water Filtration Device. Please be sure to read through this Owner's Manual for tips on how to use and maintain your product. If you do encounter a problem, please refer to this manual as a first step in troubleshooting prior to calling us. Thanks again for being a Brondell customer – we appreciate it!

CONTENTS

FOR INFORMATION

SAFETY INFORMATION......2

Installation safety....2

Operation safety....2

Others....3

PARTS 4

HOW TO USE

INSTALLATION INSTRUCTIONS ..... 5

HOW TO USE....7

MAINTENANCE

INSTALLATION PRECAUTIONS......8

FILTER REPLACEMENT....9

FILTER REPLACEMENT METHOD ..... 10

OTHERS

TROUBLESHOOTING....11

SPECIFICATION....12

PERFORMANCE DATA SHEET....13

WARRANTY....15

SPANISH....17

FRENCH 35

SAFETY INFORMATION

Please keep this safety information for reference.

Please read this information to prevent property loss and ensure your safety.

Danger Warning Caution occur.

If not observed, serious injury or even death could Varning Caution occur.

If not observed, serious injury or property damage could occur.

If not observed, slight injury or property damage could occur.

Installation safety

Do not install near a heating device.

Fire may occur as a result.

Do not install the product on a sloped surface.

Injury to the user or damage to the unit may result.

Do not compress or impact the product with force.

Damage to the unit may result.

The filtration device installation shall comply with applicable state and local regulations.

Operation safety

Do not place flammable objects (such as matches or cigarettes) on the top of the unit.

This may cause damage or injury.

Change filters regularly.

Injury to the user or damage to the unit may result.

Do not repair, disassemble or modify the unit independently.

Contact Customer Support at 888-542-3355.

Do not place any containers with water, medicine, food, small metallic objects, or any flammable material on the top of the product.

In the case foreign material gets inside the product, electric shock, fire, product damage may occur as a result.

Others

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Do not use harsh chemicals (only mild detergent and water) while cleaning the unit. Damage to the unit may result.

Do not use filtered water for the water exchange of an aquarium or a fishbowl.

IMPORTANT NOTE ABOUT "TDS METERS" AND TESTERS

Q) When I use a Total Dissolved Particle (TDS) reader to test my water after it goes through the Pearl water filtration system, why don't the levels of dissolved particles go down or decrease? I don't think the product is working.

The Pearl water filter system is not designed to remove beneficial minerals from your drinking water. These minerals that occur naturally are a healthy part of your drinking water and should remain. The Brondell Pearl water filter is designed to dramatically reduce water-soluble harmful contaminants, including industrial chemicals, pesticides, herbicides, turbidity, volatile organic compounds (VOC's), and microorganisms, most of which cannot be "read" with a TDS reader.

Since these harmful components are water-soluble, they cannot be picked up by a simple TDS meter. Contrary to its name (Total Dissolved Solids or TDS Meter), these inexpensive products cannot detect most harmful water-soluble contaminants. There is a major misconception that low TDS readings mean healthy water and that is simply not always true.

The best method for testing the performance of a water filtration device is to have a nationally recognized independent organization, such as WQA (Water Quality Association) or NSF International, test and certify the products. The certified data is then available in a Performance Data Sheet, which you should request from the manufacturer. For more clarification of what the Pearl water filtration systems does remove from your water, please see our Certified Performance Data Sheets on pages 13-14.

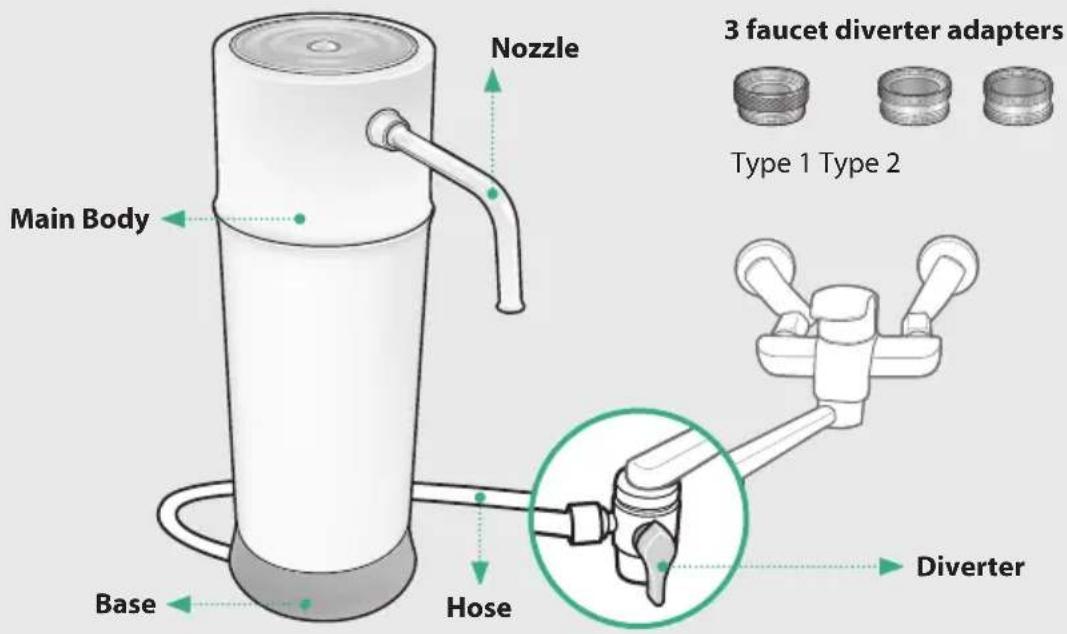

PARTS

Red Color Meaning: Not in use

Blue Color Meaning: In use/ Good water quality

Blue/Red Color Meaning: In use/Filter replacement needed

INSTALLATION INSTRUCTIONS

Follow the instruction guide for proper installation

Tips

If faucet has threads on the interior (after removing the aerator/faucet spout tip) you will need to use one of the provided faucet diverter adapters during installation.

1. Unscrew original aerator (faucet spout tip) from your water faucet.
2. Connect the faucet diverter to water faucet by hand tightening using any adapters as needed. If needed, use a wrench (spanner) or pliers, but be careful not to over tighten. Use 2 faucet diverter adapters (included) as needed for proper connection.

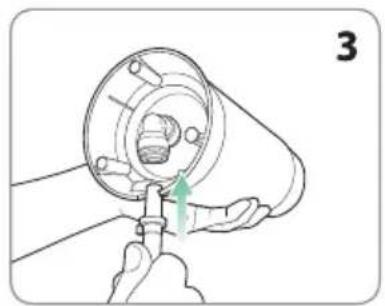

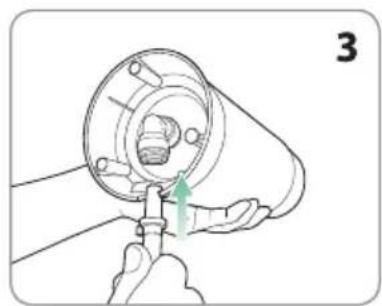

3. Connect the inlet hose to the inlet connection under the base. Then connect the other end of the hose to the faucet diverter.
4. Connect the supplied nozzle spout to outlet hole. Be sure to push in all the way.
5. Make sure the unit is placed securely on a flat surface and ensure the diverter is in the closed position to avoid spills.
6. Turn on faucet with cold water, turn diverter to open position and check all connections. Let water run through filter for 5 minutes to flush and activate filter.

DO NOT USE HOT WATER.

Diagram of a mechanical clamp or lever assembly with three circular components and a green accent, no text or symbols present.

Illustration of a hand holding a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical object with a green arrow indicating motion (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Tips for using the Brondell H2O+ Water Filtration system

1. After installing the product

Flush and activate filter by running cold water for 5 minutes and be sure to check all connections for any leaking.

2. When not in use for prolonged periods

If water has been sitting in filter for a long time without use, run cold water for 5 minutes to flush prior to use.

3. Regularly replace filter – at least once every six months

It's important to replace the filter on a regular basis. Replace when the filter change indicator on the top shows more than half red when in use or within 6 months from last filter change, whichever comes first. To help manage when to change filter write the filter change date on filter label with permanent pen. If the filter is overused beyond its recommended service life, the performance of the water filtration device can deteriorate. Do not miss the filter replacement cycle.

Tips

When not in use for a long time, close the main water supply valve under sink at wall and disconnect the unit.

HOW TO USE

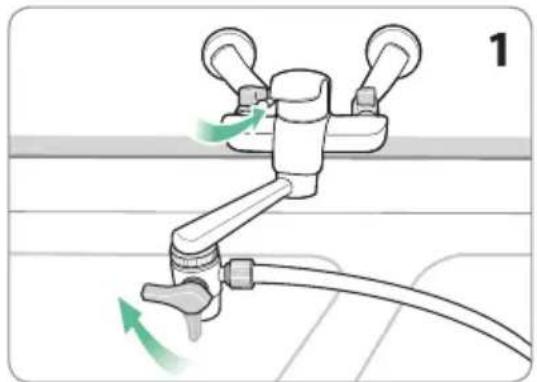

1. Turn on faucet and turn diverter switch to the open position.

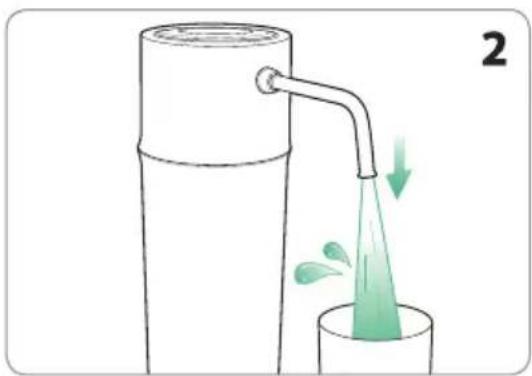

2. Filtered water will be supplied from nozzle instantly.

3. To use faucet normally just turn the diverter to the closed position.

4. Remember to close diverter after each use.

Diagram of a mechanical device with green arrows indicating motion or force, no text or symbols present

Illustration of a water tap with green liquid being poured into a container (no text or symbols)

INSTALLATION PRECAUTIONS

Caution

1. Water filtration device installation location

Do not install the water filtration system on an uneven surface, in a damp area or an area where the unit is exposed to direct sunlight.

2. Water filtration device installation location

Please install unit so that it is 4 inches or more from the wall(s) and the base is flat and firm.

3. After installing the water filtration system

Flush and activate filter by running cold water for 5 minutes.

4. Run only cold water

If you run hot water, the filter may become damaged. If hot water has accidentally been run through the filter, we recommend replacing it.

FILTER REPLACEMENT

Filter

The Brondell carbon block filter is critical to the performance of the H2O+ water filtration system and it's important to replace the filter on a regular basis. If the filter is overused beyond its recommended service life, the performance of the water filtration device can deteriorate. Do not miss the filter replacement cycle or use non-compatible filters as this can affect system performance or damage the unit.

* To help manage when to change filter write the filter change date on filter label with permanent pen.

Filter replacement cycle

The Brondell carbon block filter should be replaced when the filter change indicator on the top shows more than half red when in use or within 6 months from last filter change, whichever comes first. The filter replacement lifecycle may depend on the incoming water supply quality and poor quality water can shorten the regular replacement lifecycle.

* The period for the filter exchange is made based on 0.84 Gallons use per household per day.

Model H625

Part No. Names of Filter Usable Period
HF-25 Carbon	Block Replacement Filter 6 months

About filter replacement cycle

The filter replacement cycle described above is not the filter quality warranty period but the expected cycle (life) that the filter will continue to perform at the original performance level.

* The filter replacement cycle may be reduced for areas with poor water quality or greater use.

FILTER REPLACEMENT METHOD

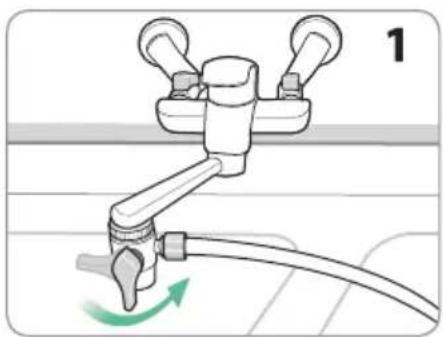

1. Turn diverter switch to the closed position.

Diagram of a mechanical device with a curved pipe and two circular ports, showing a green rotation arrow (no text or symbols)

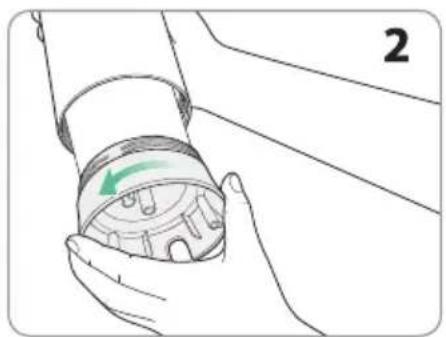

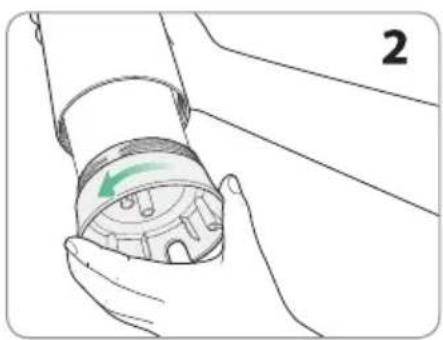

1. Unscrew the base and separate it from the main body. Remove the

old filter by firmly pulling it out of the main body.

Illustration of a hand holding a wristwatch with a green arrow indicating motion (no text or symbols)

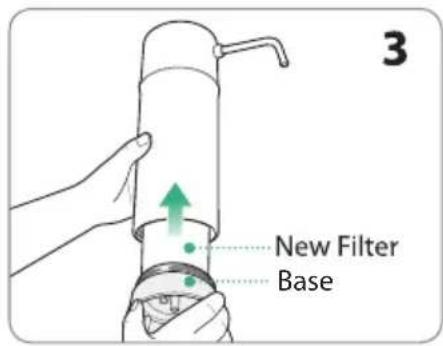

1. Secure new filter onto the base by firmly pushing down until connections are tight. Write the filter change date on filter label with permanent pen. Insert the filter back into main body.

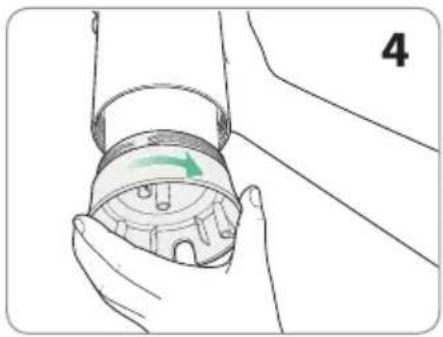

1. Screw the base into the main body.

Illustration of a hand holding a small mechanical component with a green arrow indicating rotation (no text or symbols)

TROUBLESHOOTING

In most cases, problems with your Brondell H2O+ water filtration system can be resolved with a little troubleshooting by checking each of the items below. If you cannot resolve the problem you are having after troubleshooting, please call Brondell customer service toll free: 888-542-3355 or email us at [e-mail].

Symptom Check Measures to take
Unusual taste of water.	• Is the temperature of the supply water too high?	Use cold water only and flush system for 2 minutes.
	• Is it time to replace the filter? Replace the filter.
The amount of filtered water has suddenly increased or decreased.	• Is the supply water valve closed? Check the supply water valve.
	• The temperature of the supply water dropped dramatically.	If the water temperature lowers dramatically, the amount of filtered water will reduce
	• Is the filter blocked or damaged? Replace the filter.
No water comes out.	• Check if water supply valve under sink or the faucet diverter is closed.	Open supply valve and/or the diverter.
	• Have you missed your scheduled filter replacement?	Replace the filter.

SPECIFICATIONS

Product H2O+ Pearl Water Filtration Device
Model / SKU H625
Filtration Method Carbon	Block Filter (Filter SKU: HF-25)
Dimension 3.9 in (D) x 11.3 in (H) < 98 mm (D) x 286 mm (H) >
Working Temperature 41 °F – 95 °F (5 °C – 35 °C)
Rated Service Flow 0.50 gpm
Working Pressure	Max. 102psi (0.7 MPa)Normal 10 psi – 58 psi (0.07 MPa – 0.4 MPa)
Net Weight 1.81 lb (0.8 kg)

• The water flow and production rate can differ according to the water pressure and the water temperature.
• Without any prior notice, all or parts of the product are subject to change for the purpose of improving the performance of the product.
• Refer to Performance data sheet for individual contaminants, reduction performance and general operating information.

Water Filtration System Performance Data Sheet

Brand: H2O+

Model: H625

This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance		Average Percent Reduction	Influent Challenge Concentration (mg/L unless specified)	Maximum Permissible Product Water Concentration or Minimum Allowable % Reduction (mg/L unless specified)
NSF/ANSI 42 Aesthetic Effects	Chlorine, Taste, & Odor	98.0% 2.00 ± 10% ≥ 50% Reduction
	Particulate Class 1 particles 0.5 to < 1μm	91.3%	at least 10,000 particles/mL	≥ 85% Reduction
NSF/ANSI 53 Health Effects	VOC's 99.8% 3.00	± 10% ≥ 95% Reduction

While testing was performed under laboratory conditions, actual performance may vary.

General Operating Information:

Rated Capacity 5,000 gal. for Aesthetic Chlorine / 150 gal. for VOC's

Min-Max operating pressure: 10 psi – 58 psi (0.07 MPa – 0.4 MPa)

Min-Max feed water temperature: 41 °F – 95 °F (5 °C – 35 °C)

Rated Service Flow 0.50 gpm

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Refer to the owners manual for specific installation instructions, manufacturer's limited warranty, user responsibility, and parts and service availability.
• For parts and service availability, please contact Brondell.
• The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality.

Model of Replacement Filter Type Usable period (months)
HF-25 CARBON BLOCK FILTER	6

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

Volatile Organic Chemicals (VOCs) included by surrogate testing*

Chemical	Drinking water regulatory level1(MCL/MAC) mg/L	Influent challenge concentration2mg/L	Chemical reduction percent	Maximum product water concentration mg/L
alachlor 0.002 0.05 >98 0.001				3
atrazine 0.003 0.1 >97 0.003				3
benzene 0.005 0.081 >99 0.001				3
carbofuran 0.04 0.19 >99 0.001				3
carbon tetrachloride 0.005 0.078 98 0.0018				4
chlorobenzene 0.1		0.077 >99		0.0013
chloropicrin -		0.015 99		0.00023
2,4-D 0.07 0.11 98 0.0017				4
dibromochloropropane(DBCP) 0.0002 0.052 >99 0.00002				3
o-dichlorobenzene 0.6 0.08 >99 0.001				3
p-dichlorobenzene 0.075 0.04 >98 0.001				3
1,2-dichloroethane 0.005 0.088 95			5	0.00485
1,1-dichloroethylene	0.007 0.083		>99	0.0013
cis-1,2-dichloroethylene	0.07 0.17 >99 0.0005			3
trans-1,2-dichloroethylene	0.1 0.086 >99 0.001			3
1,2-dichloropropane 0.005 0.08 >99 0.001				3
cis-1,3-dichloropropylene	-	0.079 >99 0.001		3
dinoseb	0.007 0.17 99 0.0002			4
endrin	0.002 0.053		99	0.000594
ethylbenzene	0.7 0.088		>99	0.0013
ethylene dilbromide (EDB)	0.00005	0.044 >99 0.00002		3
haloacetonitriles (HAN)
bromochloroacetonitrile	-	0.022	98	0.00053
dibromoacetonitrile	-	0.024	98	0.00063
dichloroacetonitrile	-	0.0096	98	0.00023
trichloroacetonitrile	-	0.015	98	0.00033
haloketones (HK):
1,1-dichloro-2-propanone	-	0.0072	99	0.00013
1,1,1-trichloro-2-propanone	-	0.0082	96	0.00033
heptachlor (H-34,Heptox)	0.0004 0.08 >99 0.0004
heptachlor epoxide	0.0002 0.0107	5	98 0.0002	6
hexachlorobutadiene	-	0.044 >98 0.001		3
hexachlorocyclopentadiene	0.05 0.06 >99 0.000002			3
lindane	0.0002 0.055 >99 0.00001			3
methoxychlor	0.04 0.05 >99 0.0001			3
pentachlorophenol	0.001 0.096 >99 0.001			3
simazine	0.004 0.12 >97 0.004			3
styrene	0.1 0.15 >99 0.0005			3
1,1,2,2-tetrachloroethane	-	0.081 >99 0.001		3
tetrachloroethylene	0.005 0.081 >99 0.001			3
toluene	1	0.078 >99 0.001		3
2,4,5-TP (silvex)	0.05 0.27 99 0.0016			4
tribromoacetic acid	-	0.042	>98	0.0013
1,2,4-trichlorobenzene	0.07 0.16 >99 0.0005			3
1,1,1-trichloroethane	0.2 0.084 95 0.0046			4
1,1,2-trichloroethane	0.005 0.15 >99 0.0005			3
trichloroethylene	0.005 0.18 >99 0.0010			3
trihalomethanes (includes):
chloroform (surrogate chemical) bromoform	0.080 0.300 95 0.015
bromodichloromethane chlorodibromomethane
xylenes (total)	10	0.070 >99 0.001		3

* Chloroform was used as the surrogate chemical for VOC reduction claims

Brondell, Inc

PO Box 470085

San Francisco, CA 94147

www.brondell.com 1-888-542-3355

1 These harmonized values were agreed upon by representatives of USEPA and Health Canada for the purpose of evaluating products to the requirements of this Standard.
2 Influent challenge levels are average influent concentrations determined in surrogate qualification testing.
3 Maximum product water level was not observed but was set at the detection limit of the analysis.
4 Maximum product water level is set at a value determined in surrogate qualification testing.
5 Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point as determined in surrogate qualification testing.
6 The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL.

Warranty

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that the H2O+ water filtration system shall be free from defects in material and workmanship under normal use and service.

Brondell H2O+ Water Filtration System – One Year Limited Warranty

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first full year from date of purchase on all products except those that may be subject to commercial use limitations.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or reinstallation of products. This warranty does NOT apply to:

Damage or loss which occurs during shipment.

Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.

Damage or loss resulting from sediments or foreign matter contained in a water system.

Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.

Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products

Damage or loss resulting from acts which are not the fault of Brondell or which the Product is not specified to tolerate.

1. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of your original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with your RMA number and proof of purchase.

To obtain your RMA number and locate the BRONDELL Service Center location nearest you, call 1-888-542-3355.

Contact:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

For questions, contact Brondell Customer Service:

1-888-542-3355

Manufactured by:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Estimated cost of replacement filter:

HF-25 Carbon Block Filter – \$49.95

California Department of Public Health Certification: Certification Number: on file*

Iowa Department of Public Health Registration: WTD Number: on file*

Wisconsin Department of Commerce: Product File Number: on file*

This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42 and 53 for the reduction of the substances listed on the Performance Data Sheet. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

* Certifications on file with Brondell / www.brondell.com

The following is required for Iowa purchases only. A copy of this document must be retained by seller for 2 years.

Buyer: ____

Date: ____

Buyer's Address:

Seller:

Date: ____

Seller's Address: ____

H_2O +

WATER FILTRATION

MANUAL

DEL PROPIETARIO

White cylindrical water dispenser with a metal handle extending from its top, labeled 'brondell' (no other text or symbols visible)

CARACTERÍSTICAS

Illustration of a medical device emitting a circular device with concentric rings (no text or symbols)

Illustration of a water dispenser with measurement markings (no text or symbols)

Illustration of a faucet with a person walking inside, showing water flow (no text or symbols)

Do not install the product on a sloped floor.

Injury to the user or damage to the unit may result.

Diagram of a mechanical device with three ports and a green accent, no text or symbols present

Illustration of a hand holding a mechanical component with a green arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to apply liquid to a cylindrical container (no text or symbols present)

Diagram of a mechanical device with green arrows indicating motion, no text or symbols present

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a water tap pouring liquid into a beaker with green bubbles (no text or symbols)

Diagram of a mechanical device with a curved pipe and two circular ports, showing a green rotation arrow (no text or symbols)

Illustration of a hand holding a wristwatch with a green arrow indicating motion (no text or symbols)

Illustration of a hand holding a mechanical component with a green arrow indicating rotation (no text or symbols)

White cylindrical water dispenser with a metal handle and brand logo, no visible text or symbols on the device itself.

CARACTÉRISTIQUES

Illustration of a medical device emitting a circular device with concentric rings (no text or symbols)

Illustration of a water dispenser with measurement scale and green triangular indicators (no text or symbols)

Illustration of a faucet with a magnified inset showing a person walking (no text or symbols)

MERCI POUR VOTRE ACHAT!

Diagram of a mechanical device with three circular components and a green accent, no text or symbols present

Illustration of a hand holding a mechanical component with a green arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to apply a green arrow to a cup (no text or symbols present)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with green directional arrows indicating flow or movement (no text or symbols)

Illustration of a water tap pouring liquid into a container with green bubbles (no text or symbols)

REPLACEMENT DU FILTRE

Filtre

Diagram of a mechanical device with a curved pipe and three circular ports, showing a green rotation arrow (no text or symbols)

Illustration of a hand holding a wristwatch with a green arrow indicating motion (no text or symbols)

Illustration of a hand holding a small mechanical component with a green arrow indicating rotation (no text or symbols)

DÉPANNAGE
