USER MANUAL Fleur K-4873 KOHLER
M product numbers are for Mexico (i.e. K-12345M)
• 3/16" Drill Bit
• 3/8" Shut-Off Valves
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.
Before You Begin
CAUTION: Risk of personal injury or product damage. Handle with care. Vitreous china can break or chip if the bolts and nuts are overtightened, or if the product is handled carelessly.
□ Observe all local plumbing and building codes.
□ Carefully inspect the new bidet for damage.
☐ The bidet must be installed with 3/8" hot and cold shut-off valves.
☐ Refer to the roughing-in book for dimensional information.
□ Site preparation may require additional tools and hardware.
1. Preparation
□ Turn the water supply off.
☐ Install the hot and cold water supplies, shut-off valves, and trap outlet as necessary to conform to roughing-in dimensions.
☐ The trap can be installed in the drain line below or above the floor.
Preparation (cont.)
☐ Install the bidet faucet and drain according to the manufacturer's instructions. Make sure the 1-1/4" (3.2 cm) tailpiece is installed to the drain body.
Above Floor Installation
☐ The drain tailpiece must be cut down to 1-5/16" (3.3 cm) before being installed to the drain body.


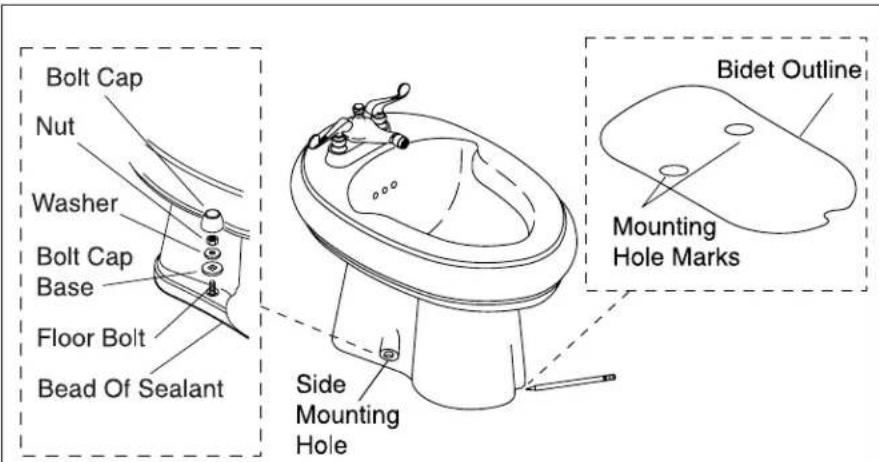

Bolt Cap Nut Washer Bolt Cap Base Floor Bolt Bead Of Sealant Bidet Outline Mounting Hole Marks Side Mounting Hole2. Install the Bidet
□ Install the bidet faucet and drain according to the manufacturer's instructions.
□ Set the bidet on the floor in its mounting location.
□ Trace the outline of the bidet base, and mark the location of the two side mounting holes.
□ Remove the bidet from the mounting location.
☐ Drill two 3/16" holes at the marked side mounting hole locations.
☐ Thread the floor bolts (included) into the mounting holes.
□ Apply a bead of sealant around the base of the bidet, and carefully align the bidet inside the outline drawn on the floor.
☐ Position the bidet in the mounting location so both of the floor bolts extend through the bidet side mounting holes.
CAUTION: Risk of personal injury or product damage. Vitreous china can break or chip easily if the nuts are overtightened or the product is handled carelessly.
☐ Assemble the bolt cap bases, washers, and nuts. Hand-tighten the nuts, then tighten an additional 1/2-turn with a wrench.
☐ If the floor bolts extend more than 1/4" (6 mm) from over the top of the nut, loosen the nut and thread the bolt further into the floor. Retighten the nuts, and install the bolt caps.
Install the Bidet (cont.)
Complete the Installation
□ Connect the water supplies and drain.
☐ Turn on the hot and cold shut-off valves. Check the entire installation for leaks. Repair as required.
□ Check all connections for leaks for several days.
