Strap Wrench

Thin Bladed Screwdriver

ImportantInformation

WARNING: Riskofscalding. High water temperature can cause severe burns. Set the water temperature at or below 120°F (49°C) following the adjustment procedure in the valve Installation and Care Guide.

NOTICE: Choose an automatic compensating valve with the appropriate minimum flow rating to verify that your valve will provide safety at the lowest flow rates.

□ Observe all local plumbing and building codes.

NOTE: After each use, tilt the showerhead to drain.

NOTE: For service parts information, visit your product page at kohler.com/serviceparts.

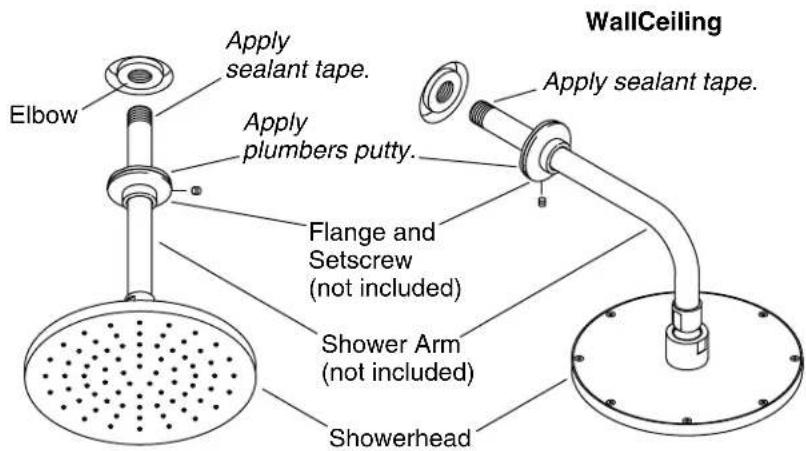

Elbow Apply sealant tape. Apply plumbers putty. Flange and Setscrew (not included) Shower Arm (not included) Showerhead WallCeiling Apply sealant tape.

1. InstalltheShowerhead

NOTE: The shower arm with flange is not provided.

□ Remove the existing showerhead and shower arm, if applicable.
☐ Install the shower elbow. Make sure that the elbow is securely mounted and has adequate strength to support the showerhead.
□ Apply a bead of plumbers putty or other sealant to the back of the flange.
☐ Place the flange onto the long end of the shower arm as shown.
□ Apply sealant tape to the threads of each end of the shower arm.
☐ Install the shower arm to the shower elbow and tighten securely with a clean strap wrench.
☐ Press the flange against the finished wall/ceiling and secure to the shower arm by tightening the setscrew.
□ Remove any excess plumbers putty.
☐ Turn on the water to flush any debris through the shower arm.
□ Turn off the water.
☐ Install the showerhead to the shower arm and tighten securely with a clean strap wrench.
□ Check all connections for leaks.

NOTE: After each use some water may remain in the showerhead. To prevent dripping, tilt the showerhead to drain.

Line drawing of a hand holding a showerhead with dots and arrows indicating shading (no text or symbols)

CleantheSprayNozzles

To dislodge debris and mineral build-up:

□ Run water through the showerhead.

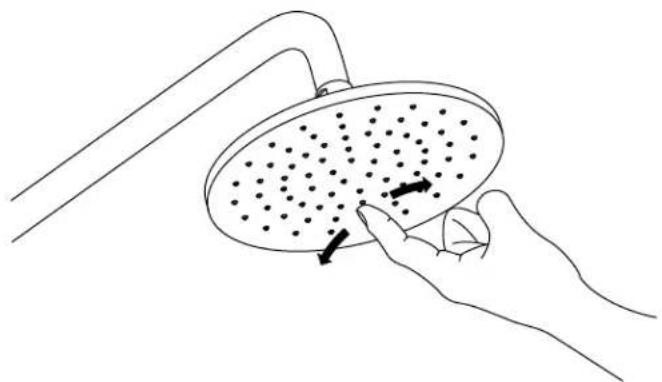

□ Firmly rub your finger back and forth across the spray holes in the showerhead face.
☐ If this procedure fails to improve the performance of the showerhead, proceed to the "Clean the Screen Washer" section of this guide.

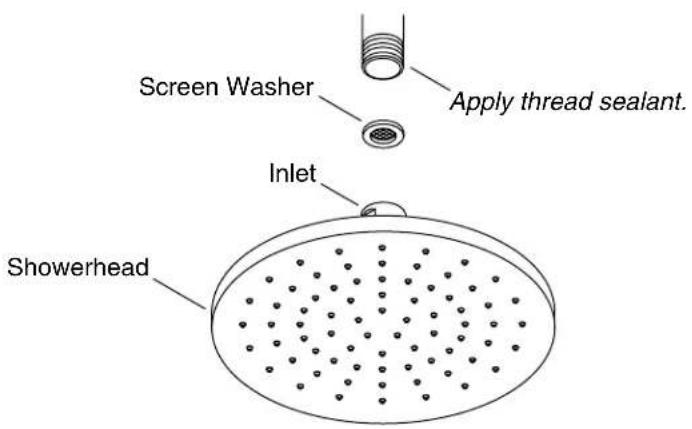

Screen Washer Apply thread sealant. Inlet Showerhead

CleantheScreenWasher

☐ Use a clean wrench to remove the showerhead from the shower arm; be careful not to mar the finish.
☐ Use a thin flat-blade screwdriver to carefully pry up the edge of the screen washer. Remove and clean the screen washer.

NOTE: Do not attempt to remove the flow control.

□ Reinstall the screen washer with the tapered end out.
□ Apply sealant tape to the threads of the shower arm.
□ Reinstall the showerhead.
