USER MANUAL NN-SM22QB PANASONIC

Operating Instructions (Original instructions)

Microwave Oven Household Use Only

Model No. NN-SM23QM / NN-SM22QB

NN-SM21QW / NN-ST21QW

NN-SM23QM

NN-SM22QB

NN-SM21QW

NN-ST21QW

■ Important safety instructions. Before operating this oven, please read these instructions and precautions carefully and keep for future reference.
■ Warning! The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.
■ Warning! Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be carried by a qualified service person.
■ Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode.
■ Warning! When heating liquids, e.g. soup, sauces and beverages in your oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid.

■ Warning! The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns.

■ Warning! The appliance shall be disconnected from its power source during service and when replacing parts. Following the removal of the supply plug, the plug should remain visible to the service operator to ensure that inadvertent reconnection is avoided.

■ Warning! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■ Do not place this oven near an electric or gas cooker range.
■ This oven is intended for counter-top use only. It is not intended for Built-in use or for use inside a cupboard.
■ Oven must be placed on a flat, stable surface 85 cm above the floor, with rear of oven placed against a back wall. If one side of the oven is placed flush to a wall, the other side or top must not be blocked. Allow 15 cm of space on the top of the oven.
■ When heating food in plastic or paper containers, keep an eye on the oven as these types of containers ignite if overheated.
■ If smoke is emitted or a fire occurs in the oven, press Stop/Reset or turn Time select dial to zero position, and keep the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel.

■ This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential environments;
- bed and breakfast type environments.

■ Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

■ Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended.

■ DO NOT USE COMMERCIAL OVEN CLEANERS.

Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could adversely affect the life of the appliance and possibly result in a hazardous situation.

A steam cleaner is not to be used for cleaning.

■ Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

■ This appliance is not intended to be operated by means of an external timer or separate remote-control system.

■ Only use utensils that are suitable for use in microwave ovens.

■ The microwave oven is intended for heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppodums. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloth, therapeutic wheat bags, hot water bottles and similar may lead to risk of injury, ignition or fire.

■ The oven lamp must be replaced by a service technician trained by the manufacturer. DO NOT attempt to remove the outer casing from the oven.

■ Metallic containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur.

Contents

Installation and connection....7

Placement of your oven....7

Important safety instructions.... 8

Defrosting Guidelines....11

Parts of your oven 12

NN-SM23QM, NN-SM22QB, NN-SM21QW

Control panel 13

Microwave cooking and defrosting 14

NN-ST21QW

Control panel 15

Setting the clock 16

Child safety lock....16

Microwave cooking and defrosting 17

Multi-stage cooking....19

Quick 30 feature ...... 20

Add time feature 20

Using the timer....21

Auto programmes 23

Auto defrost....23

Auto menu....24

Questions and answers....27

Care of your oven....28

Specifications 29

Thank you for purchasing a Panasonic appliance.

Panasonic Corporation Osaka, Japan

Importer: Panasonic Marketing Europe GmbH

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Germany

Installation and connection

Examine your microwave oven

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Earthing instructions

■ Important!

THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY.

If your AC outlet is not earthed, it is the personal responsibility of the customer to have it replaced with a properly earthed wall socket.

Operation voltage

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Placement of your oven

This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard.

1. Place the oven on a flat and stable surface more than 85 cm above the floor.
2. When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
3. For proper operation, ensure sufficient air circulation for the oven.

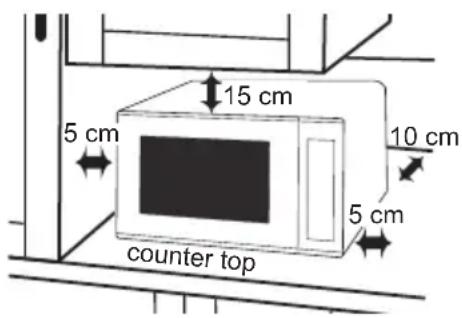

Counter-top use:

Allow 15 cm of space on the top of the oven, 10 cm at the back and 5 cm on both sides.

15 cm 5 cm counter top 10 cm 5 cm

If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

1. Do not place this oven near an electric or gas cooker range.

2. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.

3. The feet should not be removed.

4. This appliance is intended to be used in household and similar applications such as:

5. staff kitchen areas in shops, offices and other working environments;

6. farm houses;
7. by clients in hotels, motels and other residential environments;
8. bed and breakfast type environments.
   Do not use outdoors.

Placement of your oven

1. Avoid using the oven in high humidity.

2. Do not block the air vents. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

3. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Important safety instructions

1. The door seals and seal areas should be cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be carried out by a qualified service person.

3. Do not operate this appliance if it has a damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

5. Liquids and other foods must not be heated in sealed containers since they are liable to explode.

6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Use of your oven

■ Do not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.
■ Before use, check that utensils/containers are suitable for use in microwave ovens.
■ When the oven is not being used, do not store any objects inside the oven in case it is accidentally turned on.
■ The appliance must not be operated WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance.
■ If smoke is emitted or a fire occurs in the oven, press Stop/Reset or turn Time select dial to zero position, and keep the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel.

Fan motor operation

■ After using the oven the fan motor may rotate for a few minutes to cool the electric components. This is normal and you can take out food even though the fan motor operates. You can continue using the oven during this time.

Oven light

■ When it becomes necessary to replace the oven light, please consult your dealer.

Accessories

■ The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories.

Glass tray

■ Do not operate the oven without the roller ring and the glass tray in place.
■ Never use another type of glass tray than the one specially designed for this oven.
■ If the glass tray is hot, let it cool before cleaning or placing in water.
■ The glass tray can turn in either direction.
■ If the food or cooking vessel on the glass tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.
■ Do not cook foods directly on the glass tray unless indicated in recipes. Always place food in a microwave safe dish.

Roller ring

■ The roller ring and the oven floor should be cleaned frequently to prevent noise and build-up of remaining food.
■ The roller ring must always be used for cooking together with the glass tray.

Important safety instructions

Cooking time

■ The cooking time depends on the condition, temperature, amount of food and on the type of cookware.
■ Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

■ Important! If the recommended cooking time is exceeded, the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

Small quantities of foods

■ Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

Foods low in moisture

■ The microwave oven is intended for heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch on fire if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppodums. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloth, therapeutic wheat bags, hot water bottles and similar may lead to risk of injury, ignition or fire.

Eggs

■ Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

Piercing skin

■ Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

Meat thermometer

■ Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer in the microwave oven because it may cause sparking.

Liquids

■ When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid.

To prevent this possibility the following steps should be taken:

a Avoid using straight-sided containers with narrow necks.
b Do not overheat.
c Stir the liquid before placing the container in the oven and again halfway through the cooking time.
d After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

Paper/plastic

■ When heating food in plastic or paper containers, keep an eye on the oven as these types of containers ignite if overheated.
■ Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
■ Remove wire twist-ties from roasting bags before placing the bags in the oven.

Utensils/foil

■ Do not heat any closed cans or bottles because they might explode.
■ Metallic containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur.

Feeding bottles/baby food jars

■ The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
■ The contents of feeding bottles and baby food jars are to be stirred or shaken.
■ The temperature has to be checked before consumption to avoid burns.

Parts of your oven

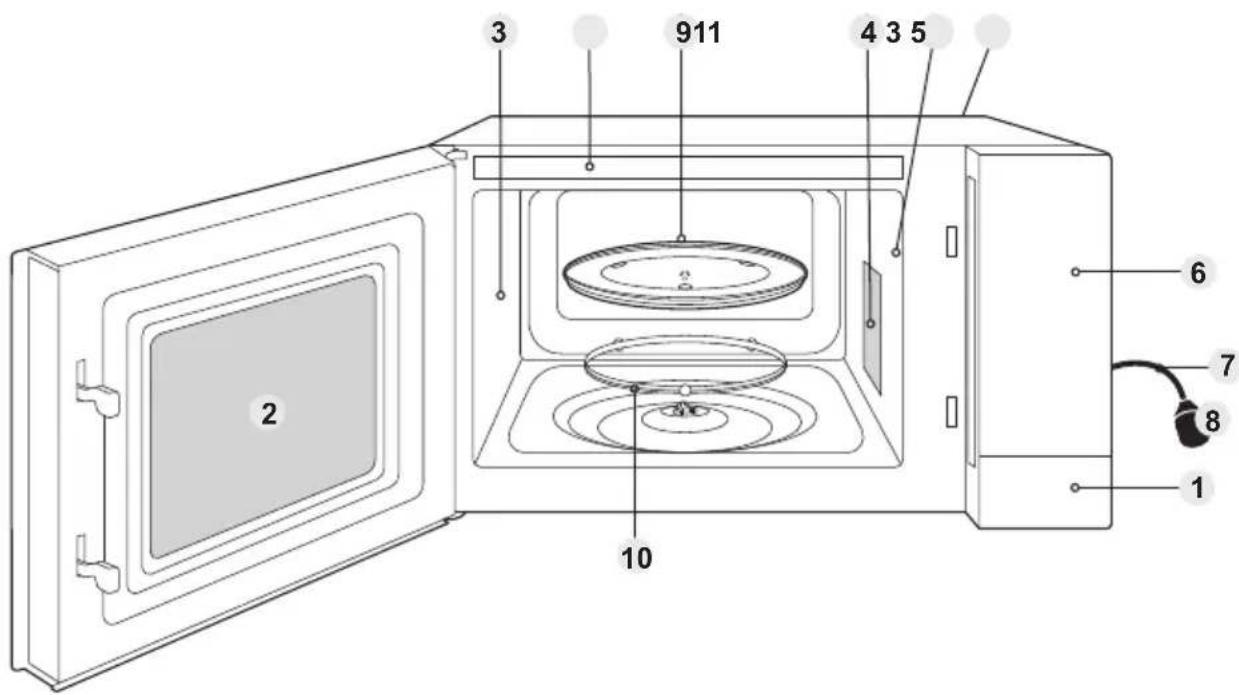

1. Door Release Button

Press to open the door. Opening the door during cooking will stop the cooking process without cancelling the programme. For NN-SM23QM, NN-SM22QB, NN-SM21QW, cooking resumes as soon as the door is closed. For NN-ST21QW, cooking resumes after the door is closed and Start/Set is pressed. It is quite safe to open the door at any time during a cooking programme and there is no risk of microwave exposure.

1. Oven window

2. Air vents

3. Microwave feed guide (Do not remove.)

4. External air vents

5. Control panel

6. Power supply cord

7. Plug

8. Glass tray

9. Roller ring

10. Menu label (NN-ST21QW only)

2 3 911 4 3 5 10 6 7 8 1

Identification label is attached on the oven.

Note

This illustration is for reference only.

200W 360W 700W 800W 1 2 3 min 0 2 35 4 20 10 8

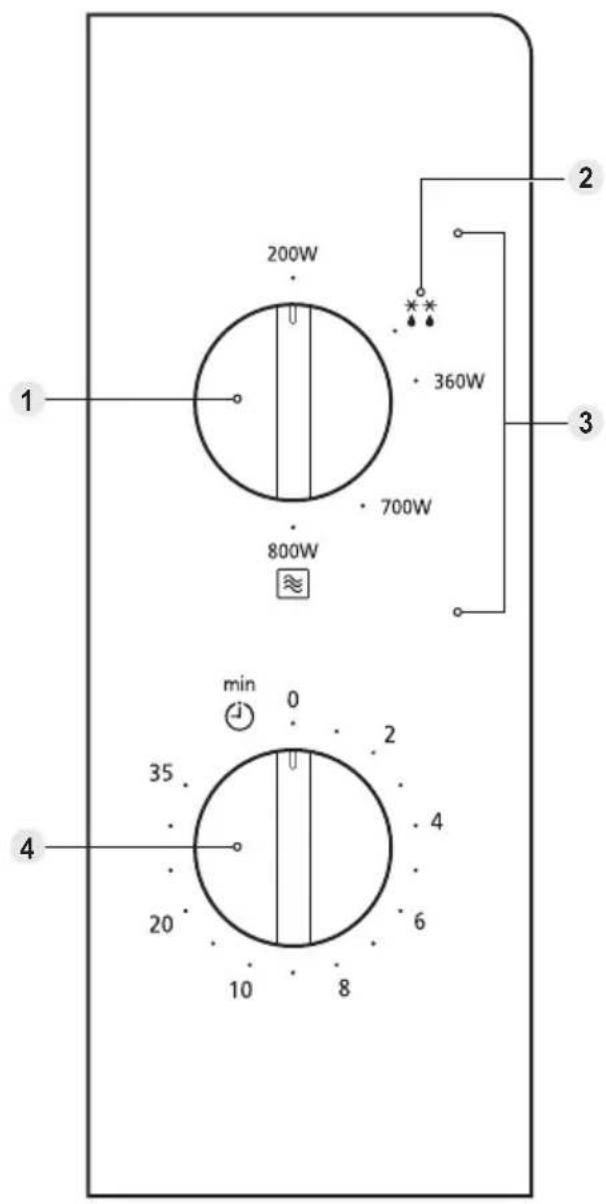

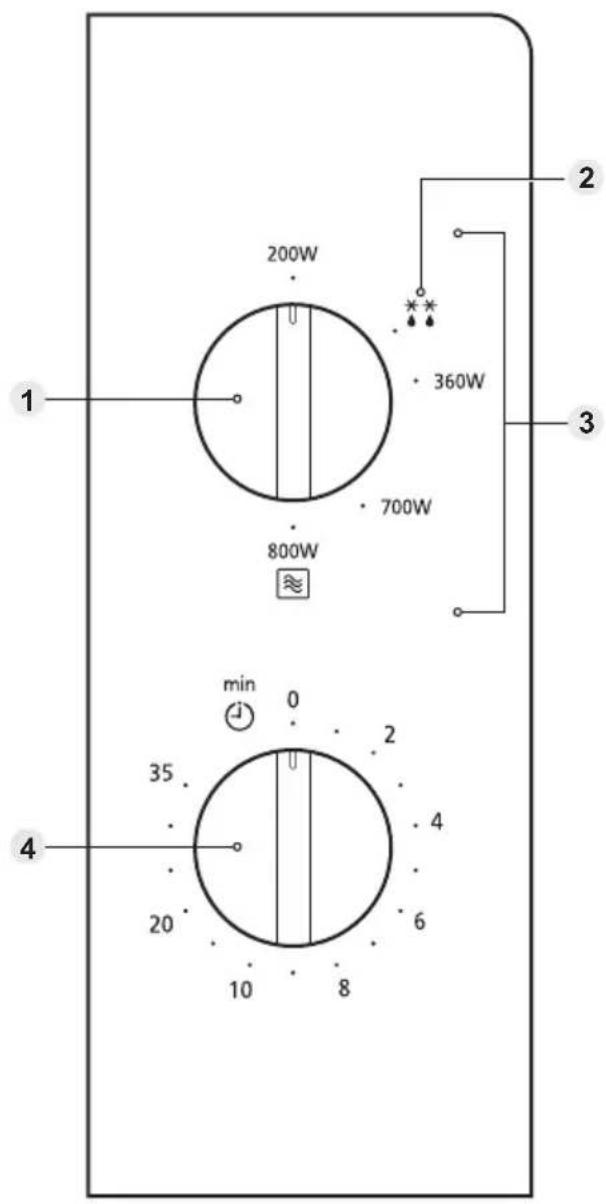

1 Microwave/Defrost select dial
2 Defrost power
3 Microwave power
4 Time select dial

- Your control panel may have differences in appearance, but the words and functionality will be the same.

NN-SM23QM, NN-SM22QB, NN-SM21QW

Microwave cooking and defrosting

The glass tray must always be in position when using the oven.

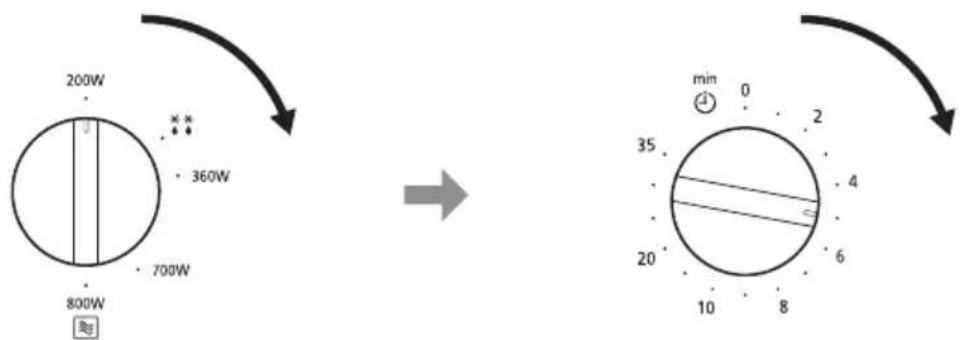

Turn the dial to select the desired power level.

Turn the dial to set the cooking time.

For short cooking time, turn the dial past 5 minutes and then adjust to the time required.

Power Level Microwave

High 800 W

Medium 700 W

Low 360 W

Defrost 270 W

Warm 200 W

Notes

1. If the door is already closed, the oven will start cooking/defrosting immediately.
2. If you wish to check the food during cooking simply open the door. The oven will automatically stop cooking. To continue cooking, close the door.
3. To stop cooking, turn Time select dial to zero position. Cooking time can be reset at any time during the cooking cycle by turning the dial.
4. When food is removed from the oven after cooking is complete, check the Time select dial is in the zero position.
5. For information on Defrosting, refer to Defrosting guidelines on page 18.
6. Around half of defrosting time, turn over the food, remove the defrosted part/food. Refer to Defrosting guidelines on page 18 for details.
7. See notes 2-4 on page 24 for using casserole.

1 Auto 2 Micro Power 3 Defrost 4 Auto 5 10 min 1 min 10 sec 6 Quick 30 7 8 V 9 /↓ 10 NN-ST21QW

- Your control panel may have differences in appearance, but the words on the pads and functionality will be the same.

Beep sound

When a pad is pressed correctly a beep will be heard. If a pad is pressed and no beep is heard, the unit has not or cannot accept the instruction. The oven will beep twice between programmed stages. At the end of any complete programme, the oven will beep 5 times and "End" will be displayed.

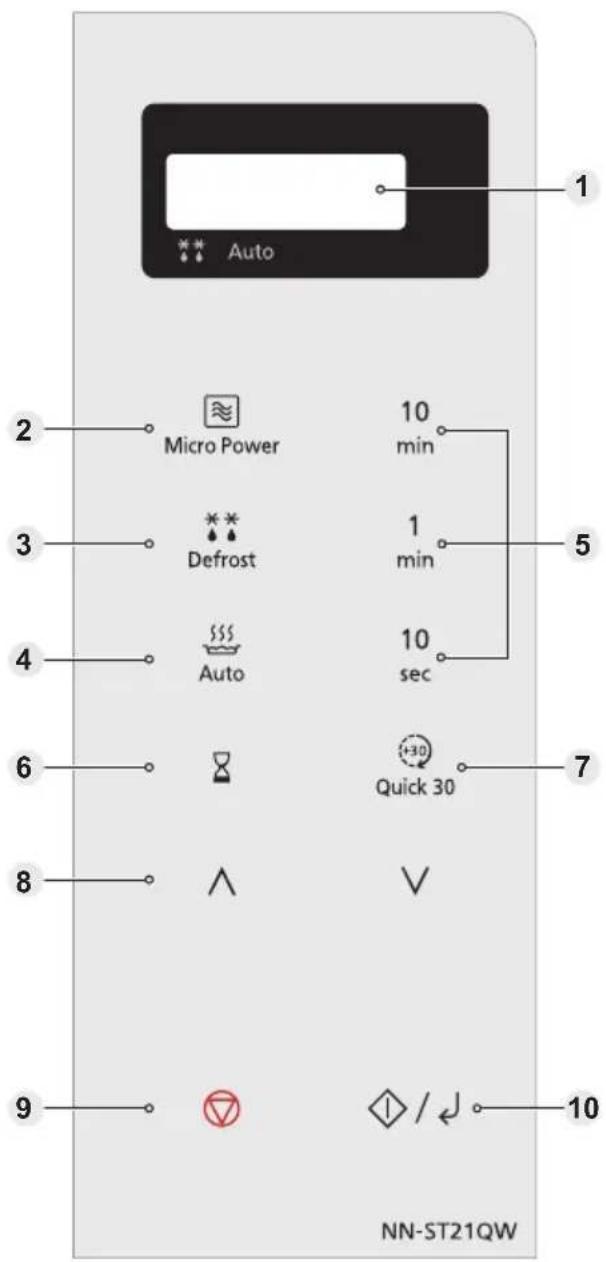

1 Display window
2 Micro Power pad
3 Auto Defrost pad
4 Auto Menu pad
5 Time pads
6 Timer/Clock pad
7 Quick 30 pad
8 Up/Down pads
9 Stop/Reset pad Before Cooking

One press clears your instructions.

During Cooking

One press temporarily stops the cooking process. Another press cancels all your instructions and a "0" or the time of day will appear in the display.

10 Start/Set pad

One press allows oven to begin operation. If door is opened or Stop/Reset is pressed once during oven operation, Start/Set must be pressed again to restart oven.

Notes

1. If Start/Set is not pressed for 6 minutes after cooking programme setting, the oven will automatically cancel the cooking programme. The display will revert back to clock or "0".
2. Place the oven with the display window no higher than eye level for optimal viewing experience.

NN-ST21QW

Setting the clock

When the oven is first plugged in, "88.88" appears in display.

Press Timer/Clock twice.

Hour starts to blink.

Press Up/Down to set hours.

Press Start/Set.

Minute starts to blink.

Press Up/Down to set minutes.

Press Start/Set.

Time of day is now locked into the display.

Notes

1. To reset time of day, repeat the whole step above.
2. The clock will keep the time of day as long as the oven is plugged in and electricity is supplied.
3. This is a 24 hour clock, ie 2 pm = 14:00 not 2:00.

NN-ST21QW

Child safety lock

This feature will make the oven controls inoperable; however, the door can be opened. Child safety lock can be set when the display shows a "0" or the time.

To Set:

To Cancel:

Press Start/Set 3 times within 10 seconds.

The time of day will disappear. Actual time will not be lost. 'L ---' is indicated in the display.

Press Stop/Reset 3 times within 10 seconds.

The time of day will reappear in the display.

The glass tray must always be in position when using the oven.

Press Micro Power to select the desired power level.

Set the cooking time.

Refer to "Setting the cook time/timer time" below.

Press Start/Set.

The time counts down in the display.

Press Power Level Max. time available

once 800 W High 30 minutes

twice 500 W Medium 99 minutes 50 seconds

3 times 400 W Low 99 minutes 50 seconds

4 times 200 W Defrost 99 minutes 50 seconds

5 times 100 W Warm 99 minutes 50 seconds

Notes

1. The oven will automatically work on 800 W (High) MICROWAVE power if a cooking time is entered without the power level previously being selected.
2. While cooking, the glass tray may vibrate. This will not affect cooking performance.
3. For MULTI-STAGE COOKING, refer to page 19.
4. STANDING TIME can be programmed after MICROWAVE power and time setting. Refer to page 21.
5. DO NOT use microwave only with any metallic accessory in the oven.
6. Always check the food during defrosting by opening the door then restarting. It is not necessary to cover food during defrosting. To ensure an even result, stir, turn or separate several times during defrosting. For large joints and poultry, turn halfway through defrosting. Refer to Defrosting guidelines on page 18 for details.
7. When the microwave oven is operated at 800 W (High) microwave power for long time, the microwave oven automatically adjust the power to protect the components of the microwave oven.

■ Setting the cook time/timer time

When you set the cook time or the timer time, use following keys according to your needs.

Press each Time pad repeatedly according to the time value you want to set.

Press Quick 30 to set cooking time in 30 seconds increments.

After you enter a time value with each Time pad or Quick 30, you can adjust the time values with the Up/Down pads.

Microwave cooking and defrosting

Defrosting Guidelines

Standing times

Individual portions of food may be cooked almost immediately after defrosting. It is normal for large portions of food to be frozen in the centre. Before cooking, allow to stand for a minimum of one hour. During this standing time, the temperature becomes evenly distributed and the food is defrosted by conduction. N.B. If the food is not going to be cooked immediately, store it in the refrigerator. Never refreeze defrosted food without first cooking it.

Minced meat or cubes of meat and seafood

Close-up of hands using a black tool to place raw chicken buns on a white plate (no text or symbols visible)

Since the outside of these foods quickly defrosts, it is necessary to separate them, break the blocks into pieces frequently while defrosting and remove them when they have defrosted.

Small portions of food

Three raw chicken legs arranged on a white plate (no text or symbols visible)

Chops and chicken pieces must be separated as soon as possible so that they defrost evenly throughout. Fatty parts and the ends defrost more quickly. Place them near the centre of the turntable.

Bread

Loaves will require standing time to allow the centre to thaw. Standing time can be shortened if slices are separated and rolls and loaves cut in half.

This feature allows you to programme up to 3 stages of cooking continuously.

Example: To continually set 800 W (High) power for 2 minutes, 500 W (Medium) power for 3 minutes and 100 W (Warm) power for 2 minutes.

Press Micro Power once to select 800 W (High) power.

Set the cooking time*.

Press Micro Power once to select 500 W (Medium) power.

Set the cooking time*.
    note right of C: Press twice.

Press Micro Power 4 times to select 100 W (Warm) power.

Set the cooking time*.

Press Start/Set. The time for the first stage counts down in the display.

* Refer to "Setting the cook time/timer time" on page 17.

Notes

1. AUTO PROGRAMMES cannot be used with MULTI-STAGE COOKING.
2. When operating, 2 beeps will sound between each stage, and 5 beeps will sound after all stages have finished.
3. 800 W (High) MICROWAVE power can be set only once in MULTI-STAGE COOKING.

NN-ST21QW

Quick 30 feature

This feature allows you to set cooking time in 30 seconds increments up to 5 minutes at 800 W (High) power.

Press Quick 30 until the desired cooking time appears in the display.

Press Start/Set.

The time counts down in the display.

NN-ST21QW

Add time feature

This feature allows you to add cooking time during cooking.

During cooking, press 1 min or 10 sec.

Cooking time will be added up to 5 minutes.

Note

ADD TIME feature is not available for AUTO PROGRAMMES.

This feature operates as a KITCHEN TIMER or allows you to programme the STANDING TIME/DELAY START.

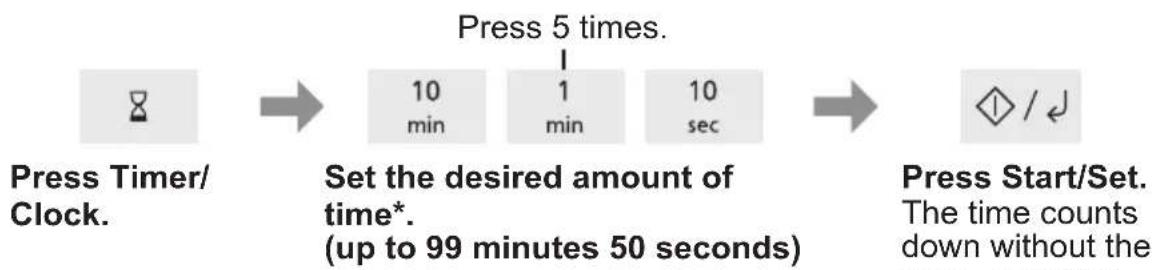

Kitchen timer

Example: To count 5 minutes.

* Refer to "Setting the cook time/timer time" on page 17.

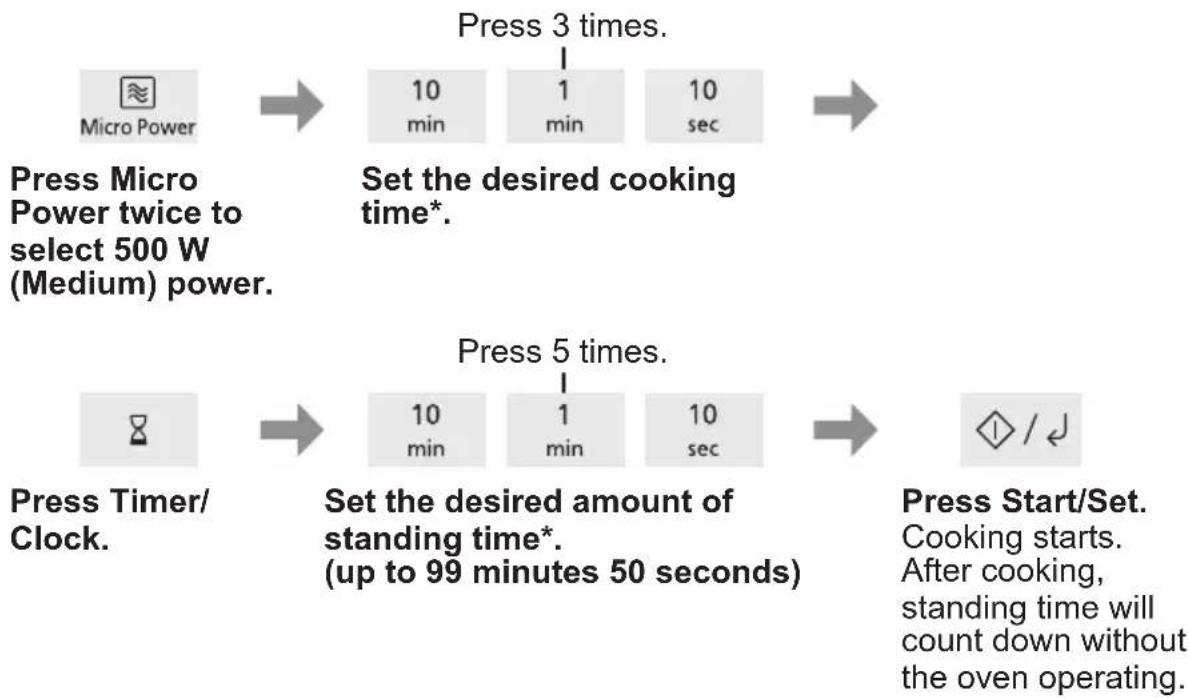

Standing time

Example: To stand for 5 minutes after cooking at 500 W (Medium) MICROWAVE power for 3 minutes.

* Refer to "Setting the cook time/timer time" on page 17.

NN-ST21QW

Using the timer

Delay start

Example: To start cooking at 500 W (Medium) MICROWAVE power for 3 minutes after 5 minutes of standing time.
    note["Press 5 times."] above C

Press Timer/ Clock.
Set the desired amount of delay time*. (up to 99 minutes 50 seconds)

Press Micro Power twice to select 500 W (Medium) power.
Set the desired cooking time*.
Press Start/Set. Delayed time counts down, then start cooking.
* Refer to "Setting the cook time/timer time" on page 17.

Notes

1. MULTI-STAGE COOKING can be programmed including STANDING TIME or DELAY START.
2. Even if the oven door is opened during KITCHEN TIMER, STANDING TIME or DELAY START, the time in the display window will continue to count down.
3. STANDING TIME/DELAY START cannot be programmed before/after any AUTO PROGRAMME.

Auto programmes

With this feature you can defrost/reheat/cook food according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. The oven determines MICROWAVE power level and cooking time automatically. For quick selection, the weight starts from the most commonly used weight for each category. Do not include the weight of any added water or the container weight.

Notes

1. The AUTO PROGRAMMES must ONLY be used for foods described.
2. Only defrost/cook foods within the weight ranges described.
3. Always weigh the food rather than relying on the package information.
4. Most foods benefit from a STANDING TIME. After cooking with an AUTO PROGRAMME, allow heat to continue conducting to the centre.

Auto defrost

Select the desired Auto Defrost programme.

The AUTO PROGRAMME number appears in the display.

Set the weight of the frozen food.

The weight counts up/ down in 10 g increments.

Press Start/Set.

Remember to stir or turn the food during defrosting.

Programme Instructions
1. Small Pieces[IMAGE] 1 press	Weight: 200 - 1000 gFor defrosting small or thin pieces of meat, sausages, minced meat, steak, chops, fish fillets (each 100 g to 400 g).Press Auto Defrost once. Set the weight of the food and press Start/Set. Turn at beeps. Allow to stand for 15 to 30 minutes.
2. Big Piece 2 presses	Weight: 600 - 1600 gFor defrosting big piece of meat, whole chicken, meat joint. Press Auto Defrost twice. Set the weight of the food and press Start/Set. Standing time of 1 to 2 hours should be allowed before cooking, so that the centre of the food thaws out. Turn at beeps.
3. Bread/Cake 3 presses	Weight: 100 - 600 gFor defrosting bread (whole, slices, rolls) and cakes. Cream cakes and iced cakes are unsuitable for this programme. Place the bread or cake on a large plate or shallow dish. Press Auto Defrost 3 times. Set the weight of the food and press Start/Set. Turn at beeps. Allow bread to stand for 10 (white light bread) to 30 minutes (dense rye bread). Cut large loaves in half during standing time.

Auto programmes

Auto menu

Select the desired Auto Menu programme*.

The AUTO PROGRAMME number appears in the display.

Press Start/Set to confirm the setting.

Set the weight of the food.

The weight counts up/down in 10 g increments.

Press Start/Set. The time counts down in the display.

* After pressing the Auto Menu pad, you can also use the Up/Down pads to select the Auto Menu programme.

Notes

1. As some variations may occur in food, check that food is thoroughly cooked and piping hot before serving.
2. Using a casserole with a capacity of 2000 ml or less is recommended.
3. Use a casserole with a width of less than 25 cm (including handle) to avoid touching the side walls of the oven.
4. Remove a casserole carefully from the oven to avoid hitting the upper side of the frontage. You can use a plastic wrap to cover a casserole.

Programme Instructions

1. Chilled Meal[IMAGE]1 press

Weight: 200 - 800 gFor reheating a pre-cooked meal. All foods must be pre-cooked. Foods should be at refrigerator temperature approx. +5 °C. Reheat in container as purchased. Follow manufacturer's directions for preparation. If transferring food to a dish, cover with pierced cling film. Place container on glass tray. Press Auto Menu once and press Start/Set. Set the weight of the food and press Start/Set. Stir at beeps. Stir again at end of programme and allow a few minutes standing time. Large pieces of meat/fish in a thin sauce may require longer cooking. This programme is not suitable for starchy foods such as rice, noodles or potatoes. Meals in irregular bowl shaped containers may need longer cooking.

Programme Instructions
2. Frozen Meal[20XXW] 2 presses		Weight: 300 - 600 gFor reheating a frozen pre-cooked meal. All foods must be pre-cooked and frozen (-18 °C). Reheat in container as purchased. Follow manufacturer's directions for preparation. If transferring food to a dish, cover with pierced cling film. Place container on glass tray. Press Auto Menu twice and press Start/Set. Set the weight of the food and press Start/Set. Stir at beeps and cut the blocks into pieces. Stir again at end of programme and allow a few minutes standing time. Large pieces of meat/fish in a thin sauce may require longer cooking. This programme is not suitable for starchy foods such as rice, noodles or potatoes. Meals in irregular bowl shaped containers may need longer cooking.
3. Fresh Vegetables[804H7] 3 presses		Weight: 100 - 800 gFor cooking fresh vegetables like carrots, broccoli, cauliflower and green beans. Place prepared vegetables in a suitable sized container. Sprinkle with 1 tbsp water per 100 g vegetables. Cover with cling film. Pierce cling film with a knife once in the centre and 4 times around the edge. Press Auto Menu 3 times and press Start/Set. Set the weight of the food and press Start/Set. Stir at beeps.
4. Frozen Vegetables[044H5]		Weight: 100 - 800 gFor all types of frozen vegetables, like frozen peas, sweetcorn or mixed vegetables. Place prepared vegetables into a suitable size microwave safe casserole and add 2-6 tbsp of water if desired. Cover with a well fitting lid. Place the casserole on glass tray. Press Auto Menu 4 times and press Start/Set. Set the weight of the food and press Start/Set. Stir at beeps. At the end of cooking, keep it covered and stand for 3 to 5 minutes.
5. Fresh Fish[540H][0932]		Weight: 200 - 500 gFor cooking fresh fish fillets and steaks. Place in a suitable sized container. Add 1-3 tbsp water or stock. Cover with cling film. Pierce cling film once in the centre and 4 times around the edge. Press Auto Menu 5 times and press Start/Set. Set the weight of the food and press Start/Set. Allow a few minutes standing time.
6. Jacket Potatoes 6 presses		Weight: 200 - 600 gFor cooking jacket potatoes. Choose medium sized potatoes 200-250 g (7-9 oz). Wash and dry and prick with a fork several times. Arrange around the edge of glass tray. Press Auto Menu 6 times and press Start/Set. Set the weight of the food and press Start/Set. Turn at beeps.
Programme Instructions
7. Fresh Chicken Pieces[6x88]	7 presses	Weight: 200 - 600 gFor cooking chicken pieces such as wings, drumsticks, thighs, half breasts etc. Pierce the chicken pieces well with a fork before cooking. Place prepared chicken pieces in a suitable size microwave safe dish. Add 1-5 tbsp oil if desired. Cover with cling film pierced twice. Place the dish on glass tray. Press Auto Menu 7 times and press Start/Set. Set the weight of the food and press Start/Set. Turn at beeps.
8. Casserole Rice	8 presses	Weight: 100 - 200 g	Rice	Recommended Water
			100 g	150 ml 2 litre
			200 g	300 ml 2 litre
		For cooking white rice including short grain, long grain, jasmine rice and basmati rice. Place rice in a suitable size microwave safe casserole. Add recommended water listed above. Allow at least 12 depth of volume for evaporation to prevent boiling over. Cover with lid. Place the casserole on glass tray. Press Auto Menu 8 times and press Start/Set. Set the weight of the food and press Start/Set. Stand 5 minutes after cooking.

Questions and answers

Q: Why won't my oven turn on?

A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert.

2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right, plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorised Service Centre.

Q: My oven causes interference with my TV. Is this normal?

A: Some radio and TV interference might occur when you cook with the oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.

Q: Sometimes warm air comes from the oven vents. Why?

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

For NN-ST21QW only

Q: The oven won't accept my programme. Why?

A: The oven is designed not to accept an incorrect programme. For example, the oven will not accept a 4th stage.

Care of your oven

1. The oven should be unplugged before cleaning.
2. Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. Avoid cleaning the microwave feed guide area situated on the right hand side of the cavity wall.
   DO NOT USE COMMERCIAL OVEN CLEANERS.
3. Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering the glass.
4. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. If the Control Panel becomes dirty, clean it with a soft cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel leave the oven door open to prevent the oven from accidentally turning on. After cleaning press Stop/Reset to clear display window or make sure to turn the Time select dial to zero position.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

8. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the oven cavity floor with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affect the oven cavity floor or roller ring wheels. After removing the roller ring from the oven cavity floor for cleaning, be sure to replace it in the proper position.
9. A steam cleaner is not to be used for cleaning.
10. This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorised dealer.
11. Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Keep air vents clean at all times. Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

Specifications

Power Source: 230 V, 50 Hz

Power Consumption:

Maximum; 1250 W

Output: 800 W (IEC-60705)

Outside Dimensions:

NN-ST21QW;

440 mm (W) x 324 mm (D) x 258 mm (H)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (W) x 333 mm (D) x 258 mm (H)

Oven Cavity Dimensions:

306 mm (W) x 308 mm (D) x 214 mm (H)

Overall Cavity Volume: 20 L

Glass Tray Diameter: 255 mm

Operating Frequency: 2450 MHz

Net Weight: 11 kg

Noise:

LWA 63 dB

Weight and Dimensions shown are approximate.

Specifications subject to change without notice.

This product is an equipment that fulfils the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for purpose of warming or cooking food. Class B means that this product may be used in normal household areas.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products

and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

NN-SM23QM, NN-SM22QB, NN-SM21QW

Bedienfeld 13

Panasonic Testing Centre,

Close-up of raw chicken pieces being lifted with a spatula on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate, no text or symbols visible

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (B) x 258 mm (H) x 333 mm (T)

Garraumabmessungen:

306 mm (B) x 214 mm (H) x 308 mm (T)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Panasonic Testing Centre,

Close-up of raw chicken pieces being lifted with a metal tool on a white plate (no text or symbols visible)

Three raw chicken legs arranged on a white plate, no text or symbols visible

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (L) x 333 mm (P) x 258 mm (H)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Panasonic Testing Centre,

Winsbergring 15, 22525 Amburgo, Germania

Close-up of hands using a black tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken legs arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (L) x 333 mm (P) x 258 mm (A)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Panel de control ....13

Panasonic Testing Centre,

NN-SM23QM, NN-SM22QB, NN-SM21QW Panel de control

200W 360W 700W 800W 1 2 3 min 0 35 4 20 10 8 6

Close-up of raw chicken pieces being lifted with a black tool on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (An.) x 333 mm (Prof.) x 258 mm (Al.)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Bedieningspaneel....13

Panasonic Testing Centre,

NN-SM23QM, NN-SM22QB, NN-SM21QW Bedieningspaneel

200W 360W 700W 800W 1 2 3 min 0 35 4 20 10 8 6

Close-up of hands using a black tool to spread raw chicken buns on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate, no text or symbols visible

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (B) x 333 mm (D) x 258 mm (H)

Binnenafmetingen:

306 mm (B) x 308 mm (D) x 214 mm (H)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Painel de controlo....13

Panasonic Testing Centre,

NN-SM23QM, NN-SM22QB, NN-SM21QW

Close-up of hands using a black tool to place raw chicken buns on a white plate (no text or symbols visible)

Three raw chicken legs arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (L) x 333 mm (P) x 258 mm (A)

Volume Interior Total: 20 L

NN-SM23QM, NN-SM22QB, NN-SM21QW

Panasonic Testing Centre,

NN-SM23QM, NN-SM22QB, NN-SM21QW Panel sterowania

200W 360W 700W 800W min 0 2 4 35 20 10 8

NN-SM23QM, NN-SM22QB, NN-SM21QW

Hand using a black tool to place raw chicken buns on a white plate (no text or symbols visible)

Three raw chicken legs arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

NN-SM23QM, NN-SM22QB, NN-SM21QW

Kontrollpanel 13

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Tyskland

NN-SM23QM, NN-SM22QB, NN-SM21QW Kontrollpanel

200W 360W 700W 800W 1 2 3 min 0 35 4 20 10 8 2 4 6

Close-up of hands using a black tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (B) x 333 mm (D) x 258 mm (H)

Ugnens innermått:

306 mm (B) x 308 mm (D) x 214 mm (H)

Total innervolym: 20 L

Glasbricka diameter: 255 mm

Driftfrekvens: 2450 MHz

Nettovikt: 11 kg

Ljudnivå: LWA 63 dB

NN-SM23QM, NN-SM22QB, NN-SM21QW

Betjeningspanel....13

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Tyskland

Installation

NN-SM23QM, NN-SM22QB, NN-SM21QW

Close-up of hands using a black tool to place raw chicken buns on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (B) x 333 mm (D) x 258 mm (H)

Ovnrummets mål:

306 mm (B) x 308 mm (D) x 214 mm (H)

Ovnrummets volumen: 20 liter

Glastallerkenens diameter: 255 mm

Driftsfrekvens: 2450 MHz

Nettovægt: 11 kg

Støjniveau:

LWA 63 dB

NN-SM23QM, NN-SM22QB, NN-SM21QW

Kontrollpanel 13

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Tyskland

NN-SM23QM, NN-SM22QB, NN-SM21QW Kontrollpanel

200W 360W 700W 800W 1 2 3 min 0 35 4 20 10 8 2 4 6

1 Innstillingsbryter for mikrobølge/tining
2 Tiningseffekt
3 Mikrobølgeeffekt
4 Tidsinnstillingsbryter

NN-SM23QM, NN-SM22QB, NN-SM21QW

10 Tast for start / still inn

Close-up of raw chicken pieces being lifted with a metal tool on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (B) x 333 mm (D) x 258 mm (H)

Ovnsrommets mål:

306 mm (B) x 308 mm (D) x 214 mm (H)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Ohjauspaneeli 13

Panasonic Testing Centre,

Winsbergring 15, 22525 Hampuri, Saksa

Asennus ja kytkentä

Close-up of hands using a black tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (L) x 333 mm (S) x 258 mm (K)

Uunitilanmitat:

306 mm (L) x 308 mm (S) x 214 mm (K)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Ovládací panel 13

Panasonic Testing Centre,

Close-up of hands using a black tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (š) x 333 mm (h) x 258 mm (v)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Ovládací panel 13

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Nemecko

Close-up of hands using a black tool to spread raw chicken buns on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (Š) x 333 mm (H) x 258 mm (V)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Kezelőlap ....13

Panasonic Testing Centre,

Close-up of hands using a black tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (Sz) x 333 mm (Mé) x 258 mm (M)

Sütő belső méretei:

306 mm (Sz) x 308 mm (Mé) x 214 mm (M)

NN-SM23QM, NN-SM22QB, NN-SM21QW

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Germania

Close-up of hands using a tool to place raw chicken pieces on a white plate (no text or symbols visible)

Three raw chicken wings arranged on a white plate (no text or symbols visible)

NN-SM23QM, NN-SM22QB, NN-SM21QW;

440 mm (L) x 333 mm (A) x 258 mm (I)

© Panasonic Corporation 2024

PN:

F0524-0

Printed in P.R.C.
