USER MANUAL Innovac Modo HS3-SD WILFA

IMPORTANT SAFETY INSTRUCTIONS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This product is intended for indoor, non-industrial, non-commercial, household use only.
• Do not use the item outdoors or for any other purpose
• Suitable for dry locations only. Do not use outdoors or on wet surfaces.
• Do not immerse in water.
• Do not use the hose if it is damaged.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

ATTENTION - BATTERY

• Do not charge the vacuum cleaner at the ambient temperature of lower than 5^ and higher than 40^ .
• Let the vacuum cleaner cool down after use before charging.
• If the low power icon is shown on the display after

EN

turning the vacuum cleaner on, you should charge the battery.

• When the battery is fully charged, disconnect the power supply.
• If your vacuum cleaner is not used for a long time (more than 2 months), please unplug it from the power supply. In order to ensure the battery life, it needs to be fully charged once every 2 months.
• Only use the maximum power when needed. Too much usage on max will shorten the expected battery life.

ATTENTION - CLEANING AND MAINTENANCE

• To ensure the suction force of your vacuum cleaner, please clean the floor brush, brush rollers, filters, and dustbin regularly.
• Make sure that all components are installed properly, otherwise it could cause product failure.
• Do not let water get into the electric elements of your vacuum cleaner, it could cause product failure.

EN

INSTRUCTION MANUAL·MODO

PRODUCT OVERVIEW

1. Release button
2. Lid release button
3. Battery
4. Tube
5. Electric floor brush
6. Power button

7.Mode button
8. Crevice nozzle
9. 2-in-1 brush
10. Wall mount and charger

USE

1. Press the power button to start.
2. Press the mode button to adjust the suction level. You can choose between Auto, high, and low.
3. Auto: In auto mode, the vacuum cleaner automatically detects dust. When sensing dust, the animation on the display changes from blue to purple and the speed will increase. If no dust is detected, the animation remains blue, and it will continue in low mode.
4. Low: In low mode it will vacuum with the lowest suction power.
5. High: In high mode it will vacuum with the maximum suction power.

CHARGING

1. Place the vacuum cleaner onto the wall mount. The wall mount can also be placed horizontally on a flat surface. While charging, the battery indicator will flash. One minute after the battery is fully charged, the indicator light switches off.
2. Charging time: 3-5 hours.
3. The battery can also be removed and charged separately in the wall mount.

WALL MOUNT INSTALLATION

• Install the wall mount on a solid, flat wall to avoid tipping and damage to the vacuum cleaner.
• Mounting height: 1090 mm from the floor.
• Distance between screw holes: 56.4 mm .

EN

CLEANING AND MAINTENANCE

DUSTINBIN

To empty the dustbin, hold the vacuum cleaner over a bin and press the lid release button to open the lid.

FILTER COMPONENTS

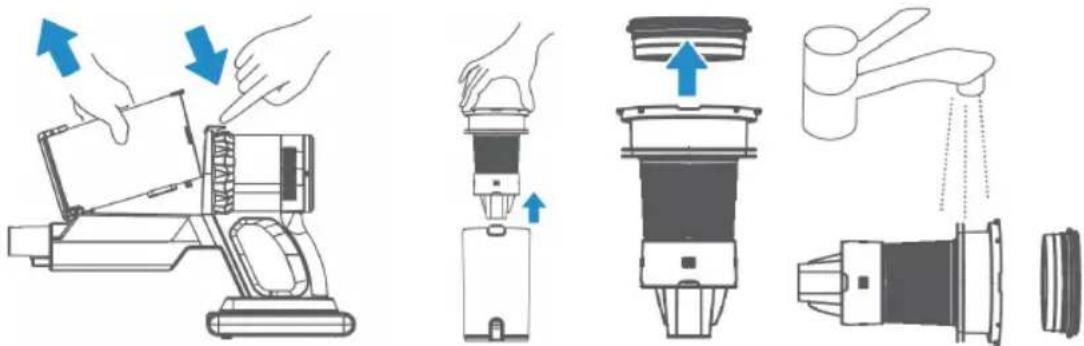

Press the release button to release the dustbin (1). Pull out the filter assembly (2) and remove the filter (3). The dustbin, filter assembly and the filter can be cleaned in water (4). Make sure the parts are completely dry before reinstalling.

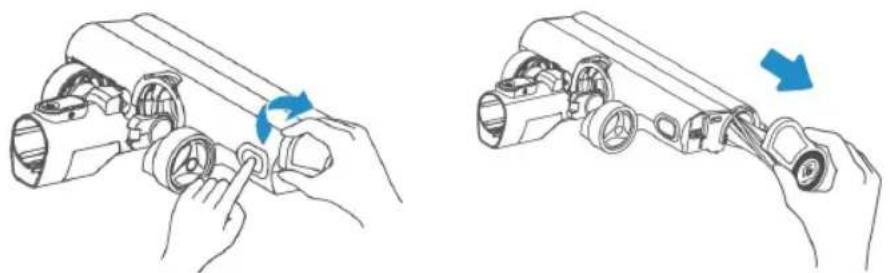

Turn the outlet cover anticlockwise to open the cover (1). Open the cover (2) and pull out the exhaust filter (3). Clean the filter using the vacuum cleaner. Do not use water!

Press and hold the button while rotating the cover upwards (1). Pull out the brush (2) and clean it. Do not use water! If the brush is tangled, use scissors to remove hair and debris.

Fig. 1. Fig. 2.

TROUBLESHOOTING

Problem Possible reason Solution

Error code Cleaning is displayed	Something is blocking the suction inlet, tube or the filters need cleaning	Remove obstacle and/or clean the filters
Suction is weak The suction inlet of the brush or accessories is blocked	Remove obstacle
The filter is blocked Clean the filters
The components are not completely dry after cleaning	Dry the parts and reassemble them
The vacuum cleaner will not charge	Charger not properly connected	Check the connection. To separate the wall mount and the charger, remove the two screws that sits on the inside of the two tubes on the wall mount.
	Ambient temperature during charging is too high or too low	Make sure the vacuum cleaner is not placed in the sunlight if it is too warm. Make sure the doors and windows are closed if it is too cold.
	It has powered off or the battery is low	Charge the vacuum cleaner
The vacuum cleaner does not work	The tube is blocked Remove obstacle

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

350W, 2500mAh

The time for the equipment to enter standby mode is 10 minutes.

The power consumption in standby mode is 0.3W

BATTERY

• Charging time: 3-5 hours.
• Battery time: up to 50 minutes on low, 10 minutes max, 15-30 minutes auto. The battery time on auto depends on the amount of dust detected.
  Defected batteries can be replaced at our service partners.
• Battery efficiency will degrade with time and use.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOld

16 VIKTIGE SIKKERHETSANVISNINGER
18 PRODUKTOVERSIKT
19 BRUK
19 LADING
19 MONTERING AV VEGGFESTE
20 RENGJØRING OG VEDLIKEHOLD
22 PROBLEMSNING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 RESIRKULERING

VIKTIGE SIKKERHETSANVISNINGER

OBS! - RENGJØRING OG VEDLIKEHOLD

• For Å sikre støvsugerens sugekraft ma du rengjore gulvbørsten, børstevalsene, filtrene og støvbeholderen regelmessig.
• Kontroller at allekomponenter er riktiginstallert,ellerskandetforetilproduktein.
• Unngå vann i de elektriske elementene i støvsugeren, da det kan forårsakeproduktein.

PRODUKTOVERSIKT

NO

RENGJØRING OG VEDLIKEHOLD

STØVBEHOLDER

Fig.1 Fig.2 Fig.3 Fig.4

HEPA-UITLAATFILTER

CARACTERISTIQUES DU PRODUIT

350W, 2500mAh
