USER MANUAL Innovac Xceed Flow HS2-XSWB WILFA

Black wireless hair dryer with digital display and 'wilfa' logo (no text on device body)

INNOVAC XCEED FLOW

CORDLESS STICK VACUUM AND WET MOP HS2-XSWB

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

INSTRUCTION MANUAL · INNOVAC XCEED FLOW

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
4 ATTENTION - BATTERY
5 ATTENTION - CLEANING AND MAINTENANCE
6 PRODUCT OVERVIEW
7 DISPLAY
8 OPERATION
9 CHARGING
10 CLEANING AND MAINTENANCE
14 TROUBLESHOOTING
16 GUARANTEE
17 PRODUCT SPECIFICATIONS
17 SUPPORT AND SPARE PARTS
17 RECYCLABILITY

EN

IMPORTANT SAFETY INSTRUCTIONS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This product is intended for indoor, non-industrial, non-commercial, household use only.
• Do not use the item outdoors or for any other purpose
• Suitable for dry locations only. Do not use outdoors or on wet surfaces.
• Do not immerse in water.
• Do not use the hose if it is damaged.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

ATTENTION - BATTERY

• Do not charge the vacuum cleaner at the ambient temperature of lower than 5^ C and higher than 40^ C.
• Let the vacuum cleaner cool down after use before charging.
• If the low power icon is shown on the display after

turning the vacuum cleaner on, you should charge the battery.

• When the battery is fully charged, disconnect the power supply.
• If your vacuum cleaner is not used for a long time (more than 2 months), please unplug it from the power supply. In order to ensure the battery life, it needs to be fully charged once every 2 months.
• Only use the maximum power when needed. Too much usage on max will shorten the expected battery life.

ATTENTION – CLEANING AND MAINTENANCE

• To ensure the suction force of your vacuum cleaner, please clean the floor brush, brush rollers, filters, and dustbin regularly.
• Make sure that all components are installed properly, otherwise it could cause product failure.
• Do not let water get into the electric elements of your vacuum cleaner, it could cause product failure.

EN

INSTRUCTION MANUAL · INNOVAC XCEED FLOW

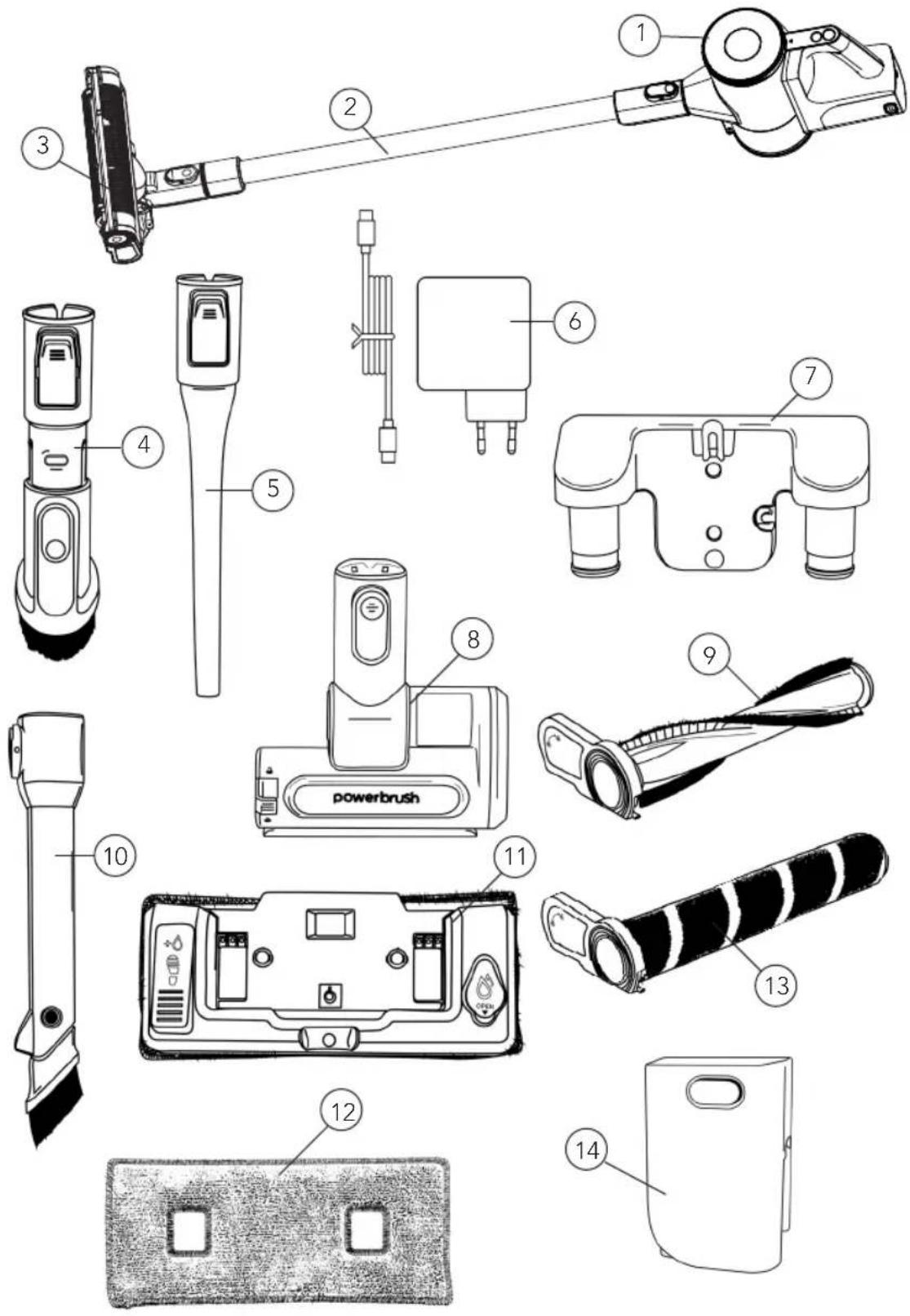

PRODUCT OVERVIEW

Exploded diagram of 14 types of electronic devices with numbered labels for identification.

1. Main unit
2. Extension tube
3. Electric floor brush
   Components:
4. 2-in 1 brush
5. Crevice nozzle
6. Power adapter

7. Wall mount

8. Mini power brush

9. Combo carpet brush
10. Telescopic crevice nozzle with LED light
11. Wet mop attachment
12. Washable mop pad
13. Hard floor brush
14. Battery

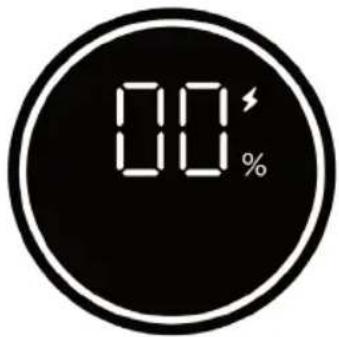

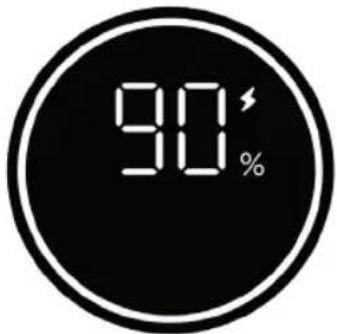

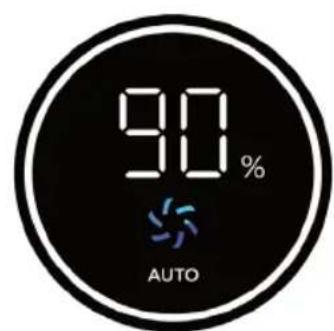

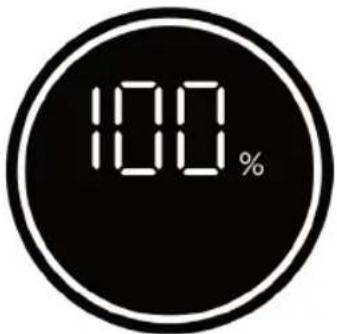

DISPLAY

90% AUTO

90%

90%

Auto; Average speed Low speed High speed

00%

90%

100%

Charging completed Charging Low battery
(Screen flashing)

EN

USE

• Press the power button to start.
• After switching the vacuum cleaner on, press the speed regulation button to adjust the speed. The speed will go from Auto-High-Low.
• When using the Auto level, the dust sensing function is enabled. After sensing dust, the animation on the display will change from blue to purple. If no dust is detected, the animation remains blue, and power will run on low.
• When the vacuum cleaner is off, press the speed regulation button to display the battery percentage.

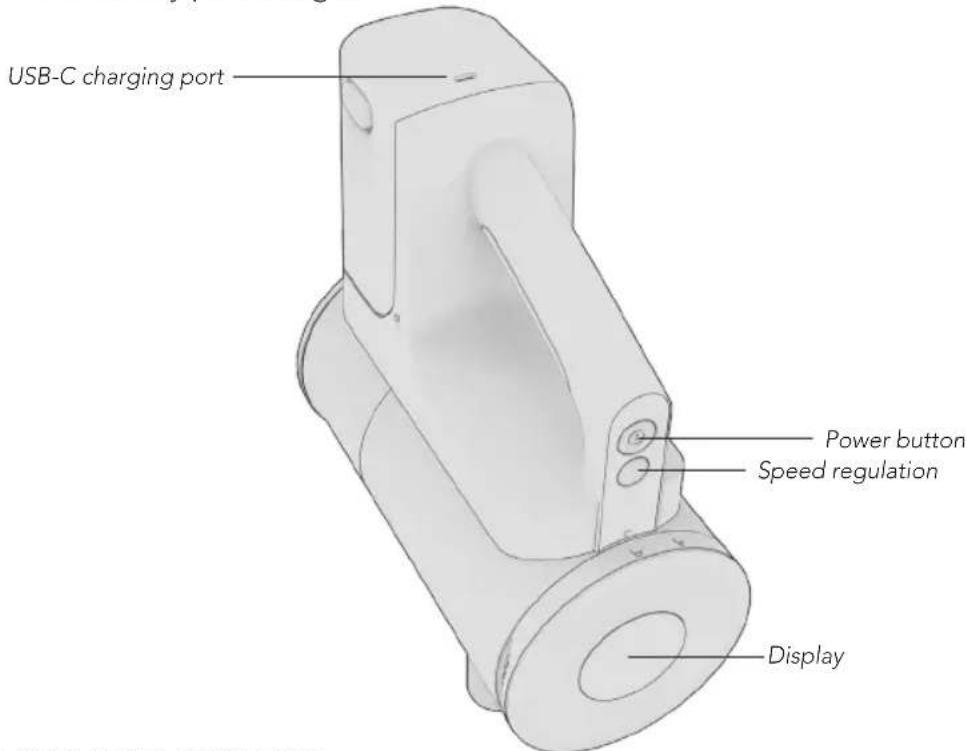

USB-C charging port Power button Speed regulation Display

MOP ATTACHMENT

1. Before use, attach the mop onto the tank. Fill the tank with water and close the lid. Do not fill over the max indicator.

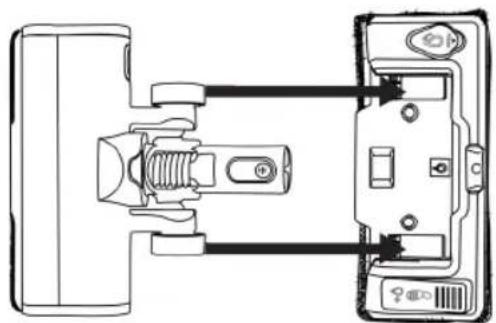

2. Attach the mop to the floor brush by placing the mop attachment on the floor, and gently lower the electric floor brush onto the mop attachment (see illustration)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Press the foot pump to pump water onto the mop to keep the mop damp. Wet the mop before attaching it to the mop attachment for a better cleaning result.

2. Store the mop attachment with an open lid to make it dry and to prevent mould.

3. The mop pads are machine washable at 40^ . Clean after every use.
4. Do not emerge the tank in water.
5. Do not use floor cleaner.
6. Do not use on wet surfaces.

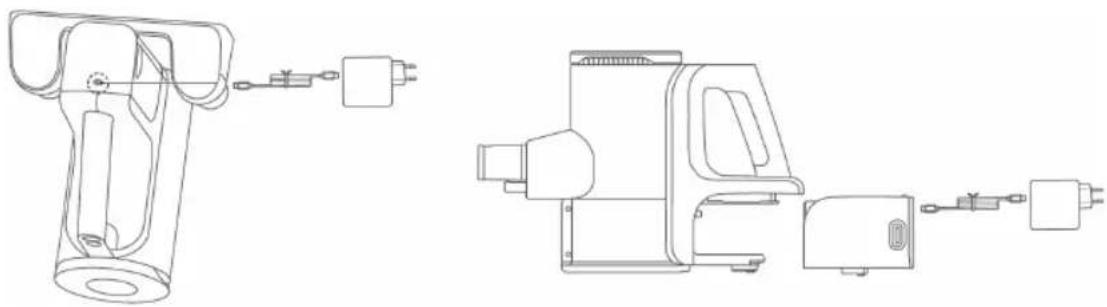

CHARGING

1. Connect the power cord to the charging port
2. Charge for 1.5-3.5 hours.

The battery can also be charged while detached from the vacuum cleaner.

Technical line drawings of two mechanical devices with ports and connectors (no text or symbols)

EN

CLEANING AND MAINTENANCE

DUST CUP

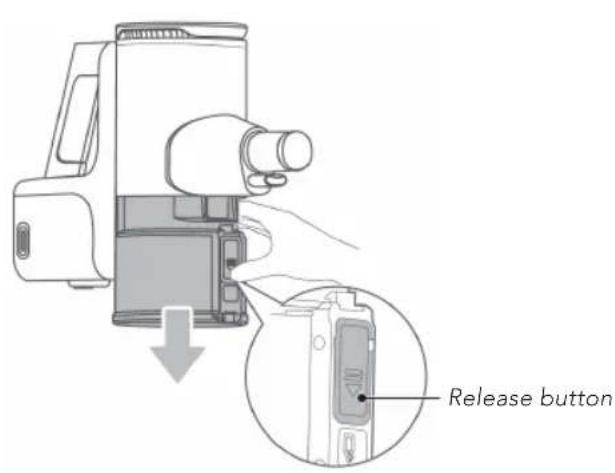

Disassembly

Hold the bottom of the dust cup. Press the release button and carefully pull the dust cup out downward.

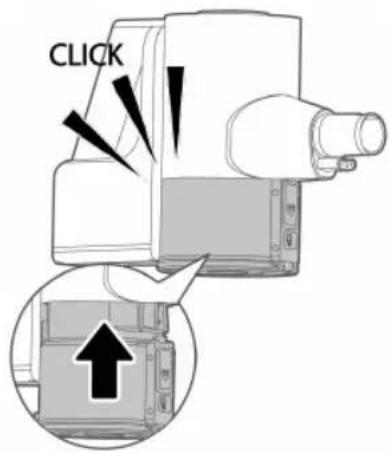

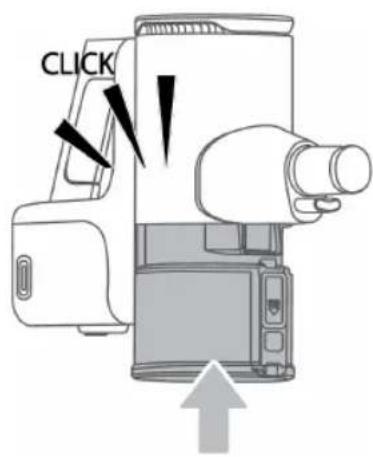

Installation

Push the dust cup up with the suction inlet facing outward.

Release button

CLICK

CLEANING

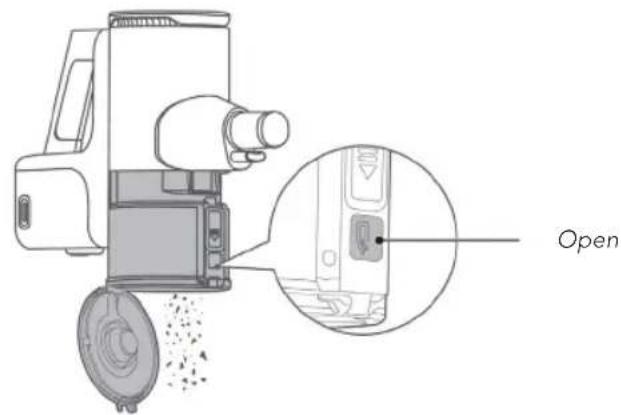

Press the Dust cup release button, and the bottom cover opens. Clean the dust bin with water. Make sure it is completely dry before re-assembling.

Open

FILTER COMPONENTS

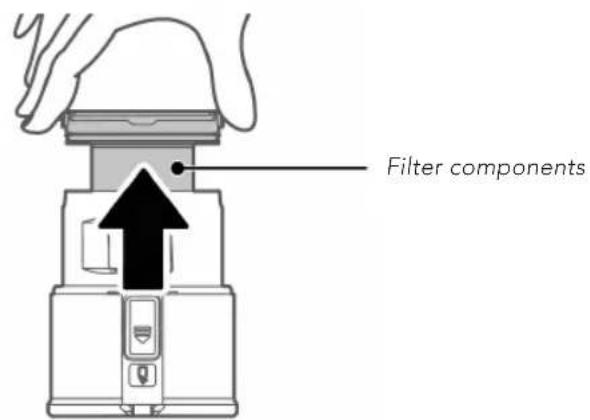

1. Hold the ribs on both sides and pull upwards to remove the filter components.

Filter components

1. Remove the filter sponge, lay it with the white side down and tap it to remove dust. The filter sponge is washable. The HEPA filter can be cleaned with a damp cloth or vacuumed.

Illustration of a hand pressing down on a circular object with a downward arrow (no text or symbols)

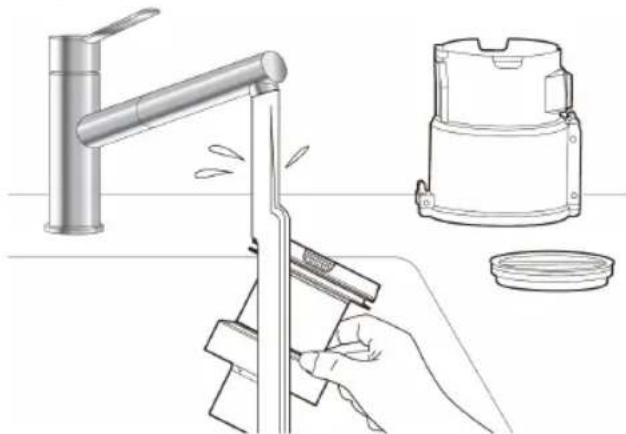

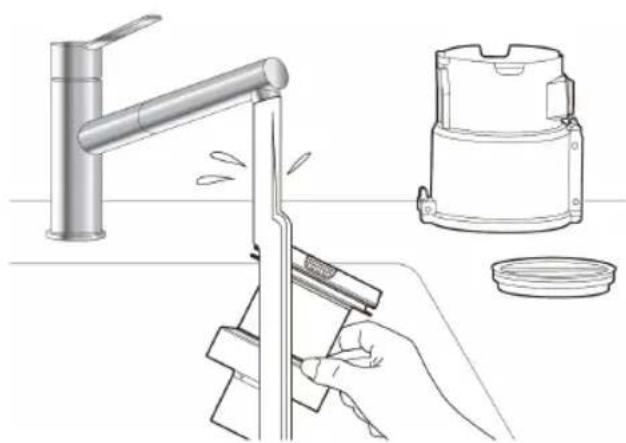

1. Rinse the parts under water.

Line drawing of a kitchen cleaning procedure: faucet, brush, and blender (no text or symbols)

EN

INSTRUCTION MANUAL · INNOVAC XCEED FLOW

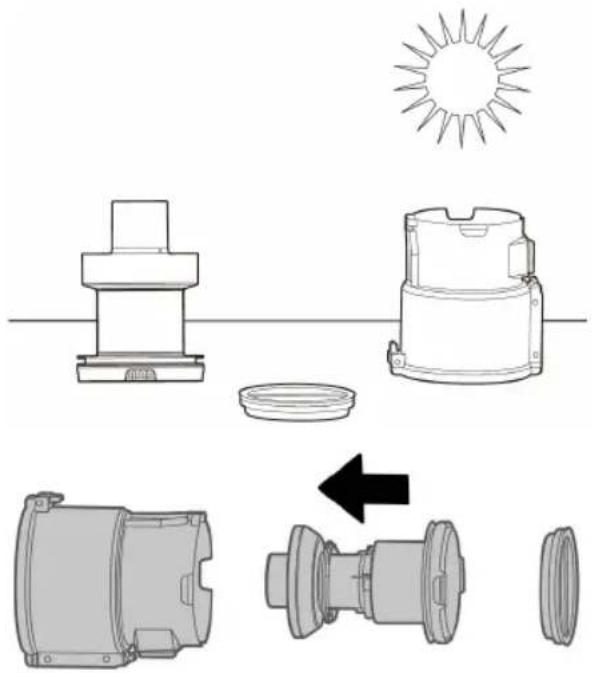

1. The parts needs to be completely dry before installing the filter components into the dust bin.

Technical line drawing of mechanical components including a sun, housing, and internal parts (no text or symbols)

DUST SENSOR

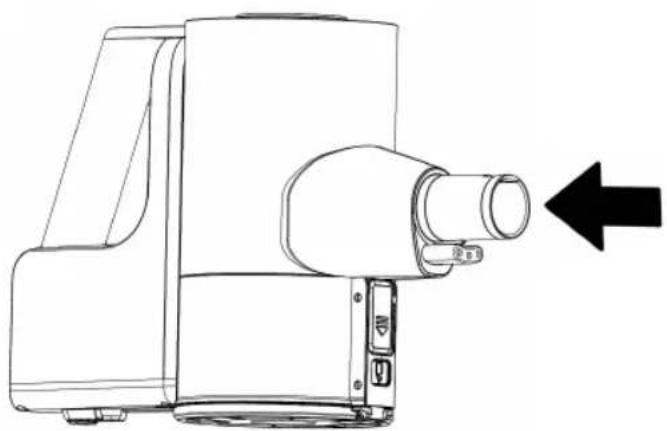

For the dust sensor to function optimally it needs to be cleaned regularly. To clean the dust sensor just use your finger and remove the dust collected on the sensor. The sensor is located inside the tube on two sides. Use your finger or a dry towel to wipe over the sensors.

Line drawing of a portable projector with a black arrow pointing to the right side (no text or symbols present)

FLOOR BRUSH

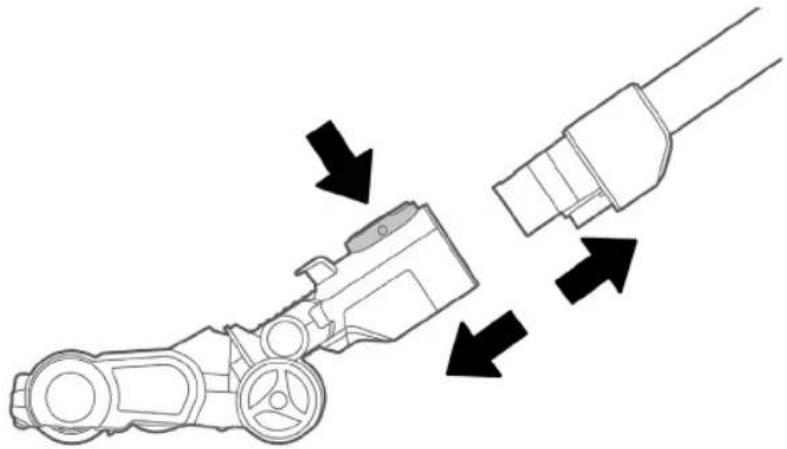

1. Press the button and remove the electric floor brush from the extension tube.

Diagram of a mechanical device with arrows indicating flow or movement, no text or symbols present

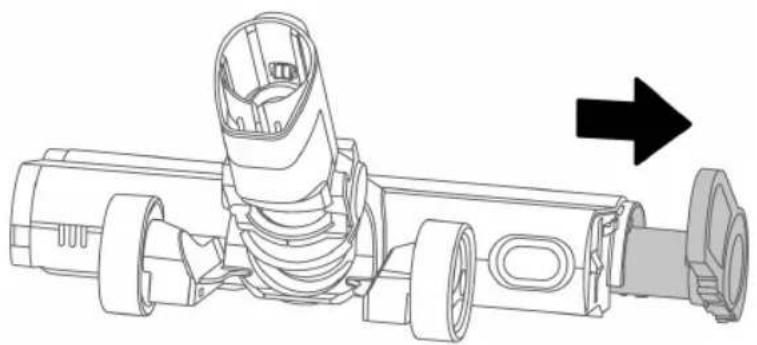

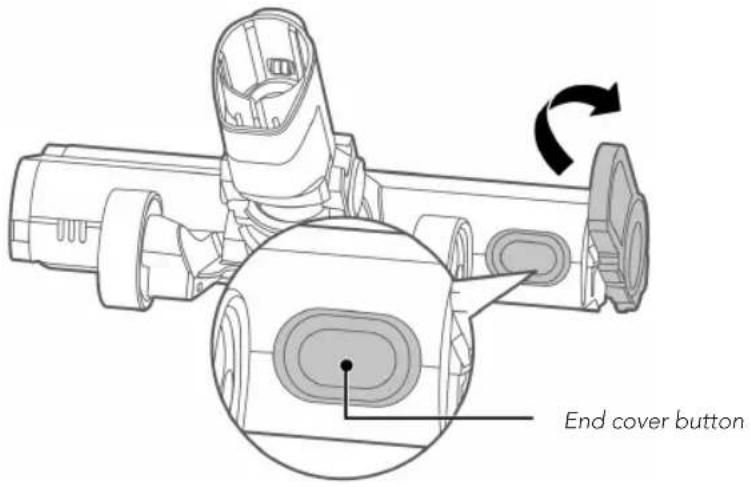

1. Press and hold the button and turn the end cover upwards.

End cover button

1. Pull out the rolling brush and clean it. Do not use water!

Technical line drawing of a mechanical assembly with no visible text or symbols

TROUBLESHOOTING

Problem Possible reason Solution
Three indicators flash	Rolling brush is tangled by hair.	Remove hair or any foreign object stuck in the rolling brush.
	The ambient temperature for operation is too high or too low.	Use the vacuum cleaner in the proper environment.
Electric floor brush is not working	Large pieces of waste have been engaged.	Disassemble the electric floor brush and remove the waste.
	The rolling brush has been tangled with hair.	Remove the rolling brush from the electric floor brush and remove the hair from the brush.
Operation duration becomes shorter	Battery aging	Contact customer service
	The ambient temperature for operation is too high or too low	Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold.
	The battery is not fully charged	Charge the battery
Suction force is weakened	The filter sponge of the dust cup is blocked	Clean the filter sponge
	The suction inlet of the floor brush or accessories is blocked	Remove the objects blocking the suction inlet
	The filter components are not fully dried after washing with water	Make sure the filter components are fully dried, and assembled in the correct way
Charging failure Ambient temperature during charging is too high or too low		Charge the appliance at the proper temperature. Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold.
Battery liquid leakage	The vacuum cleaner has not been used for a long time.	Change the battery. Contact the store to replace the battery.
E1 Airflow is blocked Remove obstacle and clean		filter. Contact the store if the problem still occurs.
E2 Fan fault Clean the filter. Contact the		store if the problem still occurs.
E3 Battery pack failure Change battery
E5 Circuit board hardware failure		Contact the store
“Cleaning” Nozzle blocked Remove obstacle

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. Wilfa is not responsible for damage to third party parts and other collateral damage.

The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)
- Wear parts like motor heads, nozzles, battery, brushes, filters, wheels, light.

Wilfa is also not responsible for damages occurred because of excessive use, incorrect assembly, incorrect storage, incorrect charging, lack of cleaning etc.

The battery comes with a 1 year warranty. The warranty will not be valid if the appliance has not been charged according to the manual.

PRODUCT SPECIFICATIONS

500W, 2500mAh

If the appliance is idle for 10 minutes, it enters standby. The power consumption in standby is 0.2W.

BATTERY

• Charging time: 1.5-3.5 hours.
• Battery time: up to 60 minutes on low, 12 minutes max, 15-30 minutes auto. The battery time on auto depends on the amount of dust detected.
• Defected batteries can be replaced at our service partners.
• Battery efficiency will degrade with time and use. With normal household usage, and by following the usage, charging and maintenance guidelines you can expect around 80% of efficiency after 5 years or 390 hours of use.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.
