USER MANUAL VAL-TH90XB VALBERG

Labeled diagram of a hand mixer with six numbered parts for identification

Line drawing of a coffee maker with a downward arrow indicating compression or cooling (no text or symbols)

Line drawing of a hand-painted object resembling a container with a lid, showing an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a lever and handle, no text or symbols present

Diagram illustrating a cleaning or cleaning process with labeled steps and visual icons of a bucket, filter, and funnel.

Line drawing of a hand turning a container with a tool, showing an arrow indicating the process (no text or symbols present)

Line drawing of a coffee maker with a handle and lid, showing the interior and side view (no text or symbols)

Diagram of a plug inserted into a square socket, with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen blender with handle and base, showing no text or symbols

Merci !

12 tasses	8 cuillères
10 tasses	6 cuillères
8 tasses	4 cuillères
6 tasses 2 cuillères
4 tasses	1 cuillères

Solid gray rounded rectangle shape with no text or symbols

Thank you!

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

Product overview

Parts

Product overview

Intended use

Specifications

Product usage

Before first use

Use

Tips and tricks

Cleaning and maintenance

Cleaning and maintenance

Descaling

Storage

Parts

A Permanent filter Air inlet F
B Filter holder Water tank with gauge G
C Cap Supplied power cable with plug H
D Thermal jug On/Off button / operation indicator
E Lid Plate J

Product overview

• Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

• This unit has been designed to exclusively brew coffee. Do not use it to filter other liquids.
- Any other use may damage the unit or cause injury.

Specifications

Model: 10006503 - VAL-TH90XB

Operating voltage: 220-240 V\~, 50/60 Hz

Power consumption: 820-980 W

Capacity: 12 cups

Protection class: Class I

Standby mode power consumption: 0.33 W

The period after which the equipment

reaches automatically standby mode:

5 minutes

B

Product usage

Before first use

• Fill the unit with fresh water up to the MAX level on the water level indicator, then boil the water 2 or 3 times (→Use). Discard the water after each cycle. This operation will eliminate any manufacturing process-created residue.
• Due to the manufacturing process, the unit may emit a faint burning smell when first turned on. This is completely normal and does not indicate a manufacturing defect or risk.
• Clean the unit ( Cleaning and maintenance).

Use

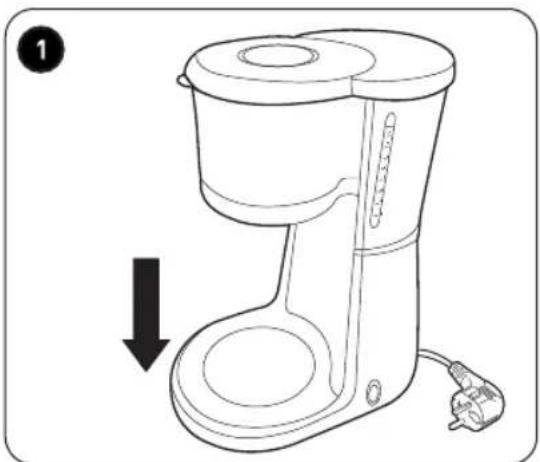

1 Place the unit on a flat, level and heat resistant surface.

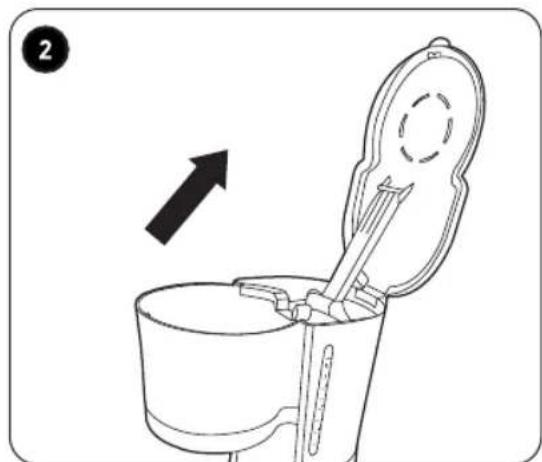

2 Open the lid.

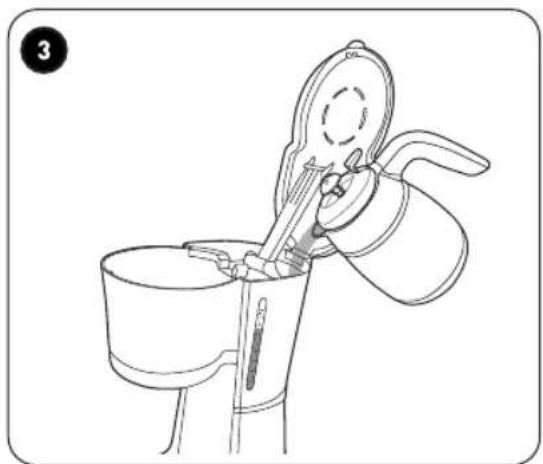

Pour in the correct amount of water, depending on the number of cups of coffee you would like. The number of cups is displayed on the water level indicator. You can brew up to 12 cups of coffee.

Note: Always fill the coffee maker with water before turning it on. We recommend using softened or filtered water to prevent limescale deposits from building up.

WARNING

• Never let the water exceed the indicated MAX level to prevent hot water from boiling over. Risk of burns!
• Avoid brewing coffee when the water level is below the minimum 2-cup level.

B

Product usage

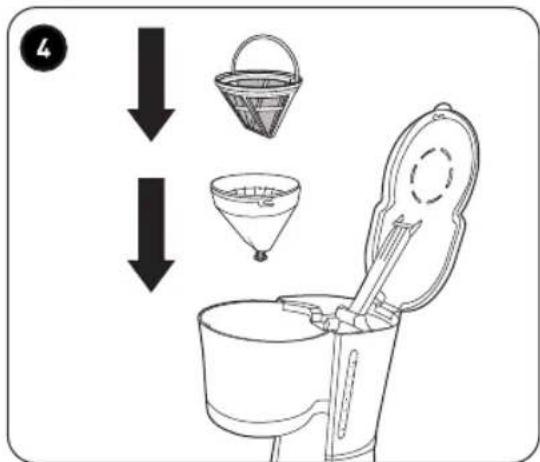

4 Insert the filter holder into the coffee maker. Then insert the permanent filter.

Pour the desired amount of ground coffee into the permanent filter by means of the measuring spoon. The quantities can be increased or reduced to your liking.

For even tastier coffee, the permanent filter can be replaced with a size 4 paper filter.

Brewing Ground coffee
12 cups	8 spoons
10 cups 6 spoons
8 cups 4 spoons
6 cups 2 spoons
4 cups 1 spoon

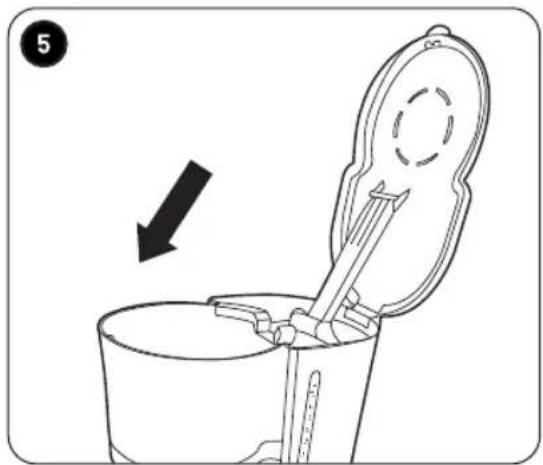

5 Close the lid.

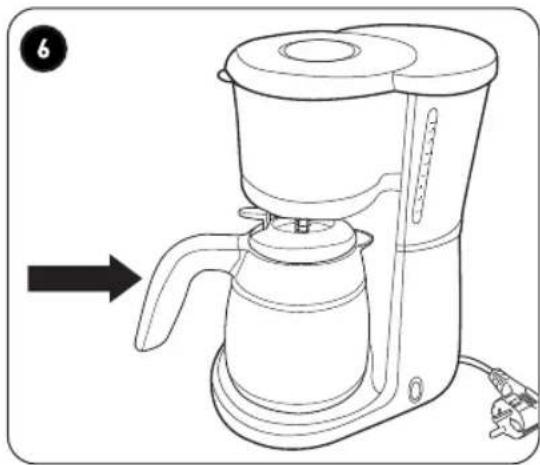

6 Place the thermal jug on the plate.

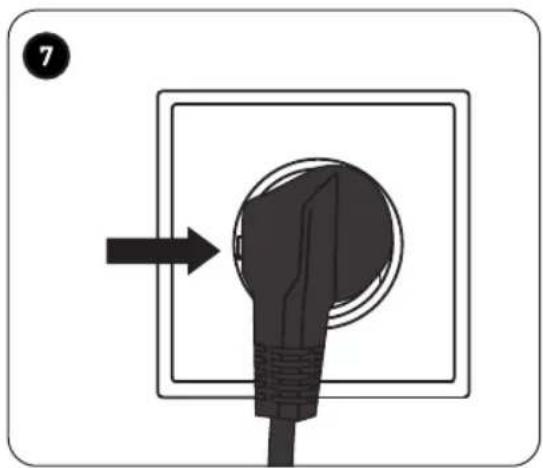

7 Connect the power cable's plug to an appropriate mains socket.

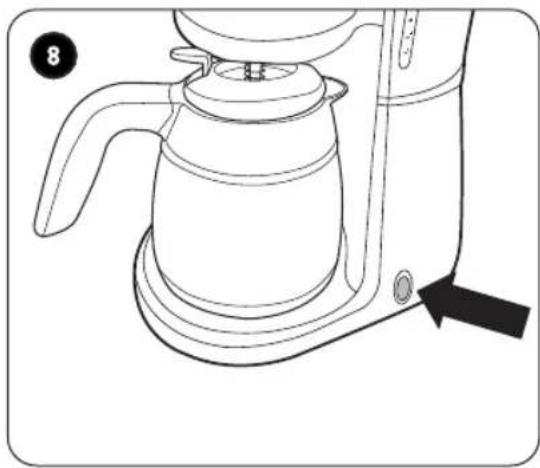

8 To switch on: Press the On/Off button. The operation indicator will light up.

• The product will automatically switch off at the end of the brewing process.
• Remove the thermal jug from the plate to serve.
• Carefully pour the hot coffee to avoid spilling it. Only ever hold the thermal jug by its handle. Risk of burns!

Please note:

• The coffee machine is equipped with an anti-drip system which prevents the coffee from dripping out of the filter holder whenever the thermal jug is removed for a short time during the coffee brewing process. Please note that you must replace the thermal jug within 30 seconds. Otherwise, the coffee could overflow onto the upper side of the coffee machine.
• Once the water has been filtered, the coffee-filled thermal jug can be left to keep warm on the plate.

• After use: Unplug the power plug from the mains socket.

B

Product usage

Tips and tricks

• A clean coffee maker is essential for brewing great tasting coffee. Regularly clean the coffee maker as directed (→Cleaning and maintenance).
• Always use fresh, cold water in the coffee maker. We recommend using softened or filtered water to prevent limescale deposits from building up.
• Store unused coffee powder in a cool, dry place. After opening a bag of coffee powder, reseal it tightly, then store it in the fridge to preserve its freshness.
• To obtain an authentic coffee taste, buy whole coffee beans and finely grind them just before the brewing process.
• Do not reuse coffee powder as this significantly reduces the coffee's aroma.
• We do not recommend reheating coffee, as the coffee is at its best immediately after being brewed.
• Clean the coffee maker whenever over-extraction causes a greasy appearance. The oil droplets found on the surface of brewed black coffee are the result of oil being extracted from the coffee powder.
• This greasy appearance may occur more frequently when using dark-roasted coffees.

Cleaning and maintenance

• Clean the unit with a soft, slightly damp cloth.
  Make sure that no moisture gets inside the unit while cleaning it.
• Never use corrosive cleaners, wire brushes, abrasive scouring pads or metal/sharp tools to clean your unit.
  • Thoroughly dry the unit after cleaning it.
• Store the unit in a cool, dry place, out of the reach of children and pets.

WARNING

- Before cleaning or maintaining the unit, make sure that it has been switched off and unplugged from the mains socket. Then let it cool completely.

- Never immerse the unit in water or any other liquid.

Part Cleaning method

• Filter

• Filter holder

• Open the lid, then remove the permanent filter and the filter holder.
  • Fully drain the water tank.

• Dispose of the coffee grounds in a fully eco-friendly manner.
• Clean them with a small amount of mild dishwasher detergent.
• Rinse them thoroughly with clean water.
• Let them dry completely.

• Insert them into their original housing.

• Spoon

• Thermal jug

• Rinse them thoroughly with clean water.

• If necessary, clean them with a small amount of mild dishwasher detergent.
• Let them dry completely.

Descaling

WARNING

Descale the coffee maker on a regular basis. The descaling intervals depend mainly on the hardness of the water and the frequency of use. Only use descaling agents available on the market and follow the manufacturer's instructions.

• Fill the tank with water mixture up to the MAX mark on the water level gauge, then add the descaler.
• Start the boiling process.
  • After boiling, discard the water and descaler solution.
• Avoid pouring the water and descaler solution into an enamelled water basin. Do not reuse the same mixture. If not satisfied with the results, repeat the steps.
• Descaler residue can affect the taste of the coffee. Run the coffee maker for 2 or 3 brew cycles with clean water to remove any residue.
• Clean the unit (→Cleaning and maintenance).

Storage

• Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Bedankt!

Black and white warning sign with exclamation mark symbol

WAARSCHUWING

Solid gray rounded rectangle shape with no text or symbols

¡Muchas gracias!

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.
