Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 40

Device Overview 42

Control panel and buttons 43

Installation 45

Dimensions and installation 48

Before first use 49

Loading the dishwasher correctly 54

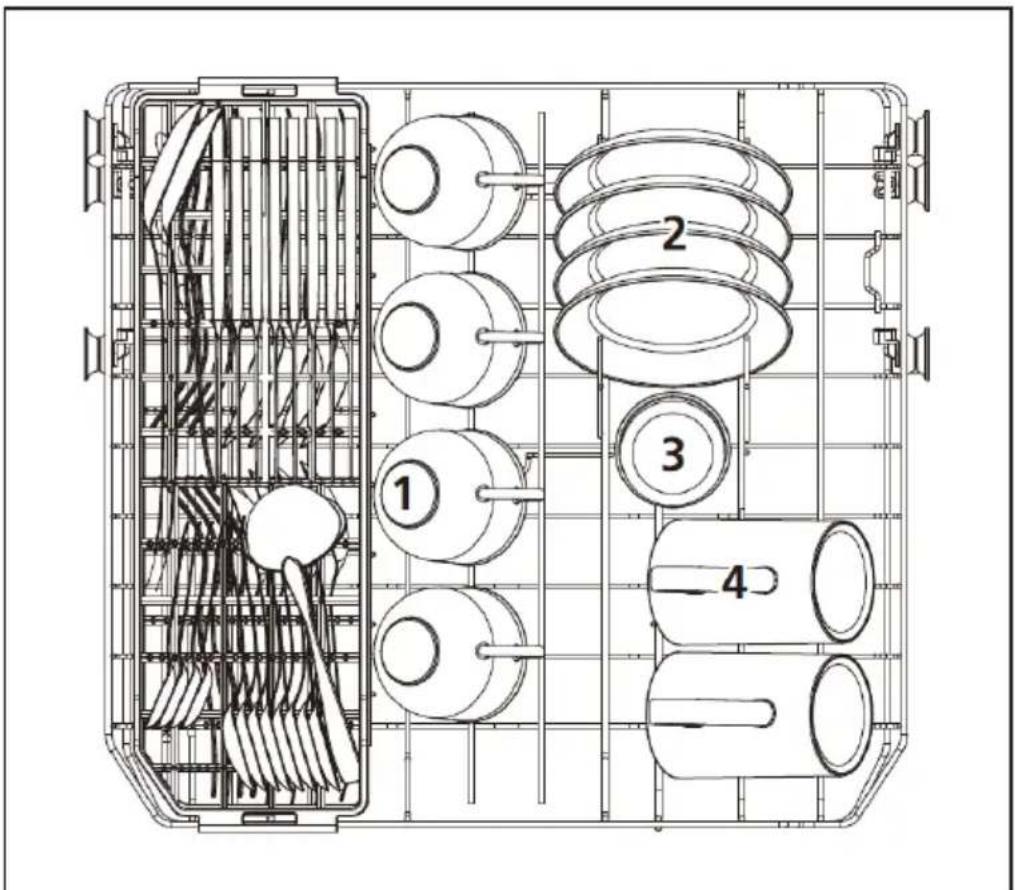

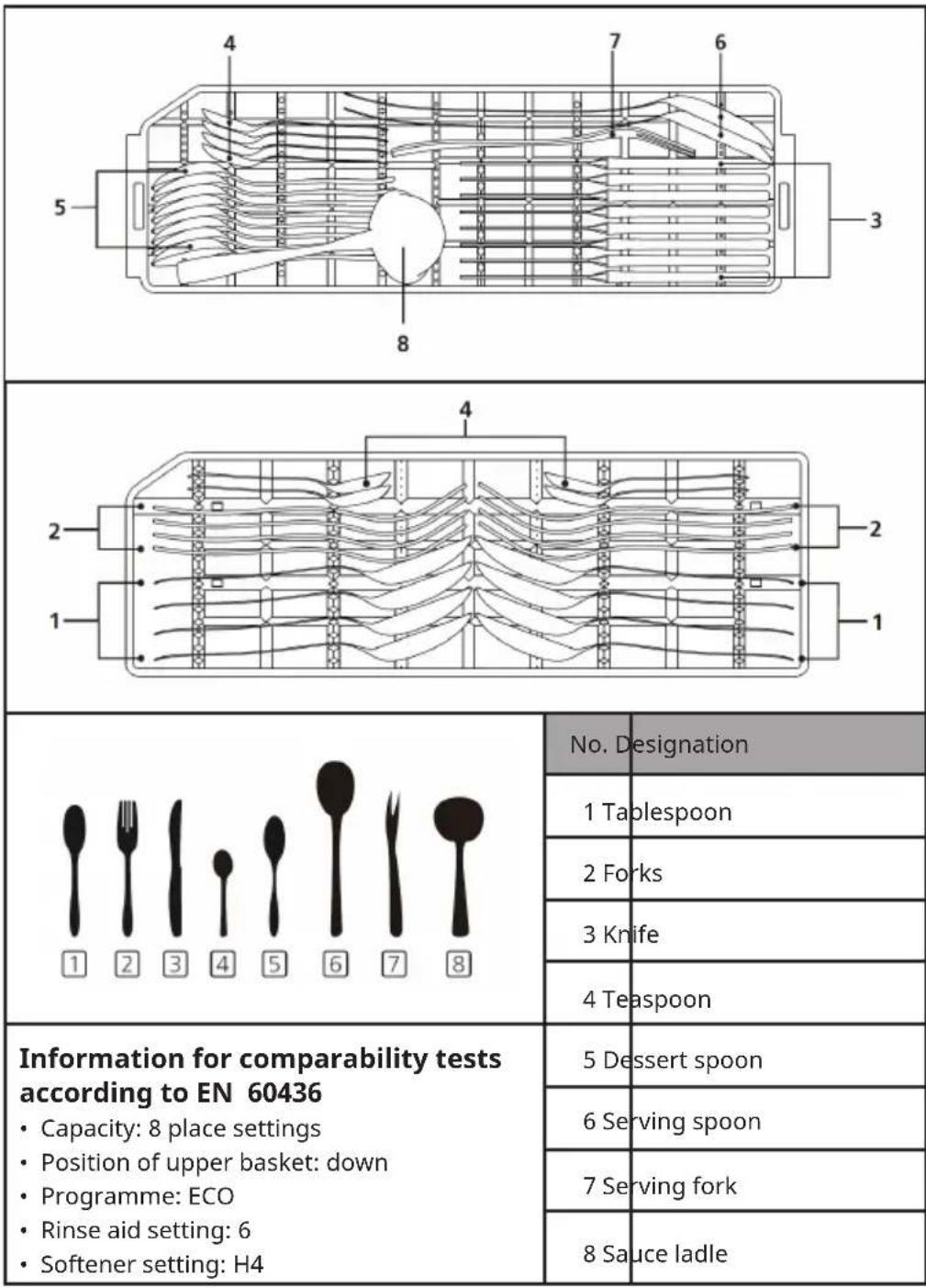

Loading the baskets (EN 60436) 56

Rinsing programmes (EN 60436) 59

Commissioning and operation 60

Cleaning and care 62

Troubleshooting 66

Product data sheet 70

Disposal considerations 71

Manufacturer & importer (UK) 71

SAFETY INSTRUCTIONS

WARNING

Risk of explosion! Under certain conditions, hydrogen gas can form in a hot water system that has not been used for more than two weeks. HYDROGEN GAS IS HIGHLY EXPLOSIVE! If you have not used the dishwasher for a long time, open all hot water taps and let the water flow for a few minutes before using the dishwasher. This causes the accumulated hydrogen gas to escape from the system. As the gas can ignite, avoid open flames and do not

smoke during this time.

• Do not pull on the door. Do not sit or stand on the door and the dish rack.
• Do not touch the heating rod of the dishwasher during or shortly after operation.
• Do not start the dishwasher until the door is firmly closed.
• Open the door very carefully during operation and take care that no water splashes in your direction.
• Do not place anything heavy on the open door, this could cause the machine to tip forward.
• Make sure that plastic objects do not come into contact with the heating element during operation.
  • Make sure that the detergent compartment is empty after the washing cycle.
• Only wash plastic objects that are dishwasher safe and marked accordingly.
• Only use detergents and rinse aids that are suitable for dishwashers. Do not use soap, detergent or hand wash.
• The building's power supply must include a main switch with a contact gap of at least 3 mm between each pole to allow the circuit to be broken in the event of a malfunction.
• Keep children away from the detergent and rinse aid and make sure they do not steal any detergent from the open door.
  • Make sure that children do not play with the device.
  • Children, physically and physically impaired persons should only use the appliance if they have been familiarised in detail with the functions and safety precautions by a supervisor.

• Dishwashing detergents are strongly alkaline. If they are swallowed, poisoning can occur. Avoid any skin or eye contact and keep children away from the dishwasher when the door is open.

• To make sure no one can trip over it, do not leave the door permanently open.

• If the mains cable is damaged, it must be replaced by the manufacturer or a qualified specialist.
• Please dispose of the packaging material properly.
• During installation, make sure that the mains cable is neither severely kinked nor squeezed.
• Do not play with the controls.
• When connecting the machine, use new hoses and discard the old ones.
• Make sure that no carpet is blocking the openings underneath.
• Use the dishwasher only for the purpose for which it was designed.
• Use the dishwasher indoors only.
• The dishwasher is not intended for commercial use, but only for use in households and similar environments.

CAUTION

Risk of injury! When loading the machine, take special care that sharp items are placed in the machine so that they do not damage the door seal. Sharp knives must be placed in the cutlery basket with the handle facing upwards. Knives and other objects with sharp points must be placed in the cutlery basket with the point facing downwards or placed horizontally.

WARNING

Risk of suffocation! Children could injure themselves on the packaging materials and old appliances. When disposing of the old appliance, make sure that you cut off the power cable and render the door lock unusable.

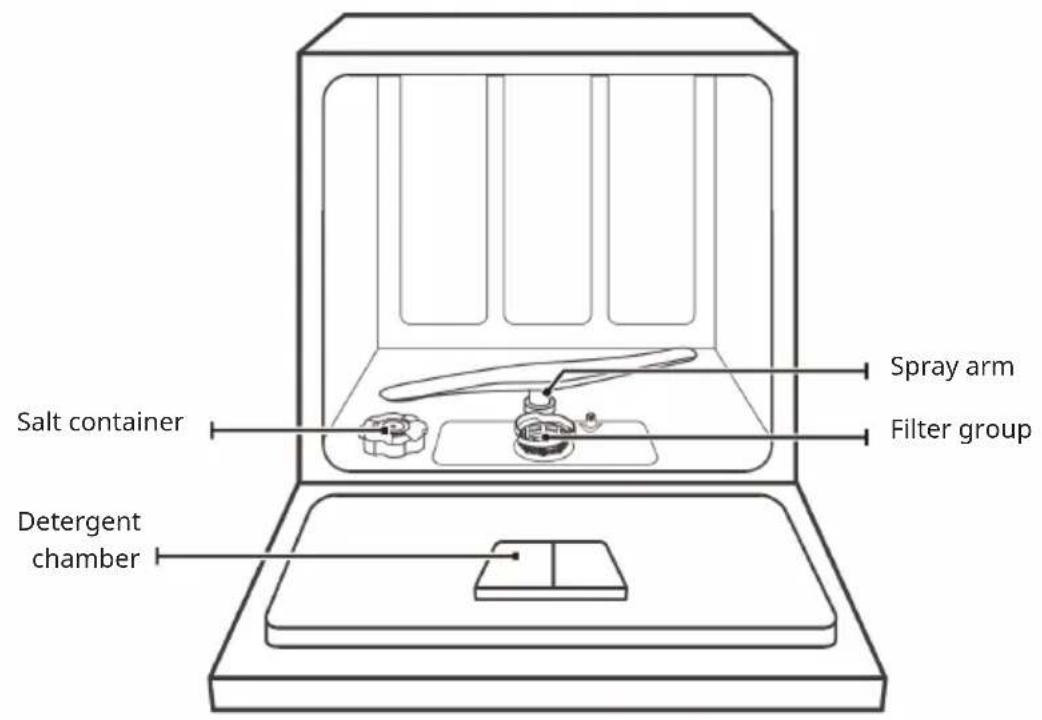

DEVICE OVERVIEW

Salt container Detergent chamber Spray arm Filter group

Wireframe diagram of a boat hull with visible hull edges and center point (no text or symbols)

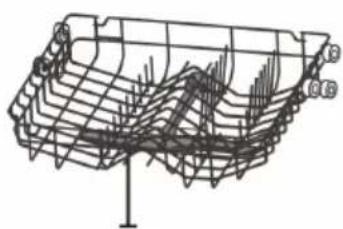

Upper basket and upper spray arm

Line drawing of a multi-tiered plastic shopping cart with wheels and handles (no text or symbols)

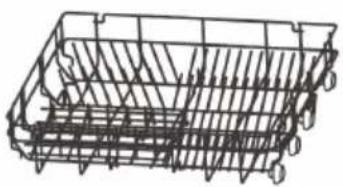

Lower basket

Cutlery basket

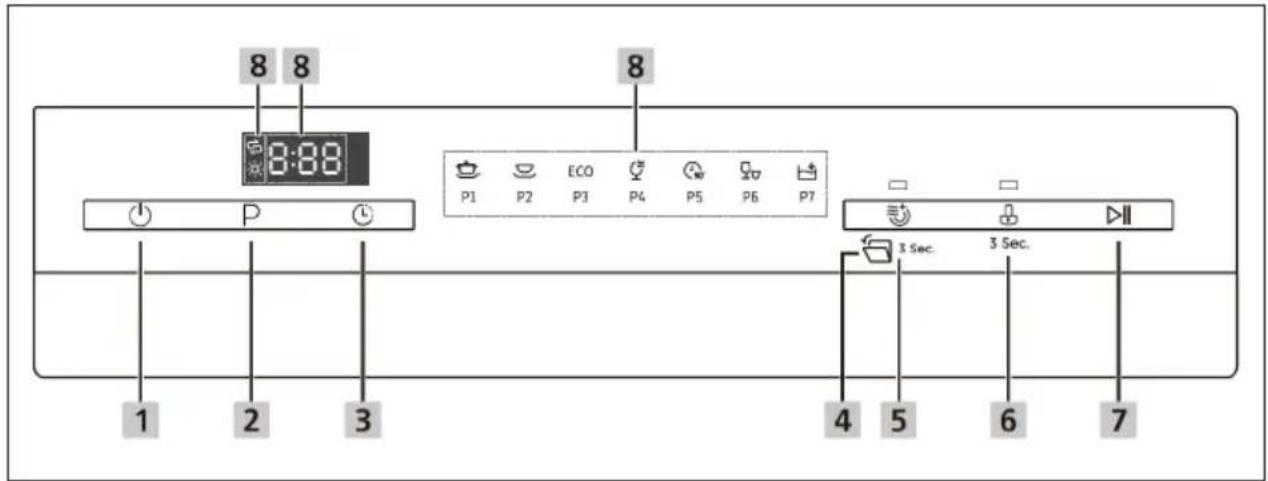

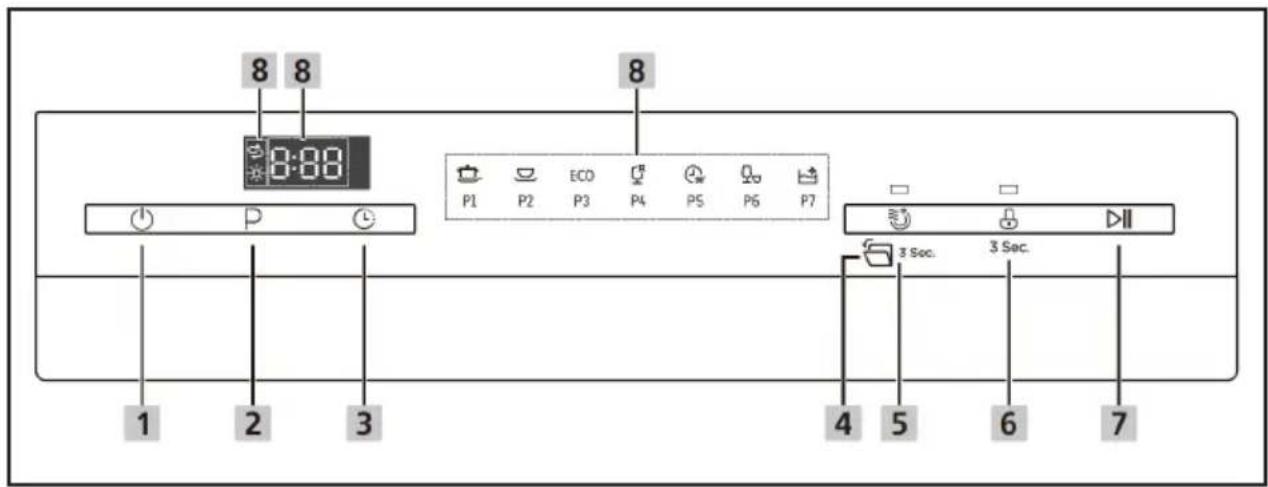

CONTROL PANEL AND BUTTONS

8 8 8:88 P1 P2 ECO P3 P4 P5 P6 P7 3 Sec. 3 Sec. 1 2 3 4 5 6 7

1	Power button (on/off)	Press this button to switch the dishwasher on or off.
2	Programme	Press this button to select the corresponding washing programme. The symbol of the selected programme lights up.
3	Delay	Press this button to set the washing start delay time. You can delay the start of the washing process by up to 24 hours. Pressing this button delays the start of the washing process by one hour at a time.
4	Automatic opening	Press this button for 3 seconds to activate or deactivate the function. AO or AF will be displayed on the screen. After washing, the door opens automatically for a better drying effect. This function cannot be used together with the Rapid programme.
5	Extra dry	For drying dishes completely. Can only be used with the Intensive, Universal, ECO, Glass and 90 min programmes. When you press the button, the corresponding indicator lights up.
6	Child safety lock	This option allows you to lock the buttons on the control panel so that children cannot accidentally start the dishwasher by pressing the buttons on the control panel. Only the power button remains active. Press this button for 3 seconds to activate or deactivate the child safety function. When the childproof lock is active, the corresponding indicator lights up.

8 8 8:00 P1 P2 ECO P3 P4 P5 P6 P7 3 Sec. 3 Sec. 1 2 3 4 5 6 7

7	Start/pause	To start or interrupt the selected washing programme when the dishwasher is in use.
8	Warning display		Rinse aid: When the corresponding symbol is displayed on the screen, it means that the detergent is almost empty and needs to be refilled.
			Rinse salt: When the corresponding symbol lights up on the screen, it means that the dishwashing salt needs to be refilled.
	Display 8:88		Displays the time, delay time, error codes, programme temperature and the like.
	Programmes		Intensive: For heavily soiled pots and pans and for dishes with dried-on food residues.
			Normal: For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.
			ECO: Standard programme for cleaning dishes with a normal degree of soiling. Environmentally friendly programme, as it is very energy- and water-saving.
			Glass: For light soiling and glasses.
			90 minutes: For dishes with a normal degree of soiling that need to be cleaned quickly.
			Quick: Short wash cycle for dishes with light soiling and dishes that do not need to be dried.
			Self-cleaning: This programme effectively cleans the dishwasher itself.

INSTALLATION

Preparation

• Place the appliance near a water inlet or drain and a power socket.
• Make sure that the hoses and the plug are accessible at all times.

Setting up the unit

Place the unit in the preferred location. The back should face the wall, the sides towards the built-in cupboard or a wall. The dishwasher is equipped with a water drain that can be directed to the right or the left to facilitate installation.

Power connection

Do not use an extension cord or adapter. Make sure that the socket is earthed and complies with local regulations. Only connect the appliance to sockets that correspond to the specified voltage of the appliance. If the plug does not fit the socket, have it replaced by a professional.

Attach and remove the water inlet

Use new hoses for the connection. Do not use old hoses. The water pressure must be between 0.04-1 MPa. If the pressure is lower than this, ask a specialist company for advice.

• Attach the inlet hose: Completely unwind the safety inlet hose from the bracket on the back of the appliance. Attach the screw to a 34 inch water tap. Turn on the water supply fully before use.
• Remove the supply hose: Close the water supply. Unscrew the inlet hose from the water tap.

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols present)

Note: Make sure the screw is tight on the tap. If you have never used the connection before or have not used it for a long time, drain some water beforehand until clear water comes out of the tap. These precautions ensure that the inlet valve does not become clogged or damaged by particles in the water.

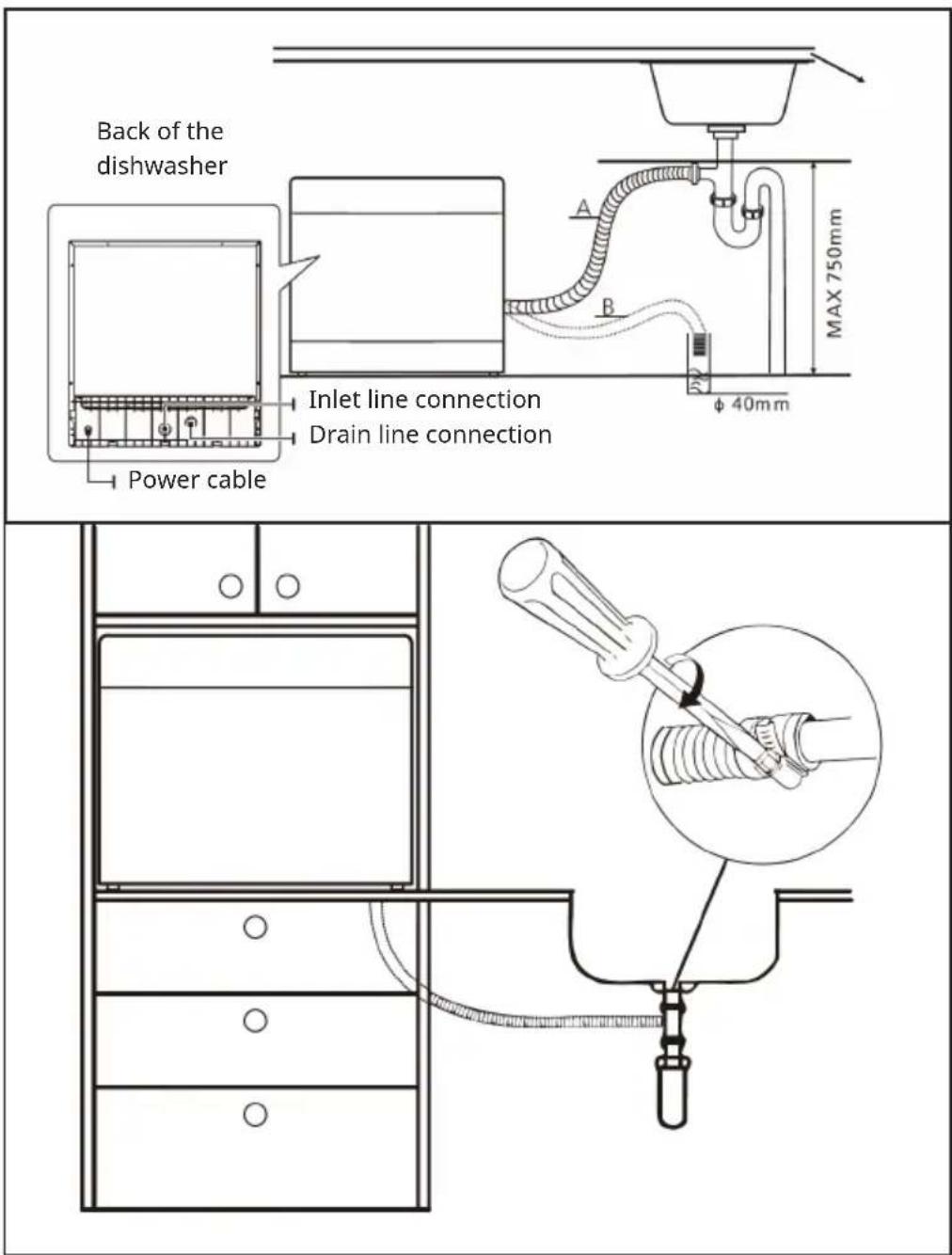

Attaching the water drain

Insert the drain hose into a drain pipe with a diameter of at least 4 cm or drain the water into a sink. Make sure that the drain hose is not bent or kinked. To avoid water backflow, the free end of the hose must not be immersed in water. Fix the drain hose either as in position A or position B.

Back of the dishwasher Inlet line connection Drain line connection Power cable A B φ 40mm MAX 750mm

Note: Secure the drain hose firmly to the drain with the supplied hose clamp to prevent it from moving and leaking waste water.

Drain excess water from the hoses

If the washbasin is 1000 mm higher than the floor, the drain hose cannot be placed directly in the washbasin. It is necessary to drain the excess water into a bowl or a suitable container that is lower than the sink.

Water outlet

Connect the drain hose. The hose must be connected correctly to avoid leaks. Make sure the hose is not kinked.

Extension hose

If you need a hose extension, you should choose a hose that is similar to the drain hose. The hose extension must not be longer than 4 metres, otherwise the performance of the dishwasher could be affected.

Connection to the siphon

The drain pipe must not be higher than 100 cm from the bottom of the dishwasher. The water hose should be fixed.

Positioning the unit

Place the device in the desired location. The back of the appliance should be against a wall and the sides of the dishwasher should be against the cupboard walls or walls. The dishwasher is equipped with water inlet and outlet hoses that can be positioned on either the left or right side of the appliance to simplify installation.

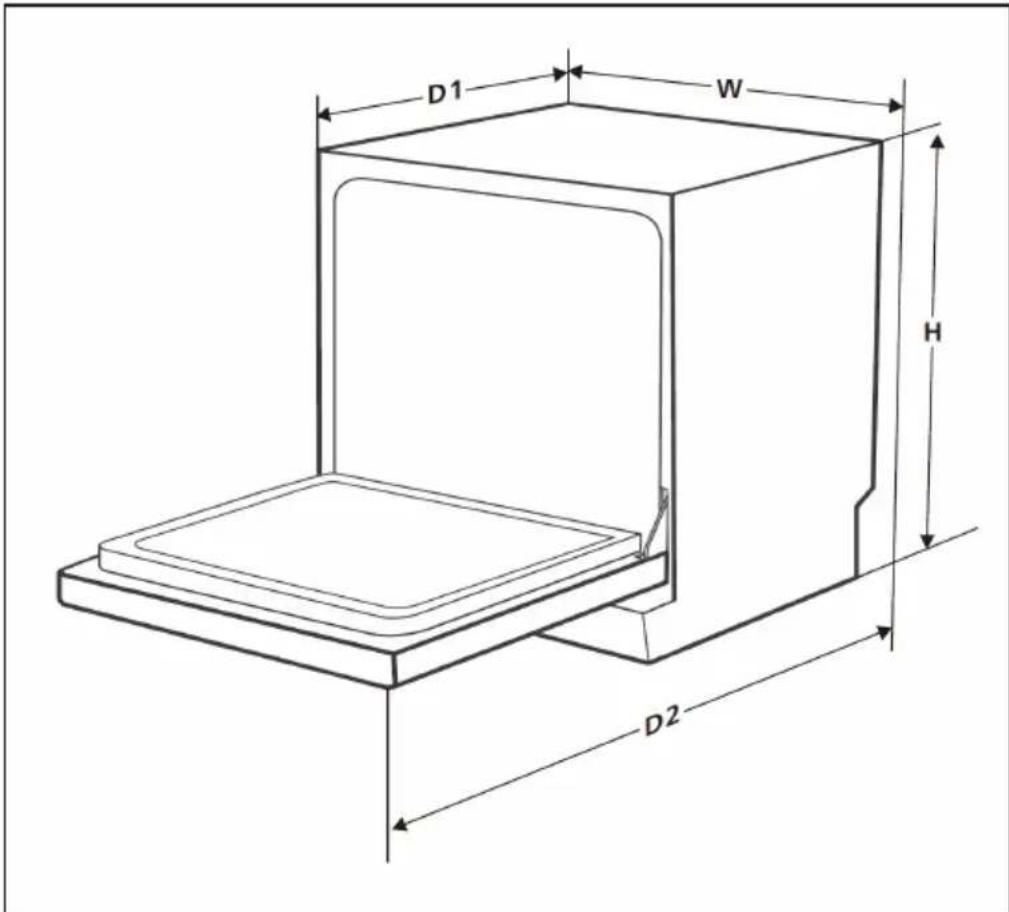

DIMENSIONS AND INSTALLATION

Dimensions:

D1 W H D2

Height (H) 590 mm
Width (W) 550 mm
Depth (D1) 500 mm (with closed door)
Depth (D2) 964 mm (with door open 90°)

Notes on installation

- There should be less than 5 mm of space between the top of the dishwasher and the built-in cabinet. The same applies to the outer door, which is aligned with the cupboard.

- If the dishwasher is in the corner of the built-in cupboard, there should be enough space to open the door.

BEFORE FIRST USE

Dishwashing salt

• If your model does not have a salt container, you can skip this section. Always use salt suitable for dishwashers. The salt container is located below the lower dish compartment and should be filled as follows:
• Only use salt that is specifically designed for use in dishwashers. Any other type of salt, especially table salt, will damage the container. Damage caused by the use of unsuitable salt is not covered by the manufacturer's warranty.
• Only fill the appliance into the container before starting the dishwasher. This prevents salt or salt water, which may have been spilled, from remaining on the bottom of the dishwasher for a long period of time and causing wear and tear.

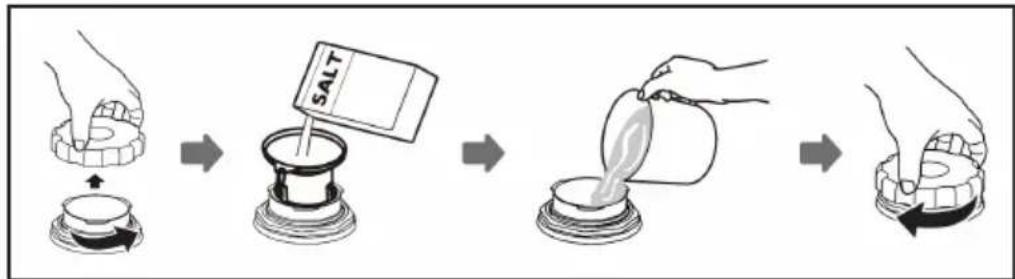

Filling up the rinsing salt container

1. Remove the dish insert and unscrew the cover of the container.
2. Insert the bottom of the funnel (included) into the hole and pour in about 1 kg of dishwashing salt.
3. Fill the salt container to the top with water before using the appliance for the first time. It is normal for a small amount of water to leak out of the salt container.
4. After filling, screw the cover firmly back onto the container.
5. After the salt container has been filled with salt, the warning light goes off.
6. A cleaning programme should be started immediately after the container has been filled with salt. (We recommend using a short programme.) Otherwise, the filter system, the pump or other appliance components may be damaged by the salty water. In such cases, the warranty claim becomes invalid.

Please note:

• The salt only needs to be topped up when the salt warning light comes on. Depending on how well the salt dissolves, the salt warning light may remain on for some time after the salt container has been filled. If your appliance does not have such a warning light (on some models), you can estimate the moment when you need to refill the salt depending on the frequency of use of the dishwasher.
• If salt has spilled, run a quick programme to remove it.

Setting the correct salt quantity

The dishwasher is designed in such a way that the amount of salt used can be adjusted depending on the water hardness. This is to optimise and individually adjust salt consumption. Proceed as follows to set the salt consumption:

1. Close the door and switch on the appliance;
2. Within 60 seconds after turning on the device, press the programme button for more than 5 seconds to start the water softener setting mode.
3. Press the programme button again to select the correct setting according to your local water hardness. The setting changes in the following order: H1 > H2 > H3 > H4 > H5 > H6.
4. If you do not operate the device for five seconds or press the power button to exit the setting mode, the setting made will be saved.

Water hardness		Softener setting	Display indications	Regeneration after every Xth program sequence3
^^1)	mmol/ I^2)
0-5 0-0.9	1 H1 No regeneration
6-11 1.0-2	0 2 H2 10
12-17 2.1-3	0 3 H3 5
18-22 3.1-4	0 4	*	H4	3
23-34 4.1-6	1 5 H5 2
35-45 6.2-8	0 6 H6 1

^1 German hardness level
^2 International hardness level
3 Each cycle with regeneration operation uses an additional 2.0 litres of water. The energy consumption increases by 0.02 kWh and the programme duration is extended by 4 minutes.
* Factory setting

Rinse aid

During the last rinse of the dishes, the rinse aid ensures that no drops form on the dishes, which could leave stains and streaks. The drying process is also improved as water droplets can roll off the dishes. This dishwasher is designed for use with a liquid rinse aid.

Only use rinse aids that are specifically designed for dishwashers. Never fill the output tray with other substances (such as washing-up liquid, etc.), as this will damage the device.

Topping up the rinse aid

Regardless of the warning light on the control panel, the level of rinse aid can be assessed by the colour of the optical level indicator next to the cap. The darker it is, the fuller the rinse aid compartment. The colour of the dark spot will decrease as more rinse aid is used. The rinse aid compartment should always be at least 14 full. The colour change is as follows:

Full Empty ^3/4 full 1 ^1/4 full 1 ^1/2 full

Filling the rinse aid dispenser

1	2
Unscrew the cap anti-clockwise. Pour in the rinse aid carefully, being careful not to overflow.
3
	Screw the cap back on clockwise.Note: Wipe off any rinse aid that has spilled over with a cloth to avoid foaming during the next wash cycle.

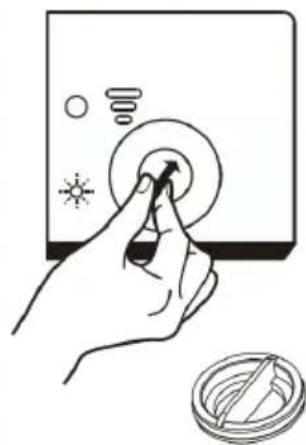

Set the rinse aid quantity

Remove the rinse aid container lid. Turn the rinse aid indicator to a number. The higher the number, the more rinse aid the dishwasher uses. If the dishes do not dry properly or are stained, turn the knob to the next higher number until your dishes are stain-free. Decrease the value if whitish stains form on dishes or a bluish film forms on glasses or knife blades.

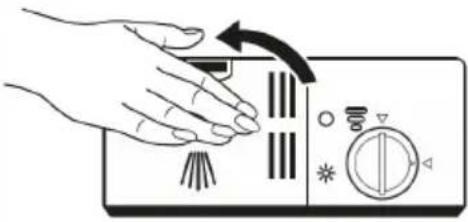

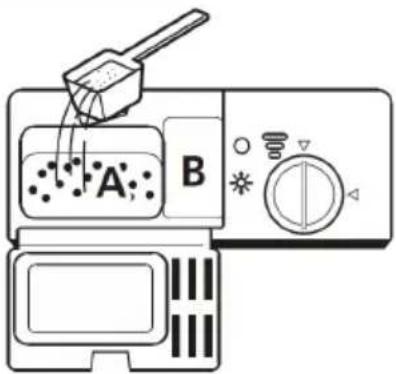

Topping up the dishwashing liquid

1	2
Press tab to open
To open the compartment, press the locking lid.	For the main wash, fill the larger opening (A) with dishwashing liquid. For coarser soiling, also put some washing-up liquid in the smaller opening (B) for pre-washing the dishes.
3
	Press the lid to close the compartment.Note: The setting depends on the water hardness. Follow the instructions on the packaging of the respective dishwashing detergent.

LOADING THE DISHWASHER CORRECTLY

• We recommend that you only use dishes that are suitable for dishwashers.
- Use only mild detergents as described under "Types of detergent" in the previous chapter.
- For heat-sensitive dishes, we recommend a programme with a lower temperature.
- To prevent damage, do not remove glasses and cutlery from the dishwasher immediately after the programme ends.

Unsuitable crockery and cutlery

Unsuitable crockery/cutlery Conditionally suitable crockery and cutlery
Cutlery with wooden, horn or mother-of-pearl handlesHeat-resistant plastic tablewareOlder cutlery with glued parts that are not heat resistant.Coated cutlery or crockery.Things made of tin and copper.Crystal glassThings made of non-stainless steelWooden dishesPlastic crockery and cutlery	Certain types of glass, as they can become cloudy over time.Silver and aluminium parts, as they can change colour over time.Glazed crockery, as the glaze disappears over time the more often you wash it.

What you should bear in mind when loading

Remove larger food scraps. Soak burnt-on residues in pans beforehand. It is not necessary to rinse the dishes until clear beforehand. Place the items in the dishwasher as follows:

• Place cups, glasses, pots and pans in the dishwasher with the inside facing down.
• You should load curved objects standing up so that the water can run off.
• Load the objects inside the device in such a way that they cannot fall over.
• Make sure that the spray arms can rotate freely and are not obstructed by dishes or protruding objects.
• Do not wash small items in the dishwasher as they could easily fall out of the basket.
• Make sure that dishes and cutlery do not overlap or cover each other.
• To avoid glass breakage, glasses must not touch each other.
• Load large items that are difficult to clean into the basket.
• Long and sharp objects must be placed horizontally in the basket to avoid injury.
• For best results, do not overload the dishwasher.

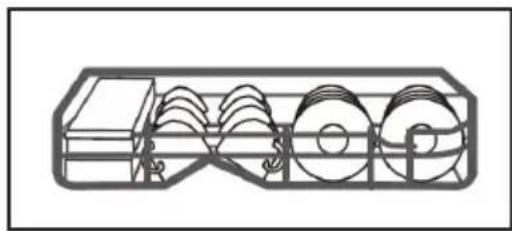

Loading the upper basket

The upper basket is intended for more delicate and lighter dishes such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and flat pans (provided they are not too dirty). Place the dishes so that they are not moved by the water jet.

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

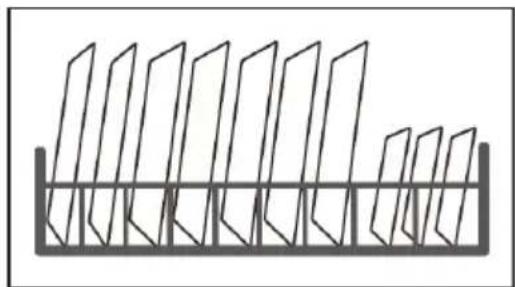

Loading the lower basket

We recommend placing large items that are difficult to clean (pots, pans, lids, serving platters and bowls) in the lower basket as shown in the image below.

Serving bowls and lids should preferably be placed sideways in the basket to avoid blocking the rotation of the upper spray arm.

The maximum diameter of plates in front of the detergent dispenser should be 19 cm so as not to obstruct the opening of the dispenser.

Pure diagram of vertical panels arranged in a grid with a horizontal line at the bottom (no text or symbols)

Loading the cutlery basket

Place the cutlery separately in the cutlery basket in the appropriate positions. To prevent insufficient cleaning performance, avoid nesting the cutlery.

Circular diagram with grid pattern and crossed X marks, no text or symbols present

RISK OF INJURY!

Do not allow any objects to protrude through the floor. Always load sharp objects with the sharp tip pointing down!

LOADING THE BASKETS (EN 60436)

Top crockery basket

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

No. Designation No. Designation
1 Cups 3 Glasses
2 Saucers 4 Mugs

12 5 9 11 13 4 3 6 5	No. Designation No. Designation
5 Dessert bowls 10 Melamine dessert plate
6 Glass bowls 11 Melamine bowl
7 Dessert plate 12 Oval plate
8 Dinner plate 13 Small pot
9 Soup plate

Cutlery tray

RINSING PROGRAMMES (EN 60436)

The table shows which programmes are most suitable depending on the amount of food residues and how much detergent is needed. With the exception of the ECO program, the consumption values and the programme duration are only guide values. The symbol (indicates that the programme uses rinse aid in the final rinse.

Pro-gramme	Rinsing cycle	Rinse aid front/main	Time (min)	Energy (KWh)	Water (L)	Rinse aid
Intensive	Prewash (50°C)Wash (65°C)RinsingRinsingRinse (60 °C)Dry	4/12 g(1 tab)	155 1.0	80 12.5		●
Universal	Prewash (45°C)Wash (60°C)RinsingRinse (60 °C)Dry	4/12 g(1 tab)	140 0.9	80 12.5		●
ECO(*EN 60436)	PrewashWash (45°C)Rinse (55)Dry	4/12 g(1 tab)	230 0.5	84 8.0		●
[VW7A]Glass	PrewashWash (45°C)RinseRinse (55 °C)Dry	4/12 g(1 tab)	95 0.6	50 12.0		●
[BXDO]90 min.	Wash (55°C)Wash (65°C)Rinse (65 °C)Dry	16 g (1 tab)	90 0.950	11.0		●
[19CC]Rapid	Wash (50°C)Rinse (45 °C)Rinse (45 °C)	10 g (1 tab)	30 0.540	7.0		○
[KY2B]Self-cleaning	Pre-washWash (65°C)RinseRinse (65 °C)Dry	4/12 g(1 tab)	135 0.8	60 9.5		●
*EN 60436: The ECO programme was used for the test run in accordance with EN 60436.

• The eco programme is suitable to clean normally soiled tableware. For this use, it is the most efficient programme in terms of its combined energy and water consumption. It is used to assess compliance with the EU ecodesign legislation.
• Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water.
• Incorrect loading can have these consequences:
• a deteriorated cleaning result
• damage to property due to the blocking of the spraying arms.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• The values given for programmes other than the eco programme are indicative only.

COMMISSIONING AND OPERATION

Starting the washing process

1. Pull out the lower and upper baskets, fill the baskets with dishes and push them back into the appliance. It is recommended to fill the lower basket before the upper basket.
2. Add the dishwashing liquid.
3. Plug the power plug into the mains socket. Make sure that the main water tap is turned on completely.
4. Close the door and press the power button to switch on the appliance.
5. When you have selected a programme, the corresponding indicator light will illuminate. To start the dishwasher, press the start/pause button.

Changing the programme

A programme can only be changed if the appliance has only been running for a short time. Otherwise, the dishwashing detergent may have already been released and the dishwasher may already be full of water. If this is the case, the machine will need to be reset and the dispenser will need to be refilled with detergent. To reset the dishwasher, proceed as follows:

1. To pause the washing process, press the start/pause button.
2. To cancel the current programme, press the programme button for more than 3 seconds.
3. Use the programme button to select the desired programme.
4. To start, press the start/pause button and the dishwasher will start.

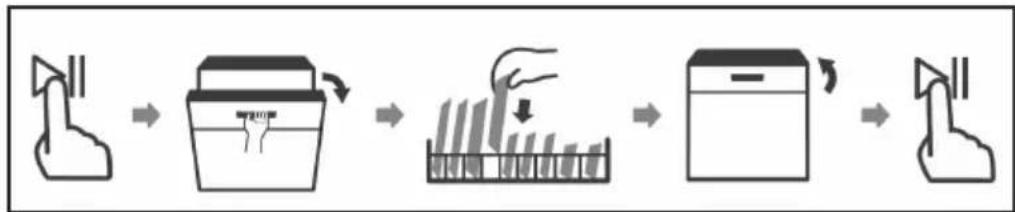

Adding dishes later

Forgotten dishes can be placed in the dishwasher before the dishwasher detergent dispenser opens. If this is the case, follow these steps:

1. To pause the current programme, press the start/pause button.
2. Before opening the door, wait about 5 seconds for the spray arms to stop.
3. Put the dishes in.
4. Close the door.
5. Press the start/pause button and the dishwasher will resume operation.

Simple line drawing of a trash bin with smoke and drop (no text or symbols)

RISK OF INJURY!

It is dangerous to open the door during operation as you may be scalded by the hot steam.

Auto open

After washing, the door opens automatically for a better drying effect.Note: The dishwasher door must not be blocked when it is set to automatic opening. This may interfere with the function of the door lock.

CLEANING AND CARE

Door and door seal

Clean the door seals regularly with a damp cloth to remove food residues. When filling the dishwasher, food residues may stick to the sides of the dishwasher door. These surfaces are on the outside and cannot be reached by the spray arms. Always remove this residue before closing the door.

Control panel

• Wipe the control panel only with a soft, damp cloth.
• Do not use any spray cleaners to prevent water from getting behind the door seal or into the electrical appliance components.
• Do not use aggressive cleaners or scouring pads on the outer surfaces of the appliance as this could scratch the coating. Note that some paper towels may also scratch or leave marks on the surface.

Removal of foreign objects

• Check the sieves and the tub after each use of the dishwasher. Foreign objects (e.g. broken glass, plastic particles, bones or toothpicks, etc.) reduce the cleaning performance and can cause damage to the drain pump. Remove the sieve system as described in this chapter. Remove foreign objects by hand.
• Caution. If you cannot remove the objects, contact an authorised service centre. Reinstall the filter system as described in this chapter.

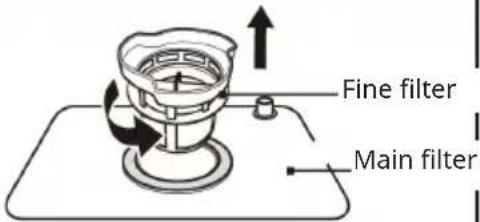

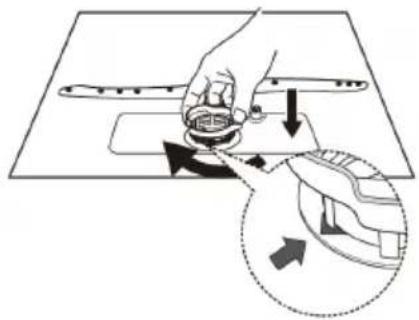

Filter system

The filter system is located at the bottom of the dishwasher. Residues from the wash cycle remain in the filter. The accumulation of residues can lead to clogging of the filters. The filters should therefore be checked regularly and, if necessary, cleaned under running water. Follow the steps below to clean the filters:

Note: The illustrations are for orientation only and may differ from your model.

1	2
Hold the coarse filter and turn it anticlockwise to unlock it. Pull the filter out upwards.	Lift the fine filter from the main filter.
3	4
Larger food residues can be removed by holding the filter under running water. For a more thorough cleaning, it is recommended to use a soft toothbrush.	Reassemble the filters in reverse order and put them back in the dishwasher. Now turn the filters clockwise to fix them.

• Do not screw the filters in too tightly. Replace the filters in order, otherwise residue from the coarse filter could get into the other two filters and cause a blockage.
• Never use the dishwasher without filters. Replacing the filter incorrectly can affect the overall performance of the dishwasher and damage dishes and accessories.

Spray arms

The spray arms must be cleaned regularly as hard water causes limescale residues to adhere to the spray arms and the brackets. Follow the instructions below for cleaning the spray arms:

To remove the upper spray arm, hold the nut in the middle and turn the spray arm anticlockwise to remove it.	Pull the upper spray arm upwards so that you can remove the lower spray arm.	Place the spray arms in a soap solution with warm water and use a soft brush to clean the nozzles. After carefully rinsing the spray arms with water, put them back into the appliance.

Frost protection

Take the following frost protection measures in winter and proceed as follows after each cleaning cycle:

1. Disconnect the power plug of the dishwasher from the socket.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the water inlet pipe and the water valve (collect it in a bucket).
4. Reconnect the water inlet line to the water valve.
5. Remove and clean the filters.

After each wash

Turn off the water supply and leave the door slightly open so that the moisture and odours do not remain inside the appliance.

Removing the mains plug

Before performing any cleaning or maintenance work, always unplug the power cord from the outlet.

Note on aggressive solvents or cleaning agents

Do not use aggressive solutions or cleaning agents to clean the outside and rubber components of the unit. Use only a clean cloth with warm soapy water. To remove stains or dirt from the surface of the inside, use a damp cloth with a little vinegar or a detergent specially designed for dishwashers.

If the unit will not be used for a long period of time

It is recommended to run the empty dishwasher through once and then disconnect the mains plug from the socket, turn off the water supply and leave the dishwasher door slightly open. This preserves the door seals for longer and prevents odours from forming inside the dishwasher.

Transporting the unit

Try to always transport the unit in a vertical position. If absolutely necessary, it can be positioned on its back.

Seals

A major odour-causing factor of odour formation in dishwashers is food residues under the seals. Therefore, clean the seals regularly with a damp sponge so that no odours can form.

TROUBLESHOOTING

Problem Potential cause Solution
The dishwasher does not start.	The fuse is out or blown.	Replace the fuse or flip the switch again.Remove all other devices that are connected to the circuit themselves.
	No power. Make sure that	the appliance is switched on, the door is firmly closed and the mains cable is firmly plugged into the socket.
	The door is not closed properly.	When closing, make sure that the door lock engages.
No water is pumped out of the dishwasher.	The drain hose is kinked.	Check the hose.
	The filter is clogged. Check	the coarse filter.
	The drain is blocked. Check	your drain and clean it if necessary. If you still have problems. Contact a specialist company.
Rust stains on the cutlery.	The cutlery is not stainless.	Only wash stainless cutlery.
	No programme was started after the rinsing salt was refilled.	After filling, start the quick programme with an empty dishwasher.
	The lid to the rinsing salt container is loose.	Make sure that the lid is firmly closed.
Coloured stains in the tub.	Coloured detergent. Only	use detergent without colour.
Problem Potential cause Solution
White film on the inner surfaces.	Mineral residues from hard water.	Clean the inside surfaces with a damp cloth and some dishwasher detergent. Use gloves when doing this and do not use any other detergent.
Knocking noises in the interior.	The spray arm hits an object in the basket.	Pause the programme and place the dishes in a way that the spray arm is not obstructed.
Rattling noises in the interior.	The dishes are not standing securely.	Pause programme and place dishes so that they are secure.
Knocking noise in the water pipe.	Can be caused by crossing the water pipes.	Does not affect the performance of the dishwasher. If you are not sure, contact a specialist company.
Foam in the tub. Unsuitable	dishwashing detergent.	Only use detergent that is suitable for dishwashers. If there is still foam in the tub, open the door and allow the foam to evaporate. Pour some cold water into the tub and close the door. Run any washing programme to remove the residue.
	Rinse aid overflow. Wipe up	any rinse aid that has spilled over immediately.
Problem Potential cause	Use Solution
The dishes are not clean.	The dishes were not loaded properly.	Follow the instructions for loading the dishwasher.
	The programme was not powerful enough.	Use the intensive programme.
	Too little detergent. Use more detergent or use a different detergent.
	Objects are blocking the spray arms.	Place the dishes in the appliance in a way that the spray arms are not obstructed.
	The filter system is dirty or incorrectly used.	Clean the filters or insert them correctly. Clean the spray arms.
The dishes do not dry. Incorrect loading. Follow the instructions for loading the dishwasher.
The glass is fogged up. Combination of soft water and too much detergent.		Use less detergent and use the shortest programme to wash and clean the glass.
Black or grey stripes on dishes	Aluminium parts have rubbed against the dishes.	Use a mild abrasive cleaner.
Detergent residues in the chamber.	The dishes are obstructing the dissolution of the detergent.	Load the dishes carefully into the dishwasher.

Error codes

For some faults, the display shows an error code to warn you: In the event of some faults, the display shows an error code to warn you. In these cases, call in specialist personnel.

WARNING

Risk of electric shock or other personal injury!

Do not repair the appliance yourself. The dishwasher may only be repaired by qualified personnel. The repair must be carried out professionally.

Code	Meaning Potential cause
E1	The water intake takes a very long time.	The tap is not open, the water inlet is restricted or the water pressure is too low.
E3	The required temperature is not reached.	Malfunction of the heating element.
E4	The dishwasher is leaking. An	element of the dishwasher is not sealed and is and leaking.
Ed	Fault in communication between main circuit board and display circuit board.	Open circuit or interrupted wiring for communication.

• If water runs out, first shut off the water supply before contacting customer service or a specialist company.
• If there is water in the base pan due to overfilling or a small leak, remove it before restarting the dishwasher.
• In case of repair, please contact a qualified repair service in your area Spare parts for the item are available until 31.12.2028.

PRODUCT DATA SHEET

Information according to Regulation (EU) No 2019/2017

Manufacturer's name or trade mark: Klarstein
Manufacturer's address: Wallstraße 16, 10179 Berlin, Germany.
Article numbers: 10045371, 10045372
General product parameters:
Parameter Value Parameter Value
Standard place settings 8	Dimensions in mm		Height 59	cm
			Width 55	cm
			Depth 50	cm
EEI 49.9 Energy efficiency class D
Cleaning performance index	1,125	Drying performance index	1,065
Energy consumption in kWh [per cycle], based on the eco programme with cold water filling. The actual energy consumption depends on how the unit is used.	0.584	Water consumption in litres [per cycle], based on the Eco programme. The actual water consumption depends on the use of the appliance and the water hardness.	8.0
Programme duration (h:min)	3:50 Construction type: Freestanding
Airborne sound emissions (dB(A) re 1 pW)	49 Acoustic emission class C
Off mode (W) 0.49 Standby mode (W) k. A.
Start delay (W) (if applicable)	1.00	Networked on-call service (W) (if applicable)	k. A.
Minimum term of the warranty offered by the manufacturer: 24 months
Further information:
Web link to the website of the supplier where the information according to Annex II point of Commission Regulation (EU) 2019/2022 can be found: www.klarstein.de

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Line drawing of a hand using a tool to adjust a valve (no text or symbols present)

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Pure diagram of vertical panels arranged in a grid pattern with no text or symbols

Circular diagram with grid pattern and crossed X marks, no text or symbols present

Peligro de lesiones

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Simple line drawing of a container with two containers and a lid, no text or symbols present.

Peligro de lesiones

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Line drawing of a hand using a tool to press or install a component (no text or symbols present)

Technical line drawing of a mechanical assembly with multiple circular components and a central shaft (no text or symbols)

Pure diagram of vertical panels arranged in a grid pattern with no text, numbers, or symbols

Circular diagram with grid pattern and crossed X marks, no text or symbols present

RISQUE DE BLESSURE !

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Simple line drawing of a box with a lid and two bubbles above it (no text or symbols)

RISQUE DE BLESSURE !

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Line drawing of a hand using a tool to adjust or install a light bulb (no text or symbols present)

DIMENSIONI E INCASSO

Dimensioni

D1 W H D2

Technical line drawing of a mechanical assembly with multiple circular components and a rectangular housing (no text or symbols)

Pure diagram of vertical panels mounted on a horizontal base, no text or symbols present

Circular diagram with grid pattern and crossed X marks, no readable text or symbols

Technical diagram of a vehicle interior with numbered components, likely for maintenance or assembly instructions.

Simple line drawing of a box with a lid and smoke, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
