Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 18

Notes on Refrigerant R290 19

Product Description 20

Control Panel and Key Functions 21

Use and Operation 24

Care and Cleaning 26

Device control by smartphone 27

Troubleshooting 28

Disposal Considerations 30

Declaration of Conformity 30

TECHNICAL DATA

Item number 10046364 10046365
Power supply 220-240 V ~ 50 Hz
Water tank capacity 4 L
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

SAFETY INSTRUCTIONS

- Leave the appliance to stand for at least two hours before power on, especially after transportation.

- Make sure that the voltage matching with the relevant data indicated on the rating label.

- The socket must be with grounding.

- Keep the appliance dry. Make sure no water on the top or the body. Do not unpin the plug when the appliance is working.

- If moving needed, please switch it off and unpin the plug. Allow a free space of 15 cm around air inlet of the appliance. Do not insert any object into the air inlet or outlet openings.

- Do not place the dehumidifier near a heating source (esp. a radiator) or indirect sunlight.

- Ensure that the appliance does not become hot.

- Empty the water tank regularly. (In extreme conditions the water tank may be full after a few hours operation.) Clean the air inlet filter if it becomes contaminated: the appliance is most effective when

- the filter is clean.

- Please do not expect the air dehumidifier to be effective when too many doors or windows are opened or when something in the room is producing a lot of humidity. The air dehumidifier will come into effect immediately. However, the reduction of humidity many hardly be measureable during the first few days.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

NOTES ON REFRIGERANT R290

1 Warnings

• The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
• Switch off the device and disconnect it from the power supply before cleaning.
• Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
• To prevent leaks, operate this unit on a horizontal surface.
• Any person performing work on a refrigerant circuit should have a current certificate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specification.
• If the device stops working, dispose of it properly.
• Store the device in a well-ventilated place when not in use.
• Store the device so that it is not damaged.
• Repairs may only be carried out by the manufacturer or an authorised specialist company.
• The cables connected to the device may contain potential ignition sources.
• Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
• Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.

2 Information for rooms with refrigerant pipes

• Limit the piping to a minimum.
• Be careful not to damage the piping.
• Appliances with flammable refrigerants may only be installed in a well-ventilated room.
• Comply with national gas regulations.
• All mechanical connections must be freely accessible for maintenance purposes.

CAUTION

Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.

PRODUCT DESCRIPTION

1 2 3 4 5

6 8 7 9 10 11 12

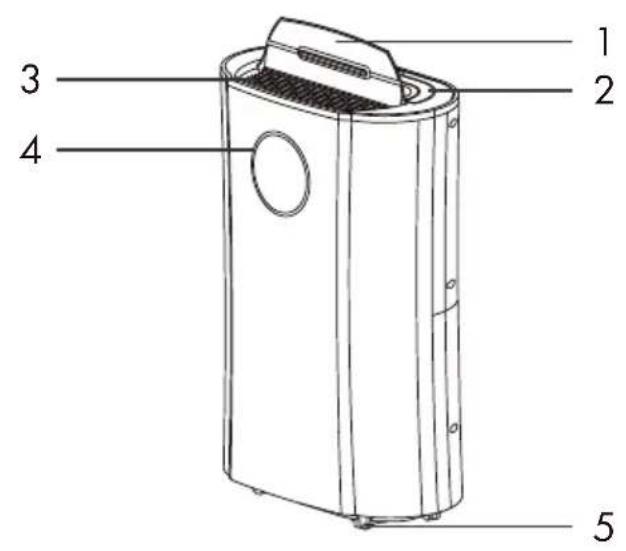

1 Louvers
2 Handle
3 Air outlet
4 Lamp
5 Wheels
6 Control panel

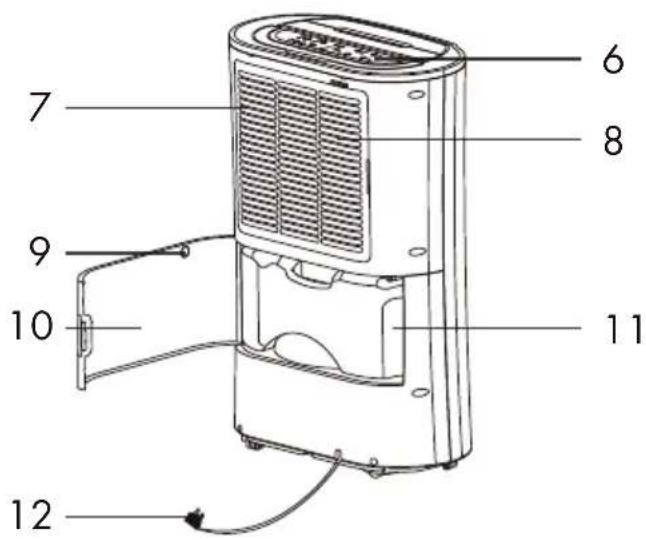

7 Prefilter / Activated carbon filter
8 Air inlet
9 Continuous drain port
10 Back cover
11 Water tank
12 Power cord

CONTROL PANEL AND KEY FUNCTIONS

Control panel

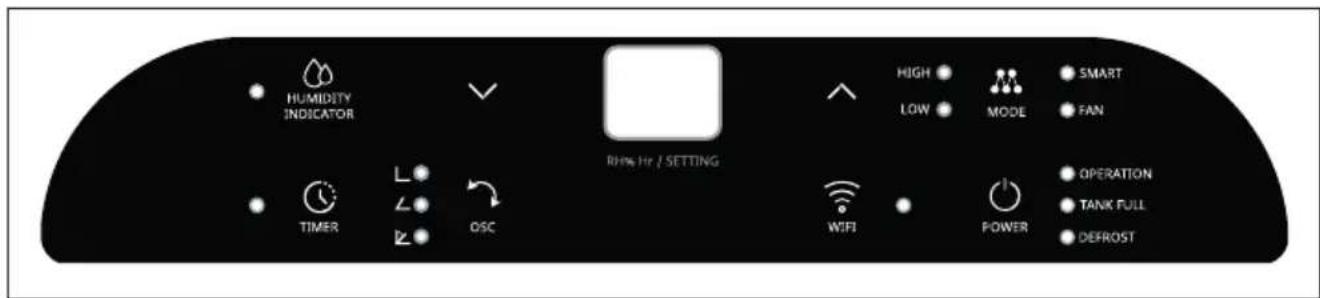

HUMIDITY INDICATOR RPM Hr / SETTING HIGH LOW MODE SMART FAN OPERATION TANK FULL DEFROST TIMER OSC WIFI POWER

Key functions

[RAW]POWER	POWER: Starts or Stops appliance.
[SW36]MODE	MODE: Select the functions of the unit for:SMART / HIGH / LOW / and FAN. The appliance will go. SMART function the first time it is switched on and remains in this mode until other type of programming is chosen. Depending on your relative humidity conditions, turn the fan speed switch to high or low.
[SW85]MODE	FAN (Ventilation Key): Press „MODE“ key to select „FAN“, and „FAN” indicator light comes on.
[ESAA]HUMIDITY INDICATOR	Humidity Indicator LAMP: Start the appliance, the lamp will turn on automatically. The lamp color will change according to the humidity condition (with 100 seconds as interval between color changing)Red color means high humidity, RH≥80%Green colour means comfortable, 80%>RH≥60%Blue colour means dry, RH<60%Press “HUMIDITY” key, the lamp will be off or on.
[ADCY]OSC	OSC. (oscillating function): The are three different directions, 45/90 degree and universal, the louvers will move or fixed asselected position.
[TY80]	Humidity Setting: Press UP / DOWN key to select the desired relative humidity level, default relative humidity is 55%. Relative humidity 35% is selected, the compressor will not stop until water tank full.

[6TY6]TIMER

TIMER (timer function): Press timer to program time and „TIMER" light comes on while timer is programmed. Before programming make sure that the timer function has not been activated (the light must be off)! The following timer programs are available. Delayed power-on function (the appliance is in stand-by status) USE key „UP" and „DOWN" to set the time period (0~24 hours) The appliance will start once time reaches setting value. Delayed power-off function (the appliances is in working stantus) The appliance will stop once time reach setting value.

WIFI

WIFI: press the WIFI button for 3 seconds to activate the wifi module inside the device, then the indicator light will start flashing.· Then continue by following the instructions provided in „Device Control by Smartphone".

Indicators

DEFROST	DEFROST: The appliance will defrost automatically as programmed once the coil sensor detects temperature below some figure, and the defrosting indicator will light up at the same time. Once defrosting finishes, the appliance will recover to previous running mode.
TANK FULL	TANK-FULL: If the water tank is full, the indicator light comes on and flash

MODE:MODE: Select the functions of the unit for: SMART/HIGH/LOW/and FAN. The appliance will start. The first time the device is switched on, the SMART function is active and remains in this state until until another mode is selected. Depending on your relative humidity conditions, turn the fan speed to high or low.

When the unit is in operation, press the TIMER button in order to turn the "OFF" icon on or off. It will flash for 5 seconds. Press the UP/DOWN button to adjust the timer to 1-24 hours after which you want the unit to shut down.

When the unit is in standy mode, press the TIMER button in order to turn the "DON" icon on or off. It will flash for 5 seconds. Press the UP/DOWN button to adjust the timer to 1-24 hours, after which you want to turn the unit on.

Press this button to turn the oscillation on or off.

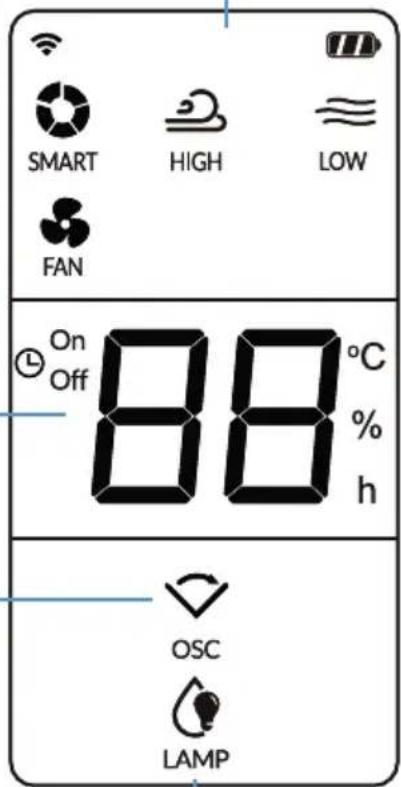

SMART HIGH LOW FAN On Off 88 °C % h OSC LAMP

Press the LAMP button to on/off, to turn on/off the light on the front cover.

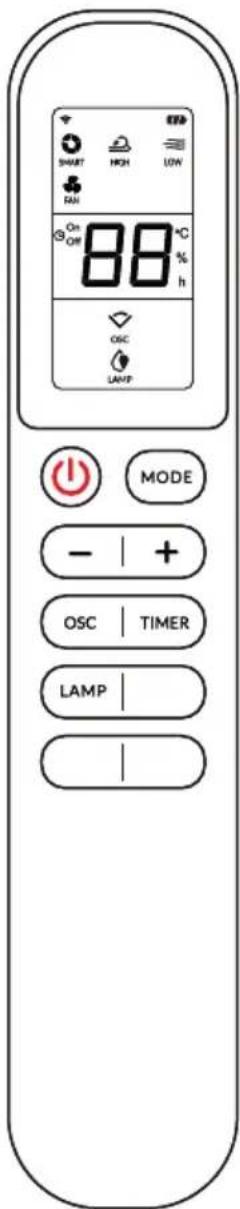

SHORT HIGH LOW ON OFF 88 °C % h OSC LAMP MODE - | + OSC | TIMER LAMP

USE AND OPERATION

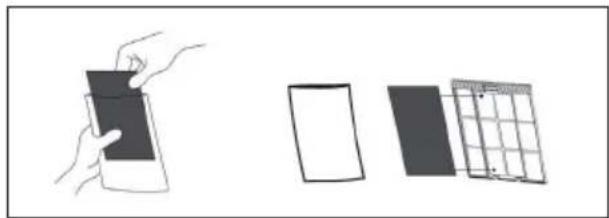

Carbon filter (deodorant function)

Take out the carbon filter from bag and insert it on the filter. See picture below. Suggest to change the carbon filter every 3 months, it always keep the room fresh.

Illustration showing a hand holding a tablet and three separate panels (no text or symbols)

Emptying the water tank

Empty the water tank regularly when full, the air dehumidifier turns off automatically and the tank full indicator is turned on

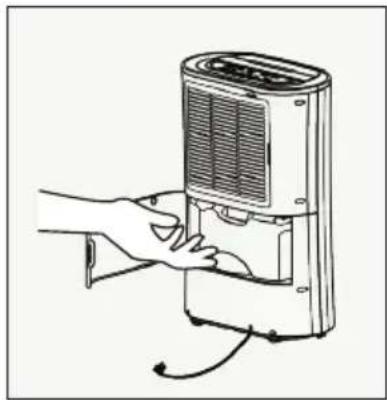

1 Open the front cover of your device.
2 Hold the water tank by its handle.
3 Pull it out carefully.
4 Empty the water tank.
5 Return the empty water tank to its position after wiping it off from any water residue.

Line drawing of a hand operating a portable air conditioner unit with a curved cable (no text or symbols)

Replacement and maintenance of air filter

When used regularly, the filter may become clogged with dust and particles. Therefore the filter should be cleaned every one or two weeks. Follow these steps

1. Remove the filter by pulling it out carefully.
2. Clean the filter with a vacuum cleaner or with water. Tap the filter to remove excess water and let it dry completely. Once you make sure that your filter is completely dry, re-install it on your device. Do not wash
   your filter in the dishwasher and never use hair dryers.

Line drawing of a device with a hand opening the door (no text or symbols)

General description

• The machine uses the temperature range of 5-35 °C, please use the machine in this scope, (otherwise it will start the protection action, causing the machine automatically stop running.)
• At room temperature at 5 °C and the absolute temperature of the environment is very low. It is not necessary to use the machine.
• When the machine is running, it will produce a small portion of the heat, the room temperature will be a little higher, this is a normal phenomenon, please feel at ease.
• If the unit automatically stop running, please send the water in the water drained, and put back to the water tank, the machine will continue to operate.
• In order to ensure the normal operation, do not open the water tank float cover, or place any foreign body in the water tank.

When the machine can not start or unknown cause, please check with the following steps:

1. Check whether the plug or the power cord is normal.
2. If all this is normal, please restart the device after 10 minutes.
3. If you are still unable to start, please contact the local dealer or the company's customer service department.

• Air inlet and outlet and the distance between the adjacent material to keep 15 cm above.
• After the machine is stopped, please restart in five minutes to make sure that the machine is used for longer service life.
- If the long time does not use the desiccant, please unplug the power plug.
- If the machine inlet frosting, automatically defrost.

CARE AND CLEANING

• Do not put the body in the soft, uneven ground, in order to avoid vibration or sound.
• Do not use any fine rod, hard object into the body, so as to avoid failure or danger.
• Clean the body, gently wipe with a damp cloth, do not splash water, to avoid damage to electrical insulation.
• Do not put heavy or water body above the vase, items.
• Please stay away from the fuselage. The heat source side heaters to avoid danger and waste electricity.
• Please close the doors and windows when used to achieve the effect of the desiccant.
• Please clean filter once every two weeks (not to use 40 degrees above the hot water or alcohol, gasoline, toluene and other dangerous flammable liquid).
  • After filtering the net, please do not dry in the sun, so as not to deformation.
• Around the body or out of the air outlet do not put items, to ensure that the effect of the desiccant air.
• Power failure or long-term noise, please unplug the power cable plug, so as to avoid leakage, and fire.
• Before your moving the machine, pour out the water within the water tank.
• When not in use, please put in the position of ventilation, and unplug the power plug to avoid danger.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to additional information.

Follow these steps to connect your smartphone to the DryFy Pro Connect:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that the DryFy Pro Connect is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Turn the WiFi of the DryFy Pro Connect on and off

1 Turn on WiFi connection:

Press the WIFI button for 3 seconds to activate the wifi module inside the device. The WiFi icon will flash and the device will automatically search for other WiFi devices in the area.

2 Switch off WiFi connection:

To turn off WiFi press the WIFI buttons for 3 seconds. Once the WiFi icon disappears, the connection is terminated.

For changes to the WLAN or connection problems

If you make changes to your WLAN (e.g., a password change), the device must also be reconnected. Press the WIFI button for 3 seconds to activate the wifi module inside the device. The WiFi icon will flash and the device will automatically search for other WiFi devices in the area.

1. Open the Klarstein app.
2. Open the device control of the DryFy Pro Connect.
3. Follow the instructions from the app.

TROUBLESHOOTING

Error codes

Code Description
E1 Room	temperature (ambient temperature) sensor for short circuit
E2 Room	temperature sensor open circuit
E3 Humidity	sensor short circuit
E4 Humidity	sensor open circuit
E5 Coil	sensor short circuit
E6 Coil	sensor open circuit

Troubleshooting

Problem Possible Cause and Suggested Solution
The operation switch is “ON”,but the machine is not operation.	Is the water tank placed in the right position?
	Is the power plug inserted right position?
	Is the fuse broken?
	Is the power off?
The dehumidification amount is too low.	Is the front filter net dirty?
	Is the interior temperature and the humidity too low?
	Is the air outlet and air inlet jammed?
Long time operation can not reach the suitable humidity condition.	Does the door or window too widely open?
	Is there any generated water evaporator?
	Is the interior space too big?
When the machine is making huge noise.	Is the floor flat and hard?
	Is the dehumidifier in the right position?
The lamp is continuously on.	Is the temperature or humidify sensor is damaged or loosen?

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type DryFy ProConnect 16 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use. berlin/10046364

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type DryFy ProConnect 16 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10046364

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

CONTENU

Illustration showing a hand holding a tablet and three separate panels (no text or symbols)

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

Line drawing of a hand opening a device into a panel (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Allemagne.

QR code image containing encoded data, no visible human-readable text

INDICE

Illustration showing a hand holding a tablet and three separate panels (no text or symbols)

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

Line drawing of a hand inserting a fan into a device (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Illustration showing a hand holding a tablet and three separate panels (no text or symbols)

Line drawing of a hand operating a portable air conditioner unit (no text or symbols)

Line drawing of a hand inserting a fan into a device (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido
