USER MANUAL PLHLA 20-Li C1 PARKSIDE

Black-and-white photo of a handheld device with a light bulb and a cross symbol at the base (no readable text or symbols)

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE
parkside-diy.com

Cordless LED Hand Light / Akku-LED-Handlampe / Lampe torche LED sans fil PLHLA 20-Li C1

DE AT CH

Akku-LED-Handlampe

Cordless LED Hand Light

Translation of the original instructions

NL BE

Accu-LED-handlamp

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Labeled diagram of a handheld device with numbered parts and a hanging hook, showing internal components and motion indicators.

A

Diagram of a cable clamp device with labeled parts 1 and 2, showing a spring mechanism and rotation arrow.

B

180° FARKSIDE -9°

C

Inhaltsverzeichnis

Einleitung......4

-90^-180^ (7-stufig)

Scope of delivery/accessories.... 16

Overview......16

Description of functions...... 16

Technical data.... 16

Safety information......17

Meaning of the safety information.... 17

Pictograms and symbols......17

General safety instructions for handlamps....18

Special safety instructions for battery-powered devices......18

Operation......18

Working instructions......18

Adjusting the lamp head angle....18

Hanging up the device...... 18

Checking the battery charge level.... 19

Inserting and removing the battery into/from the cordless device.... 19

Switching on and off.... 19

Used batteries.... 19

Cleaning, maintenance and storage....19

Cleaning.... 19

Maintenance....20

Storage.... 20

Disposal/environmental protection.... 20

Disposal instructions for rechargeable batteries....20

Service.... 21

Guarantee....21

Repair service....22

Service Centre......23

Importer......23

Spare parts and accessories..... 24

Translation of the original EU declaration of conformity....24

Exploded view.... 121

Introduction

Congratulations on purchasing your new battery-powered LED handlamp (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following uses:

- mobile, spatial and time-limited illumination of indoor areas.

The device is not intended to be used as room lighting.

The device is only intended for use indoors.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

The device is part of the

X 20 V TEAM series and can be operated with batteries of the

X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Cordless LED Hand Light
  • Translation of the original instructions

The rechargeable battery and charger are not included in delivery.

Overview

The illustrations for the device can be found on the front fold-out page.

1 Lamp head

2 Hook (Rotatable)
3 Button (Charge level indicator)
4 Charge level indicator
5 Battery
6 Battery release
7 On/Off switch

Description of functions

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Cordless LED Hand Light

PLHLA 20-Li C1

Rated voltage U ....20 V =

Rated input power P .... ≤ 3 W

Protection class .... III

Protection type ...... IP20

Number of lamps (LED) ...... 3× 1 W

Light output 280 lm

Light colour ..... 6500 K (Cold white)

Lighting duration

Weight with battery (20 V, 2 Ah)

≈ 730 g

Battery Li-Ion

PARKSIDE Performance Smart battery Smart PAPS 204 A1/

Smart PAPS 208 A1/

Smart PAPS 2012 A1

– frequency band ..2400–2483.5 MHz

- transmitted power .... ≤ 20 dBm The light sources can only be replaced by the manufacturer without permanently damaging the surrounding product.

X 20 V TEAM

The device is part of the

X 20 V TEAM series and can be operated with batteries of the

X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1, Smart PAPS 2012 A1

We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PLG 201 A1, PDSLG 20 A1, PDSLG 20 B1, Smart PLGS 2012 A1

Rechargeable battery and charger technical data: See separate manual.

Safety information

Meaning of the safety information

⚠️ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury. NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols Symbols on the device

The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Read the instruction manual

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Protection class III

Direct voltage

Attention! Do not stare into the active light source.

Symbols used in the instruction manual

Attention!

General safety instructions for handlamps

• Do not cover the device when in use. The device will become hot during use and can cause burns.
• Do not look into the light beam. Do not aim the light beam at people and animals.
• Do not allow children to use the device. They could inadvertently blind other people or themselves.
• Check that the device is secured properly. There is a risk of injury if the device falls down.
• The luminaire housing protects against accidental contact with active parts. Do not open the housing.
• The light source of this lamp may only be replaced by the manufacturer or a service technician appointed by them or a similarly qualified person.

Special safety instructions for battery-powered devices

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a device that is switched on can lead to accidents.
• Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

WARNING! Injury and property damage due to improper handling of battery. Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the series

X 20 V TEAM. A detailed description of the charging process and further information can be found in these separate operating instructions.

Operation

Working instructions

WARNING! Do not look into the light source.

Adjusting the lamp head angle

The lamp head (1) can be swivelled:

• in a vertical direction
  • in a horizontal direction

⚠ WARNING! Risk of burns! Do not let the lamp shine at a vertical angle of less than 45 degrees in the direction of the handle.

Adjustable swivelling range

• vertical: -9^-180^ (15-Stage)
• horizontal: -90^-180^ (7-Stage)

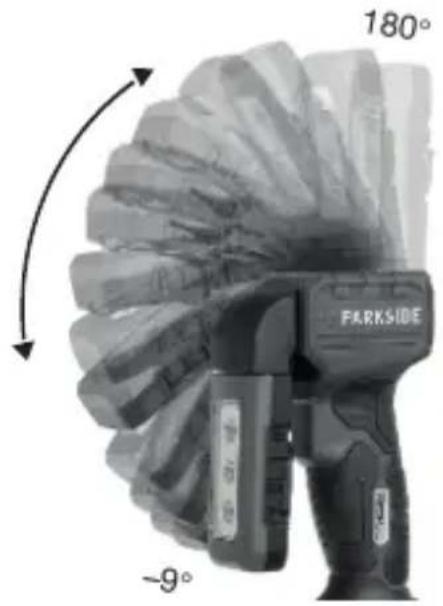

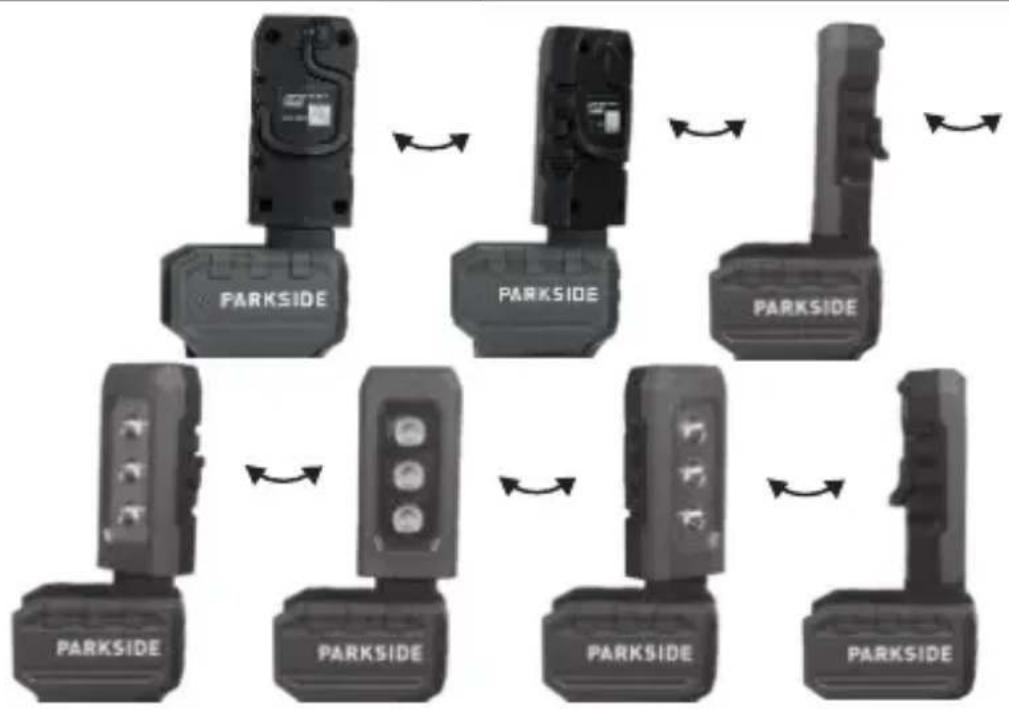

Procedure (Fig. B) (Fig. C)

1. Swivel the lamp head (1) in a vertical direction until the desired angle of inclination is reached.
2. Then turn the lamp head (1) in a horizontal direction until the desired swivelling range is set.

Hanging up the device

Requirements

- The hanging location must be suitable for the weight of the product.

Hanging the device on the hook (Fig. A)

1. Fold the hook (2) outwards.
2. Hang the device horizontally.

⚠️ CAUTION! Do not catch your fingers when hooking and unhooking the hook (2).

Checking the battery charge level

LEDs Meaning

red, orange, green Battery charged red, orange Battery partially charged

red Battery needs to be charged

1. Press the button (3) next to the charge level indicator button (4) on the battery (5). The LEDs of the charge level indicator show how much charge remains in the battery.

2. Charge the battery (5) when only the red LED on the charge level indicator (4) is illuminated.

Inserting and removing the battery into/from the cordless device

WARNING! Risk of injury due to unintentional start-up. Only insert the battery into the device once the device is fully prepared for use. NOTICE! Risk of damage! An incorrect battery can damage the device and battery.

Inserting the battery

1. Push the battery (5) along the guide into the battery holder. You will hear the battery click into place.

Removing the battery

1. Press and hold the battery release (6) on the battery (5).

2. Pull the battery out of the battery holder.

Switching on and off

1. Switch on: Press the On/Off switch (7).

2. Switch off: Press the On/Off switch (7) again.

Used batteries

- If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is depleted and must be replaced. Only use an original replacement battery of the series X 20 V TEAM, which can be purchased from the online shop (see Spare parts and accessories, p. 24). - Always observe the safety information in addition to the regulations and information about environmental protection (see Disposal/environmental protection, p. 20).

Cleaning, maintenance and storage

Switch the device off before cleaning and remove the battery from the device.

Cleaning

• Clean the device with a soft, dry cloth to avoid scratching the cover of the LED lamp.
• Use a brush to clean the gaps on the device.
• Do not use any abrasive cleaning agents or solvents. You can damage the device irreparably.

- Do not use water or metallic aids. Risk of short circuit.

Maintenance

The device is maintenance free.

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
• protected against frost
• out of the reach of children Devices with battery:

- The storage temperature for the battery and device is between 0 °C and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

- Remove the battery from the device before storage over a longer period (see separate operating instructions for battery and charger).

Disposal/environmental protection

Remove the battery from the device and recycle the device, battery, accessories and packaging in an environmentally-friendly manner.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Disposal instructions for rechargeable batteries

Do not throw batteries into domestic waste, fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape.

Dispose of the batteries according to local standards. Defective or used batteries must be recycled. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please contact your local waste management provider or our service centre. Dispose of batteries in a discharged state.

We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery.

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Battery capacity) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use.

The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and product number (IAN 479371_2410) ready as proof of purchase for all enquiries.

- Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.

- Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on park-side-diy.com in the category Service.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on park-side-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 479371_2410.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices which are sent in properly packed and with postage paid.

Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.

- The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.

- We will dispose of defective devices you ship to us free of charge.

Service Centre

Service Great Britain

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 479371_2410

Service Malta

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 479371_2410

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 23

Translation of the original EU declaration of conformity

Product: Cordless LED Hand Light

Model: PLHLA 20-Li C1

Serial number: 000001 - 282000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2014/30/EU • 2011/65/EU & (EU) 2015/863 Product with battery Smart PAPS 204 A1/ Smart PAPS 208 A1/Smart PAPS 2012 A1: 2014/53/EU

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN IEC 60598-1:2021/A11:2022 • EN 60598-2-8:2013 EN 62493:2015/A1:2022 • EN IEC 55015:2019/A11:2020 EN IEC 61547:2023 • IEC 62471:2006 • EN IEC 63000:2018 Product with battery Smart PAPS 204 A1/ Smart PAPS 208 A1/Smart PAPS 2012 A1: EN 301 489-1 V2.2.3:2019 • EN 301 489-17 V3.3.1:2024 EN 300 328 V2.2.2:2019 • EN 50663:2017

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Handwritten signature or scribble on white background

Christian Frank

Authorised representative of documentation

Sommaire

Introduction...... 25

Aantal lampen (led) 3× 1 W

Lichtstroom 280 lm

Lichtkleur ...... 6500 K (Koel wit)

Verlichtingsduur

- Accu 2 Ah ....8 h

- Accu 4 Ah ....16 h

- Accu 8 Ah ....32 h

Zwenkbereik/Lampkop-Hoek

• in verticale richting
• in horizontale richting

Product: Accu-LED-handlamp

Model: PLHLA 20-Li C1

Serienummer: 000001 – 282000

Handwritten signature or scribble on white background

Christian Frank

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE parkside-diy.com

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE
parkside-diy.com

Reparationsservice......116

Service-Center 117

Importør......117

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE parkside-diy.com

FSC® www.fsc.org MIX Paper from responsible sources FSC® C142944

FSC® www.fsc.org MIXTE Papier Issu de sources responsables FSC® C142944

IAN 479371_2410
