USER MANUAL SHGB 50 C4 SILVERCREST

PDF ONLINE www.lidl-service.com

Silver Handker-branded hair brush with grid bristles and a black cable (no visible text or symbols)

HAARGLÄTTUNGSBÜRSTE/HAIR STRAIGHTENING BRUSH/BROSSE COIFFANTE LISSANTE SHGB 50 C4

DE AT CH

HAARGLÄTTUNGSBÜRSTE

Operation and safety notes

FR BE

BROSSE COIFFANTE LISSANTE

ŽEHLIACA KEFA NA VLASY

Pokyny pre obsluhu a bezpečnostné pokyny

ES

CEPILLO ALISADOR

GB/IE Operation and safety notes Page 15

Technical diagram of a handheld device with labeled parts 1, 2, and 3, showing internal structure and component layout.

Warnings and symbols used....Page 16

Introduction Page 16

Intended use.... Page 16

Scope of delivery.... Page 17

Description of parts ...... Page 17

Technical data Page 17

Safety instructions.... Page 17

Before first use.... Page 19

Operation.... Page 19

Use.... Page 19

Key lock Page 20

Ionisation function Page 20

Memory function Page 20

Standby mode Page 20

Selecting temperature Page 20

Straightening hair.... Page 21

Troubleshooting Page 21

Cleaning and care Page 21

Storage Page 22

Disposal Page 22

Warranty Page 22

Warranty claim procedure.... Page 23

Service Page 23

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	Read the instruction manual thoroughly, particularly the safety instructions.	~	Alternating current/voltage
	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.	Hz	Hertz (supply frequency)
		W	Watts
	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.		Symbol for a Protection Class II product
			Do not use this product near bathtubs, showers, basins or other vessels containing water.
	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
	NOTICE! Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Safety informationInstructions for use
	NOTE: This symbol in combination with "Note" provides additional useful information.

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended only for straightening human hair. Under no circumstances is it to be used for wigs and hairpieces made of synthetic material.

This product is intended exclusively for private indoor use. This product is not intended for commercial applications.

Heed all the information in this instruction manual, especially the safety information.

⚠ WARNING! Danger if not used as intended!

Failure to use the product for its intended purpose and/or any other type of use can be hazardous.

• Use the product only for its intended purpose.
• Observe the procedures described in these operating instructions.

The product is not intended for any other purpose, nor for use beyond the scope described. No claims of any kind will be accepted for damage arising as a result of incorrect use. The risk shall be borne solely by the user.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1× Hair straightening brush
1× Short manual

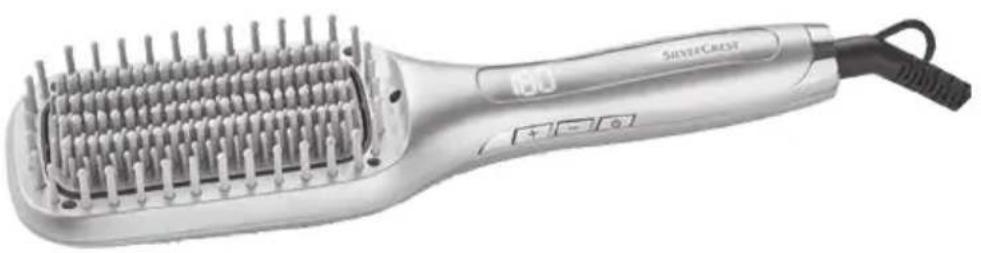

● Description of parts

(Fig. A)

1 Brush head
2 Ioniser outlet
3 Display
4 Hanging loop
5 Mains cord with mains plug
6 Handle
7 button (on/off)
8 - button
9 + button

- Technical data

Input voltage: 100-240 V ~,50-60 Hz
Rated power: 45-49 W
Max. temperature: 210 °C
Protection class:	II/☐ (double insulation)
Power consumptionin standby mode:	0.2 W

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING! Do not use this product near bathtubs, showers, basins or other vessels containing water.

⚠ WARNING! Burn hazard!

Keep the product out of reach from young children, particularly during use and cool down.

■ Never leave the product unattended when it is connected to the mains supply.

■ Never place the product on a table or close to other objects when it is heating up or cooling down.

- When the product is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the product is switched off.

For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

⚠ WARNING! Risk of

injury! Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

■ The product is not to be used if it has been dropped and there are visible signs of damage.

■ Disconnect the product from the mains supply and contact your retailer if it is damaged.

⚠️ DANGER! Risk of electric

shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠️ DANGER! Risk of electric shock! Do not immerse the

product in water or other liquids. Never hold the product under running water. If liquid does get into the housing, disconnect the product from the mains supply immediately and have the product repaired by a qualified technician.

• Clean all parts of the product as described in the chapter "Cleaning and care".
  Before connecting the product to a mains socket, check that the voltage corresponds with the mains supply details shown on the product's rating label.

- Do not use the product outdoors.

• Do not operate the product with wet hands or while standing on a wet floor.
• Do not touch the mains plug with wet hands.
• Do not pull the mains plug out of the mains socket by the mains cable.
  ■ Switch off the product before cleaning and disconnecting it from the mains socket.

■ Disconnect the product from the mains supply immediately after use. The product is completely free of electrical power only when unplugged.
- Do not kink or crush the mains cord. Route the mains cord so that it cannot be stepped on or tripped over.
■ Protect the product and mains cord with mains plug against heat, dust, direct sunlight, dripping and splashing water.
- Do not use or store the product in or expose it to a humid environment.

Before first use

⚠️ DANGER! Do not allow children to play with packaging materials. There is a risk of suffocation.
with Remove all packaging material and check if all parts are complete.
□ Clean all parts of the product as described in the chapter "Cleaning and care".
NOTE: The product may give off some odour during first use. This is due to production or transport residues that will quickly subside. Ensure sufficient ventilation in the area.

Operation

Use

⚠ WARNING! Risk of burns! The product becomes very hot during use. Never touch the brush head 1 when the product is switched on and cooling down. Always hold the product by its handle 6.

⚠ NOTICE! Never place the switched-on/hot product on a table. If necessary, only place the product on a flat, heat-resistant surface and away from other objects.

1. Connect the mains plug 5 to a suitable mains socket.

2. Press and hold the ⏻ button 7 for approx. 2 seconds to switch on the product. 120 °C flashes on the display 3, the product starts to heat up.

3. Use the +9/-8 buttons to set a temperature between 120 °C and 210 °C in 5 °C increments. The set temperature starts flashing on the display 3. As soon as the selected temperature is reached, the display lights up permanently. Alternatively, press and hold the - button 8 for approx. 2 seconds to set the temperature to 185 °C immediately. Flashes on the display 3.

As soon as a temperature of 185 ^ is reached: lights up permanently.

1. Press and hold the button 7 for approx. 2 seconds to switch off the product.

2. After use: Disconnect the mains plug 5 from the mains socket. Allow the product to cool down completely.

Key lock

To prevent accidentally changing the temperature during straightening, you can manually activate the key lock.

1. Press and hold the + button 9 for approx. 2 seconds. The buttons are locked when the lock symbol is shown on the display 3.

2. Press and hold the + button 9 again for approx. 2 seconds to deactivate the key lock. The buttons are unlocked when the lock symbol goes off from the display 3.

3. Switching off a locked product: Press and hold the ⏻ button 7 for approx. 2 seconds.

Ionisation function

☐ Ions reduce static charge of the hair and improve its stylability.

☐ The ionisation function is activated automatically when the product is switched on.

☐ The ioniser outlet 2 gives off ions and applies them to the hair.

☐ The ioniser outlet 2 stops giving off ions when the product is switched off.

NOTE: Do not block the ioniser outlet 2. This would lower the ion generation.

● Memory function

☐ The memory function preserves the last temperature setting that was selected during the previous use.

☐ The memory is cleared after the mains plug 5 is removed from the mains socket.

Standby mode

☐ If the product is connected to the mains supply and no button is pressed: The product enters the standby mode automatically. The display 3 does not light up.

☐ If the product is switched on for about 25 minutes, °C starts to flash in the display 3. After 30 minutes, the product switches to standby mode automatically and the display goes off.

☐ Press and hold the ⏻ button 7 for approx. 2 seconds to switch the product back on.

NOTE: Disconnect the product from the mains supply immediately after use. The product is only completely free of electrical power when unplugged.

- Selecting temperature

Type of hair	Recommended temperature
Bleached/lightened hair	120-150 °C
Fine, brittle and colour-treated hair	120-160 °C
Healthy natural hair	160-170 °C
Strong and resistant hair	170-210 °C

☐ Start at the lowest recommended temperature (see above table).
☐ If required, adjust the temperature in small steps to reach the optimum temperature setting.

Straightening hair

WARNING! Risk of injury! Make sure that the brush head 1 does not touch your scalp or other parts of your skin.

⚠ WARNING! Persons insensitive to heat must be careful when using the product.

i NOTES:

☐ Excessive temperatures, extended contact with the hair or very frequent straightening can damage the hair. Do not treat a single strand of hair repeatedly, especially at temperatures over 200 °C.

☐ The hair should be clean, dry and free of styling products. The only exception to this are special products which facilitate hair straightening.

1. Before styling: Use a comb to thoroughly comb the dry hair.
2. Switch on the product and set the desired temperature.
3. Section off an approximately 4 cm wide strand of hair. Hold it firmly at the tip.
4. Guide the product evenly along the strand from close to the root to the tip. Do not hold the product too long on any part of the hair strand. Repeat the steps until the result is satisfactory.
5. Work through the strands section by section until you have straightened all the hair.
6. After use: Switch off the product. Disconnect the mains plug 5 from the mains socket.

● Troubleshooting

Problem Cause Solution
The product is not working.	The mains plug 5 is not inserted into a mains socket.	Plug in the product.
	The mains socket is defective. Try a different mains socket.
The hair is not straightened.	The product is not sufficiently heated up.	Wait until the product has heated up.
	The set temperature is too low.	Set a higher temperature and wait until the product has heated up.
The hair is singed.	You have treated the same hair with the hot product too often or stopped for too long in one position.	Do not treat a single strand of hair repeatedly, especially at high temperatures.
	The set temperature is too high.	Select a lower temperature.

● Cleaning and care

⚠ WARNING! Risk of electric shock! Always remove the mains plug 5 from the mains socket before cleaning the product. Do not immerse the product in water or other liquids to clean it.

⚠ WARNING! Risk of injury! Allow the product to cool sufficiently before cleaning it.

⚠️ NOTICE! Risk of property damage!

Do not use any aggressive cleaning liquids or solvents. These can damage the surface of the product.

☐ If any hair gets caught in the brush head 1 of the product: Let the product cool down. Remove the hair carefully with your fingers.

□ Clean the product with a slightly damp cloth. For stubborn soiling, wipe the product with a light detergent on the cloth.
☐ Allow the product to dry fully before using it again or storing it.

Storage

⚠ WARNING! Risk of burns! Allow the product to cool down sufficiently before storing it.

☐ For short term storage: Hang the product up by the hanging loop 4.
☐ Store the product in the original packaging when it is not in use.
☐ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

FR ÉLÉMENTS D'EMBALLAGE + NOTICE

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 460372_2401) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
