USER MANUAL SSWM 900 A2 SILVERCREST

PDF ONLINE www.lidl-service.com

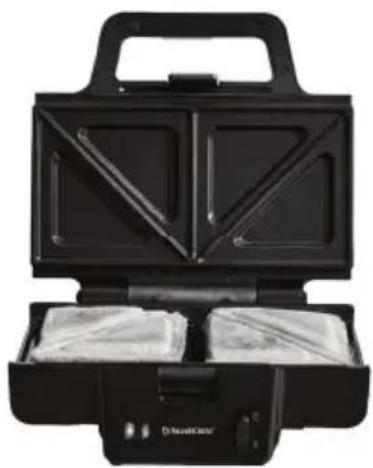

Black square griddle oven with open drawer containing two sheets of food (no visible text or symbols)

XXL-SANDWICHMAKER/XXL SANDWICH TOASTER/APPAREIL À CROQUE-MONSIEUR XXL SSWM 900 A2

DE AT CH

XXL-SANDWICHMAKER

Bedienungsanleitung

GB IE

XXL SANDWICH TOASTER

User manual

FR BE

APPAREIL À

CROQUE-MONSIEUR XXL

Mode d'emploi

NL BE

XXL-SANDWICHMAKER

Gebruiksaanwijzing

PL

Image showing an information icon and a folded document with a rotation arrow, likely illustrating document orientation or data transfer.

GB/IE User manual Page 17

Technical diagram of a device with numbered parts for identification and assembly reference.

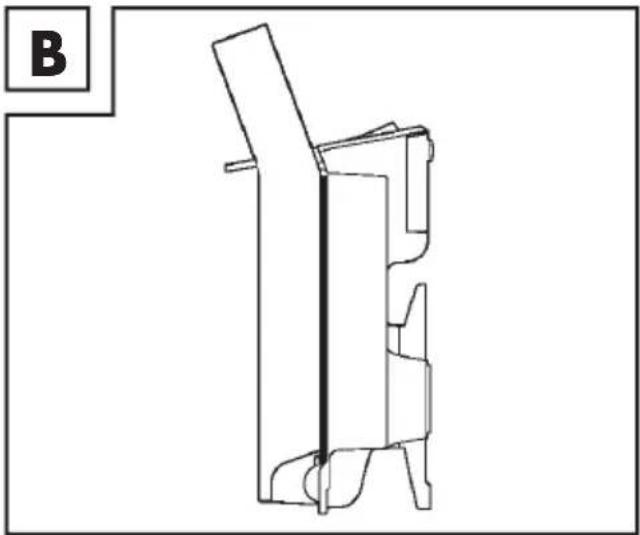

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical black-and-white icons with Chinese characters and symbols, possibly representing process steps or instructions.

Intended use....Page 18

Scope of delivery....Page 18

Parts list Page 19

Technical data Page 19

General safety instructions....Page 19

First set-up of the product Page 22

Unpacking the product and basic cleaning....Page 22

Operation Page 22

Switching the product on/off....Page 22

Preparing sandwiches....Page 22

Recipes Page 23

Overview Page 23

Bacon, egg and cheese sandwich....Page 23

Grilled cheddar cheese sandwich with caramelised apple....Page 23

Turkey sandwich....Page 24

Tuna sandwich....Page 24

Pudgy pie pizza sandwich....Page 24

Avocado sandwich Page 24

Cleaning Page 25

Storage Page 25

Disposal Page 25

Warranty Page 26

Warranty claim procedure....Page 26

Service Page 26

List of pictograms used
	DANGER! - Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)		Alternating current/voltage
	WARNING! - Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)	Hz	Hertz (supply frequency)
		W	Watt
	CAUTION! - Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Use the product in dry indoor spaces only.
	NOTICE! - Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Danger - risk of electric shock!
	INFO: This symbol with the “Info” signal word offers additional useful information.		Caution - hot surface!
	Food safeThis product has no adverse effect on taste or smell.		This appliance is classified as protection class I and must be connected to a protective ground.
	CE mark indicates conformity with relevant EU directives applicable for this product.		Safety informationInstructions for use

XXL SANDWICH TOASTER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for making sandwiches. Do not use the product for any other purpose.
This product is only intended for private household use, not for commercial purposes.
The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 XXL Sandwich toaster

1 User manual

Parts list

(Fig. A)

1 Heating plate
2 Lock
3 Mains cord retainer
4 Mains cord with mains plug
5 On/off switch
6 Lock position
7 Green indicator (ready)
8 Red indicator (power)

- Technical data

Model numberwith VDE plug:with BS plug:	HG11649HG11649-BS
Input voltage: 220–240 V~, 50 Hz
Power consumption: 900 W
Power consumption inoff mode: 0.0 W
Protection class: I
Certification:HG11649:HG11649-BS:	GS (Intertek)-

General safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers.

Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

■ Cleaning and user maintenance shall not be made by children without supervision.

- Keep the product and its cord out of reach of children less than 8 years.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

■ The product is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

-farm houses;
-by clients in hotels, motels and other residential
environments;
-bed and breakfast type
environments.

Electrical safety

⚠️ DANGER! Risk of electric

shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

DANGER! Risk of burns!

During use the product gets hot. Do not touch the product while in use nor immediately after use.
■ The temperature of accessible surfaces may be high when the product is operating.

⚠ WARNING! Risk of electric shock! Do no

immerse the product in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of

electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

■ The product is not to be used if it has been dropped, if there are visible signs of damage.
■ The product is powered only after the on/off switch is moved to the ON position.
Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.
■ Regularly check the power plug and the power cord for damages. If the power cord is

damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.

Operation

■ The product must not be left unattended while it is connected to the supply mains.
- Do not move the product while it is in operation.
- Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product on a level, stable, clean, heat-resistant and dry surface.

- Do not cover the product while it is in use or shortly after use, when it is still hot.

■ Make sure that the power cord is not pinched by the plates or touches the rim of the plates.

The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A.

■ Lay cords in such a way that they may not be tripped over or otherwise damaged.
■ The product is not intended to be operated by means of
an external timer or separate remote control system.

Cleaning and storage

⚠ WARNING! Risk of

injury! Disconnect the product from the power supply before cleaning work and when not in use.

- Do not store the hot product in a cupboard or in the packaging.

- Do not pull the power plug out of the electrical outlet by the power cord.

■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.

■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

■ Refer to the chapter "Cleaning" for instructions on how to clean the product.

● First set-up of the product

● Unpacking the product and basic cleaning

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".
4. During production, parts are covered with a protective oil film. Before first use, operate the product without any food so that any potential residues evaporate.
5. Before first use, clean all parts of the product as described in the chapter "Cleaning".

Operation

i INFO:

The lock position 6 has 2 levels. The product can be adjusted to the different thickness of the food.
The product can be used with bread slices with a maximum size of 120 × 120 mm.
☐ The first few times the product is heated up, a faint odour may be present. Ensure sufficient ventilation in the area.
□ Discard the first set of sandwiches.

- Switching the product on/off

i INFO:

During operation, the green indicator 7 goes on and off from time to time. This indicates that the product is reheating up to the baking temperature.
The off mode is selected by switching the product off.

1. Switching the product on: Connect the mains plug 4 to a suitable mains outlet. Move the on/off switch 5 to the ON position. The red indicator 8 lights up.
2. Switching the product off: Move the on/off switch 5 to the OFF position. The red indicator 8 goes off. Disconnect the mains plug 4 from the mains outlet.

Light indicator Status
Red indicator 8 is offGreen indicator 7 is off	Product off
Red indicator 8 is onGreen indicator 7 is off	Product is preheating/reheating.
Red indicator 8 is onGreen indicator 7 is on	The optimum temperature has been reached.

● Preparing sandwiches

i INFO:

☐ Grease both heating plates 1 with a suitable cooking oil.
□ Keep the product locked while preheating.

☐ Do not overfill the product.

1. Preheat until the green indicator 7 lights up.
2. Push the lock 2. Open the product.
3. Place the sandwiches on the lower heating plates 1. Sample recipes can be found in the following chapter.
4. Close the product. Close the lock 2. The sandwiches are being baked now.
5. Baking takes approx. 3–4 minutes. Lengthen or shorten the baking time to achieve the desired result. The sandwich is ideal when the toast is golden brown.
6. When baking is complete: Move the on/off switch 5 to the OFF position. Disconnect the mains plug 4 from the mains outlet.

● Recipes

① INFO: The following recipes are designed for a baking time of 4 minutes.

Overview

Recipe Servings Preparation time
Bacon, egg and cheese sandwich 2 approx. 10 min
Grilled cheddar cheese sandwich with caramelised apple 2 approx. 10 min
Turkey sandwich 2 approx. 10 min
Tuna sandwich 2 approx. 10 min
Pudgy pie pizza sandwich 2 approx. 10 min
Avocado sandwich 2 approx. 10 min

- Bacon, egg and cheese sandwich

Ingredients:

4 slices Bread
2 slices Cooked bacon
2 slices Cheddar cheese
10 g	Butter
2 Eggs
1 pinch	Pepper (optional)
20 ml	Milk

● Grilled cheddar cheese sandwich with caramelised apple

Ingredients:

4 slices Bread
30 g	Sugar
30 g	Butter
1 pinch	Cinnamon
1 Small apple (sliced)
4 slices Cheddar cheese

Preparation:

1. Preheat the product.
2. Beat the egg, milk and pepper in a bowl until blended. Melt the butter in a cooking pan. Put the egg mixture into the pan and scramble it until thickened and cooked. The scrambled eggs are ready. Set aside.
3. Grease both heating plates 1 with a suitable cooking oil.
4. Put 2 slices of bread on lower heating plates 1. Top with scrambled eggs, cooked bacon and cheddar cheese.
5. Top with remaining 2 slices of bread.
6. Bake for 4 minutes until golden brown.

Preparation:

1. Preheat the product.
2. Melt the butter in a non-stick cooking pan. Add the sugar and cinnamon and cook until the sugar dissolves. Add the sliced apples and cook for approx. 5 minutes until tender. The caramelised apples are now ready. Set aside for cooling down.
3. Grease both heating plates 1 with a suitable cooking oil.
4. Put 2 slices of bread on the lower heating plates 1. Top with 2 slices of cheddar cheese, caramelised apples, another 2 slices of cheddar cheese.
5. Top with remaining 2 slices of bread.
6. Bake for 4 minutes until golden brown.

Turkey sandwich

Ingredients:

4 slices Bread
4 slices Cheddar cheese
50 g Roasted turkey breast (sliced)
1 Tomato (sliced)
15 g Mustard
15 g Mayonnaise

Preparation:

1. Preheat the product.
2. In a small bowl, mix the mustard mayonnaise. Spread on 1 side of each bread.
3. Grease both heating plates 1 with a suitable cooking oil.
4. Put 2 slices of bread (mustard mixture side up) on the lower heating plates 1. Top with 2 slices of cheddar cheese, tomato, roasted turkey breast, another tomato and another 2 slices of cheddar cheese.
5. Top with remaining 2 slices of bread (mustard mixture side down).
6. Bake for 4 minutes until golden brown.

Tuna sandwich

Ingredients:

4 slices Bread
10 g Mayonnaise
35 g Tuna
2 slices Cheddar cheese

Preparation:

1. Preheat the product.
2. In a small bowl, mix the tuna and mayonnaise.
3. Grease both heating plates 1 with a suitable cooking oil.
4. Put 2 slices of bread on the lower heating plates 1. Top with 2 slices of cheddar cheese, and tuna with mayonnaise.
5. Top with remaining 2 slices of bread.
6. Bake for 4 minutes until golden brown.

Pudgy pie pizza sandwich

Ingredients:

4 slices Bread
130 g Shredded mozzarella cheese
40 ml Pizza sauce
8 slices Pepperoni
1 pinch Pepper (optional)
1 pinch Italian seasoning (optional)

Preparation:

1. Preheat the product.
2. Spread pizza sauce on 1 side of each bread.
3. Grease both heating plates 1 with a suitable cooking oil.
4. Put 2 slices of bread (pizza sauce side up) on the lower heating plates 1. Top with shredded mozzarella cheese, pepperoni, pepper and Italian seasoning (optional) and more shredded mozzarella cheese.
5. Top with remaining 2 slices of bread (pizza sauce side down).
6. Bake for 4 minutes until golden brown.

Avocado sandwich

Ingredients:

4 slices Bread
1 Boiled egg (finely chopped)
0.5 Avocado (mashed)
14	Lemon (squeeze out juice)
50 g Sweet corn
1 pinch Black pepper (optional)
1 pinch Garlic salt (optional)

Preparation:

1. Preheat the product.
2. In a small bowl, mix the avocado, egg, lemon juice, black pepper and garlic salt.
3. Grease both heating plates 1 with a suitable cooking oil.

4. Put 2 slices of bread on lower heating plates 1. Top with avocado, egg filling.

5. Top with remaining 2 slices of bread.

6. Bake for 4 minutes until golden brown.

- Cleaning

⚠️ DANGER! Risk of electric shock!

Before cleaning: Always disconnect the mains plug 4 from the mains outlet.

⚠️ DANGER! Risk of burns! Do not clean the product right after operation. Let the product cool down first.

WARNING!

Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.
Do not allow water or other liquids to enter the interior of the product.
Do not use abrasive, aggressive cleaning agents or hard brushes.

NOTE: Clean the product right after it has cooled. Once the food residues have dried, they are not easy to remove.

Part Cleaning	method
Housing	□ Wipe down the housing with a slightly damp cloth.□ Do not let any water or other liquids enter the product interior.
Heating plates 1	□ Wipe the plates with a slightly damp cloth and a mild detergent.
Orifices around the heating plates 1	□ Removing fat and liquids: Use a piece of kitchen paper.□ Removing stuck-on burnt residues: Use a wooden spatula or small wooden skewers.

Storage

⚠️ DANGER! Risk of burns! Do not store the product right after operation. Let the product cool fi rst.

□ Clean the product before storage.
☐ Wind the mains cord 4 around the mains cord retainer 3.
☐ Store the product in the original packaging when it is not in use.
☐ Store the product at a dry location out of the reach of children.

Technical line drawing of a mechanical component or bracket (no text or symbols)

The product can also be stored in a vertical position (Fig. B).

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98:composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product

parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 484419_2501) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you.

Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

Technical line drawing of a mechanical component or bracket (no text or symbols)

⚠ WAARSCHUWING! Verwondingsgevaar!

Pizzasandwich "Pudgy Pie"

Ingrediënten:

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical icons with Chinese text and symbols, possibly representing user interaction or workflow steps.

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical black-and-white icons with arrows and symbols, possibly representing process steps or workflow stages.

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical icons with arrows and Chinese text, likely representing process steps or workflow.

Sandwich pizza "Pudgy Pie"

Ingredientes:

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical icons with arrows and Chinese text, likely representing process steps or workflow.

Pizzasandwich "Pudgy Pie" Side 104

Avocado-sandwich. Side 105

Rengøring Side 105

Opbevaring Side 105

Bortskaffelse Side 106

Garanti Side 106

Pizzasandwich "Pudgy Pie"

Ingredienser:

4 skiver Brød
130 g Revet mozzarella
40 ml Pizzasovs
8 skiver Salami
1 knivspids Peber (efter behov)
1 knivspids Italiensk krydderblanding (efter behov)

Tilberedning:

Technical line drawing of a mechanical component or bracket (no text or symbols)

Produktet kan også opbevares i lodret position (fi g. B).

Bortskaff else

- Tramezzino pizza "Pudgy Pie"

Ingredienti:

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Two identical black-and-white icons with arrows and symbols, possibly representing process steps or workflow diagrams.
