USER MANUAL STG 2200 A2 SILVERCREST

Exterior view of a black portable gas stove with two side grilles and two front fans (no visible text or symbols)

TISCHGRILL STG 2200 A2 TABLETOP GRILL STG 2200 A2 GRIL DE TABLE STG 2200 A2

For EU market: Imported for GB market by:

HOYER Handel GmbH Lidl Great Britain Ltd

Kühnehöfe 12 Lidl House · 14 Kingston Road

22761 Hamburg Surbiton · KTS 9NU

GERMANY

Stand der Informationen · Status of information · Version des information

GB Operating instructions TABLETOP GRILL

3D diagram of a rectangular plastic tray with internal compartments and a labeled section '9' (no text or symbols beyond the number)

1. Overview 19
2. Intended purpose 20
3. Safety information 21
4. Items supplied 24
5. Unpacking 24
6. Before initial use 24
7. Operation 25

7.1 Connecting the device, switching it on and off.... 25
7.2 Controlling the temperature 25
7.3 Barbecuing 25
7.4 Emptying the grease drip tray.... 26
7.5 Overheating protection.... 26

1. Cleaning and storing 26

8.1 Removing grease and food residues.... 26
8.2 Dishwasher 26
8.3 Cleaning the splash guard 27
8.4 Cleaning the base unit.... 27
8.5 Storing the device 27

1. Disposal 27

2. Trouble-shooting 28

3. Technical specifications 28
4. Warranty of the HOYER Handel GmbH 29

1. Overview

1 Splash guard left
2 Grease drain hole (in the grill plates)
3 Splash guard right
4 Power cable with mains plug
5 Base unit
6 Recessed grip
70-5 Power stage scale, right temperature control
8 Temperature control / on/off switch for right grill plate
9 Grease drip tray
10 Left and right LEDs:

• light up green during heating
• go out as soon as the operating temperature is reached Middle LED:
• lights up red when the device is supplied with electricity

11 0 - 5 Power stage scale, left temperature control
12 Left temperature control / on/off switch for left grill plate
13 Reversible grill plates with smooth and ridged sides
14 Cable spool with plug socket

Thank you for your trust!

Congratulations on your new tabletop barbecue.

For safe handling of the device and in order to get to know the entire range of features:

• Read these user instructions thoroughly prior to initial use.
• Above all, observe the safety information!
• The device should only be used as described in these user instructions.
• Keep this copy of the user instructions for reference.
• If you pass the device on to someone else, please include these user instructions. The user instructions are a part of the product.

We hope you enjoy your new tabletop barbecue!

2. Intended purpose

The tabletop barbecue is suitable for barbecuing and cooking food.

The device must not be used for thawing, heating or drying objects.

The device is designed for private, domestic use. The device must only be used indoors.

This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

• The device is not designed for operation outdoors.
• Do not cover the grill plates with aluminium foil, aluminium trays or other heat-resistant materials. Gaps must be left clear to prevent the device from overheating.
• The device must not be used as a heater, for thawing food, or for heating or drying objects.

Symbols on your device

This symbol warns you against touching the hot surface.

The food-safe material of devices with this symbol will not change the taste or smell of food.

3. Safety information

Warnings

If necessary, the following warnings are used in these user instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: ignoring this warning may result in minor injuries or damage to property.

NOTE: circumstances and specifics that must be observed when handling the de-

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or a lack of experience or knowledge if they are supervised or have been instructed in how to use this device safely and if they have understood the resulting dangers.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by unsupervised children unless they are older than 8 years and supervised.
• Children under the age of 8 must be kept away from the device and the power cable.

- During operation, the metal surfaces of the device may become hot. Do not touch the hot parts of the device such as the splash guard or grill plates. Only touch the control elements of the device during operation.

• The device, the power cable and the mains plug must not be immersed in water or any other liquids.
• This device is not intended to be operated using an external timer or a separate remote control system.
• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist in order to avoid any hazards.
• Charcoal and similar fuels must not be used in this device.
• The heating coils must not be wiped with a damp cloth.

• Never leave the device unattended during operation in order to be able to intervene in good time if malfunctions occur.

• Unplug the mains plug immediately after each use to prevent accidental switching on.

• Clean the device prior to its first use (see “Cleaning and storing” on page 26).

DANGER for children!

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.
• Ensure that children are not able to pull the device down from the work surface by the power cable.
• Keep the device out of the reach of children.

DANGER to and from pets and livestock!

Electrical devices can represent a danger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture!

• Protect the device from moisture, water drops and water splashes.
• If liquid gets into the device, disconnect the mains plug immediately. Have the device checked before reusing.
• Never touch the device with wet hands.
• If the device falls into water, disconnect the mains plug immediately. Only then is it safe to remove the device.

DANGER! Risk of electric shock!

• Only plug the mains plug into the wall socket after the device has been completely assembled.
• Only connect the mains plug to a properly installed and easily accessible wall

socket with earthing contact whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in.

• When using an extension cable or a multiple socket, they must comply with the applicable safety regulations and be designed for the technical data of this device.
• Ensure that the power cable cannot be damaged by sharp edges or hot spots. Do not wrap the power cable around the device.
• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug from the wall socket, always pull on the plug and never the cable.

• Pull the mains plug out of the wall socket:

• when a malfunction occurs

• when you leave the device unattended
• immediately after each use
• before assembling/disassembling the device
• before you clean the device

• during thunderstorms

• In order to avoid any hazards, do not make modifications to the device.

• Do not use the device if there is visible damage to the device or the power cable.

DANGER! Risk of fire!

• The device must only be set up on a solid, level, dry and non-flammable surface. This is intended to prevent it from tipping, slipping or setting fire to the underlying material and thus causing damage.
• The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 50 cm from walls and other objects.
• In order to prevent overheating of the device or a potential fire, the device must not be covered. The grill plates must under no circumstances be covered with aluminium foil, aluminium containers or heat-resistant materials.
• The power cable must not touch the hot surfaces during operation.

DANGER! Risk of injury through burning!

• The splash guard and the grill plates become very hot during operation. Only touch the control elements during operation.
• The device remains very hot after it is switched off, and must not be touched.
• Only transport the device when it has cooled down, and when doing so only use the recessed grips intended for this purpose.
• Use oven gloves when you are cooking food at hot temperatures. Spitting fat could otherwise cause burns.
• Never use the device without the grill plates. Otherwise the red-hot heating elements would be exposed which could result in severe burns if touched.
• If fat catches fire on the device, never try to extinguish it with water!
  There is a danger of explosive deflagration or electric shock. Instead, cover the device with a fire blanket.

- Wait for the device to cool down before cleaning.

DANGER for birds!

Birds breathe faster, distribute the air differently in their bodies and are significantly smaller than humans. For this reason, it may be dangerous for birds to inhale even the smallest smoke quantities, which develop while this device is in operation. When using this device, birds should be relocated into a different room.

WARNING! Risk of material damage!

• Ensure that both temperature controls are set completely to 0 (switched off) before plugging the device into the wall socket.
• Only use the original accessories.
• Do not use any astringent or abrasive cleaning agents.
• The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain components that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.
• Only use barbecue utensils made from wood or heat-resistant plastic. Metal utensils could damage the coated surface of the grill plates.
• Do not place any objects on the device.

4. Items supplied

1 base unit 5 incl. grease drip tray 9
2 reversible grill plates 13
1 splash guard 1 + 3 (two-piece)
1 complete copy of the operating instructions (on the Internet)
1 copy of the short manual (enclosed with the device)

5. Unpacking

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
• Remove any stickers present, but not the rating plate on the underside.

6. Before initial use

FIRE HAZARD!

• Place the device on a dry, level, non-slip and heat-resistant surface.
• The device must not be operated close to flammable liquids or materials, or in a potentially explosive environment. Keep at a distance of at least 50 cm from walls and other objects.

NOTE: when in operation for the first time, some smoke and odour may be generated by the device. This is related to materials used on the heating elements during assembly, and is not a defect with the device. Ensure adequate ventilation.

• Clean the device prior to its first use (see "Cleaning and storing" on page 26)!
  • Figure A: fully unwind the power cable 4 from around the cable spool 14.
  • Figure B: if necessary, attach the splash guard 1 + 3.

• Turn both temperature controls 8 + 12 completely to 0. This switches off the heating elements.

• Figure C: place the reversible grill plates 13 on the device.
• Insert the mains plug 4 into an easily accessible earthed wall socket whose voltage matches the voltage stated on the rating plate. The middle LED 10 lights up red.
• Turn both temperature controls 8 + 12 to 5. As long as the device is heating up, this is indicated by the respective LED 10 lighting up green. Once the set heating level has been reached, the green LEDs 10 go out. To maintain the heat at the set heating level, a thermostat switches the heating elements on and off automatically.
• Leave the device switched on for around 10–15 minutes.
• Turn both temperature controls 8 + 12 to 0 to turn the heating elements off again. The green LEDs 10 will go out.
• Pull out the mains plug 4. The red LED 10 will go out.
• Allow the device to cool down.
• Clean the device again.

7. Operation

DANGER! Risk of injury through burning!

• The splash guard 1 + 3 and the grill plates 13 get very hot during operation. Only touch the control elements during operation.
• Ensure that children do no play in the vicinity of the device or pull down the device.

7.1 Connecting the device, switching it on and off

1. Turn both temperature controls 8 + 12 completely to 0. This switches off the heating elements.
2. Figure C: flip over the reversible grill plates 13 if necessary so the desired surface is on top. Lightly oil the top.

NOTE: to apply oil, use a kitchen towel with a little cooking oil drizzled onto it.

1. Insert the mains plug 4 into an easily accessible earthed wall socket whose voltage matches the voltage stated on the rating plate. The middle LED 10 lights up red.
2. Turn both temperature controls 8 + 12 to 5. As long as the device is heating up, this is indicated by the respective right or left LED 10 lighting up green. Once the set heating level has been reached, the green LEDs 10 go out. To maintain the heat at the set heating level, a thermostat switches the heating elements on and off automatically.
3. Let the device preheat for about 10 minutes. The device is now ready for operation.

4. Turn both temperature controls 8 + 12 to 0 to turn the heating elements off again. The green LEDs 10 will go out.

5. Unplug the mains plug 4 immediately after use to prevent accidental switching on.

6. Allow the device to cool down before you clean it.

7.2 Controlling the temperature

The optimum temperature depends above all on the food used. With the temperature controls 8 + 12 you can infinitely variably regulate the temperature of the grill plates 13:

• To increase the temperature, turn the temperature controls 8 + 12 towards 5.
• To lower the temperature, turn the temperature controls 8 + 12 towards 0.
• To switch off the heating elements, turn the temperature controls 8 + 12 to 0 right up to the stop.

When the thermostat is switching on and off, the green LEDs 10 turn on and off accordingly.

7.3 Barbecuing

The grill plates 13 are non-stick coated and normally need to be lightly oiled only before grilling begins.

• The ridged side of the grill plates 13 is primarily used to grill meat, sausages and oily food.
• The smooth side of the grill plates 13 (La Plancha) is more suited to cooking food such as vegetables, pancakes or fried eggs.
• If the device is set up horizontally, grease and cooking juices can run off to the middle to the grease drain hole 2. Grease and cooking juices are collected in the grease drip tray 9.
• Use utensils made of wood or heat-resistant plastic in order not to damage the grill plates 13.

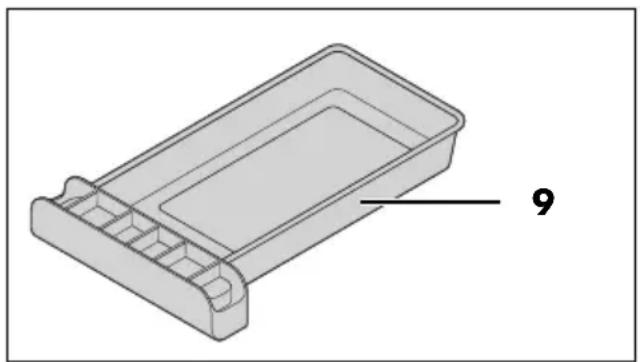

7.4 Emptying the grease drip tray

If larger quantities of grease and cooking juices are produced during grilling, the grease drip tray 9 must be emptied every now and then. To do this, take a break from grilling so that no liquid drains out while the grease drip tray 9 is removed.

3D diagram of a rectangular tray with internal compartments and a labeled section '9' (no text or symbols beyond the number)

1. Carefully pull the grease drip tray 9 out forwards and empty it.
2. Wipe the outside of the grease drip tray 9 with kitchen paper.
3. Slide the empty grease drip tray 9 back into the base unit 5.

NOTE: you can fill some water into the grease drip tray 9 before grilling. This binds odours and facilitates cleaning.

7.5 Overheating protection

The device is fitted with overheating protection. This will automatically switch the device off if a certain temperature is exceeded. If the overheating protection is triggered, turn both temperature controls 8 + 12 completely to 0. When the device has cooled down, it can be switched on again.

Note that the grill plates 13 must not be covered with aluminium foil, aluminium trays or other heat-resistant materials. Gaps must be left clear.

8. Cleaning and storing

DANGER! Risk of electric shock!

• Disconnect the mains plug 4 from the mains socket before any cleaning.
• Never immerse the device in water, and protect it from drips and splashes.

DANGER! Risk of injury through burning!

- Prior to cleaning, let the device cool down until there is no longer a risk of burning.

WARNING! Risk of material damage!

- Never use any abrasive, corrosive or scouring cleaning agents. This could damage the device and the non-stick coating of the grill plates 13.

NOTE: do not wait too long after cooling before cleaning, otherwise food residues will dry hard and become difficult to remove.

8.1 Removing grease and food residues

• First remove grease and food residues using paper towels.
• If there is stubborn encrusted food on the grill plates 13, soften it for approx. 20–30 minutes in warm water with a little mild detergent.

8.2 Dishwasher

The following accessories can be cleaned in the dishwasher:

• the grill plates 13
• the grease drip tray 9

8.3 Cleaning the splash guard

• Light dirt can be removed with a damp cloth with a little detergent.
• Remove the splash guard 1 from the device if it is very dirty. You can then clean it by hand in warm dishwater.
• Carefully dry the splash guard 1 after cleaning.

8.4 Cleaning the base unit

1. Clean the base unit 5 with a damp cloth. You can also use a little detergent.
2. Wipe with clear water.
3. Do not use the device until it is completely dry again.

8.5 Storing the device

DANGER for children!

- Store the device out of the reach of children.

1. Allow the base unit 5 and all accessories to dry completely after cleaning.
2. Store the device in a frost-free, dry place.

9. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances.

This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

10. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Check the connection.Are the temperature controls 8 + 12 set to 0? Switch the device on by turning the temperature controls to a higher setting.Has the overheating protection switched off the device? Allow the device to cool down. Then it can be switched on again.

11. Technical specifications

Model: STG 2200 A2
Mains voltage: 220 - 240 V ~ 50 - 60 Hz
Protection class:	I
Power rating: 1800 - 2200 W

Symbols used

	Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produkt-sicherheitsgesetz - ProdSG). (Not for UK)
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
PAP	Recyclable materials are marked with the recycling symbol (3 arrows). The material can be specified by the recycling number in the centre (here: 21) and/or an abbreviation (here: PAP).
~	AC voltage
	The symbol identifies parts that can be cleaned in the dishwasher.
	It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply.
	The product does not contain bisphenol A.
	With the UKCA marking, HOYER Handel GmbH declares that the product is in conformity with the UKCA requirements.
	The symbol identifies the product manufacturer.

Subject to technical modifications.

12. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

- Please keep the article number IAN: 481192_2410 and the purchase receipt as a purchase verification for all inquiries.

- The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.

- If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

At www.lidl-service.com you can download this and many other manuals, product videos and installation software.

PDF ONLINE www.lidl-service.com

This QR code takes you directly to the Lidl Service website (www.lidl-service.com), where you can enter the article number (IAN)

481192_2410 to open your user instructions.

Service Centre

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 481192_2410

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnehöfe 12

22761 Hamburg

GERMANY

Sommaire

3D diagram of a rectangular plastic tray with internal compartments and a labeled section '9' (no text or symbols beyond the label)

3D diagram of a rectangular tray with internal compartments and a labeled part '9' (no text or symbols beyond the label)

3D diagram of a rectangular tray with internal compartments and a labeled section '9' (no text or symbols beyond the number)

3D diagram of a rectangular tray with internal compartments and a labeled section '9' (no text or symbols beyond the number)

3D diagram of a rectangular tray with internal compartments and a labeled section '9' (no text or symbols beyond the label)

3D technical drawing of a rectangular mechanical part with internal channels and a labeled dimension '9' (no text or symbols beyond the label)

3D diagram of a rectangular tray with internal compartments and a labeled section '9' (no text or symbols beyond the number)

3D technical drawing of a rectangular plastic tray with internal compartments and a labeled part '9' (no text or symbols beyond the label)

3D diagram of a rectangular plastic tray with internal compartments and a labeled part '9' (no text or symbols beyond the label)
