Product type	Wall-mounted kitchen faucet
Brand	Kohler
Model	Triton K-7319-4
Category	Faucet
Mounting type	Wall-mount
Material	Chrome-plated brass
Approx. weight	2.5 kg
Connection	Hot and cold water, 1/2" NPT thread
Main functions	Two-handle mixer, swivel spout, removable aerator, optional soap dispenser
Flow rate	Approximately 8 L/min at 3 bars
Control type	Offset handles
Care & cleaning	Clean with a soft cloth and soapy water; avoid abrasive or acidic cleaners
Safety	Comply with local plumbing codes; shut off water supply before installation
Spare parts	Offset handles, coupling nuts, flanges, nipples, aerator, optional soap dispenser
Repairability	Standard parts available; repair can be done by a professional plumber
Warranty	Limited manufacturer warranty (see manual)
Country of origin	United States (Kohler brand)

Frequently Asked Questions - Triton K-7319-4 KOHLER

How to install the Triton K-7319-4 faucet?

Follow the steps in the manual: first install the offset handles onto the wall nipples, then secure the faucet body with the coupling nuts. Make sure the flanges are tight against the wall.

What to do if the faucet leaks at the connections?

Check that all coupling nuts are tightened. If the leak persists, replace the sealing washers or contact a plumber.

How to clean the Triton faucet?

Use a soft cloth and soapy water. Avoid abrasive, acidic, or chlorine-based cleaners that could damage the chrome finish.

Can I install a soap dispenser on this faucet?

Yes, the K-7319-4 model is designed for an optional soap dispenser. Follow the instructions in section 3 of the manual to install it.

How to adjust the water temperature?

The offset handles control flow and temperature. Turn the left handle for hot water and the right handle for cold water. Adjust both to achieve the desired temperature.

The water flow is low, what to do?

Remove the aerator by turning it counterclockwise and clean it to remove debris. Reinstall it after cleaning.

What tools are needed for installation?

You will need an adjustable wrench, a 7/16" seat wrench, and a fork wrench. Straps or ear couplings may be needed to secure the supplies.

The faucet does not stay in place, how to level it?

Use a 7/16" seat wrench to turn the offset handles until the faucet is level, then retighten the coupling nuts.

Where can I find spare parts?

Spare parts such as offset handles, nuts, or aerator are available from authorized Kohler dealers or online.

Is the faucet under warranty?

Yes, Kohler offers a limited warranty. See the manual for details or contact Kohler customer service.

USER MANUAL Triton K-7319-4 KOHLER

Wall Mount Kitchen Faucets

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Adjustable Wrench

7/16" Seat Wrench

Open End Wrench

Before You Begin

NOTE: Use two-hole straps or drop-ear ells and screws to secure the water supplies within the wall.

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
□ Carefully inspect waste and supply tubing for any sign of damage.
□ Replace waste or supply tubing if necessary.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified within the Price Book.

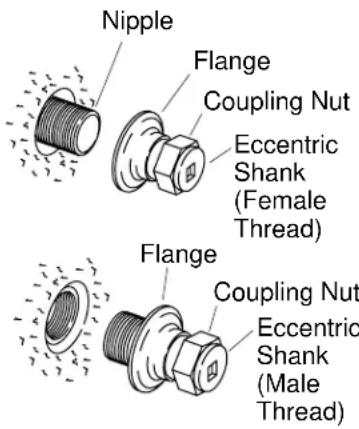

Nipple Flange Coupling Nut Eccentric Shank (Female Thread) Flange Coupling Nut Eccentric Shank (Male Thread)

1. Install the Eccentric Shank

☐ Slide one coupling nut and one flange onto each cold and hot eccentric shank.
☐ Measure and install the nipple. If the eccentric shank has female threads, the nipples should extend 3/8" (1 cm) to 1/2" (1.3 cm) from the front of the wall. If the eccentric shank has male threads, the nipple should be flush with the front of the wall.
☐ Thread one eccentric shank assembly onto each cold and hot nipple. Ensure that each flange is snug against the finished wall.

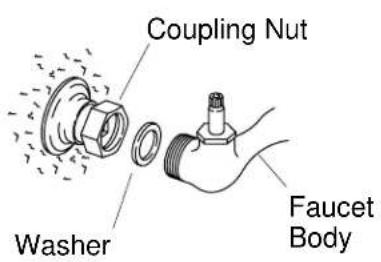

Coupling Nut Washer Faucet Body

Eccentric Shank Seat Wrench

2. Install the Faucet Assembly

NOTE: The cold and hot faucet shanks are eccentric to allow adjustment.

☐ Insert one washer into each cold and hot coupling nut.
□ Align and then insert the faucet assembly into each cold and hot faucet shank.
☐ Partially thread each cold and hot coupling nut onto the faucet assembly threads until tight.
□ Check to see that the faucet assembly is level.
☐ If the faucet assembly is not level, turn each cold and hot eccentric shank with a 7/16" seat wrench.
□ After adjustment, securely tighten each cold and hot coupling nut.

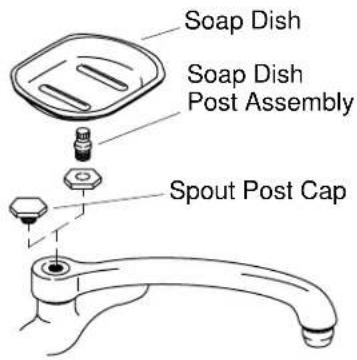

Soap Dish Soap Dish Post Assembly Spout Post Cap

3. Install the Soap Dish

Foraninstallationwithasopdish:

☐ Slide a nut onto the soap dish post assembly.
☐ From the top of the faucet, insert the soap dish post assembly into the hole at the base of the spout. Tighten until secure.
☐ Place the soap dish on the top of the soap dish post assembly.

For an installation without a soap dish:

□ Install the spout post cap into the hole at the base of the spout. Tighten until secure.

4. Installation Checkout

□ Ensure that all connections are tight.
□ Open the drain.
□ Turn on the main water supply.
□ Twist the aerator counterclockwise until it is removed from the spout.
□ Open both hot and cold valves.
□ Run water through the spout for approximately one minute to remove debris. Check for leaks.
□ Remove any debris from the aerator and reinstall.
