USER MANUAL Poseidon E50 ULTIMEA

Black UltimeA projector with a circular lens and grid-patterned front panel (no visible text or symbols on the device body)

Model No.: U0341

Poseidon E50

Contents

03 Smart Projector User Manual

English

Setup guidance video and User Manuals on ULTIMEA website.

support.ultimea.com

@ultimea_official

[phone] (US) Mon-Fri 9am-5pm (PST) [phone] (EU) Mon-Fri 9am-5pm (CET)

1 Safety Instructions

Read all instructions before you use this device. Do not make any changes or create settings that are not described in this manual. If physical injury, loss of data, or damage is caused by failure to follow instructions, the warranty does not apply.

Setup

• To avoid personal injury or property damage, please comply with the instructions in this manual carefully and do not use the product in any other way.
- To reduce the risk of fire and/or electric shock, do not expose the device to rain or moisture. Objects filled with liquids, such as vases, should not be placed on this device.
- Do not place this device on soft surfaces such as tablecloths or carpets, otherwise the device could be a fire hazard.
- Do not place this device in areas susceptible to excessive dust and dirt or near any appliance generating a strong magnetic field.

• To prevent overheating, do not block or clog the ventilation openings.
• Never place this device in a confined space. Always leave enough space around this device for ventilation.
• Avoid overexposing this device to direct sunlight, heat, large temperature fluctuations, and moisture. Avoid extreme temperatures.
• When this device is running for a long period of time, the surface may become hot. If this occurs, shut it down immediately and unplug the charger. Resume operation after the device has cooled down.
• Always handle this device with care. Avoid touching the lens.
• Do not allow children to handle the device without supervision.
• No not place heavy or sharp objects on this device.
• To avoid electric shock, do not disassemble the evice.
• Avoid extreme vibration. It may damage the internal components.

• Only use attachments or accessories specified by the manufacturer.

• Please comply with the laws and regulations of the country and region where the equipment is located (used), observe professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purpose.

• When using a projector in a dark environment, be mindful of the safety of your audience. Ensure that equipment such as projectors and power cords are placed in locations where they cannot be easily tripped over or touched, and avoid crossing cords to minimize safety risks.

Power Supply

• Use only the provided power adapter.
• Power off the device before removing the power supply from the socket.
• Protect the power cord from being walked on or pinched, particularly at plugs.
• Unplug this device if there are lightning storms or when unused for a long period of time.
• Before you make or change any connections, ensure that all devices are disconnected from the power outlet.

EN

- Never touch the power cable or the power connector with wet hands.

Hearing Safety

- To prevent hearing damage, do not listen for extended periods at high volume. Set the volume to a safe level.

Caution

- Do not stare directly at the operating beam. The bright light may damage your eyes.

Cleaning

• Use a soft, lint-free cloth. Never use liquid, gaseous, or easily flammable cleansers to clean.
• Do not use any liquid cleaning agents to clean the lens to avoid damaging the coating film on the lens.
• Wipe the surfaces gently. Be careful that you do not scratch the surface.
• Use lens cleaning paper to clean the lens.

Repairs

• Do not make any repairs to this device yourself. Only have your device repaired by an authorized service center.
• Improper maintenance can result in injuries to persons or damage to this device.
  • Refer all servicing to qualified service personnel.

System

- Since the Android TV system interface will be updated regularly, and the user interface will be updated through software upgrades, there may be some differences between the interface and the manual. If there is a difference between the manual and the user interface of the final product, please refer to the actual Display prevails.

2 What's Included

Poseidon E50 Smart Projector

Remote Control (Batteries not included)

User Guide

Warranty Card HDMI Cable Power Cable

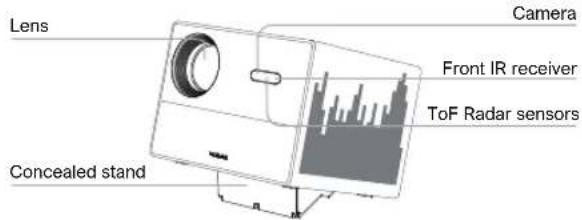

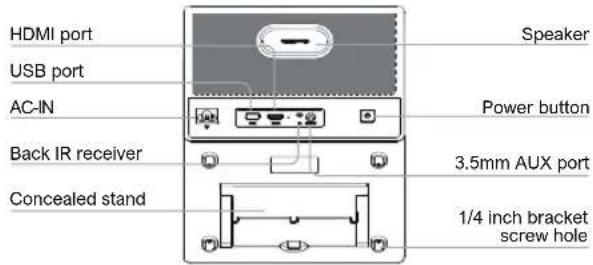

3 Overview

Lens Camera Front IR receiver ToF Radar sensors Concealed stand

HDMI port USB port AC-IN Back IR receiver Concealed stand Speaker Power button 3.5mm AUX port 1/4 inch bracket screw hole

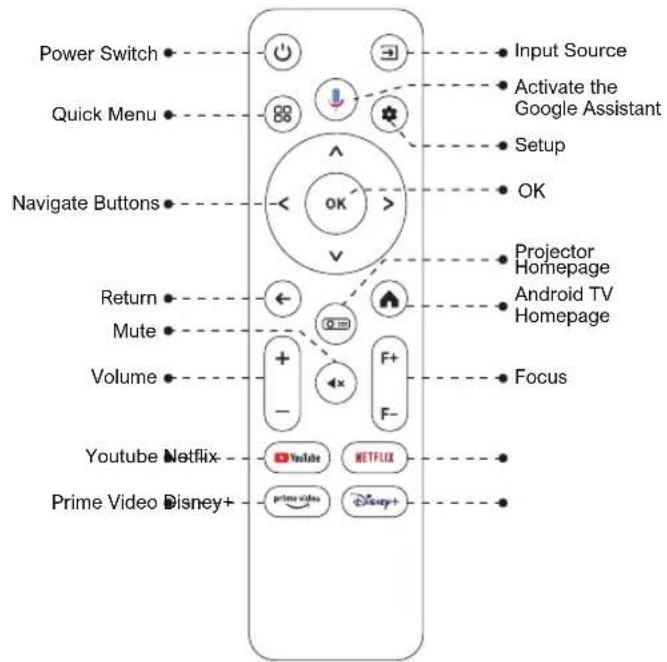

4 Remote Control

Power Switch Quick Menu Navigate Buttons Return Mute Volume Youtube Netflix Prime Video Disney+ Input Source Activate the Google Assistant Setup OK Projector Homepage Android TV Homepage Focus YouTube Netflix Netflix prime video Disney+

LED Indication

LED Status Description
Steady Blue	Powered On
Steady Red	Standby Mode
Light Off	Powered Off

5 Get Started

Prepare the Remote Control

• Open the battery holder cover of the remote control.
  • Install two AAA batteries. Make sure to match the polarity (+/-) indicated and put back the cover.
• Please refer to the on-screen instructions to pair the remote control with the Poseidon E50
  • The distance between the remote and the projector should not exceed 10 m/33 ft.

Power On/Off

• Inserting the power plug using the provided adapter.
• Press the power button or remote control power button once to power on.
• Press the power button or remote control power button twice to power off.

Plug the power cord into an outlet.

Press the power button to turn on the projector.

Placement

• Place Poseidon E50 on a stable, flat surface in front of the projection surface.
• Please adjust the distance between Poseidon E50 and the projection surface to get the desired projection image.

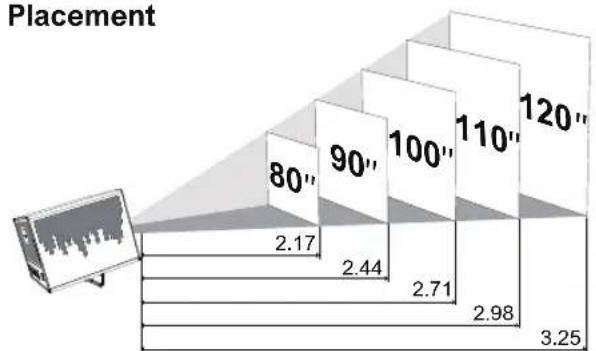

Projection Distance and Projection Image Size

Projection Image Size(inch)	Distance(m)	Distance(ft)
80	2.17	7.12
90	2.44	8.01
100	2.71	8.89
110	2.98	9.78
120	3.25	10.66

EN

Notice: The projection image size refers to the distance of the diagonal of the image size instead of the length of the image size.

Auto Focus

- Turn the device towards a suitable projection surface or wall, the Poseidon E50 will enter autofocus until get a clear image.

Focus Manual

- Press "F+" / "F-" on the remote control to manually adjust the focus. Please carefully observe the focus icon until get a clear image.

Keystone Correction

- The Poseidon E50 supports Auto keystone, Vertical correction, Horizontal correction and remote Corner Correction.

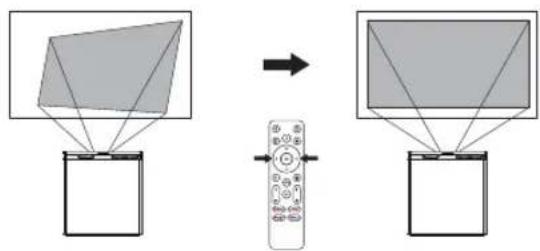

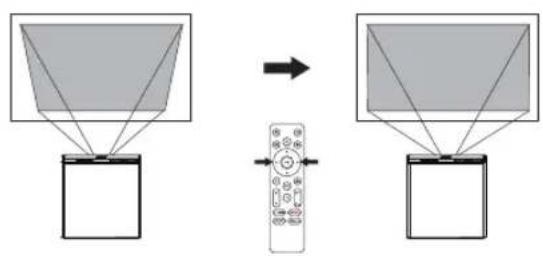

Auto Keystone

- When the projector image is distorted, it will perform auto keystone correction to restore the image to a rectangle. If you find the auto keystone correction does not work as well as before, follow the instructions below to optimize it.

• Press the button to go to projector home menu, [Settings]->[Projection Settings]
• Select [Keystone Settings] and adjust the projector for the correct image.

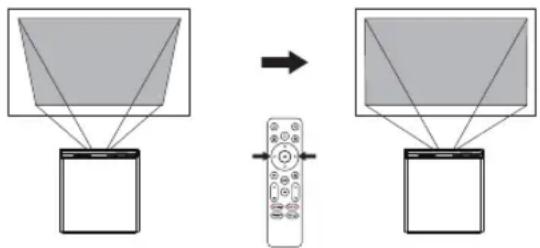

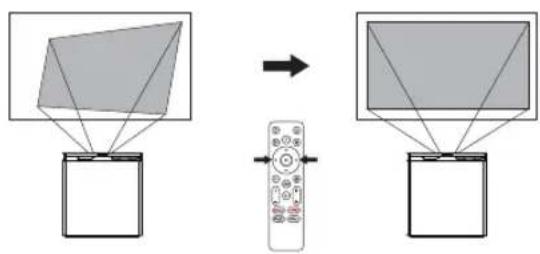

Vertical / Horizontal correction

When fixing your projector in a place and use Vertical / Horizontal correction. Press the button to go to projector home menu, select [Settings]->[Projection Settings]->[Vertical Correction] / [Horizontal Correction]. Please turn off Auto keystone correction and go back to the previous menu. Select [Vertical Correction] / [Horizontal Correction], press left or right button on the remote control to adjust.

Vertical Correction

Diagram illustrating the transformation of a screen to a mobile phone via a remote control, showing screen reflection and navigation.

Horizontal Correction

Diagram illustrating the transformation of a screen to a remote via a mapping, showing structural change and control mechanism.

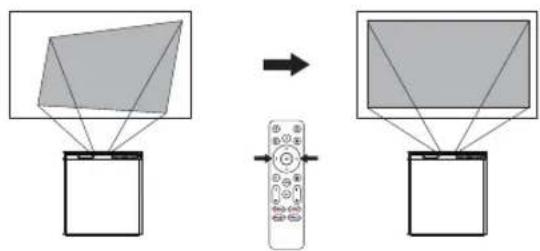

Corner Correction

If the projected image is stretched or distorted along both axes due to the angle of the projection, press the button 🔒 to go to projector home menu, and select [Settings]->[Projection Settings]->[Corner Correction], choose the corner you want and press left or right button on the remote control to adjust.

Two identical gray rectangular panels with a central circular pattern, each divided into four equal quadrants by a vertical line (no text or symbols)

EN

Keystone Correction Reset

To restore the default settings, press the button to go to projection settings. Select [Settings]->[Projection Settings]->[Keystone Correction Reset] and press OK.

Zoom In / Out

Press the button to go to projection settings. Select [Settings] -> [Projection Settings] -> [Zoom In/Out] Use the remote control to resize the picture size.

Screen Intelligent Obstacle Avoidance

Press the projection shortcut button to enter the homepage of the projector, go to [Settings]->[Projection Settings]->[Calibration Settings]->[Screen Intelligent Obstacle Avoidance], select the function on/off.

Screen Auto Alignment

Press the projection shortcut button 🔒 to enter the homepage of the projector, go to [Settings]->[Projection Settings]->[Correction Settings]->[Screen Auto Align], select the function on/off.

Desktop Front Projection Ceiling Front Projection

Desktop Rear Projection Ceiling Rear Projection

Press the button, [Settings]->[Projection Settings]->[Projection Mode], select Front Table/Rear Table/Front Ceiling/Rear Ceiling.

7 Pair Remote Control6 Pro

Power on the projector and you will enter Bluetooth remote pairing page. Follow the on-screen instructions to complete the pairing.

① Please hold the remote near the projector
② Long press ← and Ⓞ together for about 10 seconds.
③ When the screen shows "Connected Successfully", your remote LED indicator turns off, and the remote control is paired.

20cm Prepare Connecting Connected

8 Select Your Language

After pairing the remote control, you will be guided to a page to select language, use remote control or to select your language. Then press OK button to enter the next page.

Welcome English (United States) Afrikaans Catalá Čestina Dansk Deutsch English (Australia)

Android TV Setting

Follow the setup wizard on Android TV, set up a Wi-Fi connection, select the available Wi-Fi and enter the password, sign in to a Google account, and carry out other related procedures. When you complete the Android TV setup wizard, the Android TV home screen will appear. Now you can start watching your favorite shows by downloading streaming apps.

Notice: Due to the requirements of Android TV, using the Android TV requires you to sign in to your Google account. If you have not registered your Google account, please complete the registration before proceeding with use.

Play Through External Sound Devices via Bluetooth

If you want to connect to Bluetooth speakers/ headphones on the Android TV interface, select [Settings]->[Remotes & Accessories]->[Add accessory], search for Bluetooth device and click pair. Note: The Bluetooth connection must be established inside Android TV.

The Terminal List Add accessories RemoteGTG Collector

Add New Google Account User

Register a new Google account using Android TV for easier login and payment security. [Settings]->[Accounts & sign-in], add an account or switch accounts.

9 Wireless Connection

Notice: The Chromecast feature only works while you are in the Android TV system.

Cast from Chromecast-enabled Sites/Apps (for Android/iOS devices)

① Make sure your device and the Android TV are connected to the same Wi-Fi network, and that you are running the latest version of the Chromecast-enabled app.
② Launch the Chromecast-enabled site/app.
③ Tap the cast button and choose the "D1221".

Cast from Chrome Browser tab (for Computers)

① Make sure your computer and projector are connected to the same Wi-Fi network
② Click "Cast" at the upper right ⏻ of the Chrome browser tab, and then choose from the sources whether you want to cast the tab or the screen.
③ Choose "D1221-XXX" to cast.

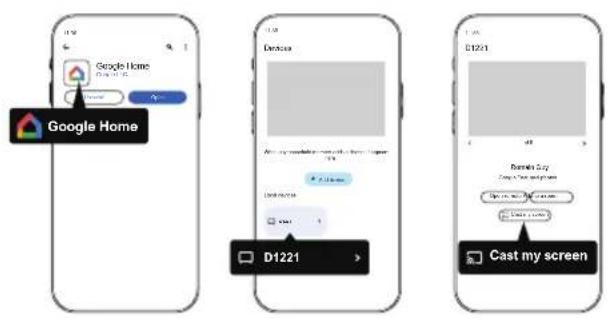

Mirror from Android Devices

① Make sure your Android devices and projector are connected to the same Wi-Fi network.
② Download the "Google Home" app on your Android device.
③ Open the "Google Home" app, choose "D1221" and tap "Cast my screen".

Google Home D1221 Cast my screen

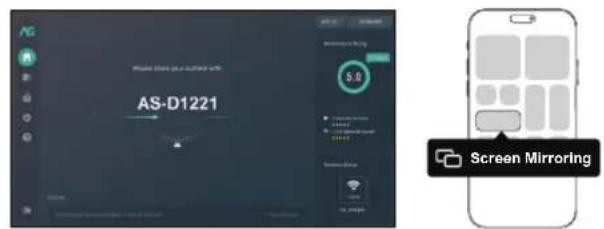

Mirror from iOS Devices

① Make sure your iOS devices and projector are connected to the same Wi-Fi network.
② Go to "Google Play Store", search and download "AirScreen" app.

App AS AirScreen

③ Open the "AirScreen" app and follow the on-screen instructions on AirScreen.

AS-D1221 5.0 Screen Mirroring

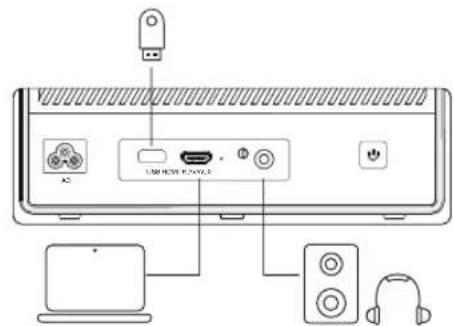

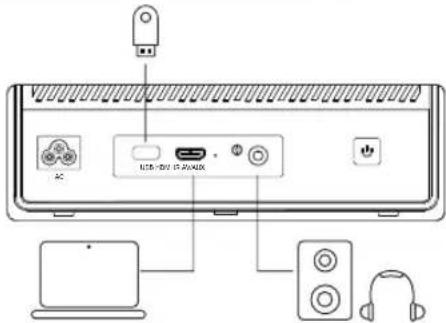

10 Wired Connections

USB-DAV 15.0000 AC

Play from an HDMI Playback Device

This Poseidon E50 supports connections with various HDMI playback devices, such as PC, DVD player, set-top box (STB), game console or other devices.

① Connect this projector to an HDMI playback device with an HDMI cable.
② Press the ➕ button on remote control to select [HDMI] and press OK.

Play from a USB Storage Device

With Poseidon E50, you can enjoy music, video, and pictures, or install apps that are stored on a USB storage device.

Play from the Android TV

① Plug in the USB storage device.
② Go to "Google Play Store", search and download "File Manager" app.
③ Open "File Manager" app and find the USB storage device. Select a file.

④ Press OK to start playback.

Play from the projector

① Plug in the USB storage device.
② Press the ➞ button on remote control to select [USB] and press OK
③ Select a file you plan to play from the file and folder menu.
④ Press OK to start playback.

Play Through External Sound Devices Via AUX Cable

① Connect one end of the 3.5mm AUX cable to the AUX port on this projector.
② Connect the other end of the 3.5mm AUX cable to the AUX port on headphones or external speakers.
③ Playback on the projector.

Bluetooth Speaker Mode

Press the projection shortcut button Ⓞ to enter the homepage of the projector, select [Bluetooth Speaker] in the carousel menu, and operate according to the prompts.

11 Shortcut Menu

Press the 88 button to pop up the shortcut menu.

• Press the navigation button to select the desired option.
• Press < or > button to adjust parameter.
• Press OK button to save.

Image Mode	Standard	Keeps natural looking colors with a balance of warm and cool tones
	Light	Provides more picture details and color sharpness
	Soft	Provides warm colors with lower light
	Personal	Manually set the Brightness, contrast, Saturation, Sharpness and Hue
Color Temp	Cold	Provides cold color temp
	Normal	Provides cold normal temp
	Warm	Provides cold warm temp
	Personal	Manually set the Red, Green and Blue
Sound Mode	Standard	Provides standard tones
	Music	Provides more detailed tone
	Movie	Provides home theater-style sound
	Personal	Manually set the sound of each frequency band
Shutdown Timer	Off	Save energy and extend the lifespan of the projector
	10min
	20min
	30min60min
Projection Setting	Zoom In/Out	Zoom in or out of the projection image
	Fast Keystone Correction	Perform keystone correction
	Keystone Correction Reset	Reset keystone correction

12 Companion Mode

Press the power ⏻ button to enter the power off option, select Companion Mode, and go to settings.

13 Specifications

Android OS: Android 11.0

Wi-Fi: 2x2 MIMO Wi-Fi 2.4GHz/5GHz 802.11 a/b/g/n/ac

Native Resolution: 1920x1080

Speaker Drivers: 10W*2 Stereo Speaker

Throw ratio: 1.23:1

Aspect Ratio: 16:9/4:3

Recommended Screen Size: 80"-120"

WIR SIND BEREIT ZU HELFEN

[e-mail]

Diagram illustrating the transformation of a screen to a remote via a device, showing light path and control buttons.

Diagram illustrating the transformation of a rectangular panel to a rectangular screen via a remote control, with directional arrows indicating mapping.

Two identical diagrams showing a grid with central crosshair and directional arrows, no text or symbols present.

Search Properties Design+1 Fusion The Terminal List Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessory Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accessery Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add accesseries Add access publishers

AirScreen App

Screen Mirroring

Diagram illustrating the transformation of a screen to a remote via a mapping, showing structural change and control mechanism.

水平補正

Diagram illustrating the transformation of a rectangular panel to a screen via a remote control, with directional arrow indicating transformation.

手動 4 点台形補正

Two identical gray rectangular panels with a central circular pattern, each divided into four equal quadrants by a vertical line (no text or symbols)

台形リセット

Google Home D1221 Cast my screen

Apple デバイスで同じ画面を投影

AirScreen AppS

Diagram of a computer rear panel with labeled ports and connectors, including USB, HDMI, and headphones.

HDMI接続再生機器

Auto Keystone Correction

Correction Verticale

Diagram illustrating the transformation of a screen to a remote via a directional arrow, showing structural change and control mechanism.

Correction Horizontale

Diagram illustrating the transformation of a rectangular screen to a remote via a directional arrow, with a remote control icon shown.

Quadrilateral Keystone Correction

Two identical gray rectangular panels with a central circular pattern, one rotated to show the change from left to right (no text or symbols)

Search Home Dowert Apps The Terminal List Add accessories Facebook10 Download Favorite Apps NETFLIX HIBNICK hulu Disney+ Netflix

Google Home Google Home D1221 Cast my screen

Screen Mirroring

Diagram showing connection between a computer monitor, audio jack, USB drive, and headphones with labeled ports and connections.

Diagram illustrating the transformation of a screen to a remote via a directional arrow, showing screen reflection and control.

Diagram illustrating the transformation of a rectangular object to a screen via a remote control, with directional arrow indicating transformation.

Two identical gray rectangular panels with a central crosshair, one showing an arrow pointing to the right panel (no text or symbols)

Search Home Video/ App The Terminal List Add accessories Remove413 Comms

AirScreen App

Screen Mirroring

10 Connessioni cablate

USB HUSB RANALE

Diagram illustrating the transformation of a screen to a remote via a directional arrow, showing structural change and control mechanism.

Diagram illustrating the transformation of a rectangular screen to a remote via a directional arrow, with a remote control icon shown.

Two identical gray rectangular panels with a central circular pattern, connected by an arrow (no text or symbols)

Screen Mirroring

Diagram showing rear panel connections to a computer, audio equipment, and headphones with labeled ports and connectors

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

ISED WARNINGS

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator&your body.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications.

However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

We (Manufacturer is responsible for this declaration) Dynamic (Shenzhen) Technology Limited20th Floor, Building 4, Tianan Cloud Park, Bantian St., Longgang District, Shenzhen, China

Declare under our sole responsibility that the product

Trade name: ULTIMEA

Equipment: Projector

Model No.: U0341

To which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member

States relating to LVD Directive (2014/53/EU)&Rohs (2011/65/EU) product is responsible to affix CE marking, the following standards were applied:

EN 62368-1:2014+A11:2017

ETSI EN 300 328 V2.2.2(2019-7)

EN IEC 62311:2020

IEC 62321-3-1:2013

ETSI EN 301 489-1

IEC 62321-5:2013

V2.2.3(2019-11)ETSI EN 301 489-17

IEC 62321-4:2013+AMD1:2017

V3.2.4(2020-09)EN 55032:2015

IEC 62321-6:2015

EN 55035:2017

IEC 62321-7-2:2017

EN 61000-3-2:2019

IEC 62321-6:2015

EN 61000-3-3:2013+A1:2019

IEC 62321-8:2017

Signature: y+y+

Date: 2023.1.6

ULTIMEA

Poseidon E50 Smart Projector

Model No.: U0341

Dynamic GmbH

Buchenring 57, 22359 Hamburg, Germany

UK Crossborder limited

7 Bell Yard London WC2A 2JR, UK United Kingdom

Made in China

Manufacturer: Dynamic (Shenzhen) Technology Limited

Address: 20th Floor, Building 4, Tianan Cloud Park, Bantian St.,

Longgang District, Shenzhen, China 518000

RoHS

If you need our support, kindly reach out to our service team. We are always glad to help.
