USER MANUAL Kira 38259 Kichler

Simple line drawing of a dome-shaped object with a rectangular top (no text or symbols)

ITEM # 1073457

KIRA FLUSH MOUNT CEILING FIXTURE

MODEL # 38259

Français p. 7

Español p. 13

ATTACH YOUR RECEIPT HERE

Serial Number ____ Purchase Date ____

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday. kichler.com/customer-care/contact-us

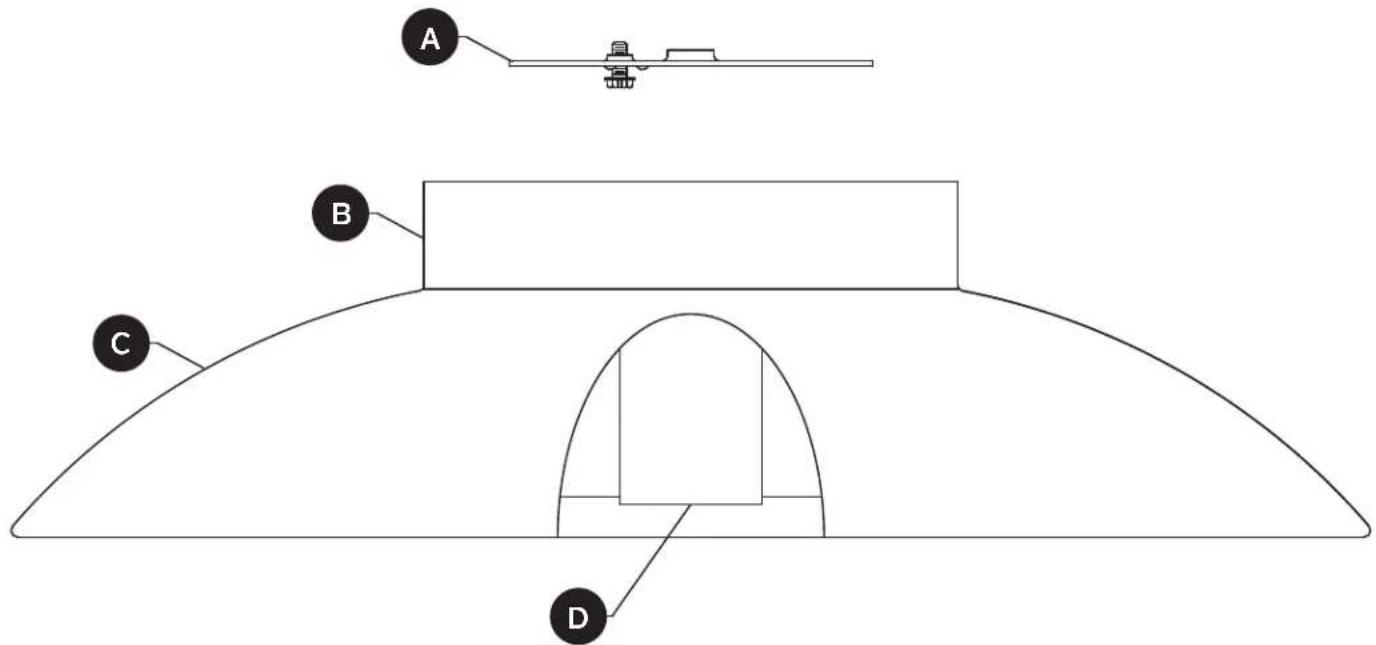

A B C D

PART	DESCRIPTION	QTY.
A	Mounting Bracket	1
B	Canopy	1
C	Shade	1
D	Socket	1

Wire Connector Qty: 3

Short Machine Screw Qty: 2

Threaded Knob Qty: 2

Long Machine Screw
Qty: 2

Lock Washer Qty: 2

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

- CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.

- WARNING:

This fixture is intended for installation in accordance with the National Electrical Code (NEC) and all local code specifications. If you are not familiar with code requirements, installation by a certified electrician is recommended.

- Do not use bulbs with wattage greater than specified on this fixture.

• California Proposition 65

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to http://www.P65Warnings.ca.gov

CAUTION

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate ETL listing and/or C.S.A. certification of this fixture.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

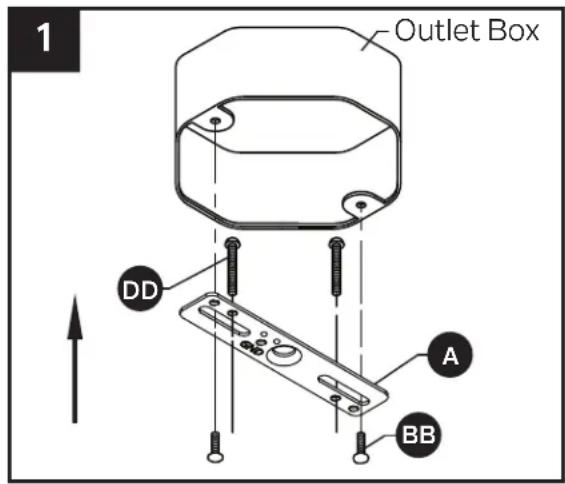

1. Orient the mounting bracket (A) so that the raised center portion is facing up. Insert long machine screws (DD) through mounting bracket (A) so the long machine screws (DD) protrude downward. Connect the mounting bracket (A) to the outlet box (not included) with short machine screws (BB).

Hardware Used

Short Machine Screw

x 2

Long Machine Screw

× 2

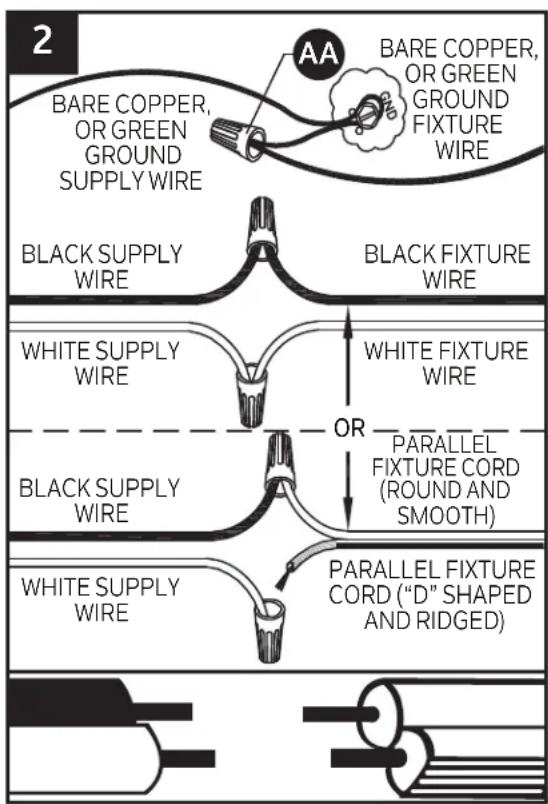

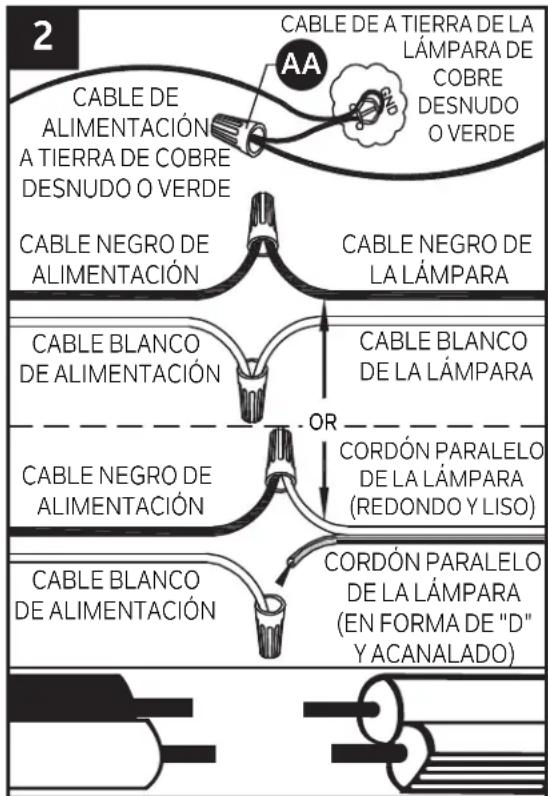

1. Wire connection guide:

Ground wire:

• For installation in the United States: Wrap ground wire from outlet box around ground screw on mounting bracket (A) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).
• For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (A). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-1 lamp wire with one round smooth wire and one "D" shaped ribbed wire.

1 Outlet Box DD A BB

2 BARE COPPER, OR GREEN GROUND SUPPLY WIRE BLACK SUPPLY WIRE AA BARE COPPER, OR GREEN GROUND FIXTURE WIRE BLACK FIXTURE WIRE WHITE SUPPLY WIRE OR PARALLEL FIXTURE CORD (ROUND AND SMOOTH) BLACK SUPPLY WIRE WHITE SUPPLY WIRE PARALLEL FIXTURE CORD ("D" SHAPED AND RIDGED)

Hardware Used

x 3Wire Connector

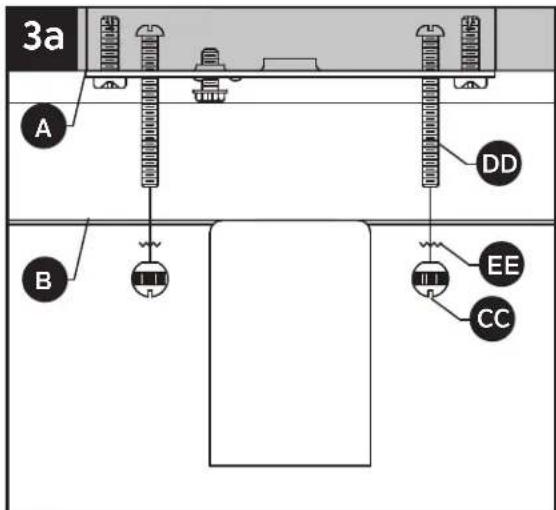

3a. Pass canopy (B) over the long machine screws (DD) protruding from mounting bracket (A) then secure in place with lock washers (EE) and threaded knobs (CC).

NOTE: The bottom edge of an outlet box should be flush with the bottom surface of a ceiling. However, many boxes are recessed into the ceiling. The long machine screws (DD) are designed to have extra length to accommodate to various box depths.

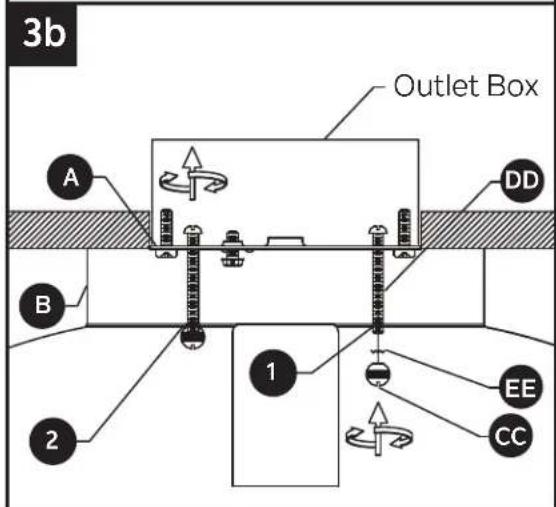

3b. 1) The long machine screws (DD) may, at first, protrude too far past the surface of the canopy (B).

2) Screw the threaded knobs (CC) onto the long machine screws (DD). The screws will back thread into the mounting bracket (A) until the canopy (B) is tight against the ceiling.

Hardware Used

Threaded Knob x 2

Lock Washer x 2

1. Insert 60-watt max. medium base bulb or LED equivalent (not included) into socket (D).

3a A B DD EE CC

3b Outlet Box A DD B 1 EE CC 2

4 D

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.	1. Fixture may be wired incorrectly.2. Worn or broken bulb. 2. Replace bulb.	1. Check wiring.

KICHLER®
