USER MANUAL Jaylen 82415 Kichler

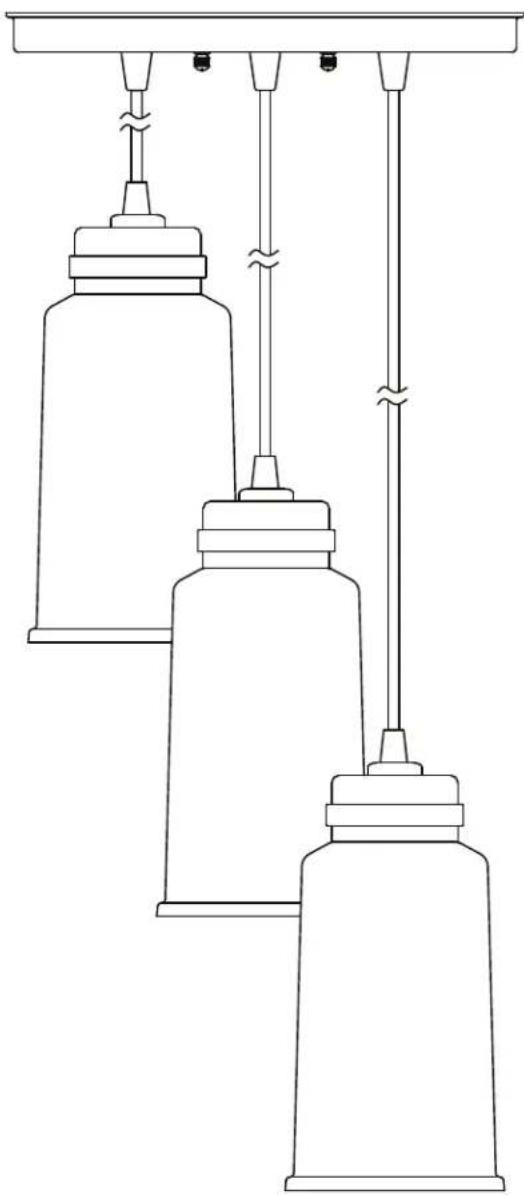

Line drawing of three identical cylindrical containers suspended by vertical rods, no text or symbols present

Français p. 8

Español p. 15

ATTACH YOUR RECEIPT HERE

Serial Number ____ Purchase Date ____

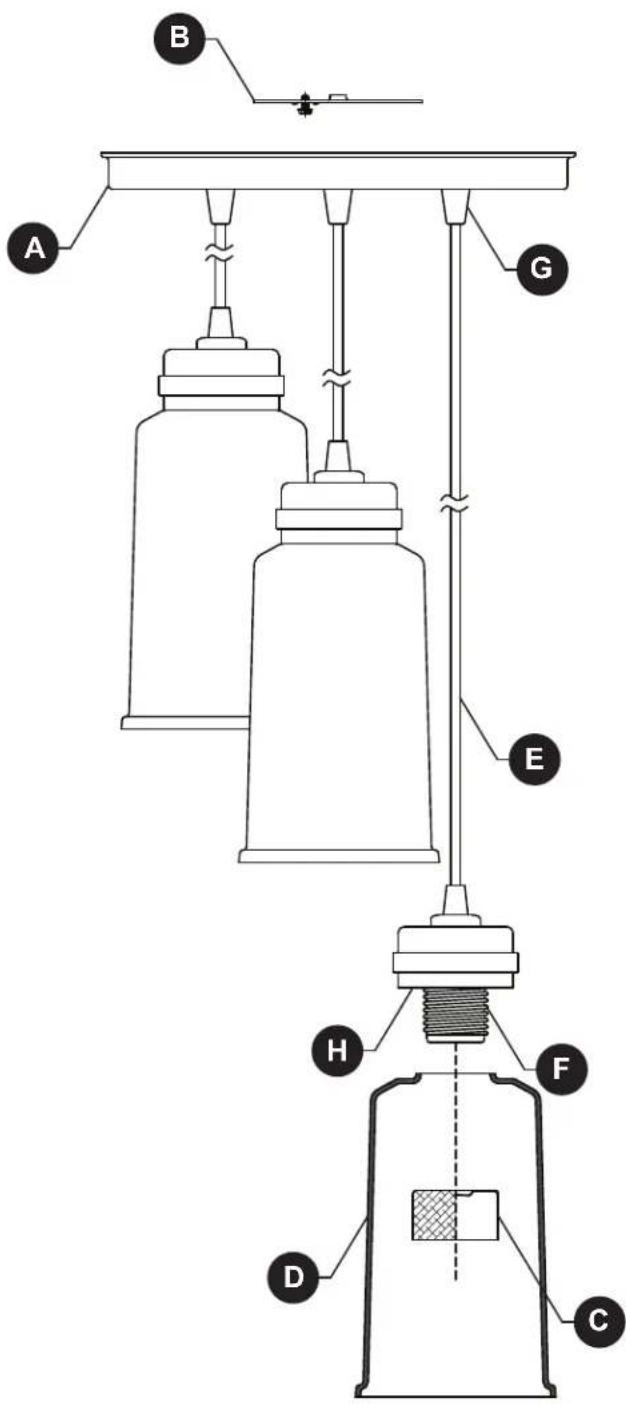

A B G E H F D C

PART	DESCRIPTION	QUANTITY
A	Canopy
B	Mounting Bracket 1
C	Socket Ring 3
D	Glass Shade 3
E	Cord (preassembled to Canopy (A)) 3
F	Socket (preassembled to Cord (E)) 3
G	Compression Fitting (preassembled to Canopy (A)) 3
H	Socket Base Cup 3

Wire Connector Qty: 3

Short Machine Screw Qty: 2

Threaded Knob Qty: 2

Long Machine Screw Qty: 2

Lock Washer Qty: 2

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• CAUTION – RISK OF SHOCK –
  Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.

- WARNING:

This fixture is intended for installation in accordance with the National Electrical Code (NEC) and all local code specifications. If you are not familiar with code requirements, installation by a certified electrician is recommended.

- Do not use bulbs with wattage greater than specified on this fixture.

• California Proposition 65

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to http://www.P65Warnings.ca.gov

CAUTION

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate ETL listing and/or C.S.A. certification of this fixture.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

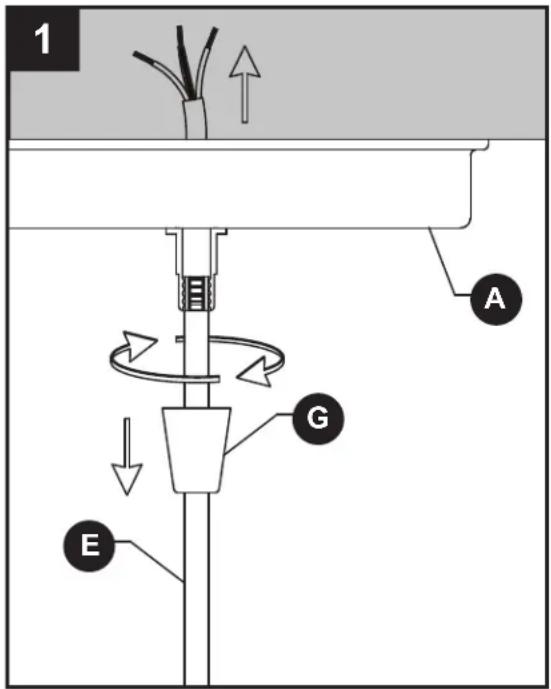

1. The hanging length of each cord (E) for this fixture is adjustable. Hold the canopy (A) up against the ceiling and determine the desired length for each cord (E) before the fixture is assembled.

Loosen the compression fitting (G) to release the cord (E) as needed to achieve the desired height. Then, screw the compression fitting (G) back into place to secure cord (E).

Set fixture aside for now.

1 A G E

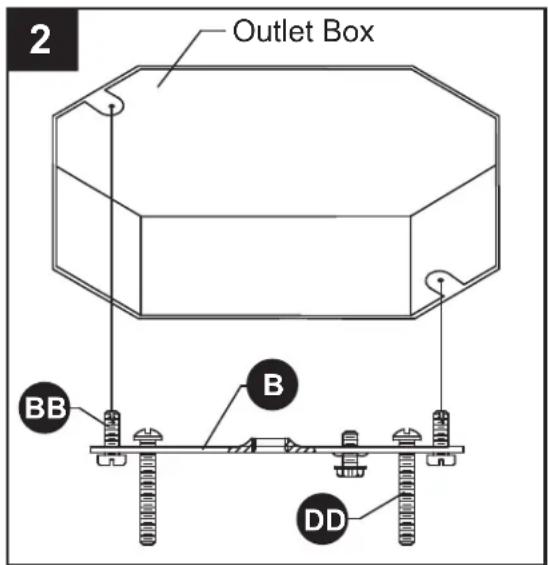

1. Insert long machine screws (DD) through mounting bracket (B) so the long machine screws (DD) protrude outward. Orient the mounting bracket (B) so the raised center portion protrudes into the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

BB	Short Machine Screw		x 2
DD	Long Machine Screw		x 2

2 Outlet Box BB B DD

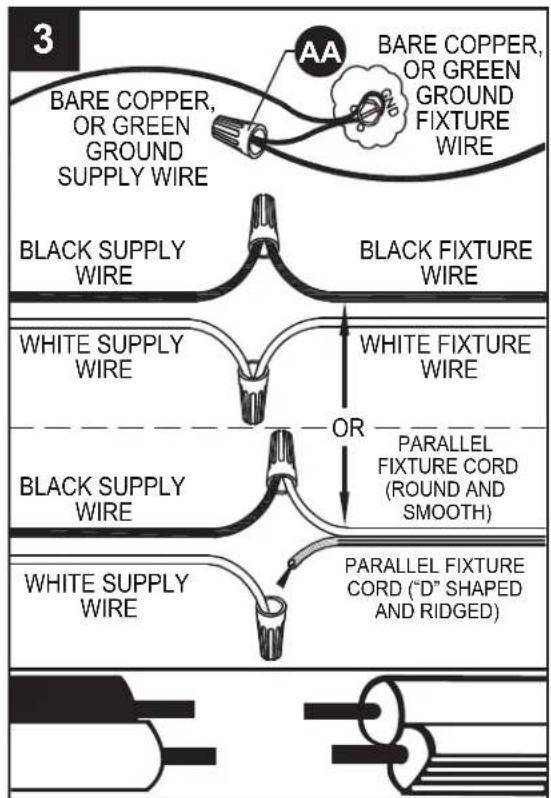

3. Wire connection guide:

Ground wire:

- For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).

- For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

Hardware Used

3 BARE COPPER, OR GREEN GROUND SUPPORT WIRE AA BARE COPPER, OR GREEN GROUND FIXTURE WIRE BLACK SUPPLY WIRE BLACK FIXTURE WIRE WHITE SUPPLY WIRE WHITE FIXTURE WIRE OR PARALLEL FIXTURE CORD (ROUND AND SMOOTH) BLACK SUPPLY WIRE WHITE SUPPLY WIRE PARALLEL FIXTURE CORD ("D" SHAPED AND RIDGED)

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-1 lamp wire with one round smooth wire and one "D" shaped ribbed wire.

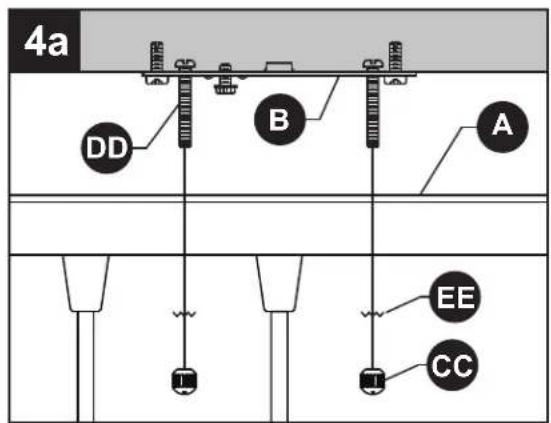

4a. Pass canopy (A) over the long machine screws protruding from mounting bracket (B) and secure with lock washers (EE) and threaded knobs (CC).

NOTE: Make sure all wires are inside of canopy (A) and do not get pinched between canopy (A) and mounting bracket (B), or canopy (A) and ceiling.

Hardware Used

Threaded Knob

x 2

Lock washer

x 2

4a DD B A EE CC

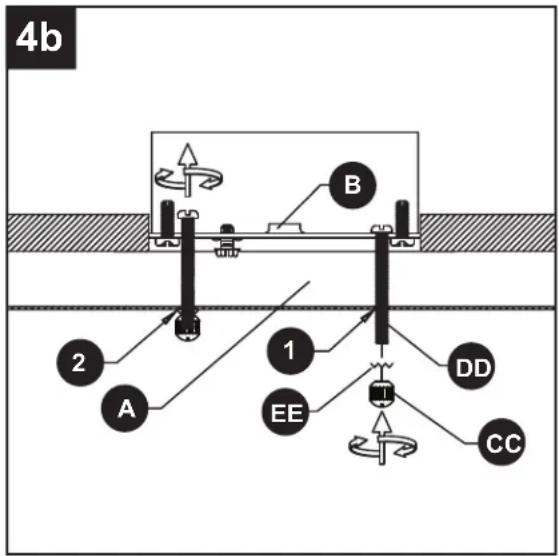

4b. NOTE: The bottom edge of an outlet box should be flush with the bottom surface of a ceiling. However, many boxes are recessed into the ceiling. The long machine screws (DD) are designed to have extra length to accommodate to various box depths.

1) The long machine screws (DD) may, at first, protrude too far past the surface of the canopy (A).
2) Screw the threaded knobs (CC) onto the long machine screws (DD). The screws will back thread into the mounting bracket (B) until the canopy (A) is tight against the ceiling.

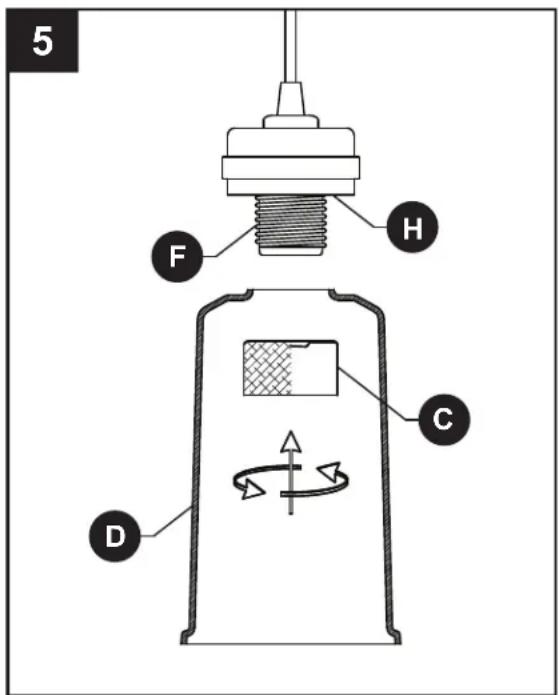

1. Carefully slip small opening in glass shade (D) up over socket (F) until it is seated in socket base cup (H). While holding glass shade (D) in place, thread socket ring (C) onto threads of socket (F). Tighten socket ring (C) to secure glass shade (D) in place. DO NOT OVER-TIGHTEN.

Repeat for remaining glass shades (D).

4b B 1 2 A 1 EE DD CC

5 F H C D

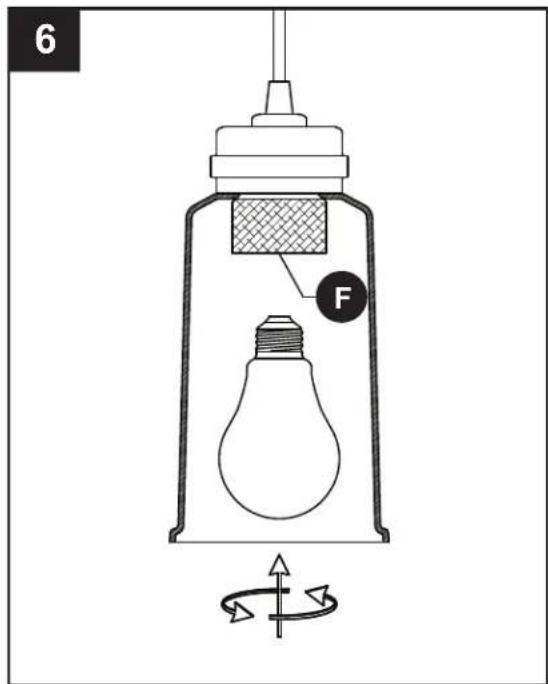

1. Insert 60-watt max. medium base bulb or LED equivalent (not included) into socket (F).

Repeat for remaining sockets (F).

6 F

CARE AND MAINTENANCE

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.
- All glass shades may be washed in a towel-lined sink with warm water and mild soap. Do not wash shades in an automatic dishwasher.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.	1. Fixture may be wired incorrectly.2. Worn or broken bulb. 2. Replace bulb.	1. Check wiring.
