Product Type	LED Pendant Light
Brand	Kichler
Model	83866
Usage	Indoor
Light Source	Integrated LED array (non-replaceable)
Power Supply	LED driver included, 120 V, 60 Hz
Height Adjustment	Yes, via cable and compression fitting
Canopy Material	Metal (unspecified)
Installation	Ceiling mount, on standard outlet box
Grounding	Required (ground wire)
Required Tools	Phillips and flat-head screwdriver, wire stripper, electrical tape, ladder, safety glasses
Assembly Time	30 to 60 minutes
Maintenance	Soft damp cloth, non-abrasive soap. Do not use glass cleaner.
Safety	Turn off power before installation. Do not touch hot LEDs. Do not look directly at LEDs.
Spare Parts Available	Yes: mounting bracket (XBAR83863), wire connector (WC001), short metal screws (SCR832X050), canopy screws (CS83853), anchor (AB001), anchor screw (AS001), washer (W83863)
Customer Service	1 855 226-7169, Mon-Fri 8am-4pm EST
Warranty	1 year against manufacturing defects (parts and labor)

Frequently Asked Questions - 83866 Kichler

How to adjust the height of the lamp?

Hold the canopy (A) against the ceiling, then push up the spring tube of the compression fitting (C) to release the cable (D) and adjust to the desired length. Release the fitting to lock.

What type of bulb does this lamp use?

This lamp is equipped with a built-in LED array that is non-replaceable. Use only the provided LED driver.

Can I install this lamp outdoors?

No, this luminaire is for indoor use only.

How to clean the lamp?

Use a soft damp cloth with non-abrasive soap. Never use glass cleaners which may damage the metal finish.

What to do if the lamp does not turn on?

First check that the luminaire is properly connected and the power is restored. If the problem persists, contact a qualified electrician.

Where to find spare parts?

Call customer service at 1 855 226-7169 Monday to Friday from 8am to 4pm (EST) to order spare parts such as the mounting bracket (XBAR83863) or canopy screws (CS83853).

Does the warranty cover installation?

No, the limited one-year warranty only covers manufacturing defects. Labor costs for removal or installation are excluded.

Do I need to turn off the power before installing the lamp?

Yes, it is imperative to turn off the power at the circuit breaker before any handling to avoid the risk of electrocution.

What tools are needed for assembly?

You will need a Phillips screwdriver, a flat-head screwdriver, wire stripper, electrical tape, a ladder, and safety glasses.

How to connect the electrical wires?

Connect the ground wire (bare or green) to the grounding screw on the bracket. Connect the white neutral wire to the white wire of the luminaire, and the black hot wire to the black wire of the luminaire using the wire connectors (AA).

USER MANUAL 83866 Kichler

Pure technical line drawing of a truss structure without any text, numbers, or symbols

ATTACH YOUR RECEIPT HERE

Serial Number ____ Purchase Date ____

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

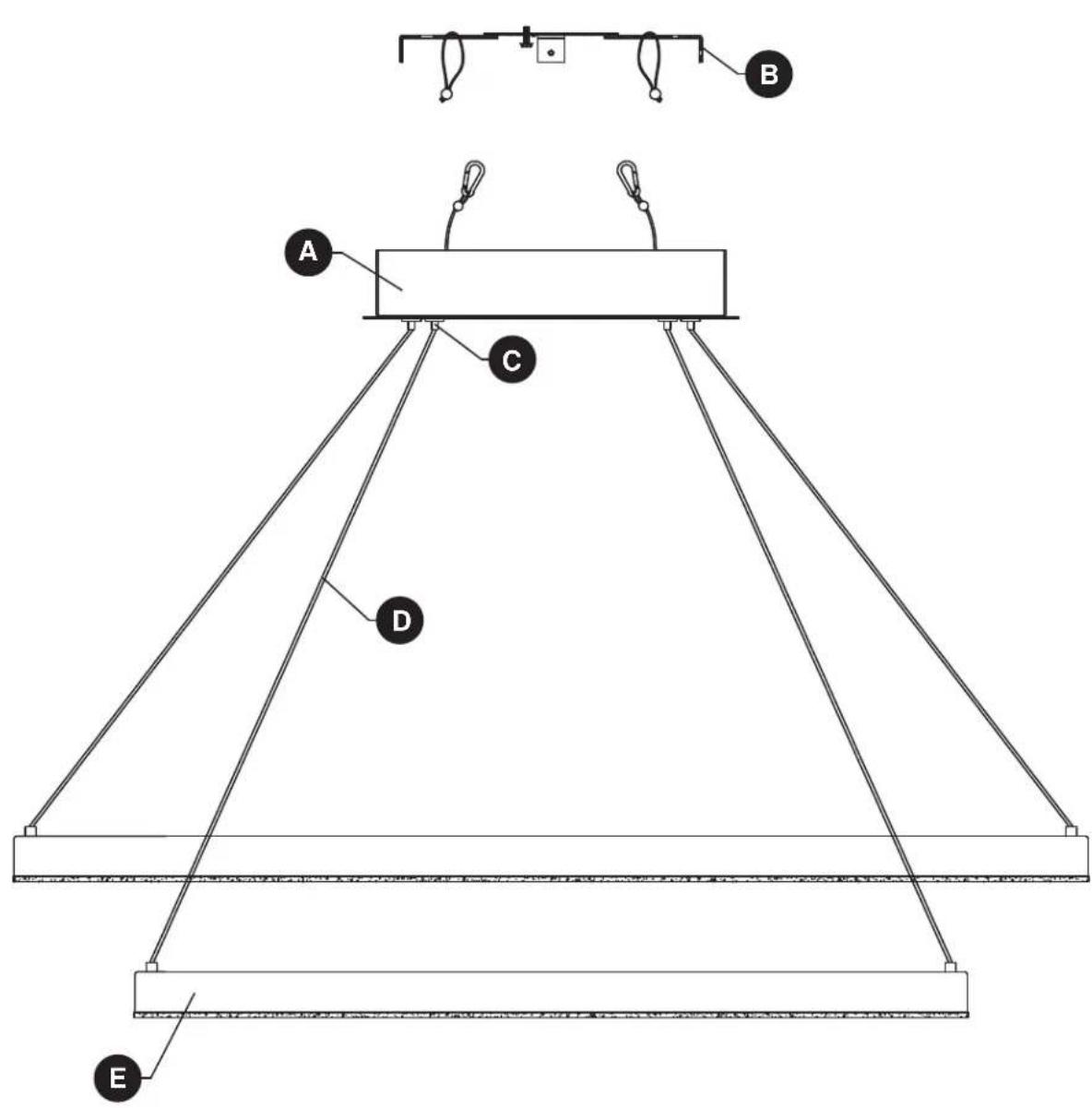

A B C D E

PART	DESCRIPTION	QUANTITY
A	Canopy
B	Mounting	Bracket
C	Compression	Fitting
D	Cable
E	LED	Assembly

Wire Connector Qty: 3

Short Machine Screw Qty: 2

Canopy Screw Qty: 4

Anchor Qty: 4

Anchor Screw Qty: 4

Washer Qty: 4

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.
• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the "OFF" position and unscrew the fuse(s), or switch "OFF" the circuit breaker switch(es), that control the power to the fixture or room that you are working on.
• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain, place those in the "OFF" position.
• Do not touch hot LED.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• WARNING: California Prop 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm. Wash hands after use.

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all local code specifications.
  • This fixture is for indoor use only.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.

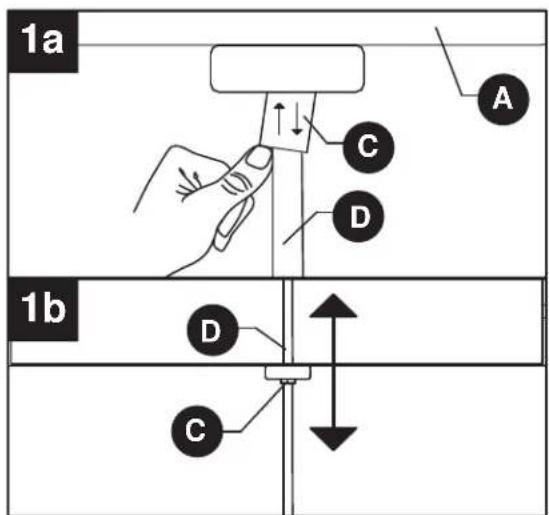

1. The hanging length of the cable (D) for this fixture is adjustable. Hold the fixture canopy (A) up against the ceiling to determine the desired length before the entire fixture is assembled.

The cable (D) is held in place by a compression fitting (C). Push up, and hold, the fitting's spring loaded tube (C) to release the cable (D) for adjustment.

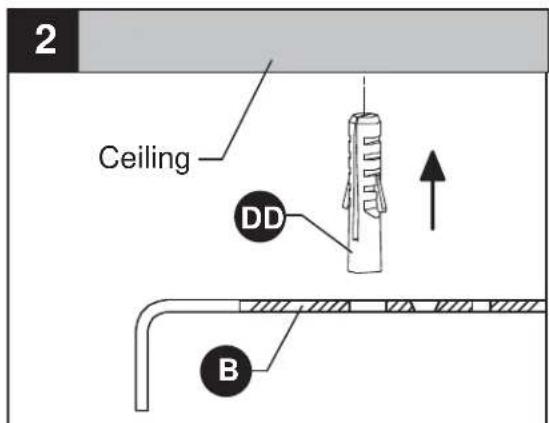

1. Temporarily affix the mounting bracket (B) to the electrical box and mark location for anchor (DD). Use 9/32 size drill to drill holes for anchor (DD). Insert anchor (DD) into hole.

Hardware Used

x 4Anchor

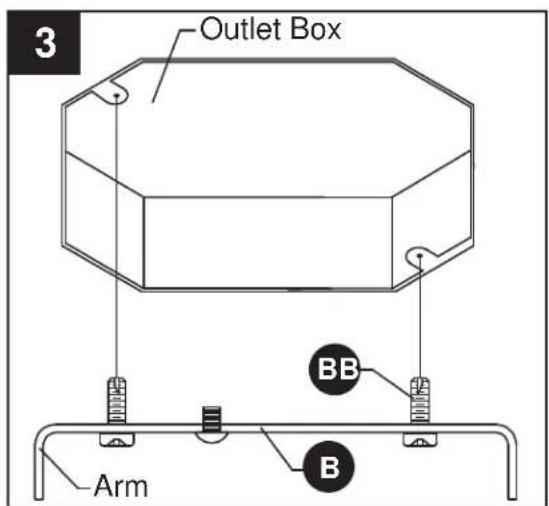

1. Orient the mounting bracket (B) so that the arms are facing away from the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB).

Hardware Used

Short Machine Screw

x 2

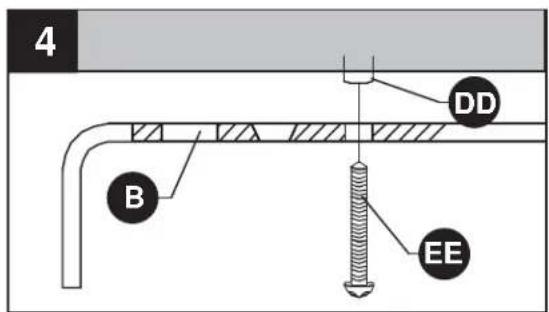

1. Screw anchor screws (EE) through mounting bracket (B) and into anchors (DD).

Hardware Used

Anchor Screws

× 4

1a A C D 1b D C

2 Ceiling DD B

3 Outlet Box BB Arm B

4 DD B EE

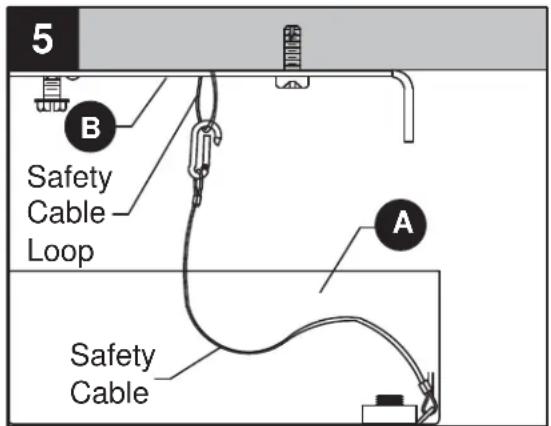

1. Connect safety cable located in canopy (A) to the safety cable loop located on mounting bracket (B).

5 B Safety Cable Loop A Safety Cable

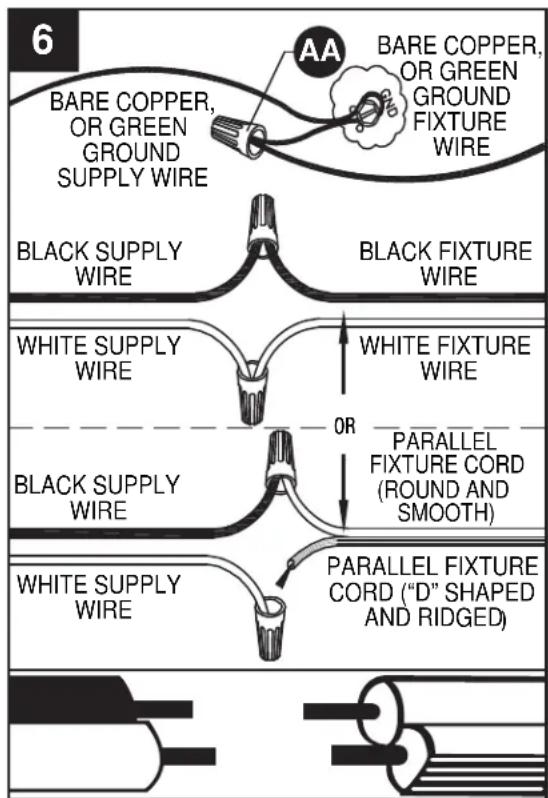

1. Wire connection guide:

Ground wire:

• For installation in the United States: Wrap ground wire from outlet box around ground screw preassembled on mounting bracket (B) no less than 2 in. from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector (AA).
• For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around ground screw on mounting bracket (B). Tighten ground screw. Connect fixture ground wire to outlet ground wire with a wire connector (AA).

Supply wires:

• Connect the Neutral (White) supply wire from the outlet box to the Neutral fixture wire (White or Parallel Cord "D" shaped and ribbed).
• Connect the Hot (Black) supply wire from the outlet box to the Hot fixture wire (Black or Parallel Cord round and smooth).

Hardware Used

NOTE:

Fixture wires will either be:

• Black and White.
• Parallel Cord SPT-2 lamp wire with one round smooth wire and one "D" shaped ribbed wire.

ector

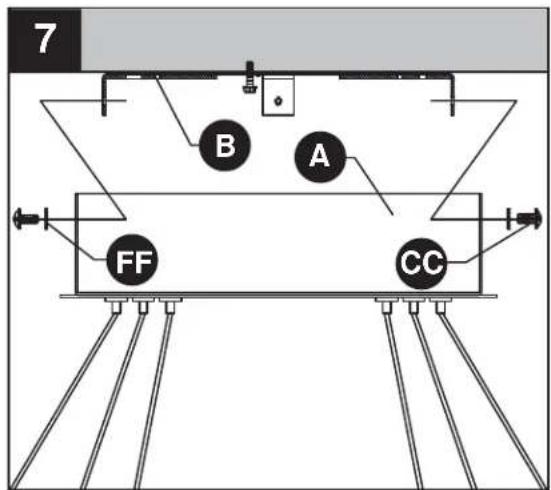

1. Pass the canopy (A) over the arms protruding from the mounting bracket (B) and secure with washers (FF) and canopy screws (CC).

Hardware Used

CC	Canopy Screw	x 4
FF		x 4Washer

7 B A FF CC

CARE AND MAINTENANCE

• Always be certain that electric current is turned off before cleaning this item.
- Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.	1. Fixture may be wired incorrectly. 1. Check wiring.

élan Lighting warrants that its products will be free from defects in material and workmanship for three (3) year from the date of purchase by the Original Purchaser.

LED Rail, LED Lanterns. LED Wall Sconces, LED Pendants and LED Chandeliers for single family residences are warranted for three (3) year on the Light Engine and all other electrical components.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized élan distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser's name and return address and a description of the claimed product defect.

If any of the warranted products are found by élan, in its sole discretion, to be defective, such products will, at élan's sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser's prior use of the product. élan will return the repaired or replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser's sole and exclusive remedy against élan shall be for the repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the product.

This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds, improper installation or care, failure to follow the Product's written instructions for normal use and care, improper packaging of products returned to élan, modification (including but not limited to use of unauthorized parts or attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers, have been provided by élan. Substituting another manufacturer's product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.

B	Mounting	Bracket	XBAR83863
AA	Wire	Connector	WC001
BB	Short Machine Screw	SCR832X050
CC	Canopy	Screw	CS83853
DD	Anchor		AB001
EE	Anchor	Screw	AS001
FF	Washer		W83863

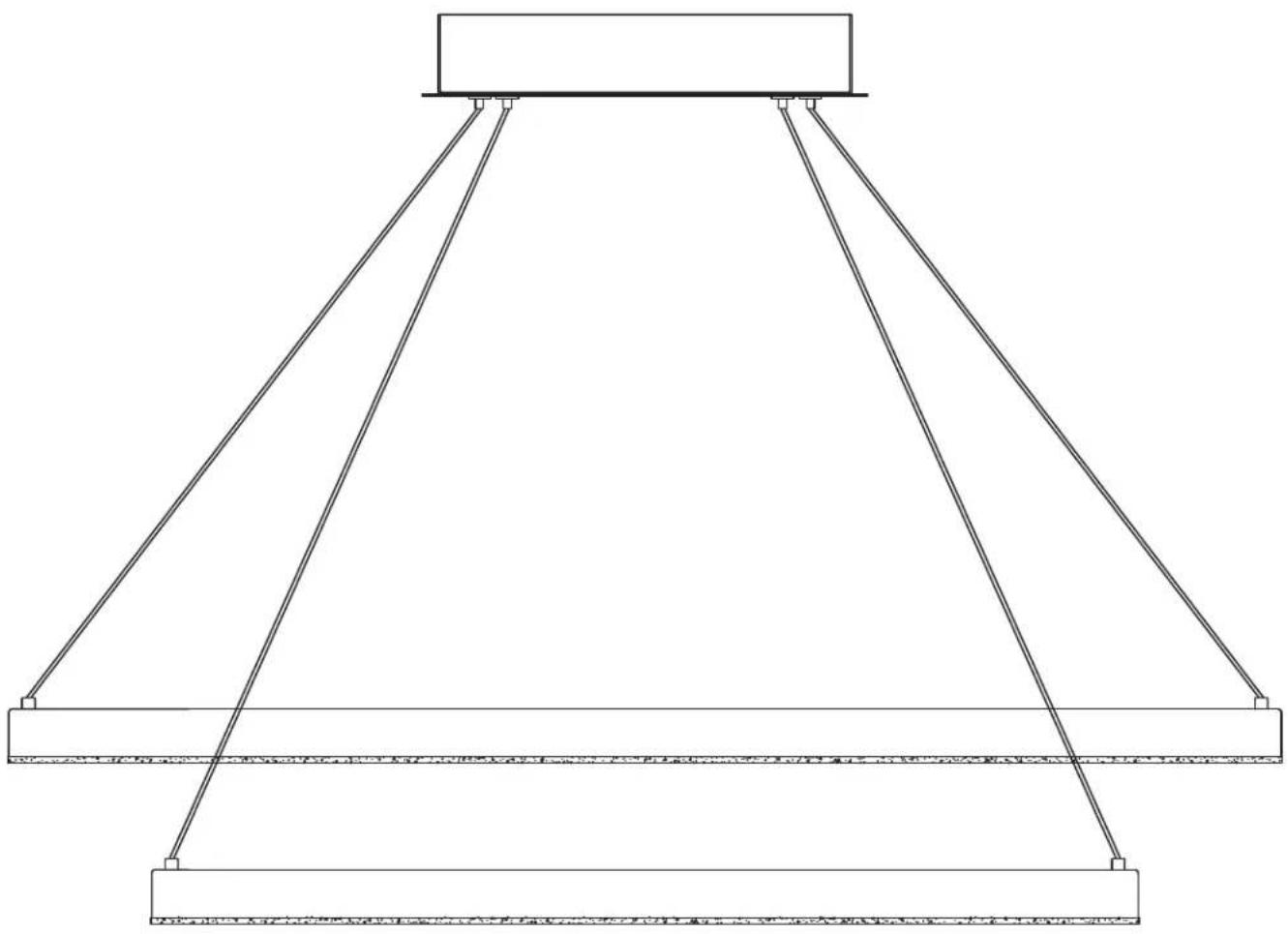

Simple line drawing of a truss structure with two horizontal supports and a central support beam (no text or symbols)
