Product type	Cordless precision drill grinder
Brand	Parkside
Model	PPFBSA 12 B2
Power supply	12 V Li-Ion battery (DC)
Battery capacity	2000 mAh / 24 Wh
Charging time	Approx. 60 minutes
Recommended battery type	PAPK 12 A5 (compatible with X12WTEAM series)
No-load speed	5000 – 32000 min⁻¹ (6 levels)
Chuck clamping range	Max. 3.2 mm
Max. disc diameter	38 mm
Main functions	Drilling, milling, engraving, polishing, cleaning, grinding/sanding, cutting
Compatible materials	Wood, metals, plastics, ceramic, stone
Included accessories	66-piece kit (drill bits, discs, brushes, etc.) + adapters, stop, template, case
Sound pressure level	71.4 dB(A) (uncertainty 3 dB)
Sound power level	82.4 dB(A) (uncertainty 3 dB)
Vibrations	1.130 m/s² (uncertainty 2 m/s²)
Device warranty	5 years
Battery warranty	3 years (X12V/X20V series)
Maintenance and cleaning	Clean ventilation slots with a damp cloth; do not use solvents
Storage	In the case, protected from dust and moisture, temperature 0–45 °C
Spare parts and repairability	Available via after-sales service (battery, charger, etc.)

Frequently Asked Questions - PPFBSA 12 B2 PARKSIDE

How to change the tool or collet?

Press and hold the spindle lock (④) and hold it. Loosen the collet nut (①) with the wrench (④). Remove the old tool, insert the new one into the appropriate collet (②), then tighten the collet nut firmly.

How to charge the battery?

Remove the battery pack (⑰) from the device. Insert it into the quick charger (⑲) and plug the charger into a mains socket (220-240 V). The red LED indicates charging; the green LED signals charging complete (approx. 60 min). Then unplug the charger and reinsert the battery.

What materials can I work with this device?

You can work with wood, metals (steel, aluminum, brass, copper), plastics, ceramic and stone. For each material, use the appropriate tool and follow the recommended speed.

How to adjust the rotation speed?

Slide the On/Off switch (⑤) forward to turn on the device. Turn the speed controller (⑦) to the desired position (1 to 6, corresponding to 5000 to 32000 min⁻¹). To turn off, push the switch back.

What is the battery runtime?

The runtime depends on usage and load. The 2000 mAh Li-Ion battery provides sufficient duration for common tasks. Recharge it as soon as the charge level indicator (⑧) shows only red.

What are the important safety precautions?

Always wear safety glasses, a dust mask and hearing protection. Do not work in explosive atmospheres. Keep children away. Before any adjustment, remove the battery from the device.

How to clean and maintain the device?

Regularly clean the ventilation slots with a damp cloth. Do not use solvents or chemical cleaners. Store the device in its storage case, protected from dust and moisture, at a temperature between 0 °C and 45 °C.

Can I use non-Parkside accessories?

Only original accessories or those recommended by the manufacturer ensure safe use. Using incompatible accessories may cause injury risks and damage the device.

What to do in case of malfunction or defect?

Contact Parkside customer service (tel. [phone] for France). Keep your receipt and the article number IAN 485948_2501. The device is guaranteed 5 years, the battery 3 years.

Where can I buy spare parts (battery, charger)?

You can order spare parts on the website www.kompernass.com or via customer service. Provide the article number IAN 485948_2501 when ordering.

USER MANUAL PPFBSA 12 B2 PARKSIDE

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE

parkside-diy.com

12V CORDLESS ROTARY TOOL / 12 V AKKU-FEIN-BOHRSCHLEIFER / 12 V PERCEUSE-MEULEUSE DE PRÉCISION SANS FIL PPFBSA 12 B2

GB / IE

12V CORDLESS ROTARY TOOL

Translation of the original instructions

FR / BE

12 V PERCEUSE-MEULEUSE DE PRÉCISION SANS FIL

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

DE / AT / CH

GB/IE Translation of the original instructions Page 1

DE/AT/CH	Originalbetriebsanleitung	Seite	25
FR/BE	Traduction des instructions d'origine Page 49
NL/BE	Vertaling van de originele gebruiksaanwijzing Pagina 75
CZ	Překlad originálního provozního návodu Strana 99
PL	Tłumaczenie oryginalnej instrukcji obsługi			Strona	123
SK	Preklad originálneho návodu na obsluhu		Strana	149
ES	Traducción del manual de instrucciones original			Página	173
DK	Oversættelse af den originale driftsvejledning			Side	199
IT	Traduzione delle istruzioni d’uso originali			Pagina	223
HU	Az originál használati utasítás fordítása			Oldal	247

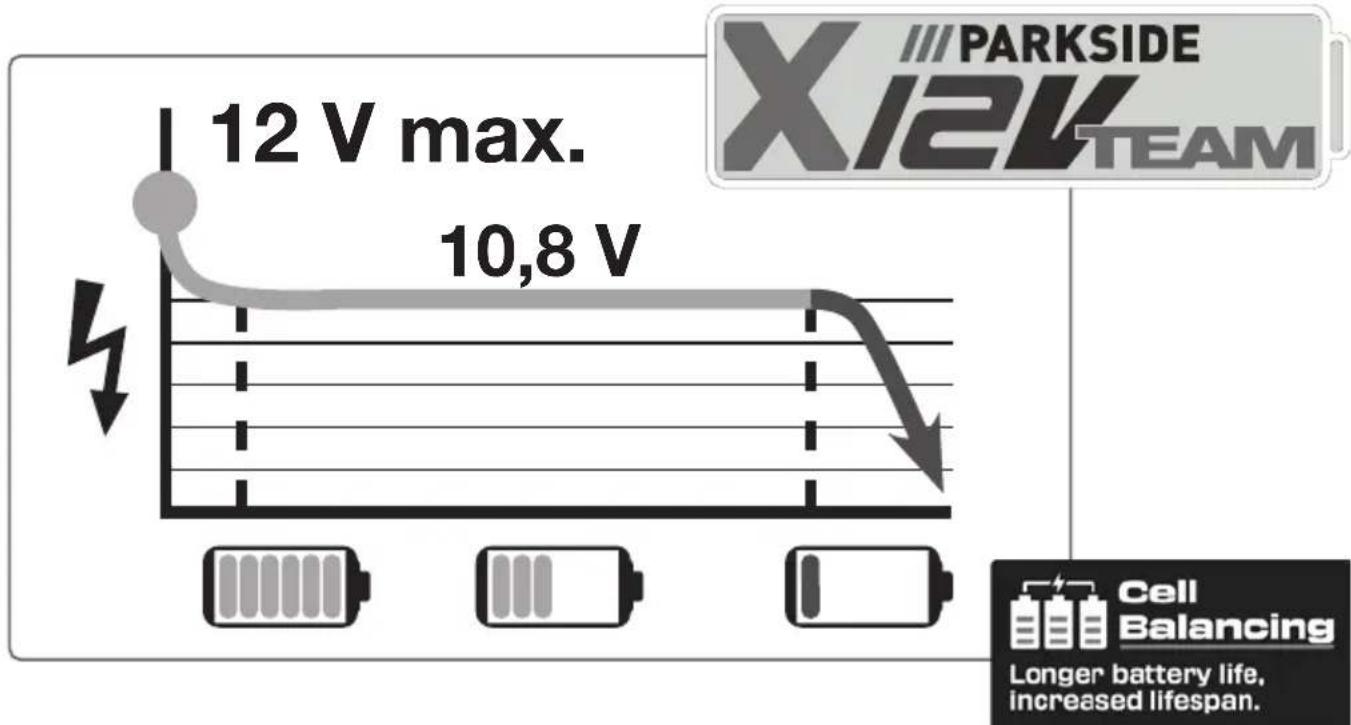

All Parkside tools and the chargers of the X12V Team series are compatible with the following battery packs. Alle Parkside Geräte und die Ladegeräte der X12V Team Serie sind mit folgenden Akku-Packs kompatibel. Tous les outils Parkside et les chargeurs de la série X12V Team sont compatibles avec les batteries suivants.
Charging times Ladezeiten Temps de charge	2 Ah Battery pack Akku Batterie PAPK 12 A1	2 Ah Battery pack Akku Batterie PAPK 12 A2/A3/A5	2,5 Ah Battery pack Akku Batterie PAPK 12 C1 PAPK 12 2.5 A1	4 Ah Battery pack Akku Batterie PAPK 12 B1/B3	5 Ah Battery pack Akku Batterie PAPK 12 D1 PAPK 12 5.0 A1
max. 2,4 A Charger Ladegerät Chargeur PLGK 12 A1/A2/A3	60 min 60 min 80 min 120 min 150 min
max. 4,5 A Charger Ladegerät Chargeur PLGK 12 B2	60 min 45 min 55 min 60 min 80 min
max. 4,5 A Charger Ladegerät Chargeur PDSLG 12 A1	60 min 45 min 55 min 60 min 80 min
max. 6,0 A Cargador Carica-batteria PLGK 12 6.0 A1	60 min 45 min 55 min 60 min 70 min

Contents

Introduction 2

Intended use....2

Features 2

Package contents 3

Technical data 3

General power tool safety warnings 4

1. Work area safety 4
2. Electrical safety 5
3. Personal safety 5
4. Power tool use and care 6
5. Use and handling of the cordless electrical power tool 6
6. Service 7
   Safety instructions for all applications 7
   Additional safety instructions for all applications 9
   Supplementary safety instructions for grinding and abrasive cutting ..... 1 0
   Supplementary safety instructions for working with wire brushes. 11
   Residual risks 11

Original parts/accessories 12

Safety instructions for battery chargers 12

Before use....12

Removing/charging/inserting the battery pack 12
Checking the battery charge level 13

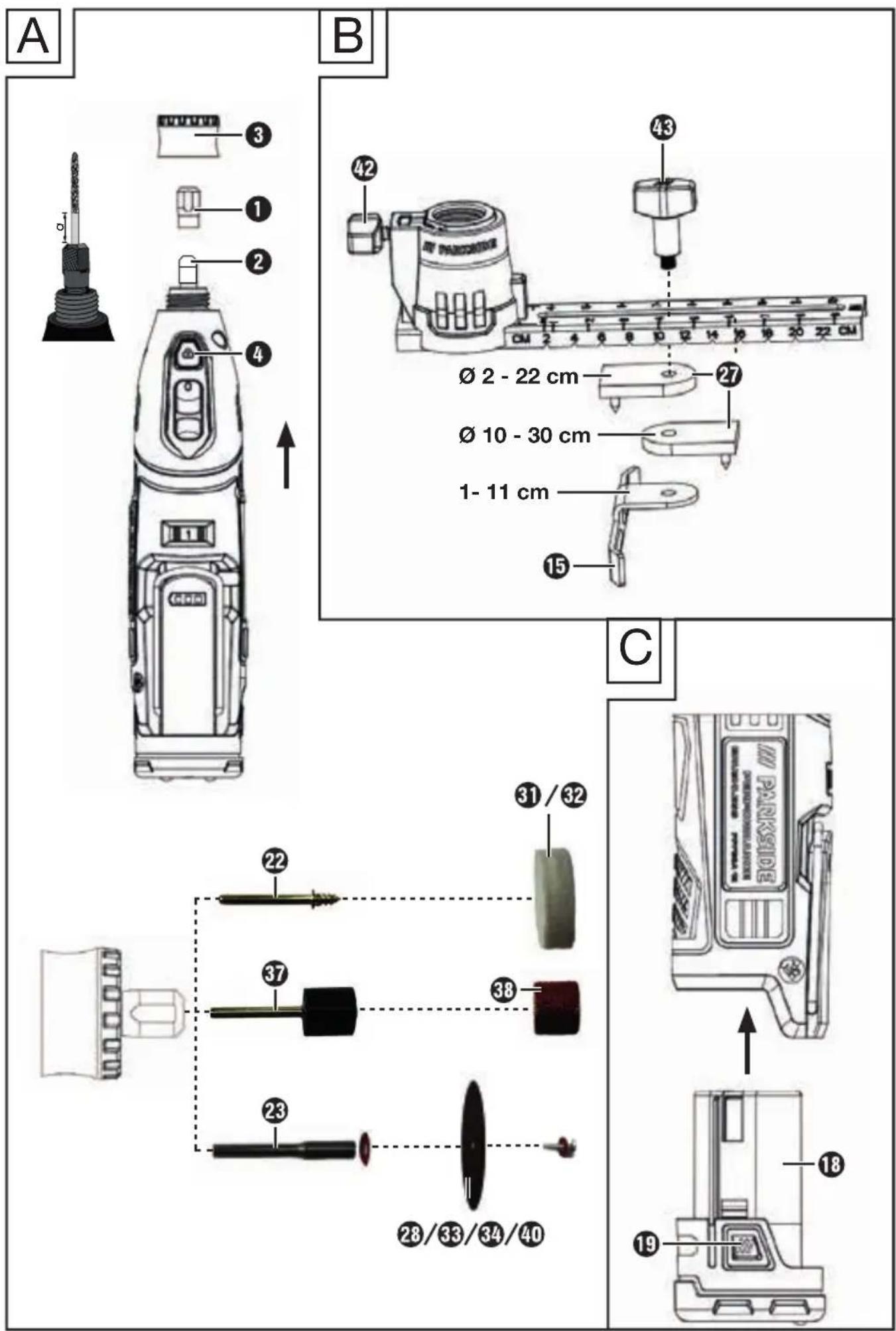

Inserting/replacing tools/collet chuck 13
Switching on and off / setting the speed range 13
Attachment 14
Fitting an attachment 14
Accessory tool 15
Fitting/removing the accessory tool 16

Operation 17

Using the appliance 17

Inserting and removing the battery 18

Switching on and off 18

Transport....18

Cleaning, maintenance and storage....19

Disposal....19

Translation of the original Conformity Declaration 23

Ordering a replacement battery and charger 24

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product.

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all instructions regarding safety and use. Use the product only as described and for the specified range of applications. Please also pass on all documents to any future owner.

Intended use

The appliance is intended for drilling, routing, engraving, polishing, cleaning, grinding/sanding, cutting of materials such as wood, metal, plastics, ceramics and stone in dry rooms using the corresponding attachments (as supplied). Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.

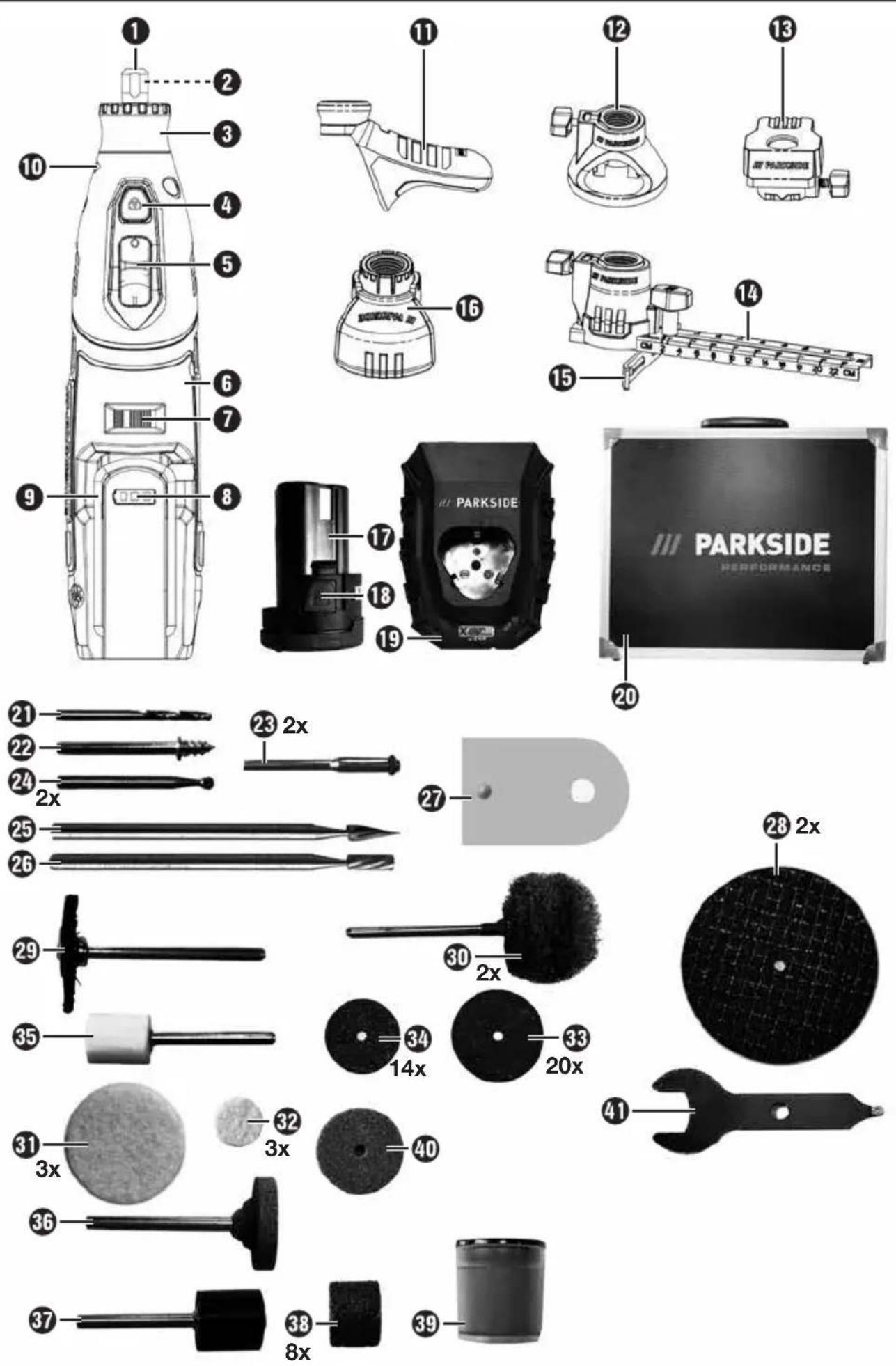

Features

① Tensioning nut
② Collet chuck
③ Screw cap
4 Spindle lock
5 On/Off switch
6 Handle
7 Speed control
8 Charge level indicator
9 Hanging fixture
10 Direction of rotation arrow
⑪ Additional handle
12 Routing attachment
13 Grinding angle guide
14 Scale
15 Parallel edge guide
16 Protective guard
⑰ Battery pack
18 Battery release button
19 High-speed battery charger
20 Storage case
⑳ HSS drill bit
22 Mandrel (polishing disc)
23 Mandrel (cutting and grinding disc)
24 Routing bit
25 Routing and drilling bit
26 Spiral-fluted routing bit
27 Circle cutter
28 Cutting disc
29 Plastic brush
30 Polishing bit
31 Felt polishing disc (large)
32 Felt polishing disc (small)
33 Cutting disc (small)
34 Sandpaper
35 Aluminium oxide grinding bit
36 Silicon carbide grinding bit
37 Mandrel (abrasive belt)
38 Abrasive belt
39 Polishing paste
40 Grinding disc
41 Assembly spanner
42 Clamping screw
43 Screw

Package contents

1 cordless rotary tool
1 battery pack
1 high-speed battery charger
1 protective guard
1 grinding angle guide
1 parallel edge guide
1 circle cutter
1 routing attachment
1 additional handle
1 accessories set (66 pieces)
1 storage case
1 set of instructions for use

Technical data

Model PPFBSA 12 B2

Rated voltage 12 V (DC)

Rated idle speed n 5,000–32,000 rpm

Level 1 5,000 rpm

Level 2 10,000 rpm

Level 3 15,000 rpm

Level 4 20,000 rpm

Level 5 25,000 rpm

Level MAX 32,000 rpm

Max. disc ∅ 38 mm

Chuck clamping

range

max. ∅ 3.2 mm

Battery: PAPK 12 A5

Type: Li-Ion LITHIUM ION Rated voltage: 12 V = (DC)

Capacity: 2,000 mAh / 24 Cells: 3

High-speed battery charger: PLGK 12 A3 INPUT:

Rated voltage: 220 - 240V\~ (AC), 50-60 Hz

Power

consumption: 50 W

OUTPUT:

Rated voltage: 12 V = (DC)

Rated current: 2.4 A

Charging time: approx. 60 minutes

Fuse (internal): 2 A T2A

Protection class: II/☐ (double insulation)

The appliance is part of the Parkside X124TEAM series and can be operated using Parkside X124TEAM batteries.

Batteries from the Parkside X12VTEAM series may only be charged using Parkside X12VTEAM series chargers.

We recommend that you only operate this appliance with the following batteries: PAPK12A1/A2/A3/A5/B1/B3/C1/D1/PAPK12 2.5/5.0 A1.

We recommend that you charge these batteries with the following chargers: PLGK12A1/A2/A3/B2/PLGK 12 6.0 A1/PDSLG12A1.

Noise emission value

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically:

Sound pressure level L_pA=71.4 dB

Uncertainty K_pA=3 dB

Sound power level L_WA = 82.4 dB

Uncertainty K K_WA = 3 dB

Wear hearing protection!

Total vibration value a_h = 1.130 m/s Uncertainty K = 1.5 m/s ^2

NOTE

The vibration emission values and noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.

▶ The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.

▶ Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control of the appliance.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un-modified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the re-

chargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries.

Batteries should only be maintained by the manufacturer or an approved customer service centre.

Safety instructions for all applications

General safety instructions for grinding, sandpaper sanding, working with wire brushes, polishing, routing and abrasive cutting

a) This power tool is intended for use as a grinder, sandpaper sander, wire brush, polisher, router and abrasive cutting machine. Please follow all safety instructions, instructions, diagrams and data that you receive with the tool. Failure to follow the instructions below may result in electric shock, fire and/or serious injuries.
b) Do not use any accessories that have not been provided or recommended by the manufacturer for this power tool. Just because you can attach the accessories to your power tool, does not ensure they are safe to use.
c) The maximum permissible speed of the accessory tool being used must be at least as high as the maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air.
d) The external diameter and thickness of the accessory tool being used must comply with the specified dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.
e) Grinding discs, sanding drums or other accessories must match the grinding spindle or collet chuck of your power tool exactly. Accessory tools that do not fit precisely into the take-up of the power tool will rotate unevenly, vibrate severely and may lead to loss of control.

f) Discs, grinding cylinders, cutting tools or other accessories mounted on a mandrel must be completely inserted in the collet or chuck. Any "protrusion" or exposed parts of the mandrel between the grinding tool and the collet or chuck must be kept to a minimum. If the mandrel is not sufficiently tightened or the grinding tool protrudes too far, the accessory tool can come loose and be ejected at high speed.

g) Never use damaged accessory tools. Before each use, check accessory tools such as grinding discs for chips or cracks, sanding drums for cracks or excessive wear and tear and wire brushes for loose or broken wires. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the range of the rotating accessory tool and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during this test period.

h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or safety goggles. If required, use a dust mask, ear muffs, protective gloves or a special apron to protect you from grindings and material particles. Protect your eyes from flying debris that may be produced during certain applications. Dust or filter masks must be used to filter any dust produced by the application. Long-term exposure to loud noise can cause hearing loss.

i) Ensure that any bystanders are at a safe distance from your work area. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or broken accessory tools can fly off and cause injury – even outside of the immediate working area.

j) Hold the appliance only by the insulated handles if you are carrying out any work during which the attached tool could contact hidden power cables. Contact with a live cable may also cause metal parts of the tool to become live and could result in an electric shock.

k) Always hold the power tool firmly when starting it. When running up to full speed, the torque of the motor can cause the power tool to twist.

If possible, use clamps to hold the workpiece in position. Never hold a small workpiece in one hand and the power tool in the other while you are using it. By clamping small workpieces, you keep both hands free for better control of the power tool. When cutting round workpieces such as dowels, rods or pipes, be aware that these can roll away and this can cause the tool to jam and be thrown towards you.

m) Never put the power tool down until the accessory tool has come to a complete standstill. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool.

n) When changing accessory tools or changing settings, tighten the collet nut, the chuck or other fasteners tightly. Loose fasteners can shift unexpectedly and lead to loss of control. This can result in unsecured, rotating components being ejected violently.

o) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to an injury (for example, a cut or puncture wound).

p) Clean the ventilation slits of your power tool regularly. The motor fan draws dust into the housing, and a heavy accumulation of metal dust can cause electrical hazards.

q) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite these materials.

r) Do not use any accessory tools that require a liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

Additional safety instructions for all applications

Kickback and corresponding safety instructions

Kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, abrasive belt, wire brush, etc., catches or jams and leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool will turn rapidly against the direction of rotation of the accessory tool.

If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc may then jerk violently towards or away from the operator, depending on the rotation direction of the disc at the blockage. This can also cause sanding discs to break.

Kickbacks are caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.

a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of the kickback. By taking adequate precautions, the operator can stay in control of the kickback forces.

b) Take special care when working near corners, sharp edges, etc. Do not allow the accessory tool to bounce back from the workpiece or to jam.

The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or a kickback.

c) Do not use toothed saw blades. These kinds of accessories often cause a kick-back or loss of control over the power tool.
d) Always move the accessory tool into the material in the same direction in which the cutting edge leaves the material (in other words, the same direction in which the dust/chips are ejected). Guiding the power tool in the wrong direction will cause the cutting edge of the accessory tool to jump out of the workpiece, which can lead to the accessory tool being pulled in this direction.
e) Always clamp the workpiece when using rotary files, cutting discs, high-speed routing tools or carbide tools. Even minimal tilting in the groove can cause these tools to jam and lead to a kickback. When a cutting disc jams, it usually breaks. When a rotary file, high-speed routing tool or carbide routing tool jams, the accessory tool can jump out of the groove and lead to loss of control of the power tool.

Supplementary safety instructions for grinding and abrasive cutting

Special safety instructions for grinding and abrasive cutting

a) Use only the grinding accessories approved for your power tool and only for the recommended applications. Example: Never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can cause them to break.

b) For conical and straight pencil grinders, use only undamaged mandrels of the correct size and length and without an undercut on the shoulder. Using an appropriate mandrel reduces the risk of breakages.
c) Avoid exerting excessive contact pressure, and do not allow the cutting disc to jam. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or jamming and thus the possibility of a kickback or a breakage of the grinding tool.
d) Keep your hands out of the area in front of or behind the rotating cutting disc. When you move the cutting disc away from your hand while it is in the workpiece, it is possible that a kickback could cause the power tool with the rotating disc to be hurled directly towards you.
e) If the cutting disc jams or you stop working, switch off the appliance and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kick-back. Identify and remove the cause of the jam.
f) Do not switch the power tool back on as long as it is in the workpiece. Allow the cutting disc to reach its full speed before carefully resuming the cut.

Otherwise, the disc may jam, jump out of the workpiece or cause kickback.

g) Provide support for panels or large workpieces to reduce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides, namely in the vicinity of the cut, and also at the edge.

h) Be particularly careful when making pocket cuts into existing walls or other obscured areas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause kickback.

Supplementary safety instructions for working with wire brushes

Special safety instructions for working with wire brushes

a) Note that the brush can lose wire bristles even during normal operation. Do not overstress the wires by applying excessive pressure to the brush. Flying wire bristles can easily penetrate light clothing and/or skin.

b) Allow the brush to run at working speed for at least one minute before applying it to the workpiece. Ensure that no one is standing in front of or in line with the brush during this time. Loose pieces of wire can fly off during the run-in period.

c) Aim the rotating steel brush away from yourself. When working with these brushes, small particles and minute pieces of wire can fly off at great speed and pierce skin.

Residual risks

Even if you operate this appliance properly, there will still be residual risks. The following risks can occur in relation to the tool's design and structure:

- Lung damage if suitable respiratory protection is not worn. - Hearing damage, if no suitable hearing protection is worn. - Damage to health resulting from hand-arm vibrations if the appliance is used for an extended period of time or is not properly used and maintained.

- Injuries from:

- Contact with the grinding tools in the unprotected area; - Parts flying off workpieces or damaged grinding discs.

WARNING!

▶ Danger from the electromagnetic field generated while the appliance is operating. Under certain circumstances, the field can impair active or passive medical implants. To reduce the risk of fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating this appliance.

Original parts/accessories

■ Never use the appliance for purposes other than those for which it was designed, and only use original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

Safety instructions for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ To avoid potential risks, a damaged power cable for this appliance should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

Before use

Removing/charging/inserting the battery pack

CAUTION!

▶ Always unplug the appliance before you remove the battery pack ⑰ from or connect the battery pack to the charger.

NOTE

Ideally, charge the battery completely before use. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.

▶ Never charge the battery pack if the ambient temperature is below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry, and the ambient temperature should be between 0^ C and 50^ C.

The recommended ambient temperature range for using tools and batteries is between -5^ and 50^ .

If necessary, remove the battery pack 17 from the appliance. To do this, press the battery release button 18 and pull the battery pack 17 out of the appliance.

◆ Insert the battery pack 17 into the high-speed battery charger 19.

◆ Plug the plug into the power outlet.

◆ The indicator LED on the high-speed battery charger 19 lights up red to indicate that the appliance is charging.

◆ The green indicator LED on the high-speed battery charger 19 indicates that the charging process is complete and the battery pack 17 is ready for use.
When charging is complete, disconnect the high-speed battery charger 19 from the mains.
◆ Pull the battery pack 17 out of the high-speed battery charger 19.
♦ Switch off the high-speed battery charger 19 for at least 15 minutes between successive charging sessions. Also disconnect the mains plug.
♦ Push the battery pack ⑰ back into the appliance.

Checking the battery charge level

If the appliance is switched on, the status/remaining charge will be shown by the charge level indicator ⑧ as follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery

RED/ORANGE/GREEN = flashing for 30 s - Power tool is overheated!

- Switch off the power tool and allow it to cool completely.

RED = flashing for 30 s

- Power tool is overloaded!

♦ Exert less pressure on the workpiece while working.

Inserting/replacing tools/collet chuck

◆ Press the spindle lock ④ and hold it down.
- Turn the tensioning nut ① until the lock clicks into place.
◆ Loosen the tensioning nut ① from the thread with the assembly spanner ④1.
◆ Remove any attached tool.
- First push the intended tool through the tensioning nut ① before inserting it into the appropriate collet chuck ② for the tool shaft.
◆ Press the spindle lock ④ and hold it down.
♦ Push the collet chuck ② into the thread insert and screw the tensioning nut ① tight with the assembly spanner ④.

NOTE

Use the screwdriver side of the assembly spanner ④ to undo and tighten the screw on the mandrel ②3.

Switching on and off / setting the speed range

Switching on / setting the speed range

◆ To switch the appliance on, push the On/Off switch ⑤ forwards.
◆ Set the variable speed control ⑦ to a position between "1" and "6".

Switching off

◆ To switch off the appliance, push the On/Off switch ⑤ backwards.

Attachment

Additional handle ⑪

■ For work requiring greater precision and control, such as engraving.

Routing attachment 12

■ For general routing and drilling work.

Grinding angle guide 13

■ For grinding/sanding work that requires an exact angle of 90^ or 45^ .

Scale 14

■ Used together with the parallel edge guide ⑮ or the circle cutter ⑰ for precise parallel or circular cuts.

Protective guard 16

■ Provides protection against sparks during cutting or grinding.

Adjusting the attachment height (Fig. B)

◆ Loosen the tensioning screw 42 on the attachment.
Adjust the attachment to the desired height.
♦ Tighten the tensioning screw 42 again.

Attaching accessories to the scale 14 (Fig. B)

◆ Fit the desired accessory (parallel edge guide 15, circle cutter 27) onto the scale from below 14.
◆ Fasten the accessory with the screw 43.

Attachment Routing	Drilling Cutting Grinding/			sanding	Polishing Engraving
Additional handle 11	X				X	X
Routing attach-ment 12	X	X
Grinding angle guide 13				X	X
Scale 14	X	X
Protective guard 16			X	X

Fitting an attachment

WARNING!

▶ Before any work on the appliance, remove the battery pack ⑰.

Procedure (Fig. A)

◆ Unscrew the screw cap ③.
♦ Screw the desired attachment onto the thread.

Accessory tool

Function Accessory tool Max. per-		missiblespeed[rpm]	Speed setting ≤	Use Pro-	trusion a [mm]
Drilling HSS drill bits 21 32,000 6 W		Working with		wood	10
Pol-ishing, cleaning	Plastic brush 29 15,000	3 Cleaning on		plastic or steel	9-15
	Felt polishing disc (large) 31; felt polishing disc (small) 32	20,000 4 Various metals and plastics, especially precious metals such as gold and silver			12-18
Cleaning, grinding/sanding with low pressure	Polishing bit 30 20,000	4 Cleaning, grind-		ing/sanding on wood, plastic and soft metals such as aluminium, copper and brass	9-15
Grinding/sanding	Cutting disc 33 20,000	4 Grinding/sand-		ing work on wood, detail work on hard materials, such as alloyed steel	12-18
	Abrasive belt 38 32,000	6 10
	Sandpaper 34 20,000	4 12-18
	Silicon carbide grinding bit 36	20,000 4 Grinding work on stone, glass, ceramic, porcelain and non-ferrous metals			10
	Aluminium oxide grinding bit 35	25,000 5 Grinding work on stainless steel, aluminium, brass and copper			10
Cutting Cutting disc 20; cutting disc (small) 38		32,000 6 Working metal, plastic and wood			12-18
Routing Routing bit 24 32,000 6 W		Working wood,		plastic and soft metals such as aluminium, copper and brass	20

Fitting/removing the accessory tool

NOTE

The maximum diameter of the grinding assembly and of grinding cones and pencil grinders with a thread insert may not exceed 55 mm. The maximum diameter for sandpaper sanding accessories may not exceed 80 mm.

■ Fit the following accessory tools onto the corresponding mandrel before using them:

• Cutting disc 28, cutting disc (small) 33: Mandrel (cutting disc) 23
• Sandpaper 34: Mandrel (grinding disc) 23
• Grinding disc 40
• Abrasive belt 38: Mandrel (abrasive belt) 37
• Felt polishing disc (large) 31,
  Felt polishing disc (small) 32: Mandrel (polishing disc) 22

■ The assembly spanner 41 serves as a spanner for the tensioning nut ① and as a screwdriver for the mandrels for the cutting and grinding discs 23.
■ Note the indicated protrusion a for each accessory tool.
■ Risk of damage! Never tighten the tensioning nut when no accessory tool has been inserted into the collet chuck.

WARNING!

▶ Before any work on the appliance, remove the battery pack ⑰.

Fitting a cutting disc onto the mandrel

• Loosen the screw on the mandrel for cutting discs 23.
  ♦ Insert the screw through the hole of the cutting disc (28, 33).
  ♦ Fix the screw back onto the mandrel for cutting discs 23.

NOTE

Disc breakage. Only tighten the screw hand-tight.

Fitting grinding discs / sandpaper onto the mandrel

• Loosen the screw on the mandrel for cutting discs 23.
  ♦ Insert the screw through the hole of the desired disc (34, 40).
  ♦ Fix the screw back onto the mandrel for cutting discs 23.

Fitting an abrasive belt onto the mandrel

◆ Slide the abrasive belt 38 onto the mandrel 37.

◆ Pull a worn-out abrasive belt 38 off the mandrel 37.

Fitting a polishing disc onto the mandrel

◆ Fit the centring hole of the polishing disc (31, 32) onto the mandrel 22.

♦ Screw the polishing disc (31, 32) firmly onto the mandrel 22.

Procedure (Fig. A)

◆ Press and hold the spindle lock ④.
◆ Loosen the tensioning nut ①. You can release the spindle lock ④.

Fitting:

◆ Fit the accessory tool into the collet chuck ②.

Removal:

◆ Pull the accessory tool out of the collet chuck ②.
♦ Tighten the tensioning nut ①.

Operation

Using the appliance

WARNING!

Risk of injury! If possible, use clamps to hold the workpiece in position. Never hold a small workpiece in one hand and the appliance in the other while you are using the appliance.

DANGER!

▶ Risk of injury! Ensure that you have sufficient space to work and that you do not endanger other persons.

■ Adjust the protective guard 16 so that flying sparks or detached parts cannot hit the user or bystanders. The position of the protective guard 16 must also be such that the flying sparks do not ignite flammable parts, including those in the vicinity.

■ The power tool may not be used with an abrasive cutter stand.

■ Only switch on the appliance while the power tool is not in contact with the workpiece.

■ Excessive pressure reduces the performance of the power tool and leads to quicker wear of the accessory tool.

■ Always work with reverse rotation. This ensures that the appliance will not be pushed out of the cut in an uncontrolled manner. The direction of rotation arrow ⑩ indicates the operating direction of the accessory tool.
■ After heavy workloads, allow the appliance to run idle for a few minutes to cool the accessory tool.
■ Never touch the accessory tool until it has cooled down.

Abrasive cutting

Requirements

■ Cutting disc (diameter ≤ 38 mm)

NOTE

Property damage. Never use abrasive grinding discs for cutting! Always work at a slow rate of forward motion. Exert only moderate pressure on the work-piece.

Parallel and circular cuts

Compatible attachment

Scale 14
■ Circle cutter 27
■ Parallel edge guide 15

Compatible accessory tool

■ Spiral-fluted routing bit 26

Aid

■ Permanent marker, pencil

Procedure

■ Draw the cutting path first.

NOTE

Consider the diameter of the accessory tool.

◆ Loosen the screw 43.
◆ Set the accessory to the desired distance/radius.
♦ Firmly tighten the screw 43.

Place the parallel edge guide 15 / circle cutter 27 on the workpiece.
♦ Switch on the appliance.

WARNING!

▶ Risk of injury! During work, always keep one hand on the parallel edge guide ⑮ / circle cutter ⑳ and the other hand on the handle ⑥.

Inserting and removing the battery

WARNING!

▶ Risk of injury due to accidental starting of the appliance. Only insert the battery pack ⑰ into the appliance once the appliance is completely ready for use.

NOTE

Risk of damage! An incorrect battery pack ⑰ can damage the appliance and the battery.

Inserting the battery (Fig. C)

- Insert the battery pack ⑰ into the battery holder in the handle ⑥ along the guide rail. You will hear the battery click into place.

Removing the battery (Fig. C)

◆ Press and hold the battery release button ⑱ on the battery pack ⑰.
◆ Pull the battery pack ⑰ out of the handle ⑥.

Switching on and off

Switching on

◆ Insert the battery pack ⑰.
♦ Push the On/Off switch ⑤ forwards.
◆ Check whether the accessory tool is running evenly and correctly. If not: Replace the accessory tool.
◆ Wait until the appliance has reached its full speed.
◆ Guide the accessory tool against the workpiece.

Switching off

◆ Remove the accessory tool from the workpiece.

♦ Push the On/Off switch ⑤ backwards.

◆ Wait until the power tool has come to a standstill before putting it down.
Remove the battery pack 17 from the appliance if you leave the appliance unattended or when you have finished your work.

Transport

■ Switch off the appliance.
■ Make sure that all moving parts have come to a complete stop.
■ Remove the battery pack ⑰.
■ Remove the accessory tool.
- Carry the appliance only by the handle ⑥.

Cleaning, maintenance and storage

WARNING!

▶ Risk of injury due to accidental starting of the appliance. Protect yourself during maintenance and cleaning work. Switch off the appliance and remove the battery pack ⑰. Have all repair and maintenance work not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

WARNING!

▶ Electric shock! Never spray the appliance with water.

NOTE

Risk of damage. Chemical substances can damage the plastic parts of the appliance. Do not use cleaning agents or solvents.

- Keep the ventilation slots, motor housing and handles of the appliance clean. Use a damp cloth or brush for this purpose.

Maintenance

■ The appliance is maintenance-free.

Storage

Always store the appliance and accessories under the following conditions:

• Clean
• Dry
• Protected from dust
• In the supplied storage case 20
• Out of the reach of children

■ The storage temperature for the battery and the appliance is between 0 °C and 45 °C. Avoid extreme cold or heat during storage as this could reduce the battery performance.
■ Remove the battery pack ⑰ before storing the appliance for an extended period (e.g. over winter).

Disposal

Applies only to France

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Li-ion

Defective or worn-out rechargeable batteries must be recycled.

Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/recharge able batteries may contain toxic heavy metals.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging

material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

This appliance comes with a 5-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series come with a 3-year warranty from the date of purchase. In the event that this product has any defects, you, the buyer, have certain statutory rights. Your statutory rights are not limited in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

The warranty does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 485948_2501 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search box to search for the operating instructions. Enter the article number (IAN) 485948_2501 to find the operating instructions for your article.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IE Service Ireland

Tel.: [phone]

Contact form on parkside-diy.com

IAN 485948_2501

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Hans-Peter Kompernaß, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this pro duct complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EC Low Voltage Directive

(2014/35/EU, charger only)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied harmonised standards

EN 60745-1:2009/A11:2010

EN 60745-2-23:2013

EN 60335-1:2012/A15:2021

EN 60335-2-29:2021/A1:2021

EN 62233:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Type/tool designation: 12V Cordless Rotary Tool PPFBSA 12 B2

Year of manufacture: 05–2025

Serial number: IAN 485948_2501

Bochum, 21/05/2025

koupernay

CE

- Managing Director -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery and charger

You can easily order a replacement battery or charger on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smartphone/tablet.

You can use this QR code to go directly to our website to view and order the available spare parts.

NOTE

If you have problems with your online order, you can contact our service centre by phone or e-mail.
▶ Always quote the article number (IAN) 485948_2501 in your order.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Inhaltsverzeichnis

Einleitung 26

PAPK12A1/A2/A3/A5/B1/B3/C1/D1/

PAPK12 2.5/5.0 A1.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Courant nominal : 2,4A

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

QR code image containing encoded data, no visible human-readable text

Nominale spanning: 220 - 240V (wissel-stroom), 50-60 Hz

Opgenomen

vermogen: 50 W

UITGANG / Output:

Zekering (intern): 2 A T2A

ROOD = knippert 30 sec

- Elektrisch gereedschap is overbelast!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Kawpeinay

CE

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Akumulator: PAPK 12 A5

Typ: Li-Ion LITOWO-JONOWY

Napięcie

znamionowe: =12 V

(prąd stały)

FR Recycle

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

PAPK12A1/A2/A3/A5/B1/B3/C1/D1/

PAPK12 2.5/5.0 A1.

WULFNgKR QûUDGLD D YHGLH N UOFKOHMûLHPX RSRWUHERYDQLX YORiHQgKR QûVWURMD ◆-YûIWH SULHPHU YORiHQgKR QûVWUR

■9IG\ SUDFXMWH Y SURWLVPHUH 73P SUKQLHLQHRN RQWURORYDWHnQgPX Y\WOD SUkVWURMD ] UH]X NkSND VPHUX R' 10 V\PEROL]XMH VPHU RWüeDQLD YORI nástroja.

XSkQDFLHKR ■3R-LQWHQ]kYQRP ]DŶDHHQk QHFKDMW QLHNRñNR PLQŻW EHIDŶ QD YRñQREHH YORÍHQØ QûVWURM Y\FKODGRO

■ 1HGRWÆNDMWH VD YORÍHQgKR QûVW kým nevychladne.

Rozbrusovanie

Predpoklady

■ 5H]DFk EUZVQ\ NRWŽě SULHPHU

UPOZORNENIE

SOKWQURGNRG\ 1D UH]DQLH QLNG\ QH-SRXMHQMMMH KUXERYDFLH DOHER UH]

UXNŒUŻVQH NRWŻEH 9IG\ SUDFXMWH V UƏFKORVÝRX SRVXYX 3RĚDV SUÛFH jajte na obrobok len mierny tlak.

♦ 8YRňQLWH VNUXWNX 43.

♦ 1DVWDYWH SUkVOXüHQVWYR QD SRHE Y]GLDOHQRVÝ SRORPHU

♦ Pevne utiahnite skrutku 43.

♦ Umiestnite paralelnú zarážku 15/kruhovú frézu 27 na obrobku.
♦ Zapnite prístroj.

VÝSTRAHA!

▶ Nebezpečenstvo poranenia! Počas práce držte jednu ruku vždy na paralelnej zarážke 15/kruhovej fréze 27 a druhú ruku na rukoväti 6.

=ûUXëQû GRED D JûNRQQĝ QûURN\ QD RGVWUûQHQLH FKÆE

=ûUXěQû GRED VD ]ûUXěQəP SOQHQkP

GÑL 7R SODWk DM SUH Y\PHQHQg

GLHO\ 3RüNRGHQLD D FK\E\ ]LVWHQg

XI SUL NÍSH VD PXVLD KOÛVLÝ RN

Y\EDOHQk 3R XSO\QXWk ]ûUXěQHM

KDMŽ SUkSDGQg RSUDY\ SRSODWNX

5R]VDK ]ûUXN\

3UkVWURM ERO VWDURVWOLYR Y\UREHQQ Y VZODGH

SUkVQ\PL VPHUQLFDPL NYDOLW\ D SUHG GRGD-

QkP ERO VYHGRPLWR SUHVNŻüDQĐ

=ûUXëQg SOQHQLH VD Y]YDKXMH QD

VD QHY]YDKXMH QD ěDVWL YØURENX NWRUg VŽ

Y\VWDYHQg EHIQgPX RSRWUHERYDQLX

LFK PRIQR SRNODGDÝ JD UÕFKOR RSI

GLHO\ DNR QDSU SkORYg OLVW\

VOXKX QHRGSRUŽEDMŽ DOHER SUHG

varuje.

9∅URERN MH XUěHQ∅ OHQ QD VŽNURP

D QLH QD SULHP\VHOQg SRXIkYDQLH

■SR#NRCHQk DOHER JPHQH Y#URENX Ji NDPHLWH SR

QkNRP REV, SRG

■ QHUHǔSHNWRYDQk SUHGSLVRY WĀNDM

EH]SHěQRVWL D ŽGUIE\ FK\EûFK REVO

■NRGÛFK Y GRVOHGNX HOHPHQWÛUQ\F

XGDORVWk

HG GRGD

9\EDYHQLH Y SUkSDGH ]ûUXN\

HK\EDUXEHQLH UEFKOHKR Y\EDYHQLD 9D

HLDGRVWL SRVWXSXMWH SRGñD QDVOHG

pokynov NWRUg VZ

■WDN\H\HWN\ RW\JN\ PDMWH SULSUDYHC

RWSRNODGQQ GRNODG D ēkVOR Y∅URE

D SRuNRGHOLD ■JKVOR YGURENX QûMGHWH QD W\SRYR

NRCHOLD DOHER DNR QÜOHSNX QD ]DG

XHKYDQLH ■SN GRMGH N IXQNěQØP SRUXFKůP DOF

inym nedostatkom, najskôr telefonicky

NWRU-PL YD SDUNVLGH GL\ FRP Y ěDVWL 6HUYLV

PRIHWH SRWRP VSROX V GRNODGRP R

OùNXSH SRNODGQLěQĐ EORN D XYH

SRSLVX, EK\E\ D GûWXPX NHG\ N QHM

LHSODWOH RGRVODY QD DGUHVX VH

KñDGDMWH QûYRG\ QD REVOXKX 3RPRF

GDQLD ēkVOD YØURENX ,\$1 . B

GRVWDQHWH N QûYRGX QD REVOXKX SU

výrobok.

Servis

SK Servis Slovensko

Tel. [phone]

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

- Director general -

QR code image containing encoded data, no visible human-readable text

R∅D/ORANGE/GR∅N = blinker i 30s

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Scan QR-koden med din smartphone/tablet.

Modello PPFBSA 12 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

PAPK12A1/A2/A3/A5/B1/B3/C1/D1/

PAPK12 2.5/5.0 A1.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

Németország

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

FR © Document Recycle Bin

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
