USER MANUAL PASA 1200 B2 PARKSIDE

Black industrial air purifier with coiled tubing and handle (no text or symbols visible)

PDF ONLINE parkside-diy.com

Chip & Dust Extractor

Translation of the original instructions

NL BE

Afzuiginstallatie

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Technical diagram showing exploded view of a mechanical component with numbered parts and assembly views

Inhaltsverzeichnis

Einleitung.... 4

Service-Center....14

Importeur.... 14

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE
parkside-diy.com

Scope of delivery/accessories....16

Overview.... 17

Description of functions....17

Technical data....17

Safety information....17

Meaning of the safety information...... 17

Pictograms and symbols...... 17

Safe initial start-up....18

Preparation.... 21

Control elements....21

Attaching and removing the motor head.... 21

Fitting and removing the filter cartridge/paper filter.... 21

Attaching and removing the suction hose.... 21

Fitting and removing the hose connection.... 21

Fitting and removing the adapter set.... 22

Connecting the appliance to a machine.... 22

Operation.... 22

Switching on and off....22

Transport....22

Cleaning, maintenance and storage..... 22

Cleaning....22

Maintenance.... 22

Storage.... 22

Disposal/environmental protection......23

Troubleshooting.... 23

Service.... 23

Guarantee.... 23

Repair service.... 24

Service Centre.... 25

Importer.... 25

Spare parts and accessories.... 25

Translation of the original EU declaration of conformity.... 25

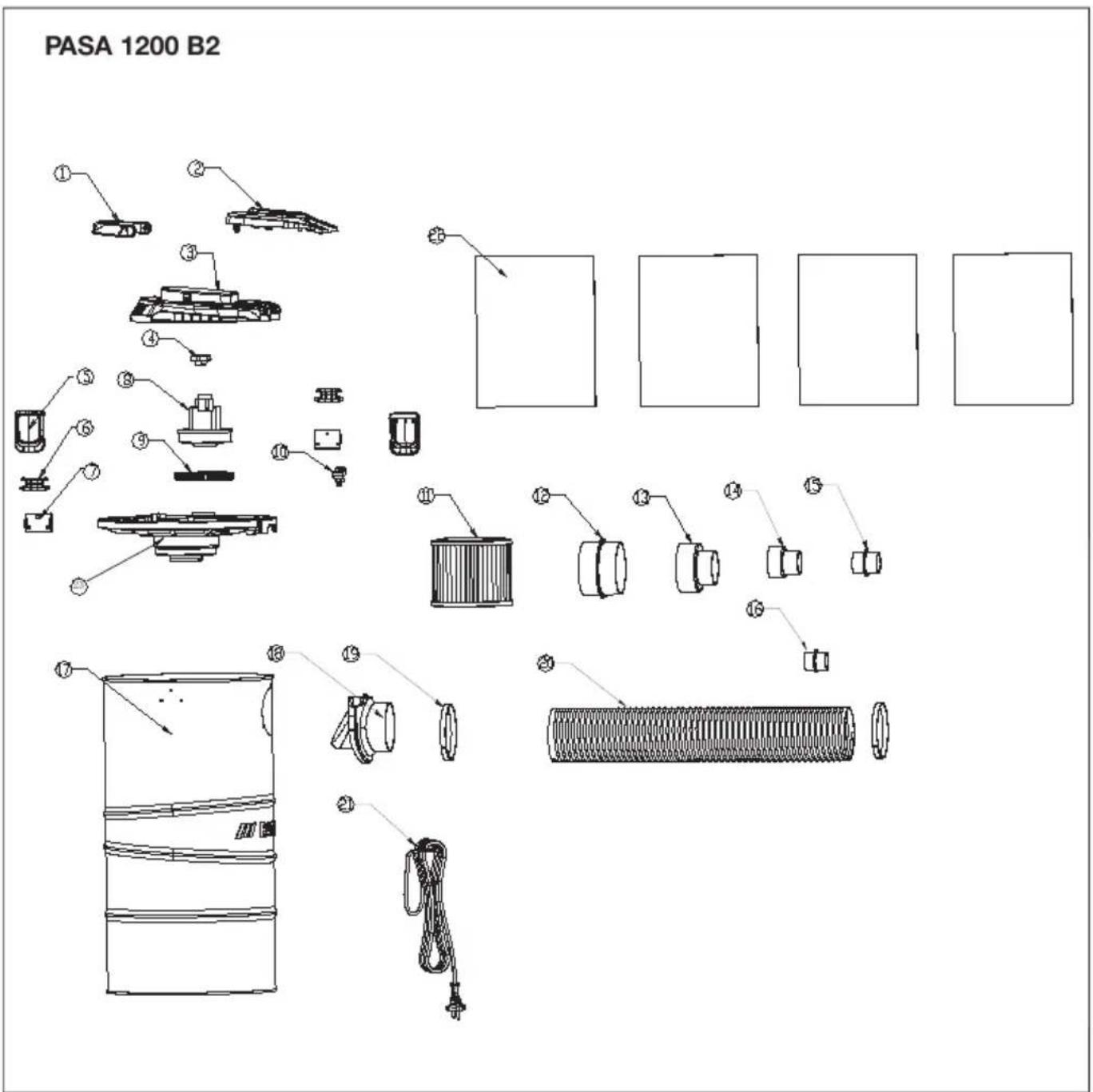

Exploded view.... 135

Introduction

Congratulations on purchasing your new vacuuming system (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device. In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following uses:

• Vacuuming in the hobby room or garage

• Vacuuming of sawdust, sawdust, fine dust and wood shavings

The suction of flammable, explosive or hazardous substances is prohibited.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Translation of the original instructions

- Motor head

- Container

- Suction hose

- Filter cartridge

- 4x Paper filter

• Hose connection
• Adapter set (4-piece)
• 2x Hose clamp

Overview

The illustrations for the device can be found on the front and back fold-out page.

(Fig. A)

1 Motor head
2 Carrying handle
3 Holder (Power cord)
4 Power cord
5 Quick release lock
6 Container
7 Suction hose
8 Hose clamp
9 Hose connection
10 Adapter set
11 Suction connector
12 On/Off switch

(Fig. B)

13 Paper filter
14 Filter cartridge

Description of functions

The appliance has a powerful motor.

The fold-away handle on the motor head makes the appliance easy to transport.

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Chip & Dust Extractor ...... PASA 1200 B2

Rated voltage U ..... 220-240 V\~, 50-60 Hz

Rated input power P ....1200 W

No-load rotation speed n_0 ..... 35000 min ^-1

Maximum negative pressure .....22 kPa

Volume flow ....215 m³/h

Length Power cord 2 m

Protection class ...... □ II

Protection type IPX0

Weight (Including accessories) ..... ≈6.3 kg

Container volume 54 l

Sound pressure level ( L_pA ). 88 dB; K_pA=3 dB

Sound power level ( L_WA ). 101 dB; K_WA=3 dB

Vibration ( a_h ) ....≤2.5 m/s ^2

Safety information

This section deals with the basic safety instructions for using the device.

Meaning of the safety information

⚠ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

⚠ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

⚠️ CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device

Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

Use hearing protection

Use a mask

Protection class II (double insulation)

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Safe initial start-up

Attention! The following basic safety precautions must be observed while using electrical devices to protect against electric shock, injury and risk of fire:

• WARNING! Only use the vacuuming system if you have received sufficient information on use of the system, the substances to be vacuumed and their safe disposal. Careful instruction reduces operating errors and injuries.
• WARNING! This appliance is not suitable for vacuuming dust that is hazardous to health.
• WARNING! This appliance is for dry use only.
  • CAUTION! This device is for indoor use only.

General Information

- Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

• This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children must be supervised to ensure that they do not play with the appliance.
• Note that the user is responsible for any accidents or risks to others and their property.
• Observe noise protection rules and other local regulations.

Preparation

• Prior to use, always check the power cord and extension cord for signs of damage or wear and tear. If the cord is damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY. Do not use the device if the cord is damaged or worn.
• Ensure that the mains voltage and mains fre-

quency match the specifications on the rating plate. Adaptation to the various mains frequencies is automatic.

- Connect the device only to a power outlet with a residual current device (RCD) of rated residual current no more than 30 mA.

- Connect the appliance to an outlet with a fuse of at least 16 A.

- If the power cord of this device is damaged, it must be replaced by the manufacturer, their customer service or by a similarly qualified person in order to avoid hazards. contact the service centre.

• Make sure before use that the appliance is properly assembled and that the filters are in the correct position. Never perform vacuuming without a filter. The appliance could become damaged.

- Never use the device if there are children or animals nearby. People

nearby must wear pro- tective clothing.

Operation

- Pay attention, be aware of what you are doing and take the utmost care when working with the device. Do not use the device if you are tired or you are under the influence of drugs, alcohol or medication.

- Do not use the appliance for vacuuming people or animals.

- While in operation, never aim the suction hose and nozzles at yourself or other people; particularly not eyes or ears. There is a risk of injury.

- The nozzles and suction hose must not be at the same height as your head while working. There is a risk of injury.

- Do not vacuum hot, glowing, flammable, explosive or hazardous substances. These include hot ashes, petrol, solvents, acids or alkalis amongst others. There is a risk of fire and injury.

• Make sure not to damage the power cord by pulling it over sharp edges, getting it trapped or by pulling on the cord.
• Never use the power cord to pull the plug out of the outlet or to pull the device. Protect the power cord from heat, oil and sharp edges.
• Never transport the device while the drive is running.
• Switch off the device and disconnect the plug from the power outlet. Make sure that all moving parts have come to a complete stop

- when leaving the device,

- before changing the accessories,

- before removing obstructions or loosening blockages,

- before checking the device, cleaning it or performing maintenance work on it.

- If the device starts to vibrate abnormally, an immediate check is required:

• Check for loose parts and fasten them,
• Look for damage,
• Replace damaged accessories. Please contact the service centre for repairs.

Cleaning, maintenance and storage

• CAUTION! This appliance may only be stored indoors.
- Allow the motor to cool down before storing the device for a longer period.
- Replace worn or damaged parts in the interests of safety. Use only original spare parts and accessories. Using externally produced parts results in the immediate loss of any warranty claim.
- The device may only be opened by an authorised electrician. Always contact our service centre for repairs.
- Switch the drive off, disconnect the device from the power supply and allow the device to cool off if you want to clean, ad-

just, store the device or to exchange an accessory part.

• Handle the device with care and keep it clean.
• Store the device out of reach of children.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up. Do not insert the plug into the outlet until the device is fully prepared for use.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

On/Off switch (12)

• Switching on: Move the On/Off switch (12) to the position "I" (ON).
• Switching off: Move the On/Off switch (12) to the position "0" (OFF).

Attaching and removing the motor head

Disassembling the motor head (Fig. B)

1. Unlock the quick-release locks (5) on the container (6).
2. Take the motor head (1) off. Place the motor head (1) with the top facing downward.

Assembling the motor head (Fig. B)

1. Place the motor head (1) on the container (6). The On/Off switch (12) points to the suction port (11).
2. Lock the quick-release locks (5) on the container (6).

Fitting and removing the filter cartridge/paper filter

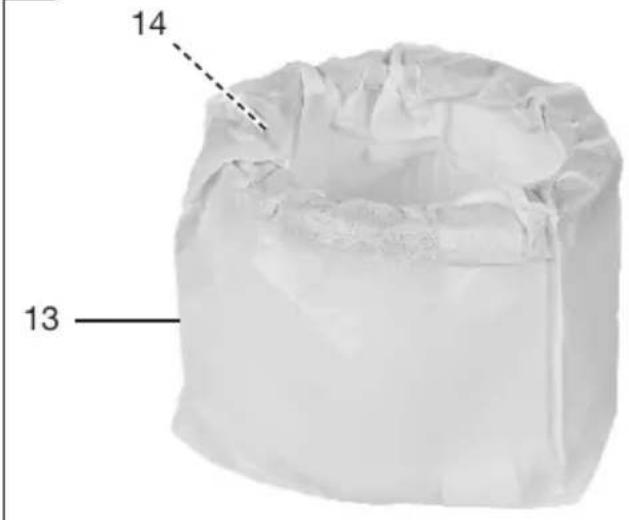

Fitting the filter cartridge/paper filter (Fig. B/C)

1. Remove the motor head (1).
2. Pull the paper filter (13) over the filter cartridge (14). Push the overhang of the

paper filter (13) into the filter cartridge (14).

1. Attach the filter cartridge (14) with paper filter (13) to the motor head (1).
2. Mount the motor head (1).

Removing the filter cartridge/paper filter (Fig. B/C)

1. Remove the motor head (1).
2. Pull the filter cartridge (14) off the motor head (1).
3. Remove the paper filter (13) from the filter cartridge (14).

Attaching and removing the suction hose

Tools required

(not included)

- Phillips screwdriver/ Open-end wrench (7 mm)

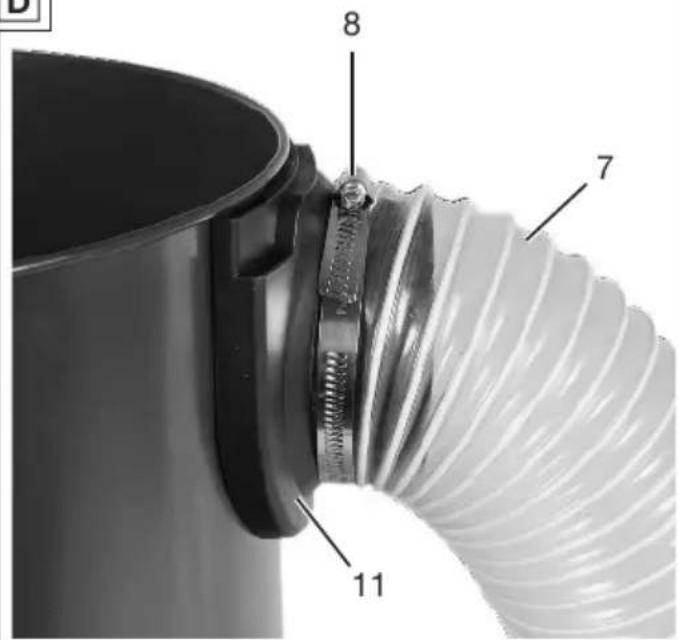

Fitting the suction hose (Fig. D)

1. Pull a hose clamp (8) over one end of the suction hose (7).
2. Fit the suction hose (7) to the suction connection (11) using the hose clamp (8).
3. Tighten the hose clamp (8) using a suitable screwdriver.

Removing the suction hose (Fig. D)

1. Use a suitable screwdriver to screw on the hose clamp (8) on the suction connection (11).
2. Pull the hose clamp (8) and suction hose (7) off the suction connection (11).

Fitting and removing the hose connection

Tools required

(not included)

• Phillips screwdriver/ Open-end wrench (7 mm)

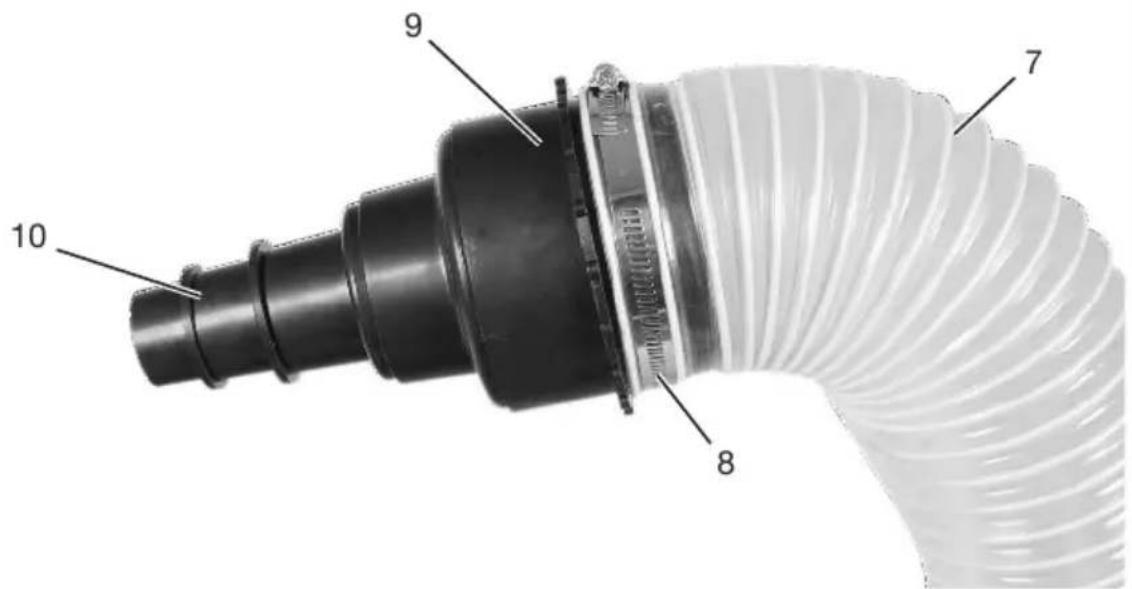

Fitting the hose connection (Fig. E)

1. Pull a hose clamp (8) over the end of the suction hose (7).
2. Fit the end of the suction hose (7) with the hose clamp (8) on the hose connection (9).
3. Tighten the hose clamp (8) using a suitable screwdriver.

Removing the hose connection (Fig. E)

1. Use a suitable screwdriver to screw on the hose clamp (8) at the hose connection (9).

2. Pull the hose clamp (8) and the end of the suction hose (7) off the hose connection (9).

Fitting and removing the adapter set

Fitting the adapter set (Fig. E)

1. Place the adapter set (10) on the hose connection (9).

Removing the adapter set (Fig. E)

1. Pull the adapter set (10) off the hose connection (9).

Connecting the appliance to a machine

1. Select an adapter from the adapter set (10) according to the application and fit the appropriate connection on the suction hose (7).
   You can also use the appliance with only the hose connection (9).
2. Attach the ready-to-use suction hose (7) to the appropriate point on the machine to be used.

Operation

Switching on and off

Switching on (Fig. A)

1. Move the On/Off switch (12) to the position "I" (ON).

Switching off (Fig. A)

1. Move the On/Off switch (12) to the position "0" (OFF).

2. Pull the device plug out of the wall outlet if you are leaving the device unattended or if you have finished working.

3. Wind the power cable (4) around the holder (3).

4. Move the On/Off switch (12) to the position "0" (OFF).

5. Pull the device plug out of the wall outlet if you are leaving the device unattended or if you have finished working.
6. Wind the power cable (4) around the holder (3).

Transport

Notes

• Turn off the device.
• Stow the accessories securely on the appliance or remove them if necessary.
• Pull out the mains plug.
• Always carry the appliance by the handle (2).

Cleaning, maintenance and storage

WARNING! Electric shock! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and disconnect the mains plug from the socket.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

Note

Risk of damage. Improper cleaning can damage the appliance. Do not spray down the appliance with water. Do not use any abrasive cleaning agents or solvents.

• Clean the device after each use.
• Wipe off chips and dust regularly with a cloth.
• Clean the appliance regularly with a damp cloth and some soft soap.
• Make sure that no water can get inside the appliance.

Emptying the container

(Fig. B)

1. Remove the motor head (1). Place the motor head (1) with the top facing downward.
2. Empty the container (6).
3. Clean the container (6), if dirty.
4. Mount the motor head (1).

Maintenance

The device is maintenance free.

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
  • out of the reach of children

Notes

- Clean the device prior to storage (see Cleaning, p. 22).

Disposal/environmental protection

The device, accessories and packaging should be properly recycled.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.
  This does not affect accessories enclosed with the old devices or tools without any electrical components.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible cause Error	correction
Device does not start	On/Off switch (12) turned off Check the position of the on/off switch (12)
	On/Off switch (12) is broken	Contact the service centre.
	Defective motor
	No mains power supply Check the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
Weak or no suction power/throughput	Hose clamp (8) has slipped Fit the hose clamp (8) correctly
	Hose (7) blocked Removing obstructions and blockages
	Container (6) open Fit the motor head (1)
	Container (6) full Empty the container (6)
	Filter (13,14) full or clogged Empty, clean or replace the filter (13,14)

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt.

This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Filter) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and product number (IAN 480684_2410) ready as proof of purchase for all enquiries.
• Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.
• Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on parkside-diy.com in the category Service.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the

proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 480684_2410.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

- We can only work on devices which are sent in properly packed and with postage paid.

Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.

- The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.

- We will dispose of defective devices you ship to us free of charge.

Service Centre

Service Great Britain

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 480684_2410

Service Malta

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 480684_2410

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 25

Pos. nr. Name Order No.

5 Quick release lock 91120299

6 Container 91120302

7 Suction hose 91120303

10 Adapter set 91120301

13 4x Paper filter 91120304

14 Filter cartridge 91120300

Translation of the original EU declaration of conformity

Product: Chip & Dust Extractor

Model: PASA 1200 B2

Serial number: 000001 - 063000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2011/65/EU & (EU) 2015/863

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 60335-1:2012/A15:2021 • EN 60335-2-69:2012

EN IEC 63000:2018 • EN 62233:2008

EN IEC 55014-1:2021 • EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021 • EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction...... 27

Garantie (France)....36

Service-Center....39

Importateur.... 39

Service-Center....50

Importeur.... 51

Service-Center....61

Importador.... 62

Service-Center....73

Importatore.... 74

Ricambi e accessori.... 74

Service-Center....84

Dovozce....84

Service-Center....94

Importér....94

Service-Center....129

Importør...... 129

Exploded view diagram of a portable air purifier with numbered parts labeled 1 to 6

C

13 14

D

8 7 11

E

9 7 8 10

Explosionszeichnung • Exploded view • Vue éclatée • Vista esplosa • Vista explosionada • Explosietekening • Eksploderet tegning • Robbantott ábra • Widok rozłożony • Rozložený pohled • Rozložený pohlad

PASA 1200 B2 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒

informativ • informative • informatif • informatief • informativo • informativ • informacyjny • informační • informatívny

FR ©

GRIZZLY TOOLS GMBH & CO. KG

FSC® www.fsc.org MIX Paper | Supporting responsible forestry FSC® C167328
