1. Overview

1 Hose
2 Crevice/brush nozzle
3 Upholstery nozzle
4 Dust bag indicator
5 Handle
6 Release buttons (on both sides of the hose)
7 Lid
8 Connection opening (for the hose)

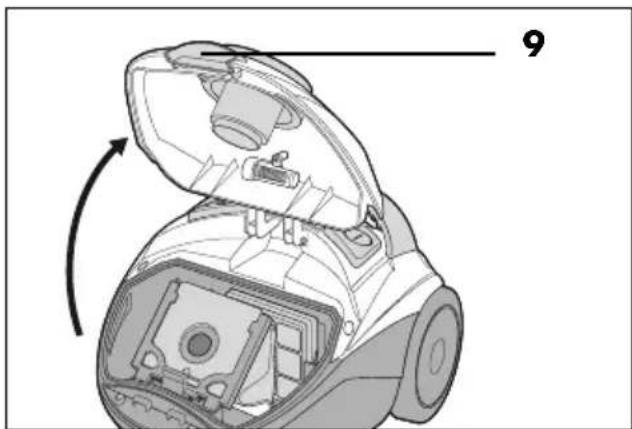

9 Release button (for the lid)
10 Holder for the floorhead (on the underside of the floor vacuum cleaner)
11 Foot button (on the floorhead - for extending / retracting the brush)
12 Floorhead
13 Slider (for unlocking the telescopic tube)
14 Telescopic tube
15 Auxiliary air valve
16 Handle (on the hose)

Figure A: control elements

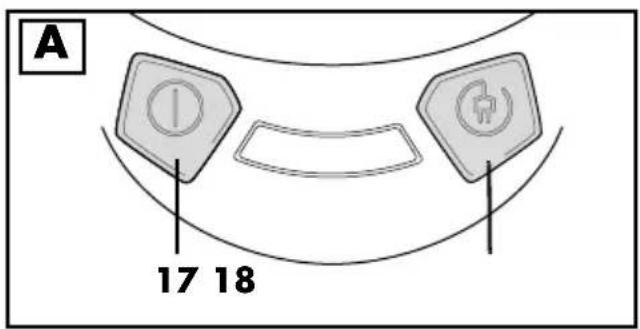

17 On/off switch

18 Button for rolling up the power cable

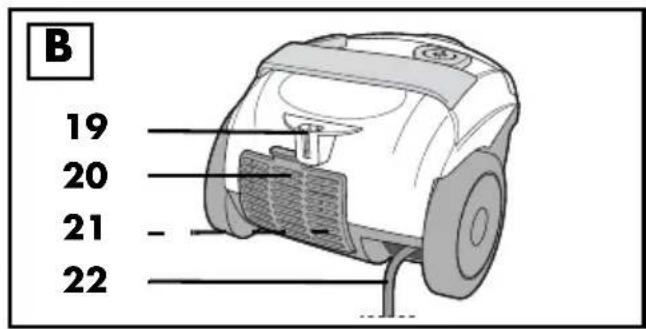

Figure B: rear side

19 Holder (for the floorhead)

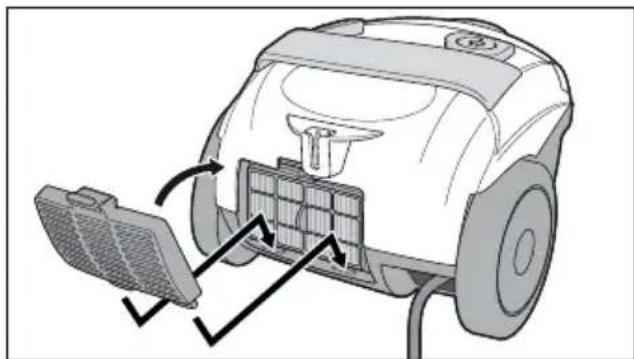

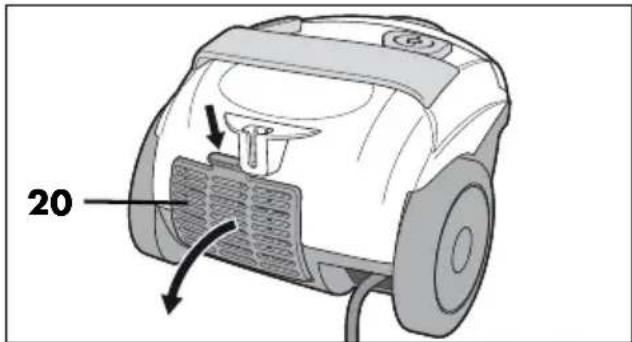

20 Cover over the exhaust air filter

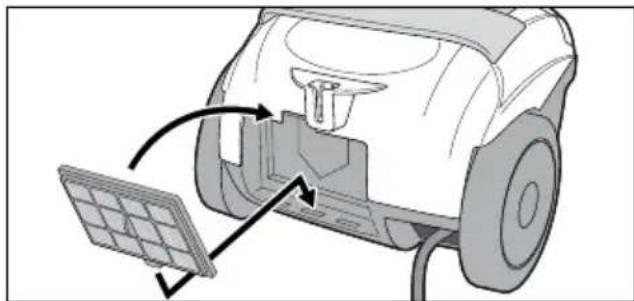

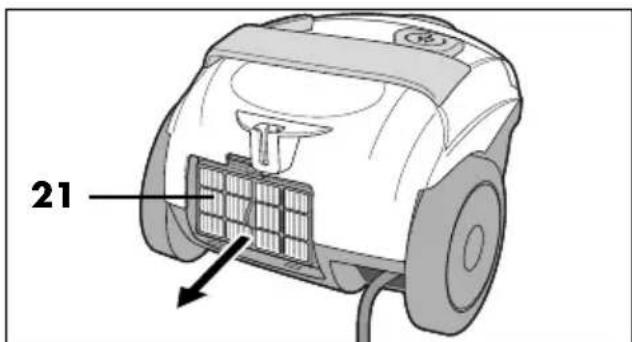

21 Exhaust air filter / EPA filter

22 Power cable with mains plug

Thank you for your trust!

Congratulations on your new floor vacuum cleaner.

For safe handling of the product and in order to get to know the entire range of features:

• Read these user instructions thoroughly prior to initial use.
• Above all, observe the safety information!
• The device should only be used as described in this copy of the user instructions.
• Keep this copy of the user instructions for reference.
• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product.

We hope you enjoy your new floor vacuum cleaner!

2. Intended purpose

The floor vacuum cleaner is suitable for vacuuming normal, dry house dust and slightly coarse dirt.

The device is designed for private home use and must not be used for commercial purposes.

The device must only be used indoors.

Foreseeable misuse

VARIOUS DANGERS!

• The following materials must not be sucked in:
• Liquids and moist dirt
• Explosive or flammable materials such as flour or coal dust
• Harmful substances such as asbestos dust
• Ember, burning matches or other hot materials
• particularly fine dusts such as toner for copying machines. The filter inside the device is not suited for such materials.
• Children should not sit on the device or use it as a toy.

Notes on trademarks

Swirl ^® , Y 298 ^® and Y 98 ^® are registered trademarks of a Melitta Group company and are not associated with LIDL.

3. Safety information

Warnings

If necessary, the following warnings are used in this copy of the user instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

- This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting dangers. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.

- Switch the device off and pull out the mains plug, ... ... before you assemble or disassemble the device, ... before you change filters or dust bags, ... before you eliminate blockages and ... before you clean the device.

- If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist in order to avoid any hazards.

- Misuse may result in injuries.

DANGER for children!

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.

DANGER to and from pets and livestock!

Electrical devices can represent a danger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.
- Never vacuum animals.

DANGER! Risk of electric shock due to moisture!

• Protect the device from moisture, water drops and water splashes.
• The device, the cable and the mains plug must not be immersed in water or any other liquids.
• If liquid gets into the device, disconnect the mains plug immediately. Have the device checked before reusing.
• Allow the reusable dust bag to dry completely before reinserting it.
• Never touch the device with wet hands.

DANGER! Risk of electric shock!

• Lay the power cable such that no one can step on it, get caught on it, or trip over it.
• Only connect the device to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after connection.
• Ensure that the power cable cannot be damaged by sharp edges or hot spots.
• Ensure that the power cable cannot be trapped or crushed.
• To pull the mains plug out of the wall socket, always pull on the mains plug, and never on the power cable.
• Disconnect the mains plug from the wall socket ...
  ... before you clean the device, ... if there is a fault and ... during thunderstorms.

DANGER! Risk of injury!

• Never vacuum your skin, hair or clothing.
• Hold the power cable tight when you press the button to wind up the power cable. Otherwise, the mains plug may strike you on the legs, for example, when winding up quickly.

WARNING! Risk of material damage!

• Use the vacuum cleaner only if a dust bag and all of the filters are installed. Vacuuming without a dust bag or without a filter destroys the motor.
• Use only the original accessories and the dust bags specified in these user instructions.
• Do not clean using sharp objects or abrasive cleaning agents.

4. Items supplied

1 Vacuum cleaner (base unit) with inserted filters and inserted dust bag
1 Hose 1
1 Telescopic tube 14
1 Floorhead 12
1 Crevice/brush nozzle 2
1 Upholstery nozzle 3
1 Complete copy of the user instructions (on the Internet)
1 Copy of the short manual (enclosed with the device)

5. Before using for the first time

• Unpack the device and all accessories.
• Check, if all parts are available and undamaged.

NOTES:

• All filters and a dust bag are already inserted upon delivery.
• Please note that there may be an odour development when first used. This is harmless and disappears after a short time. Please ensure that the room is well ventilated.

Remove transport protection

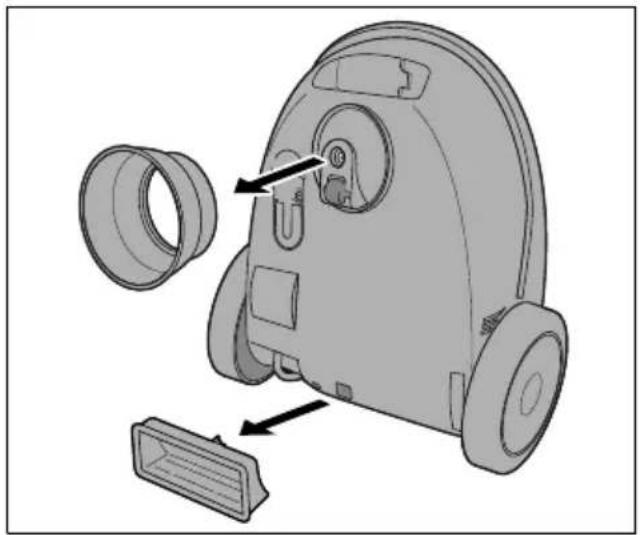

The device is delivered with two transport protection elements located on the underside.

- Remove these transport protection elements by pulling them off the underside.

Diagram of a mechanical device with labeled parts, showing internal components and assembly (no text or symbols)

6. Assembly

DANGER! Risk of injury!

- Unplug the mains plug 22 before assembling or disassembling the vacuum cleaner.

Inserting/removing the hose

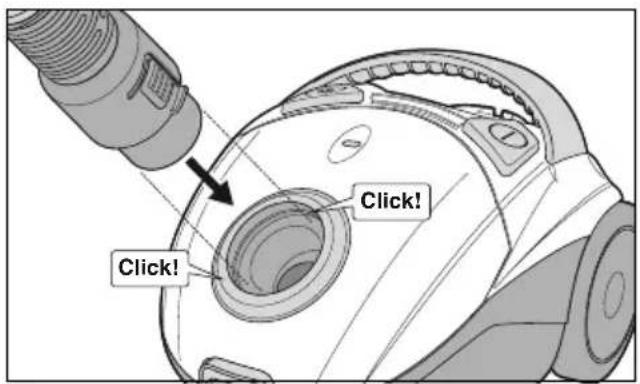

- Insert the hose 1 into the connection opening 8 on the top of the device. The hose must audibly click into place.

Click! Click!

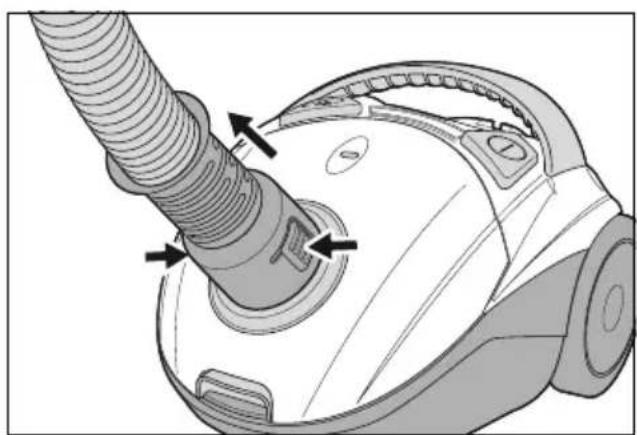

- To remove the hose 1 press the two release buttons 6 and pull out.

Technical illustration of a vacuum cleaner with threaded pipe and valve (no text or symbols)

Attaching the telescopic tube

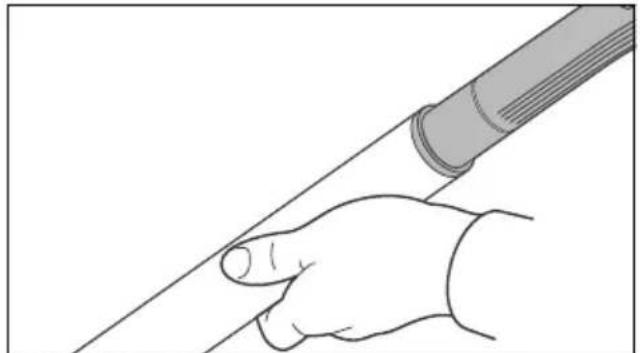

- Insert the hose 1 with the handle 16 into the upper end of the telescopic tube 14. For a better grip, turn the handle slightly back and forth.

Line drawing of a hand holding a tool, no text or symbols present

- It is best to turn the telescopic tube 14 so that the slider 13 points upwards. This will make it easier for you to operate later.

Attaching/removing the nozzle

• All nozzles can be attached directly to the handle 16 of the hose 1 as well as to the lower end of the telescopic tube 14.

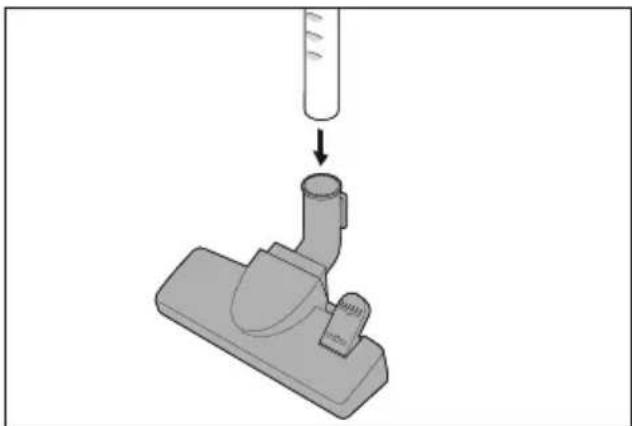

• Plug in the desired nozzle. Turn the nozzle slightly back and forth for a better grip.

3D diagram of a mechanical device with a cylindrical component being inserted into it, showing a downward arrow (no text or symbols)

• To remove, gently turn the nozzle back and forth and pull it.

Adjusting the length of the telescopic tube

1. Push down the slider 13 on the telescopic tube 14 and set the desired length.

13

1. Release the slider 13 and continue to move the telescopic tube 14 until it clicks into place.

7. Using the nozzle

Here, you will find an overview of the cleaning tasks for which the various nozzles are particularly suitable.

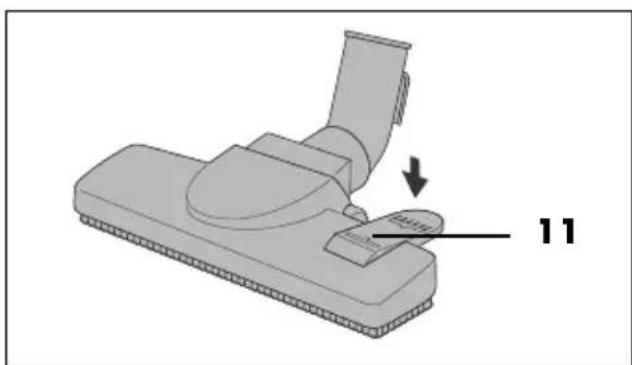

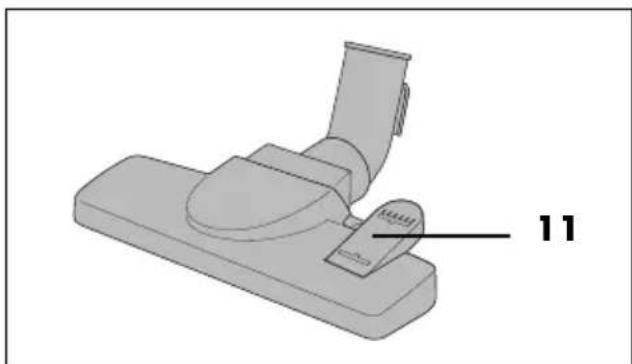

Floorhead 12

Suitable for carpets and smooth floors. Switch between the two functions using the foot button 11.

Pure electrical circuit lines without any symbols

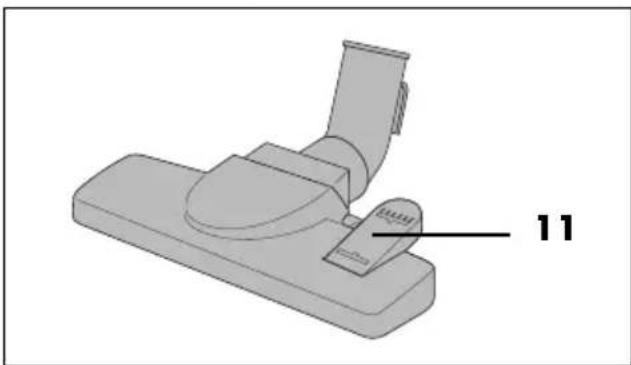

- For smooth floors such as tiles, tilt the foot button 11 to the "brush extended" symbol. The brush on the underside is extended.

3D model of a vacuum cleaner with labeled component 11 (no text or symbols beyond label)

Simple black horizontal line with a small square at the end, on white background (no text or symbols)

- For carpets, tilt the foot button 11 to the "brush retracted" symbol. The brush is retracted.

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Upholstery nozzle 3

3D rendered image of a T-shaped mechanical component (no text or symbols)

The upholstery nozzle 3 is suitable for upholstered furniture, mattresses and car seats, etc.

Crevice/brush nozzle 2

Illustration of a handheld device with f-bruts and a curved handle (no text or symbols)

The crevice nozzle 2 is suitable for skirting boards, corners, columns and upholstery etc.

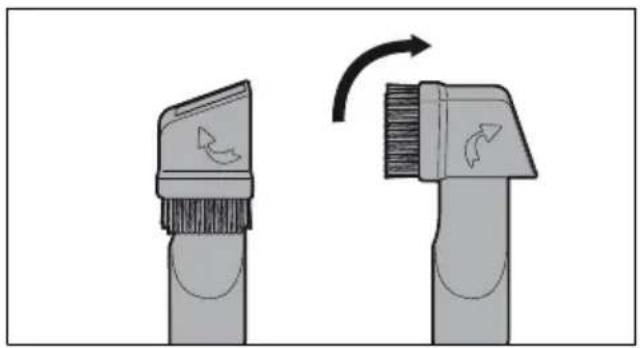

- Fold the brush out in the direction of the arrow to turn the crevice nozzle 2 into a brush nozzle. This is suitable e.g. for uneven objects, lamps, profile strips.

Illustration of two hairbrushes with brush and texture, showing a change in size (no text or symbols)

8. Vacuum cleaning

WARNING! Risk of material damage!

- All of the filters and a dust bag must always be assembled when vacuuming.

Switching the vacuum cleaner on and off

1. Assemble the accessories needed.
2. Pull out the power cable 22 at least to the yellow mark. Stop at the red mark. The power cable must not be pulled out by force until it stops.
3. Plug the mains plug 22 into a suitable wall socket. The wall socket must still be easily accessible after connection.
4. Press the on/off switch ① 17, to switch the device on.

Auxiliary air valve

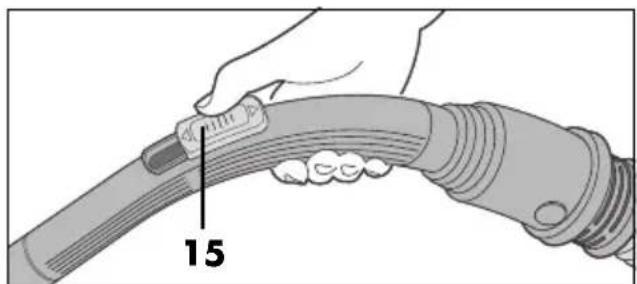

- When vacuuming light, delicate objects (such as curtains) you can regulate the suction power flexibly when necessary. The further the auxiliary air valve 15 is opened, the weaker the suction power becomes.

Illustration of a hand holding a cable with a numbered label '15' pointing to it (no text or symbols on the diagram itself)

• During normal vacuuming, the auxiliary air valve 15 should remain completely closed, so that the suction power is not reduced.
• Fully open the auxiliary air valve 15 to quickly release textiles which have been sucked in.

Stop vacuuming

1. To switch off the device, push the on/off switch ①7.
2. Pull the mains plug 22 out of the wall socket.
3. To roll up the power cable, hold the power cable 22 firmly and press the button Ⓞ18.

NOTE: pull out the power cable 22 slightly if it stops rolling up.

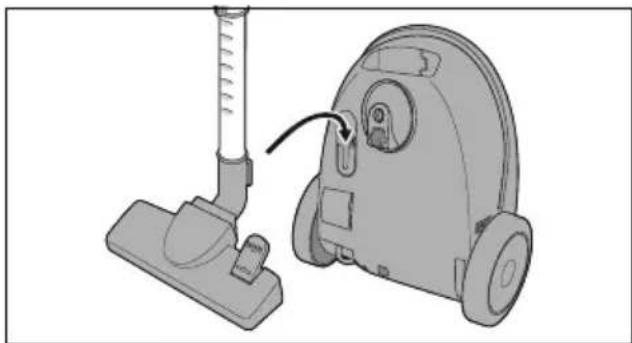

1. Put away the vacuum cleaner.

9. Dust bag and filter

DANGER! Risk of injury!

Turn off the vacuum cleaner and unplug the mains plug 22 before replacing or cleaning dust bags or filters.

WARNING! Risk of material damage!

- When vacuuming, use all of the filters and a dust bag at all times.

9.1 Dust bag

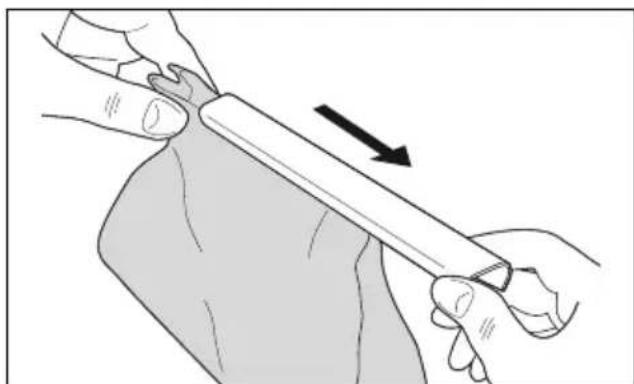

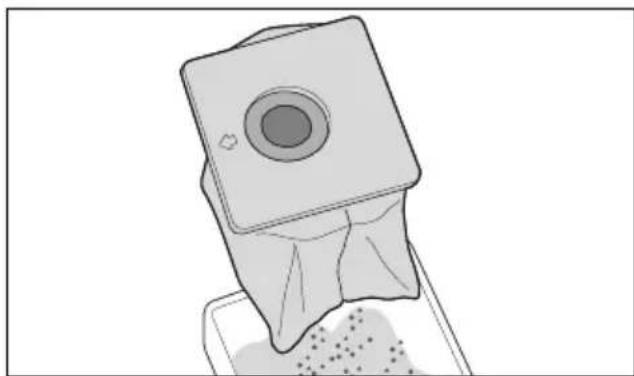

NOTE: the supplied dust bag can be emptied, washed and reused. Bag type: compatible with Swirl® Y 298®/Y 98®,

Handybag Y98, Worwo EMB419.

Dust bag indicator 4

The latest that the dust bag can be emptied or replaced is when the dust bag indicator 4 is completely coloured.

Please note the following:

- The dust bag indicator 4 can be coloured temporarily if the vacuum cleaner gets stuck to textiles while vacuuming.

- If the dust bag indicator 4 is permanently coloured but the dust bag is not full:

- Switch off the vacuum cleaner.

- Pull out the mains plug 22.

- Check whether there is a blockage in the hose 1 or in the nozzle. Remove them if necessary.

- The dust bag indicator 4 is set up for common household dust made up of carpet fluff, hair and sand. Fluff from carpet or wool may cause the dust bag to be full even though the indicator does not show this. Empty or change the dust bag in any case.

Removing the dust bag

1. Pull the release button 9 upwards towards the lid and fold the lid 7 up until it clicks into place.

9

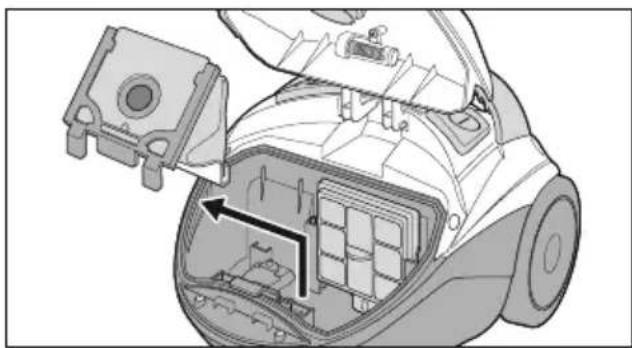

1. Pull the dust bag with the dust bag holder upwards out of the vacuum cleaner.

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and component layout (no text or labels)

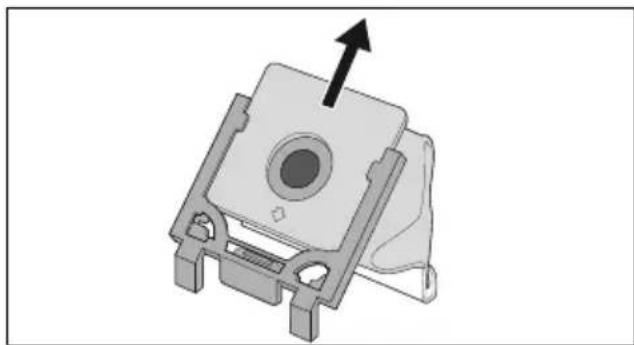

1. Pull the dust bag out of the dust bag holder.

Mechanical component with a square base and mounting bracket, showing a circular hole and an upward arrow (no text or symbols)

Emptying the dust bag

NOTE: to avoid dust from spilling out, you can put the dust bag into an empty bin bag and close it before emptying.

1. Carefully pull off the plastic rail at the bottom of the reusable dust bag.

Illustration of hands holding a tool with an arrow indicating direction (no text or symbols)

1. Empty the contents of the dust bag.

Illustration of a mechanical component with a square base and granular material inside, no text or symbols present.

NOTE: wash the reusable dust bag regularly under running water (see "Wash out the reusable dust bag" on page 32).

1. Fold the bottom end back together so that you can slide the plastic rail on.
2. Slide the plastic rail on so that the lower end of the dust bag is completely enclosed by the plastic rail.

Inserting the dust bag

DANGER! Risk of electric shock due to moisture!

- Allow the reusable dust bag to dry completely before reinserting it.

1. Push the emptied reusable dust bag or a new dust bag all the way into the dust bag holder. Note the small arrow on the dust bag's plate.

Technical line drawing of a mechanical component with mounting brackets and a central circular feature (no text or symbols)

1. Slide the dust bag holder with the dust bag from above into the two rails in the vacuum cleaner. Make sure that the dust bag is not caught anywhere.
2. Close the lid 7, until it clicks into place.

9.2 Motor protection filter

The motor protection filter is a hygiene filter. It is located on the back wall of the dust bag compartment and cleans the air before entering the motor. Change it when necessary (for example, when the suction power is reduced) or after 5 dust bags have been used.

NOTE: to replace the motor protection filter, use commercially available universal motor filters that are cut to the appropriate size.

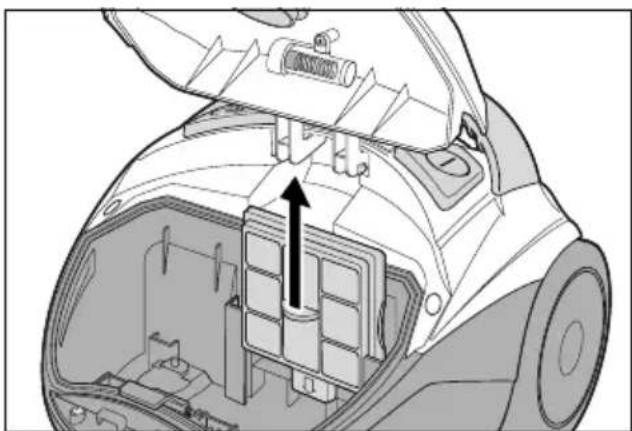

1. Open the lid 7 and remove the dust bag holder along with the dust bag (see "Removing the dust bag" on page 28). The motor protection filter is behind the grid on the rear wall of the dust bag compartment.
2. Pull out the grid with the motor protection filter upwards.

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

1. Remove the used motor protection filter.
2. Cut the new motor protection filter to the dimensions of the used motor protection filter.
3. Place the new motor protection filter in the grid.
4. Put the grill back into the rails on the back panel and push it down as far as it will go.
5. Reinsert the dust bag holder with the dust bag. Make sure that the dust bag is not caught anywhere.
6. Close the lid 7, until it clicks into place.

9.3 Exhaust air filter / Paper filter (EPA)

The exhaust air filter is a micro hygiene filter. It is located at the back of the suction device. It removes the smallest particles which remain in the air being blown out.

Check it regularly for dirt and damage.

1. Press the release button down and remove the cover 20 over the exhaust air filter 21.

20

1. Pull out the EPA filter 21.

21

1. Check the EPA filter for damage. If damaged, replace the EPA filter.
2. Put the EPA filter 21 in a plastic bag and tap it. Wait for the small particles to settle before removing the EPA filter from the plastic bag.

NOTE: Use a EPA 12 EPA filter for this device.

1. Place the EPA filter 21 at a slight angle at the bottom of the holder and then press the upper part against the device. It must be firmly seated.

Diagram of a car interior showing a mounted device with arrows indicating assembly or component (no text or symbols present)

1. Insert the cover 20 over the exhaust air filter 21 at the bottom and close it. Press the release button down slightly and make sure that the cover clicks into place firmly.

Diagram of a robotic vacuum cleaner with airflow path and component layout (no text or symbols)

10. Cleaning and care

DANGER! Risk of injury!

Turn off the vacuum cleaner and unplug the mains plug 22 before cleaning the device.

WARNING! Risk of material damage!

- Do not clean using sharp objects or abrasive cleaning agents.

Checking regularly

To maintain the full performance of your vacuum cleaner and to prevent damage to the device:

• Check the dust bag indicator 4 regularly. Empty/change the dust bag or eliminate blockages if necessary.
• Check the nozzles for dirt such as lint or hair regularly.
• Check all filters regularly for damage or deformations. Damaged or deformed filters that can no longer be cleaned must be replaced.
• Regularly check the reusable dust bag for damage. A damaged dust bag may no longer be used.
• Check the cable and the device for damage regularly.

Wiping down with a damp cloth

• Using a slightly damp cloth, wipe the following parts:

• the device
• the hose 1
• the telescopic tube 14
• the plastic surfaces of the nozzles

- Let all parts dry completely before you put them away or use the device again.

Brush cleaning

• Tap the brushes on the brush nozzle 2 and the floorhead 12. If e.g. hair has become tangled, pull it off with your fingers.
• You can also vacuum the brushes using the handle 16 on the hose 1.

Wash out the reusable dust bag

DANGER! Risk of electric shock due to moisture!

- Allow the reusable dust bag to dry completely before reinserting it.

Wash out the reusable dust bag regularly (depending on how dirty it is) under running water.

1. Empty the dust bag (see "Emptying the dust bag" on page 29).
2. Rinse the dust bag under cold running water.
3. Allow the dust bag to dry completely before closing it with the plastic rail and reinserting it back into the vacuum cleaner.

11. Storage

Parking the vacuum cleaner

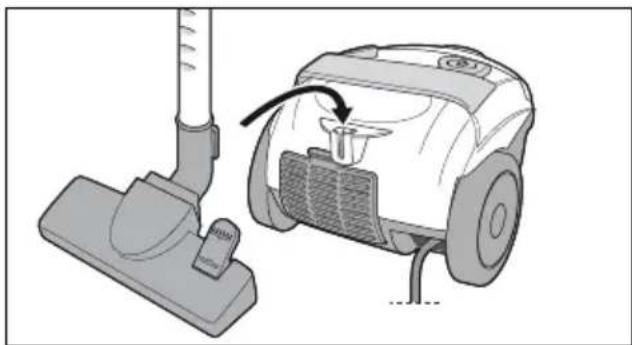

The device is equipped with a double parking system. The floorhead 12 must be in place for this function.

- When the vacuum cleaner is in the normal suction position, hook the floorhead 12 into the holder 19 on the back.

Illustration of a vacuum cleaner next to a mounted vacuum cleaner (no text or symbols visible)

- Or you can place the vacuum cleaner upright and hook the floorhead 12 into the holder 10 on the underside.

Illustration of a vacuum cleaner with attached device and cable (no text or symbols)

- For space-saving storage and to ensure the vacuum is standing in a stable position, push the telescopic tube 14 together as far as possible.

12. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances.

This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

13. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes /Actions
No function	Check the power supply.
Suction power insufficient	Have all parts been properly connected?Is the dust bag indicator 4 filled?- Is one of the nozzles 2/3/12, the hose 1 or the telescopic tube 14 clogged?- Is the dust bag full?- Is one or several filters heavily contaminated?Is the auxiliary air valve 15 open?
Odour development	It is normal for new devices to have some odour development, this is not harmful to health.If a musty smell occurs later, check the dust bag and filters. Change them if necessary.
Lid cannot be closed	Is the dust bag correctly inserted?

14. Technical specifications

Model: SBBK 700 A2
Mains voltage: 22	0 - 240 V ~50 - 60 Hz
Protection class: II	[7CDS]
Power rating: 700 W
Ambient conditions:	Use up to a height of4,000 m above sea level

Symbols used

	Double insulation
	Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produkt-sicherheitsgesetz - ProdSG). (Not for UK)
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
	Recyclable materials are marked with the recycling symbol (3 arrows). The material can be specified by the recycling number in the centre (here: 21) and/or an abbreviation (here: PAP).
~	AC voltage
	It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply.
	With the UKCA marking, HOYER Handel GmbH declares that the product is in conformity with the UKCA requirements.
	The symbol identifies the product manufacturer.

Subject to technical modifications.

15. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

- Please keep the article number IAN: 467414_2404 and the purchase receipt as a purchase verification for all inquiries.

- The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.

- If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

At www.lidl-service.com you can download this and many other manuals, product videos and installation software.

PDF ONLINE www.lidl-service.com

This QR code takes you directly to the Lidl Service website (www.lidl-service.com), where you can enter the article number (IAN)

467414_2404 to open your user instructions.

Service Centre

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 467414_2404

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnehöfe 12

22761 Hamburg

GERMANY

Sommaire

Diagram of a mechanical device with labeled parts, showing internal components and part outline (no text or symbols)

6. Montage

DANGER ! Risque de blessures !

Click! Click!

Technical illustration of a vacuum cleaner with threaded tube and handle (no text or symbols)

Illustration of a hand holding a tool with a cylindrical object inserted (no text or symbols)

Mechanical assembly diagram showing a test tube being inserted into a base component (no text or symbols)

Pure electrical circuit lines without any symbols

3D mechanical component diagram showing a base with a handle and a labeled part '11' (no text or symbols beyond label)

Simple black horizontal line with a small square at the bottom (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Suceur à coussins 3

Simple 3D illustration of a gray, rounded object resembling a boot or handle (no text or symbols)

Illustration of a handheld device with f-bruts and a curved handle (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being rotated by a curved arrow (no text or symbols)

8. Aspiration

Illustration of a hand holding a flexible hose with a labeled component '15' (no text or symbols on the diagram itself)

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and component layout (no text or labels)

3D mechanical component diagram showing a square housing with a central hole and mounting brackets, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a square component and granular material inside (no text or symbols)

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic car with a grid-patterned panel inserted into the engine compartment (no text or symbols)

Diagram of a robotic vacuum cleaner with airflow path and component layout (no text or symbols)

Illustration of a vacuum cleaner next to a mounted device with a handle and control panel (no text or symbols)

Illustration of a vacuum cleaner with attached device and cable (no text or symbols)

Diagram of a mechanical device showing internal components and part assembly (no text or labels)

6. Montage

Click! Click!

Technical illustration of a vacuum cleaner with threaded tube and valve (no text or symbols)

Telescopische buis opsteken

Line drawing of a hand holding a tool, no text or symbols present

Mechanical assembly diagram showing a test tube being inserted into a component (no text or symbols present)

Simple black-and-white diagram of a symmetrical abstract shape resembling a stylized letter or symbol (no text or labels)

3D mechanical component diagram showing a base with a handle and a labeled part '11' (no text or symbols beyond label)

Simple black horizontal line with a small square at the bottom (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Bekledingmondstuk 3

Simple 3D illustration of a T-shaped object with rounded ends and a narrow neck (no text or symbols)

Illustration of a hairbrush with bristles and a curved handle (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one with a curved arrow indicating rotation (no text or symbols)

8. Stofzuigen

Technical diagram of a vacuum cleaner with internal components and directional arrow (no text or symbols)

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and air vent (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets (no text or symbols)

Stofzak legen

Illustration of two hands holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and circular top, partially covered by a tray with granular material (no text or symbols)

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic vacuum cleaner with airflow arrows indicating internal components (no text or symbols)

Diagram of a robotic vacuum cleaner with internal components and airflow arrows (no text or symbols)

Diagram of a vacuum cleaner next to a mounted device, showing the brush and handle mechanism (no text or symbols present)

Illustration of a vacuum cleaner with attached device and cable (no text or symbols)

Diagram of a mechanical device with labeled parts, showing internal components and assembly (no text or symbols)

6. Montaz

Click! Click!

Diagram of a vacuum cleaner with attached pipe and valve (no text or labels)

Illustration of a hand holding a tool, no text or symbols present

Diagram showing a test tube being inserted into a mechanical component (no text or symbols present)

Simple black line drawing of a symmetrical abstract shape on white background (no text or symbols)

3D mechanical component diagram showing a base with a handle and a labeled part '11' (no text or symbols beyond label)

Simple black horizontal line with a small square at the end, on white background (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Dysza do tapicerki 3

3D rendered image of a T-shaped mechanical component (no text or symbols)

Illustration of a handheld device with a rectangular body and fletching base (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one with a curved arrow indicating rotation (no text or symbols)

8. Odkurzanie

Technical diagram of a mechanical device showing internal components and a housing (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets (no text or symbols)

Illustration of a hand holding a knife with an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a square component and granular material inside (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and a central circular feature (no text or symbols)

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic device with a grid panel and directional arrows indicating assembly or operation (no text or symbols present)

Diagram of a robotic vacuum cleaner with internal air filter array and component disassembly (no text or symbols)

Illustration of a vacuum cleaner next to a mounted device, showing airflow direction (no text or symbols)

Illustration of a vacuum cleaner with attached device and cable, no text or symbols present

3D diagram of a mechanical device with labeled parts, showing internal components and assembly (no text or symbols)

6. Montáž

NEBEZPEČÍ zranění!

Click! Click!

Technical illustration of a vacuum cleaner with threaded pipe and valve (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Mechanical assembly diagram showing a test tube being inserted into a component (no text or symbols present)

Simple black-and-white diagram of a symmetrical abstract shape resembling a stylized letter or symbol (no text or labels)

3D diagram of a vacuum cleaner blade assembly with labeled component '11' and directional arrow (no text or symbols beyond labels)

Simple black horizontal line with a small square at the end, on white background (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Simple 3D illustration of a T-shaped object with rounded ends (no text or symbols)

Illustration of a handheld device with f-bruts and a rectangular top (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being cut with rotation arrow (no text or symbols)

8. Vysávání

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and component layout (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets (no text or symbols)

Illustration of hands holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and granular material inside, no text or symbols present.

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic vacuum cleaner with a panel array and control panel, showing internal components and wiring (no text or symbols)

Diagram of a robotic vacuum cleaner with internal components and airflow arrows (no text or symbols)

Illustration of a vacuum cleaner next to a mounted device with a handle and control panel (no text or symbols)

Illustration of a vacuum cleaner with attached device and cable (no text or symbols)

3D diagram of a mechanical device with labeled parts, showing internal components and part outline (no text or symbols)

Click! Click!

- Na vybratie sacej hadice 1 stlačte obidve odblokovacie tlačidlá 6 a vytiahnite ich.

Technical illustration of a vacuum cleaner with threaded pipe and valve (no text or symbols)

Nasunutie teleskopickej trubice

Line drawing of a hand holding a tool, no text or symbols present

Diagram showing a test tube being inserted into a mechanical component (no text or symbols present)

- Na vybratie hubicou zláhka otáčajte sem a tam a stiahnite ju.

7. Používanie hubíc

Pure electrical circuit lines without any symbols

3D diagram of a vacuum cleaner with labeled component '11' and directional arrow (no text or symbols beyond labels)

Simple black horizontal line with a small square at the bottom (no text or symbols)

- Pre koberce sklopte nožné tlačidlo 11 na symbol „kefa zasunutá“. Kefa sa zasunie.

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Simple 3D illustration of a T-shaped object with rounded ends and a flat top (no text or symbols)

Illustration of a handheld device with f-bruts and a scroll wheel (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being cut with rotation arrow (no text or symbols)

8. Vysávanie

Illustration of a hand holding a flexible hose with a labeled component '15' (no text or symbols on the diagram itself)

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and internal components (no text or labels)

1. Vytiahnite vrecko na prach z držiaka vrecka na prach.

3D mechanical component diagram showing a mounting bracket with a circular hole and an upward arrow indicator (no text or symbols)

Illustration of hands holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and circular top, partially filled with granular material (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Technical diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic vacuum cleaner with attached solar panel and control panel (no text or symbols)

Diagram of a vacuum cleaner with airflow path and component layout (no text or symbols)

10. Čistenie a ošetrovanie

Illustration of a vacuum cleaner next to a mounted device with a handle and control panel (no text or symbols)

Illustration of a vacuum cleaner with attached device and cable, no text or symbols present

Diagram of a mechanical device with labeled parts, showing internal components and part outline (no text or symbols)

6. Montaje

Click! Click!

Technical illustration of a vacuum cleaner with threaded pipe and valve (no text or symbols)

Illustration of a hand holding a tool with a cylindrical object attached (no text or symbols)

3D diagram of a mechanical component with a pipe and base, showing a step-down assembly (no text or symbols)

Pure electrical circuit lines without any symbols

3D model of a vacuum cleaner with labeled component 11 (no text or symbols beyond label)

Simple black horizontal line with a small square at the end, on white background (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Boquilla para tapizados 3

Simple 3D illustration of a T-shaped object with rounded ends (no text or symbols)

Illustration of a handheld device with fletching and adjustment knob (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one emitting a curved arrow (no text or symbols)

8. Aspirar

Technical diagram of a vacuum cleaner with internal components and directional arrow (no text or symbols)

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and air vent (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and circular top, partially filled with granular material (no text or symbols)

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Cross-sectional diagram of a car interior showing internal compartments and structural elements (no text or labels)

Diagram of a robotic vacuum cleaner with attached sensor array and control panel (no text or symbols)

Diagram of a car interior showing airflow or ventilation system with no visible text or symbols

Illustration of a vacuum cleaner next to a mounted vacuum cleaner (no text or symbols visible)

Illustration of a vacuum cleaner with attached device and cable, no text or symbols present

Diagram of a mechanical device with labeled parts, showing internal components and directional arrows (no text or symbols)

6. Montering

Click! Click!

Technical illustration of a vacuum cleaner with threaded pipe and valve (no text or symbols)

Illustration of a hand holding a tool with a cylindrical object inserted (no text or symbols)

- Teleskoprøret 14 drejes helst således, at skyderen 13 vender opad. Det letter betjeningen senere.

Mechanical assembly diagram showing a test tube being inserted into a component (no text or symbols present)

Simple black-and-white diagram of a symmetrical abstract shape resembling a stylized letter or symbol (no text or labels)

3D diagram of a vacuum cleaner with labeled component '11' and directional arrow (no text or symbols beyond labels)

Simple black horizontal line with a small square at the end, on white background (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Møbelmundstykke 3

3D rendered image of a T-shaped mechanical component (no text or symbols)

Illustration of a handheld hairbrush with serrated bristles (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being cut with a curved arrow indicating rotation (no text or symbols)

8. Støvsugning

ADVARSEL mod materielle skader!

Technical illustration of a vacuum cleaner internal structure with no visible text or symbols

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and granular material inside, no text or symbols present.

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Interior view of a vehicle's dashboard and air vent system, showing structural components and airflow direction (no text or labels)

Diagram of a robotic device with a grid-patterned panel inserted into the base, showing internal components and airflow direction (no text or symbols)

Diagram of a car interior showing airflow or ventilation system with no visible text or symbols

Illustration of a vacuum cleaner next to a mounted device, showing airflow direction (no text or symbols)

Illustration of a vacuum cleaner with attached device and cable (no text or symbols)

Diagram of a mechanical device showing internal components and part alignment (no text or symbols)

6. Montaggio

Click! Click!

Diagram of a vacuum cleaner with threaded tube and handle, showing mechanical components (no text or labels)

Line drawing of a hand holding a tool, no text or symbols present

3D diagram of a mechanical device with a cylindrical component being inserted into it, showing a downward arrow (no text or symbols present)

Pure electrical circuit lines without any symbols

3D diagram of a mechanical device with a labeled component '11' and an arrow indicating direction (no text or symbols beyond the label)

Simple black horizontal line with a small square at the bottom (no text or symbols)

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

3D rendered image of a gray, segmented object resembling a T-shaped tool or mechanical part (no text or symbols)

Illustration of a cylindrical device with f-bruts and a curved arrow indicating rotation (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being rotated by a curved arrow (no text or symbols)

8. Aspirazione

Illustration of a hand holding a flexible cable with a numbered label '15' pointing to the cable (no text or symbols on the cable itself)

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and component layout (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and circular top, partially filled with granular material (no text or symbols)

Technical illustration of a mechanical component with mounting brackets and a central circular feature (no text or symbols)

Technical diagram of a vehicle interior showing internal components and a directional arrow (no text or symbols)

Diagram of a robotic car with a panel inserted into the engine compartment, showing internal components and airflow direction (no text or symbols)

Diagram of a car interior showing airflow or ventilation system with no visible text or symbols

Illustration of a vacuum cleaner next to a mounted vacuum cleaner (no text or symbols visible)

Illustration of a vacuum cleaner next to a mounted device (no text or symbols visible)

Mechanical component diagram showing a disassembled device with labeled parts (no text or symbols present)

6. Összeszerelés

SÉRÜLÉSVESZÉLY!

Click! Click!

Diagram of a vacuum cleaner with threaded tube and valve, showing mechanical components without any text or symbols

Line drawing of a hand holding a tool, no text or symbols present

Mechanical assembly diagram showing a test tube being inserted into a component (no text or symbols)

Simple black-and-white diagram of a symmetrical abstract shape resembling a stylized letter or symbol (no text or labels)

3D diagram of a vacuum cleaner with labeled component '11' and directional arrow (no text or symbols beyond labels)

Simple black horizontal bar with a small square at the center, no text or symbols present.

3D mechanical component diagram with labeled part '11' (no text or symbols on the object itself)

Kárpit szívófej 3

3D rendered image of a T-shaped object with rounded ends, resembling a mechanical or electronic component (no text or symbols)

Illustration of a hairbrush with bristles and a curved handle (no text or symbols)

Diagram showing two hairbrushes with brush and texture, one being rotated by a curved arrow (no text or symbols)

8. Szívás

FIGYELMEZTETÉS anyagi károkra!

Technical diagram of a vacuum cleaner internal structure, showing housing, casing, and component layout (no text or labels)

3D mechanical component diagram showing a square housing with a central circular hole and mounting brackets, with an upward arrow indicating direction (no text or symbols)

Porzsák ürítése

Illustration of a person using a tool to lift a cylindrical object, with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component with a square base and granular material inside, no text or symbols present.

Technical illustration of a mechanical component with mounting brackets and a circular feature (no text or symbols)

Cross-sectional diagram of a vehicle's internal components, showing structural layout and airflow direction (no text or labels)

Diagram of a robotic vacuum cleaner with a panel array and control panel, showing internal components and airflow direction (no text or symbols)

Diagram of a car interior showing airflow or ventilation system with no visible text or symbols

Illustration of a vacuum cleaner next to a handheld device (no text or symbols visible)
