USER MANUAL SouthSpa LH-12 Brondell

left-handed bidet attachment

OWNER'S MANUAL

LH-12 Bidet Attachment

Ambient-Temperature / Dual-Nozzles

White brandelf air drain handle with two circular ports and a rotary dial (no text or symbols visible on the device itself)

Attach Proof of Purchase to This Page

PRODUCT INSTALLATION

Before Installation .... Page 5

Installing the Bidet Attachment ..... Page 6

PRODUCT OPERATION

Using the SouthSpa....Page 9

Nozzle Positioning....Page 9

MAINTENANCE

Cleaning the SouthSpa....Page 10

Short Term Non-Use .... Page 10

WARRANTY Page 11

CONTACT Page 12

SPANISH VERSION Page 13

FRENCH VERSION Page 25

PRODUCT INFORMATION

PRODUCT FEATURES

• High-quality ABS material with full body panel
- Dual hygienic retractable nozzles
• Self-cleaning nozzle feature
- Ambient temperature bidet wash
- Positionable nozzles
- Adjustable water pressure
- Ceramic core internal valve with patented uni-body construction for safety
• High-quality metal 7/8" T-valve
• Durable braided metal cold water hose
• No electricity or batteries required
- Easy installation and adjustable toilet fit
- All accessories included for standard installation
• One-year warranty

PARTS LIST

Technical line drawing of a mechanical tool or bracket with three circular cutouts and a central knob (no text or symbols)

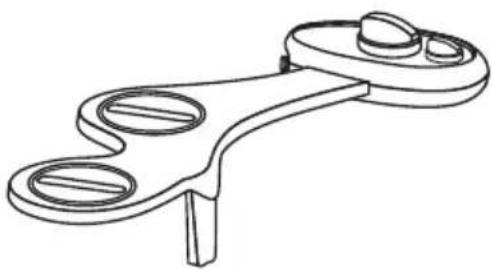

Bidet attachment with turn-dial control and adjustable brackets

Cold water 7/8" T-valve Connector

Pure diagram of an arched pipe or tube with mesh pattern, no text or symbols present

25" braided metal bidet hose

Large rubber washer (2)

PRODUCT INFORMATION (cont.)

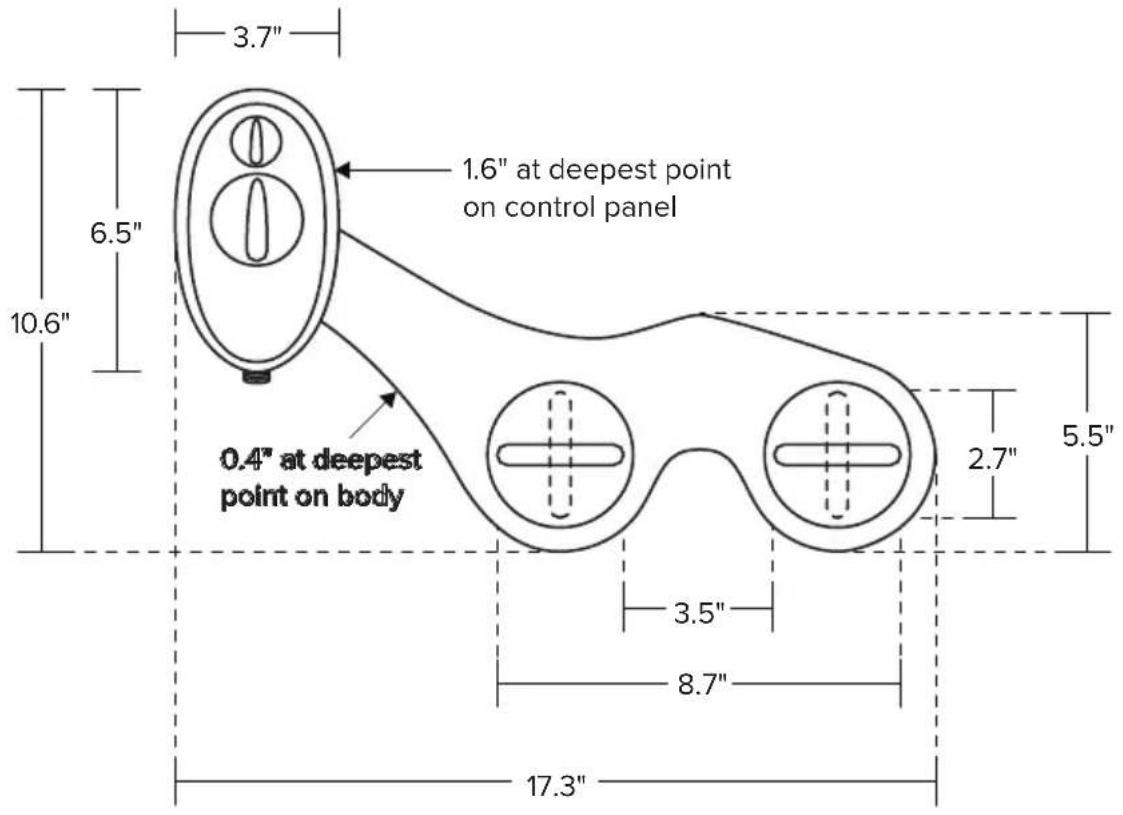

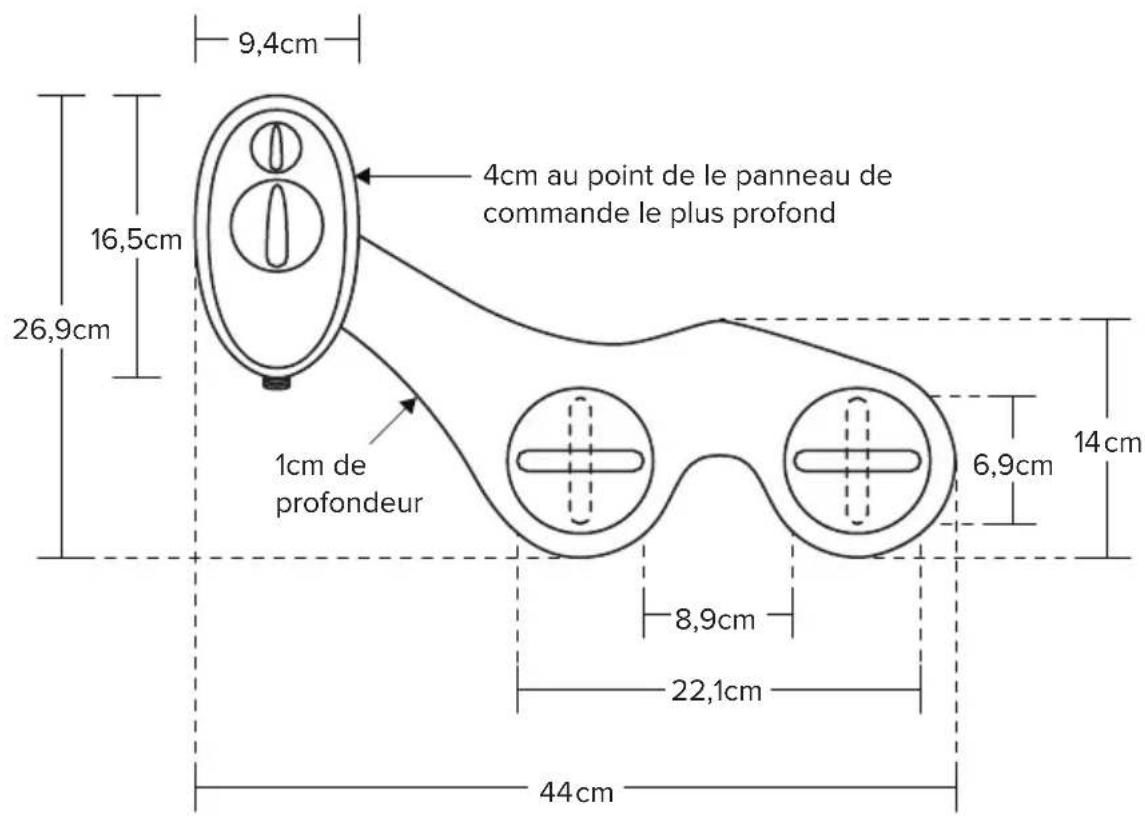

PRODUCT DIMENSIONS

3.7" 6.5" 10.6" 1.6" at deepest point on control panel 0.4" at deepest point on body 2.7" 5.5" 3.5" 8.7" 17.3"

PRODUCT INSTALLATION

BEFORE INSTALLATION

IMPORTANT

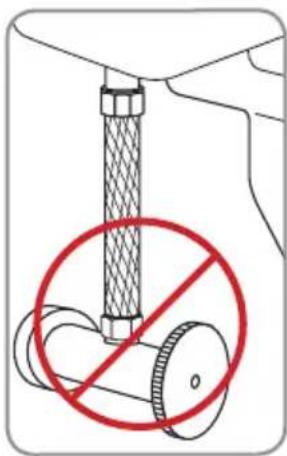

Please be advised that the provided T-Valve should be installed at the Fill Valve under the toilet tank, and NOT at the cold water supply coming from the wall.

If you do not have access to the Fill Valve under the toilet tank, contact Brondell Customer Service at 888.542.3355. We may be able to guide you through the process.

Diagram showing a mechanical assembly with a red prohibition symbol over a gear mechanism, indicating no movement or force.

Diagram of a pipe fitting with a green circular annotation highlighting a section, and a green checkmark indicating action (no text or symbols present)

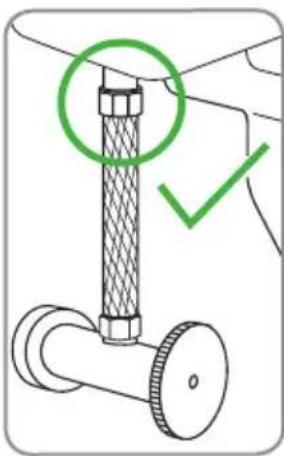

Check Water Supply Line

Check the water supply line that connects the toilet tank fill valve to the water shutoff valve at the wall. If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the SouthSpa. The length of the hose may vary, and the top connection size should be 7/8" Ballcock to connect to the T-valve that you will install under the toilet tank, and the bottom connection will vary (most common are 3/8" and 1/2" female compression).

PRODUCT INSTALLATION (cont.)

INSTALLING THE BIDET ATTACHMENT

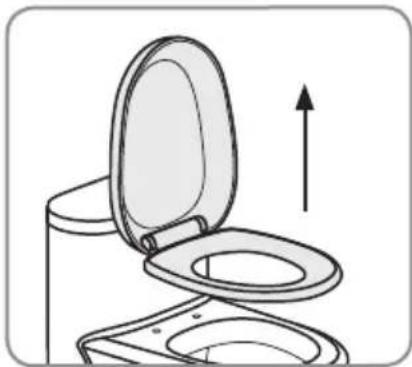

1. Remove existing toilet seat

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts and hardware aside.

1. Turn off water supply valve and flush toilet

a. Turn off water supply at the wall to stop flow of water.
b. Flush toilet and hold down handle to completely empty toilet tank.
c. Disconnect water supply hose from the fill valve under the toilet tank.

1. Connect 7/8" T-Valve to Water Supply Line and Fill Valve Under Toilet Tank.

a. Install the 7/8" T-valve with one or both of the rubber washers to the incoming water connection on the bottom of your toilet tank.

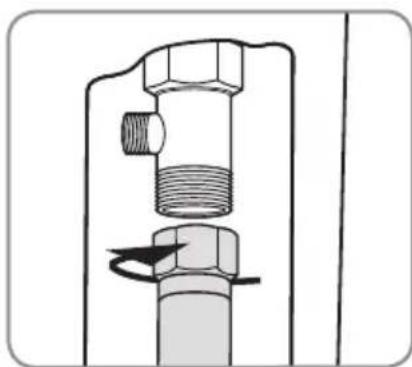

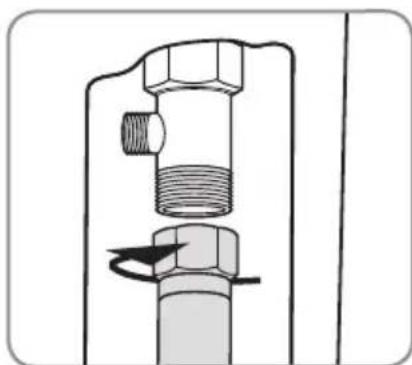

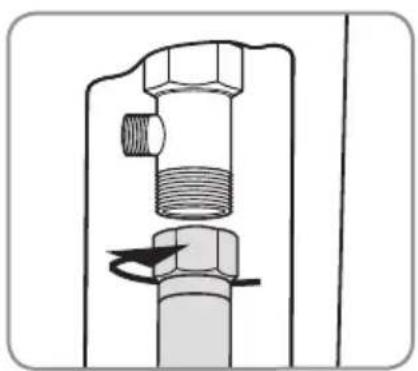

b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

Line drawing of a toilet with an open lid and upward arrow indicating airflow or movement (no text or symbols)

Step 1b

Diagram of a mechanical component with a threaded end and rotating arrow (no text or symbols)

Step 2c

Technical illustration of a mechanical valve assembly (no text or symbols)

Step 3a

Technical diagram of a mechanical valve assembly with threaded shaft and bolt (no text or labels)

Step 3b

INSTALLING THE BIDET ATTACHMENT (CONT.)

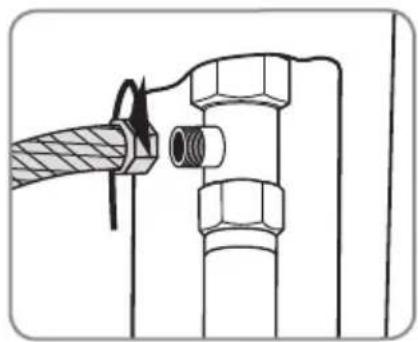

1. Connect Bidet Hose to T-Valve

a. Connect one end of the braided metal bidet hose to the remaining open side of the installed T-valve.

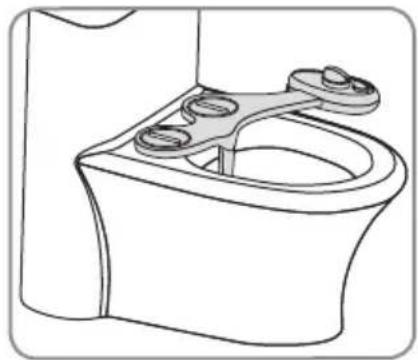

1. Install Bidet Attachment on Toilet

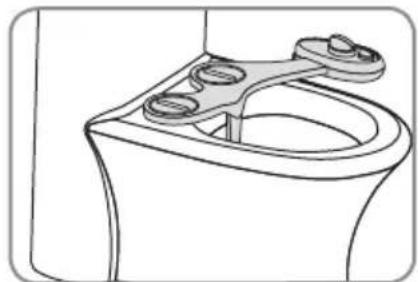

a. Place bidet attachment on the toilet so the nozzles are as close to the back of the toilet bowl as they will go. This will vary by toilet.

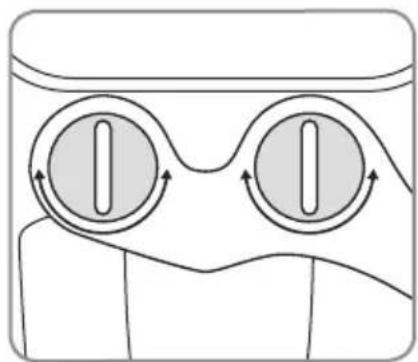

b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets to line up with the bolt holes properly.

Technical line drawing of a pipe fitting with a valve and threaded connector (no text or symbols)

Step 4a

Line drawing of a toilet sink with three circular fixtures (no text or symbols)

Step 5a

Diagram of a device with two circular components and directional arrows indicating flow or movement (no text or symbols)

Step 5b

PRODUCT INSTALLATION (cont.)

INSTALLING THE BIDET ATTACHMENT (CONT.)

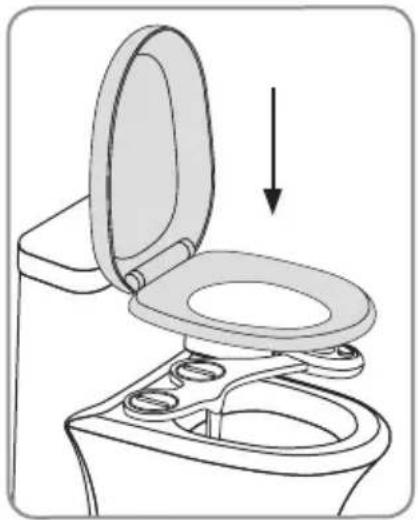

c. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.

1. Connect Bidet Hose to Bidet Attachment

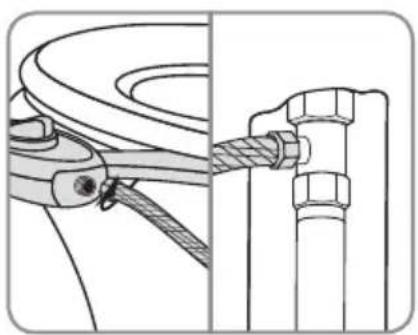

a. Connect open end of bidet hose to the connection on the back side of the bidet attachment.

1. Turn on Water Supply and check for leaks

a. Open the main water supply valve slowly and check for leaks.

b. Wait 5-10 minutes, check again and if there are no leaks, continue.

Note: if there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use plumbers tape for any leaking connections.

Line drawing of a toilet with a lid and seat, showing a downward arrow indicating a drop or direction (no text or symbols present)

Step 5c

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 6a

PRODUCT OPERATION

USING THE SOUTHSPA

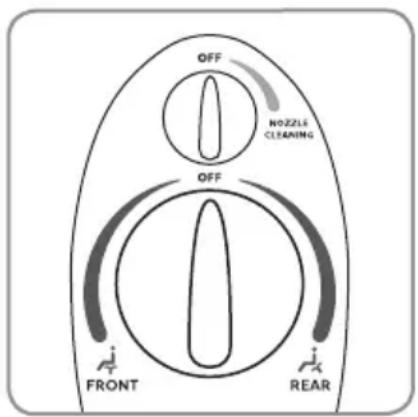

For the general bidet wash function, turn the dial towards either the Front (also known as the Feminine) wash position, or the Rear (also known as the Posterior) wash position.

• The further the dial is turned, the higher the water pressure will be.
• To lower the water pressure, turn the dial back towards the center.

To clean the bidet nozzle, turn the control dial towards the “Nozzle Cleaning” position and water should wash over the nozzle.

OFF NOZZLE CLEANING OFF FRONT REAR

NOZZLE POSITIONING

The nozzles can be easily adjusted by gently pulling the end of the nozzle forward or backwards. Once desired position is set, the nozzle will remain in that position until manually moved.

MAINTENANCE

CLEANING THE SOUTHSPA

To clean the nozzles, gently pull down on each nozzle head, and use a toothbrush or soft cloth and mild detergent (such as dish soap). You may also unscrew the nozzle tip cap for a more thorough cleaning or use a toothpick if any nozzle holes are plugged with hard water buildup. When cleaning, be careful not to drop or flush the nozzle cap.

To clean the bidet, use a mild cleaner such as Simple Green or Windex spray to clean the SouthSpa. Do not scrub or use harsh, abrasive products to clean the SouthSpa, which may scratch the product.

SHORT TERM NON-USE

If the product will not be used for more than a few weeks, you may consider shutting the water supply valves off at the wall for extra precaution.

WARRANTY

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

SouthSpa LH-10, LH-12, LH-20, LH-22 Residential One-Year Limited Warranty

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

SouthSpa LH-10, LH-12, LH-20, LH-22 Commercial Warranty

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first three years from date of purchase on all products except those that may be subject to commercial use limitations.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

• Damage or loss which occurs during shipment.
- Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
- Damage or loss resulting from sediments or foreign matter contained in a water system.
- Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
- Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products
- Damage or loss resulting from electrical surges, electrical outages, lightning strikes, or other acts which are not the fault of Brondell or which the Product is not specified to tolerate.

1. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355.

brondell®

a healthy home experience

CONTACT:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

For questions, contact Brondell Customer Service: 1-888-542-3355

MANUFACTURED BY:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Please retain receipt records for any warranty claims.

ÍNDICE

Line drawing of a mechanical tool or bracket with three circular holes and a central knob (no text or symbols)

Line drawing of an arched pipe or tube with mesh pattern and two connectors at both ends (no text or symbols)

DIMENSIONES DEL PRODUCTO

Diagram showing a mechanical assembly with a red prohibition symbol indicating no movement or force.

Diagram showing a pipe fitting with a green circle highlighting a bolt and a checkmark indicating inspection or validation.

Line drawing of a toilet with an open lid and upward arrow indicating airflow or movement (no text or symbols)

Etapa 1b

Diagram of a mechanical component with a threaded bolt and rotating arrow (no text or symbols)

Etapa 2c

Technical line drawing of a mechanical valve or fitting component (no text or symbols)

Etapa 3a

Mechanical assembly diagram showing a bolt and nut assembly with a rotating arrow (no text or labels)

Etapa 3b

INSTALAR EL ACCESORIO BIDÉ (cont.)

Technical line drawing of a pipe fitting with a valve and threaded connector (no text or symbols)

Etapa 4a

Line drawing of a toilet with two circular components attached (no text or symbols)

Etapa 5a

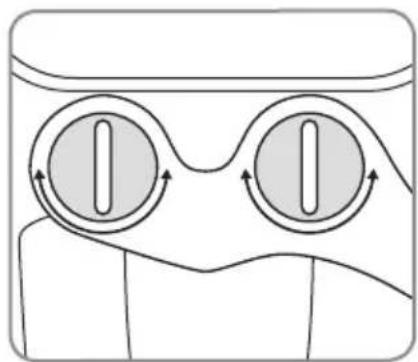

Diagram of a device with two circular components and directional arrows indicating flow or movement (no text or symbols)
