USER MANUAL LIFE P61080 (MD 44080) MEDION

Black portable electronic device with mesh back panel and microphone, no visible text or symbols

Tragbares Bluetooth®-Soundsystem Système audio portable Bluetooth® Draagbaar Bluetooth®-audiosysteem Sistema de sonido Bluetooth® portátil Impianto stereo portatile Bluetooth® Portable Bluetooth® sound system

MEDION® LIFE® P61080 (MD 44080)

Inhaltsverzeichnis

DE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

GERÄT

QR code image containing encoded data, no visible human-readable text

Entrée audio (raccordement Cinch)

30

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

8.4. Luz led festiva

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1. Information about this user manual ....149

1.1. Explanation of symbols ......149

FR

2. Proper use 15

.....15

3. Safety instructions ....NL15

3.1. Installation location....152
3.2. Power supply 153
3.3. Ambient temperature 154
3.4. In the event of faults 154

ES

IT

4. Package contents

EN

5. Device overview ...... 156

5.1. Top....156
5.2. Front....158
5.3. Rear 159
5.4. Microphone....160

6. Getting started 161

6.1. Setting up the device....161
6.2. Mains operation – connecting the mains cable .....161
6.3. Internal rechargeable battery 161
6.4. Switching the device on/off....162

7. Connecting external playback devices....162

7.1. Selecting the playback function.... 162
7.2. Connecting a device via AUX IN 162
7.3. Connecting a device via LINE IN 163
7.4. Inserting USB memory devices.... 163
7.5. Connecting a device via Bluetooth ^® 164

8. Operation 16

8.1. Adjusting the volume.... 165
8.2. Super bass....165
8.3. Equaliser 165
8.4. Party LED light 165
8.5. Start/pause playback....165
8.6. Track selection, fast forward/rewind....166
8.7. Playback options in USB mode .....166
8.8. Repeat function 166
8.9. Random playback....167

9. Connecting a microphone.... 167

9.1. Voice distortion....167

10. Charging an external device via USB 167

11. TWS mode 168

1. Cleaning 168
2. Storing the device when not in use ....168
3. EU Declaration of Conformity ....169

14.1. Trademark information 169

1. Technical specifications ....169
2. Disposal 170
3. Service information ....171
4. Legal Notice 172
5. Privacy statement 172

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this device.

Please read the safety instructions and the user manual carefully before using the device for the first time. Note the warnings on the device and in the user manual.

Always keep the user manual close to hand. If you sell the device or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

CAUTION!

Warning: risk of minor and/or moderate injuries!

NOTICE!

Follow these instructions to prevent damage to the device!

More detailed information about using the device!

Follow the instructions in the user manual!

CE labelling

Products that feature this symbol meet the requirements of the EU directives (see EU declaration of conformity section).

Protection class II

Electrical devices in protection class II are electrical devices that permanently have double and/or reinforced insulation and do not have the option of connecting a protective earth.

Symbol for direct current (DC)

Symbol for alternating current (AC)

Indicates the correct upright position of the transport packaging.

- Bullet point/information on steps during operation

▶ Instruction to be carried out

■ Safety instructions to be observed

2. Proper use

The Bluetooth ^® sound system is used to play audio material which can be played via USB, Bluetooth or AUX IN.

The device can also be used as a karaoke system or announcement amplifier.

Please note that we shall not be liable in cases of improper use: Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. Safety instructions

WARNING!

Risk of injury!

There is a risk of injury to children and persons with limited physical, sensory or mental abilities (for example, partially disabled people or older people with limited physical and mental abilities) or to those without experience and knowledge (such as older children).

- Keep the device and its accessories out of the reach of children.

■ The device can be used by children of 8 years and older, and by people with reduced physical, sensory or mental capacity, or with a lack of experience and/or knowledge, but only with proper supervision, or if they have been told how to use the device safely, and have understood the risks involved if they use it improperly.
■ Children must not be allowed to play with the device.
■ Do not allow children to clean the device or perform maintenance tasks on it unless they are aged 8 years or older and properly supervised.
■ Do not allow children younger than 8 years old near the device and its power cable.
■ Do not modify the device without our consent and do not use any auxiliary equipment that we have not approved or supplied.
■ Only use replacement parts or accessories that we have supplied or approved.

DANGER!

Risk of choking and suffocation!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep the plastic packaging out of the reach of children.
  ■ Do not allow children to play with the packaging material.
  ■ The packaging material is not a toy!

3.1. Installation location

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Do not place containers that are filled with liquid, e.g. vases, on or near the device and its mains cable. Such containers may tip over and the liquid may impair the electrical safety of the device.
■ Protect the device and all other devices connected to it from dampness, water drops or water spray. To prevent malfunctions, keep the device dust-free, away from sources of heat, and out of direct sunlight.
■ Do not place any objects on the cables as they may be damaged.

WARNING!

Risk of fire!

Insufficient air circulation can lead to heat accumulation, resulting in a fire.

■ Ensure that there is adequate ventilation around the device. The back panel must be located at least 5 cm away from walls or other objects and both sides of the device must be at least 1 cm away.
■ Do not cover the device (with newspapers, covers etc.) to prevent overheating.

■ Do not place open flames such as lit candles on or near the device.
■ Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed. This device must also not be used in areas with particle-laden air (for example flour or wood dust).

NOTICE!

Risk of damage!

Damage to the device caused by improper handling.

■ To prevent the device from falling, only install and operate it and its components on a sturdy, level, vibration-free surface. Some aggressive varnishes can corrode the rubber feet on the device. If necessary, place the device on a suitable underlay.

• Keep the device at a distance of at least one metre from sources of high-frequency or magnetic interference (televisions, other loudspeakers, mobile telephones etc.) to avoid malfunctions.
  ■ Do not expose the device to extreme conditions. Avoid:

– high humidity or wet conditions
- extremely high or low temperatures
- direct sunlight
- naked flames.

3.2. Power supply

■ Only connect the device to a properly installed power socket. The mains voltage must match the technical specifications for the device.

■ The socket must be near the device and easily accessible.
■ Position the cables so that no one can tread on them or trip over them.

■ To disconnect the device from the power supply, remove the plug from the mains socket. Always hold the plug firmly when unplugging it. To prevent damage, never pull on the cable.

■ All multimedia devices that are connected to the device must comply with the requirements of the Low Voltage Directive.

■ Disconnect the device from the power supply during thunderstorms or when the product will not be used for a prolonged period.

3.3. Ambient temperature

■ The device can be operated at an ambient temperature of +5°C to +35°C.

■ When switched off, the device can be stored at temperatures of between 0^ C and +40^ C.

■ Never use the device anywhere that is damp or wet.

DANGER!

Risk of electric shock!

Major changes in temperature or fluctuations in humidity can cause moisture to build up within the device due to condensation – this can cause an electrical short circuit.

■ After transporting the device, wait until it has reached ambient temperature before switching it on.

3.4. In the event of faults

- Check the device and its accessories for possible damage before each use.

■ Do not use the sound system or mains cable if they are damaged, generate smoke or emit unusual operating noises. In this case, disconnect the power supply immediately.

■ Never try to open and/or repair a device component yourself. There is a risk of electric shock.

In the event of a fault, contact our Service Centre.

4. Package contents

DANGER!

Risk of choking and suffocation!

There is a risk of choking and suffocation if plastic film or small parts are inhaled or swallowed.

• Keep packaging away from children.
  ■ Do not allow children to play with the packaging material.
  ■ The packaging material is not a toy!

Remove the product from the packaging and remove all packaging materials.

▶ Check your purchase to ensure that all items are included and in perfect condition. If anything is missing or damaged, please contact our customer service team within 14 days of purchase.

Before each use, check the sound system for any damage. Contact our Service Centre if you find damage.

The following items are supplied with your product:

• Bluetooth® sound system
• Mains cable
• Microphone
• User manual

5. Device overview

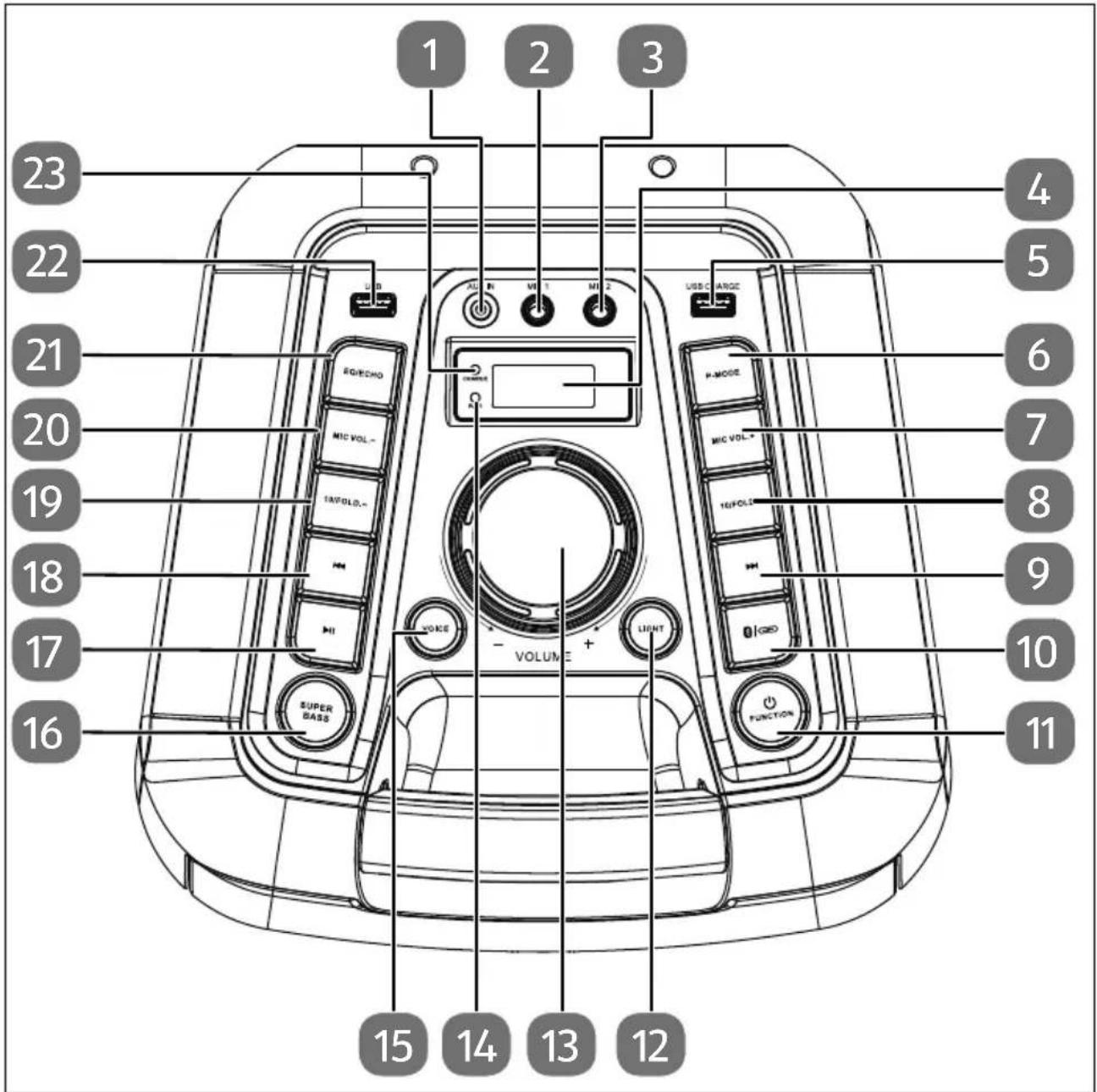

5.1. Top

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 USB XU N VI MI 2 USB CARGE P-MODE MIC VOL+ MIC VOL- TAPOLR- VOLUME+ LIGHT FUNCTION SUPERCASS

1 AUX IN Audio input (3.5 mm jack)

2 MIC 1 Microphone input (6.3 mm jack)

3 MIC 2 Microphone input (6.3 mm jack)

4 LC display

5 USB CHARGE USB port for charging external devices

6	P-MODE	Activate repeat function/random playback
7	MIC VOL. +	Increase microphone volume
8	10/FOLD. +	Select next folder;Track selection in blocks of 10
9	▶▶	Short press: play next track; Press and hold: fast forward
10	&/∞	Disconnect Bluetooth® connectionEstablish TWS connection
11	FUNCTION	Switch the device on/offSelect operating mode
12	LIGHT	Short press: select party LED light effect, switch on/off;Press and hold: switch lighting around the volume controller on/off
13	— VOL.+	volume controller
14	PAIR	Bluetooth LED
15	VOICE	Activate/deactivate voice distortion
16	SUPER BASS	Switch bass amplification on/off
17	▶II	start/pause playback
18	◀◀	Short press: play previous track; Press and hold: rewind
19	10/FOLD. -	Select previous folder;Track selection in blocks of 10
20	MIC VOL. -	Increase microphone volume
21	EQ/ECHO	Select equaliser settingsSwitch microphone echo sound effect on/off
22	USB	USB port for playing audio files from a USB memory device
23	CHARGE	Charging LED

DE

FR

NL

ES

IT

EN

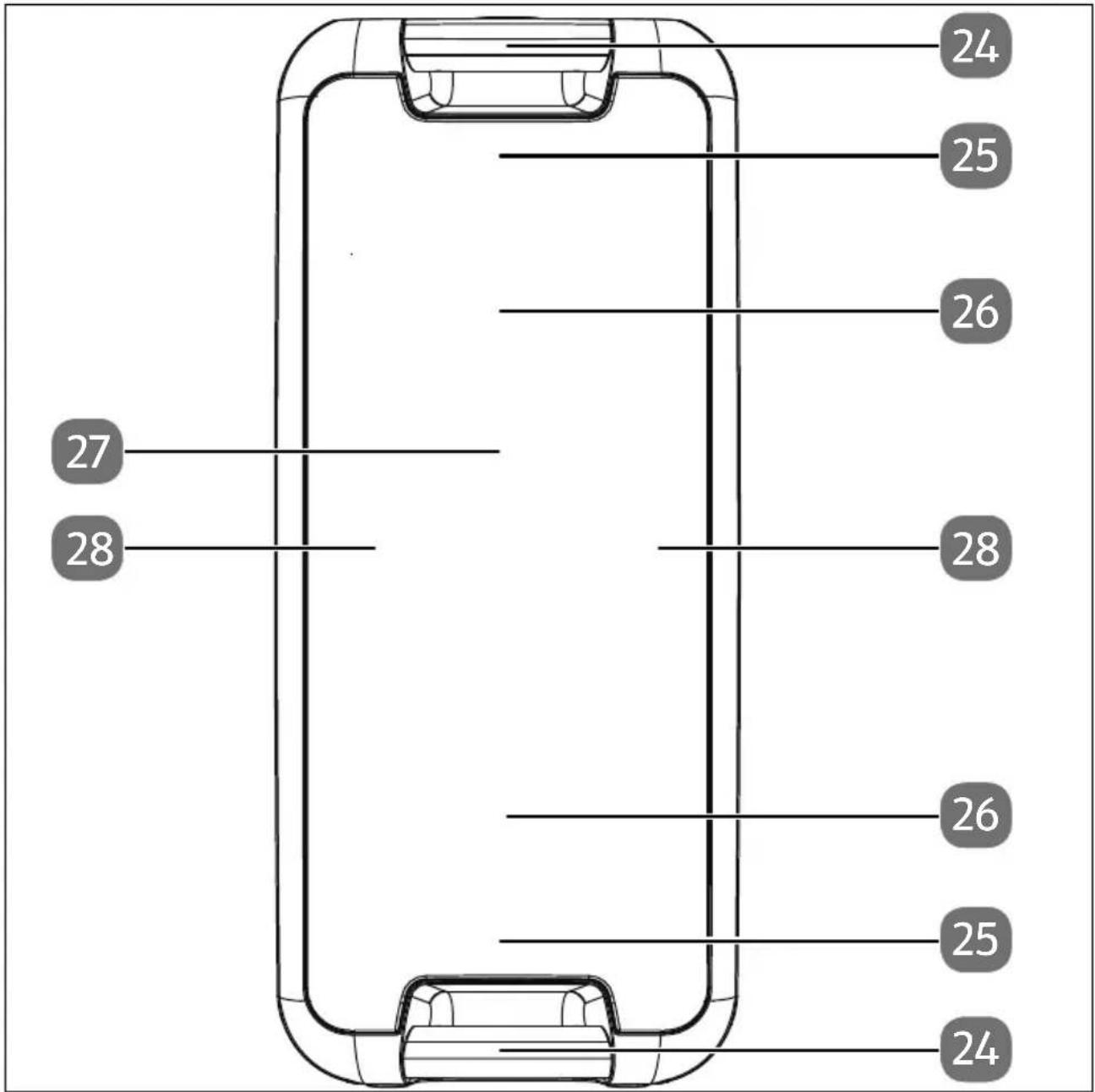

5.2. Front

24 25 26 27 28 28

24 Handles

25 Strobe light

26 Speaker

27 LED panel with grid cover

28 Tweeter

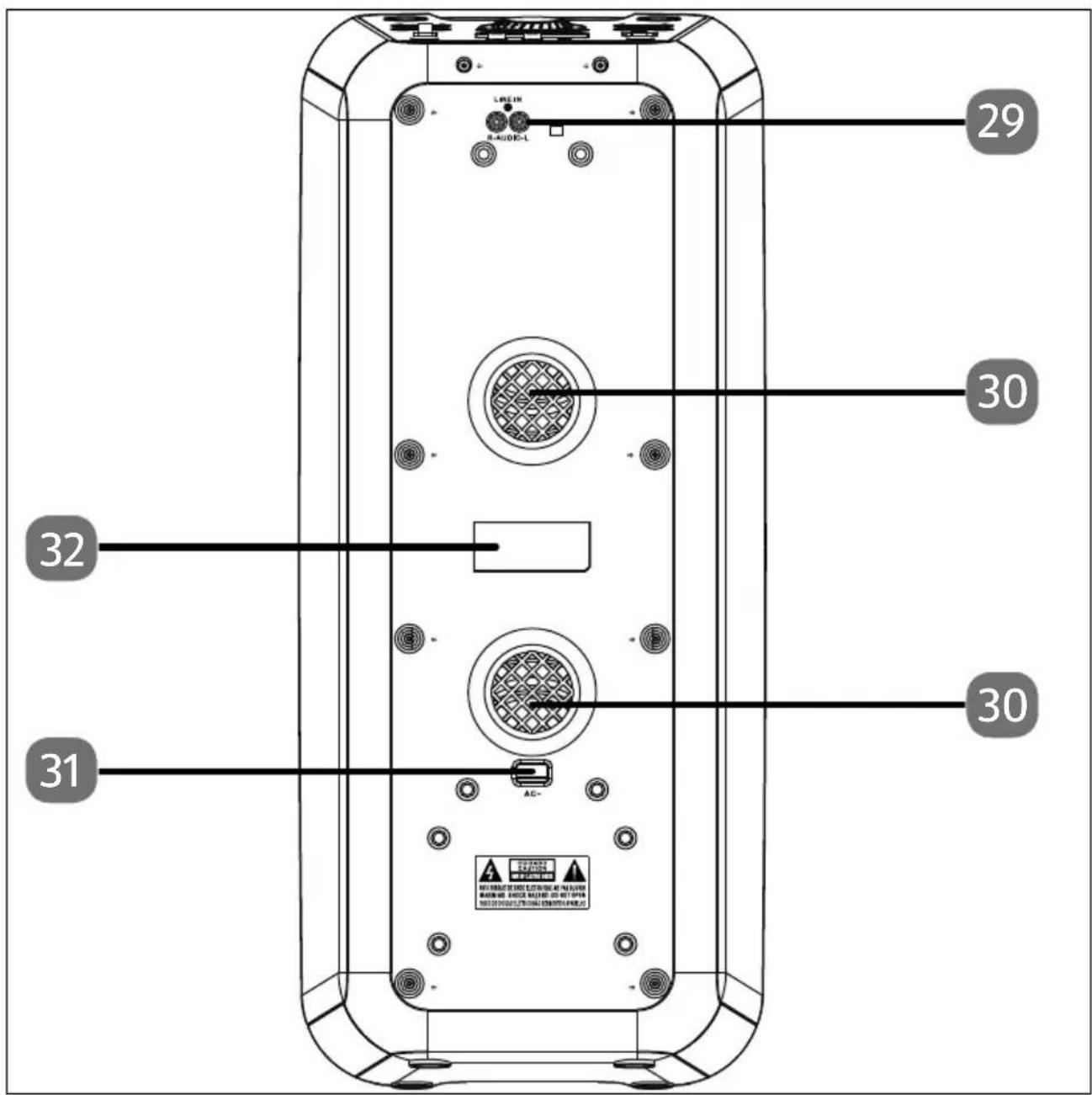

5.3. Rear

29 30 32 31 30 AC- LREIN 4-400E-L 30 30 RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHEN RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA RICHENA

29

LINE IN R-AUDIO-L

Audio input (cinch connection)

30

Vents

31

AC\~

Mains connection

32

Position of rating label

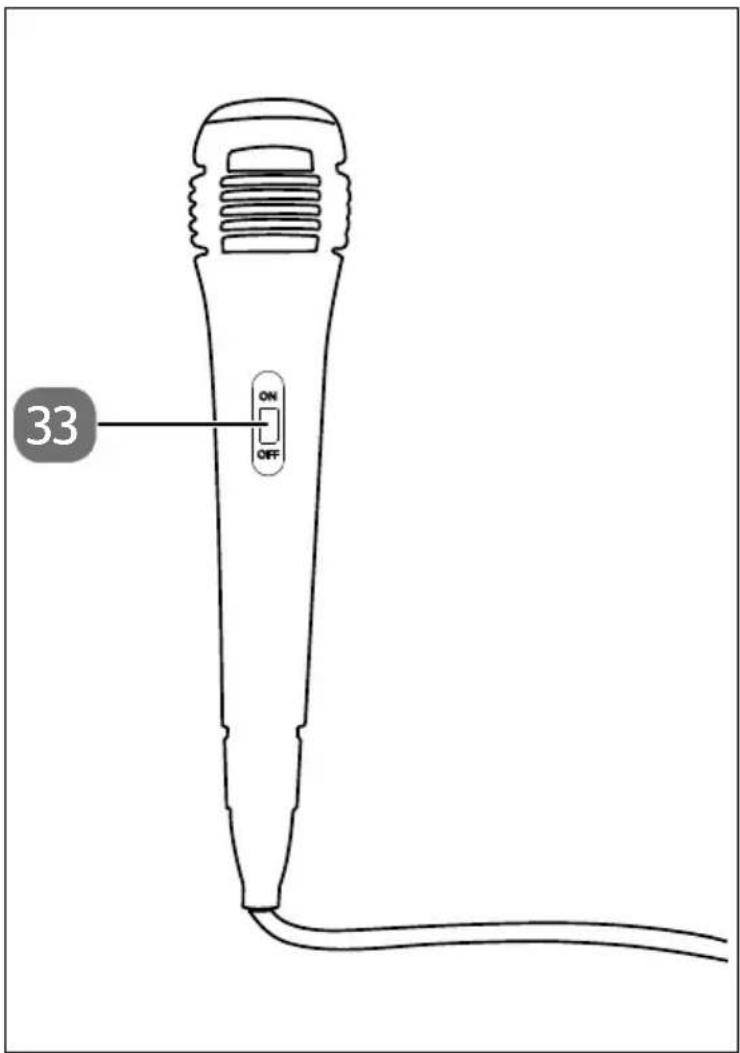

5.4. Microphone

33 ON OFF

33

ON/OFF

Switch microphone on/off

6. Getting started

6.1. Setting up the device

Place the device on a sturdy, level surface.
Several aggressive varnishes can corrode the rubber feet on the device. If necessary, place the device on a suitable underlay.

6.2. Mains operation – connecting the mains cable

• Connect the supplied mains cable to the mains connection on the back of the device.
  ▶ Plug the mains cable plug into an easily accessible power socket.

NOTICE!

Risk of damage!

The device may be damaged if the mains plug is plugged in loosely during operation. Only operate the device with the mains plug fully plugged in.

■ Before operating the sound system from the mains, make sure that the mains plug is fully inserted into the connection socket AC\~ (100–240 \~ 50/60Hz).

6.3. Internal rechargeable battery

The rechargeable battery is an integral component of the device and users must not repair or replace it themselves.

As soon as the sound system is connected to a power socket, the built-in rechargeable battery begins charging automatically. The CHARGE LED 23 continuously lights up red during charging.

When charging is complete and the internal built-in battery is fully charged, the CHARGE LED continuously lights up green.

If the battery charge level is too low, the CHARGE LED flashes red.

NOTICE!

Risk of damage!

Risk of damage to the device due to improper use of the device.

■ Unplug the mains cable when the battery is fully charged to avoid overcharging.

6.4. Switching the device on/off

▶ Press and hold the FUNCTION 11 button to switch the device on. The display lights up.
▶ Press and hold the FUNCTION button to switch the device off. The display turns off.

Even when switched off, the internal battery is charged until it is fully charged.

If the device receives no signal in Bluetooth®/USB/AUX IN/LINE IN mode for 15 minutes, it automatically switches to standby mode.

▶ Press the FUNCTION button to switch the sound system back on from automatic standby mode.

If the playback volume on the external device is set too low, the sound system may receive insufficient audio signal and automatically switches to standby mode.

In this case, increase the playback volume on the external device and re-establish the connection with the sound system.
▶ Press the FUNCTION button to switch the sound system back on from automatic standby mode.

7. Connecting external playback devices

7.1. Selecting the playback function

▶ Switch on the sound system.
▶ Press the FUNCTION 11 button several times to switch between the different playback functions (AUX/LINE IN/USB/Bluetooth®).

7.2. Connecting a device via AUX IN

Use the AUX IN 1 socket to establish a connection with an external playback device (for example an MP3 player).

▶ Switch off the sound system.
▶ Switch off your external device.
▶ Plug the end of a 3.5 mm jack cable into the AUX IN socket on the top of the device.
Connect the other end of the cable to the audio output of your external device.

▶ Switch on your external device.
▶ Switch on the sound system.
▶ Press the FUNCTION button until you see AUX on the display 4.

The audio signal from your external device will now be played back.

When signals are being transmitted via a cable, it is not possible to control all operating functions using the buttons on the sound system. In this case, you have to rely on the controls on your external device.

7.3. Connecting a device via LINE IN

Use the LINE IN 29 socket to establish a connection with an external playback device (for example a CD player).

▶ Switch off the sound system.
▶ Switch off your external device.
▶ Plug both cinch plugs of a connection cable into the LINE IN socket on the back of the device.
Connect the other end of the cable to the audio output of your external device.

▶ Switch on your external device.
▶ Switch on the sound system.
▶ Press the FUNCTION button until you see LINE IN on the display.

The audio signal from your external device will now be played back.

When signals are being transmitted via a cable, it is not possible to control all operating functions using the buttons on the sound system. In this case, you have to rely on the controls on your external device.

7.4. Inserting USB memory devices

▶ Insert the USB memory device into the USB 22 port on the top of the device.

▶ Press the FUNCTION button until you see USB on the display.

The first track on the USB memory device starts to play automatically.

Observe the following instructions regarding usable USB memory devices:

• As there are numerous different file systems and file formats, the connected storage media cannot be guaranteed to function.
• Depending on the size of the data medium, it may take some time for the system to be detected.
• USB storage devices with a maximum memory capacity of up to 32 GB are supported.
• Supported file systems are FAT16 and FAT32. The supported file format is MP3.
• External hard disks are not supported.
• USB extension cables are not supported.

The USB CHARGE 5 port is intended exclusively for charging external devices (e.g. smartphones) using an appropriate USB charging cable (not supplied), see section "10. Charging an external device via USB" on page 167.

7.5. Connecting a device via Bluetooth®

In Bluetooth mode, you can receive wireless audio signals from an external Bluetooth-enabled audio output device. Make sure the two devices are not more than 10 metres apart.

Only one Bluetooth device can be paired with the sound system at a time.

To connect a Bluetooth-enabled audio output device, proceed as follows:

▶ Switch on the sound system.
▶ Press the FUNCTION button several times as required to switch to Bluetooth mode.

BT is shown on the display and the device is in search mode. During the search, the Bluetooth LED PAIR 14 flashes blue quickly.

The sound system attempts to automatically connect itself to the last audio output device connected via Bluetooth. If this is not possible, the device remains in search mode.

▶ Switch on the Bluetooth function on your audio output device and activate search mode on it to pair the two devices.

You will find more information about the Bluetooth function of your audio output device in its user manual.

The device name of the sound system "MD 44080" will be displayed in the device list on your audio output device as soon as the signal is found.

▶ Select the sound system and pair the two devices. If you are prompted to enter a password, enter "0000".

Device pairing is complete when the Bluetooth LED PAIR continuously lights up blue and a signal tone sounds on the sound system.

▶ Start audio playback on your audio output device or press the 17 button on the sound system.

When signals are being transmitted via Bluetooth, it may not be possible to control all operating functions using the buttons on the sound system.

We also recommend setting the volume on your audio output device to maximum, and fine-tuning the volume on the sound system.

To disconnect an existing Bluetooth connection, press the button. A signal tone sounds and the Bluetooth LED PAIR flashes blue quickly. The sound system is now in search mode again and you can perform a new device pairing.

8. Operation

8.1. Adjusting the volume

▶ Turn the VOLUME 13 controller towards to increase the volume or towards to decrease the volume.

Immediately after being switched on, the sound system always starts at the set volume regardless of the last volume setting.

8.2. Super bass

▶ Press the SUPER BASS 16 button to enhance low frequencies and switch on bass amplification.

BASS is shown on the display.

▶ Press the SUPER BASS button again to switch off bass amplification.

BASS disappears from the display.

8.3. Equaliser

▶ Press the E21 button once or several times to activate one of the preset equaliser settings (FLAT, POP, CLASSIC, JAZZ or ROCK).

The selected equaliser setting is then shown on the display.

8.4. Party LED light

▶ Press the LIGHT12 button once or several times to activate preset party LED light effect L-1 to L-5.

The strobe lights 25 light up to the beat of the music.

▶ Press the LIGHT button several times until LOFF is shown on the display to deactivate all party light effects.
▶ Press and hold the LIGHT button for approx. 2 seconds to switch on the lighting around the volume controller.
▶ To switch off the lighting around the volume controller, press and hold the LIGHT button again for approx. 2 seconds.

8.5. Start/pause playback

▶ Press the 17 button to start playing tracks.
▶ To pause playback, press the button again.
Press the button again to resume playback.

8.6. Track selection, fast forward/rewind

▶ Press the 18 button to skip back to the start of the track that is currently being played. Press the button twice in quick succession to skip to the previous track.
▶ Press the 9 button to skip to the next track.
▶ Press and hold the button to fast rewind within a track or press and hold the button to fast forward. Release the respective button at the desired point in the track to resume playback from that point.

8.7. Playback options in USB mode

Once the USB memory device is plugged in, playback of the available stored tracks in numerical order starts.

8.7.1. Track selection in blocks of 10

If a large number of MP3 files are stored on the USB memory device used, you can skip forwards or backwards through the tracks in blocks of 10 to select a track more quickly.

▶ Press the 10/FOLD. + or 10/FOLD. - button to skip 10 tracks forwards/backwards.

If applicable, then press the ▶ or ◀ button to skip forwards or backwards by an individual track.

8.7.2. Folder selection for MP3 fi les

MP3 files can be stored in different folders on the USB memory device, if applicable.

▶ To switch between folders on an MP3 data medium, press and hold the 10/FOLD. - or 10/FOLD- + button.

8.8. Repeat function

▶ Press the P-MOD6 button until lights up on the display to repeat the track you are currently playing.

▶ Press the P-MODE button several times until ⬆ lights up on the display to continuously repeat all tracks on the USB memory device.

In case of USB memory devices where the files are stored in several folders, you also have the option to continuously repeat all tracks in the currently selected folder.

▶ To do so, press the P-MODE button several times until ⬆ FOLDER is shown on the display.
▶ To deactivate the repeat function, press the P-MODE button until all above-mentioned indicators disappear from the display.

8.9. Random playback

▶ Press the P-MODE button several times until RAND lights up on the display to activate random playback.
▶ Press the P-MODE button again to deactivate random playback.

RAND disappears from the display.

9. Connecting a microphone

You can connect up to two microphones to the sound system at the same time. One microphone is included with the device.

Microphones can be used in all operating modes.

To connect a microphone, proceed as follows:

▶ Switch off the sound system.
Connect the microphone to microphone input MIC1 or MIC2.
▶ Switch on the sound system.
▶ Set the On/Off switch33 on the microphone to the ON position.
▶ Use the MIC VOL. + or MIC VOL. - buttons to set the microphone volume you require.
▶ Press and hold the EQ/ECH21 button to activate the echo sound effect for the connected microphones.
▶ Press and hold the EQ/ECHO button again to deactivate the echo sound effect for the connected microphones.
▶ After use, set the On/Off switch on the microphone to the OFF position.

9.1. Voice distortion

You can select between four different voice distortions to create fun effects.

Connect a microphone, as described in the previous section.

▶ Press the VOICE 15 button; H-1 will appear on the display.
▶ Press the VOICE button repeatedly to switch between effects H-1 to H-4.
▶ To switch off the voice distortion, press the VOICE button repeatedly until OFF appears on the display.

10. Charging an external device via USB

The sound system has one USB port for charging external devices (e.g. smartphones). Note the current output voltage at the charging port: 5 V = max. 1000 mA

Connect the external device using a USB charging cable (not supplied) to the USB CHARGE 5 port on the top of the device.

The battery from your external device is now charged.

11. TWS mode

The TWS (True Wireless Stereo) function allows you to pair two speakers. By purchasing a second speaker of the same type, it is possible to pair both speakers and use them as a stereo speaker system.

▶ Switch on the sound system. Connect an external playback device to the sound system; this will become the master system.
▶ Now switch on the second sound system.
▶ Enable Bluetooth® mode on the second sound system.
▶ Press and hold the/10 button; the pairing process will now start.

The two systems connect automatically. When pairing is completed successfully, an acoustic signal sounds and TS R appears on the display of the master system and TS L appears on the display of the second system.

The volume, lighting and playback functions (playback, pause, next and previous track) and sound settings (equaliser and super bass) can be adjusted using both systems.

12. Cleaning

■ Before cleaning the device, always disconnect it from the power supply by unplugging the mains plug.

NOTICE!

Risk of damage!

Risk of damage to the device due to improper use of the device.

• Only use a dry, soft cloth to clean the device. Do not use chemical solutions or cleaning products because these may damage the device’s surface and/or markings.
  ■ Make sure that no liquid gets inside the sound system.

13. Storing the device when not in use

If you do not intend to use the device over a longer period of time, unplug it from the power supply and store in a cool, dry place.
▶ Ensure that the device is protected from dust, dirt and extreme temperature variations.

14. EU Declaration of Conformity

MEDION AG hereby declares that this device complies with the fundamental requirements and the other relevant provisions of:

• Radio Equipment Directive 2014/53/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU.

You can download the complete EU Declaration of Conformity at www.medion.com/conformity.

14.1. Trademark information

The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by the manufacturer under licence.

The USB ^™ word mark and logos are registered trademarks of the USB Implementers Forum, Inc. and are used by the manufacturer under licence.

Other trademarks are the property of their respective owners.

15. Technical specifications

General information
Dimensions (WxHxD): 28.8 cm x 66.5 cm x 29.7 cm
Ambient temperature (during operation):	+5°C to +35°C at a relative air humidity of max. 85% (non-condensing)
Ambient temperature (storage):	0°C to +40°C at a relative air humidity of max. 85% (non-condensing)
Weight: 11.1 kg
Power supply
Voltage: AC 100–240 V ~ 50/60 Hz
Power consumption: 38 W
Power consumption in standby mode (when the battery is charged):	0.34 W
Power output: 2 x 45 W RMS
Degree of protection: Protection class II
Integrated battery
Lead gel battery: 12 V, 7000 mAh, 84 Wh
Operating time at 50% volume: 3–4 hours
Connections
AUX input: 3.5 mm jack
LINE IN input: RCA (left/right)
Microphone 1 input: 6.3 mm jack
Microphone 2 input: 6.3 mm jack
USB port:	Standard host 1.1 to 32 GB5 V === max. 200 mA
USB charge port: 5 V	=== max. 1000 mA
Bluetooth®
Bluetooth version: 5.0
Bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth frequency range: 2402–2480 MHz
Max. transmission power: 9.85 dBm
Range:	Up to 10 m (depending on ambient conditions)
Microphone
Frequency response: 30 Hz–15 kHz
Sensitivity: -73 dB +/- 3 dB
Impedance: 600 Ω +/- 30%

16. Disposal

PACKAGING

Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

DEVICE

Old devices that carry the symbol illustrated may not be disposed of in ordinary household waste.

In accordance with Directive 2012/19/EU, these devices must be disposed of correctly at the end of their service life.

This involves separating the materials in the devices for the purpose of recycling and minimising the environmental impact.

The device is equipped with integrated rechargeable batteries. At the end of its service life, do not dispose of the device in the normal household rubbish. Instead, contact your local authority to find out how to dispose of it in an environmentally friendly manner at collection points for electrical and electronic scrap.

17. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	1 0333	3213106

Service address

MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

QR code image containing encoded data, no visible human-readable text

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

18. Legal Notice

Copyright © 2023

Date: 2. May 2023, 10:14 am

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.

19. Privacy statement

Dear customer,

We wish to inform you that we, MEDION AG, Am Zehnthof 77, D-45307 Essen, Germany process your personal data as a data controller.

For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MEDION AG, Datenschutz, Am Zehnthof 77, D-45307 Essen; [e-mail]. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.

Your data will be provided to repairers contracted to us for the purpose of warranty processing and associated processes. We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.

You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing, as well as the right to data portability.

In case of access and cancellation rights, restrictions apply according to S 34 and S 35 of BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with S 19 BDSG). The state official for data protection and freedom of information for MEDION AG is Nordrhein Westfalen, P box 200444, D-40212 Düsseldorf, Germany, www.ldi.nrw.de.

The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.

DE

FR

NL

ES

IT

EN
