Product type	Wall-mounted basin faucet
Brand	TOTO
Model	Silas TS210C
Use	Hot and cold water supply
Material	Chrome-plated brass
Control	Single lever
Required installation tools	Screwdriver, adjustable wrench
Included parts	Handle assembly, escutcheon, collar, screw and washer, threaded extension, adapter
Installation	Provide finished wall surfacing between 65 mm and 95 mm, TSMA valve required
Maintenance	Clean with mild soap and soft cloth, rinse with warm water
Maintenance precautions	Avoid abrasive cleaners, steel wool, harsh chemicals
Residential warranty	Product lifetime, original purchaser only
Commercial warranty	1 year from installation
Warranty conditions	Installation and use in accordance with instructions
Covered defects	Material and workmanship defects under normal use
Warranty exclusions	Damage by neglect, improper installation, water containing sediment, pressure surges
Warranty area	North America, Central and South America
Warranty repairs	Contact TOTO USA or an authorized distributor
Instructions available	French, English, Spanish and other languages on request

Frequently Asked Questions - Silas TS210C TOTO

How to install the Silas TS210C faucet?

Make sure the foundation valve is installed correctly with the arrow pointing to the water supply. Remove the plaster guard, screw the threaded extension into the valve, attach the adapter with the screw and washer, then tighten the collar onto the threaded extension. Finally, slide the handle assembly onto the adapter and tighten the handle body.

What tools are needed for installation?

You will need a screwdriver and an adjustable wrench.

What parts are included in the package?

The package contains: handle assembly, escutcheon, collar, screw and washer, threaded extension and adapter.

How to clean the faucet without damaging it?

Clean regularly with a mild soap, rinse with warm water and dry with a soft cloth. Never use abrasive cleaners, steel wool or harsh chemicals as they will dull the polish and void the warranty.

What to do if the handle is not vertical after installation?

Remove the adapter and turn it one tooth from the original position, then reinstall it. This will adjust the handle alignment.

What is the warranty on the Silas TS210C faucet?

For residential use, TOTO warrants the faucet against any material and manufacturing defects for the product lifetime for the original purchaser. For commercial use, the warranty is one year from installation.

Does the warranty cover damage caused by hard water?

No, damage caused by sediment or foreign matter in the supply water is not covered. Use of a water softener may be necessary.

Can I install this faucet on an existing sink?

This faucet is designed for wall installation with a pre-installed foundation valve. It requires a proper mounting hole and water supply. Check compatibility with your setup.

Where can I find the complete installation guide?

The complete installation guide is included in the instructions provided with the product. You can also download it for free in PDF format at notice-facile.com.

How to contact TOTO after-sales service?

For warranty repair, contact TOTO USA at [phone] or write to TOTO USA, Inc., Southern Road, Morrow, Georgia 30260. You can also contact an authorized distributor.

USER MANUAL Silas TS210C TOTO

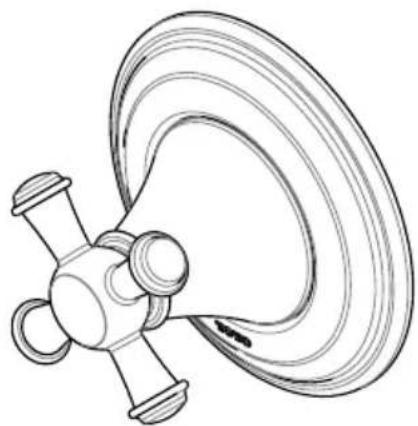

Line drawing of a Vivian® TS220C1 mechanical component with no text or symbols on the diagram itself

Technical line drawing of a mechanical component with a circular head and four arms (no text or symbols)

Wivian®
TS220C
T

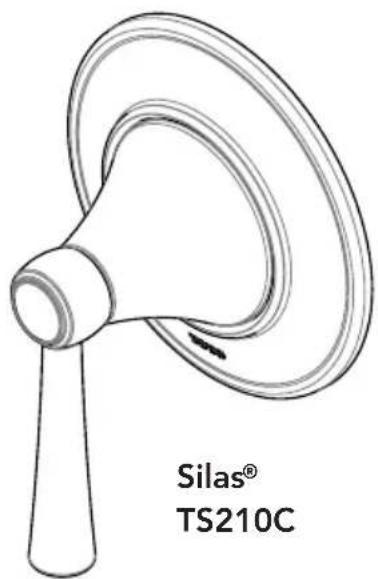

Silas® TS210C

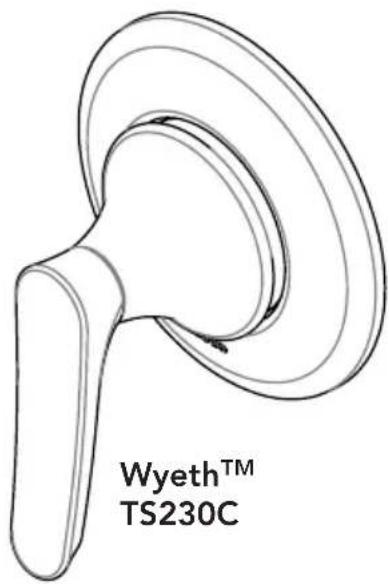

Wyeth™ TS230C

TABLE OF CONTENTS

Thanks for Choosing TOTO!......2

Before Installation....2

Common Tools Needed 2

Included Parts 3

Installation Procedure 3-5

Care & Cleaning....5

Warranty....6

Rough-In Dimensions 17-18

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

BEFORE INSTALLATION

④ Observe all local plumbing codes.
④ Make sure the water supply is shut off.
④ Read these instructions carefully to ensure proper installation.

④ TOTO reserves the right to update the product design without notice.

COMMON TOOLS NEEDED

Line drawing of a screwdriver with a flat tip and threaded handle (no text or symbols)

Screwdriver

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

INCLUDED PARTS

Check to make sure that all these parts were included in your packaging:

Handle Assembly* Escutcheon*		Collar
Screw and Lock Washer	Threaded Extension	Adapter

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

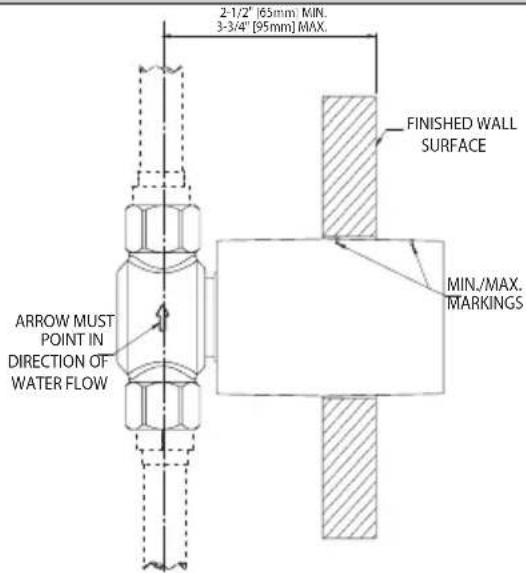

1. Confirm that the valve has been installed properly.

N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSMA installation manual for further information.

2-1/2" [65mm] MIN. 3-3/4" [95mm] MAX. FINISHED WALL SURFACE MIN./MAX. MARKINGS ARROW MUST POINT IN DIRECTION OF WATER FLOW

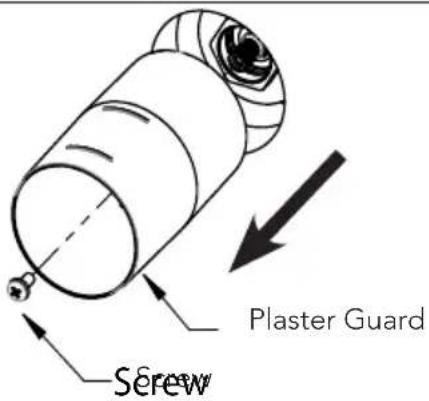

1. Remove the screw securing the plaster guard to the valve body, then pull the plaster guard outwards to remove it.

Plaster Guard Screw

Installation Procedure (continued)

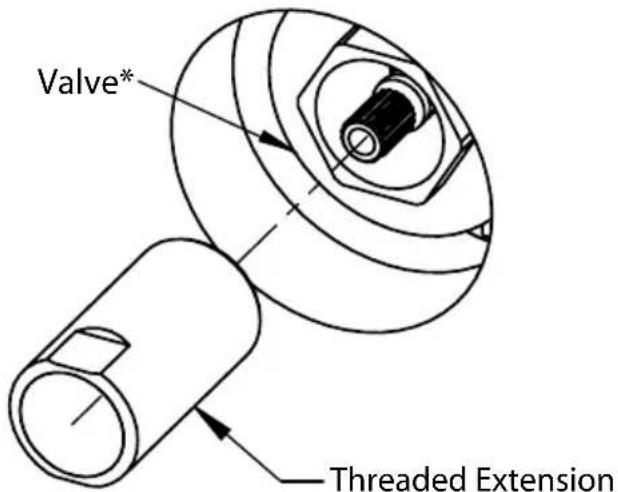

1. Use an adjustable wrench to tighten the threaded extension into the valve.

Valve* Threaded Extension

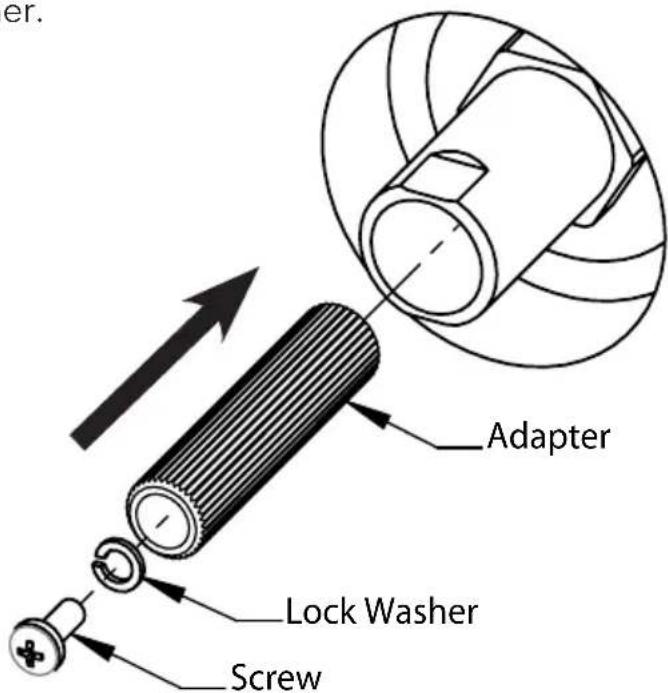

1. Secure adapter to the valve with the included screw and lock washer.

er. Adapter Lock Washer Screw

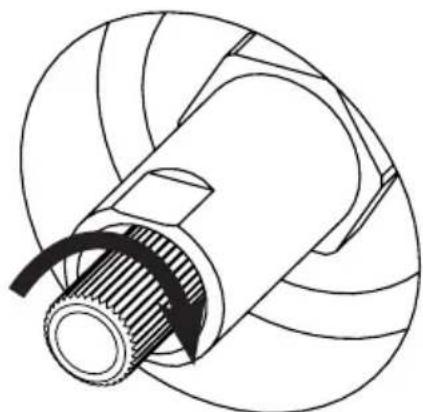

1. Turn the adapter manually clockwise until it stops.

Technical line drawing of a mechanical component with internal gear and shaft (no text or symbols)

Installation Procedure (continued)

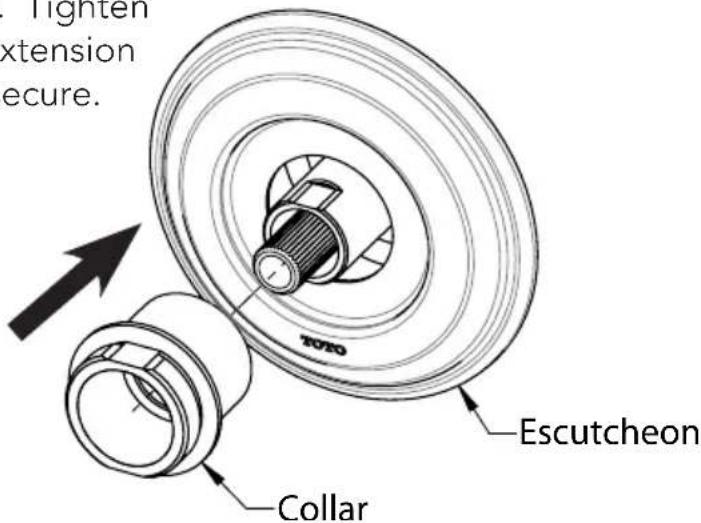

1. Hold the escutcheon against the wall with the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure.

Tighten extension ecure. TOTO Escutcheon Collar

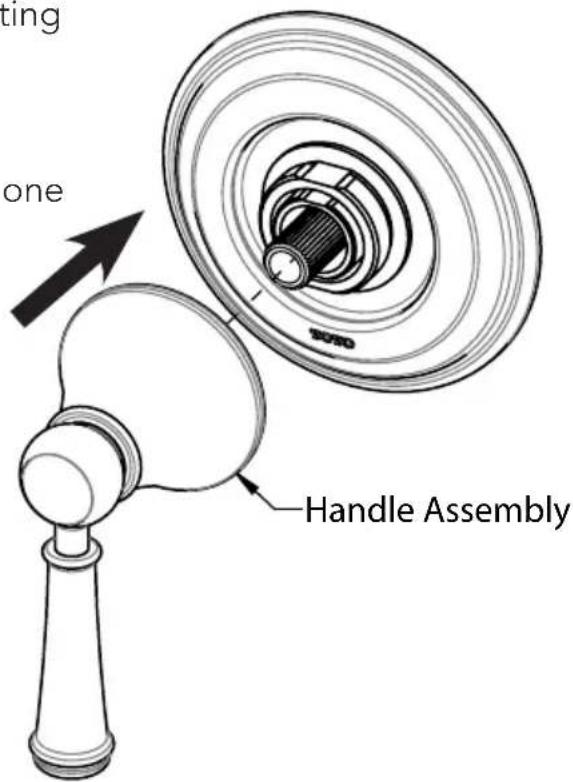

1. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.

If fine adjustment of handle position is desired, remove adapter, rotate one notch/tooth, and reinstall.

tting one Handle Assembly

CARE & CLEANING

Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Plaster Guard Screw

Technical line drawing of a mechanical component with gear and shaft (no text or symbols)

Technical line drawing of a mechanical component with internal gear and shaft (no text or symbols)

Ø 3-15/16" [100mm] Min: 2-1/2" [65mm] Max: 3-3/4" [95mm] 2-9/16" [66mm] Finished Wall Surface Valve Ø

TS220C1

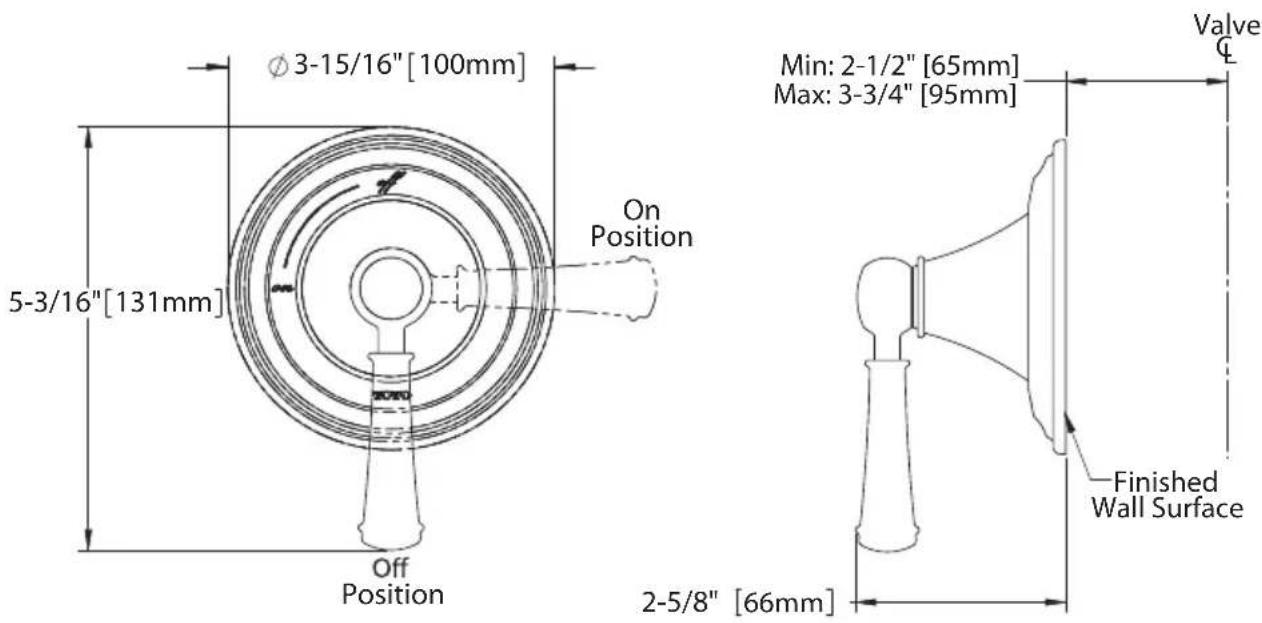

Ø 3-15/16" [100mm] 5-3/16"[131mm] On Position Off Position 2-5/8" [66mm] Min: 2-1/2" [65mm] Max: 3-3/4" [95mm] Valve Finished Wall Surface

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

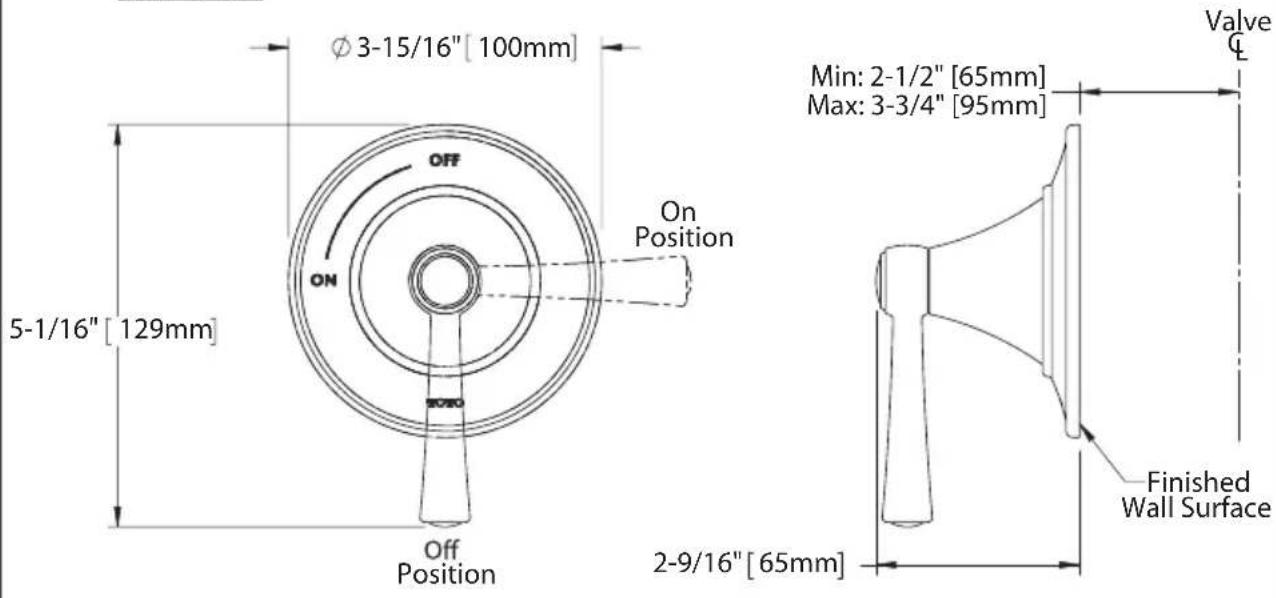

TS210C

Ø 3-15/16" [100mm] 5-1/16" [129mm] OFF ON On Position Off Position 2-9/16" [65mm] Min: 2-1/2" [65mm] Max: 3-3/4" [95mm] Valve Finished Wall Surface

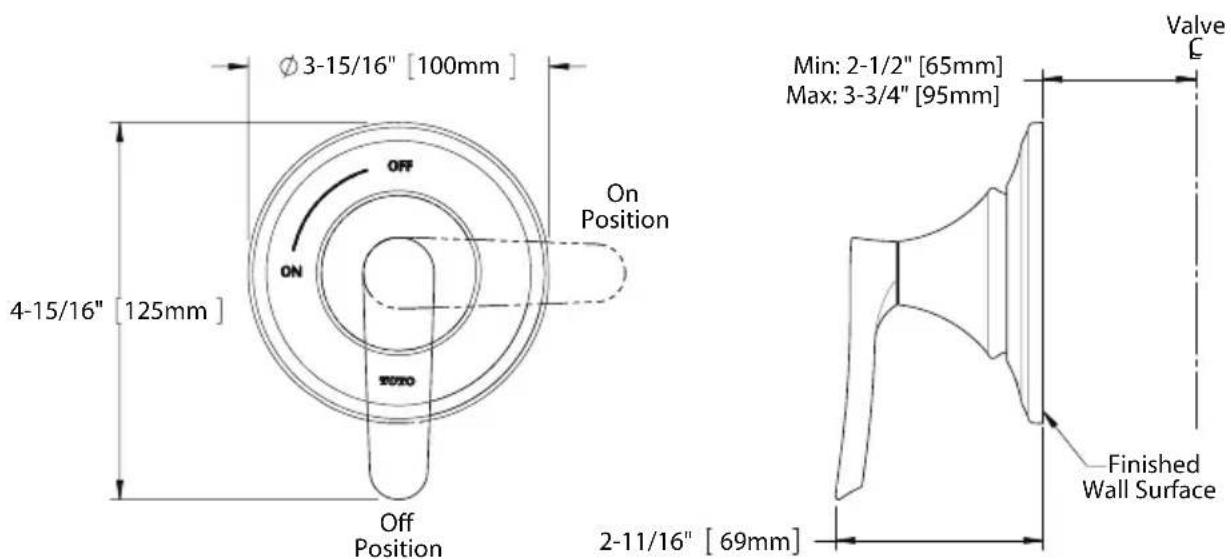

TS230C

Ø 3-15/16" [100mm] 4-15/16" [125mm] Off ON On Position OFF SOTO 2-11/16" [69mm] Min: 2-1/2" [65mm] Max: 3-3/4" [95mm] Valve C Finished Wall Surface
