USER MANUAL TSMXW TOTO

Installation and Owner's Manual

Technical line drawing of a mechanical pipe fitting with hexagonal connectors (no text or symbols)

TSMX

TSMXW

TABLE OF CONTENTS

Thanks for Choosing TOTO!......2Warnings ......2Common Tools Needed ......3Before Installation ......3Installation Procedure ......4Warranty ......5Rough-In Dimensions ......14Replacement Parts ......15Troubleshooting ......15

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

WARNINGS

For safe operation of the valve, please observe the following:■ Recommended Operating Pressure:▪ Minimum Pressure......20 psi (0.14 MPa), dynamic▪ Maximum Pressure......80 psi (0.55 MPa), static■ Do not solder the connections directly to the valve as damage to the internal components may occur.■ Do not use the product at an ambient temperature below 32°F (0°C)

COMMON TOOLS NEEDED

Teflon Tape Adjustable Wrench

Illustration of an adjustable wrench with a handle and central screw (no text or symbols)

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Flush all piping thoroughly before installing the valve.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.
■ Check to make sure you have the following parts indicated below:

Technical line drawing of a mechanical valve assembly (no text or symbols)

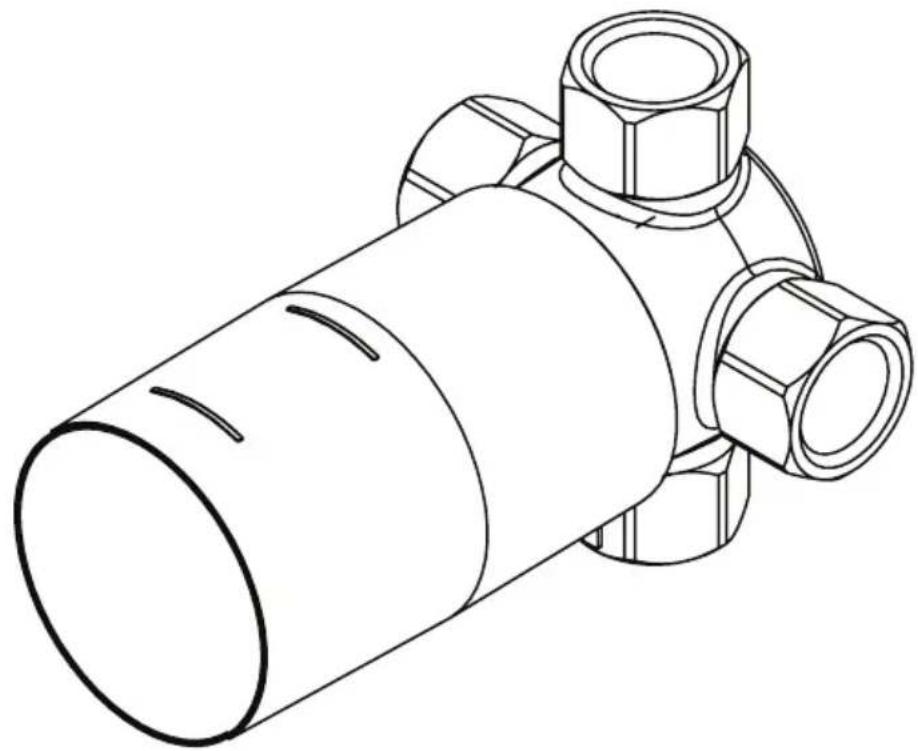

Valve with Plaster Guard

INSTALLATION PROCEDURE

IMPORTANT: For proper installation and smooth operation, the valve must be level and square to the finished wall.

• Install the valve so that the outside surface of the finished wall will be between the Max and Min markings on the plaster guard.
- Make sure the valve is installed with the small arrow pointing in the direction of water flow.
• Dashed pipework and fittings shown are not included.
• The plaster guard should remain in place until you are ready to install the trim.

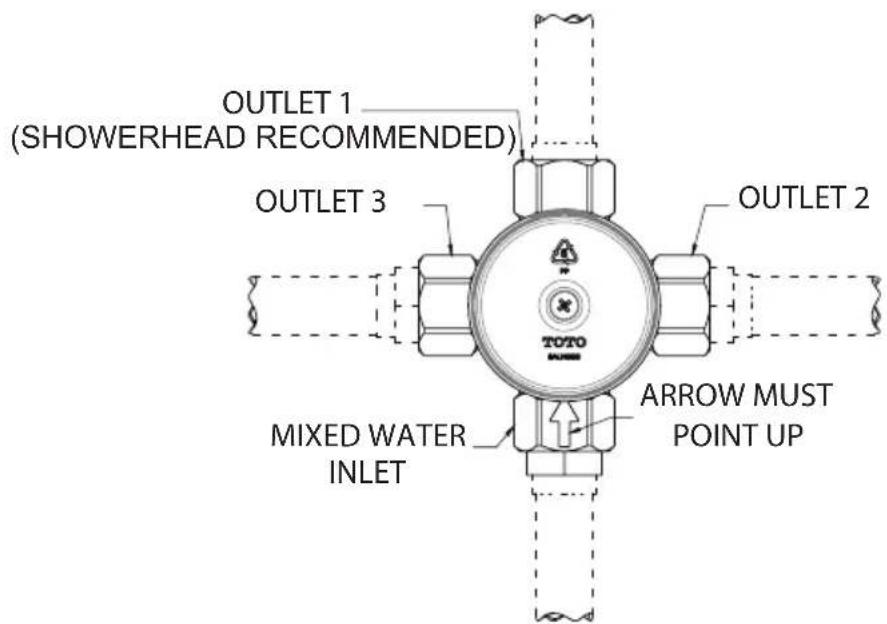

OUTLET 1 (SHOWERHEAD RECOMMENDED) OUTLET 3 TOTO OUTLET 2 MIXED WATER INLET ARROW MUST POINT UP

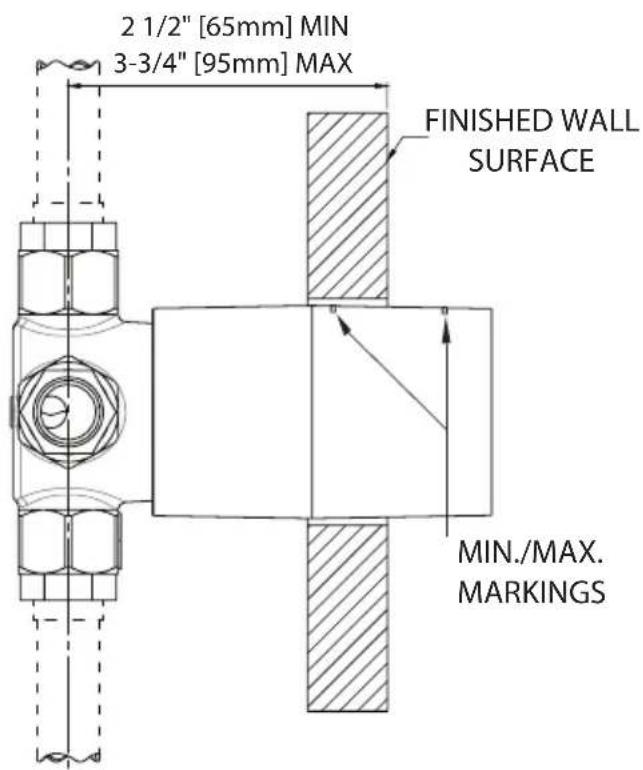

2 1/2" [65mm] MIN 3-3/4" [95mm] MAX FINISHED WALL SURFACE MIN./MAX. MARKINGS

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench with a key inserted (no text or symbols)

Technical line drawing of a mechanical pipe fitting with hexagonal connectors (no text or symbols)

Illustration of an adjustable wrench with a handle and central screw (no text or symbols)

AVANT L'INSTALLATION

Technical line drawing of a cylindrical mechanical component with hexagonal nuts and a central hub (no text or symbols)

PROCÉDURE D'INSTALLATION

3-3/16" [81mm] Outlet 1/2" NPT Outlet 1/2" NPT TOXO Inlet 1/2" NPT Outlet 11/2" NPT

Max: 3-3/4" [95mm] Ø2-1/4 " [57mm] Required Hole Finished Wall Surface 3-3/16" [83mm] GL

Valve shown with plaster guard in place

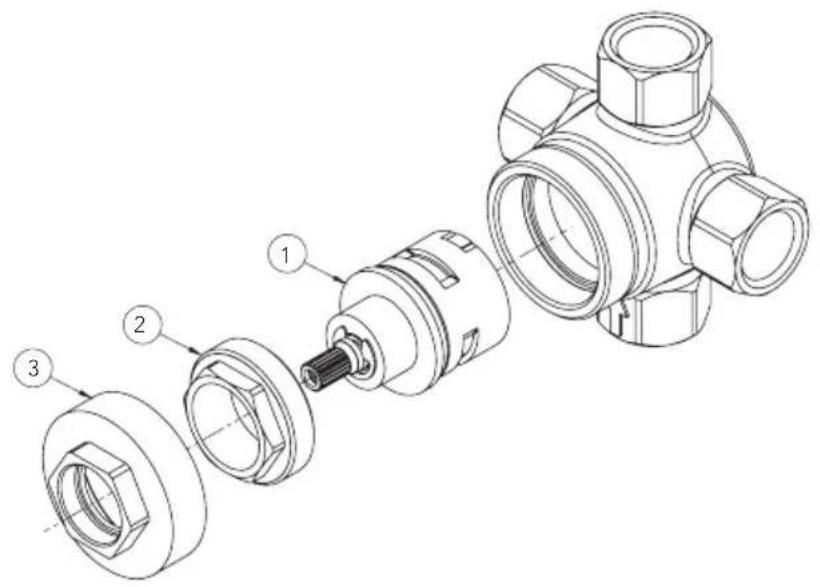

SPARE PARTS / PARTES DE REPUESTO / PIÈCES DE RECHANGE

Technical diagram of a mechanical assembly with numbered components for identification

ItemArtículoArticle	DescriptionDescripciónDescription
1	CartridgeCartuchoCartouche
2	NutTuercaÉcrou
3	CoverCubiertaCouverture

1. Remove valve trim (see trim manual for instructions).
2. Remove the cover using a 25mm socket.
3. Remove the nut using a 27mm socket.
4. Pull the cartridge out of the valve using needle nose pliers.
5. Replace the valve cartridge and reinstall nut, cover, and trim.

TOTO® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4221

Rev Date: 08/12
