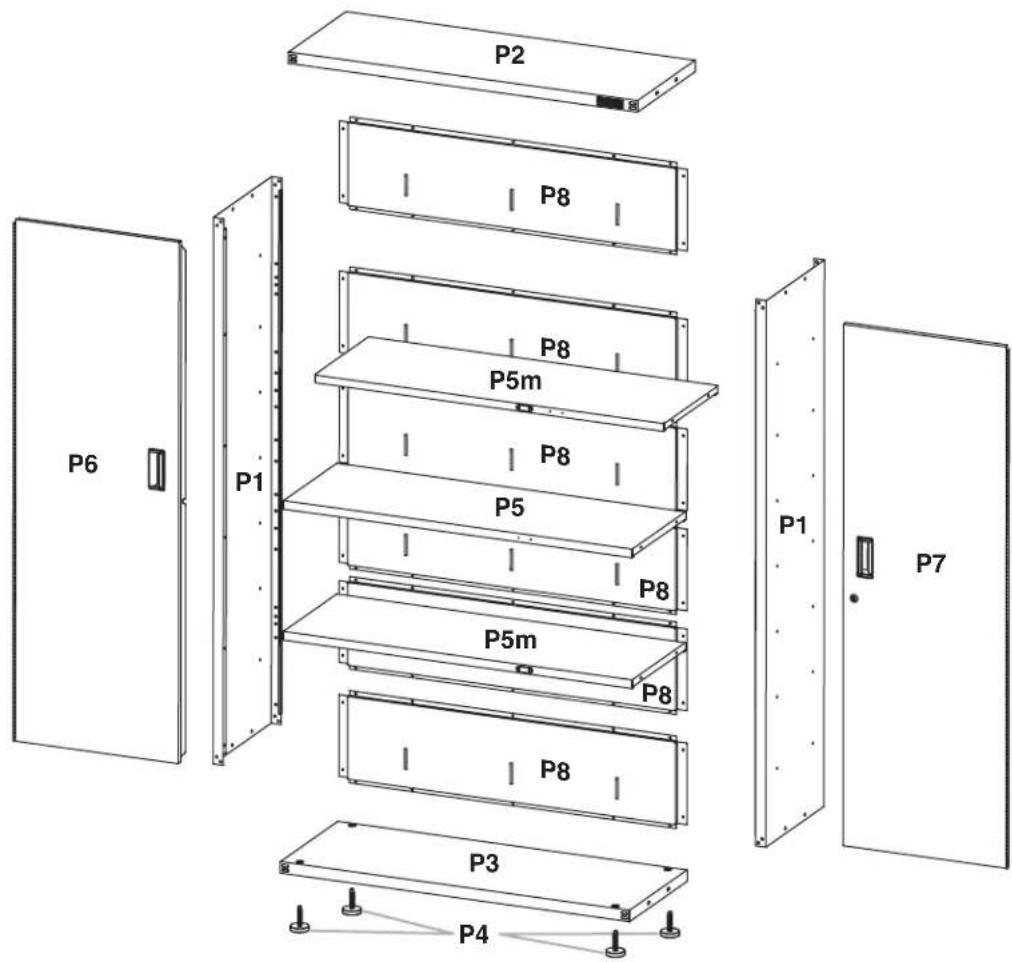

P2 P8 P6 P1 P8 P5m P8 P5 P8 P1 P7 P5m P8 P8 P3 P4

F1

F2

F3c

F5

ASSEMBLY INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation.

Tools Needed:

■ 1/2" Wrench

■ Phillips screwdriver

■ 3/8" Wrench

Level

Tools Supplied:

■Hex key

■Key

Cabinet Use Requirements

■Intended for use in a garage.
■Maximum weight limit is 50 lbs (22.7 kg) for each shelf.
■Maximum weight limit is 250 lbs (113.6 kg) for the cabinet.

Unpack the Cabinet

1. Remove and verify the contents. Contents include a hex key, a key, and the parts and fasteners shown in "Parts."
2. Dispose of/recycle all packaging materials.

Assemble Cabinet

WARNING

Excessive Weight Hazard

Use two or more people to move, assemble or install cabinet.

Failure to do so can result in back or other injury.

IMPORTANT: Two people may be required to complete the assembly. As you assemble the cabinet, make sure the edges with the holes are facing up. If you are assembling the cabinet on the floor, fasten the eight front corner bolts, two at each corner, after you stand the cabinet upright.

1. Assemble Cabinet


F1 F2 F1 5/16" hex-head bolt (24) F2 5/16" flange nut (8) P2 P1 P3 P1 P3 P1

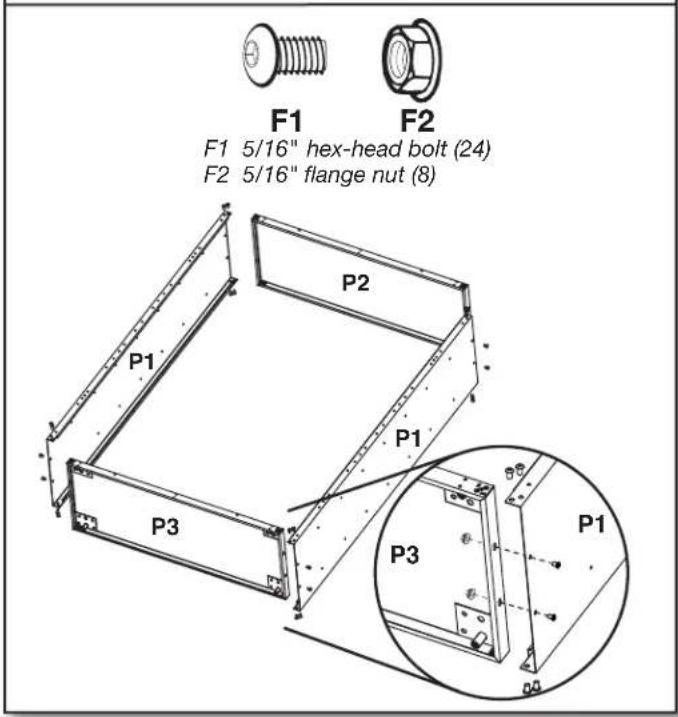

Place side panel (P1) on a flat, firm surface so that the edge with the holes is facing up as shown. Insert the cabinet top (P2) between the edges of side panel (P1).

NOTE: Make sure the edges with the holes are facing up.

Align the holes and attach the top (P2) to side panel (P1) using six Hex-head bolts (F1) and two 5/16" flange nuts (F2) as shown. Do not tighten completely. Position the other side panel (P1) so that the top (P2) is between the edges of side panel (P1). Align the holes and attach the top (P2) to the side (P1) using six Hex-head bolts (F1) and two 5/16" flange nuts (F2) as shown. Do not tighten completely. Insert the cabinet bottom (P3) between the edges of the side panels (P1).

NOTE: Make sure the edges with the holes are facing up. Align the holes and attach the bottom (P3) to the sides (P1) using six Hex-head bolts (F1) and two 5/16" flange nuts (F2) for each side as shown. Do not tighten completely.

2A. Attach Back Panels

F3c

F3c Phillips-head screw (40)

Technical line drawing of a rectangular metal frame structure with mounting holes and internal ribs, plus an inset magnified detail (no text or symbols)

2B. Attach Back Panels

F3c
F3c Phillips-head screw (40)

P8 P8 P8 P8 P8 P1 P8 P1 P3 A

A. Cabinet bottom

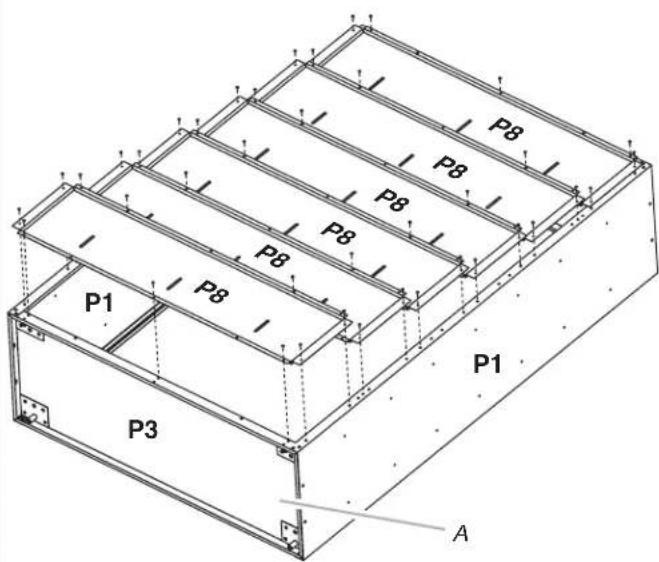

IMPORTANT: Attach the back panels (P8) starting at the top of the cabinet and working down to the cabinet bottom. Each consecutive back panel will overlap the panel above. Do not completely tighten the screws until all back panels are in place. The back panels, top and bottom, may have additional holes that are not used.

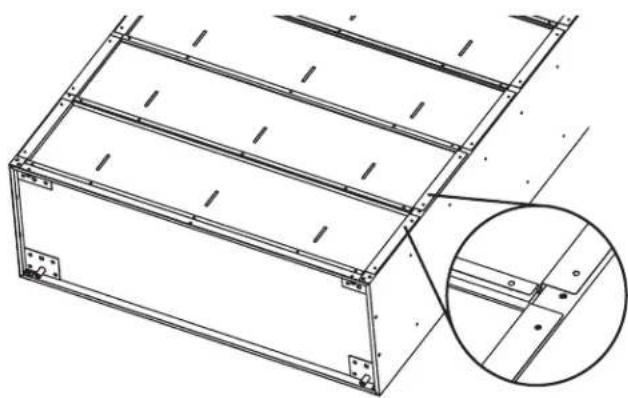

Align the first back panel (P8) with the holes in the cabinet top. Using Phillips-head screws (F3c), attach the panel (P8) to the cabinet top and sides. Overlap the bottom of the first back panel (P8) with the top of the second back panel (P8) as shown. Using Phillips-head screws, fasten back panel (P8) to the cabinet sides. Repeat step to attach the four remaining back panels to the cabinet sides.

Using two Phillips-head screws, attach each back panel to the panel above.

NOTE: Using three Phillips-head screws, attach the last back panel (P8) to the cabinet bottom (P3).

Completely tighten all back panel screws starting with the sides and continuing with the top, middle and bottom. Using the hex key (provided), completely tighten all 24 cabinet bolts and nuts.

3. Install Leveling Legs (optional)

P4
Leveling feet (4)

P1 P4 P8 P3 A PB PB PB

A. Leveling legs

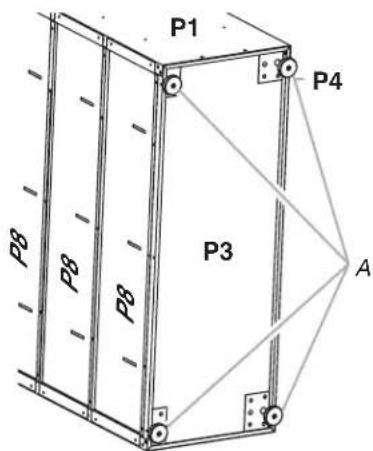

Place the cabinet on its side. Screw a leveling leg (P4) into each of the four rivet nuts located at the corners of the cabinet as shown. Stand the cabinet upright. If you have not already done so, fasten the two bolts at each front corner, of the cabinet frame. Completely tighten all the cabinet bolts and nuts.

4. Install Shelves

F3c F5
F3c 5/16" hex-head bolt (12) F5 5/16" flange nut (12)

P2 P8 P1 P8 P5 P8 P8 P3 A

A. Middle pair of holes in cabinet side

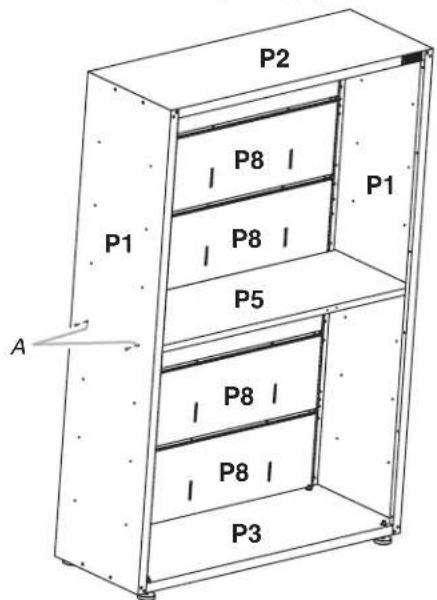

IMPORTANT: Use the pair of holes located in the middle of the cabinet sides to install a center shelf without the magnet (P5), so the doors will lock. The other two shelves with magnet (P5m) may be installed where desired.

Place a shelf (P5) so that the holes in the ends are aligned with the pair of holes in the middle of the cabinet sides.

NOTE: Make sure the holes in the long edge of the shelf are facing out.

Using two screws and nuts per side, fasten the shelf (P5) to the sides (P1). Determine where you want to place the other two shelves (P5m). Align the holes in the shelf ends with the holes in the cabinet side.

NOTE: Make sure the magnets on the long edge of the shelf are facing the cabinet front.

Using two screws and nuts per side, fasten the shelves (P5m) to the cabinet sides (P1). Completely tighten the nuts.

5. Install Doors

F3c

F3c Phillips-head screw (12)

P2 P5m P1 P5 A P7 P5m P3

A. Phillips-head screws

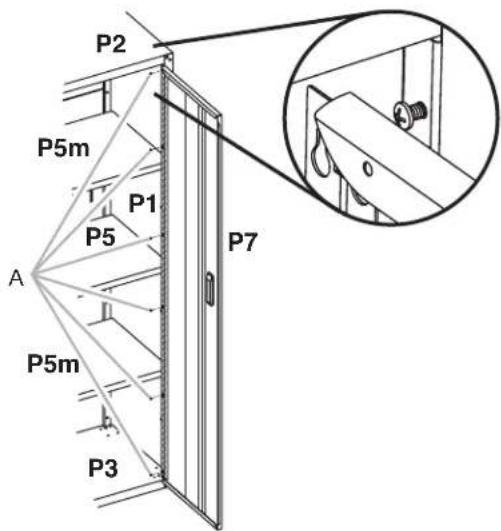

IMPORTANT: The door with the lock assembly (P7) should be installed on the right-hand side of the cabinet. The door hinges are designed with keyhole slots at the top and bottom so the door will hang on the cabinet while you are fastening the screws. Start Phillips-head screws (F3c) in both the top and bottom holes on each side of the cabinet. Hang the right-hand side door (P7) from the top and bottom screws, and hand tighten. Insert the middle four screws through the door hinge into the cabinet and hand tighten. Repeat above steps to attach the left-hand door (P6). Align the doors and completely tighten the screws.

Complete Assembly

1. Make sure there is a bolt or screw in each hole of the cabinet frame.
   NOTE: The back panels, top and bottom, may have additional holes that are not used.
2. Move the cabinet to its final location.
3. Place a level on an inside shelf, and if necessary, level the cabinet by adjusting the height of the leveling legs. Turn to the left to raise or to the right to lower the leveling leg.
4. If the doors are not aligned, loosen all the screws attaching the door hinge to the cabinet.
5. Adjust door to the desired height, and fully tighten the screws.

ACCESSORIES

To order accessories, call 1-866-342-4089 and ask for the accessory part number listed below or contact your authorized Gladiator® GarageWorks dealer. In Canada, call 1-800-807-6777.

Mounting Bracket Kit - Allows the cabinet to be mounted on Gladiator® Garageworks GearWall® panels or GearTrack® channels. Order Part # GABK362PSS

WARRANTY

For warranty information:

In the U.S.A. call 1-866-342-4089 or visit our website at

www.gladiatorgarageworks.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca
