GALG362DPW - Wardrobe Gladiator - Free user manual and instructions

Product Type	Garage Cabinet
Brand	Gladiator
Model	GALG362DPW
Color	Hammered White / Slate Gray
Height	213.4 cm (84 in)
Maximum Load Capacity	Cabinet: 907 kg (2000 lb); each shelf: 181 kg (400 lb); pole: 23 kg (50 lb)
Number of Shelves	4 full-width shelves
Material	Steel with textured hammered finish
Security	Lock with key provided
Adjustment	Leveling feet, adjustable doors
Optional Accessories	Front and side kick plates, mounting support kit (GABK301PRS)
Warranty	Customer Service: 1 866 342-4089 (USA) / 1 800 807-6777 (Canada)
Intended Use	Garage
Assembly Required	Yes, with tools included (10 mm wrench)
Care and Cleaning	Wipe with a soft cloth and mild detergent

Frequently Asked Questions - GALG362DPW Gladiator

How to assemble the cabinet?

Assembly requires two or more people. Unpack the cabinet, install the leveling feet and corner brackets with the provided hex bolts. The cabinet can be placed on its back on the cardboard for assembly. Then install the kick plates (optional), pole, and shelves. Follow the instructions in the manual.

What is the load capacity of the cabinet?

The cabinet can support up to 907 kg (2000 lb) total. Each full-width shelf can support up to 181 kg (400 lb). The pole must not exceed 23 kg (50 lb).

How to adjust the leveling feet?

The leveling feet (F2) screw into the corner brackets. Once the cabinet is in position, turn each foot to level the cabinet. Use a bubble level to check.

How to install the pole?

Unlock and open the doors. Place the pole into the openings of the closet rails located on the side panels, then slide it down to lock it in place. Ensure not to exceed 23 kg (50 lb) on the pole.

How to adjust the shelves?

Remove the white plastic shipping retainers. Lift the bottom of the shelf to clear the tabs, tilt it, and insert it into the desired slots. One shelf must be placed in the center position for proper lock operation.

How to adjust the doors?

The doors are adjustable. Using a Phillips screwdriver, loosen the hinge screws on the cabinet, adjust the door to the desired height, then retighten the screws.

Does the cabinet come with kick plates?

Yes, front and side kick plates are included but their installation is optional for the 84 in tall cabinet. Follow the instructions to attach them with the hex bolts.

Where can I purchase additional accessories?

To order accessories such as the mounting support kit (GABK301PRS), call 1 866 342-4089 (USA) or 1 800 807-6777 (Canada), or contact your authorized Gladiator® retailer.

How to contact Gladiator customer service?

In the USA: 1 866 342-4089. In Canada: 1 800 807-6777. You can also visit the Gladiator website for more warranty information.

What safety precautions should be taken?

Always use two or more people to move or assemble the cabinet due to risk of injury. Do not exceed the maximum loads indicated. Open doors slowly during installation to avoid damaging hinges. Keep keys out of reach of children.

USER MANUAL GALG362DPW Gladiator

GALG362DPG - Hammered Granite / Silver Tread

GALG362DPR - Hammered Granite / Red Tread

GALG362DPW - Hammered White / Gray Slate

Modèle :

Assembly Instructions

GRANDE ARMOIRE PREMIER DE 84 PO SOUDÉE

ASSEMBLY INSTRUCTIONS......4

Tools and Parts....4

Cabinet Use Requirements......4

Unpack the Cabinet......4

Install the Leveling Legs and Corner

Brackets....4

Install the Kickplates (Optional) ....5

Install the Hanging Rod ....5

Adjust Shelves ....5

Level the Cabinet....6

Adjust Doors....6

WEIGHT CAPACITY......6

ACCESSORIES....7

WARRANTY....7

SÉCURITÉ DE L'ARMOIRE....8

DIMENSIONS 9

PIÈCES FOURNIES....10

INSTRUCTIONS D'ASSEMBLAGE.....10

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

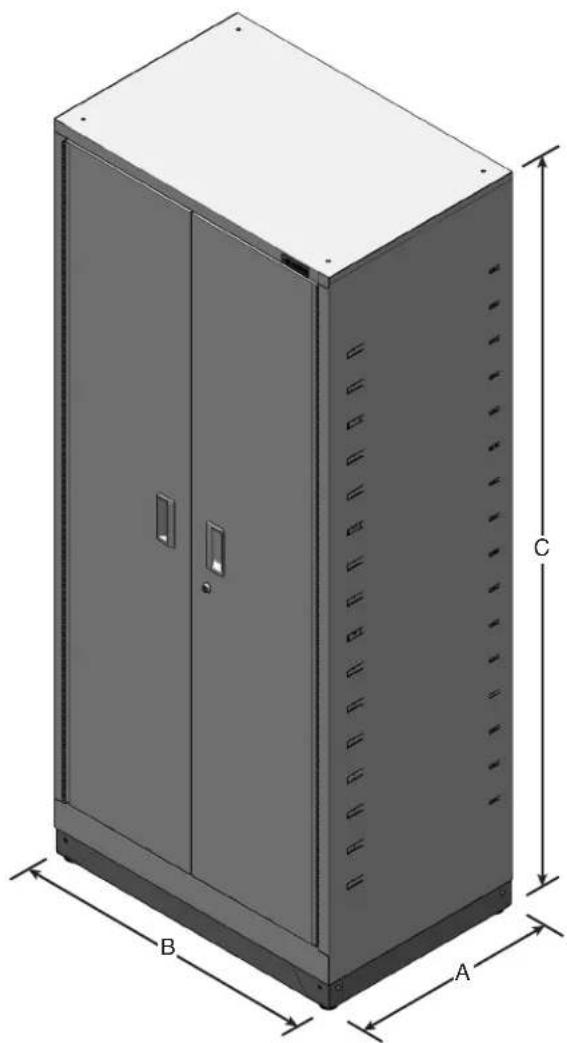

DIMENSIONS

Callouts Dimensions

A 24" (61 cm)

B 36" (91.4 cm)

C 84" (213.4 cm)

PARTS SUPPLIED

F1F2

Callouts	Description Quantity
F1 M6 x	16 mm hex bolts 20
F2 Leveling	Legs 4

ASSEMBLY INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation.

Tools Needed:

■10 mm Wrench (Included)

Parts for Cabinet:

■Corner bracket (4)

■Full-width shelves (4)

■Front kickplate (1)

■Leveling leg (4)

■Side kickplate (2)

■Key (2)

■Hanging Rod (1)

■M6 x 16 mm hex bolt (20)

Cabinet Use Requirements

■Intended for use in a garage.

■ Maximum weight limit is 400 lbs (181 kg) for each shelf, not to exceed 2000 lbs (907 kg) for the cabinet.

■Hanging rod not to exceed 50 lbs (23 kg).

Unpack the Cabinet

1. Remove the keys from the cabinet.
2. Open the cabinet door.
3. Remove and verify the contents. See "Parts for Cabinet" for your model.
4. Dispose or recycle all packaging materials.

NOTE: Keep the outer carton layer. It is needed to cushion the cabinet during leveling leg and corner bracket assembly.

Install the Leveling Legs and Corner Brackets

WARNING

Excessive Weight Hazard

Use two or more people to move, assemble or install cabinet.

Failure to do so can result in back or other injury.

Install the leveling legs and corner brackets

A. Front of cabinet

F1. Hex bolt

C. Corner bracket

F2. Leveling leg

1. Close and lock the cabinet doors.
2. Using two or more people, place the cabinet on its back using the outer carton layer to cushion the cabinet.
3. Insert 4 hex bolts (F1) through each corner bracket and into the cabinet. Do not tighten the hex bolts completely if adding the optional kickplates.

NOTE: If adding the optional kickplates, do not completely tighten the hex bolts until all 3 kickplates are in place.

1. Install the leveling legs (F2) to the corner brackets.

NOTE: If you need to open the cabinet doors during installation of leveling legs and corner bracket assembly, open them slowly and do not put any weight on the open doors. This avoids damage to the hinges.

Install the Kickplates (Optional)

NOTE: Kickplate installation is optional on the 84" Tall Cabinet.

Cabinet shown without kickplates

Cabinet shown with kickplates

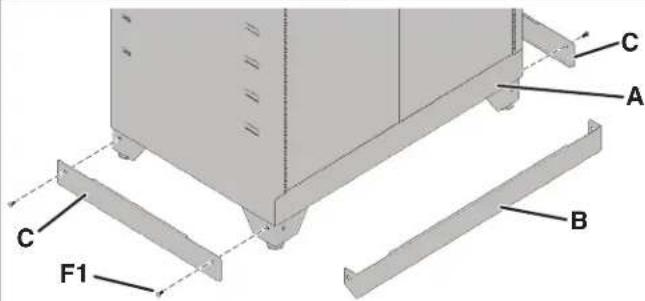

Install the kickplates

A. Front of cabinet
B. Front kickplate
C. Side kickplate
F1. Hex bolt

1. Position the front & side kickplates to the corner brackets and align kickplate end holes with the holes in corner brackets.
2. Insert the four hex bolts (F1) through kickplate end holes into corner brackets.
   NOTE: The side kickplates will be on top of the front kickplate flanges.
3. Completely tighten all corner bracket hex bolts.
4. Return the cabinet to its upright position. Unlock door.

Install the Hanging Rod

Install the hanging rod

A. Hanging rod

The cabinet has pre-installed closet rails on the side panels which are suitable for a hanging rod.

1. Unlock and open the cabinet doors.
2. Place the hanging rod into the closet rail openings and slide down and into position.

Adjust Shelves

Remove/Replace/Adjust the shelves

A. Slot B. Shelf tab

1. Remove the shelf clips from their shipping position on the sides of the cabinet. Working from the inside of the cabinet and using a blunt tool, push out the white plastic shelf clips.
2. Discard the clips.
3. Lift up on the underside of the shelf until the shelf tabs are free of the cabinet slots.
4. Tilt the shelf up to reposition it within the cabinet or to remove it from the cabinet.
   NOTE: Plan your shelf heights and install shelves starting from the bottom. The shelves are supported by the metal tabs on side walls of the cabinet.
5. Determine the placement of the shelves.
6. Tilt the shelf so that one end is higher than the other.
7. Insert the shelf into the cabinet so that the higher end is directly above the desired slots and push the shelf down in place behind the side slots.
8. Raise the lower end so it is directly above the desired slots and push the shelf down.
   NOTE: A shelf must be located in the center position for the cabinet lock to function correctly. Make sure the shelf tabs are in place behind all the slots, as shown.
9. Repeat this process for the remaining shelves.

Level the Cabinet

1. Place the cabinet in the desired location.
2. Level the cabinet by adjusting the leveling legs.

Adjust Doors

The cabinets are designed with adjustable doors.

1. Check to see whether the doors need adjusting. It is more often the left door that will need to be aligned.
2. Using a Phillips screwdriver, loosen all screws attaching the hinge to the cabinet.
3. Adjust door to the desired height.
4. Tighten the screws.

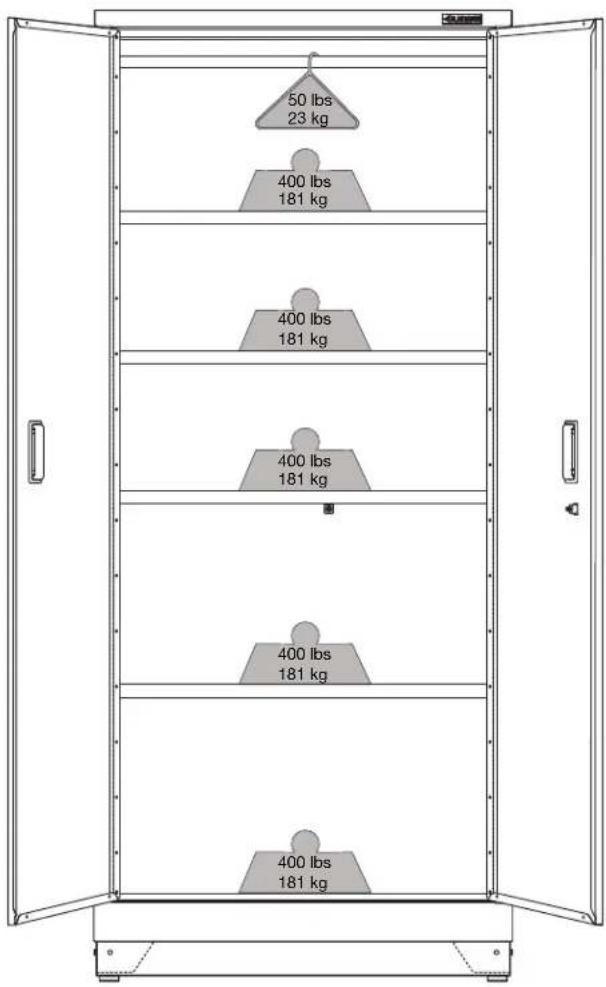

WEIGHT CAPACITY

ACCESSORIES

To order accessories, call 1-866-342-4089 and ask for the accessory part number listed below or contact your authorized Gladiator® brand dealer. In Canada, call 1-800-807-6777.

Mounting Bracket Kit - Allows the cabinet to be mounted on

Gladiator ^® GearWall ^® panels or GearTrack ^® channels.

Order Part # GABK301PRS

WARRANTY

For warranty information:

In the U.S.A. call 1-866-342-4089 or visit our website at

www.gladiatorgarageworks.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca
