USER MANUAL Serie 4 BGB41RD3H BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Bagged vacuum cleaner

BGL41... BGB41... BGD41...

https://digitalguide.bsh-group.com/?mat-no=8001307258

[de]	Weitere Informationen und Erklärungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en]	You can find additional information and explanations online. Scan the QR code on the title page.
[fr]	Vous pouvez trouver d'autres informations et explications en ligne. Scannez le code QR sur la page de titre.
[it]	Puoi trovare ulteriori info e spiegazioni online. Scansiona il codice QR sul frontespizio.
[nl]	U kunt online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[da]	Der findes yderligere oplysninger og forklaringer online. Skan QR-koden på forsiden.
[no]	Du kan finne mer informasjon og forklaringer på Internett. Skann QR-koden på tittelsiden.
[sv]	Det finns mer information och förklaringar online. Scanna QR-koden på omslaget.
[fi]	Löydät lisätietoja ja selityksiä verkosta. Skannaa QR-koodn sivun otsikosta.
[es]	Se puede encontrar información y explicaciones adicionales online. Escanear el código QR en la página de título.
[pt]	Pode encontrar informações e explicações adicionais online. Leia o código QR que figura na página de título.
[el]	Μπορείτε να βρείτε επιπλέον πληροφορίες και εξηγήσεις στο διαδίκτυο (online). Σαρώστε τον κωδικό QR στη οελίδα τίτλου.
[tr]	Ek bilgi ve açıklamaları çevrimiçi olarak bulabilirsiniz. Başlık sayfasındaki QR kodunu tarayın.
[pl]	Dodatkowe informacje i objaśnienia są dostępne online. Zeskanuj kod QR na stronie tytułowej.
[bg]	Можете да намерите допълнителна информация и объяснения онлайн. Сканирайте QR кода на заглавната страница.
[uk]	Додаткову інформацію і пояснення можна знайти онлайн. Зіскануйте QR-код на титульній сторінці.
[ru]	Дополнительную информацию и объяснения можно найти в сети Интернет. Сканируйте QR-код на титульной странице.
[ro]	Informații și explicații suplimentare pot fi găsite online. Scanați codul QR de pe pagina de pornire.
[fa]	اطلاعات وトップحات تكميلى را ميتوانید به صورت آنلاین مشاهده کنید. کد QR روي صفحه عنوان را اسكن کنید.
[ar]	يمكنك الاطلاع على معلومات وトップحات إضافية عبر الإ턴عت. امسح رمز الاستجابة السربعة ضوئياً في failصفحة الأولي.

1

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

CLICK

3

CLICK

4

CLICK

5

CLICK

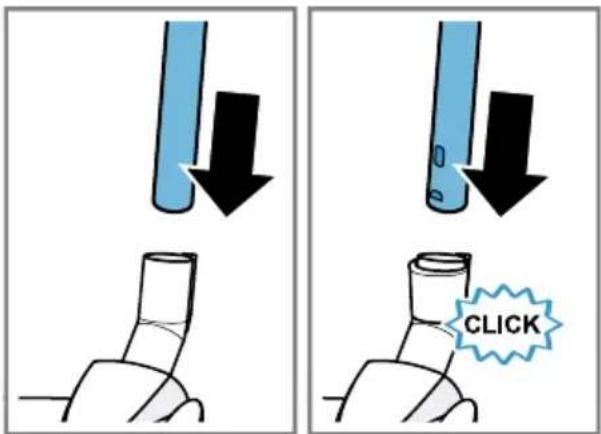

6

Illustration of a vacuum cleaner's internal structure with airflow arrows indicating movement (no text or symbols)

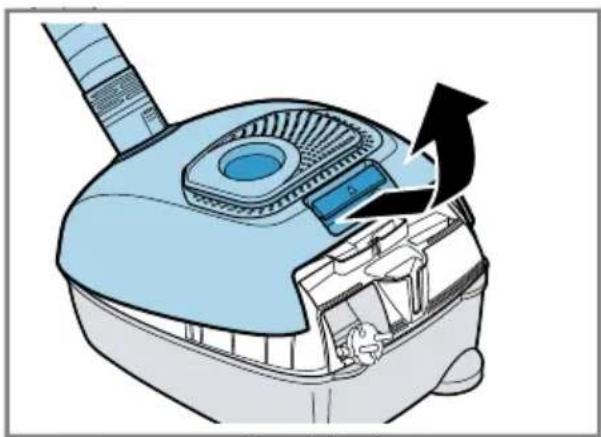

7

CLICK

8

Diagram showing a test tube being inserted into a liquid, with labeled arrows indicating movement or force direction.

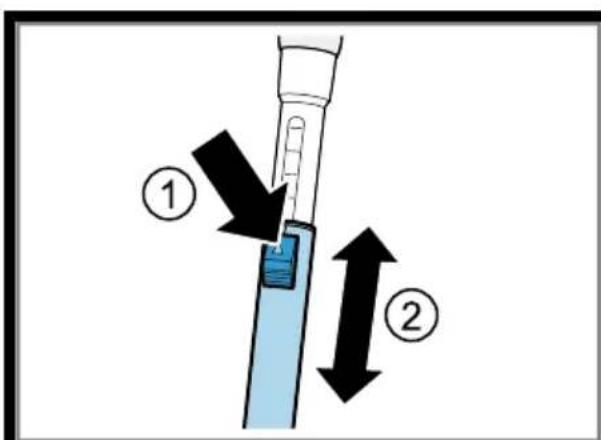

9

Illustration of a hand using a blue tool to adjust or install a mechanical device component (no text or symbols visible)

10

Line drawing of a hand pressing a blue button on a car interior (no text or symbols)

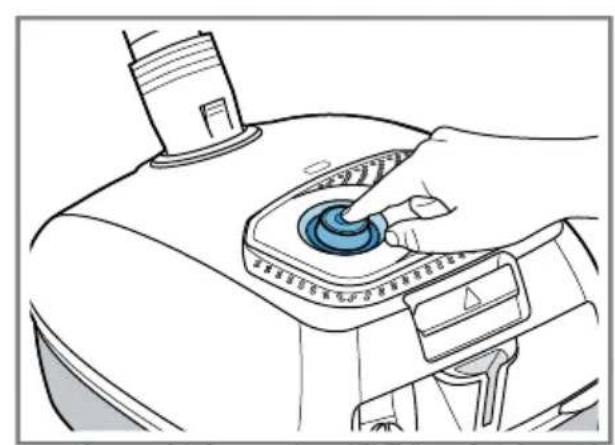

11

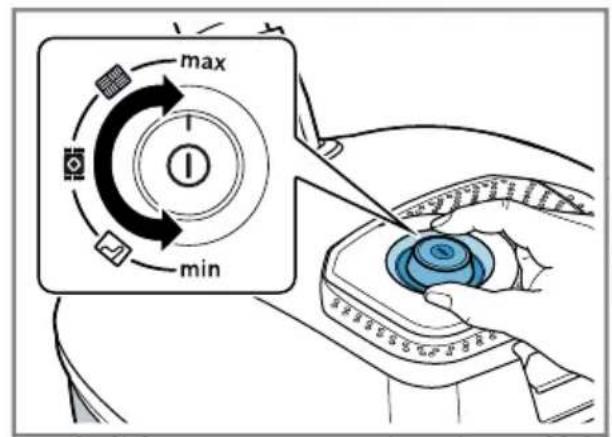

max min

The image is too blurry to recognize any text content.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating motion or feedback.

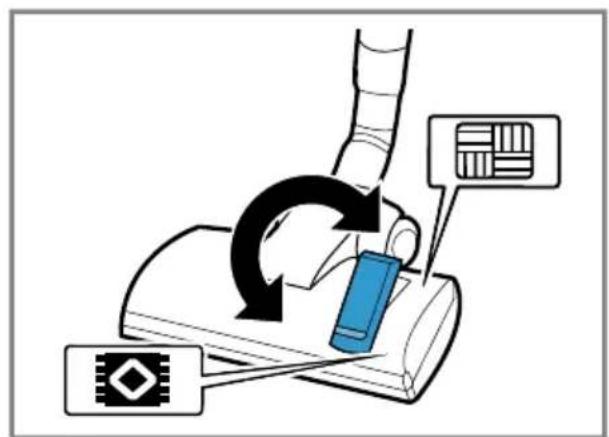

13

Diagram showing airflow or mechanical components inside a vehicle, with no visible text or symbols

14

Illustration showing two-step hand manipulation of a handheld device, no text or symbols present

15

Diagram showing car air lift components with directional arrows and a 'CLICK' button label

16

Diagram of a car interior with a blue vacuum cleaner and a black arrow indicating the process (no text or symbols present)

17

Diagram of a blue vacuum cleaner's internal structure with a black arrow indicating the component (no text or symbols present)

18

Diagram showing a hand using a tool to adjust or install a device, labeled with numbered instructions.

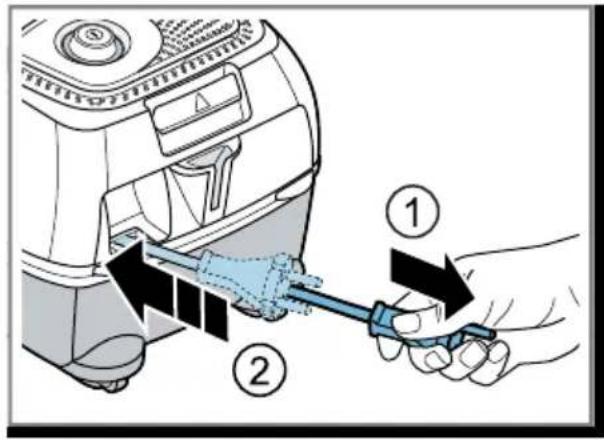

19

Diagram illustrating two steps of a blue cable connector with directional arrows and circular motion indicators.

20

Diagram illustrating two-step mechanical or fluid handling process with labeled arrows and steps ① and ②

21

Diagram showing a blue flexible hose component with numbered parts and directional arrows indicating assembly or installation.

22

Illustration of a blue vacuum cleaner's internal structure with airflow arrows indicating airflow direction (no text or symbols)

23

Diagram of a blue mechanical device inside a container with an arrow indicating rotation or assembly (no text or symbols present)

24

Diagram of a blue mechanical device with two black arrows pointing to its internal components, no text or symbols present.

25

Illustration of a blue vacuum cleaner's internal structure with a black arrow pointing to the component (no text or symbols)

26

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or assembly steps.

27

Diagram of a drain drain with a blue funnel pouring liquid into a fan structure (no text or symbols)

28

1 2 2 24 h

29

Diagram of a refrigerator interior with labeled parts and directional arrows indicating assembly or installation steps

30

Illustration of a showerhead spraying water into a grid-patterned refrigerator (no text or symbols)

31

24 h CLICK

32

Diagram showing a hand inserting air filters into a device, with numbered annotations indicating component placement.

33

Illustration of a blue showerhead spraying water onto a white square surface (no text or symbols)

34

② ① 24 h

4Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ Never pull or carry the appliance by the power cord.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services.→Page 17
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Do not apply flammable substances or substances containing alcohol to the dust bag or filter.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without a dust bag.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

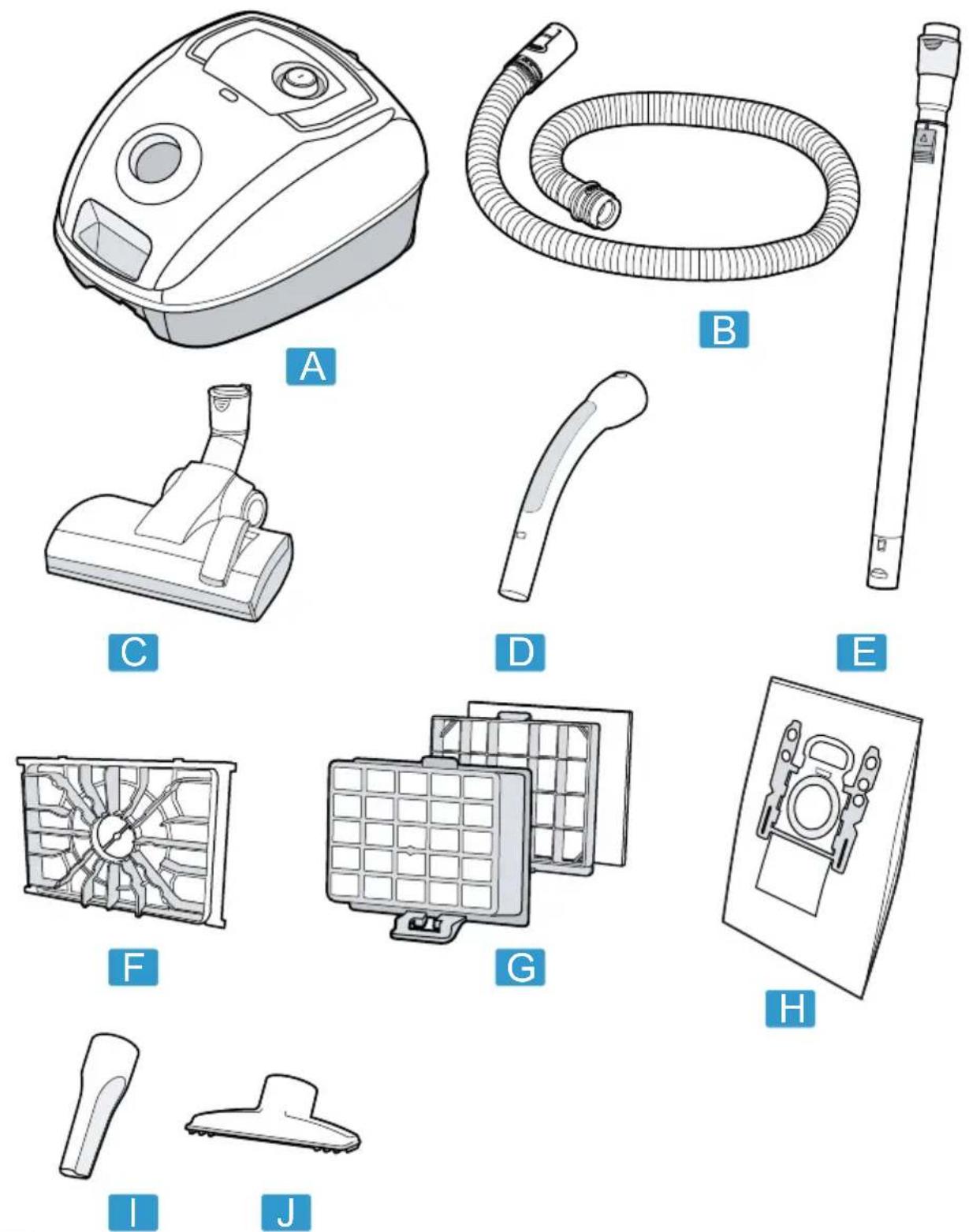

Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features.

→Fig. 1

A Bagged vacuum cleaner
B Hose
C Adjustable floor tool ^1
D Handle
E Telescopic tube with slide button
F Motor protection filter
G Exhaust filter ^1
H Dust bags
Crevice nozzle
J Upholstery nozzle

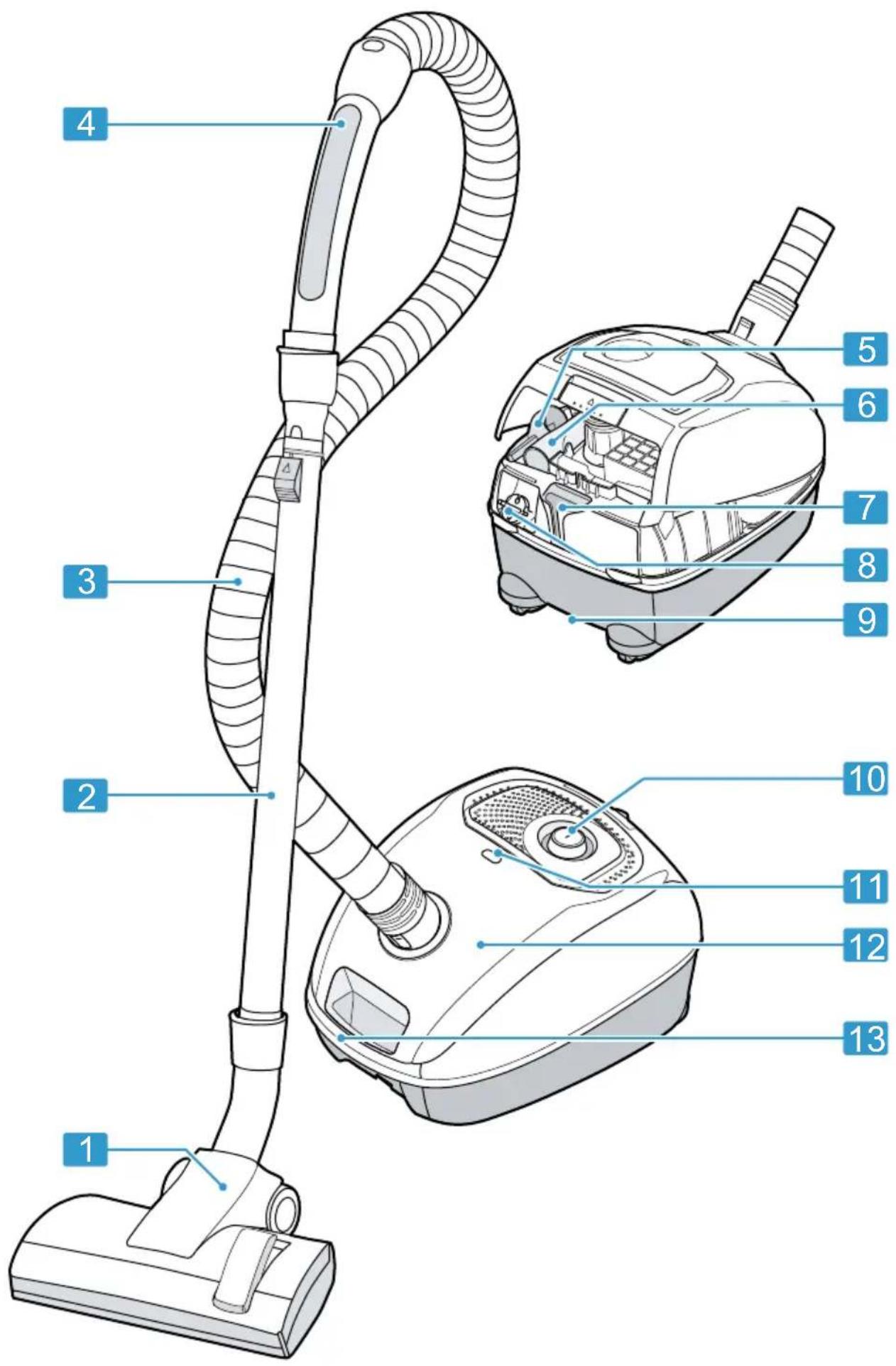

Overview

You can find an overview of the parts of your appliance here.

→Fig. 2

1 Adjustable floor tool ^1
2 Telescopic tube with sliding switch ^1
3 Hose
4 Handle ^1
5 Upholstery nozzle

6 Crevice nozzle
7 Parking aid
8 Power cord
9 Storage aid
10 Power control and on/off switch
11 Bag change indicator
12 Lid
13 Handle

Operation

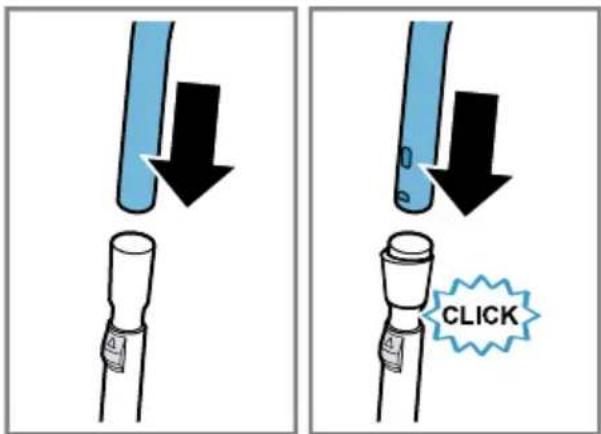

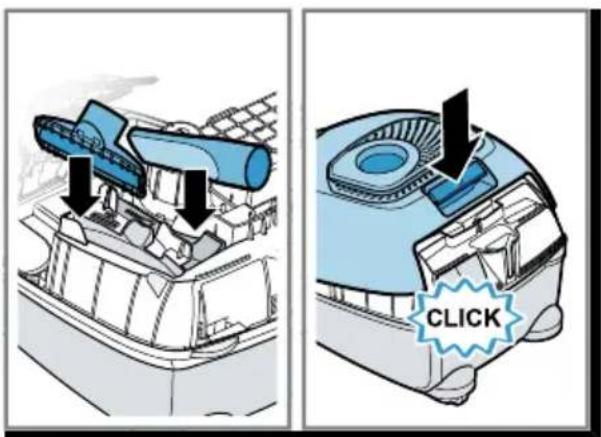

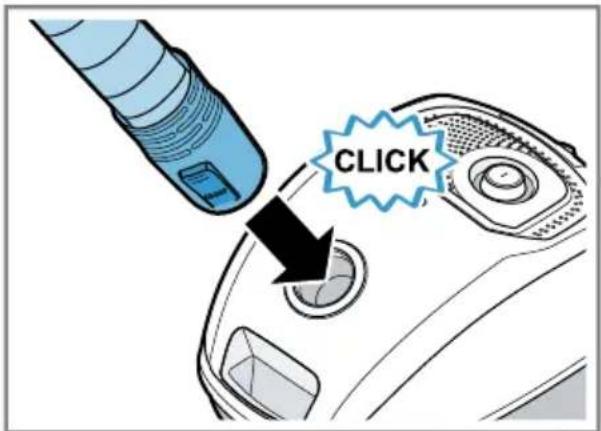

Installing the appliance

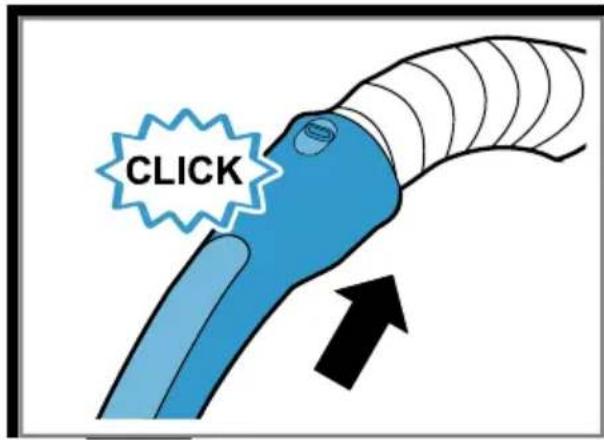

→Fig. 3 - 8

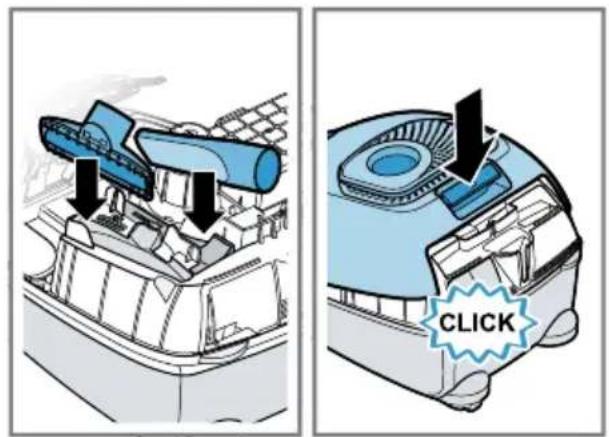

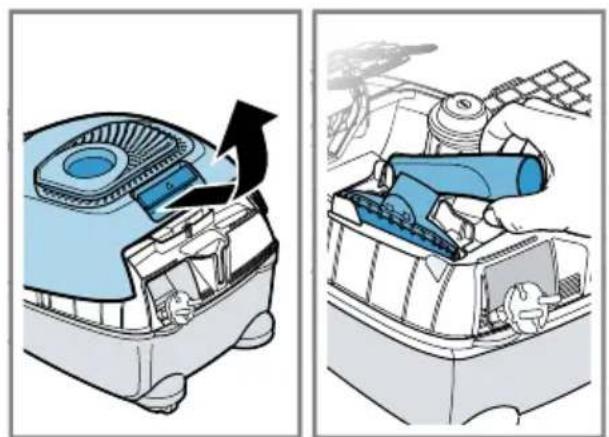

Operating the appliance ^1

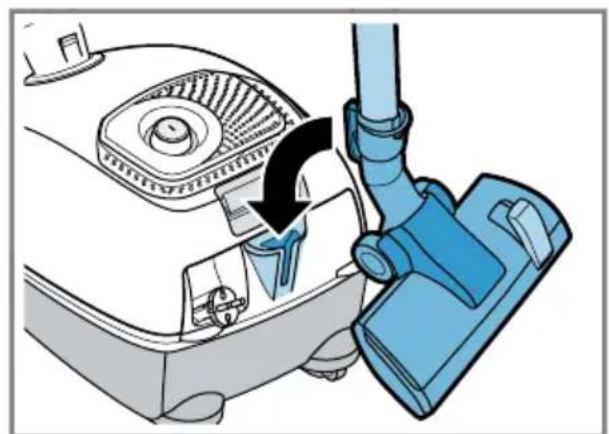

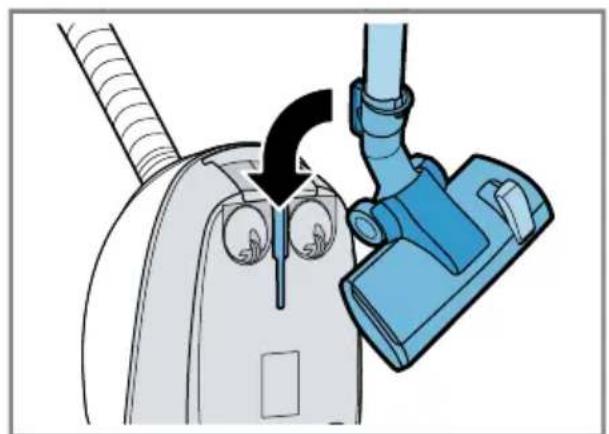

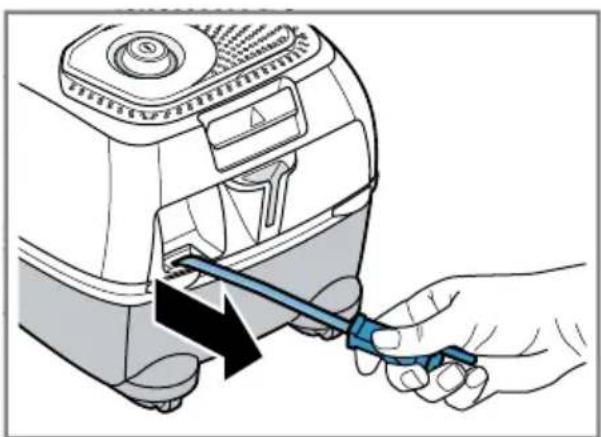

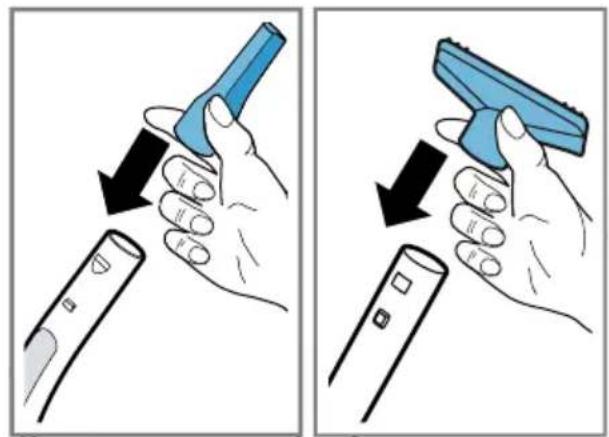

→Fig. 9 - 19

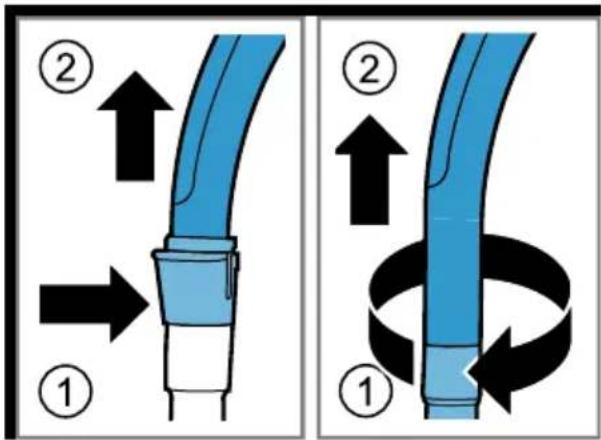

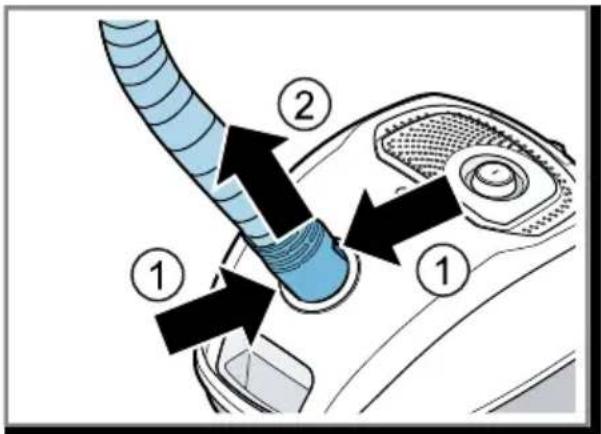

Removing the appliance

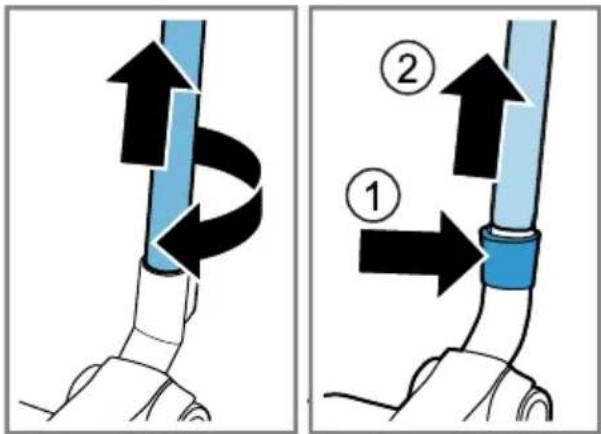

→Fig. 20 - 22

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

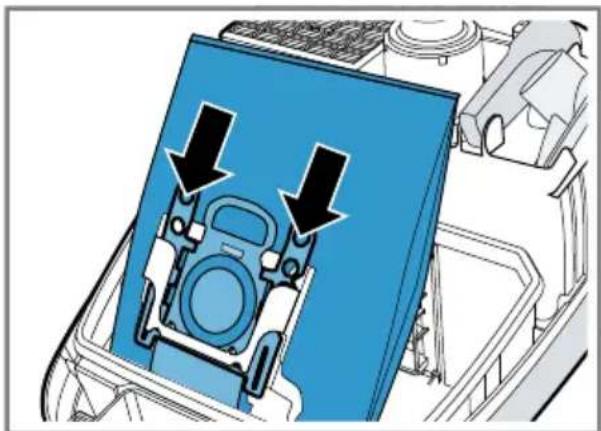

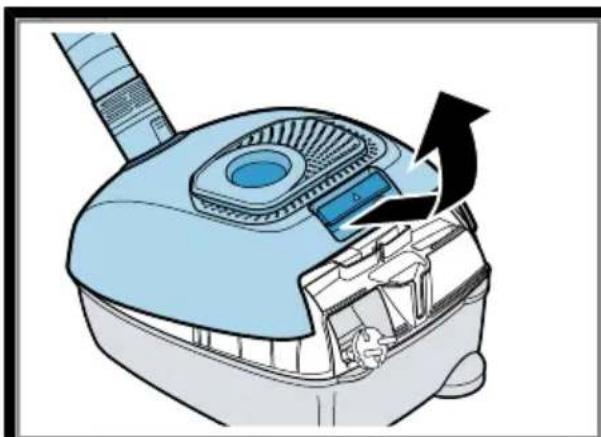

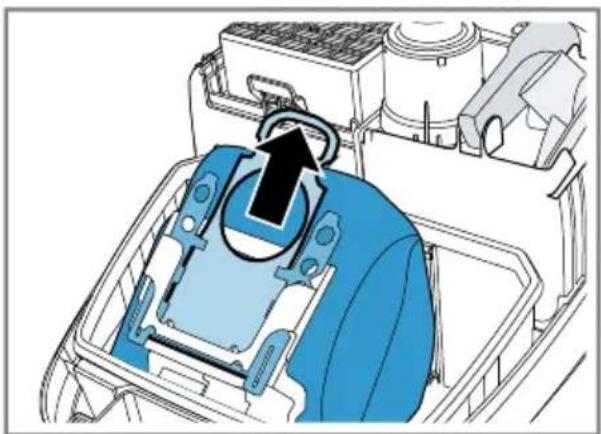

Changing the dust bag

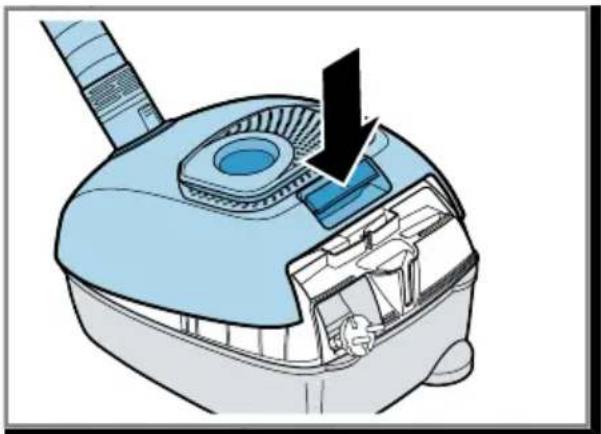

→Fig. 23 - 26

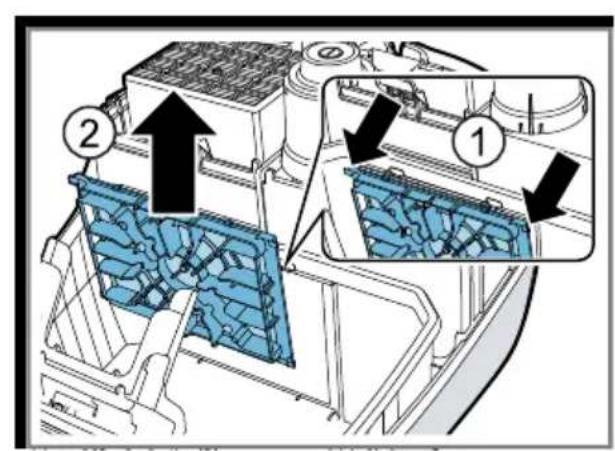

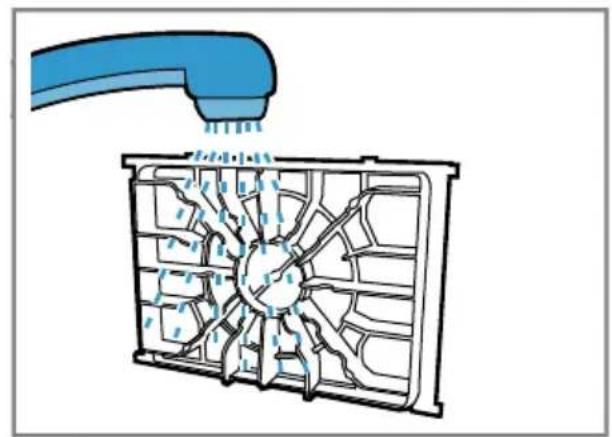

Cleaning the motor protection filter

→Fig. 27 - 29

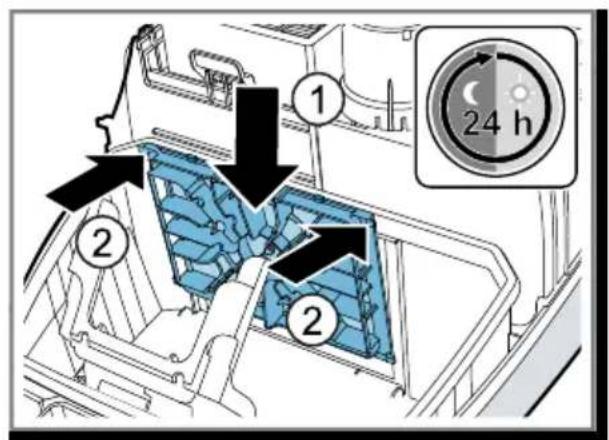

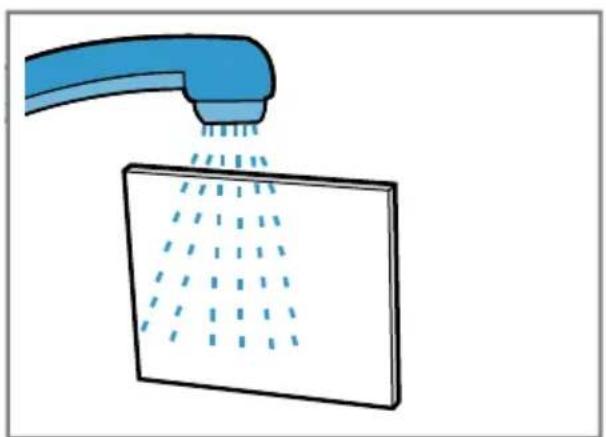

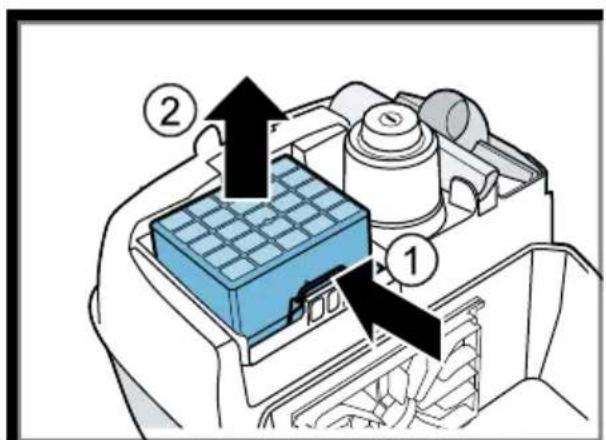

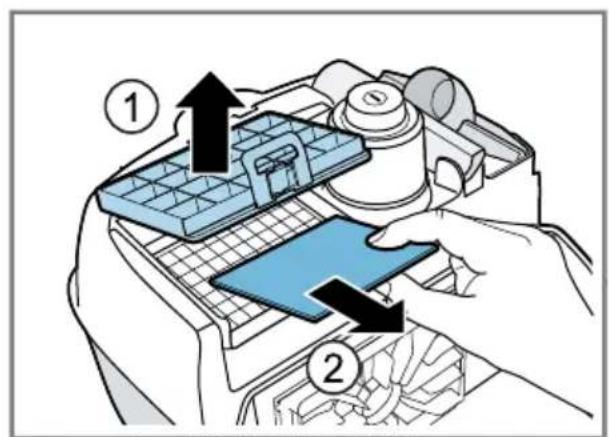

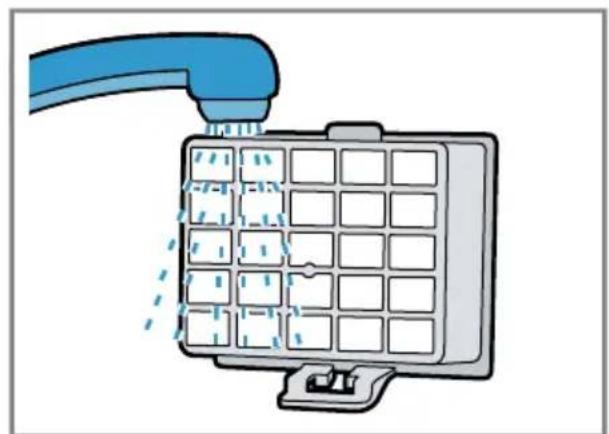

Cleaning the exhaust filter ^1

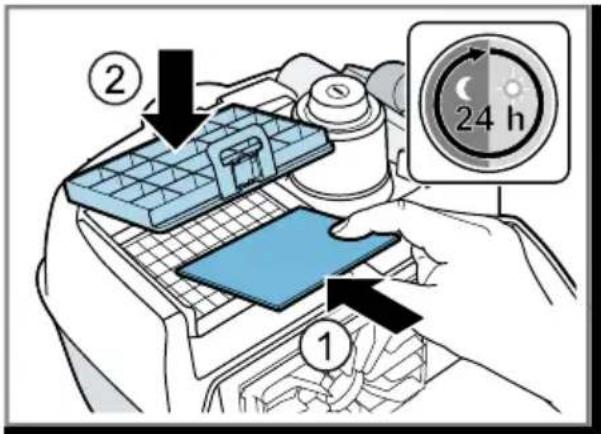

→Fig. 30 - 35

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Suction is reduced.

Filter change indicator is lit continuously.

The dust bag is full.

▶ Change the dust bag.

Nozzle, telescopic tube or hose are blocked.

1. Dismantle the appliance.

2. Remove the blockage.

Exhaust filter is dirty.

▶ Clean the exhaust filter.

The motor protection filter is dirty.

▶ Clean the motor protection filter.

Brush on the turbo nozzle does not turn.

Brush roller is soiled.

▶ Clean the brush roller.

Suction power is too low.

- Turn the power controller to maximum suction power.

The household fuse trips when the appliance is switched on.

Several appliances are operated simultaneously at an electrical mains supply.

1. Switch on the household fuse.
2. Set the lowest performance level.
3. Switch the appliance on.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.
