USER MANUAL FX-WKS1700 Fuxtec

Firewood rocker circular saw

Exterior view of a FUXTEC industrial machine with wheels and a door, labeled 'MADE IN GERMANY' (no additional signage or text visible)

CE

Wippkreissäge

Hersteller:

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Technical diagram showing three mechanical device configurations with labeled parts and cross-sectional view indicators.

Industrial machine with mechanical components and a directional arrow indicating motion (no visible text or symbols)

Wippensperre

Close-up of a mechanical bracket with a downward arrow and label '1' pointing to a specific part (no text or symbols beyond the label)

Technical line drawing of a mechanical component with a tool inserted into a housing (no text or symbols)

Inbetriebnahme

Günzburger Straße 69

D-89335 Ichenhausen

Dear client,

We hope you enjoy your new firewood circular saw and wish you success with it.

INFORMATION:

The manufacturer of this tool is, according to the current product liability law, not liable for damages caused to or by this tool because of:

- incorrect usage,

- failure to observe the manual,

•repairs by third parties, not authorized specialists,

- fitting and exchange of non-original exchange parts,

•non-intended use,

- falling out of the electrical installations because of inobservance of the electrical Rules and VDE-Regulations 0100, DIN 57113/VDE0113.

We recommend that you:

Read the entire operating instructions before assembling and implementing.

This instruction manual should make it easier for you to get to know your machine and to use its range of applications as intended. The manual contains important information on how to work with the machine in a secure, correct and efficient way, and how you can avoid risks, save repair costs, reduce down time and increase the reliability and life span of the machine. Apart from the safety rules mentioned in these operating instructions, you should implicitly pay attention to the valid regulations of your country for the use of the machine. Keep the manual, in a plastic cover protected against dirt and humidity, with the machine. They should be read and observed carefully by every member of staff before starting to work. Only people instructed on how to use the machine and informed about the possible risks, should be allowed to use it. The required minimum age is to be adhered to. Besides the safety instructions in this manual and the special regulations of your country the recognized technical rules for the operation of wood processing machines need to be observed.

General instructions

• After unpacking please check all parts for possible damage during transport. In case of complaints the driver needs to be contacted as soon as possible.
• Complaints coming in later will not be recognized as such.
• Check if the consignment is complete.
• Familiarize yourself with the machine by means of the operating instructions before implementing it.
• In case of replacing worn or exchange parts, as for accessories, only use original Fuxtec parts. You can obtain exchange parts at the specialized dealer.
• Upon ordering, please specify our article n^o 's as well as type and year of construction of the tool.

Safety instructions

- In these operation instructions we have indicated positions that concern your safety, with this mark.

Training of the operator

• Forward the safety instructions to all people working on or with this machine.
• The minimum age for the operating person is 18 years. Trainees should be minimum 16 years of age, but are only allowed to work with the machine under supervision.
  • People running the machine should not be distracted.
• Keep children away from the to the net connected machine.
• Do not wear tight clothing. Take off jewelry, rings and wristwatches.
• Be careful at work: Danger of damaging finger(s) and hand(s) by the rotating cutting tool.
  • Take notice of all safety and danger information of the machine and keep them readable.

Steadfastness

- Please be vigilant the machine is steadfast while being assembled.

Power supply line of the machine

• Check power supply lines. Do not use defective lines. See "Electrical connection".
• Pay attention to the motor and tool rolling direction. See „Electrical connection“.
• Installations, repairs and maintenance installations to the electrical installation should only be carried out by experienced staff.
• To repair disorders switch off the machine. Pull out the power plug.
• Upon leaving the work site switch of the motor. Pull out the power plug.
• Also at the slightest movement of the machine disconnect it from any external power supply! To restart orderly reconnect the machine to the power supply!

Setting-up and adjusting of the machine

• Setting-up, modifying, measuring as well as cleaning to be carried out only when motor is switched off. Pull out power plug and wait for stagnation of the rotating tool.
• All protection and safety facilities have to be assembled again directly after repair and maintenance works have finished.
• Use only well sharpened, slit free and non-deformed saw blades.

Safety notes: ⚠️

• Take due note of all this information before and while working with the saw.

- Do not lose these safety regulations.

- When equipment is not being used it should be kept in a dry, closed place out of childrens reach.

- Keep mounted attachments sharp and clean to enable you to work well and safely.

- Warning! The use of other tools and accessories may put you at risk of injury.

- Give these safety regulations to all persons who work on the machine.

- Caution! Hands and fingers may be injured on the rotating saw blade.

- Warning: Always unplug the power plug prior to starting any of the maintenance work described in this manual.

- Do not leave the saw in the rain and never use it in damp or wet conditions.

- Provide good lighting.

- Do not saw near flammable liquids or gases.

- Wear suitable work clothes! Loose garments or jewelry may become caught up in the rotating saw blade.

• Non-slip shoes are recommended when working outdoors.

- Wear a hair net if you have long hair.

- Avoid abnormal working postures.

- Operators must be at least 16 years of age.

- Keep children away from the machine when the motor is running.

- Keep your workplace clean of wood scrap and any unnecessary objects.

- An untidy work area invites accidents.

- Do not allow other persons, especially children, to touch the tool. Keep them out of your work area.

- Persons working on the machine should not be distracted.

- Note the direction of rotation of the motor and saw blade. Use only blades whose permissible maximum speed is not lower than the maximum spindle speed of the circular saw and of the material to be cut.

• After you have switched off the motor, never slow down the saw blade by applying pressure to its side.

- Only fit blades which are well sharpened and have no cracks or deformations.

- Do not use circular saw blades made of high-alloy high-speed steel (HSS).

- Only use saw blades that are recommended by the manufacturer, comply with EN 847-1 and bear a warning note. When replacing the saw blade ensure that the cutting width is no smaller and the basic blade thickness of the saw blade is no larger than the thickness of the splitter.

- Faulty saw blades must be replaced immediately.

- Never use saw blades which do not comply with the data specified in this manual.

- Never dismantle the machines safety devices or render them inoperative.

- If the table insert is worn, replace it.

• Always stand to the side of the saw blade when working with the saw.

- Never load the machine so much that it cuts out.

- Make sure that off-cuts do not catch on the saw blade crown. Risk of catapulting!

- Never remove loose splinters, chips or jammed pieces of wood when the saw blade is running.

• To rectify faults or remove jammed pieces of wood, always switch off the machine first. Unplug the power plug!

- If the sawing gap is worn, replace the table insert.

- Carry out retooling work, adjustments, measurements and cleaning jobs only when the motor is switched off. Unplug the power plug

- Before switching on, make sure that all keys and wrenches have been removed from the tool.

- Switch off the motor and unplug the power plug before you leave the workplace.

• Refit all guards and safety devices immediately after you have completed any repairs or maintenance work.

- Be sure to observe the safety information and operating and maintenance instructions issued by the manufacturer, as well as the dimensions listed in the Technical Data.

- It is imperative to observe the accident prevention regulations in force in your area as well as all other generally recognized rules of safety.

- Do not use any low-powered machines for heavy duty work.

- Make sure you stand squarely and keep your balance at all times.

- Check the tool for damage.

• Each time before re-using the tool, carefully check that the guards or any slightly damaged parts are working as intended.

- Check that the moving parts are in good working order, that they do not jam, and that no parts are damaged. Make sure that all parts are fitted correctly and that all other operating conditions are properly fulfilled.

- Unless otherwise stated in the operating instructions, damaged safety devices and parts must be repaired or replaced by an authorized service center.

- Have damaged switches replaced by a customer service workshop.

- If necessary, wear suitable personal protection equipment. This could consist of:

- Ear plugs to prevent the risk of damaging your hearing;

- A breathing mask to avoid the risk of inhaling hazardous dust.

- Always wear gloves when handling saw blades and rough materials. Whenever practicable, saw blades must be carried in a container.

• The operator must be informed about the conditions that influence the generation of noise (for example saw blades designed to reduce noise emissions, caring for blades and the machine).
  • Faults on the machine or its guards, safety devices and blade must be reported to the person in charge as soon as they are discovered.
• Use only the transport devices to move the machine. Never use the guards for handling and moving the machine.
• All operators must receive proper training in the use, adjustment and operation of the machine.
• Do not saw any materials that contain foreign bodies such as wires, cables or ties.
• Only use sharp saw blades

Use only as authorized:

The machine corresponds to the valid EC guideline.

• The log saw is constructed as 1-man-operating stand and is only to be used in outdoor locations.
• The log saw is a portable circular saw. It is only applicable to cross cut firewood with a feeding rocker according to the technical specifications.
• The saw is constructed solely for cross cutting of firewood.
• Regardless of the diameter of the wood only 1 work piece is to be put on the rocker.
• Observe all safety and hazard notes on the machine and ensure they are kept complete and in a legible condition.
• The machining range and surrounding areas of the machine must be clear of interfering foreign matter to prevent accidents occurring.
  • Workpieces must be completely free of foreign objects, i.e. nails or screws.
• The circular sawbench is designed exclusively for the machining of wood and materials similar to wood. Only original Scheppach tools and accessories may be used. Use the required sawblade in accordance with the EN 847-1 norm depending on the type of cut and type of wood (solid wood, plywood or chipboard). Please observe the „Special Tool Accessories“.
• The machine must only be used in technically perfect condition in accordance with its designated use and the instructions set out in the operating manual, and only by safety-conscious persons who are fully aware of the risks involved in operating the machine. Any functional disorders, especially those affecting the safety of the machine, should therefore be rectified immediately.
• Relevant accident prevention regulations and other, generally recognized safety-technical rules must also be adhered to.
• The Scheppach machine may only be used, maintained, and operated by persons familiar with it and instructed in its operation and procedures. Arbitrary alterations to the machine release the manufacturer from all responsibility for any resulting damages.
• The Scheppach machine may only be used with original accessories and original tools made by the manufacturer.
• Any other use exceeds authorization. The manufacturer is not responsible for any damages resulting from unauthorized use; risk is the sole responsibility of the operator.Remaining hazards.

Ohter risks

The machine has been built using modern technology in accordance with recognized safety rules. Some remaining hazards, however, may still exist.

• The rotating saw blade can cause injuries to fingers and hands if the work piece is incorrectly fed.
• Thrown work pieces can lead to injury if the work piece is not properly secured or fed.
• Noise can be a health hazard. The permitted noise level is exceeded when working. Be sure to wear personal protective gear such as ear protection.
  • Defective saw blades can cause injuries. Regularly inspect the structural integrity of saw blades.
• The operating instructions supplied with the special accessories must be observed and carefully read when Scheppach special accessories are used.
  • Even when all safety measures are taken, some remaining hazards which are not yet evident may still be present.
• Remaining hazards can be minimized by following the instructions in “Safety Precautions”, “Proper Use” and in the entire operating manual.

Technical diagram of a mechanical device with labeled components and cross-sectional view showing internal structure and assembly.

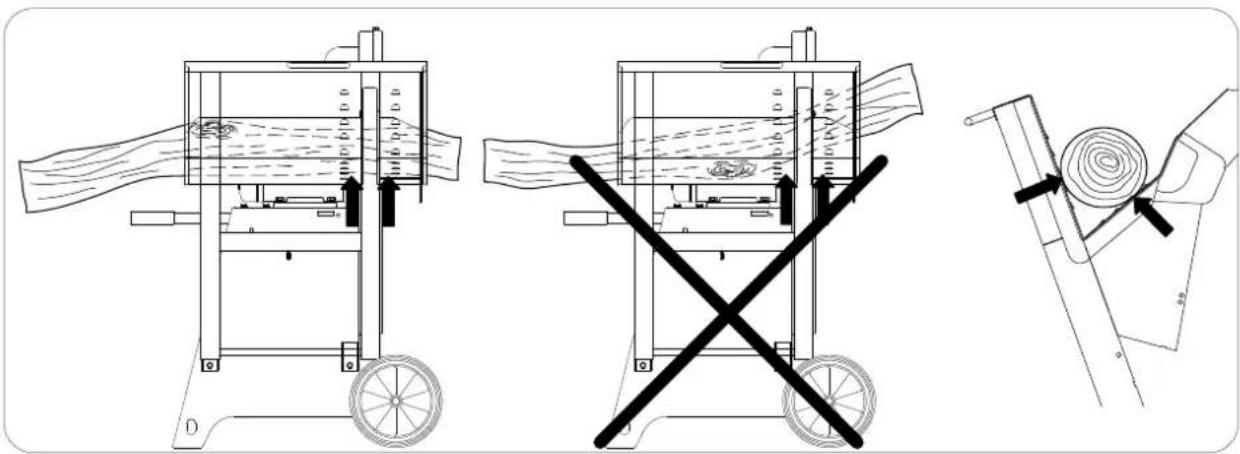

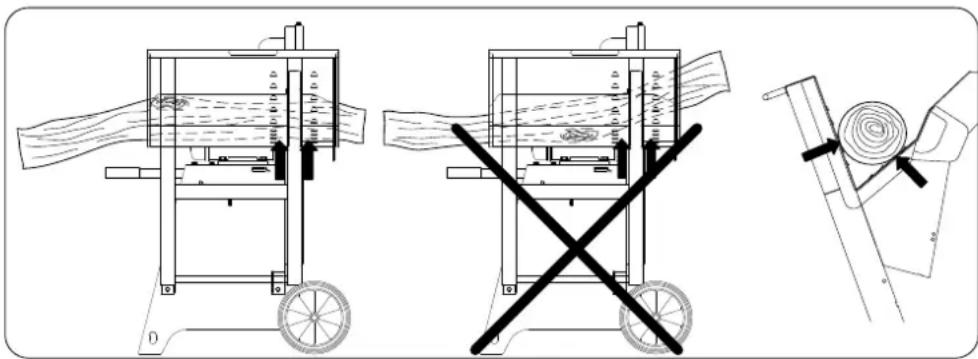

Attention: risk of accident!

The wood must always be seated on both sides of the saw blade on the v-block of the rocker. (see arrows)

Scopeofdelivery

Rocker circular saw

Female six fold wrench or open-end wrench

Locking pin

Operational instructions

Technische Daten
		FX-WKS1700
Artikelnummer 59051039922
Construction measurements:
Total length	mm 1270
Total width	mm 730
Total height	mm 1130
Rocker support	mm 670
Saw blade ∅	mm 700
Idle - Motor	1/min 1400
Cutting speed- Saw blade	m/sec 52
Weight	kg 92
Power unit:
Motor V/Hz 380 - 420 / 50
Input power P1	kW 5,2
Output power P2	kW	3,58
Operating mode		S6 / 40%
Rated current	A	10
Work information
Cutting height Spar	max. mm 240
	min. mm 60
Turning cut	max. mm 250
Piece of wood	max. mm 380x240
Technische Änderungen vorbehalten!

Specific noise values

The according to the EN 23746 for the sound pressure level resp. EN 31202 (correction factor k3 after supplement A.2 from EN 31204 calculated) for the sound pressure level on the working site ascertained noise emission value amounts under the foundations of ISO 7904 supplement A performed working conditions to:

Sound pressure level in dB

Idle LWA / Processing LWA

dB(A)

95 / 102

Sound pressure level on working site in dB

Idle LpAeq / Processing LpAeq

dB(A)

85/92

The specified values are emission values and therefore should not at the same time be reliable working site values. Although there is a correlation between emission and immersion levels, it cannot unfailingly be derived if extra precautions need to be taken or not. Factors, which influence the actual available immersion value on working site, include the peculiarities of working area, other sources of noise, e.g. the number of machines and other adjoining processes. The allowed working values could vary from country to country. However, the information should qualify the user, to be able to make an estimation of the dangers and risks.

Assembly

The machine is supplied completely assembled them, and is therefore ready to use.

Setting-up and adjustment

Please pay attention that your rocker circular saw is set up stable and on a leveled floor.

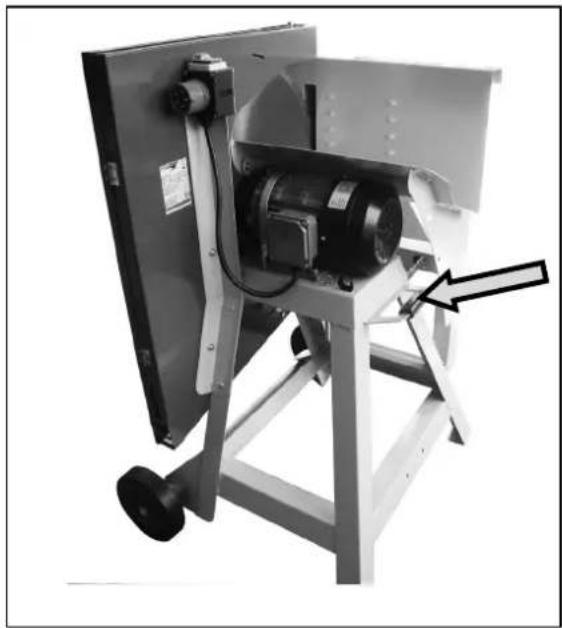

Transport of the machine

Mechanical device with motor and wheels, no visible text or symbols

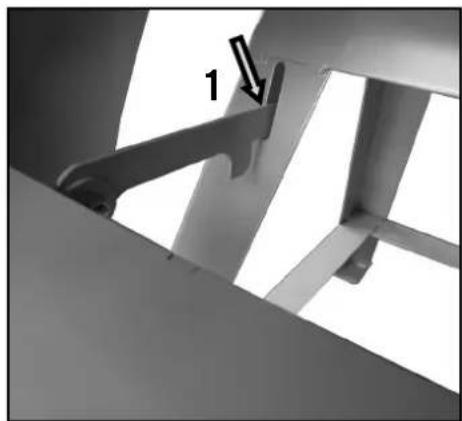

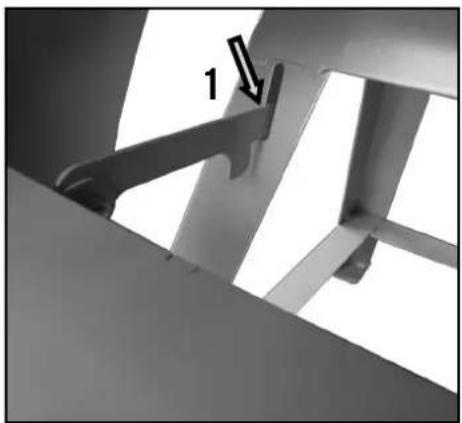

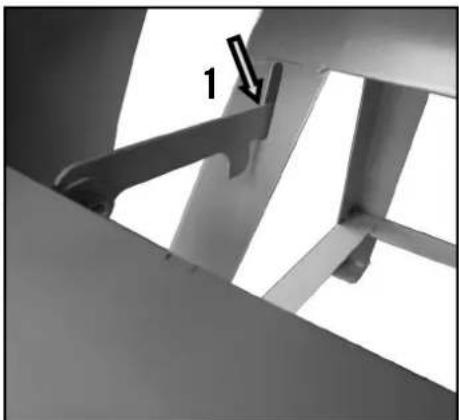

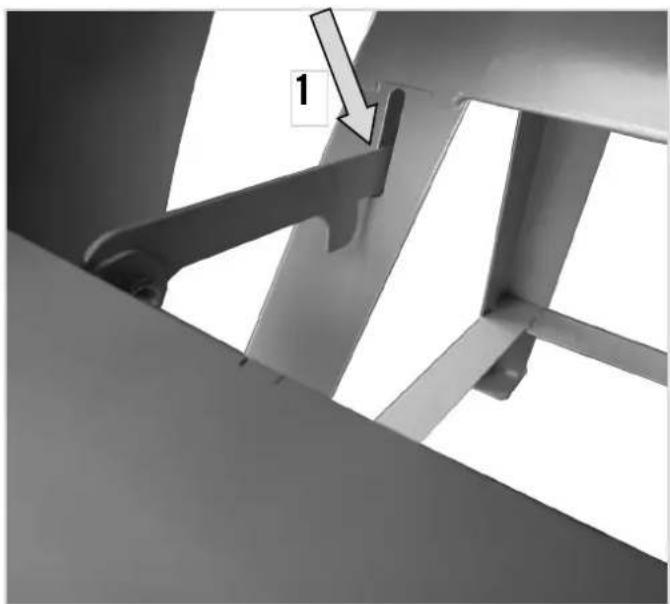

Rocker lock

- To transport the rocker circular saw lock in place the rocker lock in position (1).

Close-up of a metal bracket with a labeled component '1' and an arrow pointing to a detail (no text or symbols beyond the label)

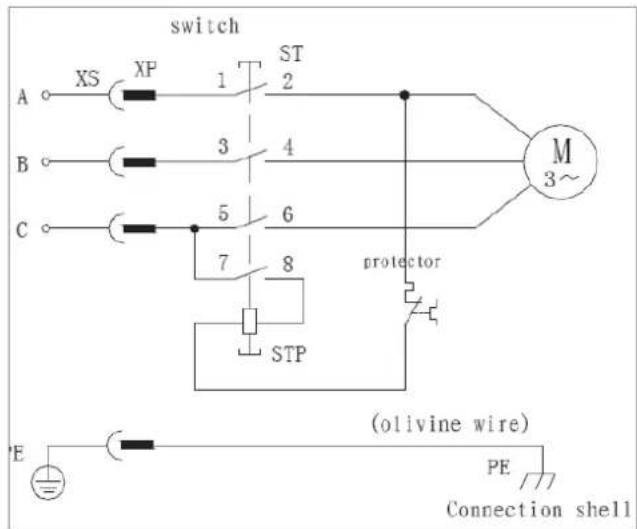

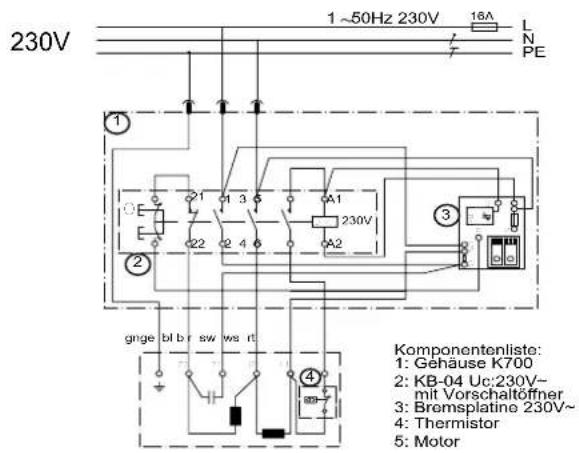

Electrical connection

• Connect the machine with a CEE-plug to the power supply, provided supply should be 16.
• Switch on the machine with the power switch, the motor runs up.
• Upon switching off the saw shaft is slowed down within 10 seconds.

Changing of rolling direction

The installed electrical motor is connected ready to operate. The connection complies with the relevant VDE and DIN-regulations.

The power supplied by the customer as well as the used extension cable should comply with these regulations resp. the local regulations.

Technical line drawing of a mechanical component with a threaded end and internal shaft (no text or symbols)

Motor-brake appliance

The brake slows down the motor of the saw shaft within 10 seconds. The electrical braking is interrupted after maximum 14 seconds.

In case the braking takes more than 10 seconds the machine should not be used again, as the brake is defective. The machine implicitly needs to be disconnected from the power supply. Only an electronic specialist should be instructed to repair this malfunction.

The electrical motor is dimensioned for operating mode S 6 - 40 %.

S6 = pass operation with load exposure

40% = related to 10 min. 4min. load; 6min. pass operation

If the motor gets overcharged, it automatically switches off, as a winding thermal switch is built in in the winding of the motor. After a cool-down period (time varies) the motor can be switched on again.

Defective electrical power supply cords

Electrical power supply cords often suffer insulation damages.

Possible causes:

• Pressure spots, when power supply cords are being led through windows or doors.
• Buckling spots by incorrect attachment or guidance of the power supply cords.
  •Cuttings by driving over a power supply cord.
  • Insulation damages through pulling out of the socket.
• Cracks in worn-out insulation.

Such defective electrical power supply cords should not be used and are extremely dangerous because of the insulation damage.

Check electrical power supply cords on damages on a regular base. Please pay attention that upon checking the power supply cord is not plugged in. Electrical power supply cords have to comply with the relevant VDE and DIN-regulations. Only use power cables with the qualification H 07 RN. The type denomination should be imprinted.

There has to be an imprint of the type denomination on the connection cable.

- Extension cables must be up to 25m long, have a cross cut of 1.5 square millimeter, be over 25m length, and have a minimum 2.5 square millimeter.

•The powersupply should be 16 A.

Rotary current motor

•The power supply has to be 380-420 Volt / 50 Hz.
- The power supply and the extension cables must be 5-fold leads = 3 P + N + SL.
- Extension cables must have a minimum cable cross section of 1.5 square millimeter.

•The power supply should be maximum 16 A.

- In case of connection to the power supply or moving site the rotary direction should be checked, otherwise the polarity has to be changed.

Alternating current motor

•The supply voltage hast to be 220-240 Volt / 50 Hz.
- Extension cables must be up to 25m long, have a cross cut of 1.5 square millimeter, be over 25m long, and have a minimum 2.5 millimeter.
•The power supply should be 16 A.

Connections and repairs of the electrical equipment should only be carried out by an electrical specialist. In case you have further questions, please specify the following:

• Motor manufacturer
• Current type of the motor
  • Information of the machine type label
  •Information of the switch type label

If you send the motor back, always return the complete power unit with electro-control.

Commissioning

Before commissioning observe the safety notes.

• All safety and auxiliary installations must be fitted.
• Check the rocker inlet for wear and replace it if necessary.
• Check the rocker that it returns to its home position autonomously.
• Check the saw blade for perfect fitting and correct direction of rotation.
• Changeover, setting, measuring and cleaning operations are only to be conducted with the motor switched off. Unplug the spark plug and wait for the stop of the rotating tool.
• The saw is constructed solely for the cross cutting of firewood.
• Regardless of the diameter of the wood only one work piece is to be put on the rocker.
• ATTENTION! Do not saw faggots or multiple pieces at once.
• Put curved wood on the rocker in such a way that the curved-out side is directed to the saw blade (Fig. 6).
• Ensure the machine is securely placed on solid ground.
• Prior to each startup of the device, the two shaft bearings must be lubricated on the lubricating nipples using bearing grease (fig. 13; A).

Operation notes

Make sure the machine is completely and expertly assembled. Check before every use:

• The machine for any possible damage.
• The firm seat of all bolts.
• The motor oil level and the fuel level.

Sawing

1. Turn on the machine.
2. Wait until the saw blade has reached full speed.
3. Put the wood on the rocker.
4. Take hold of both handle bars of the rocker with both hands and lead it evenly to the saw blade; thus the saw blade is revealed.
5. Push the rocker evenly to ensure the engine speed does not drop.
6. Remove the sawn wood from the rocker before putting on the next piece.

ATTENTION!

• Do not leave the machine unattended during operation.
• Turn off the machine if you discontinue working, and unplug the plug.

End of work

• Turn off the machine.
• Wait until the blade has completely stopped.
• Observe general maintenance instructions.
• Unplug the machine from the power connection.
• Place the jack in the transport position and secure it with the locking lever

GB

The following details are required to allow correct and fast processing of a spare parts order:

1. Machine type
2. Machine number
3. Description, order number for spare part.
4. When ordering spare parts for electric equipment, the date shown on the nameplate of motor and switch must be quoted.
5. The color (RAL number) of the desired spare part.
6. Quantity of the required spare part.
7. Exact details of address and type of dispatch.

Maintenance

Before undertaking any maintenance or checking work, the working area must be cleaned. Keep the necessary tools within the reach of your hand.

The intervals mentioned herein are based on normal conditions of use. An excessive use of the machine shortens the intervals accordingly.

Clean the panels, screens and control levers with a soft cloth. The cloth should be dry or slightly humid with a neutral cleaning agent. Do not use any solvents like alcohol or benzene as they could damage the surfaces.

Store oil and grease outside the reach of unauthorized personnel. Strictly follow the instructions on the bins. Avoid direct contact with the skin. Rinse well after use.

Switch off the motor before undertaking any converting, maintenance, or cleaning work.

Preventive maintenance

Turn off engine and disengage all command levers. Engine must be cool. Disconnect the plug.

Inspect the general condition of the unit. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, and any other condition that may affect its safe operation.

Remove all debris and other materials that may have accumulated to the brush. Clean after each use.

Then use a premium quality lightweight machine oil to lubricate all moving parts.

⚠️ Never use a “pressure washer” to clean your unit. Water can penetrate tight areas of the machine and its transmission case and cause damage to spindles, gears, bearings, or the engine. The use of pressure washers will result in shortened life and reduce serviceability.

Experienced craftsmen can perform minor repairs on the machine itself.

- Check the saw blade regularly. Use only well-sharpened, crack-free and not distorted saws. Use only tools that comply with the European standard EN 847-1.

• Exchange immediately rocker that run out.

- Check all safety installations after each maintenance and cleaning activities.

- Ensure that there are no tools or other materials on or in the machine before putting it into operation.

- Remove possible sawdust blockages at the discharge.

Implementation

- Please read the safety instructions before implementation.

- All protection and additional facilities should be fitted.

- The saw is exclusively constructed to cross cut firewood with a maximum length of 1 meter.

- Independent of the wood diameter only one piece should be laid on the rocker.

- Hold the wood with the left hand and use the rocker with the right hand.

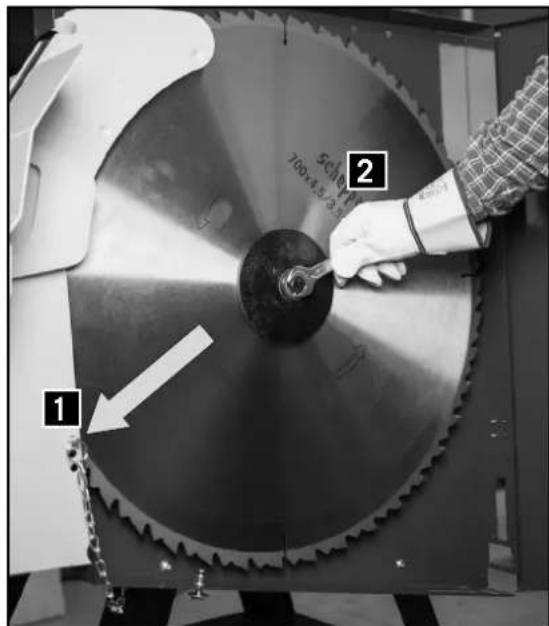

Change of saw blade

1 Unplug the mains plug or spark plug.

2 Wait for a while and allow to cool.

3 The saw blade change can only be carried out in the firewood cutting position.

4 Loosen the upper and lower screws on the protective cover by approx. 5 mm, and open the protective cover.

5 To lock the saw blade, insert the locking pin (1) through the corresponding opening on the blade guard. To do this, insert the bolt completely and straight into the hole. Use the corresponding hole (depending on the type of blade) so that the bolt rests at the lowest point (tooth ground).

6 Loosen saw blade (2) with sawbelt.

7 Carefully remove the saw blade. Wear safety gloves. (Warning of injury)!

8 Before using the new saw blade, clean the flange with a cloth or brush.

9 Replace the saw blade and the flange and tighten the flange nut again.

10 Now remove the locking pin so that the saw blade can turn freely again.

11 Close the side cover.

12 Carry out the functional test of the rocker and saw blade.

Schmit 700 x 4.8 x 2.5 1 2 1

⚠ Attention! When installing the saw blade, pay attention to the correct direction of rotation!

Troubleshooting

Upon switching off the saw does not slow down.	1. Brake board defect 1. Renew brake board
Saw blade comes loose after the engine is turned off.	1. Mounting nut has not been sufficiently tightened.	1. Tighten the mounting nut; right-hand thread.
Burnt areas on the cutting surface	1. Blunt saw blade2. Incorrect saw blade	1. Sharpen the saw blade, replace it.2. Replace the saw blade
Engine does not start 1.	The spark plug cable has been disconnected.2. No fuel or old fuel.3. The choke is not in the open position4. The fuel line is blocked.5. Dirty spark plug.6. The engine has stalled.7. The engine oil level is low.	1. Connect the spark plug cable securely to the spark plug2. Put in clean, fresh petrol.3. The throttle lever has to be in the CHOKE position during cold start.4. Clean the fuel line.5. Clean, set gap or replace.6. Wait a few minutes before restarting, but do not let the engine draw in petrol.7. The oil monitor prevents the engine starting if the oil level is low - check the oil level.
The engine runs irregularly.	1. The spark plug cable is loose.2. The engine runs with CHOKE.3. The fuel line is blocked or old fuel is in the tank.4. The ventilation hole is blocked.5. There is water or contamination in the fuel system.6. Dirty air filter.7. Incorrect carburettor setting.	1. Connect the spark plug cable and secure it.2. Turn the choke lever to OFF.3. Clean the fuel line. Fill the tank with clean, fresh petrol.4. Clear the ventilation hole.5. Empty the tank. Fill the tank with fresh fuel..6. Clean or replace the air filter.7. Contact the Service Department.
The engine has overheated.	1. The engine oil level is low.2. Dirty air filter.3. The air flow is restricted.4. The carburettor is not set correctly.	1. Fill the crankcase with the correct oil.2. Clean the air filter.3. Remove the casing and clean it.4. Contact the Service Department

Electrotechnical maintenance works should only be carried out by an electronics technician!

On removal of the machine the local legal regulations have to be abided by.

Fabricant :

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Technical diagram showing three mechanical device configurations with labeled dimensions and cross-sectional views

Mechanical device with mounted motor and wheels, no visible text or symbols

Blocage du chevalet

Close-up of a mechanical bracket with a labeled arrow pointing to a specific part (no text or symbols present)

Technical line drawing of a mechanical component with a tool inserted into a housing (no text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Technical diagram showing three mechanical assembly configurations with labeled components and cross-sectional views

Nehoda riziko!

Mechanical device with mounted motor and wheels, no visible text or symbols

Montáž

Close-up of a metal bracket with a labeled component '1' and an arrow pointing to it (no text or symbols beyond the label)

Technical line drawing of a mechanical component with a pin and handle (no text or symbols)

⚠️ Údržba

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Technical diagram showing three mechanical device configurations with labeled dimensions and cross-sectional views

Balesetveszély!

Mechanical device with mounted motor and wheels, no visible text or symbols

Close-up of a metal bracket with a labeled component '1' (no other text or symbols visible)

Technical line drawing of a mechanical component with a pin and handle (no text or symbols)

⚠️ Váltóáramú motor

Mechanical device with motor and wheels, no visible text or symbols

Close-up of a metal bracket with a labeled arrow pointing to a specific part (no text or symbols beyond the number '1')

Postavljanje i podešavanje stroja

• Obavljaju poslove čišćenja, kada je motor isključen.
• Premještanje do potpunog zaustavljanja pile utikača.
• Sigurnosni uređaji moraju se ponovno ugraditi nakon završene popravak i održavanje odmah.
• Koristite samo dobro naoštren, bez pukotina i ne-deformirane pile.
• Pile koriste se samo, što odgovara europskom standardu EN 847-1.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Technical diagram showing three different mechanical or industrial setups with labeled components and directional arrows indicating movement or force.

Stavljanje u pogon

- Prije stavljanja u pogon pročitajte sigurnosne napomene.

SCAR 700x4.5/3 ① ②

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Technical diagram showing three different mechanical or industrial setups with labeled components and directional arrows indicating movement or force.

Mechanical device with mounted components and a black arrow pointing to a component (no visible text or symbols)

Close-up of a metal bracket with a labeled component '1' (no text or symbols beyond the label)

Technical line drawing of a mechanical assembly with a cylindrical component and a tool (no text or symbols)

Uruchomienie

Screw 700x4.8 x 2.5 ① ② ③

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Technical diagram showing three mechanical device configurations with labeled parts and cross-sectional views

Nehoda riziko!

Mechanical device with mounted motor and wheels, no visible text or symbols

Blokovanie kolísky

Close-up of a metal bracket with a labeled component '1' and an arrow pointing to a detail (no text or symbols beyond the label)

Technical line drawing of a mechanical component with a tool inserted into a housing (no text or symbols)

500x4.8/3 ① ②

Technical diagram of a mechanical device with labeled components and part numbers, including gears, motors, and wheels.

380-420V

switch A○XS XP 1 ST B○3 4 C○5 6 7 8 STP protector M 3~ E○(olivine wire) PE Connection shell

Schaltplan:

230 V / 50 Hz 2,1 KW

Only for EU countries.
Do not dispose of electric tools together with household waste material! In observance of European directive 2012/19/EU on wasted electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

FR
