| Product type | Cordless reciprocating saw |
| Brand | Fuxtec |
| Model | FX-E1SS20 |
| Power supply | 20 V lithium-ion battery (not included) |
| Charger | Charger included, compatible with Li-Ion battery |
| No-load speed | Up to 3000 rpm |
| Max cutting capacity in wood | 100 mm |
| Max cutting capacity in metal | 8 mm |
| Included saw blade | S1531L HCS 220 mm (for wood) |
| Optional saw blade | 922EFB1M 130 mm (for metal) |
| Base plate | With forward/backward tilt adjustment |
| Guide rail | Removable and extendable |
| Safety | Switch lock button, restart protection |
| Starting | Press the lock button then the on/off switch |
| Stopping | Release the on/off switch |
| Maintenance and cleaning | Clean ventilation slots, do not use water |
| Blade replacement | Turn the lock and pull the blade forward |
| Recycling | Do not dispose of with household waste, recycle according to EU directives |
| Compliance | EU directives 2012/19/EU and 2006/66/EC |
Frequently Asked Questions - FX-E1SS20 Fuxtec
User questions about FX-E1SS20 Fuxtec
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual FX-E1SS20 - Fuxtec and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FX-E1SS20 by Fuxtec.
USER MANUAL FX-E1SS20 Fuxtec
Mechanical assembly diagram showing a disassembly or disassembly process with arrows indicating direction (no text or symbols present)natural_image
Two mechanical clamp diagrams showing a spring-loaded mechanism with no text or symbols
Recycling raw materials instead of waste disposal.
Technische Daten
Akku-Gerät
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Introduction and safety....3
Intended use....3
General safety instructions for power tools....3
Workplace Safety....3
Electrical Safety....4
Safety of Persons....4
Use and treatment of the power tool....5
Use and handling of the cordless tool....6
Safety Instructions for Cordless Reciprocating Saw....6
General Safety Instructions....6
Before Use....7
During Operation....7
After use....7
Safety instructions for the charger....8
Safety Instructions for Li-Ion Batteries....8
Presentation....9
Application....11
Correct handling....11
Start/Stop....12
Tips for the working process....13
Disposal....13
Technical Data....14
Declaration of Conformity....15

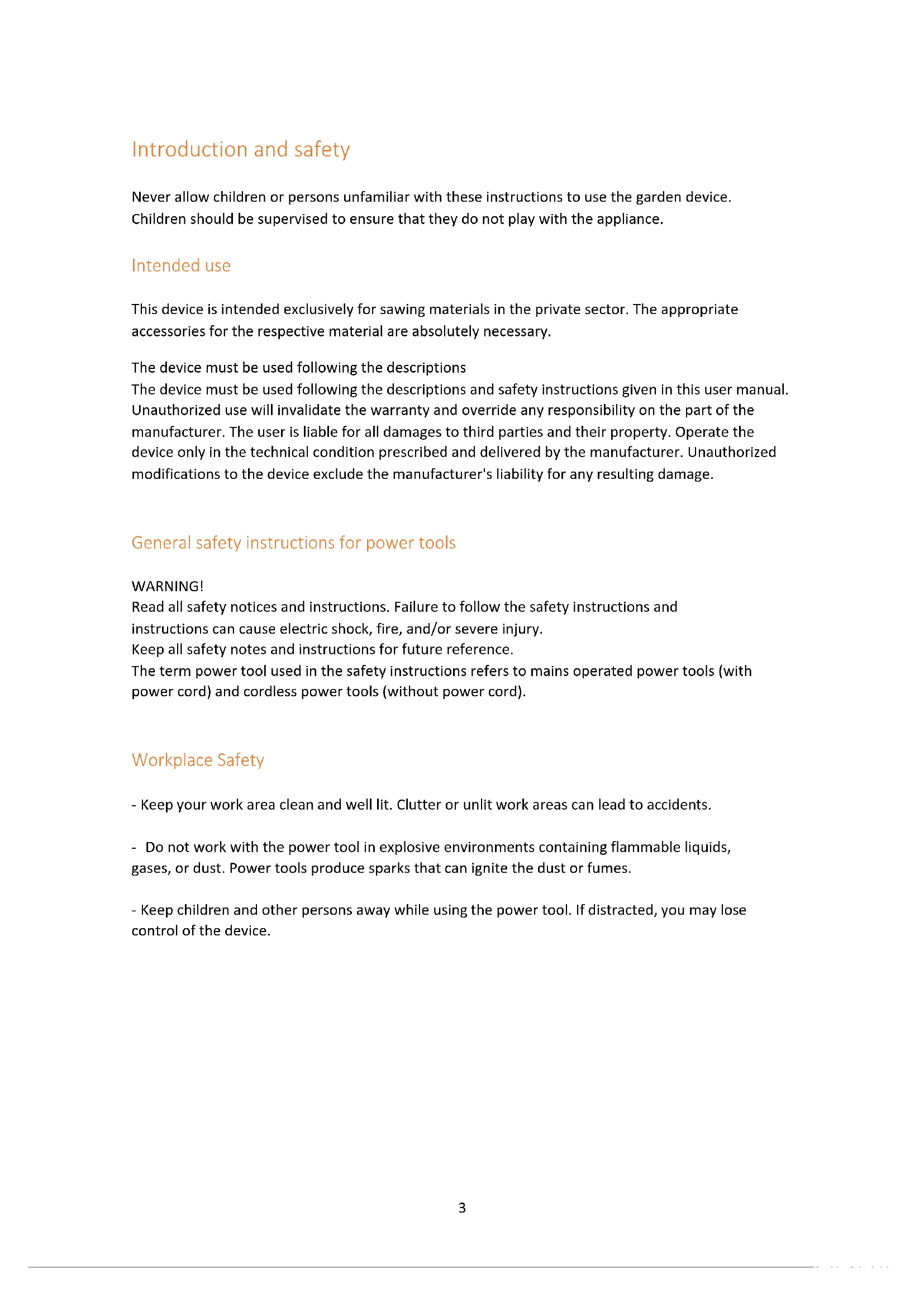

Introduction and safety
Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.
Intended use
This device is intended exclusively for sawing materials in the private sector. The appropriate accessories for the respective material are absolutely necessary.
The device must be used following the descriptions
The device must be used following the descriptions and safety instructions given in this user manual. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.
General safety instructions for power tools
WARNING!
Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.
Keep all safety notes and instructions for future reference.
The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).
Workplace Safety
- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.
- Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.
- Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.
Electrical Safety
- The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce the risk of electric shock.
- Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded.
-- Halten Sie Elektrowerkzeuge von Regen oder Feuchtigkeit fern. The penetration of water into a power tool increases the risk of electric shock.
-- Verwenden Sie das Kabel nicht zum Tragen oder Aufhängen des Elektrowerkzeugs oder zum Ziehen des Steckers aus der Steckdose. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. - If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
Safety of Persons
- Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.
- Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as a dust mask, non-slip safety shoes, safety helmet, or hearing protection, depending on the type and use of the power tool reduces the risk of injury.
- Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool or if you connect the device to the power supply while it is switched on, this can lead to accidents.
- Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury.
- Avoid abnormal posture. Make sure you have a secure
Stand and keep your balance at all times. This allows you to better control the power tool in unexpected situations.
- Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.
Use and treatment of the power tool
- Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.
- Do not use a power tool whose switch is defective. A power tool that can no longer be switched on or off is dangerous and must be repaired.
- Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.
- Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.
- Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide.
- Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.
Use and handling of the cordless tool
- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
- Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.
- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.
- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
Safety Instructions for Cordless Reciprocating Saw
General Safety Instructions
- For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for later use and regard them as keep them handy for any purpose.
- Pass on the operating instructions with the device if there is a change of ownership.
- Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).
- Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.
- Only use the device in daylight or under good artificial lighting.
- Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.
- Switch off the device and remove the battery in the following conditions:
♦ if the device is left unattended;
- before checking, cleaning or other work on the device;
♦ if the device starts to vibrate excessively.
Before Use
- Familiarize yourself with the device and its functions and controls before starting work.
- Check the device for signs of wear or damage before starting up and after a collision.
- Do not use a device whose switch is defective and can no longer be switched on or off.
- Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
- Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.
- Always wear appropriate personal protective equipment when working with or on the device (safety goggles, ear protection, non-slip work gloves, etc.) The wearing of personal protective equipment reduces the risk of injury.
During Operation
Do not switch on the device if persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.
Make sure that you have a firm stand and work calmly and carefully. Use the appropriate saw blades according to the working material (wood, metal, brick, plaster, etc.). An incorrect selection can lead to slipping and injury. Wear hearing protection when using the device. Exposure to noise can lead to hearing loss. Hold the power tool by the insulated grip surfaces.
When carrying out your work, you may come into contact with concealed cables, and this may result in electric shock if you do not hold the saw properly.
After use
Switch off the device and remove the battery from the saw. Then place the unit in a safe place. Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.
Please do not clean the dirt with water. The electrical device may be damaged.
Safety instructions for the charger
- Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.
- Keep the charger clean. There is a risk of electric shock from soiling.
- Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.
Damaged chargers, cables, and connectors increase the risk of electric shock.
- Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.
- Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.
-
- Verwenden Sie das Ladegerät niemals, wenn das Kabel, der Stecker oder das Gerät selbst durch äußere Einflüsse beschädigt wird. Take the charger to the nearest specialist workshop.
- Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.
Safety Instructions for Li-Ion Batteries
- Do not open the battery. There is a danger of a short circuit.
- Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.
- Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract.
- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
- Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation reconditioned batteries or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.
- The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
- The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.
Presentation
Figure 1: Reciprocating saw
- Baseplate
- Saw blade guide bar
- Saw blade lock
- Safety button to extend the rail for the footplate
- On/off Switch
- Locking button for on/off switch
- Battery (not included in delivery)
- Handle

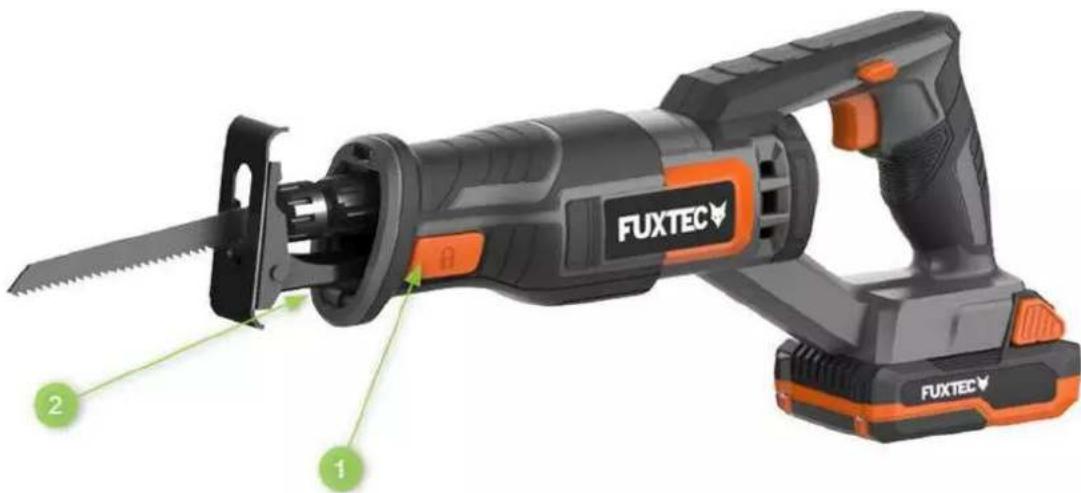

Figure 2: Detailed view saw blade change
1. Saw blade
To change the saw blade, turn the lock (fig. 1, point 4) and pull the blade out to the front. To attach a new sheet, rerelease the lock and insert the new blade into the guide rail (fig. 1, item 3).
The angle of inclination of the footplate can be adjusted forwards or backward as desired and depending on the surface to be sawn. However, please always ensure that the footplate is in contact with the material to be sawn (see the following figure)
Figure 6: Extension or removal of the guide rail
To remove the guide rail (point 2) or to extend it forwards, press the safety button on the left side (point 1). Now you can remove the guide rail to the front. To reconnect the guide rail firmly to the device after insertion, push the safety button on the right side of the device (equivalent to point 1) back in.
Application
Correct handling
Keep your hands away from the sawing area. Do not reach under the workpiece. Contact with the saw blade can cause injury. Only place the machine on the workpiece when it is switched on.
Otherwise, there is a risk of kickback if the saw blade jams in the workpiece.
When sawing, the footplate (fig. 1 point 2) must always rest against the workpiece. The saw blade can jam and cause loss of control of the machine.
When the cut is finished, switch off the machine and do not pull the saw blade out of the cut until it comes to a standstill. In this way, you can avoid setbacks, and the machine can be safely removed.
Only use undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively affect the cut or lead to kickbacks.
Do not break the saw blade by pressing sideways. The saw blade may be damaged, break, or cause kickback. Clamp the material to be sawn well. Under no circumstances should you support the workpiece with hands or feet. Do not touch objects or the floor with the running saw - there is a risk of kickback
Use suitable detectors to determine whether there are supply lines in the working area.
Contact with electrical wires can cause fire or electric shock, and damage to a gas line can cause an explosion. Penetration into a water pipe causes damage to property.
Always hold the device with both hands when working and ensure that it stands securely. The power tool should be held securely in both hands.
A workpiece under tension can cause kickbacks. Use suitable devices or a vice to secure the workpieces. Always wait for the machine to stop completely before putting it down.
Do not open the battery - there is a risk of short circuit.
Start/Stop
Only use original FUXTEC lithium-ion batteries with the voltage indicated on the type plate of your power tool.
Using other batteries may cause injury and fire. Hint: Using batteries that are not suitable for the machine may cause malfunction or damage to the power tool.
The charged battery must be inserted into the socket of the power tool until it clicks into place and is securely locked.
Switching on and off:
Switch on the power tool, first press the locking button (fig. 1, point 7) on the right or left. Then press the on/off switch (fig. 1, item 6) and keep it pressed. The saw is running.
To switch off the device, simply release the on/off switch. For safety reasons, the on/off switch cannot be locked; you must keep it pressed during the entire process.
To save energy, only switch on the power tool when you are using it.
Hint: The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)." If the battery is empty, the machine is switched off by a safety device. The saw blade then no longer moves. In this case, do not press the on/off switch repeatedly. This may damage the battery.
Tips for the working process
When sawing lightweight construction materials, the legal regulations and the recommendations of the material manufacturer must be followed.
Check wood, pressboard, building materials, etc. for foreign objects such as nails, screws, or similar and always use the correct saw blade.
Switch the machine on and move it towards the workpiece. Position the
footplate on the surface of the workpiece and use even contact pressure when sawing. After finishing the operation, switch off the machine.
If the saw blade jams, switch off the machine immediately. Widen the gap slightly with a suitable tool and then pull out the machine.
Disposal
WARNING!
Make used power tools unusable before disposal:
- mains-operated power tools by removing the connecting plug,
• cordless power tools by removing the battery.
For EU countries only
Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should be recycled
in an environmentally friendly manner. Plastic parts are marked for recycling according to type.
WARNING!
Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries.
Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.
For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.
NOTE
Please contact your local authority/city for information on disposal options,
Recycling raw materials instead of waste disposal.
Technical Data
Cordless device
Nominal voltage 20 V
Speed Up to 3,000 (rpm)
Max. material diameter
Metal 8mm
Wood 100mm
Supplied saw blade: S1531L HCS (220mm) for wood
Optional saw blade: 922EFB1M(130mm) for metal
Declaration of Conformity
Producer FUXTEC GmbH
Kappstraße 69, 71083 Herrenberg Germany
Phone.: +49 (0)7032 95608 88
Fax: +49 (0)7032 95608 89
Email: info@fuxtec.de Web:
www.fuxtec.de
Name E1 20V Cordless Reciprocating Saw
Model MOW-WYT01-18Li
EC directive 2006/42/EC, 2014/30/EU
Applicable standards
EN 62841-1:2015
EN 62841-2-11:2016
EN 55014-1:2006+A1+A2
EN 55014-2:2015
We hereby declare that the device mentioned above, due to its design, in the version marketed by us, complies with the necessary safety and health requirements of the listed EC directive.
Figure 1 : scie sabre
Two mechanical clamp diagrams showing a spring-loaded mechanism with no text or symbols
Directive CE / EC Directive 2006/42/CE, 30/04/2010 / UE
Normes applicables / applicable standards
EN 62841-1:2015
EN 62841-2-11:2016 EN 55014-
1:2006+A1+A2
EN 55014-2:2015
- Technische Daten
- Introduction and safety
- Intended use
- General safety instructions for power tools
- WARNING!
- Workplace Safety
- Electrical Safety
- Safety of Persons
- Use and treatment of the power tool
- Use and handling of the cordless tool
- Safety Instructions for Cordless Reciprocating Saw
- General Safety Instructions
- Before Use
- During Operation
- After use
- Safety instructions for the charger
- Safety Instructions for Li-Ion Batteries
- Presentation
- Saw blade
- Application
- Correct handling
- Start/Stop
- Switching on and off:
- Tips for the working process
- Disposal
- For EU countries only
- NOTE
- Technical Data
- Cordless device
- Declaration of Conformity
- Applicable standards
Brand : Fuxtec
Model : FX-E1SS20
Category : Saw
