USER MANUAL SST254-85ATG SCHEPPACH

Black-and-white photo of a machine with a skis and a labeled 'scheppach' base (no other text or symbols visible)

https://www.scheppach.com/de/service scheppach

SST254-85ATG

DE	TischkreissägeOriginalbetriebsanleitung	8
GB	Circular table sawTranslation of original instruction manual	29
FR	Scie circulaire sur tableTraduction des instructions d'origine	47

3 4 5 6 7 8 9 10b 2 1 10a 11a 17 18 19 12 13 14 11 15 16 3200RM 5000RM 12b 12a

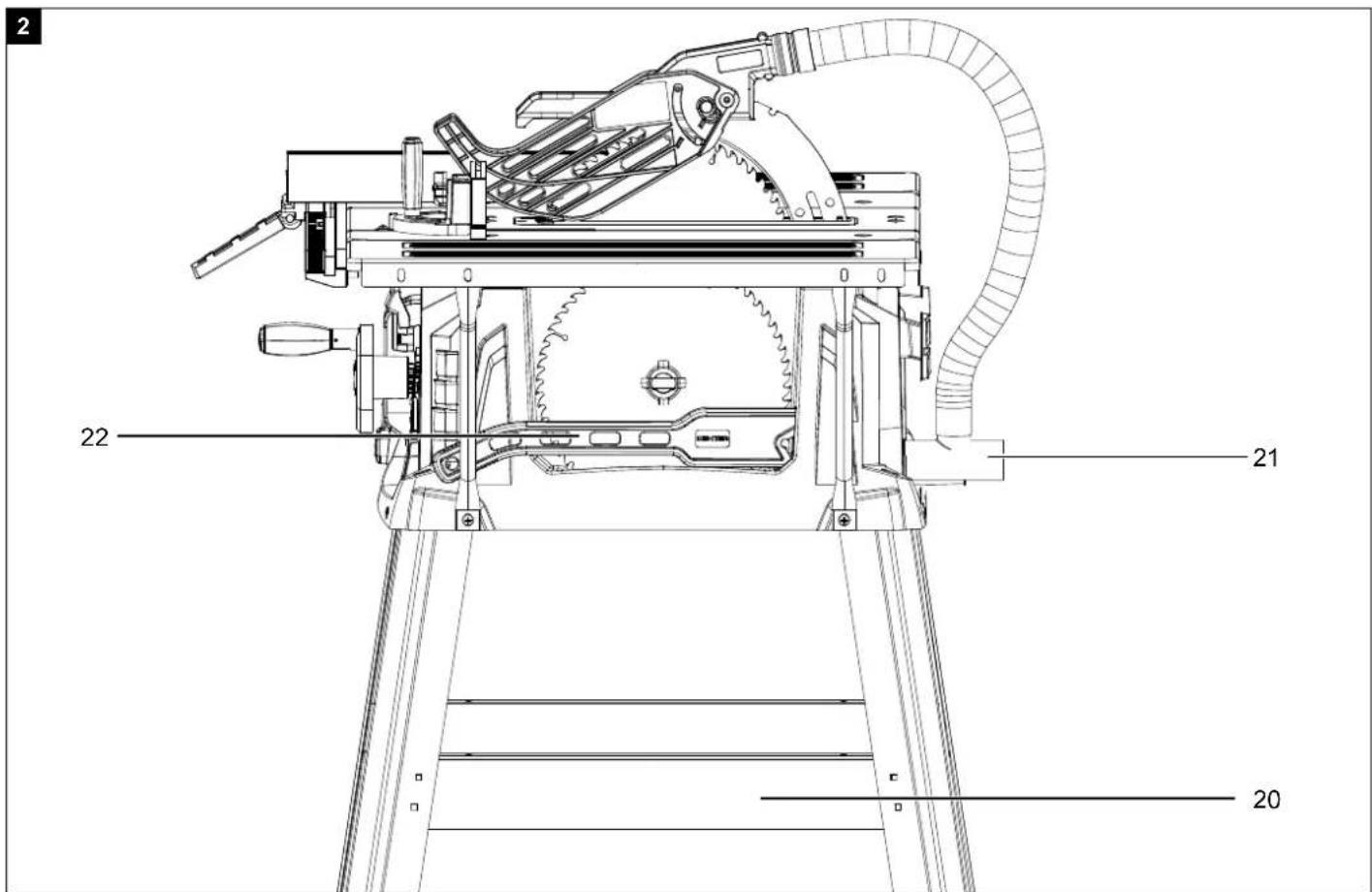

2 22 21 20

3

4 18 A B 10a 10b a M6 x 12

5 b Mcx30 24 10a a Mx + 12 b b Mcx30 10b 25 a Mx + 12

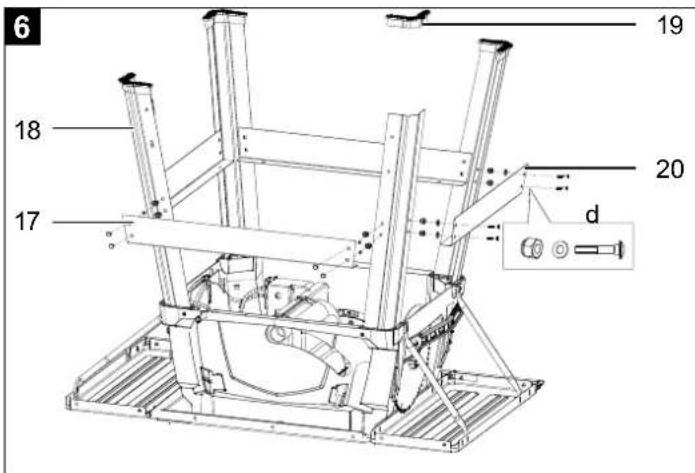

6 18 17 19 20 d

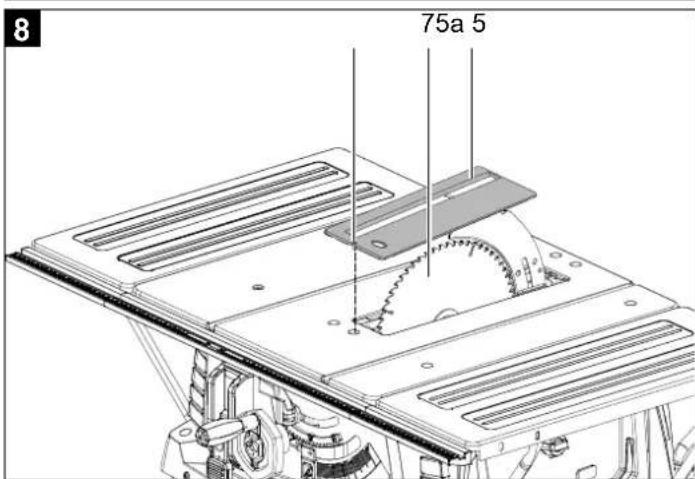

8 75a 5

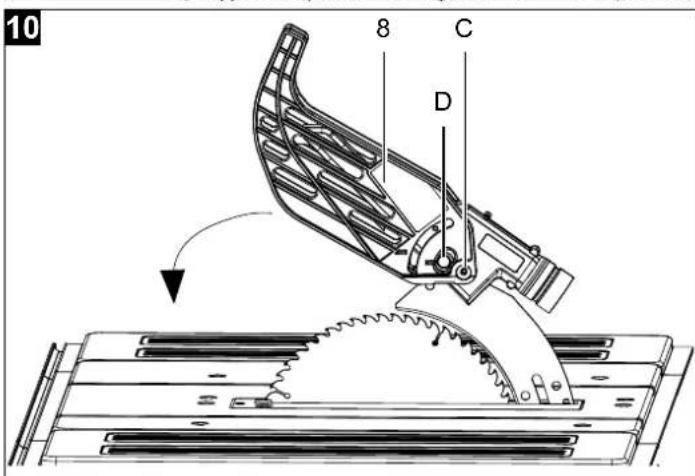

10 8 C D

12 26 28 1 23 E 15

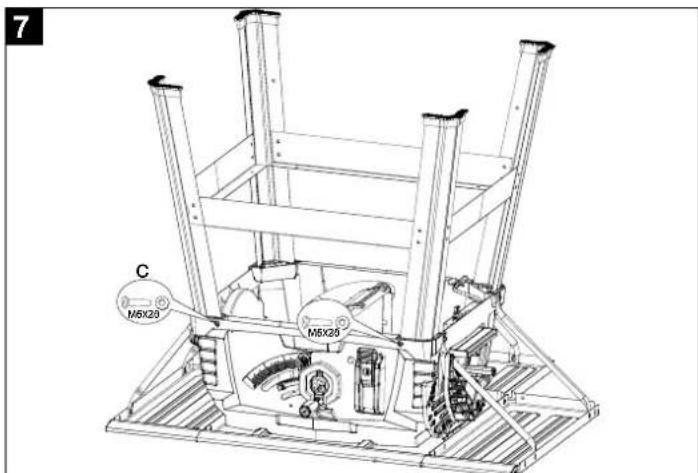

7 C M5X20 M5X20

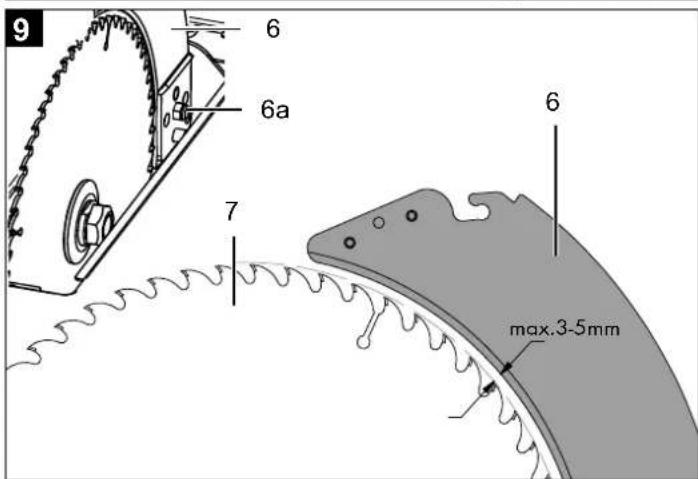

9 6 6a 7 6 max.3-5mm

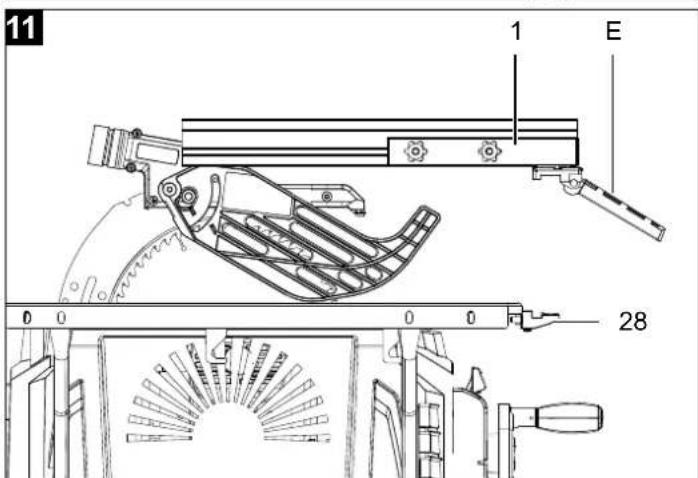

11 1 E 0 0 0 0 28

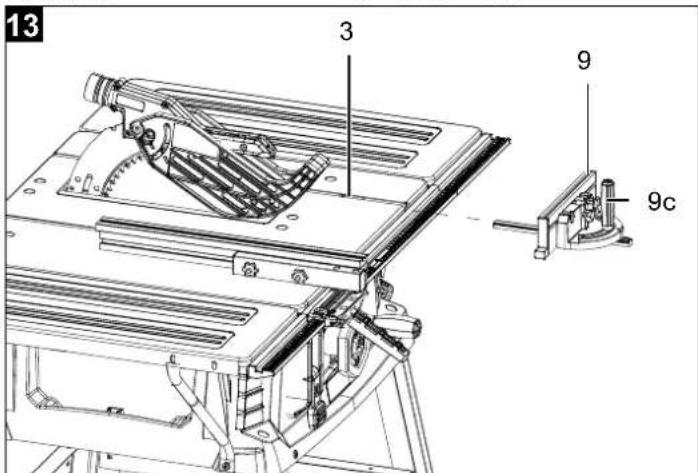

13 3 9 9c

14 8 4 21

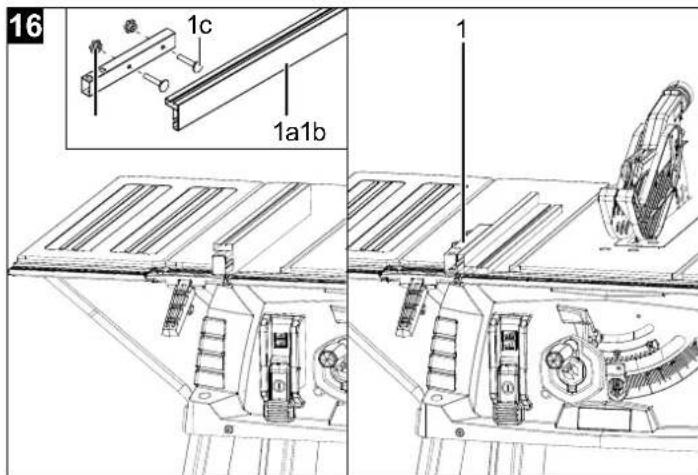

16 1c 1a1b 1

18 1 7 1d

20 7 8 2262 1 8 7 6 1

15 12 13 11

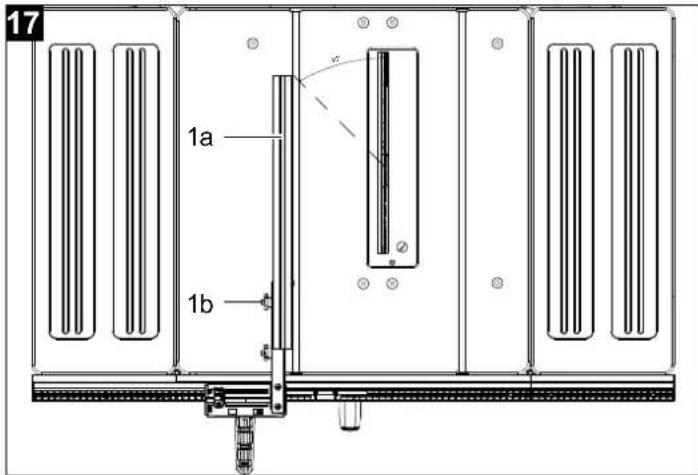

17 1a 1b

19 7 9a 9b 9c

Technical line drawing of a mechanical assembly with no visible text or symbols

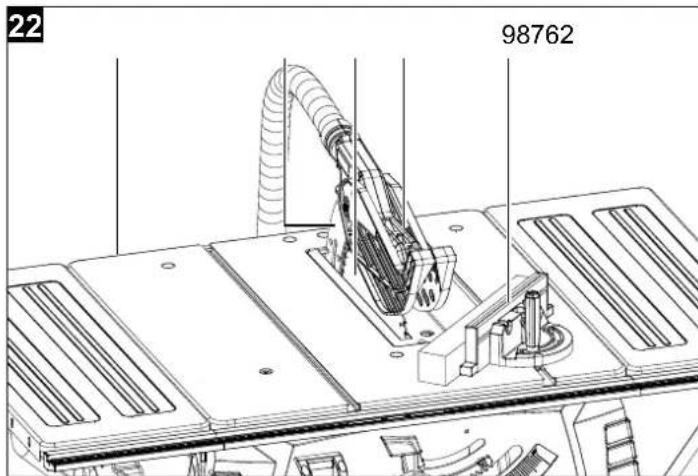

22 98762

24 27 1a 2217 f

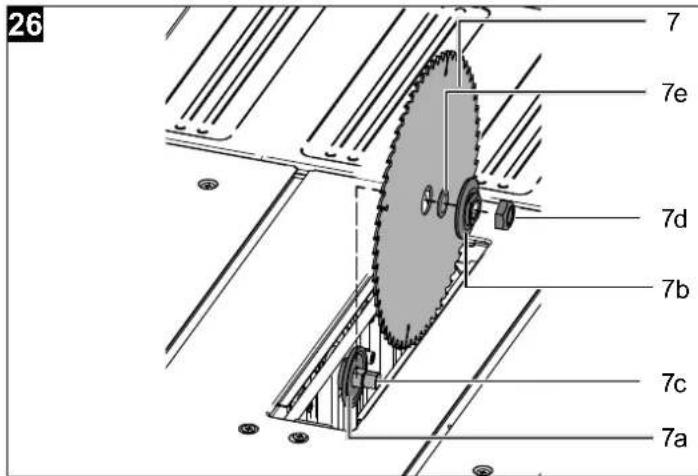

26 7 7e 7d 7b 7c 7a

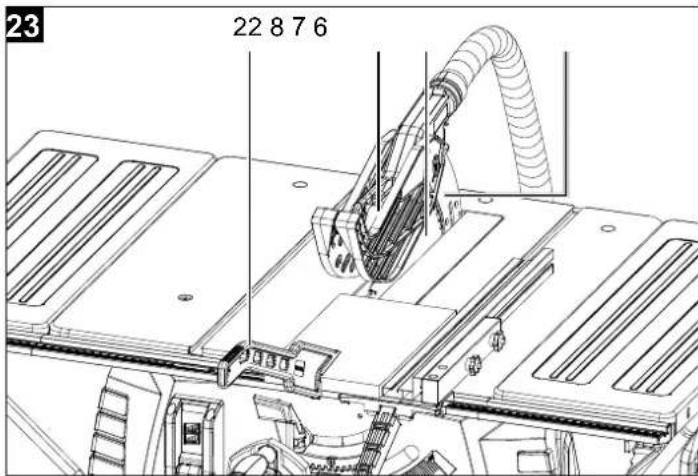

23 22 8 7 6

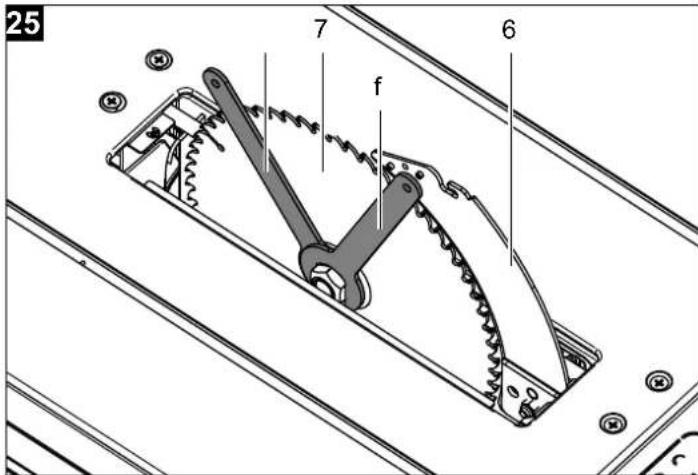

25 7 f 6

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

(Abb. 1-3, 8, 9, 12, 13, 16, 18, 19, 24)

https://www.scheppach.com/de/service scheppach

1. Explanation of the symbols on the equipment

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating and safety instructions before start-up and follow them.
	Wear safety goggles.
	Wear hearing protection.
	Wear a dust protection mask.
	ATTENTION: Danger of injury! Do not reach into saw blade while it is running.
	Wear safety gloves.
	Protection class II (double insulation)
	Max. cutting height 90°/45°
	The product complies with the applicable European directives.
△ Attention!	WARNING: Disregard results in a risk of death or injury, or damage to the tool.

Table of contents: Page:

1. Explanation of the symbols on the equipment 29
2. Introduction....31
3. Device description (fig. 1-3, 8, 9, 12, 13, 16, 18, 19, 24)....31
4. Scope of delivery....32
5. Proper use....32
6. Safety information ....32
7. Technical data ....36
8. Unpacking ....37
9. Assembly....37
10. Before commissioning....39
11. Operation....39
12. Sawing....41
13. Cleaning 42
14. Transport 43
15. Maintenance....43
16. Storage....44
17. Electrical connection....44
18. Disposal and recycling 45
19. Troubleshooting....46

2. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling
  • Non-compliance of the operating instructions
  • Repairs by third parties, by not authorized service technicians
  • Installation and replacement of non-original spare parts
  • Application other than specified
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113

Please observe the following:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions contained in this operating manual and the specific regulations of your country, the technical rules generally accepted for the operation of machines of the same type must be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

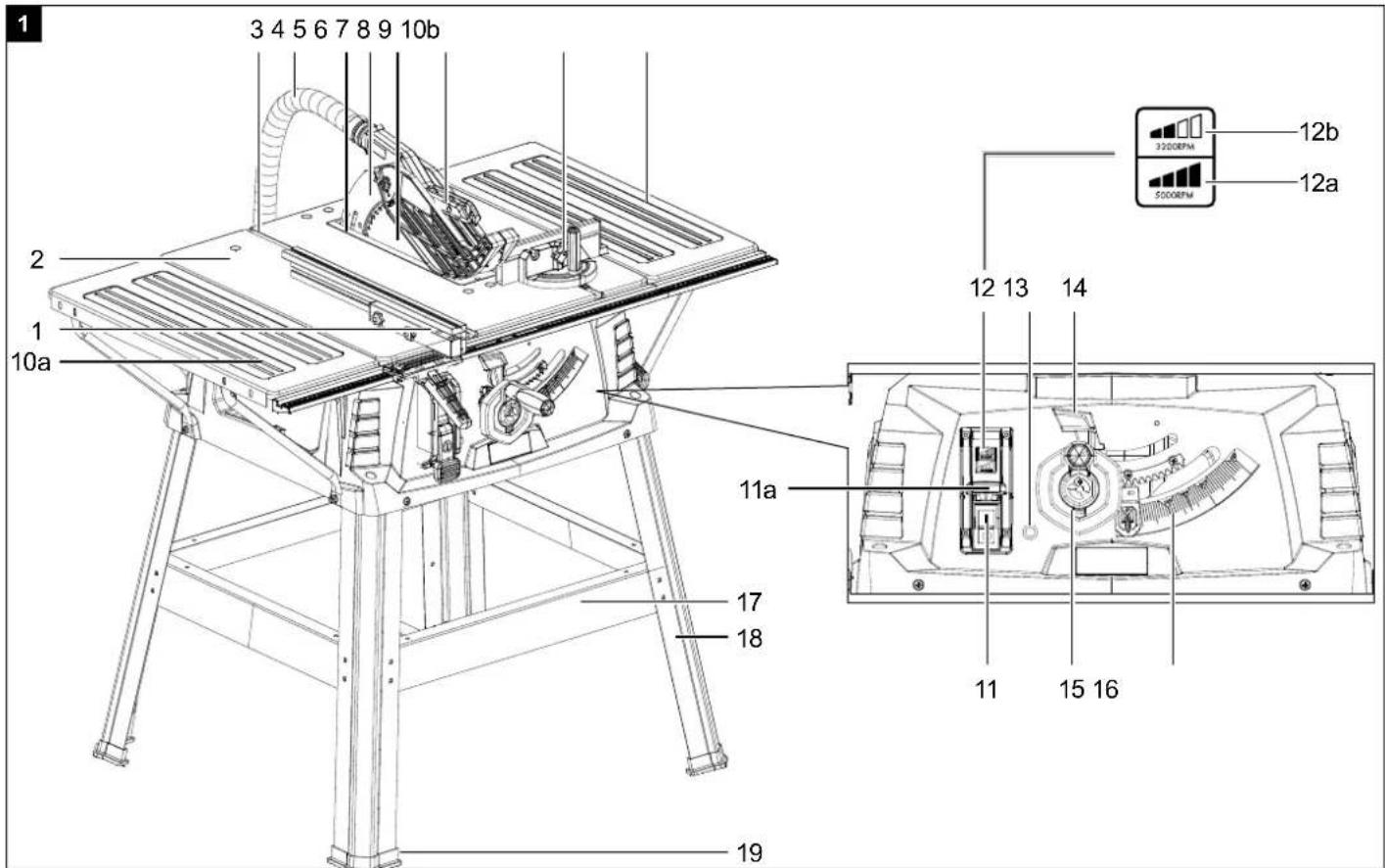

3. Device description

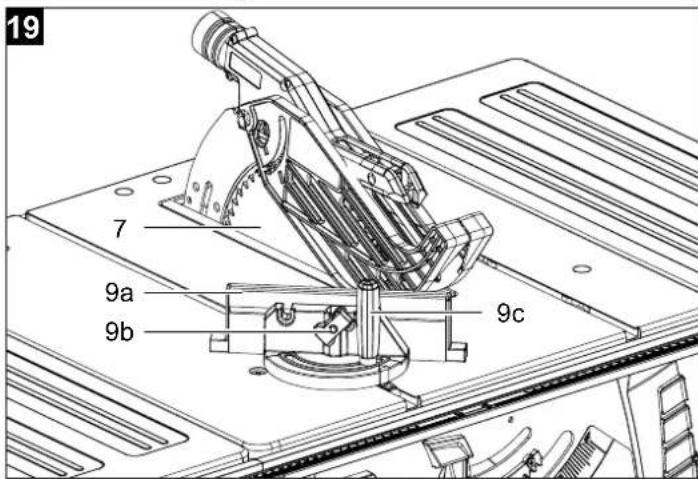

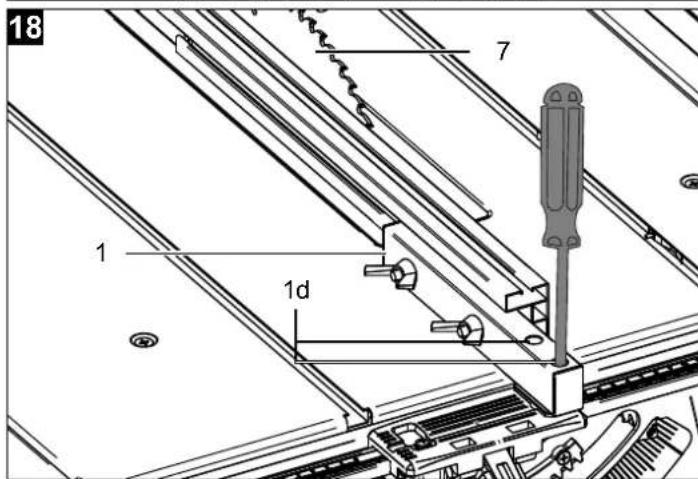

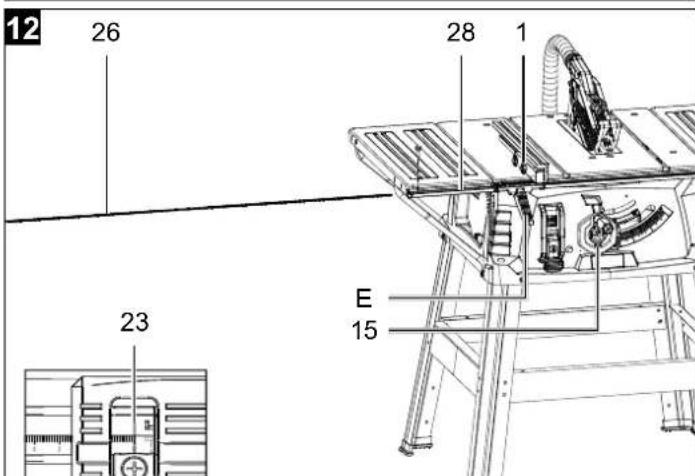

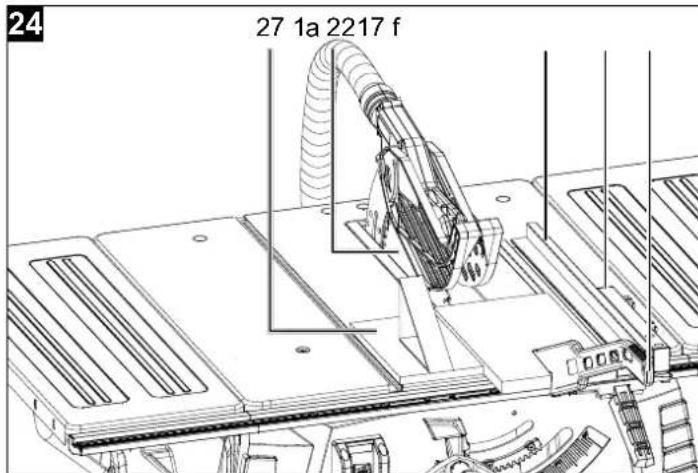

(fig. 1-3, 8, 9, 12, 13, 16, 18, 19, 24)

1. Parallel stop
   1a. Stop rail
   1b. Wing nut
   1c. Coach bolt
   1d. Philips screw
2. Saw table
3. Groove
4. Extraction hose
5. Table inlay
   5a. Countersunk head screw
6. Riving knife
   6a. Fixing screw
7. Saw blade
   7a. Inner saw blade flange
   7b. Outer saw blade flange
   7c. Drive shaft
   7d. Fixing nut
   7e. Reducing ring
8. Saw blade guard
9. Transverse stop
   9a. Stop rail
   9b. Wing nut
   9c. Locking handle
10. Table width extensions
    10a. Table width extension right
    10b. Table width extension left

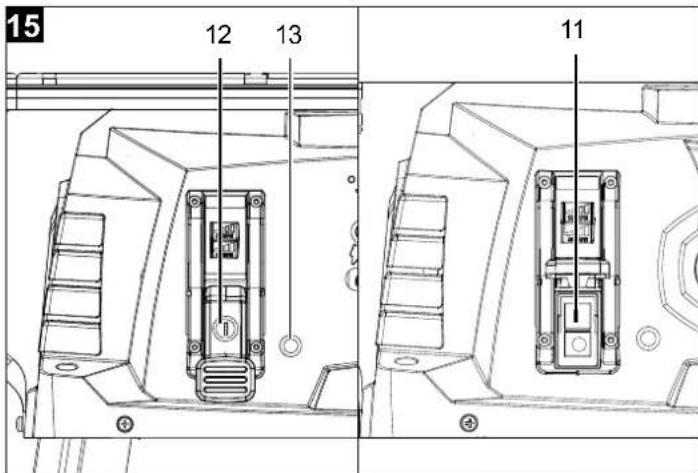

11. On/off switch
    11a. Cover cap on/off switch
12. Speed selection switch
    12a. High speed switch
    12b. Low speed switch
13. Overload switch
14. Locking lever
15. Crank wheel
16. Scale
17. Centre strut long
18. Leg
19. Rubber foot
20. Centre strut short
21. Extraction port
22. Push stick
23. Sight glass
24. Table support medium
25. Table support short
26. Scale

27. Guide rail

28. Wooden push block (not included in the scope of delivery)

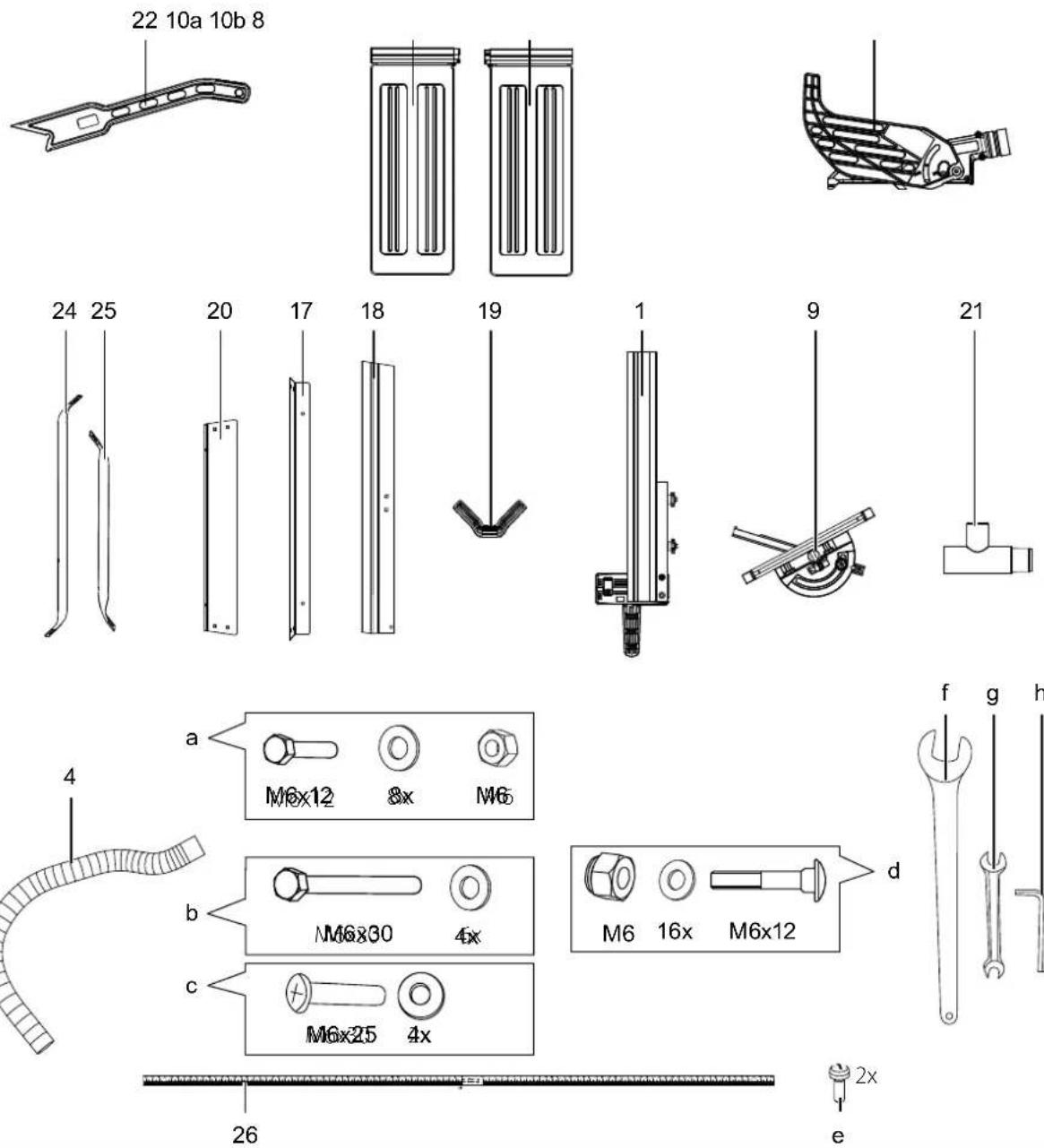

4. Scope of delivery

• Operating manual
• Saw blade 48 teeth (pre-mounted)
• Saw blade guard
• Parallel stop (incl. stop rail - pre-mounted)
  • Transverse stop (incl. stop rail – pre-mounted)
  • Table width extension (2x)
• Push stick
• Legs (4x)
  • Transverse struts (2x)
• Longitudinal struts (2x)
• Rubber feet (4x)
  • Table support short (2x)
  • Table support medium (2x)
• Scale

Assembly material

a. Hexagon screw M6x12, washer, nut M6 (8x)
b. Hexagon screw M6x30, washer (4x)
c. Philips screw M6x25, washer (4x)
d. Coach bolt M6x12, washer, nut M6 (16x)
e. Slotted-head screw M4x6 (2x)
f. Open-ended spanner 22 mm (2x)
g. Open-ended spanner 8/10 mm
h. Allen key 5 mm

5. Proper use

The circular table saw is used for the longitudinal and transverse cutting (only with the transverse stop) of all types of timbers and plastic, in accordance with the machine size. It is not permitted to cut any type of round timber.

Only suitable saw blades (HM or CV saw blades) may be used for the machine. The use of HSS saw blades and any type of cutting wheels is prohibited.

Notes:

Compliance with the regulations, safety instructions, descriptions and notes in this operating manual are part of proper use.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the operating manual, must be observed.

Working on or with the product may only be carried out as described in this operating manual. All other maintenance and repair work not described in this operating manual must be carried out by a customer service centre.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

Other general occupational health and safety-related rules and regulations must be observed.

ATTENTION

When using the product, several safety warnings must be observed to prevent injuries and damage. For this reason, carefully read the operating and safety instructions. Keep them in a safe place so that the information is available at all times. If the product is handed over to another person, hand over the operating and safety instructions with it. We accept no liability for accidents or damage that occur due to a failure to observe this operating manual and the safety instructions.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

Despite use as intended, specific risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:

• Contact with the saw blade in the exposed sawing area.
• Reaching into the running saw blade (cutting injury)
• Kick-back of workpieces and workpiece parts
• Saw blade breakage
• Ejection of faulty carbide parts of the saw blade
• Hearing damage when the necessary hearing protection is not used.
• Harmful emissions of wood dusts during use in enclosed areas.

6. Safety information

General power tool safety warnings

⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

⚠ WARNING

Danger due to electromagnetic field

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions.

- In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Safety instructions for table saws

Guarding related warnings

a) Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly must be repaired or replaced.

b) Always use saw blade guard and riving knife for every through-cutting operation. For through-cutting operations where the saw blade cuts completely through the thickness of the workpiece, the guard and other safety devices help reduce the risk of injury.

c) Immediately reattach the guarding system after completing an operation (such as rabbeting, dadoing or resawing cuts) which requires removal of the saw blade guard and/or riving knife. The guard and riving knife help to reduce the risk of injury.

d) Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is turned on. Inadvertent contact of these items with the saw blade could cause a hazardous condition.

e) Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in reducing the likelihood of kickback.

f) For the riving knife to work, they must be engaged in the workpiece. The riving knife is ineffective when cutting workpieces that are too short to be engaged with the riving knife. Under these conditions a kickback cannot be prevented by the riving knife.

g) Use the appropriate saw blade for the riving knife. For the riving knife to function properly, the saw blade diameter must match the appropriate riving knife and the body of the saw blade must be thinner than the thickness of the riving knife and the cutting width of the saw blade must be wider than the thickness of the riving knife.

Cutting procedures warnings

a) △ DANGER: Never place your fingers or hands in the vicinity or in line with the saw blade. A moment of inattention or a slip could direct your hand towards the saw blade and result in serious personal injury.

b) Feed the workpiece into the saw blade or cutter only against the direction of rotation. Feeding the workpiece in the same direction that the saw blade is rotating above the table may result in the workpiece, and your hand, being pulled into the saw blade.

c) Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop when cross cutting with the mitre gauge. Guiding the workpiece with the rip fence and the mitre gauge at the same time increases the likelihood of saw blade binding and kickback.

d) When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150 mm, and use a push block when this distance is less than 50 mm. "Work helping" devices will keep your hand at a safe distance from the saw blade.

e) Use only the push stick provided by the manufacturer or constructed in accordance with the instructions. This push stick provides sufficient distance of the hand from the saw blade.

f) Never use a damaged or cut push stick. A damaged push stick may break causing your hand to slip into the saw blade.

g) Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide the workpiece. "Freehand" means using your hands to support or guide the workpiece, in lieu of a rip fence or mitre gauge. Freehand sawing leads to misalignment, binding and kickback.

h) Never reach around or over a rotating saw blade. Reaching for a workpiece may lead to accidental contact with the moving saw blade.

i) Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide workpieces to keep them level. A long and/or wide workpiece has a tendency to pivot on the table's edge, causing loss of control, saw blade binding and kickback.

j) Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool off immediately, unplug the tool then clear the jam. Jamming the saw blade by the workpiece can cause kickback or stall the motor.

k) Do not remove pieces of cut-off material while the saw is running. The material may become trapped between the fence or inside the saw blade guard and the saw blade pulling your fingers into the saw blade. Turn the saw off and wait until the saw blade stops before removing material.

I) Use an auxiliary fence in contact with the table top when ripping workpieces less than 2 mm thick. A thin workpiece may wedge under the rip fence and create a kickback.

Kickback causes and related warnings

Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other fixed object.

Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and is propelled towards the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions. And can be avoided by taking proper precautions as given below.

a) Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence. Kickback may propel the workpiece at high velocity towards anyone standing in front and in line with the saw blade.
b) Never reach over or in back of the saw blade to pull or to support the workpiece. Accidental contact with the saw blade may occur or kickback may drag your fingers into the saw blade.
c) Never hold and press the workpiece that is being cut off against the rotating saw blade. Pressing the workpiece being cut off against the saw blade will create a binding condition and kickback.
d) Align the fence to be parallel with the saw blade. A misaligned fence will pinch the workpiece against the saw blade and create kickback.
e) Use a featherboard to guide the workpiece against the table and fence when making non-through cuts such as rabbeting, dadoing or re-sawing cuts. A featherboard helps to control the workpiece in the event of a kickback.
f) Use extra caution when making a cut into blind areas of assembled workpieces. The protruding saw blade may cut objects that can cause kickback.
g) Support large panels to minimise the risk of saw blade pinching and kickback. Large panels tend to sag under their own weight. Support(s) must be placed under all portions of the panel overhanging the table top.
h) Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence. A warped, knotted, or twisted workpiece is unstable and causes misalignment of the kerf with the saw blade, binding and kickback.
i) Never cut more than one workpiece, stacked vertically or horizontally. The saw blade could pick up one or more pieces and cause kickback.
j) When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged in the material. If the saw blade binds, it may lift up the workpiece and cause kickback when the saw is restarted.

k) Keep saw blades clean, sharp, and with sufficient set. Never use warped saw blades or saw blades with cracked or broken teeth. Sharp and properly set saw blades minimise binding, stalling and kickback.

Table saw operating procedure warnings

a) Turn off the table saw and disconnect the power cord when removing the table insert, changing the saw blade or making adjustments to the riving knife or saw blade guard, and when the machine is left unattended. Precautionary measures will avoid accidents.
b) Never leave the table saw running unattended. Turn it off and don't leave the tool until it comes to a complete stop. An unattended running saw is an uncontrolled hazard.
c) Locate the table saw in a well-lit and level area where you can maintain good footing and balance. It should be installed in an area that provides enough room to easily handle the size of your workpiece. Cramped, dark areas, and uneven slippery floors invite accidents.
d) Frequently clean and remove sawdust from under the saw table and/or the dust collection device. Accumulated sawdust is combustible and may self-ignite.
e) The table saw must be secured. A table saw that is not properly secured may move or tip over.
f) Remove tools, wood scraps, etc. from the table before the table saw is turned on. Distraction or a potential jam can be dangerous.
g) Always use saw blades with correct size and shape (diamond versus round) of arbour holes. Saw blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
h) Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts. These mounting means were specially designed for your saw, for safe operation and optimum performance.
i) Never stand on the table saw, do not use it as a stepping stool. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.
j) Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire brushes, or abrasive wheels on a table saw.
Improper saw blade installation or use of accessories not recommended may cause serious injury.

Safety instructions for the handling of saw blades

1. Only use insertion tools if you have mastered their use.
2. Observe the maximum speed. The maximum speed specified on the insertion tool may not be exceeded. If specified, observe the speed range.
3. Observe the motor / saw blade direction of rotation.
4. Do not use any insertion tools with cracks. Sort out cracked insertion tools. Repairs are not permitted.
5. Clean dirt, grease, oil and water off of the clamping surfaces.
6. Do not use any loose reducing rings or bushes to reduce holes on circular saw blades.
7. Make sure that fixed reducer rings for securing the insertion tool have the same diameter and have at least 1/3 of the cutting diameter.
8. Make sure that fixed reducer rings are parallel to each other.
9. Handle insertion tools with caution. They are ideally stored in the originally package or special containers. Wear protective gloves in order to improve grip and to further reduce the risk of injury.
10. Prior to the use of insertion tools, make sure that all protective devices are properly fastened.
11. Prior to use, make sure that the insertion tool meets the technical requirements of this electric tool and is properly fastened.
12. Only use the supplied saw blade for cutting wood, never for the processing of metals.
13. Use the correct saw blade for the material to be processed.
14. Use only a saw blade with a diameter that matches the specifications on the saw.
15. Use only saw blades that are marked with an equal or higher rotational speed than that marked on the power tool.
16. Use only saw blades recommended by the manufacturer which conform to EN 847-1, if intended for cutting wood or similar materials.
17. Wear suitable personal protective equipment, such as:
    – Hearing protection;
18. Protective gloves when handling saw blades.
19. Only use saw blades recommended by the manufacturer which conform to EN 847-1. Warning! When changing the saw blade, ensure that the cutting width is not smaller and the width of the saw blade disc is not greater than the thickness of the riving knife!
20. When sawing wood and plastics, avoid the saw teeth overheating. Reduce the feed speed in order to avoid the plastic melting.
21. Please note that complex non-through cutting operations and tapered cuts are not permitted.

22. Avoid bevel ripping on bevelling side of the saw blade.

23. Make sure when mounting or when installing the parallel stop that it should be aligned parallel to the saw blade.

7. Technical data

AC motor 220 - 240 V\~ 50 Hz

Power consumption
5000 rpm 1800 W (S1*)	2200W (S6 20%**)
3200 rpm 500 W (S1*)
Idle speed
Gear 1 3200 rpm
Gear 2 5000 rpm
Carbide saw blade 254 x 30 x 2,8 mm
Thickness of blade disc 1,8 mm
Number of teeth (pre-assembled saw blade)	48
Riving knife thickness 2,5 mm
Min. size of workpiece W x L x H	10 x 50 x 1 mm
Tabel size	575 x 555 mm
Left/right table width extension	575 x 225 mm
Cutting height max. 45°	65 mm
Cutting height max. 0°	85 mm
Tilting saw blade	0 - 45°
Extraction connection	∅ 35 mm
Weight	approx. 26.5 kg

Technical changes reserved!

*S1: Continuous operation with constant load

**S6 20 %:

Continuous duty with intermittent loading (operating time 10 min.)

To avoid impermissible overheating of the motor, the motor should be driven for only 20% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 80% of the operating time.

Noise

The noise values have been determined in accordance with EN 62841.

Sound pressure level L_pA	96,8 dB (A)
Uncertainty K_pA	3 dB
Sound power level L_WA	109,8 dB (A)
Uncertainty K_WA	3 dB

⚠ WARNING

Excessive and frequent exposure to noise can lead to hearing damage or hearing loss.

• Wear hearing protection
• Take breaks.

Total vibration values (vector sum of three directions) determined according to EN 62841.

NOTE: The specified noise emission values have been measured in accordance with a standardised test procedure and can be used to compare one power tool with another.

The specified noise emission values can also be used for an initial estimation of the exposure.

WARNING: The noise emission values can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the power tool is used, and in particular the type of workpiece being processed.

Implement measures to protect against noise nuisance.

In doing so, take into account the complete working process, including the times when the power tool is working without load or switched off.

Suitable measures include regular maintenance and care of the power tool and the insertion tools, regular breaks as well as proper planning of the working process.

It is necessary to define safety measures to protect the operator which are based on an estimate of vibration exposure during the actual operating conditions (for this, all parts of the operating cycle have to be considered, e.g. times during which the power tool is switched off and times during which it is switched on but runs in no-load mode).

8. Unpacking

Danger of choking or suffocating

The packaging material, packaging and transport safety devices are not children's toys. Plastic bags, foils and small parts can be swallowed and lead to choking.

- Keep packaging material, packaging and transport safety devices away from children.

• Open the packaging and carefully remove the product.

• Remove the packaging material, packaging and transport safety devices (if applicable)..

• Check the completeness of the scope of delivery. The customer service must be notified immediately of any complaints. Later claims will not be recognised.

• Check the scope of delivery for transport damage. The transport company must be notified immediately of any complaints. Later claims will not be recognised.
• Keep the packaging until the end of the warranty period.
• Read through the operating manual completely.
• Only use original spare parts or accessories. Original spare parts or accessories can be obtained from your dealer.
• Check that the data on the type plate matches with the mains power data.

9. Assembly

⚠ WARNING: Remove the mains plug before maintaining, modifying or assembling the circular table saw.

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

You require the following for assembly:

1x open-ended spanner 8/10 mm (g)

1x Allen key 5 mm (h)

(included in the scope of delivery)

1x Phillips screwdriver

1x slotted-head screwdriver

(not included in the scope of delivery)

• Place all supplied parts on a flat surface.
• Group equal parts.

NOTE:

• If connections are secured with a screw (roundhead or hexagon), hexagon nuts and washers, the washer must be fitted under the nut.
• Insert screws each from outside to inside. Secure connections with nuts on the inside.
• Tighten the nuts and screws during assembly only until they are unable to fall off. If you tighten the nuts and screws fully before final assembly, it is not possible to complete the assembly.

9.1 Table width extensions

Before assembling the table width extensions, you must pre-mount the legs of the base frame.

9.1.1 Pre-mounting the legs of the base frame (fig. 4)

1. Turn the saw table (2) over and place it on the floor.
2. Fit the four legs (18) into the recesses of the machine housing.

9.1.2 Fitting table width extensions (fig. 4)

1. Insert the rail connectors (A) into the guide rail (28) of the table extensions (10).
2. Mount both table width extensions (10) loosely on the saw table (2) with a total of four hexagon screws M6×12, four washers and fours nuts M6 (a). To do so, use the corresponding holes drilled into the saw table (2).

9.1.3 Fitting the table supports (fig. 5)

1. Mount both short table supports (25) loosely on the right table width extension (10b) with a total of two hexagon screws M6×12, two washers and two nuts M6 (a). Mount the table supports (25) loosely on the machine housing with two hexagon screws M6×30 and two washers (b), as shown.
2. Mount both medium table supports (24) loosely on the left table width extension (10a) with two hexagon screws M6×12, two washers and two nuts M6 (a). Mount the table supports (24) loosely on the machine housing with two hexagon screws M6×30 and two washers (b), as shown.
3. Align the table width extensions (10) and the table extension (3) so that they are level in relation to the saw table (2).
4. Tighten the threaded connections on the table width extensions (10) and on the saw table (2).
5. Leave the threaded connections on the machine housing loose for the time being.

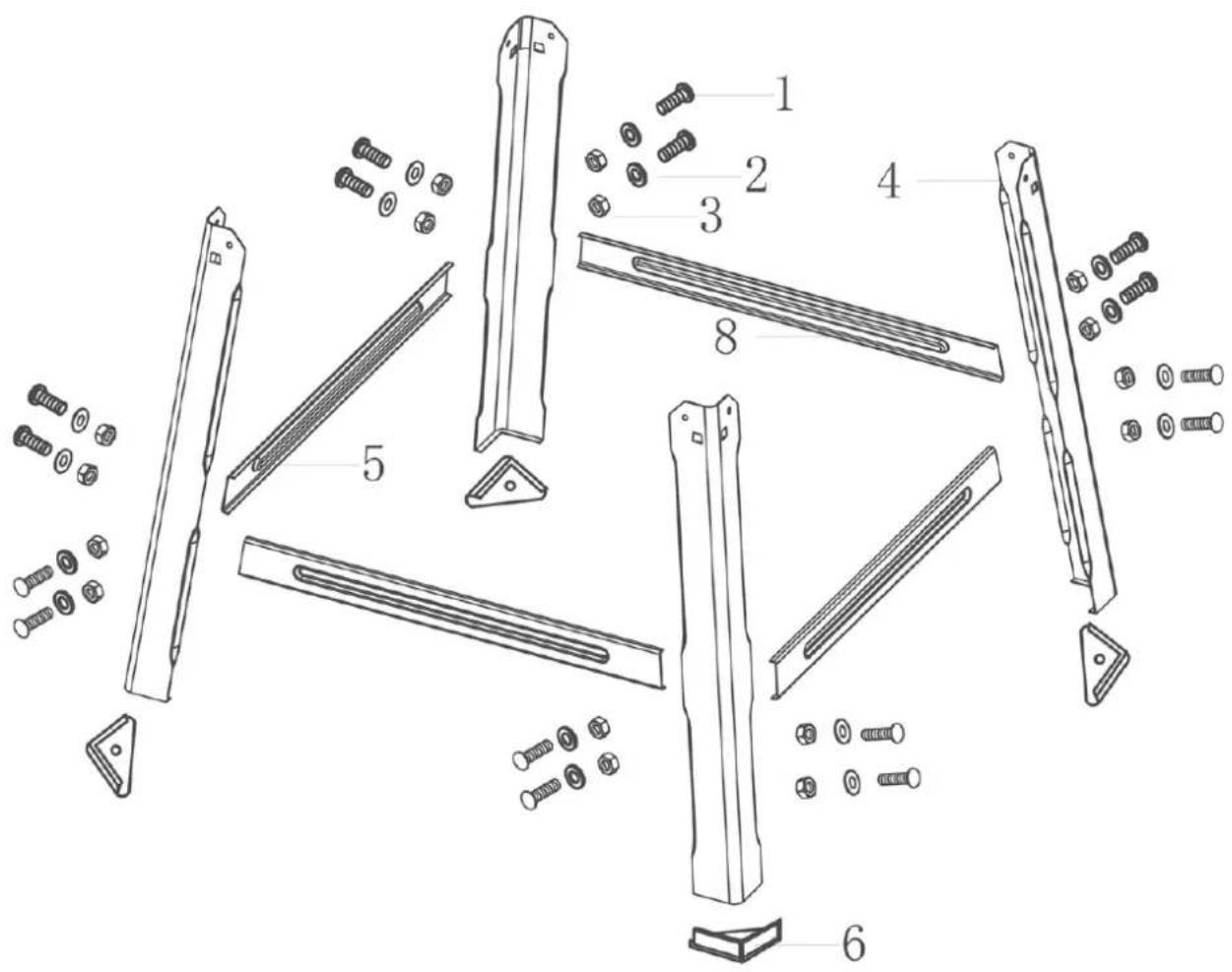

9.2 Fitting the base frame (fig. 6, 7)

1. Attach the support legs (18) to the front (crank wheel 15) and rear (suction socket 21) of the table saw with a total of 4 Phillips screws M6x25 and four washers (c) to the machine housing (Fig. 7).
2. Position one long centre strut (17) respectively between two legs (18) on the front side (crank wheel 15) and rear side (extraction port 21) of the circular table saw (see fig. 6).
3. Secure the long centre struts (17) to the legs (18) with a total of eight coach bolts M6×12, eight washers and eight nuts M6 (d).
4. Position a short central strut (20) between two support legs (18). Fix them to the support legs (18) with a total of eight M6×12 carriage bolts, eight washers and eight M6 nuts (d).
5. Push one rubber foot (19) onto each leg (18).
6. Carefully turn the saw table (2) over and stand it on its legs (18) on the floor.
7. Now tighten all previously established threaded connections.
8. NOTE: During this step, ensure that the table width extensions are correctly aligned with the saw table (2).
9. Tighten both pre-mounted nuts (B) on the rail joiners (A).

9.3 Riving knife

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

You need to remove the table inlay (5) before you can install and adjust the riving knife (6).

9.3.1 Removing the table inlay (fig. 8)

1. Set the saw blade (7) to the max. cutting depth, move to the 0^ position and lock in place (see 11.2).
2. Remove the countersunk head screw (5a).
3. Remove the table inlay (5) from the saw table (2).

9.3.2 Installing and adjusting the riving knife (fig. 8, 9)

1. Loosen the fixing screw (6a).
2. Push the riving knife (6) into the holder.

NOTE: This step can be skipped if the riving knife (6) has already been installed.

1. Align the riving knife (6) such that

a) the distance between the saw blade (7) and the riving knife (6) is max. 5 mm (fig. 9),
b) the saw blade (7) is parallel to the riving knife (6) and
c) the recesses on the riving knife (6) engage in the pins of the riving knife holder.

1. Tighten the fixing screw (6a) again.

9.3.3 Fitting the table inlay (fig. 8)

1. Place the table insert (5) in the recess.
2. Tighten the countersunk screw (5a).

9.4.1 Fitting the saw blade guard (fig. 10)

1. Place the saw blade guard (8) on the riving knife (6) from above so that the screw (C) is firmly placed in the slot of the riving knife (6).

Attention: Press the quick locking button (A) in order to place the saw blade guard (8) on the riv-ing knife (6).

1. Do not tighten the bolt (C) too much; the saw blade guard (8) must be able to move freely.
2. Ensure that the saw blade guard (8) can move freely.
3. Disassembly takes place in reverse order.

⚠ WARNING

Danger of injury due to incorrect fitted saw blade guard

- Before starting sawing, ensure that the saw blade guard (8) automatically lowers onto the material to be sawn.

9.4.2 Checking the saw blade guard

After fitting, check that the saw blade guard (8) is functioning properly.

1. Lift the saw blade guard (8) and then release it.
2. The saw blade guard (8) should automatically move back to its starting position.

9.5 Fitting the parallel stop (fig. 11)

1. Place the parallel stop (1) with open eccentric lever (E) on the guide rail (28) on the saw table.
2. To change the position of the parallel stop (1), slide the parallel stop (1) with open eccentric lever (E) along the guide rail (28).
3. To secure the parallel stop (1) in the desired position, press the eccentric lever (E) fully downwards.

9.6 Inserting the scale (fig. 12)

1. Turn the saw blade (7) to the maximum position out of the saw table (2) by turning the crank wheel (15) counterclockwise until it reaches the stop.
2. Push the scale (26) into the guide groove of the guide rail (28) until it is approximately centred.
3. Position the parallel stop (1) with open eccentric lever (E) on the guide rail (28) on the saw table (2) such that it makes contact with the saw blade (7).
4. Secure this position by pressing the eccentric lever (E) fully downwards.
5. Align the zero point of the scale (26) with the sight glass (23) of the parallel stop (1) and secure this position with the two enclosed slotted-head screws M4x6 (e).

9.7 Fitting the transverse stop (fig. 13)

1. Slide the transverse stop (9) into the groove (3) of the saw table (2).
2. Loosen the locking handle (9c) by turning it counterclockwise.
3. Turn the transverse stop (9) until the arrow points to the desired angle.
4. Secure this position by turning the locking handle (9c) clockwise.

9.8 Connecting an extraction system (fig. 14) ⚠ WARNING

Danger of injury for eyes due to swirling chips

• Wear protective goggles.

• Only operate the product with a suitable chip extraction system. Do not use a common household vacuum cleaner.

• Place the extraction hose (4) on the extraction nozzle (21) on the rear of the machine and on the extraction nozzle of the saw blade guard (8).

• Connect the extraction hose of a suitable chip extraction system (e.g. a multi-purpose vacuum cleaner) to the extraction port (21).

ATTENTION

Check and clean the extraction channels at regular intervals.

10. Before commissioning

10.1 General notes

• Check that the product is fully assembled.
• Check that the safety covers are present, installed and functional.
• Check that the switches work as intended.
• Check that the product is on a firm footing.
• Check that the labels on the product are present and legible. Missing or damaged labels must be replaced or exchanged.
• Check that the mains voltage and the operating voltage match, see Technical data.
• Check that the supply lines, extensions, cable drum, etc. are not too long. Otherwise there may be a drop in voltage or delay in motor start-up.
• Check that the ambient temperature is observed.

10.2 Product-specific notes

• The machine must be securely installed.
• It must be possible for the saw blade to run freely.
• In case of previously machined wood, be aware of any foreign bodies, such as nails or screws, etc.
• Before pressing the on/off switch (11), make sure that the saw blade (7) is correctly fitted, and that moving parts run smoothly.
• Only connect the machine to a correctly installed protective contact socket, with fuse protection of at least 16 A.

11. Operation

11.1 Switch (fig. 15)

11.1.1 ON/off switch

• To switch the saw on, press the on/off switch (11). Wait until the saw blade (7) has reached its maximum speed before starting sawing.
• To switch off the saw, press the cover cap (11a) or tilt it and press the red switch-off button.

11.1.2 Overload protection

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

1. Allow the product to cool.
2. Press the overload switch (13).
3. Switch on the machine as described in 11.1.1.

11.1.3 Speed selection switch

The saw has 2 speed ranges:

• To saw with low speed, push the "3200 RPM" button (low speed switch 12b) at the speed selection switch (12).
• To saw with high speed (wood), push the "5000 RPM" button (high speed switch 12a) at the speed selection switch (12).

11.2 Setting the cutting depth (fig. 1)

The saw blade (7) can be adjusted to the required cutting depth by turning the crank wheel (15).

• Counterclockwise: Greater cutting depth

- Clockwise: Smaller cutting depth

Check the setting with a test cut.

11.3 Setting the cutting angle (fig. 1)

With the circular table saw, angled cuts from 0° to 45° to the left of the parallel stop (1) can be carried out.

⚠ Before each cut, check that no collision can occur between the parallel stop (1), the transverse stop (9) and the saw blade (7).

1. Loosen the locking lever (14).
2. Set the desired angle on the scale (16) by simultaneously pushing in and turning the crank wheel (15).
3. Lock the locking lever (14) at the desired angle setting.

11.4 Using the parallel stop

11.4.1 Stop heights (fig. 16)

• The stop rail (1a) of the parallel stop (1) has two guide surfaces at different heights.
• Depending on the thickness of the material to be cut, the stop rail (1a) must be used for thick material (workpiece thickness exceeding 25 mm) and for thin material (workpiece thickness below 25 mm).

11.4.2 Setting the stop rail (fig. 16)

1. To move the stop rail (1a) to the lower guide surface, loosen the two wing nuts (1b) to release the stop rail (1a) from the parallel stop (1).
2. Pull out the stop rail (1a) along the groove.
3. Turn the stop rail (1a) and slide the sliding block along the second groove.
4. Tighten the wing nuts again (1b).
5. Shifting to the higher guide surface must be carried out in the same way.

11.4.3 Changing the side of the parallel stop (fig. 16)

1. Fully unscrew the wing nuts (1b).
2. Remove the stop rail (1a) and insert the coach bolts (1c) on the opposite side of the parallel stop (1).

11.4.4 Setting the cutting width (fig. 11)

• The parallel stop (1) must be used when cutting sections of wood lengthways.
• The parallel stop (1) can be mounted on both sides of the saw table (2).
• Two scales are printed on the guide rail (28) on the front side of the saw table (2). One written in red and another one in black indicating the distance between stop rail (1a) and saw blade (7) (cutting width):
• Use the upper scale in black, if you have mounted the stop rail (1a) flat (for thin material).
• Use the lower scale in red, if you have mounted the stop rail (1a) upright (for thick material).

To set the parallel stop (1) to the desired dimension, proceed as follows:

1. Raise the eccentric lever (E).
2. Slide the parallel stop (1) until you see the desired dimension on the scale of the guide rail (28) in the sight glass (23).
3. To fix it in place, press the eccentric lever (E) fully downwards.

11.4.5 Setting the stop length (fig. 17)

To avoid the material to be cut becoming jammed, the stop rail (1a) can slide in a longitudinal direction.

Rule of thumb: The rear edge of the stop should intersect an imaginary line that starts roughly at the centre of the saw blade and runs to the rear at 45^ .

1. Set the required cutting width.
2. Undo the wing nuts (1b).
3. Slide the stop rail (1a) far enough forward that it touches the imaginary 45° line.
4. Tighten the wing nuts (1b) again.

11.4.6 Adjusting the parallel stop (fig. 18)

If the parallel stop (1) including stop rail (1a) is not parallel to the saw blade (7), it must be readjusted. Proceed as follows:

1. Remove the saw blade guard (8).
2. Set the saw blade (7) to the maximum cutting depth.
3. Position the parallel stop (1) such that the stop rail (1a) makes contact with the saw blade (7). PREREQUISITE: The stop rail (1a) has already been set to the lower guide surface (see 11.4.2).
4. If the stop rail (1a) is not in line with the saw blade (7), loosen the Phillips screws (1d) in the parallel stop (1) with an Phillips screwdriver and align the stop rail (1a) parallel to the saw blade (7).
5. Tighten the Phillips screws (1d) again.
6. Again, position the parallel stop (1) away from the saw blade (7).

11.5 Using the transverse stop (fig. 19)

Do not push the stop rail (9a) too far towards the saw blade (7). The distance between the stop rail (9a) and the saw blade (7) needs to be approx. 2 cm.

11.5.1 Setting the transverse stop (fig. 19)

1. Secure the stop rail (9a) on the transverse stop (9) by tightening the wing nut (9b).
2. Slide the transverse stop (9) into one of the guide grooves of the saw table (2).
3. Loosen the locking handle (9c) and turn the transverse stop (9) until the desired angle has been set.
4. Turn the locking handle (9c) again.

12. Sawing

⚠ WARNING

Danger of injury due to incorrect mounting

• Check that the product is properly assembled.
• Check the saw blade for mobility and the moving parts for ease of movement.

ATTENTION

Wait after the saw has been switched on, until the saw blade (7) has reached full speed, before starting the cutting process.

12.1 Working instructions

⚠ WARNING

Danger of injury!

Improper handling may result in serious injury.

- Observe and follow the safety and working instructions.

• When making longitudinal cuts, do not stand in front of the circular table saw, but position yourself at an angle to the cut.
  • Always use the parallel stop for angled cuts.
• Use a push stick or wooden push block in order to guide the workpiece past the saw blade. Replace a damaged or worn push stick.
• Secure larger workpieces against tipping after the cutting process. To do so, use for example a reel-off stand.
• After the circular table saw has been switched on, wait until the saw blade has reached full speed, before starting the cutting process.
• Only operate the table saw with an extraction system.
• After every new setting, we recommend performing a test cut, in order to check the dimensional settings.
• Check and clean the extraction channels at regular intervals.

12.2 Performing longitudinal cuts (fig. 20)

With a longitudinal cut, you cut a workpiece in its longitudinal direction. Hold the edge of the workpiece against the parallel stop (1), whilst the flat side lies on the saw table (2).

1. Adjust the parallel stop (1) according to the workpiece height and the desired width (see 11.4).
2. When sawing, the saw blade guard (8) is pushed by the workpiece.
3. Switch on the extraction system and then the circular table saw.
4. Place your hands flat on the workpiece with your fingers closed and slide it along the parallel stop (1) into the saw blade (7).
5. Guide the workpiece sideways by holding it only with the left hand up to the front edge of the saw blade guard (8).
6. Always use the push stick (22) to push the workpiece through to the end of the riving knife (6).

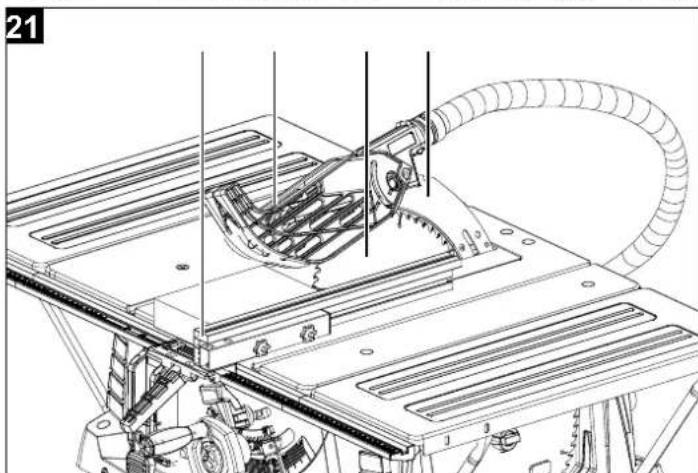

12.2.1 Performing angled cuts (fig. 21)

Angled cuts are always made using the parallel stop (1). The parallel stop (1) must always be fitted to the right of the saw blade (7). Otherwise, workpieces can become jammed between the parallel stop (1) and the saw blade (7) during sawing and ejected at speed.

1. Set the saw blade (7) to the desired angle (see 11.3).
2. Adjust the parallel stop (1) according to the workpiece height and the desired width (see 11.4).
3. Lower the saw blade guard (8) onto the saw table (2).
4. Make the cut according to the workpiece width (see 12.2).

12.3 Performing transverse cuts (fig. 22)

⚠ WARNING

Risk of injury from rotating parts and sharp edges

• Hold the workpiece firmly.

• Push the workpiece with the transverse stop until it is completely cut through.

• Set the transverse stop (9) as required (see fig. 11.5.1). If the saw blade (7) is also inclined, push the transverse stop (9) into the right guide nut. This ensures that neither your hand nor the transverse stop (9) make contact with the saw blade guard (8).

• Lower the saw blade guard (8) onto the saw table (2). When sawing, the saw blade guard (8) is pushed by the workpiece.
• Firmly press the workpiece against the transverse stop (9).
• Switch on the extraction system and then the circular table saw.
• To make the cut, slide the transverse stop (9) and the workpiece in the direction of the saw blade (7).

12.4 Cutting narrow workpieces (fig. 23)

Be sure to use a push stick (22) when making longitudinal cuts in workpieces smaller than 120 mm in width.

With short workpieces, use the push stick (22) from the beginning.

1. Adjust the parallel stop (1) according to the workpiece height and the desired width (see 11.4).
2. Place your hands flat on the workpiece with your fingers closed and slide it along the parallel stop (1) into the saw blade (7).
3. Always use the push stick (22) to push the workpiece through to the end of the riving knife (6).

12.5 Cutting extremely narrow workpieces (fig. 24)

Be sure to use a wooden push block (31) when making longitudinal cuts in very narrow workpieces with a width of 50 mm and less.

The wooden push block (31) is not included in the scope of delivery! (Available from your specialist dealer) Replace the wooden push block (31) without delay when it becomes worn.

During sawing, workpieces can become jammed between the parallel stop (1) and the saw blade (7), caught by the saw blade (7) and then ejected at speed. For this reason, the lower guide surface of the parallel stop (1) should be favoured (see fig. 16). Shift the stop rail (1a) if required (see 11.4.2).

1. Adjust the parallel stop (1) according to the workpiece height and the desired width (see 11.4).
2. Use the wooden push block (31) to press the workpiece against the stop rail (1a) and use the push stick (22) to push the workpiece through to the end of the riving knife (6).

12.6 Cutting chipboard

To prevent the cut edges from breaking off when cutting chipboard, proceed as follows:

The saw blade (7) should not be set higher than 5 mm above the workpiece thickness (see also 11.2).

12.7 After sawing

1. Switch off the circular table saw first and then the extraction system. The saw blade continues to run for a longer time.
2. Disconnect the circular table saw from the mains by pulling the mains plug out of the power socket.
3. Do not remove the cut waste on the saw table until the saw blade has returned to its resting position.
4. Allow the circular table saw to cool down completely.

12.8 Removing jammed material

⚠ WARNING

Danger of injury for fingers and hands due to sharp edges

- Wear protective gloves.

• Switch off the circular table saw immediately and disconnect the mains plug from the power socket if the saw blade is jammed in the workpiece or other blockages occur.
• Use protective gloves and do not touch the saw blade with your bare hands.

13. Cleaning

⚠️ DANGER

Risk of electric shock due to water entering into the machine.

- Do not splash the product with water.

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

13.1 Cleaning the product and saw blade guard ATTENTION

Product damage due to insufficient cleaning

- Clean the product thoroughly after each use.

ATTENTION

Product damage due to aggressive solvents or cleaning agents.

• Use a brush to remove course dirt.

• Clean the product with a damp, clean, lint-free cloth and soft soap.

• Remove dust and chips with a brush after each working operation.

• Clean the ventilation holes with a lint-free cloth.

13.2 Clean the product with compressed air ATTENTION

Product damage due to use of a compressed air device with too high of a pressure

By cleaning the product with highly compressed air, electrical components may become damaged.

- Use a compressed air device with a low pressure of max. 2 bar.

1. Always keep enough distance to the product.
2. Remove dirt with a compressed air device (max. 2 bar).

13.3 Cleaning the chip extraction system

A chip extraction system is not included in the scope of delivery. Follow the manufacturer's operating instructions to properly clean the extraction system.

14. Transport

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

14.1 General notes

• Only lift the product by the machine housing.
• Package the product to prevent transport damage. Use the original packaging.
• Protect the product from vibrations and shocks, in particular during vehicular transport.
• Ensure adequate load securing when transporting in a vehicle.

14.2 Product-specific notes

⚠ WARNING

Danger of injury due to excessive product weight. - Ask a second person to help you mounting the product.

1. When lifting the product, note its weight see technical data.
2. Always switch off the power tool before transport and disconnect it from the power supply.
3. Always carry the power tool with at least one other person, do not carry by the table extensions. To transport the power tool, lift it by the machine housing.
4. Protect the power tool from impacts, shocks and severe vibrations, e.g. during vehicular transport.
5. Secure the power tool against toppling and slipping.
6. Never use protective devices for handling or transport.

15. Maintenance

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

⚠ WARNING

Warning against unexpected hazards and damages to the product

- Never carry out unauthorized changes or repairs to the product that are not described in the operating manual.

- Do not carry out work on the product described for a specialist workshop.

15.1 General notes

• Check the product for loose, worn or damaged components.
• Check the nuts, pins and screws for firm seating.
• Check the covers and protective equipment for damage and correct seating.

- Check the electrical connections. Repairs to the electrical connections may only be carried out by a specialist workshop.

15.2 Oiling the product

1. Oil the rotating parts once monthly to extend the life of the tool.
2. Do not oil the motor.

15.3 Servicing carbon brushes

ATTENTION

Product damage

- The carbon brushes must only be replaced by an electrician.

If excessive sparks are generated, have an electrician check the carbon brushes.

15.4 Replacing the saw blade

⚠ WARNING

Danger of injury! Improper handling of the circular table saw may result in serious injury.

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

⚠ WARNING

Danger of injury for fingers and hands due to sharp edges

- Wear protective gloves.

15.4.1 Removing the saw blade guard (fig. 10)

1. Turn the saw blade (7) to the maximum position out of the saw table (2) by turning the crank wheel (15) counterclockwise until it reaches the stop.
2. Loosen the screw (C).
3. To be able to remove the saw blade guard (8) from the riving knife (6), press the quick-release button (D).
4. Pull the saw blade guard (8) carefully off the riving knife (6).

15.4.2 Removing the table inlay (fig. 8)

1. Remove the countersunk head screw (5a).
2. Remove the table insert (5).
3. Check the table inlay (5) for damage. Replace the table inlay if it is damaged or no longer connects flush with the saw table.

15.4.3 Removing the saw blade guard (fig. 25, 26)

PREREQUISITE: The saw blade (7) has been set to the maximum cutting depth (see 11.2).

1. Place the open-ended spanner 22 mm (f) on the outer saw blade flange (7b) and secure the drive shaft (7c) in this way.

2. Turn the fixing nut (7d) counterclockwise with the open-ended spanner 22 mm (f) to undo the fixing nut (7d).

3. Hold the saw blade (7) carefully with one hand.
4. Remove the fixing nut (7d) and outer saw blade flange (7b) from the drive shaft (7c).
5. Now remove the saw blade (7) from the drive shaft (7c) and carefully draw it up and out of the saw table (2).

ATTENTION

Also remove the reducing ring (7e) located on the shaft.

15.4.4 Fitting the saw blade (fig. 26)

1. Clean the outer and inner saw blade flange (7a/7b) carefully, before fitting a new saw blade (7).
2. Clean the reducing ring (7e) and insert it again.
3. Place a new saw blade (7) on the drive shaft (7c). Observe the rotational direction: The cutting angle of the teeth must point in the running direction (forwards). The running direction is usually also marked on the saw blade.
4. Fit the outer saw blade flange (7b) back on the drive shaft (7c). Ensure the correct alignment of the outer saw blade flange (7b).
5. Screw the fixing nut (7d) tight onto the drive shaft (7c) with the hand.
6. Carefully turn the saw blade (7) in the running direction: It must be precisely centred and must not "wobble". Check that the saw blade (7) and the outer saw blade flange (7b) are correctly seated. Re-align the parts if the saw blade is not exactly centred.

⚠ WARNING

Warning against unexpected hazards and damages to the product - Check the setting of the saw blade after every saw blade replacement.

1. Hold the outer saw blade flange (7b) in place with the 22 mm open end spanner (f).
2. Tighten the fixing nut (7d) clockwise with the 22 mm spanner (f).
3. Mount the table inlay (5) and the saw blade guard (8) (see 9.3.3 and 9.4.1).
4. Check the correct setting of the riving knife (see 9.3.2).

15.5 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:Carbon brushes, table inlay, push stick, saw blade

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

16. Storage

⚠ WARNING

Danger of injury due to unexpected start-up of the machine

- Pull the mains plug out of the outlet.

ATTENTION

Product damage due to incorrect storage

• Store the product protected against dirt, dust and moisture.

• Store the product in its original packaging.

• Store the product in a dark, dry and frost-free place that is inaccessible to unauthorised persons.

• The optimum storage temperature lies between 5 and 30 °C.

• Store the operating manual with the product.

17. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cables used must also comply with these regulations.

Important notes

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

17.1 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors
• Kinks where the connection cable has been improperly fastened or routed
• Places where the connection cables have been cut due to being driven over
• Insulation damage due to being ripped out of the wall outlet
• Cracks due to the insulation ageing

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

Connections and repair work on the electrical equipment may only be carried out by electricians.

If the power cord of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

17.2 AC motor

• The mains voltage must be 220–240 V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .
• Extension cables over 25 m long must have a cross-section of 2.5 mm ^2 .

Connection type Y

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

18. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Old batteries or rechargeable batteries that are not permanently installed in the old unit must be removed before handing them in! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

19. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Problem Possible cause Help
Saw blade gets loose after turning off the motor	Fixing nut not tight enough Tighten fixing nut with right-hand thread
Motor does not start Mains fuse	blown Check the mains fuse
	Extension cable defect Replace the extension cable
	Connections to the motor or switch not OK	Have it checked by an electrician
	Motor or switch defective Have it checked by an electrician
Motor not supplying power, fuse tripping	Cross section of the extension cable insufficient	See “Electrical Connection” in the operating manual
	Overload due to blunt saw blade Replace saw blade
Burn areas at the cutting surface	Blunt saw blade Sharpen saw blade, replace
	Wrong saw blade Replace saw blade
Motor turning sense incorrect	Capacitor defective	Commission check by an electrician
	Incorrect connection	Have an electrician transpose the wall plug poles

Günzburger Straße 69

D-89335 Ichenhausen

Cher client

(fig. 1-3, 8, 9, 12, 13, 16, 18, 19, 24)

- Protection auditive ;

Exploded view diagram of a car body with numbered components and Chinese labels indicating parts such as seats, wheels, and accessories.

B

Exploded view diagram of a battery pack assembly with numbered parts and exploded view

EC Declaration of Conformity

Standard references:

EN 62841-1:2015; EN 62841-3-1:2014/A11:2017;

EN 55014-1:2017; EN 55014-2:2015; EN 61000-3-3:2013/A1:2019; EN IEC 61000-3-2:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
