CUKTECH Power Bank P Series 25000mAh 210W User Manual

Contents

English....1

Italia....11

Français....20

España....29

Deutsch....37

Русский....45

Português....54

日本語....62

한국인....69

Read this manual carefully before use, and retain it for future reference.

Product Overview

Thanks for using this product. Designed with high-quality lithium-ion cells and charging & discharging chips, this high-quality power bank demonstrates outstanding performance in safety, efficiency, and compatibility.

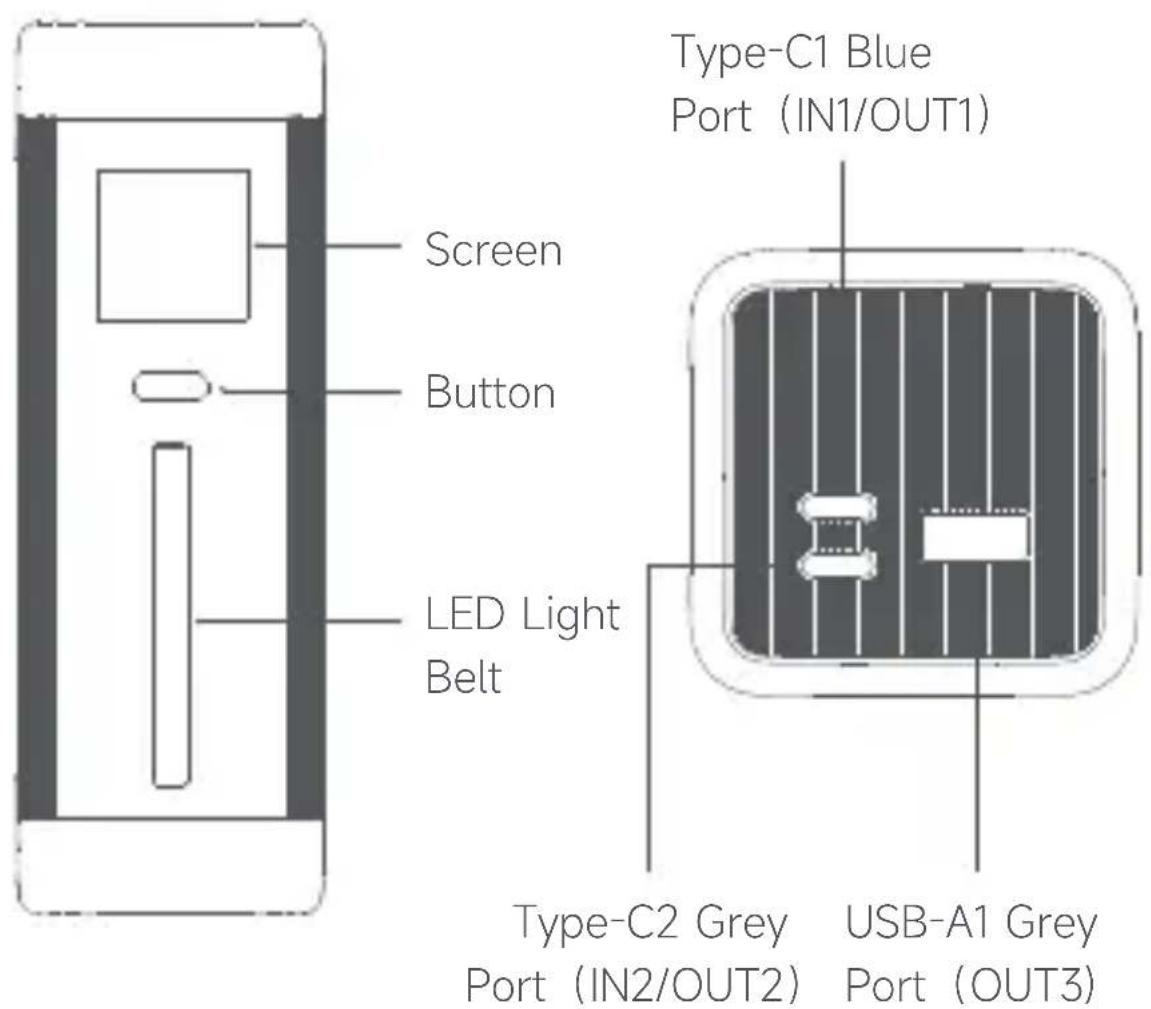

Screen Button LED Light Belt Type-C1 Blue Port (IN1/OUT1) Type-C2 Grey Port (IN2/OUT2) USB-A1 Grey Port (OUT3)

Illustrations of product, accessories, and user interface in the user manual are for reference purposes only.

Actual product and functions may vary due to product enhancements.

Screen Introduction

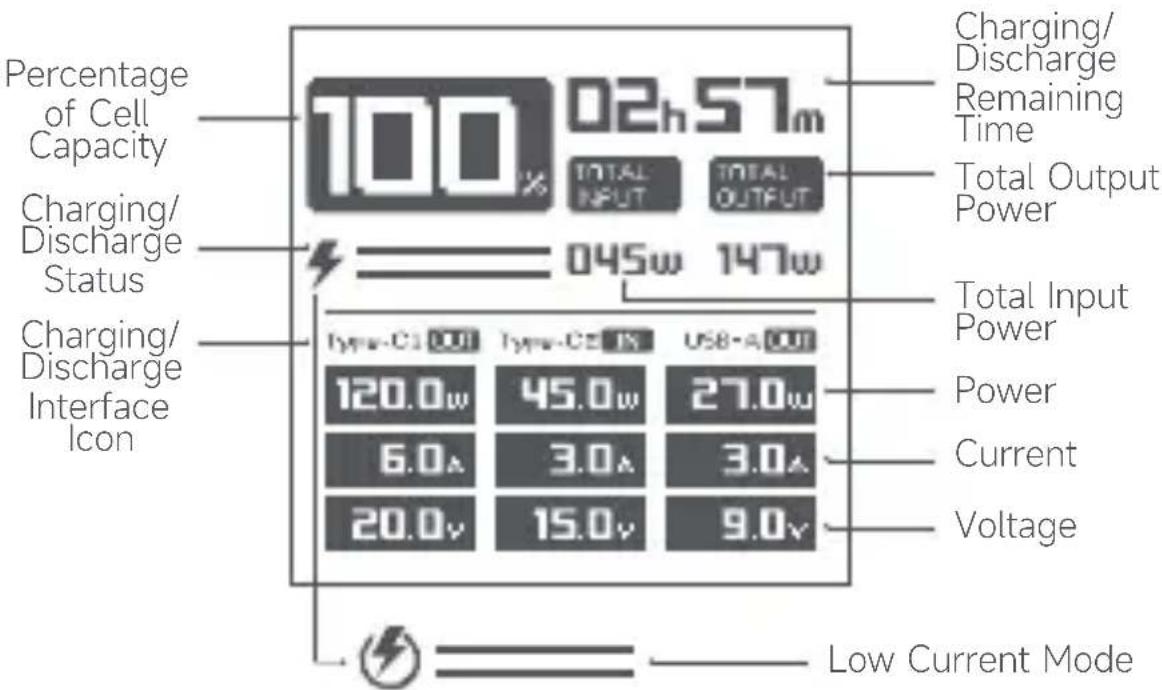

Percentage of Cell Capacity Charging/Discharge Status Charging/Discharge Interface Icon 100 02h57m TOTAL INPUT TOTAL OUTPUT 045w 147w Charging/Discharge Remaining Time Total Output Power Total Input Power Power Current Voltage Low Current Mode

Percentage of cell capacity: The display range is 0%-100%, indicating the current device's cell capacity.

Total input power: the “Total Input” icon and real-time total input power are displayed when the device is in the input state.

Total output power: the "Total Output" icon and real-time total output power are displayed when the device is in an output state.

Input power: the icon of corresponding charging port "Type-C IN" and real-time input power are displayed when the device is in the input state.

Output power: the icon of corresponding charging port "Type-C&USB-A OUT" and real-time output power are displayed when the device is in the output state.

Charging remaining time: In the charging state, the displayed time is the remaining time to fully charge.

Discharge remaining time: In the discharge state, the displayed time is the remaining time for discharging.

Remaining time while charging and discharging: When charging and discharging are performed simultaneously, the displayed time is the remaining time of charging. When the discharge power is greater than the charging power, the displayed time is "99:99".

Battery temperature: Real time display of the internal battery temperature during device operation.

Functions of Buttons

Screen status	Click button Functions
Screen OFF	Single click button	Clicking the button will light up the screen and display the current working status.
Screen ON		In the bright screen state, click the button to switch from the first level interface to the second level interface
Screen ON		On the Screen On state, switch to Screen Off state from the secondary interface by clicking the button.
Any charged state	Double click button	Double click the button to enter the low current discharge mode, and double click again to exit the mode under bright screen state.
	Press and hold the button for 5 seconds	After the button is being pressed and held for 5 seconds, the machine is turned off.

*Standby state: The power bank has power, and it is neither being charged nor being discharged.

LED display effect

Working condition	LED direction
Charging state	The LED gradually lights up from the bottom to the button
Discharge state	The LED gradually lights up from the button to the bottom
Charging and discharging status at the same time	The LED gradually lights up from the bottom to the button
Under charging and discharging conditions, there is no operation within 30 seconds, the screen goes out, and the LED changes from bright to semi bright
Turn off the LED	Click the button multiple times to switch to Screen OFF mode

Specifications

Model: P23

Battery Type: Lithium-ion cell

Battery Capacity (Rated/Typical): 88Wh/90Wh 18V 4.9Ah/5Ah

Rated Capacity: 13500mAh (5V/6A)

Input Interface: Type-C

Output Interface: USB-A/Type-C

Input Parameter: IN1 (Type-C1) 5V---3A 9V---3A 12V---3A

15V---3A 20V---5.5A

$$ \text { Conversion Efficiency of Power Bank: } 75 \% (5 V / 6 A) $$

$$ \text { Charging Time: About 2 hours (charger of 110W and } $$

$$ \text { above, Type - C to Type - C cable inside the packaging, IN1 } $$

$$ \text { port), and about 6 hours (18W charger, Type - C to Type - C } $$

$$ \text { cable inside the packaging) } $$

$$ \text { Note: When the output current of the Type - C port is } $$

$$ \text { greater than 3A, a Type - C to Type - C charging cable } $$

$$ \text { inside the packaging needs to be used. This product has } $$

$$ \text { a large capacity, and it is recommended to use a charger } $$

$$ \text {with a power of 65W or above in conjunction with the} $$

$$ \text { charging wire inside the packaging. } $$

$$ ^ {*} \text {The maximum output peak power is 210W (OUT1} $$

$$ 2 0 \mathrm{V} = - 6 \mathrm{A} \text { OUT2 } 2 0 \mathrm{V} = - 3 \mathrm{A} \text { OUT3 } 1 0 \mathrm{V} = - 3 \mathrm{A}), \text { subject to } $$

$$ \text { the actual testing method adopted by CUKTECH lab. } $$

Product Features

Safety: Designed with multiple protection, the product can

easily cope with abnormalities such as overcharge, over

discharge, overtemperature, short circuit, and provide reliable

protection for power banks and digital devices.

Power: Fast charging and discharging, supporting

bidirectional Type-C wide voltage input and output. The

maximum charging power is up to 110W, and the maximum

discharge power of multiple ports is up to 210W.

Compatibility: The built-in smart USB charging controller is

compatible with mainstream mobile phones and digital

devices, and supports mainstream fast charging and discharging.

Quality: High quality lithium-ion cells and charge & discharge chips.

Warnings

Improper use may lead to cell function failure, serious heating, and even fire and explosion. To protect you against injury and property damage, please store and use this product in strict accordance with the following requirements:

- This product, which is not a toy, must be kept out of the reach of children. To avoid accidents, no child is allowed to use or play with the product.

- To prevent electric shock or cell damage, please be sure to charge this product with a charger that meets local safety standards (such as China 3C certification standard).

- Do not press or strike this product heavily and avoid the cases that may cause severe fall or strong vibration. If these conditions occur, or liquid seeps/splashes into the interior of this product, stop using immediately and handle them properly because such case may cause cell or circuit damage or short circuit.

- If this product experiences swelling, deformation, fluid leakage, and significant decrease in capacity, stop using it immediately and handle it properly.

- Do not charge or discharge this product in any places that may affect its heat dissipation, such as pockets, enclosed bags, on the beds, sofas, and other places. Confirm that this product is not covered by clothing, pillows, bedding, or other debris during use. When the

devices such as mobile phones are to be charged for a long time, do not stack this product together with other devices such as mobile phones, so as to ensure ideal heat dissipation for them.

• Do not disassemble, squeeze, puncture, short-circuit this product, or put it into water, fire (including near stoves, heating installations, and other heat sources), or expose this product to an environment with a temperature higher than 60 °C (140°F).
• In hot weather, keep this product away from an unmanned vehicle outdoors or other places exposed to sunlight.
• To avoid cell damage or other hazards, do not disassemble the product shell without permission because this product contains a lithium ion polymer cell.

Tips: The illustrations about the product, accessories, and user ports in the Manual are schematic diagrams for reference only. Due to product updates and upgrades, there may be slight differences between the physical product and the schematic diagram, and the physical product shall prevail.

Precautions

• Please fully charge this product before its first use.
• To charge this product or use this product to charge other devices, please choose an appropriate charger and data cable (CUKTECH charger and data cable are recommended).
• This product should be charged in an attended manner. Cut off the power supply when you are going out or leaving for a long time.
• As long as this product is fully charged or has fully charged other devices, timely unplug the connection cable to avoid loss in a long-time connection state.
• If the product has no power indication after a button is pressed, it may be in a protected state. You can connect to an external charger to recover it.
• When this product is not in use for a long time, please keep the product with power level in a range of about 25% - 50% and store it in a cool and dry place. In order to extend the cell life, do not store this product with full or no power for a long time.

FCC warning

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

This device complies with Part 18 of the FCC Rules.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

UKCA warning

Hereby, NanJing CukTech Electronics Technology Co., Ltd. declares that the radio equipment type P01CT is in compliance with Radio Equipment Regulations 2017.

The full text of the UK declaration of conformity is available at the following internet address:

http://www.cuktech.com/global/service/support/declaration.html

EU Declaration of Conformity

CE

We, CukTech ELEC Co., Ltd., hereby declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: http://www.cuk-tech.com/global/service/support/declaration.html

WEEE Information

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Symbol of a trash bin with crossed-out lines and a blank rectangular base (no text or numbers)

Symbolic illustration of a person recycling with arrows and a trash bin, no text present

FR

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

12B --- 6A (ВЫХОД1, 12B --- 2A, ВЫХОД2, 12B --- 2A, ВЫХОД3, 12B --- 2A)

15B---6A (ВЫХОД1, 15B---3A, ВЫХОД2, 15B---3A)

20B --- 9A (ВЫХОД1, 20B --- 6A, ВЫХОД2, 20B --- 3A, 180ВТ МАКС.)

Symbol of a trash bin crossed with a diagonal line and a solid rectangle below (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin with crossed-out lines and a blank rectangular base (no text or numbers)

Simple diagram of a solar panel with two side slots and a horizontal bar, enclosed in a rounded square frame (no text or symbols)

Type-C2 회색 포트(IN2/OUT2)

제품 성능:

20V --- 3A OUT3 10V --- 3A).

경고

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Manufactured by: NanJing CukTech Electronics Technology Co., Ltd.

Address: 16F Building A1, Huizhi Technology Park, No. 8

Hengtai Road, Nanjing Economic and Technological

Development Zone, Nanjing, Jiangsu, P.R. China

For more details, please consult the service hotline:

[phone]

[e-mail] https://cuktech.com/

User Manual Version: V1.2
