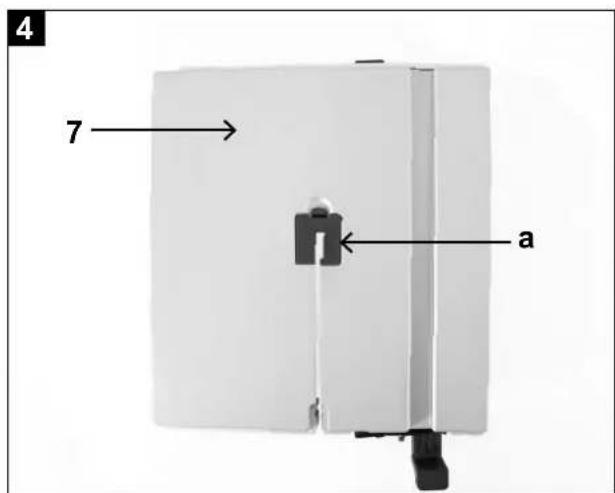

4 7 a

Close-up of a mechanical component with labeled parts (b) and part number 4.1, showing internal structure and mounting hardware (no readable text or symbols beyond labels)

4.2 C E

Close-up of a mechanical assembly with a labeled component 'E' and a black bracket (no readable text or symbols beyond the label)

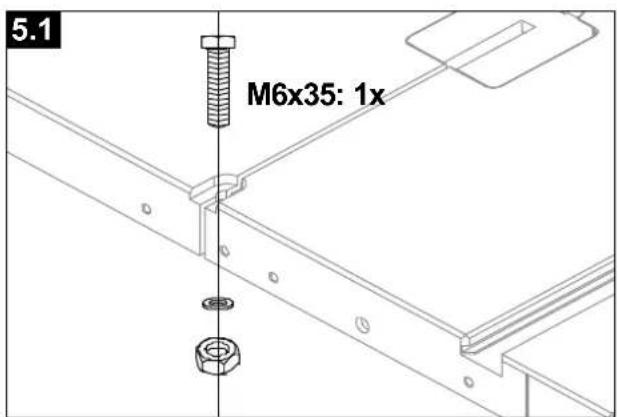

5.1 M6x35: 1x

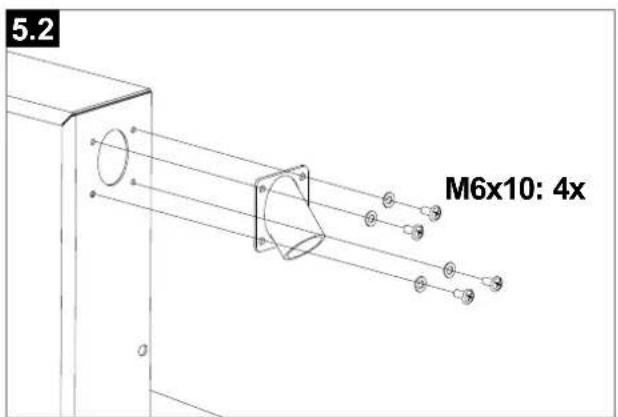

5.2 M6x10: 4x

6 G E F

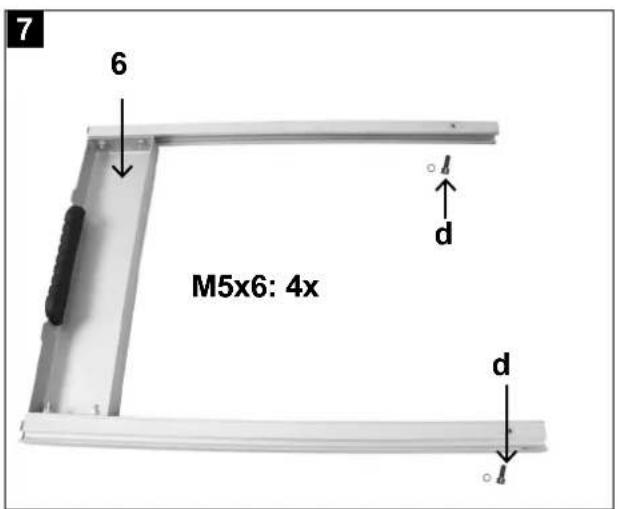

7 6 M5x6: 4x d d

Mechanical setup with a cutting machine and a dashed arrow indicating direction (no text or symbols)

Close-up of a hand using a computer to press a small electronic device with a rotary knob (no visible text or symbols)

Mechanical assembly with a precision tool and panel, no visible text or symbols

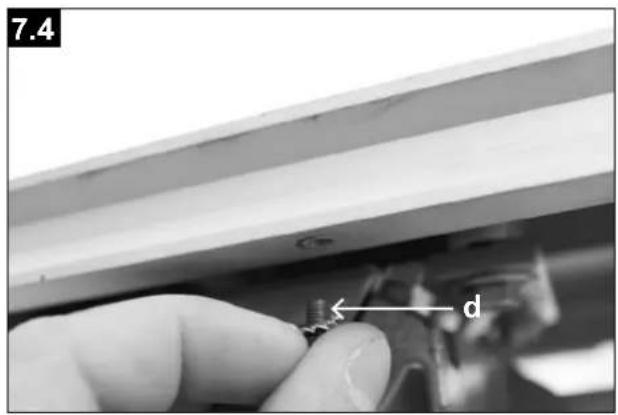

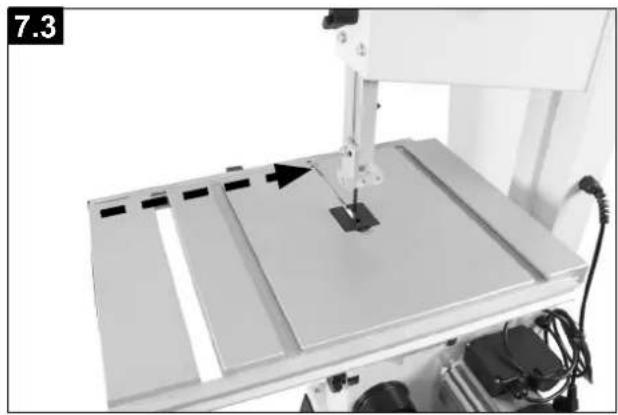

7.4 ← d

8 P k

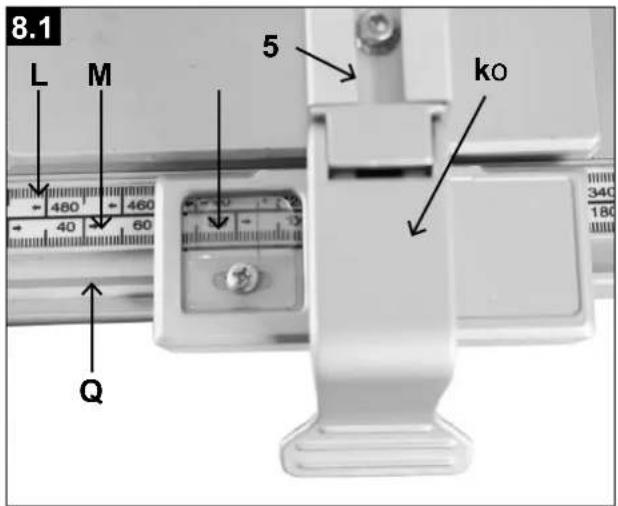

8.1 L M 5 ko 460 460 40 60 Q

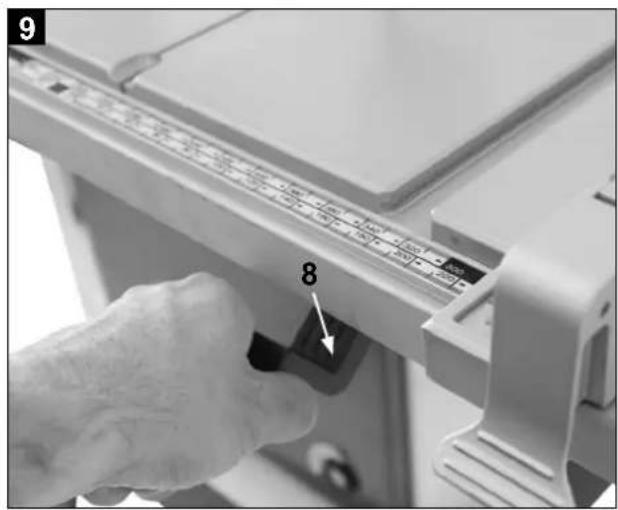

9 8

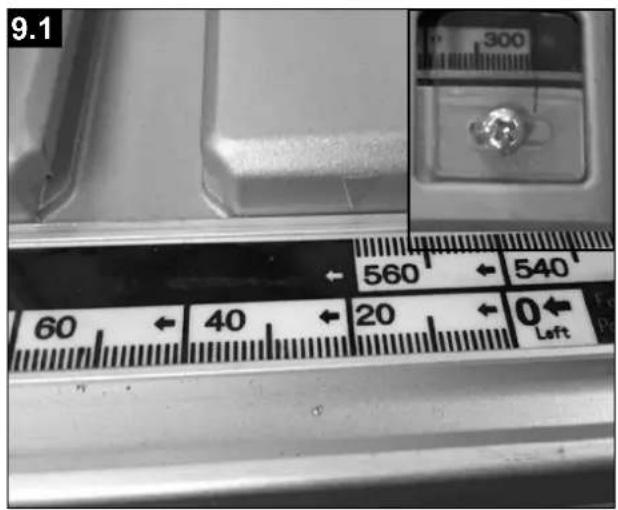

9.1 300 ← 560 ← 540 60 ← 40 ← 20 ← 0 ← Left

Person operating a machine tool on a wooden plank, no visible text or symbols

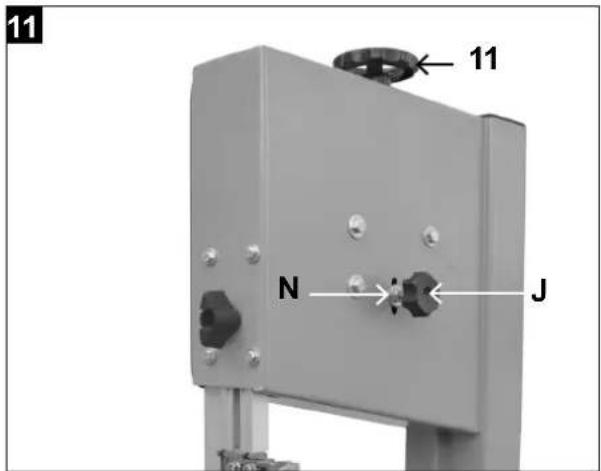

11 11 N J

12 12

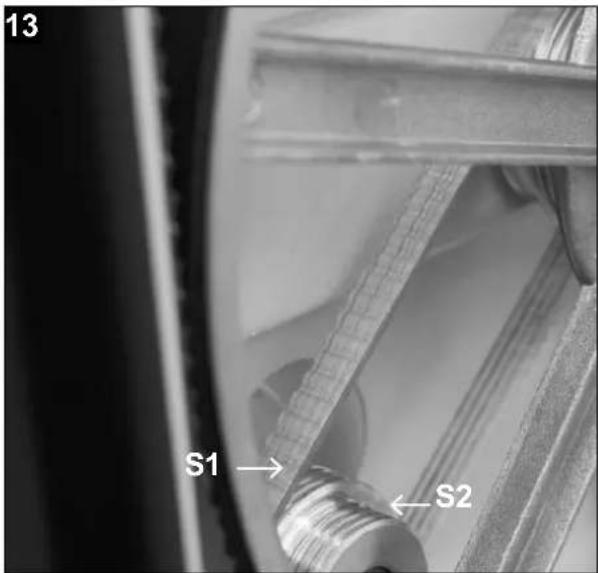

13 S1 → ← S2

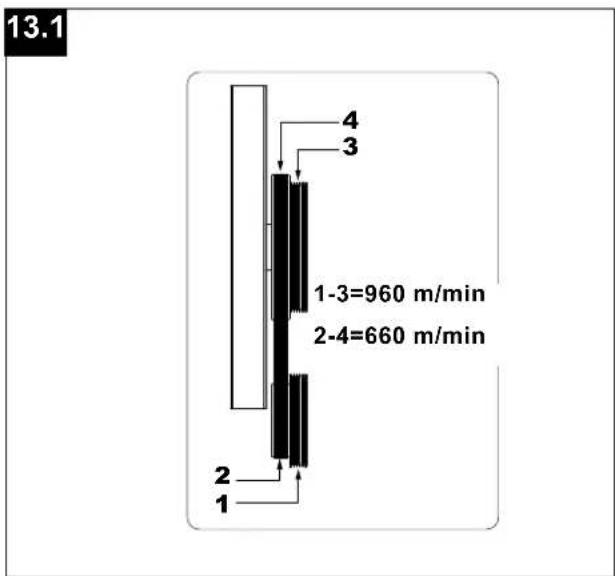

13.1 4 3 1-3=960 m/min 2-4=660 m/min 2 1

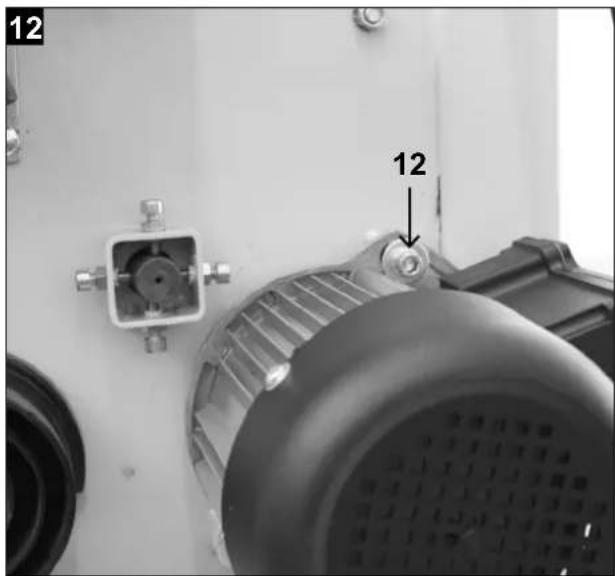

14 13

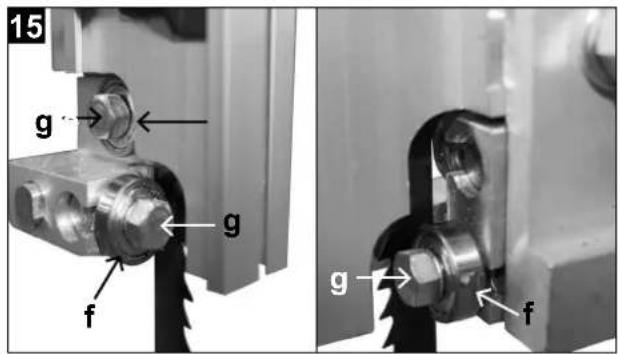

15 g g f g f

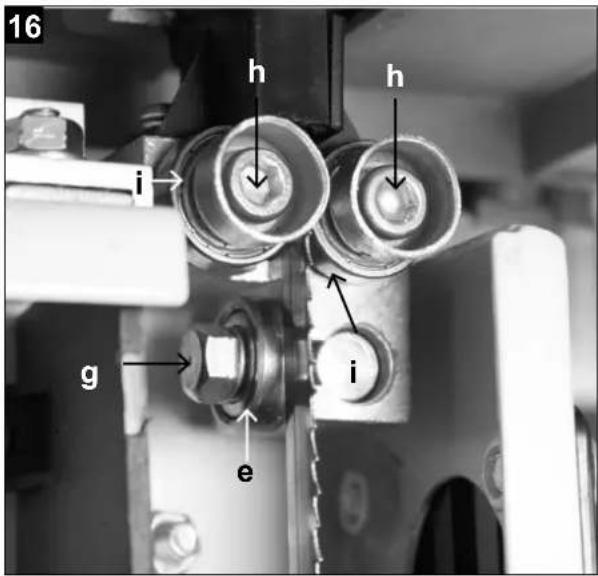

16 h h i g e i

17 j R

k n 14 o m l

Person operating a machine tool on a workbench with metal sheets (no visible text or symbols)

Person using a wooden cutting machine to work on a wooden plank (no text or symbols visible)

Person operating a machine tool with a tool, no visible text or symbols

Person using a wooden cutting machine to cut a metal sheet (no text or symbols visible)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

• 1 Gabelschlüssel SW 10/13

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

	Warning! Disregard results in a risk of death or injury, or damage to the tool!
	Read the operating and safety instructions before start-up and follow them!
	Wear safety goggles!
	Wear hearing protection!
	Wear respiratory protection if dust is produced.
	Attention! Risk of injury! Do not reach into saw blade while it is running!
	Wear protective gloves.
	Attention! Before assembly, cleaning, modification, servicing, storage and transport, the device must be switched off and disconnected from the power supply.
	Saw band direction

Table of contents: Page:

1. Introduction......25
2. Device description....25
3. Scope of delivery 25
4. Proper use....26
5. General safety information 26
6. Technical data 28
7. Residual risks 29
8. Attachment and operation 29
9. Transport 31
10. Working instructions.... 31
11. Cleaning and maintenance.... 32
12. Storage....33
13. Electrical connection 33
14. Disposal and recycling 33
15. Troubleshooting....34

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
  • Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

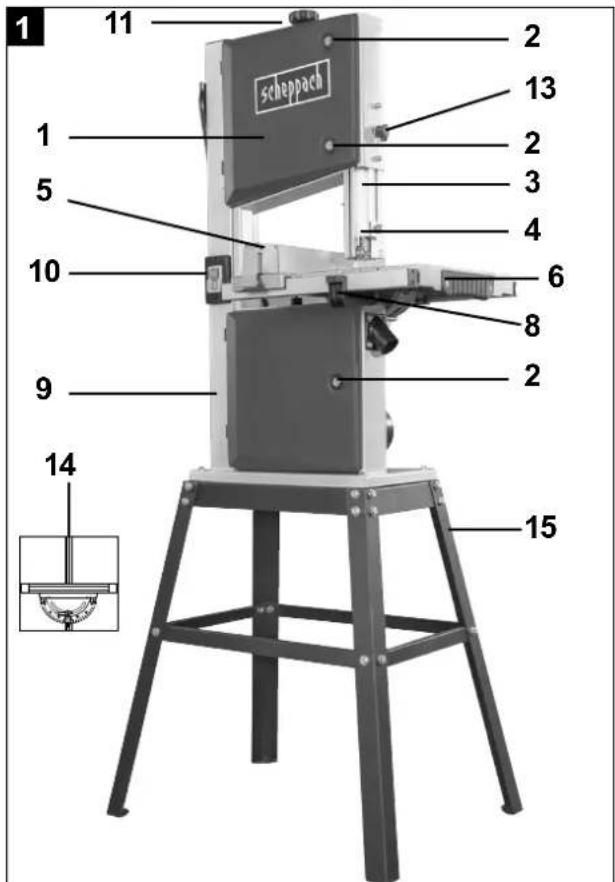

2. Device description (Fig. 1)

1 Housing door
2 Door lock
3 Saw band guard
4 Saw band guide
5 Parallel stop
6 Table width extension
7 Saw table
8 Clamping lever
9 Main frame
10 On/off switch
11 Tensioning screw for saw band tension
12 Tensioning screw for belt tension

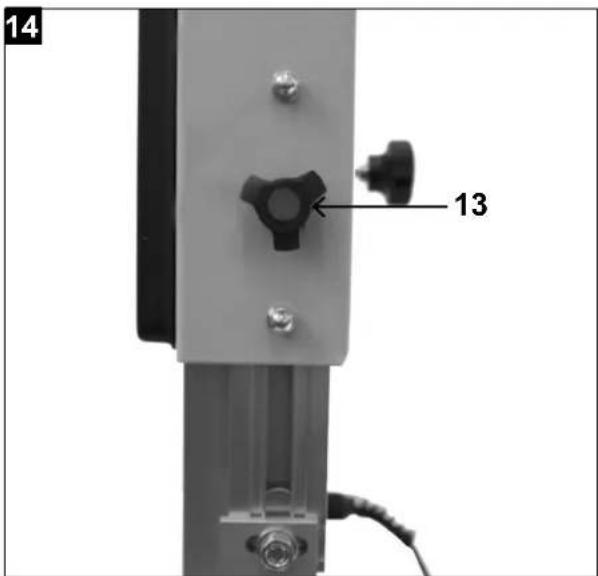

13 Locking knob for the saw band guard
14 Transverse cutting gauge
15 Machine stand

3. Scope of delivery

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

⚠ Attention!

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Band saw (machine frame)
- Saw table
- Retainer plate
- Rail with scale
- Push stick
- Longitudinal stop
- Allen key (3x)
- Screwdriver
- Open-ended spanner (2x)

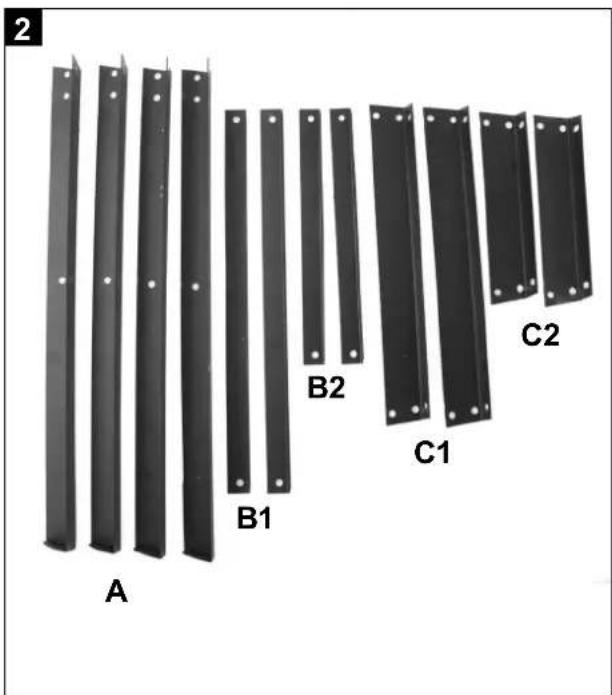

• Cross member, top (2x)
- Longitudinal member, top (2x)
• Cross member, bottom (2x)
- Longitudinal member, bottom (2x)

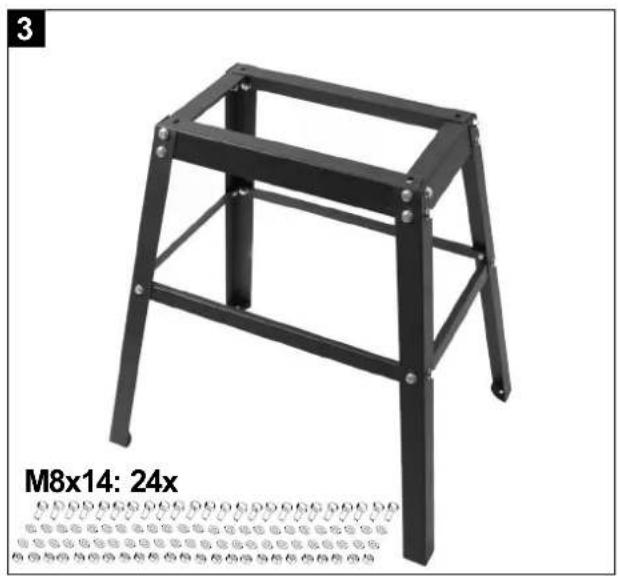

- Foot strut (4x)

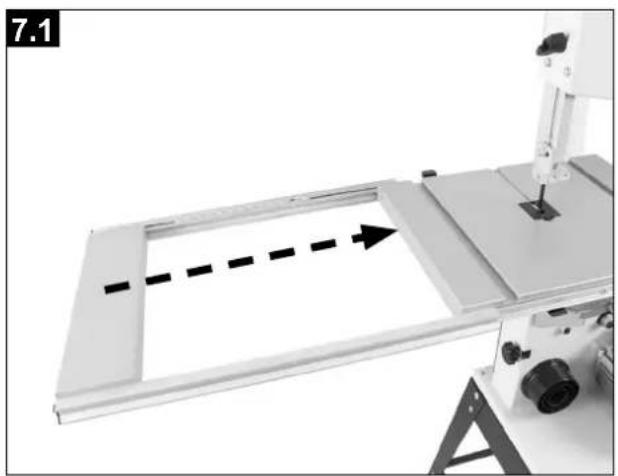

- Table width enlargement with guide rail for length-wise aligning stop
- Fixing material

• Original Operating Manual
- Saw bands (3x)

4. Proper use

The band saw is used for the longitudinal and transverse cutting of timbers or wood-like workpieces. Round materials may only be cut using suitable holding devices.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Only saw bands that are suitable for the machine may be used. An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers. In addition, the applicable accident prevention regulations must be strictly observed. Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

Despite use as intended, specific risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:

• Hearing damage when the necessary hearing protection is not used.
• Harmful emissions of wood dusts during use in enclosed areas.
• Risk of accident due to contact with the hands in the uncovered cutting area of the tool.
• Danger of injury during a tool change (cutting hazard).
• Danger due to the ejection of workpieces or parts of the workpiece.
• Crushing of fingers.
  • Danger due to kick-back.
• Tilting of the workpiece due to insufficient workpiece support surface.
• Touching the cutting tool.
• Ejection of branches and workpiece parts.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. General safety information

⚠ Attention! The following basic safety measures must be observed when using power tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the power tool and store the safety instructions well for later reference.

Safe work

1 Keep the work area orderly
– Disorder in the work area can lead to accidents.
2 Take environmental influences into account
- Do not expose power tools to rain.
- Do not use power tools in a damp or wet environment.
- Make sure that the work area is well-illuminated.
- Do not use power tools where there is a risk of fire or explosion.

3 Protect yourself from electric shock

- Avoid physical contact with earthed parts (e. g. pipes, radiators, electric ranges, cooling units).

4 Keep other persons away.

- Do not allow other persons, especially children, to touch the power tool or the cable. Keep them away from your work area.

5 Securely store unused electric tools

– Unused power tools should be stored in a dry, elevated or closed location out of the reach of children.

6 Do not overload your power tool

– They work better and more safely in the specified output range.

7 Use the correct power tool

• Do not use low-output power tools for heavy work.
• Do not use the power tool for purposes for which it is not intended. For example, do not use hand-held circular saws for the cutting of branches or logs.
• Do not use the electric tool to cut firewood.

8 Dress properly

• Do not wear wide clothing or jewellery, which can become entangled in moving parts.
• When working outdoors, anti-slip footwear is recommended.
  – Tie long hair back in a hair net.

9 Use protective equipment

- Wear eye protection.

- Wear a mask when carrying out dust-creating work.

10 Connect the dust extraction device

- If connections for dust extraction and a collecting device are present, make sure that they are connected and used properly.

- When processing wood, materials similar to wood, and plastics. operation in enclosed spaces is only permitted with the use of a suitable extraction system.

11 Do not use the cable for purposes for which it is not intended

- Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

12 Secure the workpiece

- Use the clamping devices or a vice to hold the workpiece in place. It is thus held more securely than with your hand and allows the machine to be operated with both hands.

- An additional support is necessary for long workpieces (table, trestle, etc.) in order to prevent the machine from tipping over.

– Always press the workpiece firmly against the working plate and stop in order to prevent bouncing and twisting of the workpiece.

13 Avoid abnormal posture

- Make sure that you have secure footing and always maintain your balance.

- Avoid awkward hand positions in which a sudden slip could cause one or both hands to come into contact with the saw blade.

14 Take care of your tools

- Keep cutting tools sharp and clean in order to be able to work better and more safely.

– Follow the instructions for lubrication and for tool replacement.

- Check the connection cable of the power tool regularly and have it replaced by a recognised specialist when damaged.

- Check extension cables regularly and replace them when damaged.

- Keep the handle dry, clean and free of oil and grease.

15 Pull the connector out of the socket

- Never remove loose splinters, chips or jammed wood pieces from the running saw blade.

- When the power tool is not in use or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

- If the saw blade jams during cutting due to excessive feeding force, switch off the device and disconnect it from the mains. Remove the workpiece and make sure that the saw blade runs freely. Switch the device on and carry out the cutting operation again with reduced feeding force.

16 Do not leave a tool key inserted

- Before switching on, make sure that keys and adjusting tools are removed.

17 Avoid inadvertent starting

- Make sure that the switch is switched off when plugging the plug into an outlet.

18 Use extension cables for outdoors

- Only use approved and appropriately identified extension cables for use outdoors.

- Only use cable reels in the unrolled state.

19 Always remain attentive

– Pay attention to what you are doing. Remain sensible when working. Do not use the power tool when you are distracted.

20 Check the power tool for potential damage

- Protective devices or other parts with minor damage must be carefully inspected to ensure that they function correctly and as intended prior to continued use of the power tool.

- Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the power tool.

– The moving protective hood may not be fixed in the open position.

– Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.

– Damaged switches must be replaced at a customer service workshop.

- Do not use any faulty or damaged connection cables.

- Do not use any power tool on which the switch cannot be switched on and off.

21 Attention!

– The use of other insertion tools and other accessories can entail a danger of injury.

22 Have your power tool repaired by a qualified electrician

- This power tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise accidents can occur.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Additional safety instructions

- Wear protective gloves for all maintenance work on the saw band!

- When cutting round timber, use a device to prevent the workpiece turning.

- When cutting boards on edge, use a device to prevent the workpiece kicking back.

- To comply with the dust emission values for woodworking and for safe operation, a dust extraction system with an air speed of at least 20 m/s should be connected.

• Pass the safety instructions on to all persons who work on the machine.

- Never use the saw to cut firewood.

- The machine is equipped with a safety switch against reactivation if the voltage drops.

- Before commissioning, check that the voltage on the device type plate corresponds to the mains voltage.

- Only use the cable drum when unrolled.

- Personnel working on the machine must not be distracted.

- Observe the direction of rotation of the motor and saw band.

- Safety equipment on the machine must not be disassembled or made unusable.

- Do not cut workpieces that are too small in order to keep them secure in your hands.

- Never remove loose splinters, chips or jammed wood pieces from the running saw band.

- The applicable accident prevention regulations and the other generally accepted safety rules must be observed.

- Observe the instructions of the employers' liability insurance association (VBG 7).

- Fit the saw band guard at a height of approx. 3 mm above the material to be sawn.

- Attention! Secure long workpieces against tipping at the end of the cutting process. (e.g. roller stand, etc.)

- The saw band guard (3) must be in the lowest position close to the table during transport of the device.

- Protective covers must not be used for transport or improper operation of the machine.

- Deformed or damaged saw bands may not be used.

- Replace the worn table insert.

- Never operate the machine when the door protecting the saw band or the guard is open.

- Make sure that the choice of saw band and speed is suitable for the material to be cut.

- Do not start cleaning the saw band until it has come to a complete stop.

- Use a push stick when making straight cuts in small workpieces against the parallel stop.

- Wear gloves when handling the saw band and rough materials!

- During transport, the saw band guard should be in the lowest position and close to the table.

- For mitre cuts with an inclined table, the parallel stop should be placed on the lower part of the table.

- Never use guards for lifting or transport.

• Be sure to use and properly adjust the saw band guards.
• Keep your hands at a safe distance from the saw band. Use a push stick for narrow cuts.
• Set the adjustable guards such that they are as close as possible to the workpiece.
• Store the push stick on the holder provided for it on the machine so that you can reach it from your normal working position and always have it to hand.
• In the normal working position, the operator is in front of the machine.

6. Technical data

AC motor 220 - 240 V \~, 50 Hz

Power	420W (S1*)550W (S2 20min**)
Idle speed 1400 min	-1
Saw band length 1790
Saw band width 6 mm
Max. saw band width 13 mm
Saw band speed I 660 m/min
Saw band speed II 960 m/min
Cut height 0-120 mm
Swing 245 mm
Table size 300 x 300 mm
Table inclinable	0° to 45°
Max. workpiece size	580 x 400 x 120 mm
Weight	27.5 kg

The workpiece must have a minimum height of 3 mm and a minimum width of 10 mm.

*Operating mode S1 (continuous operation)

The machine may be operated continuously with the specified power

* *Operating mode S2 – short-term operation

Operation at a constant load for 20 minutes or less, followed by a time out of operation and a pause of sufficient duration to allow the machine to cool to within 2 K of the ambient temperature.

The noise and vibration levels have been determined in accordance with EN 61029.

Sound pressure level L_pA	77.4 dB(A)
Uncertainty K_pA	3 dB
Sound power level L_WA	90.4 dB(A)
Uncertainty K_WA	3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing. Total vibration emission values (vector sum of three directions) determined per EN 61029.

7. Residual risks

The electric tool has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Danger of injury for fingers and hands due to the running saw band with improper guiding of the workpiece. Injuries due to the workpiece being ejected at high speed due to improper holding or guiding, such as working without the stop.
• Risk to health from wood dust or wood chippings. It is essential that personal protective equipment, such as eye protection, is worn. Use a suction system!
• Injuries due to defective saw band. Check the integrity of the saw band regularly.
• Danger of injury for fingers and hands when changing the saw band. Wear suitable work gloves.
• Danger of injury when the machine is switched on from the running saw band.
• Hazard due to electrical power with the use of improper electrical connection cables.
• Danger to health from running saw band due to long hair and loose clothing. Wear personal protective equipment such as a hair net and close-fitting work clothing.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "General safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.

8. Attachment and operation

Before commissioning

The machine must be securely installed, i.e. bolted down on a workbench or fixed machine stand. There are fixing holes in the machine base for this purpose.

• The saw table must be mounted correctly
• Prior to commissioning, all covers and safety devices must be mounted correctly.
• The saw band must be able to run freely.
• In case of previously machined wood, be aware of any foreign objects, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that the saw band is correctly fitted, and that moving parts run smoothly.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

Assembly tool

• 1 Open-ended spanner, size 10/13

8.1 Fitting the machine stand extension

(Fig. 2+3+3.1)

Assembly parts:

• 4 frame legs (A)
• Bottom frame struts (B): 2 x long (B1) + 2 x short (B2)
• Top frame struts (C): 2 x long (C1) + 2 x short (C2)
• Fastening parts (24 hexagon bolts M8x14, 48 washers M8, 24 nuts M8; 4 hexagon bolts M6x40, 8 washers M8, 4 nuts M8)

During assembly, tighten all screws lightly by hand.

1. Mount one bottom frame strut each (B) to the frame legs (A) with 2 hexagonal bolts M8 x 14, 4 washers and 2 nuts.
2. Now mount the frame struts at the top (C) to the frame legs (A) with 4 carriage bolts M8 x 14, 8 washers and 4 nuts each as shown in fig. 3.
3. Place a box behind the machine and then carefully tilt it backwards until the machine rests against the housing.
4. Insert the pre-assembled frame (Fig. 3) under the base plate of the band saw, tighten it by hand with 4 hexagonal bolts M6x40, 8 washers and 4 nuts. (Fig. 3.1)
5. Place the machine with the machine stand on a level surface and tighten all screws firmly.

8.2 Fitting the tabletop (Fig. 4 - 6)

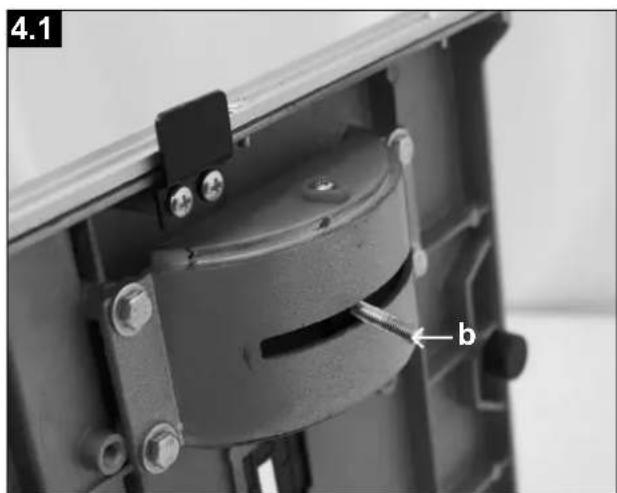

1. Lay the table inlay (a) in the recess in the saw table intended for this (7) (Fig. 4). (To replace, disassemble the saw table in reverse order.)
2. Guide the band saw blade through the slot on the saw table. Place the work table on the table suspension so that the fixing screw (b) can be inserted through the bracket (c) (Fig. 4.1+4.2)

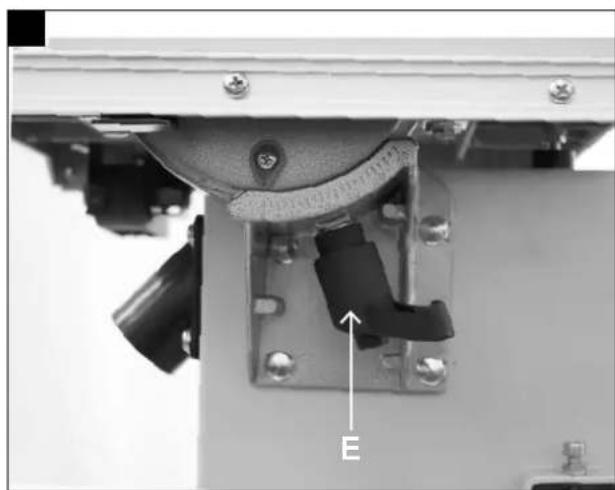

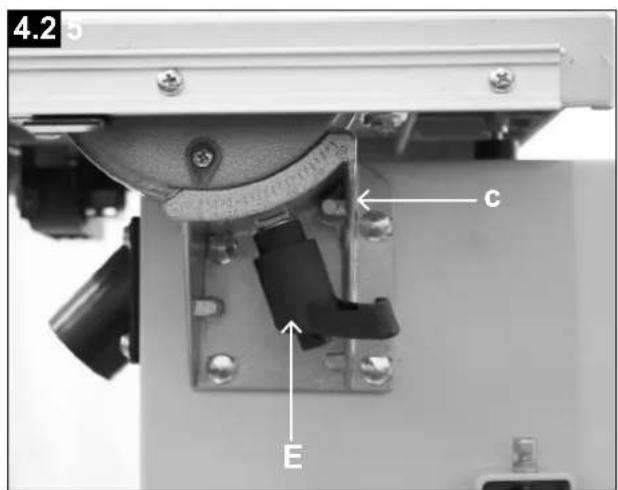

3. Screw down the worktable with the quick clamp lever (E) and a washer (Fig. 4+5).
4. Check that the saw band runs freely and does not touch the table.

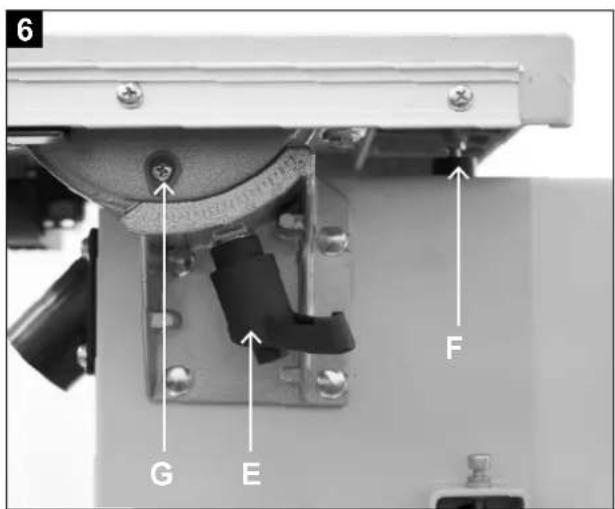

5. Fit the bolt M6x40 with two washers and the bolt to the table. (Fig. 5.1)
6. Use the set screw (F) to adjust the table at right angles to the saw band. – Use stop bracket –
7. Lock the set screw (F) and tighten the quick clamp lever (E).
8. Set the scale pointer (G) to 0.

8.3 Fitting the table width extension

(Fig. 7 + 7.1 + 7.2 + 7.3 + 7.4)

1 Remove the two bolts and washers (d) from the table width enlargement (6). (Fig. 7)

1. Slide the table width enlargement (6) onto the table mounted on the machine. Ensure that the tightening lever (8) is open (Fig. 7.1+7.2).
2. Push the table width extension fully onto the table (Fig. 7.3) in order to fix the two bolts (d) on both sides. (Fig. 7.4) Be sure to fit the bolts (d) on both sides. The two bolts are used to limit the extension of the table width enlargement.

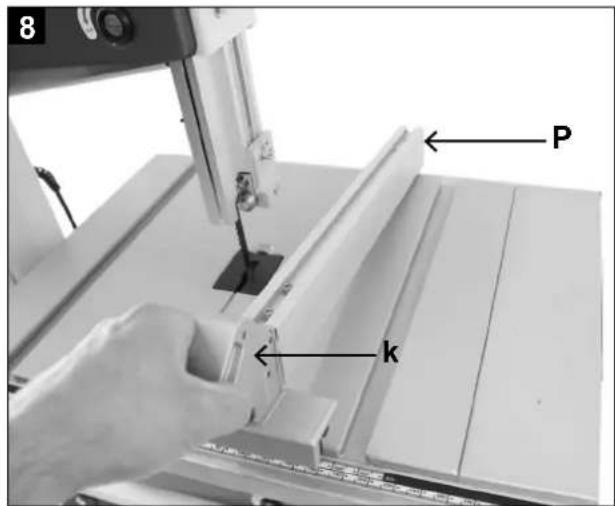

8.4 Fitting the parallel stop (Fig. 8)

1. Fit the parallel stop (5) by positioning it at the back and fixing the clamping lever (K) in place downwards.
2. When dismantling, pull the clamping lever (K) upwards and remove the parallel stop (5).
3. The clamping force of the parallel stop can be adjusted at the rear knurled nut (P).

8.5 Adjusting the cutting width (Fig. 8 + 8.1)

The parallel stop (5) must be used when cutting sections of wood lengthways.

1. Place the parallel stop (5) on the guide rail (Q) to the left or right of the sawing blade
2. 2 scales (L/M) are printed on the guide rail for the parallel stop (5), which show the distance between the stop rail and sawing blade.
3. Adjust the parallel stop (5) to the required dimension in the window (O) and use the clamping lever (8) to fix in place for the parallel stop. (Fig. 8)

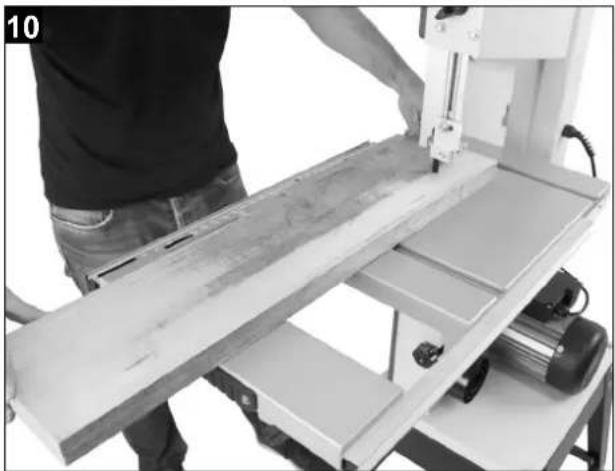

8.6 Using the table width extension (Fig. 9-10)

1. Always use the table width extension (6) with particularly wide workpieces.

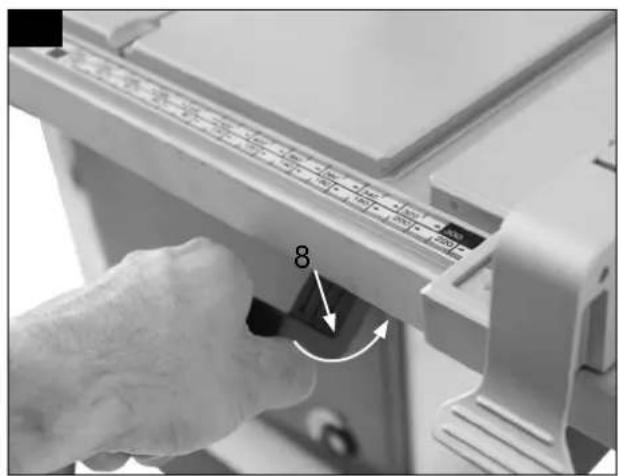

2. Loosen the clamping lever (8) and pull the table width extension out far enough so that the workpiece to be sawn can lie on it without tilting. (Fig. 10)

8.7 Saw band change (Fig. 11 + 12)

Attention: Pull out the mains plug!

1. Remove the parallel stop and the table width extension in reverse order (Fig. 7-8).
2. Open the saw band guard, top and bottom.
3. Relieve the saw band tension with the clamping screw (11) (Fig. 11), remove the band.
4. Insert a new saw band.
5. Side correction (Fig. 11)

The saw band should run centrally on both band wheels.

1. Turn the upper band wheel by hand in the cutting direction and use the handle (J) to make the lateral correction.

Attention! The saw band should run over the centre of the band wheel after multiple turns. Visual inspection!

1. Turn the band wheel by hand in the cutting direction and at the same time set the final tension with the tensioning screw (11). The tension depends on the saw band width. Wide saw bands must be tensioned more than narrow ones.
2. After setting, tighten the counternut (N). Close the protective cover. Attention! Excessively high tension leads to premature breakage!
3. Fit the table width enlargement in reverse order. (Fig. 7-7.4)
4. On completion of work, always relieve tension on the saw blade! To do this, loosen the tensioning screw (11).

8.8 Speed adjustment (Fig. 12 + 13 + 13.1)

Pull out the mains plug!

1. Open the lower protective cover. The saw table must be slightly tilted.
2. Release the tension on the belt with the tensioning screw (12).
3. Move the belt to the desired position (S1 or S2).
4. Tension the belt again with the tensioning screw (12).
5. Close the lower protective cover.

Speed range:

Speed stage 1 660 m/min.

For processing hardwood, materials similar to hardwood and for fine cuts.

Speed stage 2 960 m/min.

For processing softwoods and for less fine cuts.

8.9 Saw band guide (Fig. 14)

By loosening the locking knob (13), the saw band guide can be adjusted.

The upper saw band guide can be set from 0 - 175 mm workpiece height.

The smallest possible distance to the workpiece ensures optimal belt guidance and safe working!

Counterpressure bearings (Fig. 15 + 16)

The counterpressure bearings (e) absorb the feeding pressure of the workpiece. Adjust the top and bottom counter pressure bearing so that it lightly touches the back of the saw band. Tighten the screws (g). The distance should be at least 0.5 mm.

Top guide rollers. (Fig. 15)

Adjust the top guide rollers (f) to the respective saw band width. The front edges of the guide rollers may only reach up to the tooth base of the saw band. If the guide rollers lightly touch the saw band, tighten the screws (g).

Bottom guide rollers (Fig. 16)

Adjust the bottom guide rollers (i) to the respective saw band width. The front edges of the guide rollers may only reach up to the tooth base of the saw band. If the guide rollers lightly touch the saw band, tighten the screws (h).

The saw band must not jam!

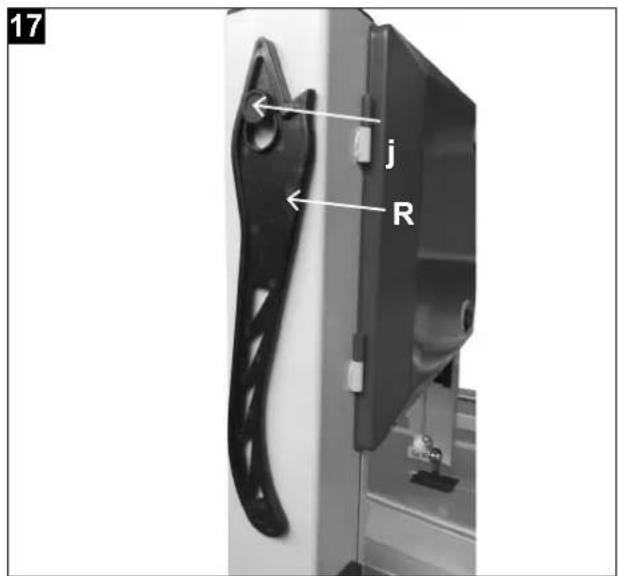

Storage of the push stick (Fig. 17)

In order to have the push stick (R) to hand at all times, hang it on the device (j) intended for this, at the top left side of your band saw.

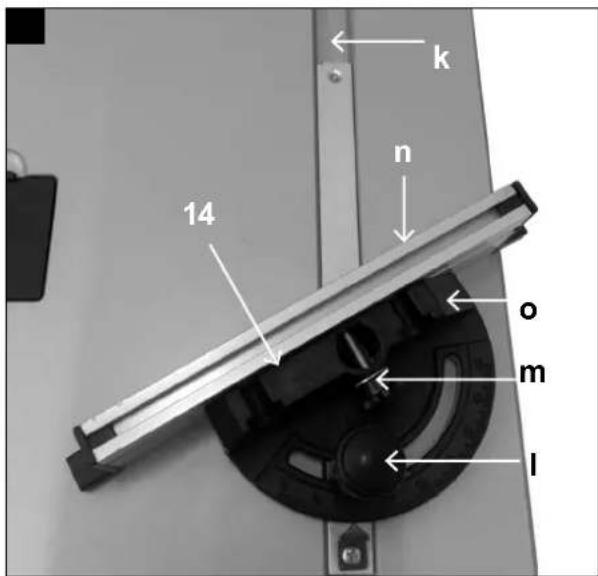

8.10 Transverse cutting gauge (14) (optional) (Fig. 18)

1. Slide transverse stop (o) into a groove (k) in the saw table.
2. Release the grip screw (l).
3. Turn the transverse stop (o) until the desired angle has been set. The arrow on the lateral stop indicates the set angle.
4. Retighten the grip screw (I).
5. The stop rail (n) can be slid against the transverse stop (o). To do so, loosen the knurled screw (m) and slide the stop rail (n) into the desired position.
6. Tighten the knurled screws (m) again

Attention! Do not slide the stop rail (n) too far in the direction of the saw blade.

8.11 Suction port (Fig. 1)

The band saw is equipped with a rear suction port ∅ 98 mm and a side suction port ∅ 41 mm for chips. The rear suction port is pre-mounted. The side suction port can be mounted as shown in Fig. 5.2 with four screws and four M6x10 washers.

Only operate the device with a suitable extraction system. Check and clean the extraction channels at regular intervals.

8.12 Switching on/off (Fig. 1)

• The saw can be switched on by pressing the green "I" button on the ON/OFF switch (10). Before starting sawing, wait until the saw blade has reached its maximum speed.
• To switch the saw off again, press the red "0" button on the ON/OFF switch (10).

Attention!

All protective devices and covers must be installed before any work is carried out on the machine. The top and bottom band wheel is clad by a firmly attached protection and a moveable housing cover. The machine is switched off when the housing cover is opened. It can only be switched on with the cover closed.

9. Transport

The machine may only be lifted and transported on the frame or the base plate. Never lift by the guards, adjustment handles or saw table for transport.

During transport, the saw band guard must be in the lowest position and close to the table. Never lift by the table! Disconnect the machine from the mains in order to transport.

10. Working instructions

The following recommendations are examples for safe use of the band saws.

The following safe working methods are considered to contribute to safety but may not be appropriate, fully or extensively applicable for every use. They cannot cover all possible hazardous conditions and must be interpreted carefully.

• When working in enclosed spaces, connect the machines to a suction system.
• If the machine is not in operation, e.g. work is complete, slacken the saw band. Attach a corresponding note to the machine for the next user about the tensioning of the saw band.
• Store unused saw bands together and safely in a dry place. Check for faults (teeth, cracks) before use. Do not use defective saw bands!

- Wear suitable gloves when handling saw bands.

- Before starting work, all guards and safety devices on the machine must be securely fitted.

- Never clean the saw band or the saw band guide with a hand-held brush or scraper if the saw band is running. Resinous saw bands jeopardise work safety and must be cleaned regularly.

- Wear safety goggles and hearing protection when working for your personal protection. Wear a hair net with long hair. Roll loose sleeves up above the elbows.

• Always position the saw band guide as close as possible to the workpiece when working.

- Make sure that the lighting conditions in the working and surrounding area of the machine are sufficient.

- Always use the longitudinal stops for straight cuts in order to prevent the workpiece from tilting or slipping.

- Use the push stick for processing narrow workpieces with manual advance.

- For angled cuts, bring the saw table into the appropriate position and guide the workpiece along the longitudinal stop.

- In order to cut dovetail tenons and teeth or wedges, swivel the saw table into the plus and minus position. Ensure that the workpiece is guided safely.

• On curved and irregular cuts, advance the workpiece using both hands, keeping your fingers closed. Keep your hands on a safe area of the workpiece.
• For repeated cutting of curve, irregular cuts, use an auxiliary template.
• Secure the workpiece against turning when cutting round pieces of wood.
• For safe work when transverse cutting, use the special transverse cutting gauge accessory.

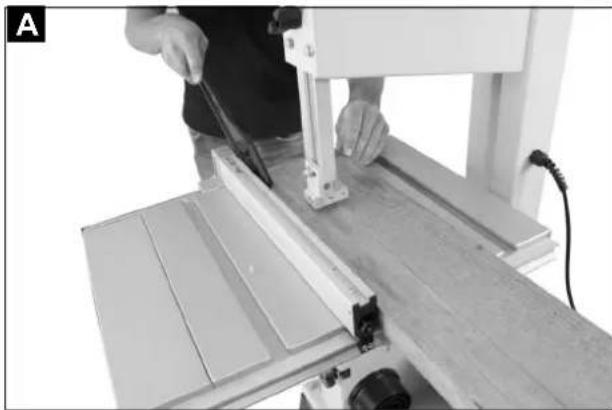

10.1 Performing longitudinal cuts (Fig. A)

Here, a workpiece is cut in its longitudinal direction.

1. Set the parallel stop (5) on the right or left side of the saw band according to the desired width.
2. Lower the saw band guide (4) onto the workpiece. (see 8.9) Switching on the saw.
3. Press one edge of the workpiece against the parallel stop (5) with the right hand, whilst the flat side lies on the saw table (7).
4. Slide the workpiece at an even feed rate along the parallel stop (5) into the saw band. Important: Long workpieces must be secured against tilting at the end of the cutting process (e.g. with roller stand, etc.)

Attention! When processing narrower workpieces it is essential to use a push rod.

The push stick (R) must always be stored within reach, on the hook (j) provided for this purpose on the side of the saw. (Fig. 17)

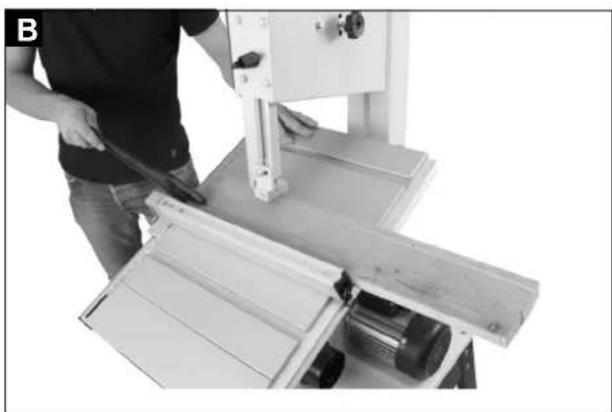

10.2 Performing angled cuts (Fig. 6 + Fig. B)

In order to execute angled cuts parallel to the saw band, it is possible to tilt the saw table (7) forwards from 0^ - 45^ .

1. Loosen the locking handle (E).
2. Tilt saw table (7) forwards, until the desired angle is set on the graduated scale (1).
3. Retighten locking handle (E). Attention: With a tilted saw table (7), the parallel stop (5) must be positioned on the downward facing side to the right of the saw band in the working direction (if the workpiece width allows this), in order to secure the workpiece against slipping.
4. Perform the cut as described under 10.1.

10.3 Freehand cuts (Fig. C)

One of the most important features of a band saw is the ease with which it can cut curves and radii.

1. Lower the saw band guide (4) onto the workpiece. (see 8.9)
2. Switch on the saw.
3. Press the workpiece firmly onto the saw table (7) and slowly slide into the saw band.

4. During freehand cutting you should always work with a low advancing speed, so that the saw band can follow the desired line.

5. In many cases it is helpful to roughly saw curves and corners approximately 6 mm from the line.

6. If it is necessary to saw curves that are too tight for the saw band used, auxiliary cuts must be sawn up to the front face of the curve, so that these fall off as wood waste when the final radius is sawn.

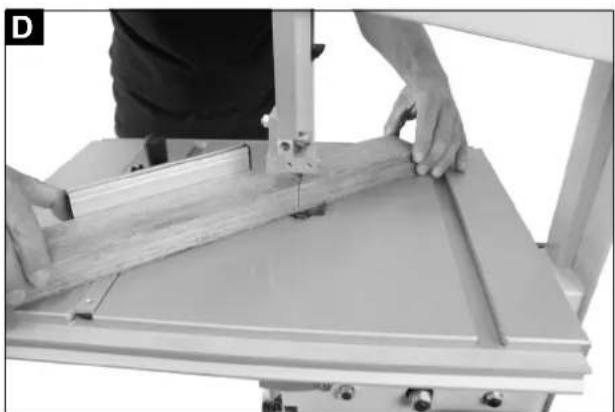

10.4 Executing cuts with the transverse cutting gauge (Fig. D + Fig. 18) (optional)

1. Set transverse cutting gauge (14) to the desired angle (see 8.10)
2. Perform the cut as described under 10.1.

11. Cleaning and maintenance

⚠ WARNING! Pull out the mains plug before carrying out any adjustments, maintenance or repair work!

General maintenance tasks

Wipe swarf and dust off the machine from time to time with a cloth. Oil the rotating parts once monthly to extend the life of the tool. Do not oil the motor. Do not use corrosive agents for cleaning the plastic.

Cleaning

Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.

We recommend that you clean the device directly after every use.

Clean the device at regular intervals using a damp cloth and a little soft soap.

Do not use any cleaning products or solvents; they could attack the plastic parts of the device.

Make sure that no water can penetrate the device interior. Water entering a power tool will increase the risk of electric shock.

Maintenance

The device has no further internal parts that require maintenance.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Carbon brushes, saw blade, table inlays; v-belt

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

12. Storage

• Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children.
• The optimum storage temperature lies between 5 and 30^ .
• Store the power tool in its original packaging.
• Cover the electric tool to protect it from dust or moisture.
• Store the operating manual with the power tool.

13. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 220-240 V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 square millimetres.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
  • Data of machine type plate
• Motor data - type plate

14. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plas-

tics. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive

(2012/19/EU) pertaining to waste electrical and

electronic equipment (WEEE). This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

15. Troubleshooting

Fault Possible cause Remedy
Motor does not work	Motor, cable or plug defective, fuses burnt	Arrange for inspection of the machine by a specialist. Never repair the motor yourself. Danger!Check fuses and replace as necessary
	Open housing cover (limit switch) Close	housing cover precisely
The engine runs slowly and does not reach the operating speed.	Voltage too low, coils damaged, capacitor burnt	Contact the utility provider to check the voltage. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist
Motor makes excessive noise	Coils damaged, motor defective	Arrange for inspection of the motor by a specialist
The motor does not reach its full power.	Circuits in the network are overloaded (lamps, other motors, etc.)	Do not use any other equipment or motors on the same circuit
Motor overheats easily.	Overloading of the motor, insufficient cooling of the motor	Avoid overloading the motor while cutting, remove dust from the motor in order to ensure optimal cooling of the motor
Saw cut is rough or wavy	Saw blade dull, tooth shape not appropriate for the material thickness	Resharpen saw blade and/or use suitable saw blade
Workpiece pulls away and/or splinters	Excessive cutting pressure and/or saw blade not suitable for use	Insert suitable saw blade
Saw band drifting	Guide incorrectly adjusted	Adjust the saw band guide according to the operating manual
	Incorrect saw band	Select saw band according to the operating manual
Burn marks on the wood when working	Saw band blunt Replace saw band
	Incorrect saw band	Select saw band according to the operating manual
Saw band jams when working	Saw band blunt Replace saw band
	Saw band resinous Clean saw band
	Guide incorrectly adjusted	Adjust the saw band guide according to the operating manual

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Exploded view diagram of a mechanical device with numbered components and exploded views

EC Declaration of Conformity

Standard references:

EN 61029-1:2009/A11:2010; EN 61029-2-5:2011/A11:2015;

EN 55014-1:2017/A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019; EN 61000-3-3:2013/A1:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
