USER MANUAL TMR452-98H-SD SCHEPPACH

Exterior view of a black utility vehicle with visible wheels and steering wheel (no text or symbols)

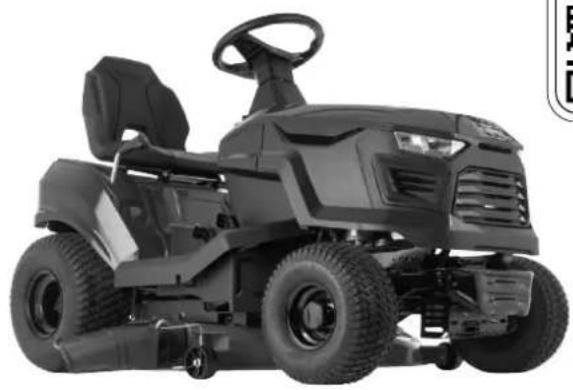

Black and white photo of a grass lawn tractor with visible wheels and headrest (no text or symbols)

https://www.scheppach.com/de/service scheppach

TMR452-98H-RD/TMR452-98H-SD

DE	Benzin-RasentraktorOriginalbetriebsanleitung	3
GB	Petrol lawn tractorTranslation of original instruction manual	30
FR	Tracteur tondeuse à essenceTraduction des instructions d'origine	54
IT	Trattore tagliaerba a benzinaLa traduzione dal manuale di istruzioni originale	81
NL	Tuintractor op benzineVertaling van de originele gebruikshandleiding	108
ES	Tractor cortacésped a gasolinaTraducción del manual de instrucciones original	134
PT	Trator corta-relva a gasolinaTradução do manual de operação original	161

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

		Observe all safety instructions before use.
		Read and understand all text in the operating instructions before start up.
		Danger of injury! Do not drive or mow on slopes steeper than 10° (17%) inclination.Do not drive or mow in the lengthwise direction. Tipping hazard!
		Danger due to parts flying off while the engine is running.The safety distance must be observed.
		Make sure that other persons maintain a sufficient safety distance. Keep uninvolvedpersons away from the device.
		Remove the spark plug connector prior to all maintenance work.
		Before working on the device, remove the ignition key and observe the instructions in this manual.
		Remove the battery prior to all maintenance work.
		Keep your hands and feet away from the rotating mowing blades.
		Keep your hands and feet away from the rotating mowing blades.
		Important. The exhaust gases are toxic. Do not operate the engine in areas that are not ventilated.
		Attention: hot surface - danger of burning.
		Use hearing and eye protection!
		Wear safety shoes, safety gloves, close-fitting clothes.
		Do not climb onto the mowing unit, the side discharge, the wheels or the housing of thepetrol lawn tractor.
		ATTENTION! Operating materials are flammable and explosive - danger of burning.
		Always switch off the engine before refuelling.Do not refill during operation. No open flames.
		Tank contents
		Power
		Displacement
		Speed
		Min. - max. cutting height adjustment
		Max. speed
		Max. slope angle
		Max. width
		Weight
		Collection basket volume
		Engine oil
		Do not refuel while the engine is hot or running.
		Mowing blade length. Max. cutting width.
		Guaranteed sound power level
		Warning against hazardous electrical voltage.
		Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.

	1 Start2 Operation3 ROS (reverse mowing function)4 Switching off the engine
	Locking brake
	Choke/speed controller
	Brake pedal
	Gas pedal (forward)
	Gas pedal (reverse)
	7-level cutting height adjustment
	Mowing unit on
	Mowing unit off
	Switching the LED headlights on/off
	Do not look into the LED headlights of the petrol lawn tractor!
	Check/clean the air filter every 10-50 operating hours.
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction......34
2. Description of the product 34
3. Scope of delivery (Fig. 2, 3) ...... 35
4. Proper use....35
5. Improper use .... 36
6. Safety instructions....36
7. Technical data 39
8. Unpacking 40
9. Assembly......40
10. Before commissioning....41
11. Operation....44
12. Working instructions....47
13. Cleaning and maintenance......47
14. Repair & ordering spare parts 50
15. Storage....50
16. Transport (Fig. 37-41)....51
17. Disposal and recycling 51
18. Troubleshooting....52
19. Declaration of conformity 188

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the device on to third parties.

2. Description of the product

1. Driver's seat

1a. Shaft
1b. Washer
1c. Split pin
1d. Adjustment lever
1e. Seat contact switch
2. Steering wheel
2a. Steering wheel cover
2b. Steering wheel
2c. Washer
2d. M12 hexagonal nut
2e. Hexagonal bolt M8
2f. Sleeve
2g. Steering column cover
2h. Steering rod
2i. Phillips screw

1. On/Off switch (LED headlights)
2. Ignition lock
   4a. Ignition key
3. PTO knob
4. Engine cover
5. Bumper bar
   7a. Hexagonal bolt
6. Gas pedals
   8a. Gas pedal (forward)
   8b. Gas pedal (reverse)
7. Locking brake
8. Mower (protection)
   10a. Support roller
   10b. Hexagonal bolt
   10c. Hexagonal nut
9. Lever for cutting height adjustment
10. Speed lever
    12a. Phillips screw
    12b. Hexagonal nut
11. Brake pedal
12. Water connection
13. Wheels
    15a. Rear wheels
    15b. Wheels, front
    15c. Clutch lever (drive)
14. LED headlights
15. Operating hours counter
16. Trailer attachment
    18a. Hexagonal bolt
    18b. Drawbar
    18c. Split pin
17. Cover plate
    19a. Hexagonal bolt
    19b. Hexagonal nut
18. Bracket (collection basket) (left)
    20a. Bracket (collection basket) (right)
    20b. Hexagonal bolt M8
    20c. Spring washer
    20d. Washer
    20e. Safety switch (collection basket)
19. Collection basket
    21a. side support bar
    21b. Hexagonal bolt
    21c. Hexagonal nut
    21d. front frame
    21e. top frame
    21f. Collection bag
    21g. Container cover
    21h. Hexagonal bolt
    21i. Sheet metal nuts
    21j. Tilt lever
    21k. Hexagonal bolt
    21I. Hexagonal nut
    21m. Level switch
20. Oil tank cover with scale
    22a. Oil drain hose
    22b. End cap (oil drain hose)
21. Fuel tank

1. Battery

2. Ejector chute

25a. Split pin

1. Air filter cover

26a. Star screws (air filter housing)

26b. Filter cartridge

26c. Air filter

26d. Paper filter

1. Spark plug connector

27a. Spark plug

1. Holder (retainer)

28a. Fuse 20 A

1. Side discharge

2. Open-ended spanner, size 8/10 mm

30a. Open-ended spanner, size 10/13 mm

30b. Open-ended spanner, size 13/15 mm

1. Funnel

2. Installation spanner

3. Phillips screwdriver

3. Scope of delivery (Fig. 2, 3)

Item Quantity Designation

1. 1 x Driver's seat

1a. 1 x Shaft

1b. 2 x Washer

1c. 1 x Split pin

2. 1 x Steering wheel

2a. 1 x Steering wheel cover

2b. 1 x Steering wheel

2c. 1 x Washer

2d. 1 x M12 hexagonal nut

2e. 4 x Hexagonal bolt M8

2f. 1 x Sleeve

2g. 1 x Steering column cover

2h. 1 x Steering rod

2i. 2 x Philips screws

4a. 2 x Ignition key

7. 1 x Bumper bar

7a. 4 x Hexagonal bolt

10a. 1 x Support roller

10b. 1 x Hexagonal bolt

10c. 1 x Hexagonal nut

12. 1 x Speed lever

12a. 1 x Phillips screw

12b. 1 x Hexagonal nut

18. 1 x Trailer attachment

18a. 2 x Hexagonal bolt

18b. 1 x Drawbar

18c. 1 x Split pin

19. 1 x Cover plate

19a. 4 x Hexagonal bolt

19b. 2 x Hexagonal nut

20. 1 x Bracket (collection basket) (left)

20a. 1 x Bracket (collection basket) (right)

20b. 4 x Hexagonal bolt M8

20c. 4 x Spring washer

20d. 4 x Washer

21. 1 x Collection basket

21a. 2 x side support bar

21b. 6 x Hexagonal bolt

21c. 6 x Hexagonal nut

21d. 1 x front frame

21e. 1 x top frame

21f. 1 x Collection bag

21g. 1 x Container cover

21h. 8 x Hexagonal bolt

21i. 8 x Sheet metal nut

21j. 1 x Tilt lever

21k. 1 x Hexagonal bolt

21l. 1 x Hexagonal nut

24. 1 x Battery 12V

30. 1 x Open-ended spanner, size 8/10

30a. 1 x Open-ended spanner, size 10/13

30b. 1 x Open-ended spanner, size 13/15

31. 2 x Funnel

32. 1 x Installation spanner

33. 1 x Phillips screwdriver

1 x Petrol lawn tractor

1 x Operating manual

4. Properuse

The petrol lawn tractor is designed for efficient mowing of lawns in larger gardens and landscapes. It enables users to adjust the cutting height to suit their individual needs, ensuring optimal lawn care.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

5. Improperuse

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

⚠ WARNING

Due to physical danger to the user, the petrol lawn tractor must not be used for the following work:

• for chipping and shredding tree and hedge cuttings,
• for cleaning pavements (vacuuming, blowing away),
- for levelling ground elevations, such as molehills,
- for transporting cuttings, except in the grass collection basket provided.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6. Safety instructions

Keep all safety information and instructions for future reference!

⚠ WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this product.

Failure to observe the following instructions can result in serious injuries.

⚠ WARNING

Before you start working with the product, familiarise yourself well with all the control parts.

• Practice using the product and have an experienced user or specialist explain its function, how it works and the techniques involved.
• Ensure that the product can be stopped immediately in the event of an emergency.
• Improper use may cause severe injuries.
• In the event of an accident or a fault during operation, switch the product off immediately. Treat injuries properly or consult a doctor.

Who is not permitted to use the device:

• Children, persons with reduced physical, sensory or mental capabilities or insufficient experience and knowledge or persons who are not familiar with the instructions must never be allowed to use the device.
• Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).
• Never allow children or young people under the age of 16 to use the device. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
  • People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.
• It must be ensured that the product is only operated by persons who have read and understood the enclosed operating manual and observe all instructions and safety precautions contained therein. Only then can it be guaranteed that the person has been adequately instructed and trained.

⚠️ Personal safety

Attention! Risk to health due to vibrations!

Excessive exposure to vibrations can cause circulatory or nerve damage, especially in people with circulatory problems. Consult a doctor if symptoms occur that may have been triggered by exposure to vibration.

Such symptoms, which mainly occur in the fingers, hands or wrists, are for example:

• Numbness,

• Pain,

• Muscle weakness,

• Skin discolourations,
• Unpleasant tingling sensation.

Clothing and equipment

• Always wear sturdy footwear with non-slip soles during work. Never work barefoot or in sandals, for example.
• The device may only be operated with long trousers and tight-fitting clothing.
• Never wear loose clothing that can get caught on moving parts (control levers) – also no jewellery, no ties and no scarves.
• When carrying out maintenance and cleaning work, as well as when transporting the device, always wear sturdy gloves and tie up and secure long hair (bandana, cap, etc.).
• Suitable safety goggles must be worn when sharpening the mowing blade.

During work

• It is necessary to keep third parties away.
• Never work while people, especially children, or animals are nearby. Make sure that grass is never ejected towards third parties.
• Do not work with the device during rain, thunderstorms and especially when there is a risk of lightning.

Exhaust gases:

• Danger to life due to poisoning! Stop work immediately in case of nausea, headache, visual disturbance (e.g. diminishing field of vision), hearing disturbance, dizziness, loss of concentration. These symptoms can be caused, among other things, by excessive exhaust gas concentrations.
• The device produces toxic exhaust gases as soon as the combustion engine is running. These gases contain toxic carbon monoxide, a colourless and odourless gas, as well as other pollutants. The combustion engine must never be operated in enclosed or poorly ventilated spaces.
• The exhaust gases of the combustion engine are released into the open in front of the right rear wheel. When working with the device, ensure that this area is kept clean at all times and is never covered so that exhaust gases do not build up.

⚠️ Work area safety

• Completely check the terrain where the device will be used and remove all stones, sticks, wires, bones and other foreign objects that may be thrown up by the device. Obstacles (e.g. tree stumps, roots) can easily be overlooked in the tall grass.

• Therefore, before working with the device, mark all foreign objects (obstacles) hidden in the lawn that cannot be removed.

• Look out for depressions (holes) in the terrain and other non-visible danger spots. Obstacles can easily be overlooked in the tall grass.

• Use the device with special care when working near slopes, terrain edges, ditches and dykes. In particular, ensure that there is sufficient distance to such danger points.
  • Take special care at blind spots, bushes, trees and other obstacles behind which there may be people, especially children, or animals.
• Stop the petrol lawn tractor immediately and turn off the mowing blades if anyone enters the mowing area.
• Always keep an eye on the area in front of the vehicle. Watch out for obstacles so that you can avoid them in time.
• Before reversing, always check the area behind the petrol lawn tractor and disengage the attachment device if fitted. Never mow backwards unless absolutely necessary. When mowing in reverse, take extra care and thoroughly check the entire area behind the petrol lawn tractor before starting to mow.
• When working within a group, you must always let others know in good time what you intend to do. Observe the safety distance!
• Before any change of direction, reduce the driving speed so that the user remains in control of the device at all times and also so that the petrol lawn tractor cannot tip over.
• When operating near roads and when crossing traffic routes, attention must be paid to other road users.
• Special care is needed when mowing near roads, cycle paths and footpaths. Ejected parts can cause serious injuries and damage.

⚠ Use of petrol

⚠ Danger to life! Petrol is toxic and highly flammable.

• Only store petrol in containers (canisters) designed and tested for this purpose. The tank caps must always be properly screwed on and tightened. Defective caps must be replaced for safety reasons.
• Keep petrol away from sparks, open flames, permanent flames, heat sources and other sources of ignition. Do not smoke!
• Refuel outdoors only and do not smoke while refuelling.
• Before refuelling, switch off the combustion engine and let it cool down.
• Petrol must be filled before starting the combustion engine. While the combustion engine runs or if the machine is hot, the fuel cap must not be opened and petrol must not be filled.
• Open the fuel cap carefully and slowly. Wait for the pressure to equalise and only then remove the fuel filler cap completely.

- Use a suitable funnel or filler pipe for refuelling so that no fuel can spill onto the combustion engine and housing or lawn.

Do not overfill the fuel tank!

• To leave room for the fuel to expand, never fill the fuel tank beyond the lower edge of the filling nozzle. Observe additional information in the combustion engine user manual.
• If petrol has overflowed, do not start the combustion engine until the petrol-contaminated area has been cleaned. Avoid starting the engine until the fuel vapours have evaporated (wipe dry).
• Always wipe up spilled fuel immediately.
• If petrol has got on clothing, it must be changed.
• The tank cover must be properly screwed on and tightened after each refuelling operation. The device must not be put into operation without the original tank cover screwed on.
• For safety reasons, check fuel line, fuel tank, fuel cap and connections regularly for damage, ageing (brittleness), tight fit and leaks and replace if necessary.
• Only empty the tank outdoors.
• Never use beverage bottles or similar to dispose of or store operating materials, such as fuel. People, especially children, could be tempted to drink from it.
• Never store the device with petrol in the tank inside a building. Any fuel vapours produced can come into contact with naked flames or sparks and ignite.
• Do not place the device and fuel tank near heaters, radiant heaters, welding machines or other sources of heat.

Risk of explosion!

If a defect is detected on the tank, the tank cover or on fuel-carrying parts (fuel lines) during operation, the combustion engine must be switched off immediately. Then consult a specialist dealer.

⚠ Safety instructions for petrol lawn tractors

Starting up:

• Check the product regularly and make sure that all start locks and push buttons are working properly before each use.
• Please note that the user must not change or manipulate any sealed engine speed control settings.
• Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
• The device may only be started from the driver's seat.
• Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.

• Start the device on a level surface, not on a slope.

• The combustion engine may only be started in a well ventilated work area, especially in garages care must be taken to ensure sufficient ventilation.

• Before starting the combustion engine, disengage the cutting tool, attachment devices and drive and firmly depress the brake pedal.
• When starting, make sure that there is sufficient distance between the feet and the cutting tool.
• Do not start the engine if you are standing in front of the ejector chute.
• Never lift or carry a lawnmower while the engine is running.
• Operating the machine with excessive speed can increase the risk of accidents.
• Caution! The lawnmower must not be used without either the full grass catcher, a mulching insert if available or the self-closing separating guard for the ejection opening in place.
• Never start the combustion engine by short-circuiting the starter terminal. If the normal starter circuit is bypassed, the petrol lawn tractor may suddenly start moving.
• Never start the combustion engine if you notice the smell of petrol – Danger of explosion!

Work deployment:

⚠ Warning – Risk of injury!

• Note the working range of the mowing blade. Never put hands and feet on or under rotating parts. Never touch the rotating mowing blade. Always keep clear of the ejection opening. A sufficient safety distance must always be maintained.
• Only work in daylight or with good, artificial lighting.
• When driving outside the lawn or when not mowing, disengage the mowing blade and move the mowing unit to the highest cutting position.
• Objects hidden in the turf (lawn sprinkler systems, piles, water valves, foundations, electrical lines, etc.) must be bypassed. Never drive over such foreign objects.
• While driving, the steering wheel should always be held firmly with both hands.
• Special care should be taken when driving on lawns and other uneven surfaces, as the steering wheel can turn on its own due to holes, hills, bumps, etc.
  • Danger of injury to hands and fingers!
  • Always drive at an appropriate speed.
• Only empty the collection basket from the driver's seat.
• Before emptying the collection basket, always disengage the mowing blade and wait until it has come to a standstill.

Switch off the drive, stop the combustion engine and wait until the mowing blade comes to a complete stop, engage the locking brake and remove the ignition key:

- before releasing blockages or rectifying obstructions in the ejector chute,

• before checking, cleaning or working on the petrol lawn tractor,
• if the mowing blade encounters a foreign object. Look for damage to the machine and cutting tool and have the necessary repairs carried out before starting again,
• if the device starts to vibrate unusually strongly. Immediate review is required.
• when leaving or transporting the device.

Residual risks and protective measures

Negligent use of personal protective equipment (PPE)

Careless use or omission of personal protective equipment may result in serious injury.

- Wear prescribed protective equipment.

Human behaviour, misconduct

- Always concentrate fully on all work.

⚠️ Residual risk can never be ruled out.

Danger from noise

Hearing damage

Prolonged unprotected work with the device may cause hearing damage.

- Always wear hearing protection as a matter of principle.

Behaviour in an emergency

In case of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.

7. Technical data

Type of engine	4-Stroke engine / air cooled
Displacement	452 cm3
Idle speed	1800 +/-100 rpm
Power	9.2 kW/ 12.5 PS
Fuel	Regular grade petrol/ lead-free max. 10% bioethanol
CO2 output	903.8 g/kWh
Tank capacity / petrol	7.5 l
Engine oil	SAE 30 / 10W30
Oil tank capacity	1.2 l
Cutting height adjustment	7-level
Collection basket capacity	245 l
Cutting width	98 cm
Cut height 30 - 90 mm ±5 mm

Weight (unfuelled and fully assembled)	200 kg
Driving speed v 10 km/h
Reverse driving speed 6 km/h
Approved wheels
Front wheel (20000142) 15 x 600-6 (15")
Air pressure front wheels	1.5 +/-0.15 bar
Rear wheel (20000138) 18 x 850-8 (18")
Air pressure rear wheels 1.8 +/-0.15 bar
Protection class LED IP65
Spark plug F7TC/F7RTC
Electrode gap 0.7-0.8 mm
Battery
Rated voltage 12 V
Capacity 18 Ah
Type Lead acid

Subject to technical changes!

The noise levels have been determined in accordance with EN ISO 3744:1995.and ISO 11094:1991.

Sound pressure level L_PA	77.4 dB
Sound power level L_WA	98 dB
Measurement uncertainty K 1.81 dB

Wear hearing protection.

Exposure to noise can cause hearing loss.

If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

Vibration a_h (body)	1.263 m/s2perEN 1032:2003+A1:2008
Vibration a_h (Hand - arm)	2.866 m/s2perEN 1032:2003+A1:2008
Measurement uncertainty K	1.5 m/s2

Keep the noise level and vibration to a minimum!

• Only use faultless products.
• Maintain and clean the product at regular intervals.
• Adapt your working methods to the product.
• Do not overload the product.
  • Have the product checked if necessary.
• Switch the product off if it is not in use.
• Wear protective gloves.

In the case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

• Keep your body and especially your hands warm in cold weather.
  • Take regular breaks and move your hands to promote circulation.
• Always hold the handle firmly, but do not clench your hands around the handles with excessive pressure.
• Limit the use of high-vibration tools per day and spread them out over several days. Make a work plan that limits the vibration load.
• Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.
• Replace worn components immediately.

8. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly

⚠ WARNING!

Danger of injury and damage!

The use of incorrect spare parts and accessories can lead to injuries and damage. These could come loose and be flung away. They can also reduce the power of the product.

• Only use original spare parts and accessories from the manufacturer. Original spare parts or accessories can be obtained from your specialist dealer.
• Failure to do so may reduce the power of the product and parts may come loose.
• Failure to observe this will invalidate the manufacturer's warranty.

Some parts of the delivery come disassembled. For quick and easy assembly, read and follow the instructions below.

Required tool:

• 1x open-ended spanner, size 8/10 mm (30)
• 1x open-ended spanner, size 10/13 mm (30a)
• 1x Phillips screwdriver (33)
- 1x torque wrench*

^* = may not be included in the scope of delivery! Place the product on a level, even surface.

9.1 Fitting the bumper bar (7) (Fig. 4)

1. Align the mounting holes on the bumper (7) with the brackets on the front of the product.
2. Fit the bumper (7) using the four hexagonal bolts (7a) provided. Use an open-ended spanner size 8/10 mm (30).

9.2 Fitting the steering rod (2h) (Fig. 5)

1. Place the sleeve (2f) onto the steering linkage.
2. Insert the steering rod (2h) into the sleeve (2f).
3. Fit the sleeve (2f) and the steering rod (2h) using the four M8 hexagon bolts (2e) provided. Use an open-ended spanner size 10/13 mm (30a).
4. Fit the steering column cover (2g) onto the dashboard by snapping the tabs into place.

9.3 Fitting the steering wheel (2) (Fig. 6)

1. Place the steering ring (2b), steering wheel (2) and washer (2c) onto the steering rod (2h) in that order.
2. Fit the enclosed M12 hexagonal nut (2d) onto the steering rod (2h). Use a torque wrench and secure the connection to 24 Nm.
3. Place the steering wheel cover (2a) on the steering wheel (2).
4. Fit the two Phillips screws (2i) provided from lower with the steering wheel cover (2a). Use a Phillips screwdriver (33).

9.4 Fitting the speed lever (12) (Fig. 7)

1. Place the speed lever (12) on the mount and secure it with the Phillips screw (12a) and hexagonal nut (12b) provided. Use a Phillips screwdriver (33).

9.5 Fitting the support roller (10a) (Fig. 8)

1. Align the support roller (10a) with one of the three mounting holes on the mowing unit (10).

2. Fit the support roller (10a) to the mowing unit (10) using the hexagonal bolt (10b) and hexagon nut (10c) provided. Use a size 8/10 mm open-ended spanner (30) and a size 10/13 mm open-ended spanner (30a).

3. Repeat the process on the other side.

9.6 Fitting the driver's seat (1) (Fig. 9, 17)

1. Place one of the enclosed washers (1b) on the shaft (1a) and insert the shaft (1a) through both the mounting holes on the product frame and the mounting holes on the driver's seat (1).
2. Place the other washer (1b) on the end of the shaft (1a) where the hole is located.
3. Secure the shaft (1a) with the split pin (1c).
4. Sit on the driver's seat (1).
5. Pull the adjustment lever (1d) backwards and adjust the driver's seat (1) to a position that suits you.
6. Release the adjustment lever (1d).
7. Make sure that you can reach the control levers and the pedals safely.

9.7 Fit the cover plate (19) (Fig. 10) (model with collection basket)

1. Align the mounting holes on the cover plate (19) at the rear of the product accordingly.
2. Fit the cover plate (19) using the hexagonal screws (19a) and hexagonal nuts (19b) provided. Use an open-ended spanner size 8/10 mm (30).

9.8 Mount the trailer attachment (18) on the cover plate (19) (Fig. 10) (model with collection basket)

1. Align the drawbar (18b) with the mounting holes on the top of the cover plate (19).
2. Fit the drawbar (18b) using the hexagonal bolts (18a) provided. Use an open-ended spanner size 8/10 mm (30).
3. Insert the trailer attachment (18) into the drawbar (18b) from the upper position and secure it with the split pin (18c).

9.9 Fitting the trailer attachment (18) (Fig. 10)

1. Align the drawbar (18b) with the mounting holes at the rear of the product.
2. Fit the drawbar (18b) using the hexagonal bolts (18a) provided. Use an open-ended spanner size 8/10 mm (30).
3. Insert the trailer attachment (18) into the drawbar (18b) from the upper position and secure it with the split pin (18c).

9.10 Fit brackets (20/20a) (Fig. 11) (model with collection basket)

1. Align the bracket (20/20a) with the mounting holes on the rear of the product.

2. Fit the bracket (20/20a) using the hexagonal bolts M8 (20b), spring washers (20c) and washers (20d) provided. Use an open-ended spanner size 8/10 mm (30).

3. Repeat the process with the bracket (20/20a) on the other side.

9.11 Assembling the collection basket (21) (Figs. 12, 13)

1. Align the mounting holes on the front frame (21d) and the top frame (21e).
2. Assemble the front frame (21d) with the top frame (21e). Use the 8/10 mm open-ended spanner (30) and the 10/13 mm open-ended spanner (30a) for this.
3. Fit the side support rods (21a) on both sides to the front and top frames (21d/21e). To do this, use the hexagonal screws (21b), hexagon nuts (21c), open-ended spanner size 8/10 mm (30) and open-ended spanner size 10/13 mm (30a).
4. Place the collection bag (21f) on the frame and hook the tabs into the appropriate places.
5. Insert the sheet metal nuts (21i) into the corresponding locations in the container cover (21g).
6. Fit the container cover (21g) by screwing the eight hexagonal bolts (21h) through the top frame (21e) from lower using the sheet metal nuts (21i). Use an open-ended spanner size 8/10 mm (30).
7. Insert the tilt lever (21j) into the container lid (21g) from above.
8. Fit the hexagonal screw (21k) with the hexagonal nut (21l) to secure the tilt lever (21j). Use the 8/10 mm open-ended spanner (30) and the 10/13 mm open-ended spanner (30a) for this.

10. Before commissioning

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

⚠ WARNING!

Health hazard!

Inhalation of petrol/lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe petrol/lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

Before starting up each time, check the product for the following:

• Leak-tightness of the fuel system
• Faultless condition and completeness of the guards and the cutting device
• Tight fit of all screw connections
• Smooth running of all moving parts.

Check before each commissioning,

- whether the cutting tool and the entire cutting unit (mowing blade, blade coupling, blade brake, mounting bolts, mowing unit housing) are in perfect condition.

Particular attention must be paid to secure seating, damage and wear.

• whether the tank cover is screwed on tightly.
• whether the fuel tank and fuel-carrying parts as well as the tank cover are in perfect condition.
• whether the safety devices are in perfect condition and function properly.
• whether tyres (air pressure, damage, wear) and frame are in perfect condition. Screw connections must be checked for tightness. In particular, all maintenance work listed in the maintenance schedule under the heading “Maintenance” must be carried out.

Replace defective parts and all other worn and damaged parts before using the product. Illegible or damaged danger and warning information on the product must be renewed.

If necessary, consult a specialist dealer.

Fuel and oil

NOTE!

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

• Put unused fuel in an airtight vessel and store it in a dark, cool room.
• Use only designated and approved vessels for the transport and storage of fuel.

Required tool:

• 2x funnel (31)
• 1x open-ended spanner, size 8 mm*
• 1x open-ended spanner, size 8/10 mm (30)
  • 1x air pump with pressure gauge*

^* = may not be included in the scope of delivery!

10.1 Filling up with engine oil (Fig. 14)

NOTE!

Product damage

If the product is operated without or with too little engine oil, this can lead to product damage.

- Fill with oil before start-up. The product is delivered without engine oil.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.

• Use a filling nozzle or funnel.

• Collect drained oil in a suitable container.

• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
• Dispose of oil as per local regulations.

Attention!

The engine does not come with oil in it. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 30) for this purpose. The oil level must be checked before each start-up.

1. Open the bonnet (6) by lifting it forward.
2. Remove the oil tank cover with scale (22) by turning it anti-clockwise.
3. Carefully pour the new engine oil into the opening, observing the technical data. Use a funnel (31).
4. Check the oil level using the oil tank cover with scale (22); the oil level should be between the "ADD" and "FULL" marks.
5. Close the oil tank again with the oil tank cover with scale (22).

10.2 Filling up with fuel (Fig. 15)

⚠️ DANGER!

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

• Switch off the engine and let it cool down.
• Keep heat, flames and sparks away.
• Only fill up with fuel outdoors.
• Wear protective gloves.
• Avoid contact with skin and eyes.
• Start the product at a distance of at least 3 m from the fuel filling point.
• Watch out for leaks. If petrol is leaking, do not start the engine.

⚠ WARNING!

Health hazard!

Inhaling petrol/lubricant vapours may lead to severe health damage, loss of consciousness and, in extreme cases, to death.

• Do not inhale petrol/lubricant vapours.
• Operate the product outdoors only.

Attention!

The product is delivered without fuel. It is therefore essential to fill with fuel before commissioning. Use Super E5 petrol for this.

1. Open the bonnet (6) by lifting it forward.
2. Remove the tank cover (23a) by turning it anti-clockwise.
3. Carefully fill fuel into the opening, observing the technical data. Use a funnel (31).
4. Close the fuel tank (23) again with the fuel filler cap (23a).
5. Set the fuel valve (23b) to the "ON" position.

6. The fuel level can be read on the fuel gauge (23c).

7. Clean the fuel cap and the surroundings.

8. Check the tank and fuel lines for leaks.
9. Move at least three meters away from the refueling area before starting the engine.

10.3 Connecting/removing the battery (24) (Fig. 16)

1. Fold the driver's seat (1) up.
2. First, connect the red cable to the positive pole (+) and then the black cable to the negative pole (-).
3. Use the hexagonal screws, washers, hexagonal nuts, a size 8/10 mm open-ended spanner (30) and a size 8 mm open-ended spanner provided.
4. To remove the battery (24), proceed in reverse order and ensure that you disconnect the black cable with the negative terminal (-) first.
5. Then remove the retaining bracket and take out the battery (24).

10.4 Checking the tyre pressure (Fig. 8)

The correct tyre pressure is the essential prerequisite for a perfectly balanced cutting tool and thus also for an evenly mown lawn.

1. Check the tyre pressure at regular intervals using an air pump with a pressure gauge.
2. Top up with air if necessary. The correct tyre pressure is 1.5 bar on the front wheels (15b) and 1.8 bar on the rear wheels (15a).

Note: If you notice that the tyres or wheels (15) are damaged, please contact customer service or a specialist workshop.

10.5 Checking the safety switches

The petrol lawn tractor has several safety switches that must be checked before each use.

Note: If you notice that one of the safety switches is not working correctly, please contact the customer service or a specialist workshop.

10.5.1 Checking the ignition lock (4) (Fig. 21)

1. Insert the ignition key (4a) into the ignition lock (4) and turn it to the "I" position. Proceed as described in 11.2 to start the engine. The engine must start.

2. Turn the ignition key (4a) to position "0". The engine must stop immediately.

10.5.2 Checking the reverse mowing function (ROS) (Fig. 21)

The reverse mowing function allows you to drive backwards even when the mowing unit is switched on.

1. Start the engine as described in 11.2.
2. Start the mowing unit as described in 11.5.2.
3. Press the gas pedal (8b). The mowing unit must stop.

4. Release the gas pedal (8b) and switch the mowing unit back on.

5. Set the ignition key (4a) to "ROS"() and press the gas pedal (8b). The mowing unit (10) must continue to run.

10.5.3 Checking the mowing unit (Fig. 1, 25)

The mowing unit safety switch ensures that the engine cannot be started when the mowing unit is engaged.

1. Ensure that the engine is switched off.
2. Sit on the driver's seat (1).
3. Press the brake pedal (13) down completely and actuate the locking brake (9).
4. Pull the PTO knob (5) all the way out to switch on the mower.
5. Proceed as described in 11.2 to start the engine.
6. The engine must not start!

10.5.4 Checking the safety switch on the driver's seat (1) (Fig. 17, 25)

The seat contact switch (1e) ensures that the engine switches off as soon as there is no one in the driver's seat (1).

1. Sit on the driver's seat (1).
2. Depress the brake pedal (13) and activate the locking brake (9).
3. Proceed as described in 11.2 to start the engine.
4. Take the weight off the driver's seat (1) by standing up (do not get off!)
5. The engine continues to run.
6. Depress the brake pedal (13) and release the locking brake (9).
7. The engine must switch off!

10.5.5 Checking the safety switch on the collection basket (21) (on models with collection basket) (Fig. 18)

The safety switch (20e) on the collection basket (21) ensures that the mower switches off as soon as the collection basket (21) is not correctly attached while the engine is running.

1. Sit on the driver's seat (1).
2. Depress the brake pedal (13) and activate the locking brake (9).
3. Proceed as described in 11.2 to start the engine.
4. Pull the PTO knob (5) all the way out to switch on the mower.
5. Lift the empty collection basket (21) slightly.
6. The mowing unit must switch off!

10.6 Check the blade stop device

When the mowing unit is released, a braking process is triggered automatically and simultaneously, bringing the mowing blade to a standstill within a few seconds.

A running blade produces clearly perceptible wind noises. The running of the blade is signalled by the wind noise generated and can thus be controlled.

Note: If you notice that the blade stop device is not working correctly (for example, if you can still hear wind noise), please contact customer service or a specialist workshop and do not use the product under any circumstances.

10.7 Setting the level switch (21m) (Fig. 10)

1. Hang out the collection basket (21) as described in 10.9.
2. To mow dry grass, pull the level switch (21m) out until it reaches the end stop.
3. To mow wet grass, press the level switch (21m) in.
4. Fold the level switch (21m) down by 90^ for transporting the ride-on petrol lawnmower.

10.8 Adjusting the driver's seat (1) (Fig. 17)

1. Sit on the driver's seat (1).
2. Pull the adjustment lever (1d) backwards and adjust the driver's seat (1) to a position that suits you.
3. Release the adjustment lever (1d).

10.9 Attaching/detaching the collection basket (21) (Fig. 18)

1. Hold the collection basket (21) by the handle and tilt it slightly forwards.
2. Place the collection basket (21) on the two brackets (20/20a) and allow the lower part of the collection basket (21) to lock onto the product.
3. To remove the collection basket (21), lift it by the handle out of the lock on the product and take it off the brackets (20/20a).

10.10 Preparing the area to be mowed

1. Before mowing, carefully examine the area.
2. Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the device.
3. Ensure that no other people are present on the surface to be mowed.

11. Operation

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

11.1 Switching LED headlights (16) on/off (Fig. 1) ATTENTION! Do NOT look directly into the light! Never point the light beam directly into the eyes of people or animals! Danger of injury.

The petrol lawn tractor has LED headlights (16) that allow for sufficient lighting on cloudy days or in shaded gardens.

1. Switch the LED headlights (16) on and off using the on/off switch (3).

Notes:

- When the ignition key (4a) is in position "0", the LED headlights (16) cannot be switched on.

- The LED headlights (16) remain lit even when the engine is switched off and must be switched off manually, otherwise there is a risk that the battery (24) will be completely discharged.

WARNING!

Never use the petrol lawn tractor at night or when extremely dark. The LED headlights (16) are only used for illuminating poorly lit areas of your garden.

11.2 Activating/releasing the locking brake (9) (Fig. 19)

1. Depress the brake pedal (13) fully and pull the locking brake (9) to the top position to activate it.
2. To release the locking brake (9), press the brake pedal (13) once and then release it.

11.3 Starting the engine (Fig. 20, 21, 34)

1. Check the fuel and engine oil level before every start. Make sure that the spark plug connector (27) is connected to the spark plug (27a).
2. Hook in the collection basket (21) (on models with collection basket).
3. Sit on the driver's seat (1).
4. The mowing unit must be switched off in order to start the engine.
5. Apply the locking brake (9) and set the desired cutting height.
6. Set the throttle lever (12) to the "Choke" position ().
7. Rotate the ignition key (4a) in the ignition lock (4) to "Start" until the engine starts and leave it in the "Operation" position.
8. The speed lever (12) automatically jumps to the "Hare" position as soon as the engine starts.
9. Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. This is a normal process.

11.4 Disengaging the drive (Fig. 22)

To move the product with the engine switched off, the drive system must be disengaged.

Hydro transmission:

The hydro transmission transfers the engine power via hydraulic oil for continuously variable speed control.

Notes:

• Be sure to pull out or push in the clutch lever (15c) completely. Do not use intermediate positions.

• The clutch lever (15c) for engaging and disengaging the drive system is located behind the right rear wheel.

• Press the clutch lever (15c) fully in to activate the drive system.

• Pull the clutch lever (15c) fully out to deactivate the drive system.

11.5 Starting up with the mowing unit switched off (Fig. 23, 25)

Attention! Only change gear when the vehicle is at a standstill.

1. With "tortoise" low engine speed, depress the brake pedal (13) completely and release the locking brake (9).
2. Slowly release the brake pedal (13) so that the gas pedal (8a) so that the petrol lawn tractor starts moving.
3. Push the speed lever (12) in the direction of the "Hare" to accelerate.
4. In order to stop the device, release the gas pedal (8a) and depress the brake pedal (13).

11.6 Mowing

⚠ WARNING!

Danger of accident when reversing!

Be aware of the rear environment when reversing!

Reverse only if necessary!

11.6.1 Setting the cutting height (Fig. 24)

⚠ Attention! The cutting height may only be adjusted when the mowing unit is shut off.

Set the cutting height depending on the actual length of the lawn. Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.

1. Pull the cutting height adjustment lever (11) towards the driver's seat (1) and lock it into the desired cutting height.

2. 7 different cutting heights can be set.

IMPORTANT: For transport, the cutting tool must always be placed in the highest position (level 7).

11.6.2 Mowing/starting up with the mowing unit switched on (Fig. 25)

⚠ WARNING!

Risk of injury and damage!

Objects can be ejected and may hit and injure persons. Solid objects can damage the product.

In addition, small stones or other objects can be ejected at least 15 meters. This can damage cars, houses, and windows.

- When mowing, keep a distance of 30 metres between bystanders or animals.

- Do not remove objects from footpaths etc. with the product.

NOTE!

Risk of damage!

If the product is not cleaned regularly, grass/weed residues can get caught beneath the mowing unit cover. This can affect the performance of the product and cause damage in the long run.

- Clean the product thoroughly after each use.

Attention! Only change gears when the vehicle is at a standstill.

1. At "Tortoise" low speed, engage the parking brake (9).
2. Pull the PTO knob (5) all the way out to switch on the mower.
3. With "tortoise" low engine speed, depress the brake pedal (13) completely and release the locking brake (9).
4. Slowly release the brake pedal (13) so that the gas pedal (8a) so that the petrol lawn tractor starts moving.
5. Push the speed lever (12) in the direction of the "Hare" to accelerate.
6. In order to stop the product, release the gas pedal (8a) and depress the brake pedal (13).

11.6.3 Reversing with the mowing unit switched on (Fig. 26)

⚠ WARNING!

Danger of accident when reversing!

Be aware of the rear environment when reversing!

Attention! Only change gears when the vehicle is at a standstill.

1. At "Tortoise" low speed, engage the parking brake (9).
2. Turn the ignition key to the "ROS" ( ) position.
3. Pull the PTO knob (5) all the way out to switch on the mower.
4. With "tortoise" low engine speed, depress the brake pedal (13) completely and release the locking brake (9).
5. Slowly release the brake pedal (13) so that the gas pedal (8b) so that the petrol lawn tractor starts moving.
6. Push the speed lever (12) in the direction of the "Hare" to accelerate.
7. In order to stop the product, release the gas pedal (8b) and depress the brake pedal (13).

11.6.4 Working on slopes (Fig. 36)

⚠ WARNING!

Danger due to errors when driving on slopes!

Take special care when driving on slopes! There is no "safe" slope. Pay particular attention to the following safety instructions!

• If the wheels should spin or if the vehicle gets stuck when climbing a slope, disengage the mowing unit and attachment devices. Then slowly descend and leave the slope in a straight direction!
• A full collection basket increases the risk of the petrol lawn tractor tipping over due to its weight!

• On slopes, the cutting path should be made perpendicular to the slope. It is possible to prevent the petrol lawn tractor from slipping by lifting it upwards at an angle.

• Slopes are one of the main causes of accidents where control of the petrol lawn tractor is lost and the device tips over. This can cause serious or even fatal injuries.

• For safety reasons, the device must not be used on slopes steeper than 10^ (17.6%).
• 10^ slope corresponds to a vertical rise of 17.6 cm at 100 cm horizontal length.
• Avoid starting or stopping on a slope.
• Do not use the device in places such as slopes or ditches where it may tip over or slip. The danger of tipping over or slipping is greater if the surface is loose or damp.
• Always drive on slopes in the longitudinal direction. There is an increased risk of tipping over when driving sideways.
• When driving on slopes, do not make abrupt changes in speed or direction. Working in such situations requires careful, calm and steady operation of the petrol lawn tractor.
• Avoid changes of direction on slopes. Turn around on slopes only if this is unavoidable; if possible, drive slowly and in a wide arc in the downward direction.
• Do not mow wet grass, especially on slopes, as grip is reduced on wet grass. The petrol lawn tractor could slip and therefore no longer be controlled by the user.
• When driving on slopes, the transmission must not be unlocked by means of the gear freewheel.
• If the wheels should spin or if the vehicle gets stuck when travelling up a slope, disengage the mowing blade or attachment device. Afterwards, the slope is to be left in a slow downward and straight direction.
• Never try to stabilise the petrol lawn tractor by supporting it with your foot on the ground.
• The weight of the collection basket increases the risk of tipping, especially when it is full.
• Never empty or lift the collection basket on an inclined plane.

11.6.5 Emptying the collection basket (21) while seated (Fig. 25, 27)

When the mower switches off, the collection basket (21) is full and needs to be emptied.

1. If necessary, press the PTO button (5) all the way in to switch off the mowing unit.
2. Drive to the location where you would like to empty the collection basket (21).
3. Press the brake pedal (13) completely and activate the locking brake (9).
4. Pull the tilt lever (21j) all the way to the upper position and then towards you to open and empty the collection basket (21).
5. Move the tilt lever (21j) backwards and lower it to the lowest position to close the collection basket (21) again.

Attention: If the collection basket (21) is not properly engaged, the mowing unit cannot be engaged.

⚠ WARNING!

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

- Always switch off the engine before emptying.

11.6.6 Disengaging the catch bucket (21) for emptying (Fig. 18, 25)

When the mower switches off, the collection basket (21) is full and needs to be emptied.

1. If necessary, press the PTO button (5) all the way in to switch off the mowing unit.
2. Drive to the location where you would like to empty the collection basket (21).
3. Press the brake pedal (13) completely and activate the locking brake (9).
4. Switch off the engine.
5. To remove the collection basket (21), lift it by the handle out of the lock on the product and take it off the brackets (20/20a).
6. Empty the catch bucket (21).
7. Hold the collection basket (21) by the handle and tilt it slightly forwards.
8. Place the collection basket (21) on the two brackets (20/20a) and allow the lower part of the collection basket (21) to engage onto the product.

⚠ WARNING!

Danger of injury and tipping!

The petrol lawn tractor may tip over if it has not been parked on a level surface.

• The danger of tipping over or slipping is greater if the surface is loose or damp.
• When stopping, pay attention to the overrun of the cutting tool, which is a few seconds until it comes to a standstill.

11.7 After mowing

1. Always allow the engine to cool down before parking the petrol lawn tractor in an enclosed space.
2. Remove grass, leaves, grease, and oil before storage. Do not place any other objects on the mower.
3. Check all screws and nuts before the next use. Tighten up the loose screws.
4. Empty the collection basket (21) before the next use.
5. Remove the ignition key (4a) from the ignition lock (4).
6. Make sure that the petrol lawn tractor is not parked next to a source of danger. Escaping gas can cause explosions.
7. When the petrol lawn tractor is not in use for an extended period of time, empty the fuel tank with a petrol extraction pump (not included in the scope of delivery).

12. Working instructions

• Before each mowing operation, check that the mowing blade is correctly attached, in good condition and well sharpened. Always wear protective gloves when doing this!
• The mileage of the product can be read on the operating hours counter (17).
• Check the mower, mowing blade and other parts if you have driven into a foreign object or if the device vibrates more than normal.
• A hot engine, exhaust pipe or drive unit can burn the skin.
• Only mow when there is sufficient light.
• Use the LED headlights in poorly lit areas.
• Watch out for traffic on or near a road. Keep the ejector tube and the side discharge (29) away from the road.
• Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
• Before reversing, make sure there are no small children behind you.
• Only cut with sharp, flawless mowing blades so that the blades of grass do not fray and the lawn does not turn yellow.
• To achieve a clean cut, guide the petrol lawn tractor in the straightest possible paths. These strips should always overlap by a few centimetres so that no patches remain.
• Keep the underside of the mower housing clean and be sure to remove grass debris. Grass deposits make the starting process more difficult, impair cutting quality and grass discharge.

13. Cleaning and maintenance

⚠ WARNING!

Danger of injury and burning!

The product can start unexpectedly and cause injuries. In addition, temperatures of 80^ C and more can be reached.

• Switch off the engine before carrying out any cleaning or maintenance work.
• Allow the device to cool down before working in the area of the combustion engine, exhaust manifold and silencer in particular, this also applies to all maintenance work on the mowing unit.
• Disconnect the spark plug connector from the spark plug.

NOTE!

Risk of damage!

Water entering the housing can cause engine damages. In addition, the jet of a high-pressure cleaner can damage parts of the product.

- Clean the product with a cloth, hand brush, etc.

- Do not immerse the product in water or other liquids and do not spray it with a high-pressure cleaner.

Place the product on a level, even surface.

Maintenance plan
	after 10 operating hours	after 25 operating hours	Every 50 operating hours
Air filter Clean Clean Replace
Spark plug Check Clean Replace

Required tool:

• 1x assembly wrench (32)
- 1x funnel (31)
- 1x collection bucket*
- 1x copper wire brush*
- 1x feeler gauge*
- 1x hand brush*
- 1x rag*

* = may not be included in the scope of delivery!

13.1 Cleaning

⚠ WARNING!

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

- Switch off the engine before carrying out any cleaning or maintenance work and after the engine has cooled down, disconnect the spark plug connector from the spark plug.

NOTE!

Risk of damage!

If the product and its attachment devices are not cleaned regularly, grass/weed debris may become trapped underneath the petrol lawn tractor. This can affect the performance of the product and cause damage in the long run.

13.1.1 Cleaning the product with water (Fig. 28)

1. Place the hose connector on the water connection (14) of the petrol lawn tractor and open the water tap.
2. Start the petrol lawn tractor as described in 11.2 and switch on the mowing unit. The rotating cutter bar dashes the water against the underside of the petrol lawn tractor and in doing so cleans it.
3. After approx. 30 seconds, switch off the petrol lawn tractor and the mowing unit again.
4. Close the water tap and pull off the hose connector.
5. Repeat the process at the water connection (14) on the other side.
6. Clean the top side with a cloth (do not use any sharp objects, e.g. blades).

13.1.2 Clean the engine air intake (Fig. 29)

1. Open the bonnet (6) by lifting it forward.
2. Ensure that the air intake to the engine is not blocked.
3. If necessary, remove all dust and grass clippings with a hand brush.

13.1.3 Remove the discharge chute (25) (for models with a collection basket) (Fig. 30)

1. Unhook the grass collection basket (21) as described in 10.9.
2. Remove the two split pins (25a).
3. Remove the discharge channel (25).

13.1.4 Cleaning the gearbox cooling fan (on models with a collection basket) (Fig. 31)

1. Hang out the collection basket (21) as described in 10.9.
2. Remove the discharge channel (25) as described in 14.1.3.
3. Use compressed air to remove all deposits.
4. Refit the discharge channel (25).

Note: It is easiest to remove the dirt and grass immediately after mowing. Grass residues and dirt that have dried on can impair mowing. Never clean the mower with a water jet or high pressure cleaner. The engine should remain dry.

Do not use aggressive cleaning products such as cold cleaners or white spirit.

Never drive close to an edge or ditch for cleaning work (e.g. on the frame of the petrol lawn tractor).

To avoid fire hazard, keep combustion engine, cooling fins, battery compartment, area around fuel tank and exhaust pipe free from grass, leaves or leaking oil (grease).

Always clean the collection basket (21).

13.2 Maintenance

Only maintenance work described in this operating manual may be carried out; have all other work carried out by a specialist dealer. If you lack the necessary knowledge and tools, always consult a specialist dealer.

We recommend that maintenance work and repairs be carried out only by a specialist dealer.

Only use tools, accessories or attachment devices which are permitted by the manufacturer of this product or technically similar parts, otherwise there may be a danger of accidents resulting in personal injury or damage to the product. If you have any questions, you should contact a specialist dealer.

Original tools, accessories and spare parts are optimally matched to the device and the user's requirements.

The petrol lawn tractor should be checked by the specialist dealer once a year.

Keep warning and instruction labels clean and legible at all times. Damaged or lost stickers must be replaced with new original ones. If a component is replaced by a new part, make sure that the new part has the same stickers.

For safety reasons, fuel-carrying components (fuel line, fuel valve, fuel tank, fuel cap, connections, etc.) must be checked regularly for damage and leaks and replaced by a specialist if necessary.

The device is equipped with numerous safety features. These devices must not be removed or modified (bypassed, etc.) and must be checked at regular intervals. Work on the safety devices may only be carried out by a specialist.

Worn or damaged parts must be replaced immediately for safety reasons.

Regularly check the catcher (e.g. collection basket, ejector chute) for wear, damage or loss of functionality.

Working under the machine requires special care due to the weight of the petrol lawn tractor. Contact your specialist dealer for this.

Check that the front and rear wheels are secured. Always keep the petrol lawn tractor and attachment devices in good working order; all safety devices must be in place and in good working order.

Check the function of the brake regularly (every 25 operating hours) and have the necessary settings or maintenance work carried out by a specialist workshop if necessary.

13.2.1 Changing the mowing blade

For safety reasons, only have your mowing blade replaced, sharpened, balanced and fitted by an authorised specialist workshop. To achieve an optimal working result, it is recommended to have the mowing blade checked once a year.

13.2.2 Checking the oil level (Fig. 14)

⚠ WARNING!

Health hazard!

Inhaling fuel/lubricant vapours may lead to severe health damage, loss of consciousness and, in extreme cases, to death.

• Do not inhale fuel/lubricant vapours.
• Operate the product outdoors only.

NOTE!

Product damage

Using the product without or with too little engine and gearbox oil can result in engine damage.

• Fill with petrol and oil before commissioning. The product is supplied without engine and gearbox oil.
• Only use SAE 30 engine oil.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
• Collect drained oil in a suitable container.
• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.

• Dispose of oil as per local regulations.

• Open the bonnet (6) by lifting it forward.

• Remove the oil tank cover with scale (22) by turning it anti-clockwise.
• Check the oil level using the oil tank cover with scale (22); the oil level should be between the "ADD" and "FULL" marks.
• Top up with oil if necessary, observing the technical data. Use a funnel.
• Close the oil tank again with the oil tank cover with scale (22).

13.2.3 Changing the oil (Fig. 32)

The engine oil change should be completed annually before the start of the season while the engine is at operating temperature and shut off.

Only use engine oil (SAE 30).

1. Open the bonnet (6) by lifting it forward.
2. Remove the oil tank cover with scale (22) by turning it anti-clockwise.
3. Place a suitable collection bucket (at least 1.2 litres) under the oil drain hose (22a).
4. Remove the oil drain hose (22a) from the bracket.
5. Remove the end cap (22b) on the oil drain hose (22a) and drain the oil into the collection bucket.
6. Replace the end cap (22b) on the oil drain hose (22a) and reattach it to the bracket.
7. Carefully pour the new engine oil into the opening, observing the technical data. Use a funnel (31).
8. Check the oil level using the oil tank cover with scale (22); the oil level should be between the "ADD" and "FULL" marks.
9. Close the oil tank again with the oil tank cover with scale (22).

Dispose of the used oil in accordance with applicable regulations.

13.2.4 Maintenance of the air filter (26c) (Fig. 33)

NOTE!

Risk of damage!

Operating the engine without the filter element in place can cause engine damage.

- Never run the engine without the air filter element in place.

Fouled air filters diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter should be checked every 10 operating hours and cleaned as required. The air filter (26c) must be checked more often in case of very dusty air.

1. Open the bonnet (6) by lifting it forward.
2. Completely loosen the two wing screws (26a) and remove the air filter cover (26).
3. Remove the filter cartridge (26b) upwards from the threaded bolts.
4. Remove the air filter (26c) from the filter cartridge (26b).
5. Clean the air filter (26c) by washing it out with a mild cleaning agent.
6. Clean the paper filter (26d) by tapping it and blowing it with compressed air from the inside.
7. Allow the air filter (26c) to dry in the air and reinsert it into the filter cartridge (26b).
8. Replace a defective air filter (26c) or paper filter (26d) with a new one.
9. Replace the filter cartridge (26b) onto the threaded bolts and replace the air filter cover (26).
10. Refit the star screws (26a) to the air filter cover (26).

13.2.5 Maintaining the spark plug (27a) (Fig. 34)

Check the spark plug (27a) for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Thereafter, replace the spark plug (27a) every 50 operating hours if necessary.

1. Open the bonnet (6) by lifting it forward.
2. Remove the spark plug connector (27) from the spark plug (27a).
3. Clean the area around the spark plug (27a).

4. Remove the spark plug (27a). Use an installation spanner (32).

5. Visually inspect the spark plug (27a). Remove any deposits present using a copper wire brush.

6. Check the spark plug gap. Use a feeler gauge to adjust the electrode gap to 0.6-0.7 mm.
7. Replace the spark plug (27a) and take care not to tighten it excessively.
8. Then place the spark plug connector (27) on the spark plug (27a).

13.2.6 Replacing the fuse (28a) (Fig. 35)

The electric start is protected by a 20A fuse (28a).

Never use another fuse and never bypass it.

1. Open the bonnet (6) by lifting it forward.
2. Open the fuse holder (28).
3. Remove the defective fuse (28a) from the holder (28).
4. Insert a new fuse (28a).
5. Close the fuse holder (28).

14. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts. Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the engine
• Machine data - type plate
- Motor data - type plate

Important note in the case of repairs:

For return delivery of the product for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

14.1 Ordering spare parts

Blade information
TMR452-98H-SD (59112116903)
Manufacturer: Ducar
Blade code:	DJ831410
Blade - Article no.: 5911	2116001
TMR452-98H-RD (59112112903)
Manufacturer: Ducar
Blade code:	DJ831253 (left blade)
	DJ831254 (right blade)

Blade - Article no.: 59112112001(left blade)

59112112002(right blade)

Approved wheels

Rear wheel 18”Article no.: 20000138

Front wheel 15”Article no.: 20000142

WARNING! Danger of injury! With accessories as well as wearing parts and replacement parts use only original parts.

14.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter, fuel filter, mowing blade, V-belt, fuse, tyres

* may not be included in the scope of delivery!

15. Storage

Attention: Clean and maintain the product before each storage.

⚠ WARNING!

Danger of injury!

After switching the engine off, the blade continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.

• Wait until the blade comes to a standstill.
• Do not stop the blade with your hand.
• Wear protective gloves.
• Remove the spark plug connector (27) from the spark plug (27a) to prevent unintentional starting of the engine when switching off or parking the product.
• Activate the locking brake (9).
• Keep the blade away from your feet.

⚠️ DANGER!

Risk of fire and explosion!

Storing the product near potential sources of ignition can result in a fire or an explosion. This can lead to severe burns or death.

- Eliminate possible sources of ignition, such as furnaces, hot water boilers with gas, gas dryers, etc.

NOTE!

Risk of damage!

If the product is not stored properly, the engine can be damaged.

- Store the product protected against dirt, dust and moisture.

15.1 Storage during extended breaks in operation Allow the engine to cool down before parking the product in an enclosed space.

Store the petrol lawn tractor with the tank emptied and also store the fuel supply in a lockable and well-ventilated area.

Never store the device with petrol in the fuel tank inside a building in which fuel vapours may come into contact with naked flames or sparks.

If the tank has to be emptied (e.g. decommissioning before winter break), the fuel tank should only be emptied outdoors (e.g. empty the tank by running the combustion engine outdoors).

The ignition key (4a) must always be removed from the ignition lock (4) and stored securely to prevent unauthorised or improper use by children and other persons.

Clean the petrol lawn tractor thoroughly before storing it (e.g. winter break). Dry grass cuttings and leaves near the silencer can catch fire. Danger of ignition!

Allow the device to cool down completely before covering it.

Before storage, carry out all necessary maintenance work.

15.2 Drain fuel with a petrol extraction pump (Fig. 15)

1. Open the bonnet (6) by lifting it forward.
2. Hold a collection bucket under the hose of the fuel extraction pump (not included in the scope of delivery).
3. Unscrew and remove the fuel filler cap (23a).
4. Push the hose of the fuel extraction pump into the fuel tank (23) and drain out the fuel tank completely using the fuel extraction pump.
5. Retighten the fuel filler cap (23a).

16. Transport (Fig. 37-41)

⚠ WARNING!

Danger of injury!

After switching the engine off, the blade continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.

• Wait until the blade comes to a standstill.
• Do not stop the blade with your hand.
• Wear protective gloves.
• Remove the spark plug connector (27) from the spark plug (27a) to prevent unintentional starting of the engine when switching off or parking the product.
• Keep the blade away from your feet.

Special care must be taken when loading and unloading the petrol lawn tractor for transport in a vehicle or trailer to prevent fuel loss, damage or injury.

Always engage the parking brake (9) and disengage the drive to the mowing unit (10).

When transporting the petrol lawn tractor, observe regional legal regulations, especially with regard to load safety and the transport of objects on loading areas.

This petrol lawn tractor must not be towed. A suitable vehicle or trailer must be used for transport on public roads. When transporting, ensure that the transport device has sufficient payload-bearing capacity and that the petrol lawn tractor is suitably safeguarded.

Keep the loading area and the area around the silencer and combustion engine free of combustible materials such as straw, leaves or dry grass cuttings during transport.

Always remove the ignition key (4a) from the ignition lock (4) after loading!

17. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).

• Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to

the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Information on the battery act [BattG]

Old batteries and rechargeable batteries do not belong in household waste, but must be collected or disposed of separately!

• For safe removal of batteries or rechargeable batteries from the electrical device and for information on their type or chemical system, please refer to the additional information in the operating or assembly instructions.
• Owners or users of batteries and rechargeable batteries are legally obliged to return them after use. The return is limited to household quantities.

• Old batteries may contain pollutants or heavy metals that can harm the environment or human health. Recycling old batteries and using the resources they contain helps to protect these two important issues.

• The symbol of the crossed-out dustbin means that batteries and rechargeable batteries must not be disposed of with household waste.

• If the signs Hg, Cd or Pb are also located below the dustbin symbol, this stands for the following:

- Hg: Battery contains more than 0.0005% mercury

- Cd: Battery contains more than 0.002% cadmium

- Pb: Battery contains more than 0.004% lead

- Rechargeable batteries and batteries can be returned free of charge to the following places:

• Public disposal or collection points (e.g. municipal works yards)
• Sales points for batteries and rechargeable batteries
• Take-back points of the common take-back system for old device batteries
• Take-back point of the manufacturer (if not a member of the common take-back system)

- These statements are only valid for rechargeable batteries and batteries sold in the countries of the European Union and subject to the European Directive 2023/1542/EC. In countries outside the European Union, different regulations may apply to the disposal of rechargeable batteries and batteries.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the device, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

18. Troubleshooting

Troubleshooting

The table shows potential failures, their possible cause and solutions. However, if you are unable to solve the problem, contact a professional to assist you.

CAUTION!

Always switch off the engine and disconnect the ignition cable before starting any inspection or adjustment work.

CAUTION!

If, after making an adjustment or repair to the engine, you let it run for a few minutes, remember that the exhaust pipe and other parts will become hot. Thus, do not touch the parts that emanate heat, as these may burn you.

Fault Possible cause Remedy
Product runs unsteadily and vibrates heavily	1. Screws are loose2. Mowing blade attachment loose3. Mowing blade not balanced4. V-belt damaged5. Ejector chute blocked	1. Check screws2. Check mowing blade attachment3. Replace mowing blade by specialist workshop4. Contact the specialist merchant/customer service5. Clean the ejector chute
Engine does not run	1. Incorrect start sequence2. Choke setting incorrect3. Throttle in wrong position4. Spark plug is defective5. Fuel tank is empty6. poor fuel, storage without emptying the fuel tank, incorrect petrol type7. spark plug fouled (carbon residue on the electrodes), electrode distance too large8. The spark plug is wet from the petrol (engine flooded)9. Engine defective	1. Check start process2. Check choke setting3. Check setting4. Replace spark plug5. Refill with fuel6. Empty the fuel tank and carburettor. Fill with fresh petrol7. Clean the plug, check the heat value of the plug, replace the spark plug as required, set to 0.6 - 0.7 mm8. Dry the spark plug and insert it again9. Contact authorised customer service
Engine gets very hot	1. Cooling fins are dirty2. Engine oil level too low3. V-belt worn out	1. Clean the cooling fins2. Check fill level of engine oil and top up engine oil3. Contact the specialist merchant/customer service
Product does not run	1. Drive disengaged2. V-belt (transmission) worn or damaged	1. Engage the drive2. Contact the specialist merchant/customer service
Engine runs unsteadily	1. Air filter dirty2. Spark plug dirty	1. Clean the air filter2. Clean the spark plug
Lawn turns yellow, uneven mowing results	1. Mowing blade is not sharp2. Cutting height is too low	1. Sharpen the mowing blade2. Set the correct height
The discharge of grass clippings is unclean	1. Cutting height is too low2. Mowing blade worn out3. Collection basket is clogged4. Ejector chute blocked5. Grass too wet6. Driving speed too high	1. Set height2. Contact the specialist merchant/customer service3. Empty the collection basket or remove the blockage4. Clean the ejector chute5. Mow during dry weather6. Adapt speed
Engine output drops during mowing	1. The driving speed in relation to the cutting height is too high	1. Reduce the driving speed and increase the cutting height
Braking power insufficient	1. The brake is no longer set correctly	1. Contact the specialist merchant/customer service

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

9.1 Bumper (7) monteren (afb. 4)

9.5 Steunrollen (10a) monteren (afb. 8)

Günzburger Straße 69

Günzburger Straße 69

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
