Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 26

Installation 29

Device Overview 31

Control Panel and Key Functions 33

Cleaning and Care 35

Troubleshooting 36

Disposal Considerations 37

Manufacturer & Importer (UK) 37

Product Data Sheet 38

Product Data Sheet 40

Product Data Sheet 42

TECHNICAL DATA

Item number 10041306, 10041307, 10041308

Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of drinks, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; fl ush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING

When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fi res. There are fl ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fi re during use, maintenance and disposal.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C . If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Extended temperate	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

INSTALLATION

Before first Use

Allow 24 hours before switching on the wine cellar. During this time we recommend that you leave the door open to clear any residual odors.

Note: All models without front venting (air opening) are strictly for free standing only.

Location

The location you have selected for your wine cellar should:

• be unencumbered and well ventilated;
• be well away from any heat source and direct sunlight;
  • not be too damp (laundry, pantry, bathroom etc.);
  • have a flat floor;
  • have a standard and reliable electricity supply
  • have a surge protector fitted to the electrical outlet;
• Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet.

Placing in cold or hot temperature conditions may cause cellar's temperatures fluctuating, and it will not reach the ideal one.

Installation

• Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine cellar.
• The wine cellar must be positioned such that the plug is accessible. Release the power cord. Move your wine cellar to its final location. The wine cellar should be installed in a suitable place where the compressor will not be subject to physical contact.
• Wine cellar must be leveled before loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. The cooler recommends that you tighten the back feet to the maximum and adjust the front feet to level the wine cellar.

Hints on built-in Wine Cellars

• All units with ventilation slots on the front are suitable for installation, but must not be installed in completely closed housings.
• Built-in units suck air from the right side of the ventilation frame (some models also from the rear) and let it out through the front ventilation frame.
• Like many electrical appliances, the wine refrigerator has many sensitive parts that can be damaged by power failure or lightning. Your connections should therefore be equipped with overvoltage protection.
• If you install the unit in a frame with a door, there must be a ventilation opening at the bottom of the door. In hot climates, slots of at least 40mm x 200mm must also be provided at the top of the back or at the top of both sides of the enclosure to allow cool air to enter. Space of at least 30 mm must be left to the rear wall of the frame. The ventilation slot should not be located on a side where another device, such as an oven, is already installed.

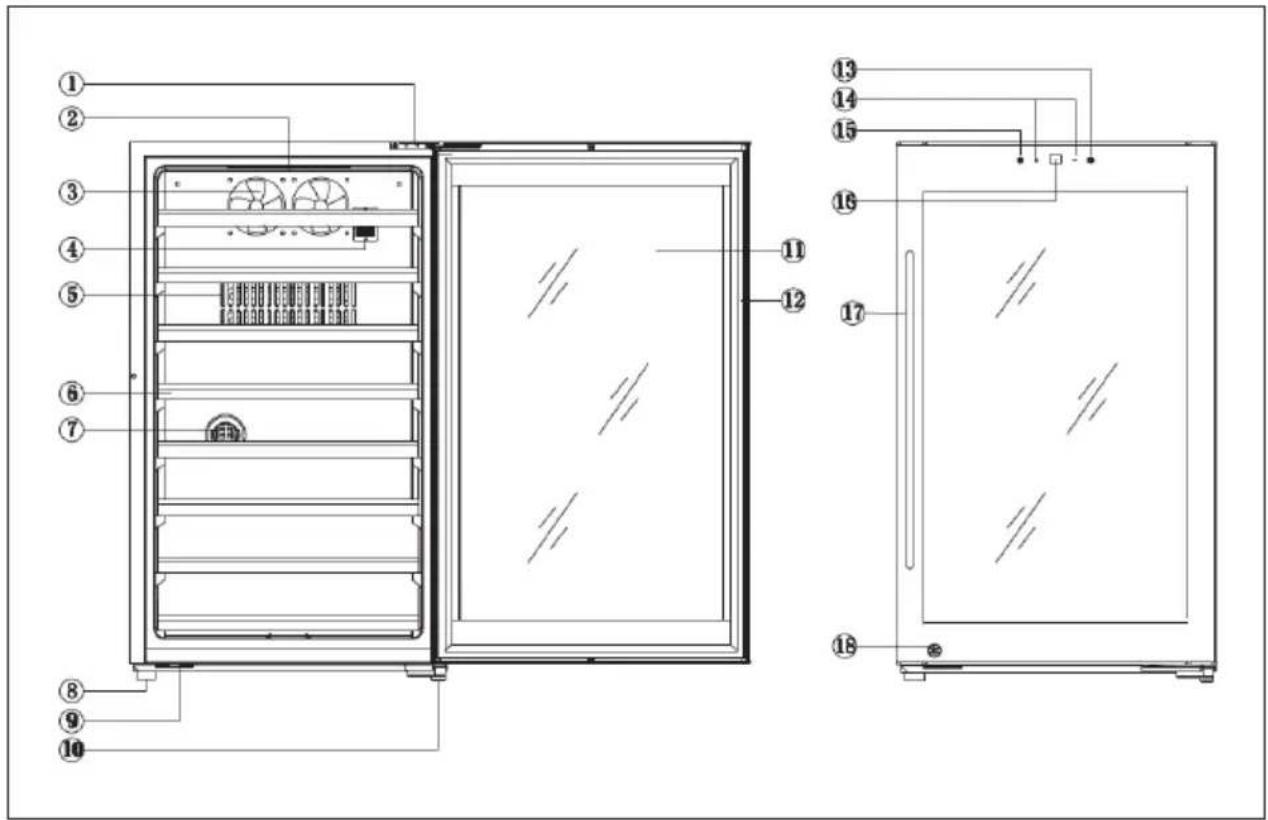

Model 10041306 and 10041307

Technical diagram of a refrigerator with numbered components and labeled parts in Chinese

1 Upper hinge 10 Lower hinge
2 Light 11 Glass
3 Fan 12 Door seal
4 Sensor 13 Light switch
5 Exhaust window 14 Temperature adjustment
6 Shelf 15 Temperature switch
7 Carbon filter 16 Display
8 Foot 17 Handle
9 Door latch 18 Lock

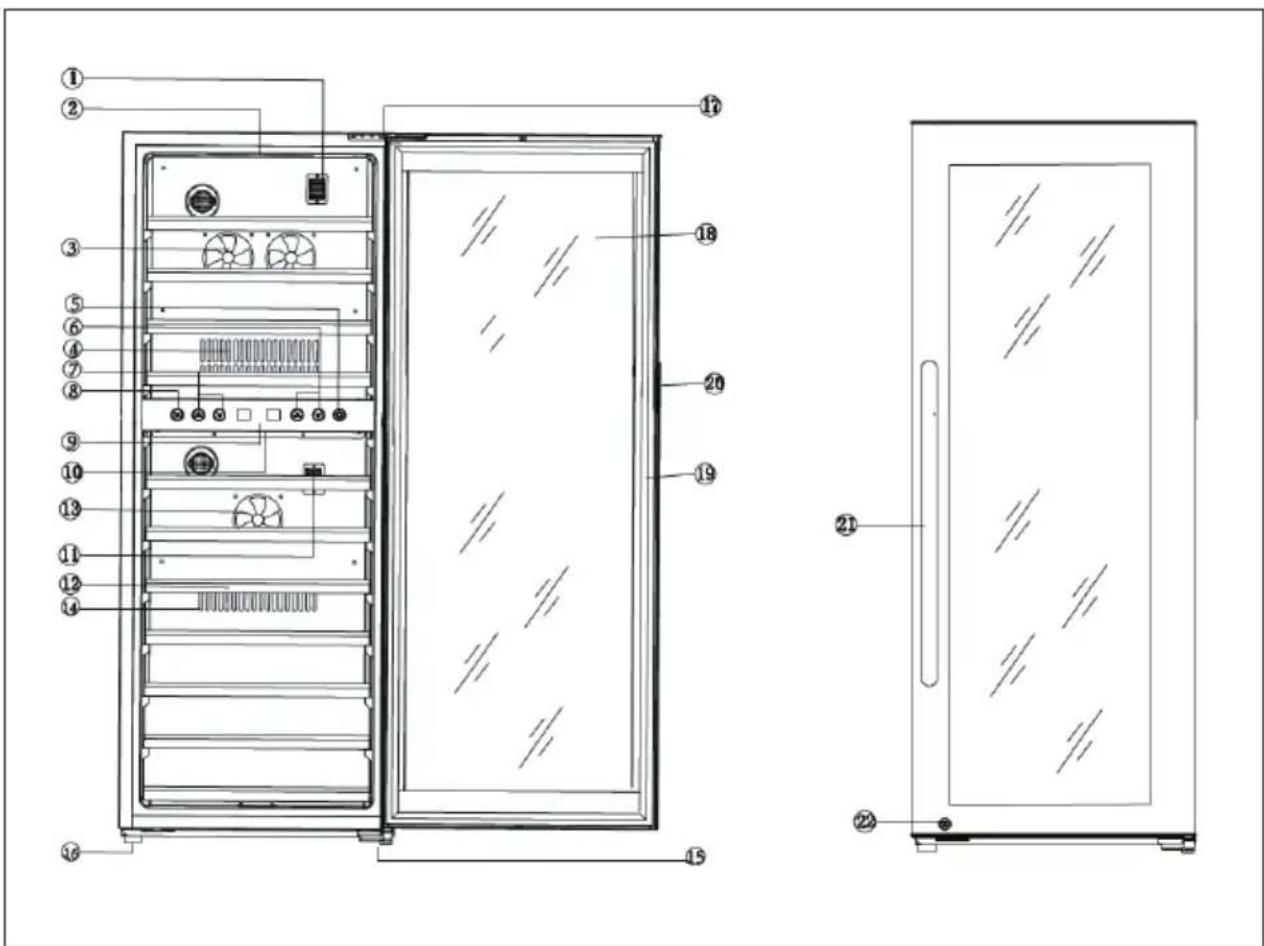

1 Sensor 12 Shelf
2 Light 13 Fan
3 Fan 14 Exhaust window
4 Exhaust window 15 Lower hinge
5 Light switch 16 Foot
6 Temperature setting for the lower zone	17 Upper hinge
7 Temperature setting for the upper zone	18 Glass
8 Temperature switch 19 Door seal
9 Indication 20 Door frame
10 Light 21 Door handle
11 Sensor 22 Lock

CONTROL PANEL AND KEY FUNCTIONS

Model 10041306 and 10041307

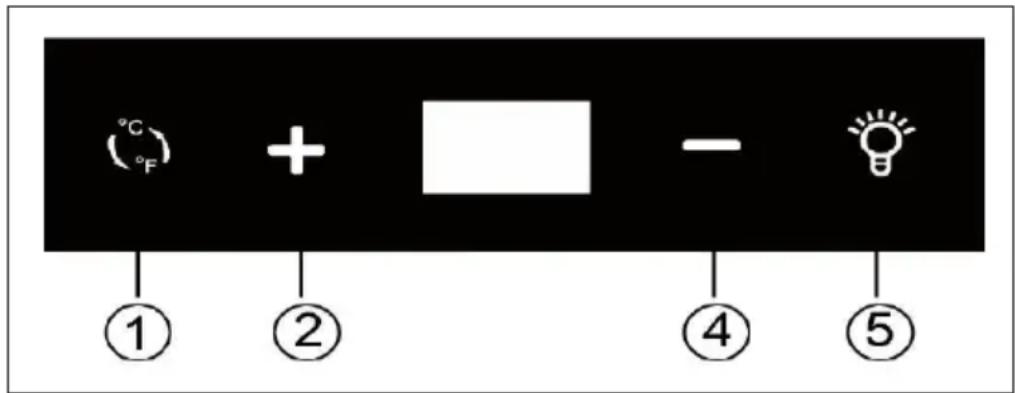

°C + - ① ② ④ ⑤

Setting the temperature

To set the temperature, press the PLUS key (2) or MINUS key (4) on the door. Each time the button is pressed, the temperature increases or decreases by 1 °C between 5-18 °C or 1 °F between 40-66 °F.

On/off switch for the illumination

To turn the internal LED lighting on or off, press the LIGHT button (5) on the right side.

Switching between °C and °F

To switch the temperature display from Celsius to Fahrenheit, press the C/F key (1). The same applies if you want to switch from Fahrenheit to Celsius.

Model 10041308

- To control the temperature for the upper zone, press the arrow keys on the left side.

• Each time the button is pressed, the temperature will increase/decrease by 1 °C between 5-10 °C or 1 °F between 40-50 °F.

- To control the temperature for the lower zone, press the arrow keys on the right side.

• Each time the button is pressed, the temperature will increase/decrease by 1 °C between 10-18 °C or 1 °F between 50-66 °F.

• To turn the internal LED light on or off, press the light button on the right side.

• To switch the temperature display from Celsius to Fahrenheit, press the C/F key (1). The same applies if you want to switch from Fahrenheit to Celsius.

CLEANING AND CARE

Cleaning the Unit

• First switch off the unit and disconnect the power plug from the socket. Remove the entire contents.
• Wash the interior with a damp cloth dipped in lukewarm water with a little detergent.
• Make sure that the rubber seal on the door is clean so that the unit remains powerful.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
• Dry the inside and outside with a soft cloth.
• Dust and anything else that blocks the exhaust air openings will reduce the cooling capacity of the unit. If necessary, suck off the exhaust air opening.

Shutdown in absentia

• Turn off the unit first. Then disconnect the power plug.
• Remove the entire contents.
• Clean the unit.
• Keep the lid open slightly to prevent condensation, mould or odours.

Installation at another Location

• Turn off the unit first. Disconnect the power plug.
• Remove the entire contents.
• Secure all loose objects with adhesive tape.
• Tape the doors shut.

Energy Saving Tips

The wine refrigerator should be placed in the coolest place in the room, away from appliances that emit heat. heating pipes and direct sunlight. Make sure the door is properly closed when the wine refrigerator is on.

TROUBLESHOOTING

Problem Possible Cause and Suggested Solution
Wine cellar does not operate.	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or the fuse is broken.
Wine cellar is not cold enough.	Check the temperature control setting.
	External environment may require a higher setting.
	The door is opened too often.
	The door is not closed completely.
	The door gasket does not seal properly.
The light does not work.	Not plugged in.
	The circuit breaker tripped or a blown fuse.
	The bulb is out of order.
	The light button is “OFF”.
Turns on and off frequently.	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine cellar.
	The door is opened too often.
	The door is not closed completely.
	The temperature control is not set correctly.
	The door gasket does not seal properly.
Vibrations. Check to assure that the Wine cellar is level.
The Wine cellar seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cellar.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The Wine cellar is not level.
The door will not close properly.	The Wine cellar is not level.
	The door was reversed and not properly installed.
	The gasket is faulty (magnet or rubber is spoiled).
	The shelves are out of position.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041306
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 840		Total volume (dm3 or L) 94	Width 395
	Depth 580
EEI 120 Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		98	Climate class:	extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 94 12 - M
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - - -
For wine storage appliances
Number of standard wine bottles 38
Light source parameters:
Type of light source LED
Energy efficiency class G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041307
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 840		Total volume (dm3 or L) 120	Width 500
	Depth 575
EEI 162 Energy efficiency class		G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		135 Climate class:		extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 120 12 - A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - - -
For wine storage appliances
Number of standard wine bottles 52
Light source parameters:
Type of light source LED
Energy efficiency class G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041308
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 1275		Total volume (dm3 or L) 192	Width 495
	Depth 580
EEI 162 Energy efficiency class		G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		144 Climate class:		extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 192 12 - M
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - - -
For wine storage appliances
Number of standard wine bottles 73
Light source parameters:
Type of light source LED
Energy efficiency class G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical diagram of a refrigerator with numbered components and labeled parts in Chinese

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

Reino Unido

FICHA TÉCNICA DEL PRODUCTO

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram of a refrigerator with numbered components and labeled parts in Chinese

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

QR code image containing encoded data, no visible human-readable text

INDICE

Technical diagram of a refrigerator with numbered components and labeled parts in Chinese

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SCHEDA INFORMATIVA DEL PRODOTTO
