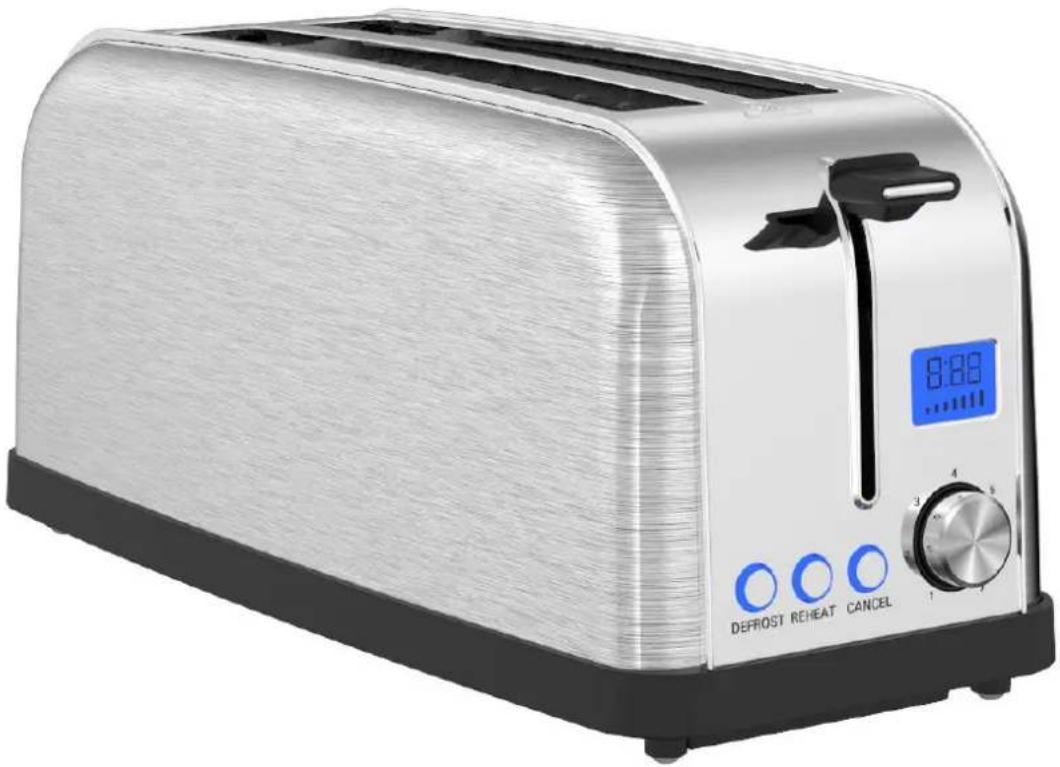

Toaster ST1500 XXL with timer

User Manual

VAR.ID.: 4129

EN

Read and understand this manual!

Take care of the safety instructions!

Exterior view of a modern stainless steel toaster with digital display and control knobs (no text or symbols on main body)

220-240V\~, 50-60Hz, 1250-1500W

WEEE Reg No.DE43021155

IMPORTANT SAFEGUARDS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Please read through the following safety precautions carefully before switching on the toaster.
2. Keep this instruction manual in a safe place for future reference. Also keep the sales receipt and, if possible, the carton box with the inner packaging.
3. Failure to follow all the instruction listed may result in electric shock, fire or serious personal injury.
4. Before plugging the Toaster into the mains electrical supply, check that the voltage and power supply comply with the specifications indicated on the rating plate of the appliance.
5. The Toaster is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. The Toaster may be used by children aged from 8 years and above if they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
7. It is imperative that children aged from 8 years and above are carefully instructed to use the Toaster in a safe way and that they understand the hazards involved. Children should only be allowed to clean the Toaster whilst under adult supervision. Children aged less than 8 years shall not use the Toaster.
8. Always place the Toaster on a stable, flat, heat-resistant surface. Also ensure that the surface can take the weight of the unit during use.
9. The toaster is intended for DOMESTIC USE ONLY. Do not use appliance for other than intended use.
10. Always keep the Toaster out of reach of children. Close adult supervision is necessary when the toaster is used by or near children. Children should not play with the appliance.
11. The Toaster should not be used for commercial purposes. The toaster should only be used for its intended purpose.
12. Do not leave the Toaster unattended when in use.
13. Do not move or lilt the Toaster while it is operating or while it is connected to an electrical socket.
14. This appliance is not intended to be operated by any means of an external timer or separate remote control system.
15. The use of accessory attachments, not specifically recommended by the appliance manufacturer, must not be used as they may cause personal injury or damage to the Toaster.
16. Take care when using the Toaster as it reaches very high temperatures and the outside surfaces are liable to get hot during use. DO NOT touch the outside surfaces during use, particularly in the area of the toasting slots. Use handle or knob.
17. Bread & halved bagel may burn. Therefore the Toaster must not be used near or below curtains, draperies, wall and other combustible materials.
18. Do not place the cable or any other object over the toasting slots whilst the Toaster is in operation.
19. Do not attempt to dislodge food while the Toaster is in operation.
20. The Pop-up lever must be in the 'UP' position before connecting or disconnecting the plug from wall outlet.
21. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire and/or electric shock.
22. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

23. Regularly check the Toaster's power cord carefully regularly for damage. If the power cord is damaged in any way, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid an electrical hazard.

24. Do not let cord hang over edge of table or counter, or touch hot surfaces.

25. Make sure that the Toaster is switched off and remove the plug from the electrical outlet when it is not in use, before it is cleaned and while it is being repaired.
26. To prevent the risk of electrical shock. Do not immerse the power cord, plug, or any non-removable parts of this Toaster in water or any other liquid.
27. The Toaster must not be submerged in water, as any contact with the electrical parts would create the risk of malfunction and electric shock. Do not use the appliance with wet hands.
28. Do not use the Toaster outdoors.
29. To unplug the appliance, grasp the plug firmly and remove it from the mains electrical supply. DO NOT PULL ON THE CORD.
30. Never use the Toaster if it is damaged in any way.
31. All repairs should be done by a qualified electrician. Improper repairs may place the user at risk.
32. When handing this product over to a third party, ensure that this instruction manual is supplied with the appliance.
33. A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
34. When heating toaster pastries, always use the lightest toast color setting.
35. Note: If big bread crumbs stuck on the bottom of the Bread Slot, please remove it immediately for Safety & better bread flavor. During the toasting cycle, the big bread crumbs will cause smoke & smell of burning. Worse, it will be on fire, which cause damage to the toaster and cause safety hazard.

TECHNICAL DATA

Power: 220 - 240V \~; 50-60Hz

Power: 1250 - 1500W

Unplug the toaster when not in use and before cleaning it. Allow the device to cool down before attaching or removing parts.

Do not place the appliance on or near a hot gas or electric stove or in a heated oven.

To avoid electric shock, unplug before cleaning.

Save this instruction

a) A short power-supply cord should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.

If extension cord is used:

1) The marked electrical rating of the extension cord should be a least as great as the electrical rating of the appliance; and
2) The cord should be arranged so that it will not drape over the counter top or table top where it can be pulled by children or tripped over unintentionally.

This device has a grounded plug. To reduce the risk of electric shock, this plug is intended for use with a grounded outlet only. If it does not fit, contact a qualified electrician. Do not attempt to modify the connector in any way.

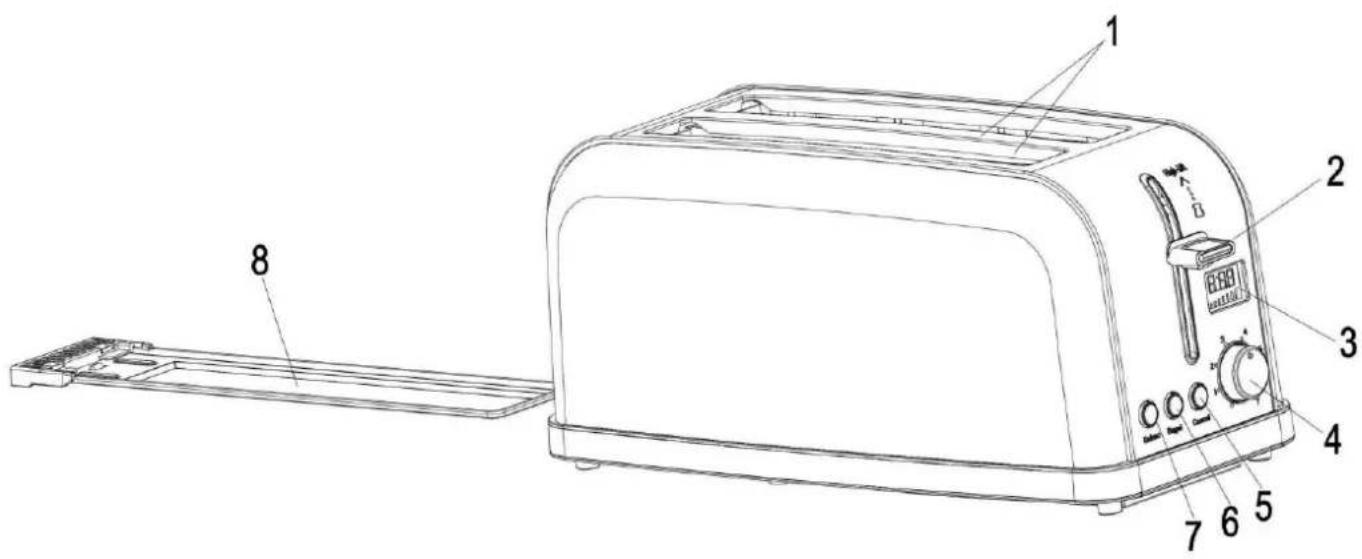

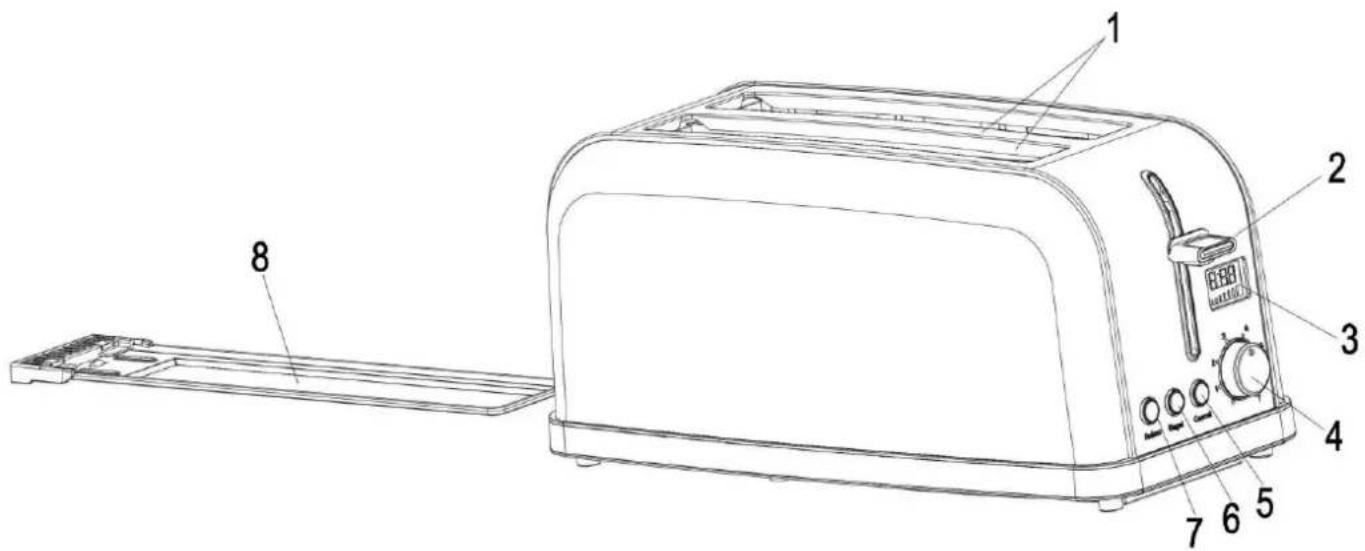

PARTS

1. Bread Slots
2. Reheat Button
3. Lever with High Lift Feature
4. Defrost Button
5. LCD Display shows Countdown Timer and Browning Setting
6. Removable Crumb Tray
7. Browning Control Dial (1-7)
8. Cancel Button
9. Bun Warmer

Technical diagram showing mechanical assembly with numbered components and rotational arrows indicating motion or movement.

Line drawing of a toaster with labeled parts including front panel, side grates, and control knobs

BEFORE FIRST USE

Carefully remove your toaster from its box. Remove all packaging from inside the toasting slots. Position your toaster on a stable, secure, dry and level work surface away from the edge. Connect the plug to a suitable power outlet and make sure that the power cord does not overhang the work surface.

When you first use your toaster, there may be a slight odour as the heating elements warm up for the first time. This is normal and not a cause for concern. To remove the odour, simply operate your toaster for the first time without any bread or halved bagel in it.

USE & CARE

Bread slots & Lever

Be sure the carriage is in the up position before use.

Never force foods into the bread slots. Foods should fit freely between the guide wires.

Do not place buttered/greased, coated, glazed, or filled bread/toast slices in the toaster, as this may cause a fire.

LCD Display

The LCD display will show the toasting setting and how long the toasting cycle will take.

Once toasting cycle started, the LCD display will count down in minutes and seconds until the toasting cycle has finished.

Browning control

The browning control dial regulates how much the bread & halved Bagel are toasted—in other words, the color of the toast. Lower settings produce lighter toast and higher settings produce darker toast.

Set the desire browning before toast your bread or Bagel.

If you want to change the browning after the toasting cycle has been running for more than 5 seconds:

- Turn the browning control knob to a lower setting to shorten the toasting time.

- Turn the browning control to a higher setting to increase the toasting time.

When setting the browning control, remember that dry or thin slices of bread will toast quicker and require a lower setting. Moist or thick slices of bread & halved Bagel will require a higher setting.

Cancel function

The toasting process can be stopped at any time by pressing the Cancel button.

The pop-up lever will lift the bread or halved Bagel automatically once they are toasted and Cancel light will go out. If you wish to stop the cycle before it is finished, simply press the Cancel button.

Reheat function

Reheat function allow you to reheat toast & halved bagel without additional browning.

1. Place toast or halved bagel into toasting slots.

2. Push down the pop-up lever until it clicks into place and press the Reheat button.

3. The Cancel & Reheat button light will go on.

4. When the toast is reheated, the pop-up lever will lift the toast automatically and Cancel light will go out. If you wish to stop the cycle before it is finished, simply press the Cancel button.

Defrost function

The Defrost function allows you to toast bread & halved bagel straight from the freezer.

Your toaster will extend the toasting time to allow the bread to Defrost.

This feature is activated and deactivated by pressing the Defrost button at any time.

1. Insert the bread or halved bagel into your toaster & set the browning control to desire setting.

2. Push down the pop-up lever until it clicks into place and press the Defrost button.

3. The Cancel & Defrost button light will go on.

4. When the bread & halved Bagel are toasted, the pop-up lever will lift the toast automatically and both lights will go out. If you wish to stop the cycle before it is finished, simply press the Cancel button.

5. If the Defrost button is selected before the toasting cycle finish, it will override the toasting cycle.

6. If the Defrost toasting cycle had been starts over the normal toasting time, press the Defrost button will be deactivated the Defrost function and cancel the toasting cycle after 5 seconds.

High lift feature

Use the high lift feature when toasting small pieces of bread or Bagel. When toasting has finished, simply lift the lever upwards from its rest position to raise the toast and make it easier to remove.

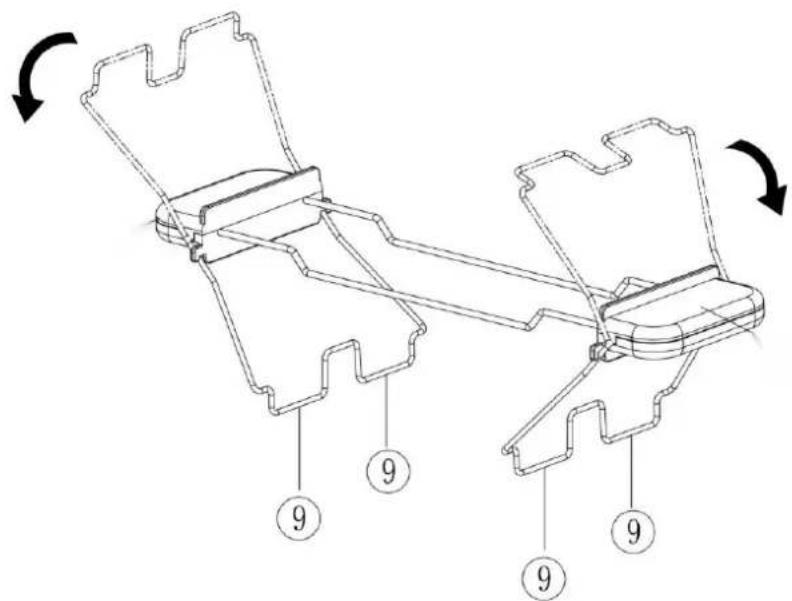

Bun Warmer

Don't use the bun warmer to warm frozen, buttered, coated, iced, or filled buns.

1. Fold the bun warmer feet from top to bottom.
2. Sit the bun warmer on top of the toaster, with the feet inside the slots.
3. Sit the buns on top of the bun warmer.
4. Set the browning level to 1.
5. Lower the lever.
6. When the lever pops up, remove the warmed buns.
7. Don't touch the bun warmer wires - they will be hot.
8. Remove the bun warmer before using the toaster normally.

IF YOUR TOAST JAMS

Never use a knife or any other utensil or implement to remove jammed bread or halved bagel, as this could damage the toaster and cause a safety hazard.

1. Unplug the toaster from the mains supply socket!!!
2. Allow the toaster to completely cool down.
3. Turn the toaster upside down and gently shake.

CLEANING

Never use harsh, abrasive or caustic cleaners. Clean the outside of your toaster with a clean damp cloth then dry thoroughly. Apply any cleansing agent to a cloth, not to the toaster, before cleaning.

Never immerse the appliance or the toaster plug in water or other liquids!

Any other servicing should be performed by an authorized service representative.

CRUMB REMOVAL

Crumbs can be removed by sliding the crumb tray out from the bottom of your toaster and discard crumbs. Wipe, clean and replace. Always make sure that your toaster has completely cooled down and is disconnected from the mains supply before removing crumbs. Never use your toaster without the crumb tray fitted—always replace the crumb tray before using your toaster.

ENVIRONMENT FRIENDLY DISPOSAL

This marking indicates that this product should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable re-use of material resources. To dispose of your appliance correctly, please contact or take it to your local refuse/ recycling centre. Alternatively, contact your local council or information on your local re-use centre. Please make this product environmentally sale for recycling

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

This appliance is intended to be used in household and similar application areas in shops, offices and other working environments.

Farm houses by clients in hotel, motels and other residential type environments.

Bed and breakfast type environments.

The components are quality products. They were designed taking into consideration the latest technical knowledge, and carefully constructed using a standard, good quality material.

The warranty period is 24 months from the time of handover, which must be confirmed through a sales receipt, invoice or delivery note. Within the warranty period, any functional defects in the components will be fixed by our customer service team if these can be shown to be the result of a material defect that has arisen despite prudent handling in accordance with our operating instructions.

The warranty will include repairing defective parts or providing properly functioning replacements free of charge and at our discretion. Any parts that are replaced will become our property. The repair or replacement of individual parts does not result in an extension to the warranty period, nor is there a new warranty period for the specific components affected. There is no separate warranty period for built-in spare parts. We offer no warranty for damage or defects affecting components or their parts if these are caused by excessive use, or incorrect handling or maintenance. The same applies for failure to follow the operating instructions and for the installation of spare parts or accessories not listed in our range. Warranty claims shall be void in the event of interference or modifications to components by unauthorised individuals.

The warranty does not cover parts that are subject to natural wear and tear. In the event of a warranty claim, fault, need for a spare part or accessory, please contact the customer support centre specified here:

Customer support centre:

Albatros International GmbH

Konrad-Zuse-Str. 3

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Subject to modification.

Model:

Purchased at:

In (town/city, street):

Buyer's name:

Street, building number:

Postcode, town/city:

Telephone:

Date, signature:

Fault description:

CE-DÉCLARATION DE CONFORMITÉ

DÉCLARATION DE CONFORMITÉ CE

EC-DECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards (1) in accordance with the regulations of the undermentioned Directives (2) test report (3) issuing test office (4).

Toaster ST1500

Toasteur ST1500

Tostapane ST1500

Tostador ST1500

Toaster ST1500

Brand: Sommertal

Var.ID. 4129

(1) EN IEC 55014-1: 2021; EN IEC 55014-2: 2021; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 60335-1: 2012+AC: 2014+A11: 2014+A13: 2017+A1: 2019+A2: 2019+A14: 2019+A15: 2021; EN 60335-2-9: 2003+A1: 2004+A2: 2006+A12: 2007+A13: 2010; EN 62233: 2008;
(2) 2014/30/EU; 2014/35/EU; 2011/65/EU; (EU) 2015/863; (EC) 1935/2004
(3) WTF23F02025777E; WTF23F02025772R1J; WTF23F02021710T; WTF23F02021711R1C
(4) Waltek Testing Group (Foshan) Co., Ltd.

EN Importer and responsible for technical documents

Dokumentationsbevollmä chtigter:

Authorized person for the compilation of the technical documentation:

R.Bunze2

Nerdlen, 26.02.2024 Ralf Bunzel, Procurement Manager
