USER MANUAL Shirley Klarstein

Wine cooling combi appliance

Combiné cave à vin

QR code image containing encoded data, no visible human-readable text

Diagram of a refrigerator interior with numbered parts for identification

Technical line drawing of a mechanical component with a circular fan and base (no text or symbols)

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

E-Mail-Adresse: [e-mail]

Telefonnummer: [phone]

Anschrift:

Wallstraße 16

10179 berlin

Deutschland

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Information 21

Safety Instructions 22

Installation 25

Device Overview 26

Getting Started 27

Operation 29

Cleaning and care 30

Troubleshooting 32

Disposal Considerations 35

Manufacturer & Importer (UK) 35

TECHNICAL INFORMATION

Article number 10046355, 10046356

Power supply 220-240 V \~ 50 Hz

SAFETY INSTRUCTIONS

- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Supervise children to ensure that they do not play with the device.

- Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks. Children must not play with the device. Cleaning and maintenance work must not be carried out by children without supervision.

- If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to avoid a hazard.

- To avoid a hazard due to instability of the unit, it must be fixed according to the instructions.

- When setting up the device, make sure that the power cord is not pinched or damaged.

- Make sure that there are no multiple sockets or power supply units on the back of the device.

- Make sure that the ventilation openings in the housing of the unit or in the built-in cabinet are not blocked.

- Do not use mechanical devices or other means to speed up the defrosting process unless they are expressly recommended by the manufacturer.

- The refrigerant circuit must not be damaged.

- Do not use electrical appliances in the beverage cooling compartments of the appliance unless they are specifically recommended by the manufacturer.

- Do not store explosive substances in the unit, such as spray cans with flammable propellant.

- This appliance is intended for use in households and similar environments. These include:

• Staff kitchens in shops, offices and other work environments
• Farms, hotels, motels and other residential establishments
• Pensions that offer breakfast (Bed & Breakfasts)
• Catering and similar non-retail applications

• Children aged 3 to 8 may fill refrigerators with food and remove food.

To avoid contamination of beverages, please follow the instructions below:

• Opening the door for too long can cause a significant temperature rise in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with drinks. Clean the water drain regularly.
• Clean the water tanks (if present) if they have not been used for 48 hours. Flush the water system connected to a water supply (if any) if no water has been drawn for 5 days.
• If you are not using the refrigerator for a longer period of time, switch it off, let it defrost, clean it and dry it. Leave the door open to prevent mould from forming in the appliance.

Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING

When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN Low		This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N Moderate		This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST Subtropical		This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T Tropical		This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

INSTALLATION

Before first use

Let the unit stand for 24 hours before first use to allow the coolant to disperse. Leave the door open during this time to allow production-related odours to dissipate.

Note: All models without front ventilation or ventilation slots on the front are not built-in appliances and must be free-standing.

Location

The place where you place the unit should:

• be resilient and well ventilated.
• be away from direct sunlight and heat sources.
• not be too damp, such as bathrooms or washrooms.
  • have a level floor.
  • have a standardised electrical connection.
  • have a socket outlet with overvoltage protection.
• be far away from microwaves, as their interference could have a negative effect on the unit.

Furthermore, the ambient temperature in the room should be neither very cold nor very warm. Cold and heat can possibly have a negative effect on the function, so that the desired interior temperature is not reached.

Setting up

• Remove all packaging material from and around the refrigerator.
• Position the refrigerator so that the plug is accessible at all times. Disconnect the mains cable and place the unit in its final location. Place it so that the compressor is free and not in contact with other objects or walls.
• Level out any small unevenness in the floor before filling the unit. Use the adjustable feet for this purpose. To do this, turn the back feet completely in and compensate for the slant with the front two feet.

DEVICE OVERVIEW

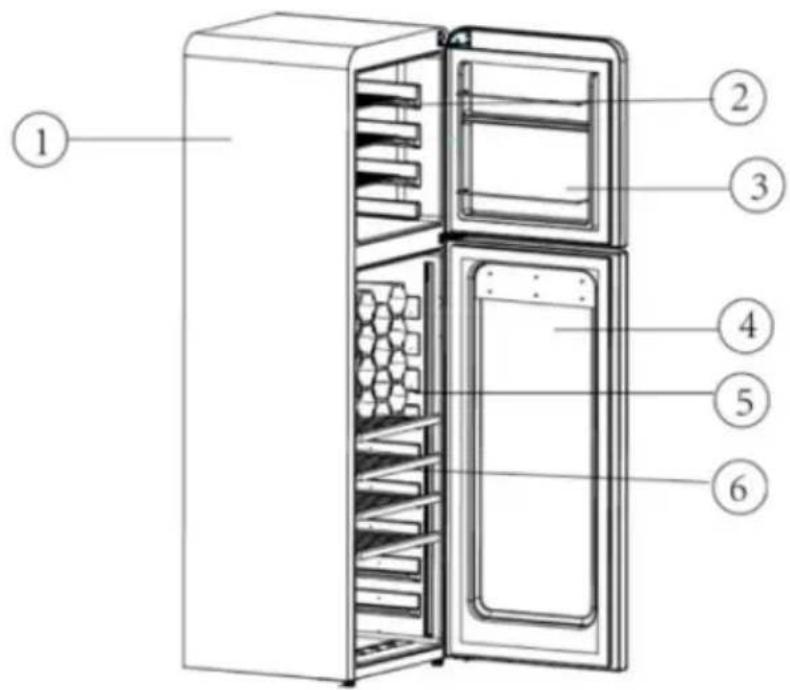

Diagram of a refrigerator interior with numbered parts for identification

1 Body 4 Bottom door
2 Top metal shelves 5 Bottom modular shelf
3 Top door 6 Bottom normal shelf

GETTING STARTED

Before the first operation

Remove all the packaging material. Leave the appliance upright for at least 4 hours before inserting the power cord into the socket. This reduces the possibility of malfunction due to improper handling during transport. Clean the inner surfaces with lukewarm water and a soft cloth.

Before switching on

• Make sure that the appliance is installed by a qualified person in accordance with the operating instructions.
• After setting up the appliance, wait four hours before plugging it into the power socket. This allows the refrigerant to be completely distributed in the refrigerant circuit again.
• Clean the outside of the appliance and the removable accessories with a mild soap solution and water before first use.
• Clean the inside of the appliance with a solution of sodium bicarbonate and water. Dry the inside of the appliance and the accessories properly after cleaning.
• You may notice a strange smell when switching on the appliance for the first time. This is normal and the smell disappears as soon as the appliance starts to cool down.

During initial use

Note: When using the appliance for the first time or when switching the appliance on again after a long time, there may be a difference of a few degrees between the temperature you have set and the temperature displayed on the screen. This is normal. If the appliance has been on for a few hours, the temperature will adjust.

• When you switch on the appliance for the first time, the unit's compressor runs continuously until the appliance has cooled down.
• The appliance door should be opened as seldom as possible during cooling.
• If the appliance has been switched off or the power plug has been disconnected from the mains socket, wait at least 5 minutes before switching it on again or reconnecting the power plug to the mains socket.

Filling the appliance

• The appliance is ideal for storing wine bottles that correspond to the size and shape of 0.75 litre Bordeaux. It is possible to store larger bottles of wine. However, care must be taken that the appliance door can be closed properly.
• Before closing the door, always make sure that it is not blocked by a wine bottle.
• If you place several wine bottles in the appliance at the same time, it takes longer for the individual wine bottles to be cooled.
• The number of bottles that can be placed in the appliance varies depending on the size and shape of the wine bottles.
• The maximum number of wine bottles that can be stored is based on standard 0.75 litre Bordeaux wine bottles.

Storage recommendations

Wine type Temperature °C	Temperature °F
Red wine 15 - 18 °C	58 - 65 °F
White wine 9 - 14 °C	48 - 57 °F
Sparkling wine/champagne	5 - 8 °C 39 - 47 °F

• The most important thing when storing wine is that the storage temperature remains continuously stable.
• Vibrations, temperature fluctuations, light exposure and humidity are factors that can cause wine to tip. Proper storage not only preserves the quality of the wine, but also improves its aroma, flavour and complexity as it matures.
• Wine that is stored at a higher temperature matures faster. Wines that are stored at more than 18 °C lose flavour and aroma.
• If wine is stored at too low a temperature, this can lead to the development of harmful residues. A humidity of 60% - 70% is ideal to prevent corks from shrinking.
• After a wine bottle has been opened, the wine comes into contact with air. It is therefore recommended to store the remaining wine upright in the bottle to minimise the surface area that comes into contact with air.
• Once a wine bottle has been opened, white wines can still be drunk for 2 days and red wines for 3 days, as long as the bottle has been sealed. Make sure that the wine bottle has been closed tightly again.
• Special stoppers that keep wine and champagne fresh are available for purchase in most wine shops.
• Provided that white wine is stored correctly, it can be kept for up to 2 years. Full-bodied red wines can be stored for up to 10 years and dessert wines for up to 20 years.

Control panel

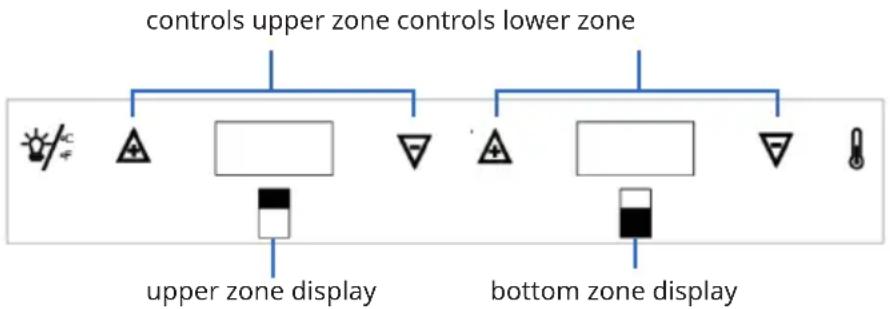

controls upper zone controls lower zone upper zone display bottom zone display

Key Operation
	Light on/off or Celsius/ Fahrenheit displayTurns the interior light on or offPress the button for 5 seconds, to toggle the temperature display between Celsius and Fahrenheit.
	UpPress to select the upper or lower zone.Press to adjust the temperature in 1 degree increments for the selected zone.After 5 seconds, the selected zone display will show the real temperature
	DownPress to select the upper or lower zone.Press to adjust the temperature in 1 degree decrements for the selected zone.After 5 seconds, the selected zone display will show the real temperature.
[###]	Press the button for 5 seconds. After 2 buzzes, the light will remain on. Press and hold for 5 seconds, after 3 buzzes, the light will automatically switch off after 10 minutes.The default mode is to keep the lighting on.

CLEANING AND CARE

Cleaning the appliance

• Switch off the appliance first and disconnect the power cord from the mains socket.
• Remove all the contents.
• Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.
• Make sure the rubber seal on the door is clean so that the appliance remains efficient.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
• Dry the inside and outside with a soft cloth.
• Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening.

Decommissioning in the event of absence

• First switch off the appliance. Then disconnect the power cord from the power outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the lid on slightly to prevent condensation, mould or odours from forming.

Installation at another location

• First switch off the appliance. Unplug the power cord.
• Remove all the contents.
• Secure all loose items with tape.
• Tape up the doors.

Energy saving recommendations

The wine refrigerator should be placed in the coolest place in the room, away from appliances that generate heat, heating pipes and direct sunlight. Make sure that the door is properly closed when the wine refrigerator is switched on.

Charcoal filtration system

Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions. Your cellar is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The filter assembly is located at the rear panel inside your cellar.

Keep in mind, that this filter must be changed every 12 months.

1. Remove the bottles of wine stored on the two (2) shelves in front of the filter.
2. Remove the shelves and set aside to be replaced once you have changed the filter
3. Hold the filter and turn it at 45 degrees in the counter-clockwise direction and then pull it out.
4. Remove the existing filter and replace with a new one.
5. Put the new filter into the hole and then turn the filter at 45 degrees in clockwise direction.

Technical line drawing of a mechanical component with a circular fan and base (no text or symbols)

Turn left to remove filter.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working.	It is not plugged in.
	It is switched off.
	The fuse is out or blown.
The appliance is not cold enough.	Check the temperature settings.
	The environment requires a lower setting.
	The door was opened too often.
	The door is not closed properly.
	The door seal does not seal properly.
The light doesn't work.	The appliance is not plugged in.
	The fuse is out or blown.
	The light bulb is broken.
	The light switch is set to "off".
The appliance goes on and off frequently.	The room temperature is higher than usual.
	There are many bottles in the appliance.
	The door was opened too often.
	The door is not closed properly.
	The temperature is not set correctly.
	The door seal does not seal properly.
Vibrations Check if the appliance is level.
The appliance is very loud.	The coolant is circulating. Noises that occur as a direct result of this are not a defect, but normal.
	After each cooling cycle, you hear a gurgling sound because there is still coolant in circulation.
	The contraction and expansion of the inner walls can cause cracking.
	The appliance is not level.
The door does not close properly.	The appliance is not level.
	The door was turned upside down and not fitted properly.
	The seal or the magnet are damaged.
	The shelves stick out too far.

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: KLARSTEIN

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10046355, 10046356

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes		Other refrigerating appli-ance:	No

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1 610		Total volume (dm^3 or l) 206
	Width 540
	Depth 500
EEI		140	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		42	Airborne acoustical noise emission class	D
Annual energy consumption (kWh/a)		125	Climate class:	extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:

Compartment type	Compartment parameters and values
	Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)

Pantry No - - - -
Wine storage Yes 206,0 12 - A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For wine storage appliances
Number of standard wine bottles			60
Light source parameters:
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/08/2024.

EPREL registration number: 2084985

https://eprel.ec.europa.eu/qr/2084985

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Informations techniques 41

Diagram of a refrigerator interior with numbered parts for identification

Electrical schematic symbols for a three-phase system with light sources, warning signs, and grounding symbols

Technical line drawing of a mechanical component with a circular fan and base (no text or symbols)

Nom: Customer service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Wallstraße 16

10179 berlin

Allemagne

INFORMATIONS SUR LE RECYCLAGE

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of a refrigerator interior with numbered parts for identification

Technical line drawing of a mechanical component with a fan and circular housing (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of a refrigerator interior with numbered parts for identification

1 Cu	erpo 4 Puerta inferior
2 Estantes metálicos superiores 5 Estante modular inferior
3 Puerta superior 6 Estante inferior normal

PRIMEROS PASOS

Technical line drawing of a mechanical component with circular features and a separate circular component (no text or symbols)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
