Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 18

Working Principle 22

Device Overview 23

Use 24

Friendly and non-friendly cookware 25

Cleaning and Care 26

Troubleshooting 27

Disposal Considerations 28

Manufacturer & Importer (UK) 28

Product Data Sheet 29

TECHNICAL DATA

Item number 10035731, 10035732
Power supply 220–240 V ~ 50/60 Hz
Max. power consumption 3000 W

SAFETY INSTRUCTIONS

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

1

CAUTION

Risk of injury! Panel edges are sharp. Failure to use caution could result in injury or cuts.

General Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Keep the appliance out of the reach of children. Do not let them use the appliance without supervision.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• Metallic objects such as knives, forks, spoons, lids and food packed in aluminium foil should not be placed on the hob surface since they can get hot. A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• Never wash by pouring water directly to avoid danger.
• Do not put any detergents or flammable materials around or beneath the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Never cook food while it is in can in order to avoid explosion dangers.
• Never operate the appliance in high temperature environments such as near a gas stove or kerosene stove.

WARNING

Risk of fire! Do not store other items on the cooking surfaces, except pans and pots.

Instructions on Use and Maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, immediately switch off the appliance, unplug the power cord from the wall outlet and contact a qualified technician.
• Switch off the induction hob before cleaning and maintenance and pull out the mains plug.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

CAUTION

Risk of burns! During use, accessible parts of this appliance will become hot enough to cause burns. Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.

• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
• Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
• After used, the corresponding heating zone is still hot. Never touch the ceramic surface to avoid burning. Children should keep a safe distance during and after cooking. While the glass surface is hot. While the glass surface is hot, wires must not be in contact with the hob surface, otherwise, power cord and cooking area would be damaged.

1

WARNING

Risk of injury! The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts.

General Instructions

- Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or storage surface.

• Never leave any objects or utensils on the appliance.

- Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).

- Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• The appliance is intended for indoor and household use only and is intended for cooking.
• The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.

WORKING PRINCIPLE

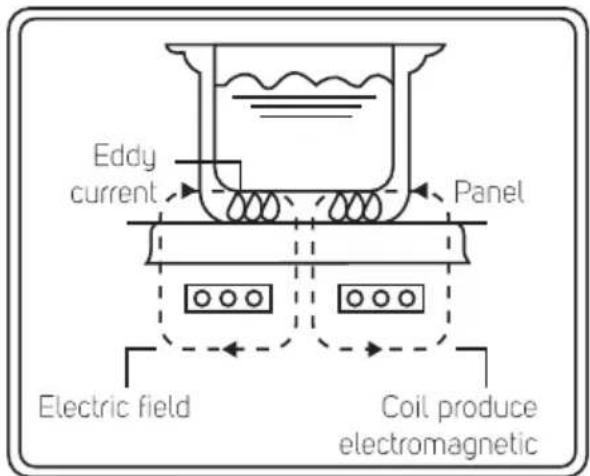

Eddy current Panel Electric field Coil produce electromagnetic

When the power connection is ON, the electric current will produce magnetic field in the induction coil, which is embedded in the machine. As soon as the magnetic force lines in the magnetic field touch the alloy steel pot/boiler, it will produce the heating effect, which would lead to the heating of the food in the pot.

Whilst standard hotplates heat up themselves, in an induction hotplate the heat is created in the base of the cookware. The hob itself does not heat up; it becomes hot when food is heated upon it in a pan and the heat from the pan reflects onto the hob. (Reverse heating).

This is caused by an energy field that generates heat only in magnetically conductive materials, for example, pans made of iron. In other materials, such as porcelain, glass or ceramic, the energy field cannot generate any heating effect. Only use cookware that is suitable for induction hobs:

1. Suitable cookware consists of pots and pans with a base made of steel or cast iron. You can identify these either by means of the markings on the pan or by ascertaining whether a magnet clings to the base of the pan.
2. Unsuitable cookware is made from any kind of metal that is non-magnetic, such as aluminium, copper and stainless steel, as well as non-metallic vessels made of porcelain, glass, ceramic, plastic, etc.
3. Thin pan bases are better suited to induction cooking than thick sandwich bases. The very short response times to setting modifications (short preheating period, rapid and controllable browning) are not possible when pans with thick bases are used. Only use cookware that is suitable for the size of the hob. This is the only way to ensure that the induction hob functions perfectly. The base of the pan may not be uneven, rather, it must sit flat. The diameter may not be less than 12 cm to ensure that the energy field has an effect. Do not use pans with a diameter in excess of 20 cm.

DEVICE OVERVIEW

Induction Cooker

A cooling fan vent Power line Black crystal panel A cooling fan inlet Control panel

Control Panel

8.8. L B

This control panel has a knob (press knob for ON/OFF, and adjust power level and time), TIMER, BOOST, total 6 buttons.

USE

1. Put the pot with food on the centre of the plate.
2. Connect the plug into the 220V, 16 Amp power socket. The machine is now ready for use.
3. Press the ON/OFF button, and then choose the function button.
4. After cooking, press the ON/OFF button again to switch off the power supply. Then pull the plug out of the electric outlet.

Power

Press the knob center to start up after the cooker plug on, the screen will display the default power (P7). The cooker has 10 stage power levels, P1-PP (P1 is the MIN power level, PP is boost function- MAX level), which can be adjusted to suitable power level by knob, clockwise to adjust bigger levels, anticlockwise to adjust smaller levels. The cooker will automatically back to previous level after working 5 mins in P level.

Comparison table for power

Levels Display Reference Power Range
1 P1 1	100 W, stop	8s work 2s
2 P2 1	100 W, stop	5s work 5s
3 P3 1	100 W, stop	2s work 8s
4 P4 1	100 W
5 P5 1	200 W
6 P6 1	350 W
7 P7 1	500 W
8 P8 1	650 W
9 P9 1	800 W
Boost PP	2000 W

Timer

Press 📄 TIMER during working to enter timing setting, LED screen show "00" without timer setting; after setting time, it will automatically confirmed and turn to switch off count down condition, then automatically off after time out. The LED screen will alternate display time and power after timer setting. Timer range is 01-99 mins.

Boost

Press Ⓑ BOOST into boost function. Display will show power level "PP", and work in max stage power for 5 minutes. It will return to previous power stage after 5 minutes. In Boot status, rotating knob can exit boost status.

Notes on working power

Working power is 2000 W for each burner, total power is not exceeding 3000 W when 2 burners are working.

The power of each hob is influenced by the power of the other. If one burner is set to 2000 W, another burner can only be set to 1000 W.

In share power status, when each burner losses connection, the power of each burner is automatically reduced to 1400 W with a corresponding change in the power level display if the power of one burner exceeds 1400 W.

The power is regulated according to the last set power level of a hob, the power of the second hob is set relative to it.

High Temperature Warning: After using, do not touch if the indicator lamp keep constant on.

FRIENDLY AND NON-FRIENDLY COOKWARE

Friendly cookware

• Material: Iron or stainless steel.
- Shape: Bottom diameter about 12-20 cm saucepan or bottom size is 12-20 cm square pot.

Non-Friendly cookware

• Material: Non-iron metal, ceramic, glass and the bottom is made of cooper or aluminum pot.
  • Shape: Bottom uneven, diameter less than 12 cm.

CLEANING AND CARE

1. Turn off the appliance by pressing "On/Off" and wait until the light turns off. Once off, unplug the power cord properly.
2. Wait for some time and let the appliance cool down.
3. You can use mild detergent or dishwashing liquid with a soft cloth to remove dirt.
4. Do not clean it with running water or immerse it in water as water will get inside and damage the appliance.
5. Always make sure that the top plate and the pan/pot is clean before cooking as the dirt from the pan/pot will stick to the plate and plate will get discolored.
6. You may clean the air vent by vacuum cleaner to suck up the dirt or you can use cotton if the dirt is with oil.
7. Toothbrush with little soap can also be used to clean the surface as long as you use it gently on the appliance.
8. Do not use abrasives or strong detergents as it may get chemical reaction.
9. After dirt has been removed, use a dry, soft cloth to wipe dry the appliance.

Pay attention

• When do not use the machine, please unplug power plug.
• Please keep the machine clean, lest cockroaches and small insect enter, cause a short circuit.
• Do not clean with water directly or put it in water.
• When the plate and bottom are dirty, continue to use will burn and clean very difficulty.
• When the power cord damage, please consult specialized after-sale replacement of the same model's power cord.

TROUBLESHOOTING

Error code	Possible cause Solutions
E0	No pot or Pot too small, material/ position not right	Put the suitable pot on the surface of the cooker.
E1	Too low voltage protection.	Please ensure 80 V < 270 V, 220 V~240 V is preferred.
E2	High voltage protection.	Please ensure 80 V < 270 V, 220 V~240 V is preferred.
E3	Temperature sensor open circuit or short circuit	Please return the cooker to the service centre for checking and repairing.
E4	IGBT sensor open or short circuit	Please return the cooker to the service centre for checking and repairing.
E5	Temperature sensor overheat protection	Start again after the temperature cool down
E6	IGBT overheat	Please check if the air intake and outlet is jammed. If not, please return the cooker to the service center for checking and repairing.
E7	Thermocouple (temperature sensor) invalidation protection	Please return the cooker to the service center for checking and repairing.
E9	Communication fault	Power on again.

Note: If the faults cannot be resolved, please do not disassemble the appliance by yourself, but return it to the service centre for repairing. If you disassemble the appliance by yourself, we have the right to make the warranty invalid. Dangers or other safety accidents caused by this will also be charge to the user.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

PRODUCT DATA SHEET

	Symbol Value	Unit
Model identification	10035731, 10035732
Type of hob	Portable Hob
Number of cooking zones and/or areas		2
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	Induction cooking zone
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	19 / 19 cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm	LW	N/AN/A	cm
Energy consumption per cooking zone or area calculated per kg	EC_electric cooking	192 /192 Wh/kg
Energy consumption for the hob calculated per kg	EC_electric hob	192 Wh/kg
