USER MANUAL Crater Lake Klarstein

Note: The device is not suitable for use as a primary heat source.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 22

Device Overview 23

Display Indicators 24

Start-up and Operation 25

Troubleshooting 29

Installation 32

Product Data Sheet 36

Disposal Considerations 37

Manufacturer & Importer (UK) 37

TECHNICAL DATA

Item number 10037982
Power supply 220-240 V ~ 50 Hz
Power consumption 1700-1900 W

SAFETYINSTRUCTIONS

- Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

- If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

- The fi replace heater must not be positioned directly under the power socket.

- Keep furniture, curtains and other fl ammable material at least 1 meter away from the appliance.

- Keep out of reach of children and do not allow them to operate this appliance.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

- Improper repairs may place user at serious risk.

- Do not run the mains cable under carpets, rugs, etc.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Never immerse the product in water or any other liquid for any reasons.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance outdoors.

- Do not use if you have wet hands.

- Never use the appliance on or near hot surfaces.

- Do not operate with a damaged cord.

- Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

- Do not clean the appliance with abrasive chemicals.

- Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

DEVICE OVERVIEW

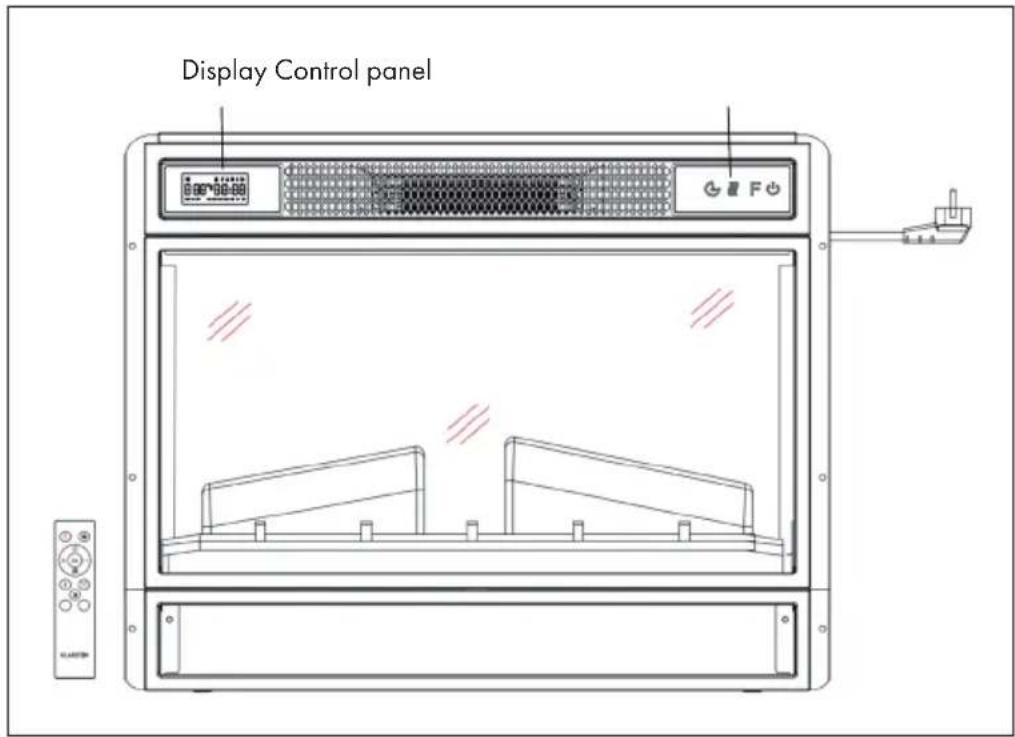

Front view

Display Control panel

Note:

- The device can be used with the supplied remote control as well as with the control panel, which is located on the upper right side of the device.

- The unit has a power switch which regulates the power supply. The power switch must be in the "On" position to use the unit.

- The first time you turn on the unit, you must set the time immediately. Otherwise, the time will only be displayed as „00:00“ and the weekly timer will not be available.

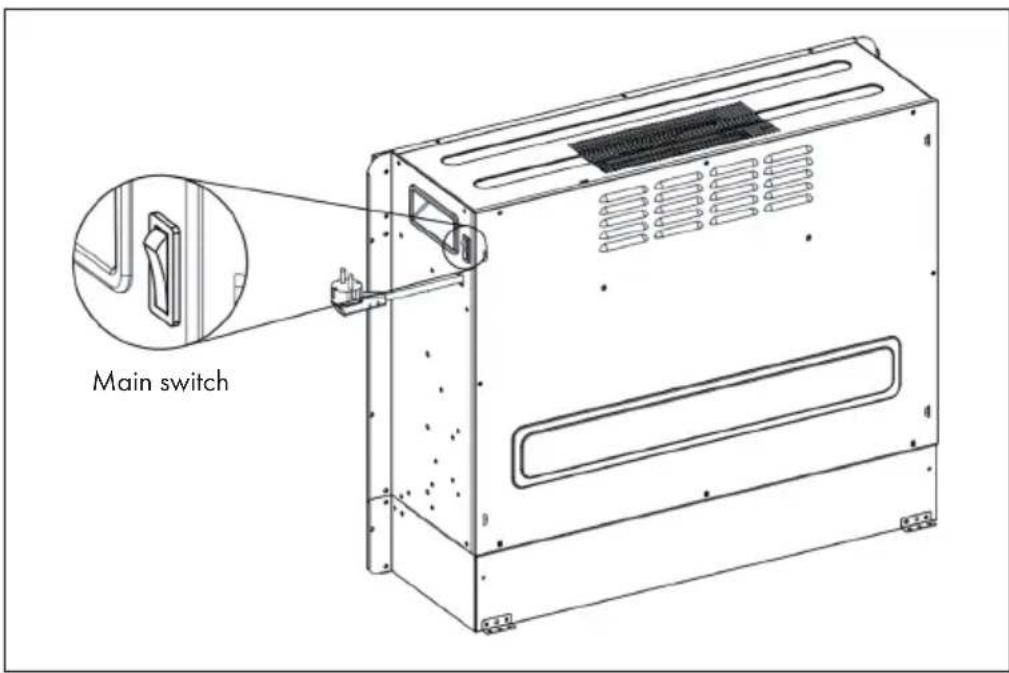

Rear view

Main switch

DISPLAY INDICATORS

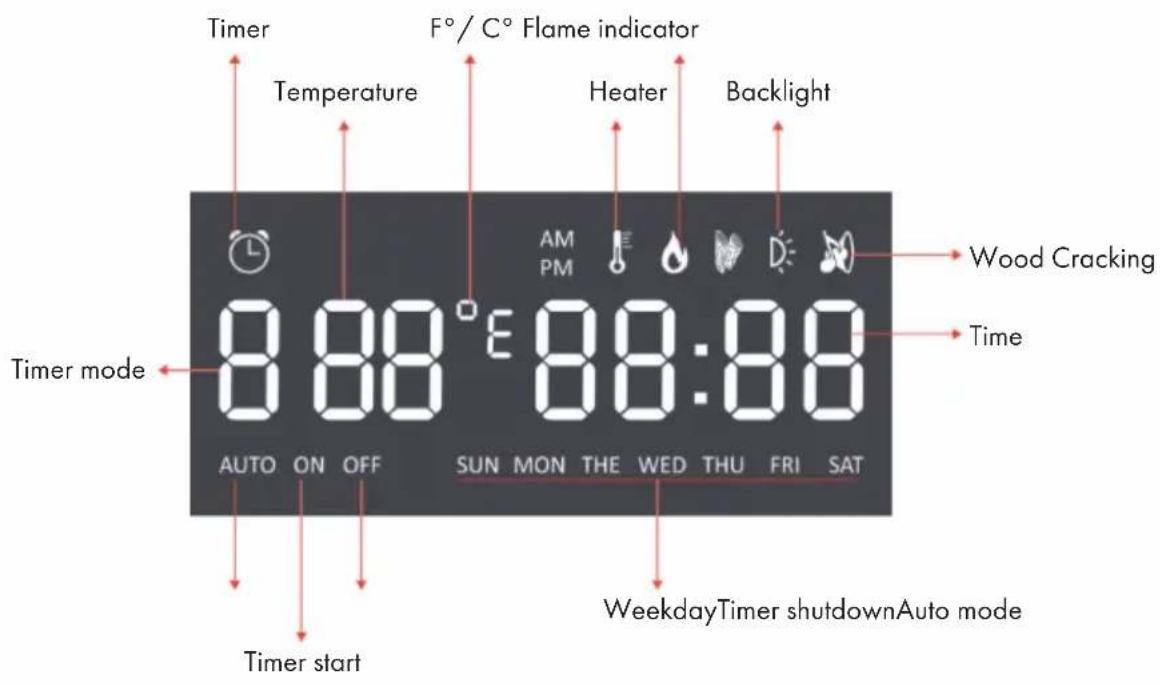

Timer Temperature F°/ C° Flame indicator Heater Backlight Timer mode 8:00 E 88:00 AUTO ON OFF SUN MON THE WED THU FRI SAT Wood Cracking Time Timer start WeekdayTimer shutdownAuto mode

Note: When you switch on the heater, the time will light up. After 60 seconds the heater will automatically switch off. You can switch it on again with any button. Backlight and the Wood Cracking function are not available on this model.

START-UP AND OPERATION

Manual operation

Timer Heating function Flame On/Off
	Press this button to switch the device on/off or press and hold this button for 10 seconds to enable/disable the parental lock. Once the child safety lock is activated, the heating function is switched off but the flame remains on.
F	Press this button repeatedly to select „L1“, „L2“, „L3“, „L4“ or "OFF" (4 brightness levels that can be selected).
	Press this button repeatedly to set the following functions: Room temperature between 17 °C and 27 °C (62 °F - 82 °F) > Heating continuously ON > Heating OFF. After setting, the temperature you set flashes 5 times on the screen and is then saved. Press and hold for 5 seconds to switch between Fahrenheit and Celsius.
	Press this button repeatedly to set the operating time of the appliance. You can set the operating time to 1 > 2 > 3 > 4 > 5 > 6 > 7 > 8 > 9 > OFF > 1 (...). It is not possible to operate the weekly timer manually. When the weekly timer is activated, the normal timer is not available.

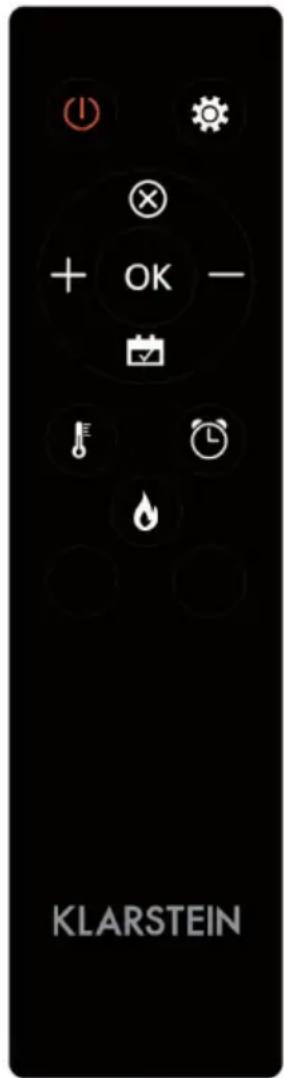

Using the Remote Control

Before using the remote control, make sure that the power plug of the appliance is plugged in and that the power switch is in the „ON“ position.

KLARSTEIN

Note: When using the remote control, make sure that you align the remote control with the screen of the product when you press any of the buttons. A beep sounds. There may be a slight delay in signal transmission from the transmitter to the receiver. During operation, do not press the respective button more than once within 2 seconds.

Function Description
Switching on/off		Press this button to switch the unit on/off. Press it once to turn on the appliance and the flame effects. Press this button again to turn off the appliance and the flame effects and the appliance is in standby mode.
		Press and hold for 10 seconds to activate or deactivate the child lock. Once activate the child lock, the heater will be turned off but the flame still on.
Flame Four brightness le		n be selected (L1-L4).
Timer		Press the Timer button to select one of the following timer settings: 1 >2 >3 >4 >5 >6 >7 >8 >9 >OFF >1 (...)
Heating function		Press this button repeatedly to set the following functions: Room temperature between 17 °C and 27 °C (62 °F - 82 °F) > Heating continuously ON > Heating OFF.
		Press and hold the button for 5 seconds to toggle between Fahrenheit and Celsius.
Setting		When the unit is on or in standby, press and hold the setting icon on the remote control for 3 seconds or press the timer button on the control panel for 3 seconds in standby. The [00:00] indicator will flash. Set the current time first. Press the [+] button on the remote control to set the hour and the [-] button to set the minute.
Weekly timer After settir		Current time, press the setting icon again to activate the weekly timer, and then press the calendar icon to select Sunday to Saturday. The selected date will light up. Then press the settings icon to set the power off time and power on time in succession, and then press the OK button directly to complete the weekly timer settings.
		Note:The current time must be set after the first power on or power off, otherwise the clock will remain in the "00:00" state and the timer function cannot be used.
		The clock automatically lights up when the power is turned on. The clock will automatically turn off the display after 60 seconds in the standby state. Press any function key to display the clock again then.
		If you are not in the settings, press the calendar icon directly to select the Weekly Timer setting.

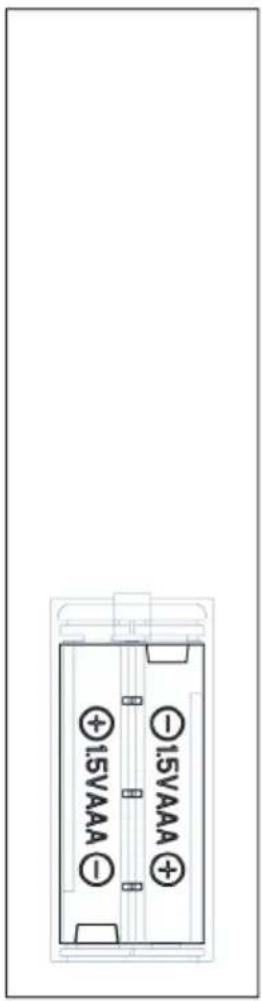

Important notes on battery replacement

1.5VAAA +1.5VAAA -1.5VAAA

• Old and new batteries must not be mixed.
- Use only standard AAA batteries. Make sure that children do not swallow the batteries.
• Non-rechargeable batteries must not be recharged.
- Insert the batteries with correct polarity (see illustration).
- Remove dead batteries immediately from the remote control.
• Always purchase the correct size and type of batteries that are best suited for the intended use.
- Replace all batteries in a set at the same time.
- Clean the battery contacts and also those of the device before inserting the battery.
- Dispose of used batteries immediately as indicated in the „Disposal“ section.

TROUBLESHOOTING

Problem Possible cause Approach
EE" is displayed on the screen.	Short circuit. Contact customer service to have the thermostat sensor replaced
88" is displayed on the screen.	No warm air is blown out and the fan does not work.	Set the power switch to the "off" position and wait at least 10 minutes. Then return the power switch to the "on" position.
The screen displays "OP". The open window warning (if the ambient temperature drops by 4 °C/ 8°F or more within 10 minutes and the temperature does not rise within 25 minutes) is activated and the unit turns off automatically.		Inspect the appliance and make sure that the air inlets and outlets are not blocked, as this could cause the appliance to overheat. Unplug the appliance from the power outlet for 30 minutes to allow the appliance to cool down. Then, plug the power plug back into the power outlet and turn the appliance on. If the problem persists, contact your service representative.
No power, the logs do not glow.	The power plug is not plugged in.	Make sure that the power plug of the machine is plugged into a 220-240V power outlet. Press the power button several times and make sure that the power switch is in the "on" position.
No warm air is blown out.	Cooling cycle Normal operation will continue for a few minutes before switching off.The time depends on the current temperature. Cold air is blown out during this time.
	The thermostat setting prevents the heating function from being activated.	Adjust the temperature setting so that the thermostat is set higher than the current room temperature.
The logs glow but there is no flame effect.	The flame effect is deactivated.	Press the flame button repeatedly.
The flame effect works but the heating function does not work, the glowing bed lights up when the heating button is pressed.	The heating function is deactivated	When the appliance is on, press and hold the On/Off button for 10 seconds.As soon as the heating function is reactivated, the fire bed lights up several times.
The heating function does not work.	The safety switch has been activated.	Turn off the power switch, wait 15 minutes and then turn it on again.
		Check the fuse. If it is broken, the fuse must be replaced.
The remote control does not work when buttons are pressed.	No batteries. Replace the batteries
	Poor signal transmission. Make sure that the distance between transmitter and receiver is not too great.
		Press the buttons on the remote control with a smooth movement and gentle pressure.
		Repeated pressing of the buttons in rapid succession may cause the transmitter to malfunction.
	Distance too great. Operate	the remote control less than 20 feet from the front of the unit; point the remote control at the control panel.

INSTALLATION

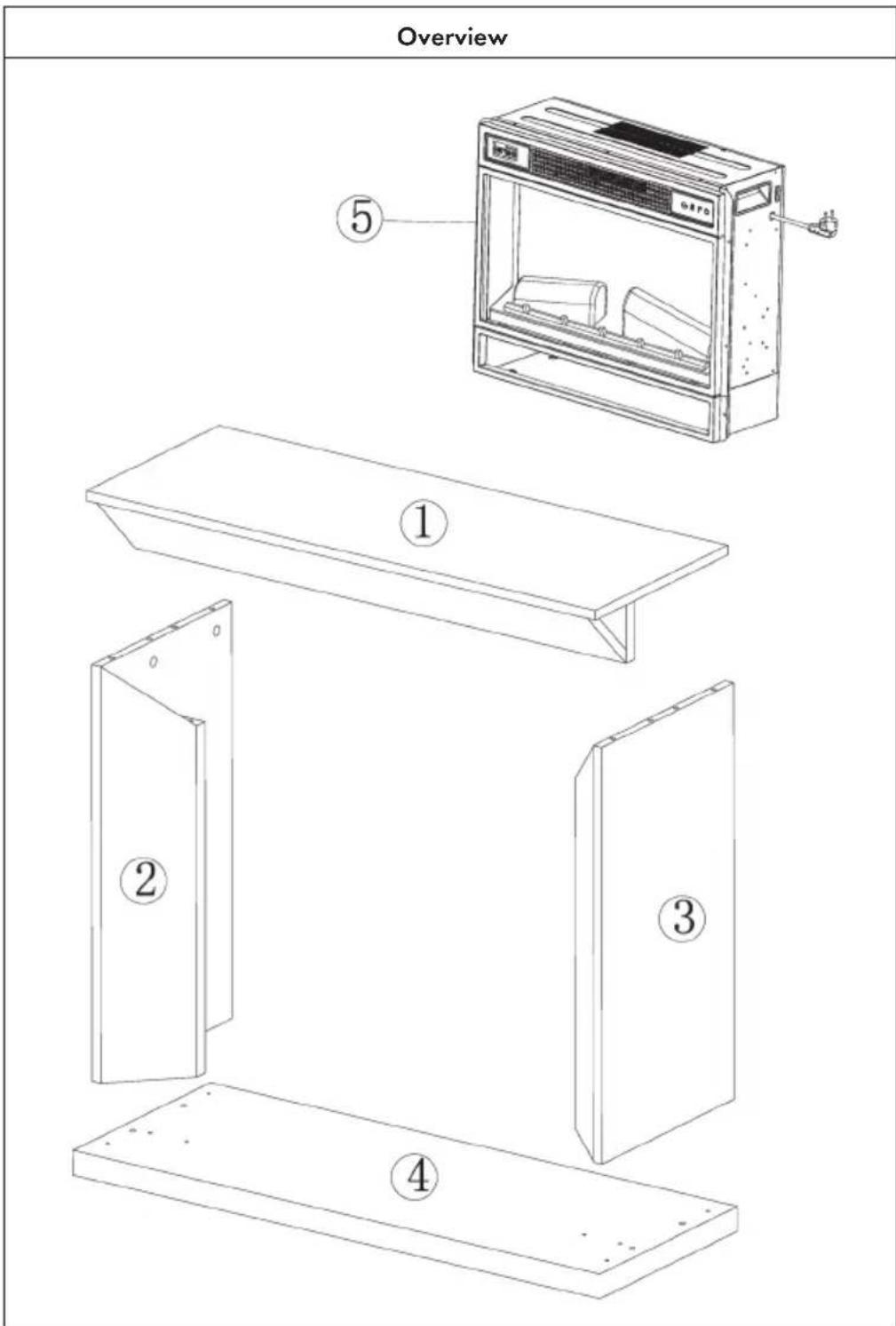

Overview ⑤ ① ② ③ ④

Parts List

No Description Pc.
1 Upper panel 1
2 Left side panel 1
3 Right side panel 1
4 Lower panel 1
5 Electric fireplace 1

No Description Pc.
A Metal stud 6
B Metal cam 6
C Dowel 10
D	Screw	8
E	M4x12 screw	8

Assembly

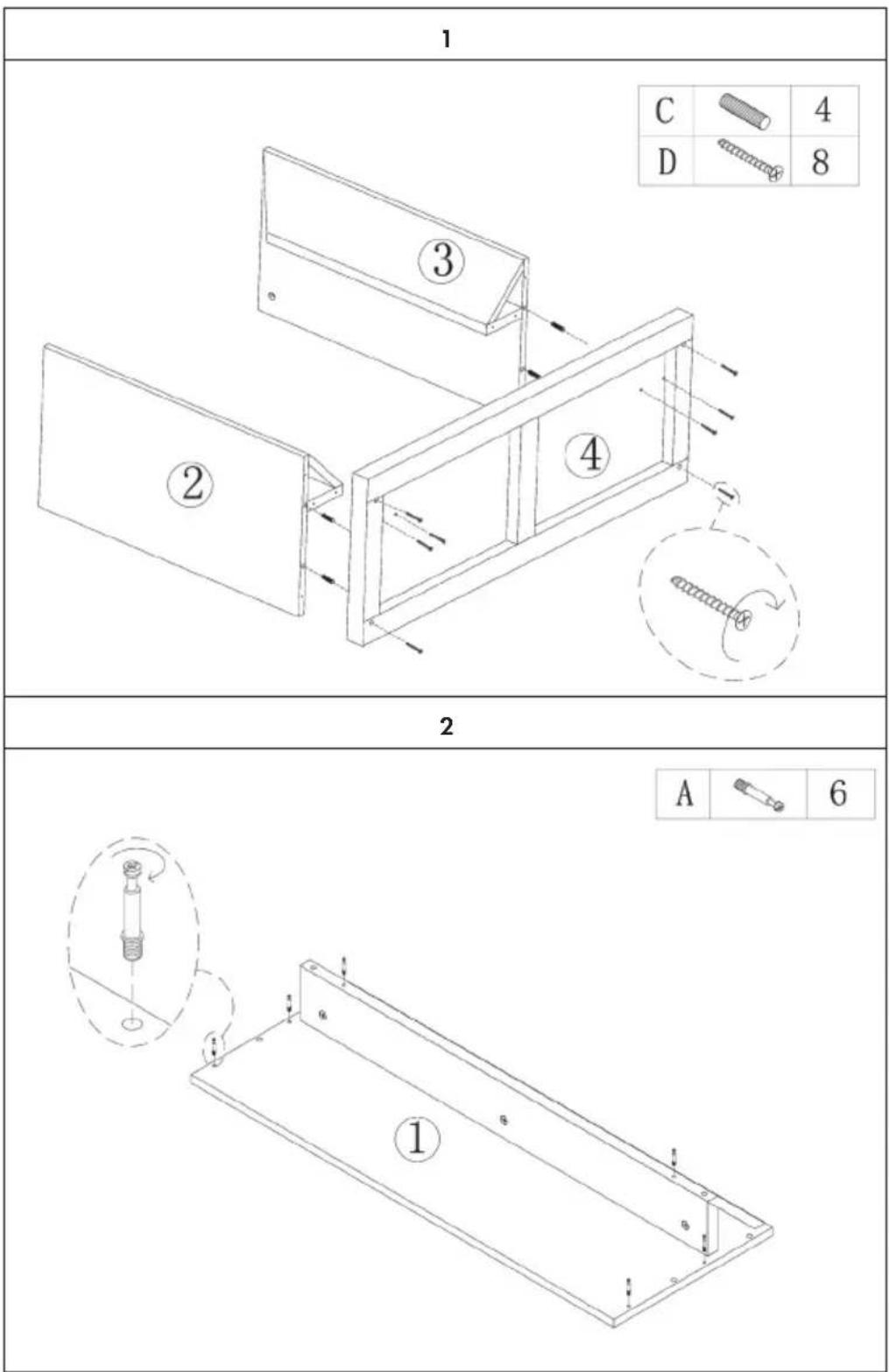

1 C 4 D 8 ③ ② ④ 2 A 6 ①

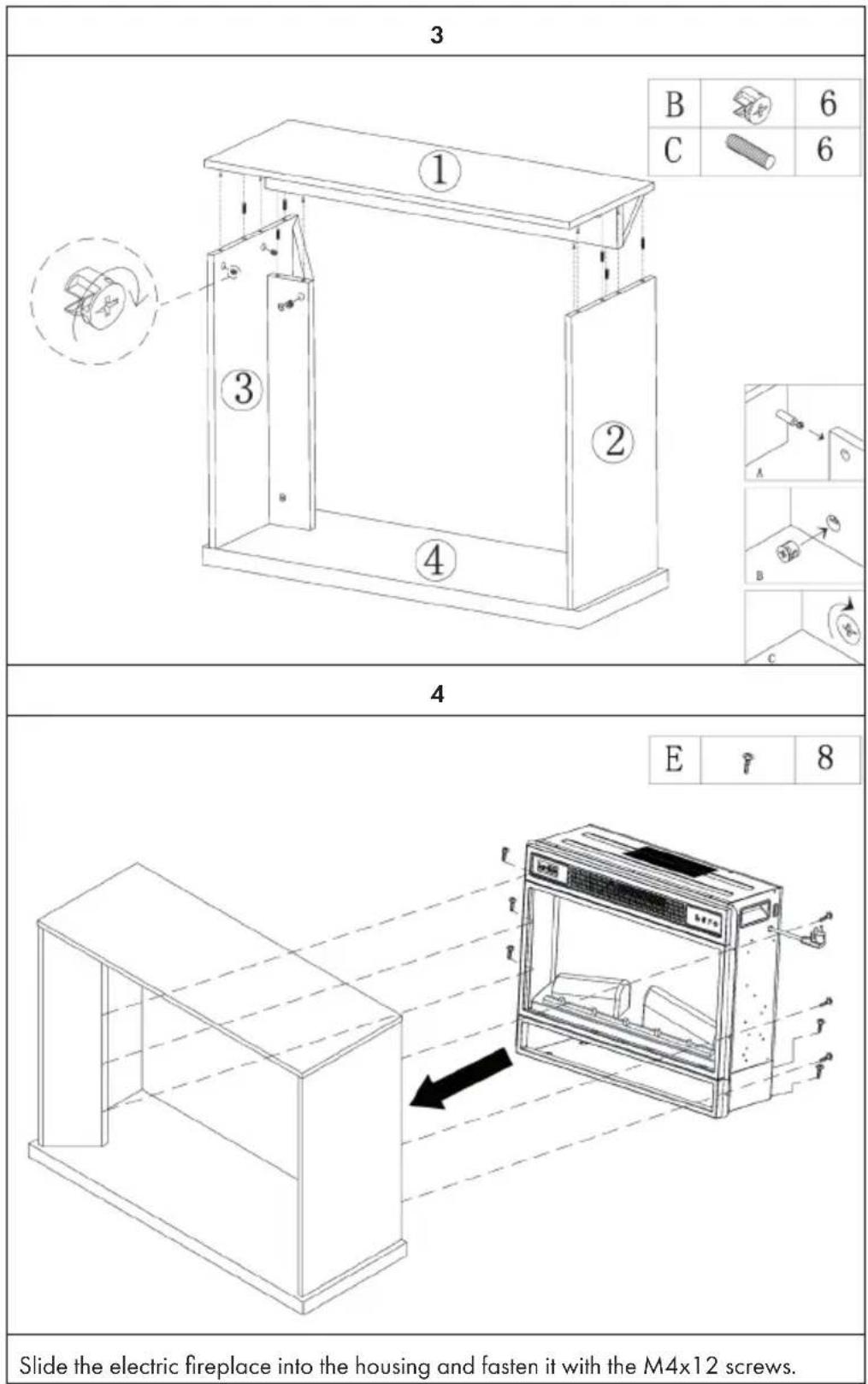

3 B 6 C 6 ① ② ③ ④ 4 E 8 Slide the electric fireplace into the housing and fasten it with the M4x12 screws.

PRODUCT DATA SHEET

Model identifier(s): 10037982
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	1.902	kW manual heat charge control, with integrated thermostat			N/A
Minimum heat output (indicative)	Pmin	1.778	kW manual heat charge control with room and/or outdoor temperature feedback			N/A
Maximum continuous heat output	Pmax,c	1.902	kW electronic heat charge control with room and/or outdoor temperature feedback			N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output el	max	N/A kW			Type of heat output/room temperature control
At minimum heat output el	min	N/A kW	single stage heat output and no room temperature control			no
In standby mode	elSB	0.37	W		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
