USER MANUAL ROPE-Z-14-150 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
FALL PROTECTION LIFELINES USER MANUAL
MODEL NO.: ROPE-S-25, ROPE-S-50, ROPE-S-100, ROPE-Z-14-150
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL NO.: ROPE-S-25, ROPE-S-50, ROPE-S-100, ROPE-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL
GENERAL INFORMATION
| Fall Protection Lifelines | |||
| Trademark | VEVOR® TOUGH TOOLS, HALF PRICE | Reference standards | ANSI/ASSE Z359 |
"VEVOR. Fall Protection Lifelines" is an adjustable restraint device conforming standard ANSI/ASSE Z359.
This manual must be read and understood in its entirety. These instructions intended to meet the manufacturer instructions. The user must fully understand proper equipment use and limitations.
TECHNICAL SPECIFICATIONS
| Model | ROPE-S-25 | ROPE-S-50 | ROPE-S-100 | ROPE-Z-14-150 |
| Main Material | Dacron | |||
| Color | Black, yellow | |||
| Net Weight (kg) | 2.06 | 3 | 4.7 | 7.6 |
| line supervisor(ft) | 25 | 50 | 100 | 150 |
PACKAGE CONTENTS
Product instruction

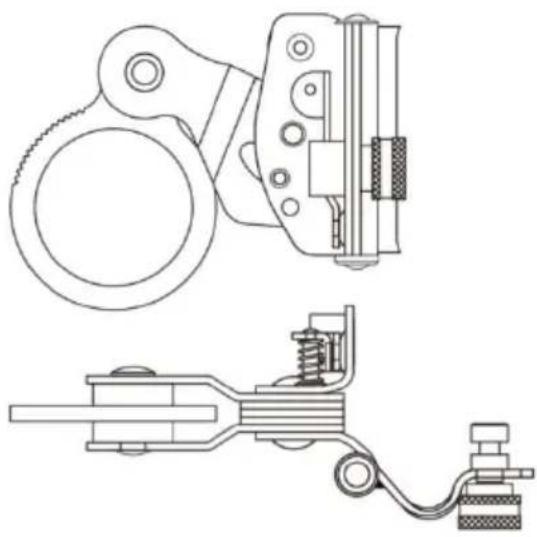

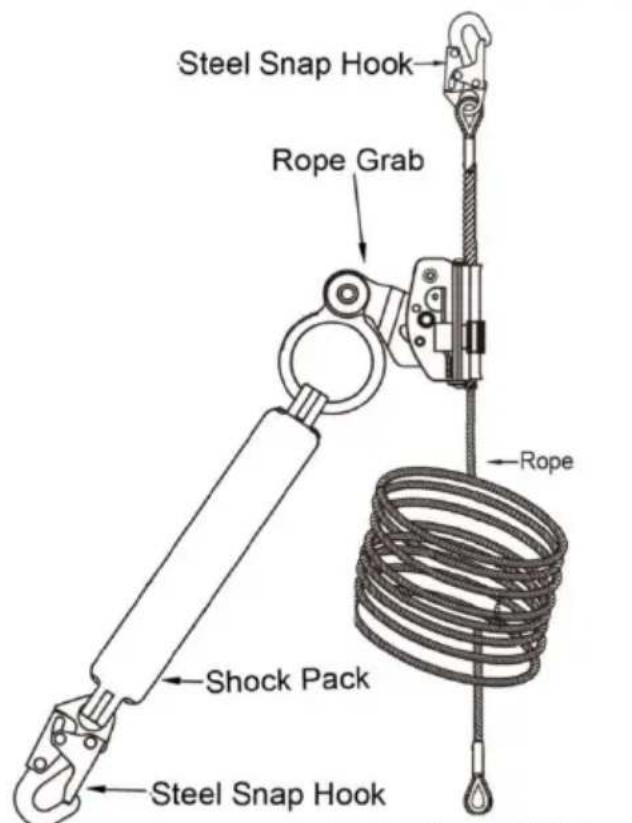

Fall Protection Lifelines construction
Meets or Exceeds ANSI Z359

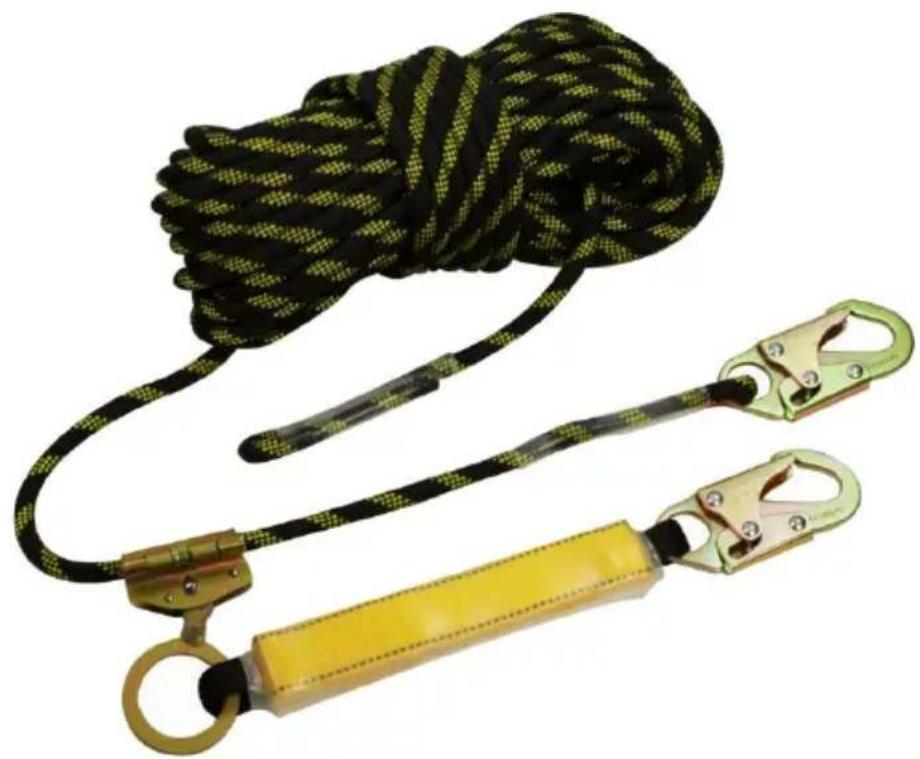

This lifeline is made up of high-strength Polyester braided rope. The diameter of the rope is 14mm. It is provided with a snap hook spliced at one end and the other end has a stop knot. Fall Arrester with lanyard Connect with a Shock Pack and has a S Hook at the end. attachment to harness. The Fall Arrester is used over the twisted rope lifeline.

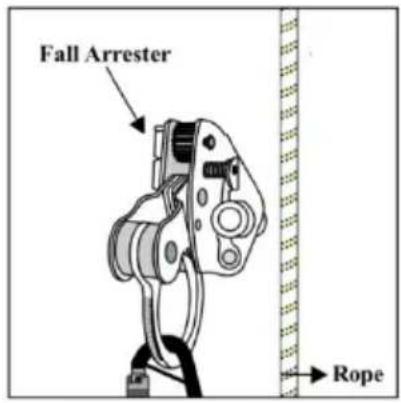

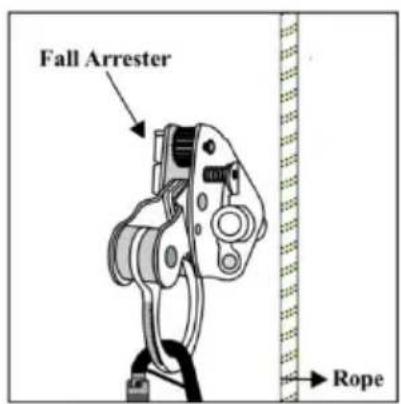

Fall Arrester Installation and Use

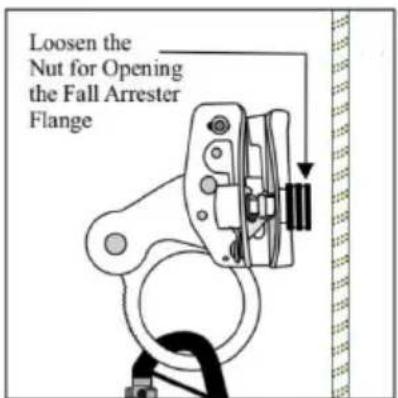

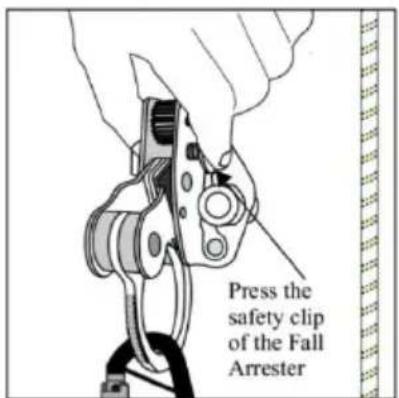

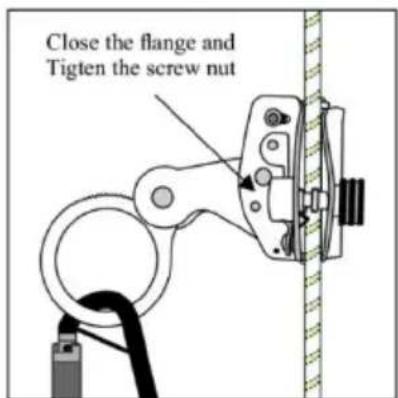

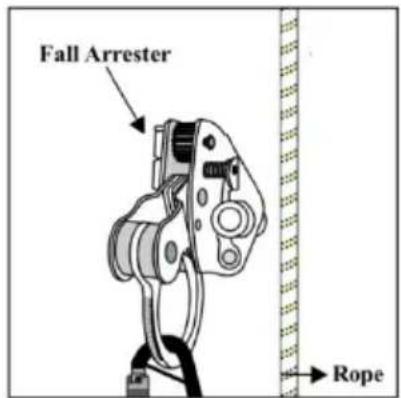

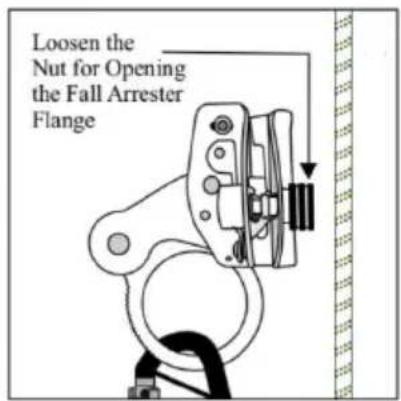

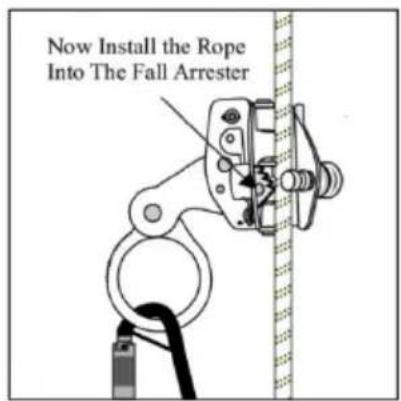

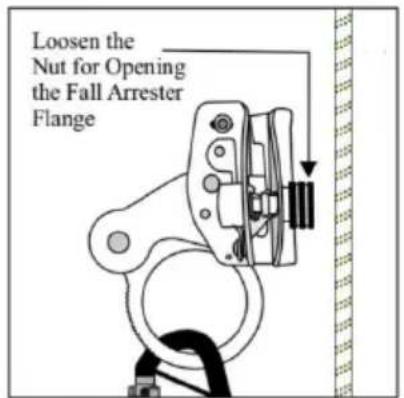

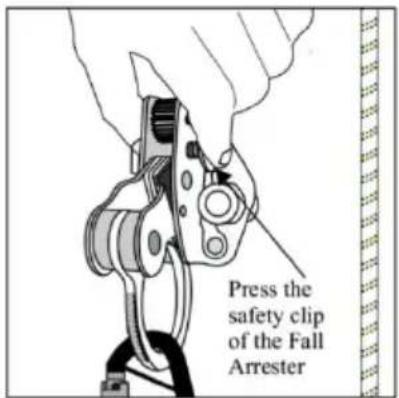

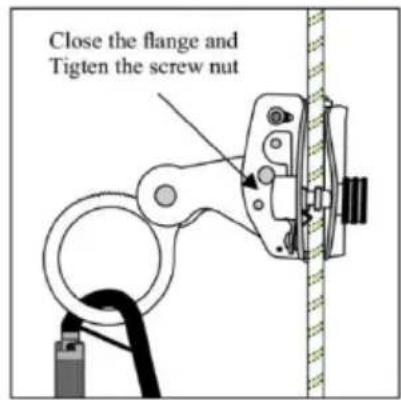

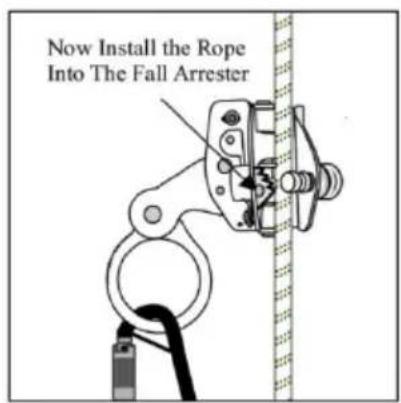

Follow these steps to install the Fall Arrester
1) Eliminate all risk of lower end and termination. Either ensure Fall Arre prevent the user from striking the next lower level and that there is alwa adequate fall clearance, or that Fall Arrester will not reach the leading e fall hazard when used at its full length. NEVER tie a knot in a lifeline, extreme bottom of the lifeline in order to prevent Fall Arrest from detach
2) Eliminate or minimize all risks of swing falls.
3) Attach snap hook with integrated Shock Pack to compatible anchorage connector.

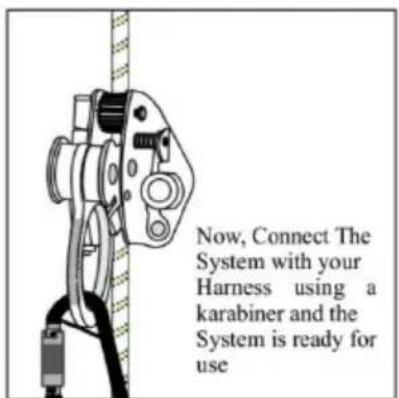

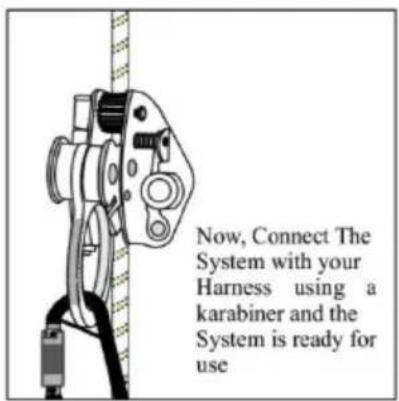

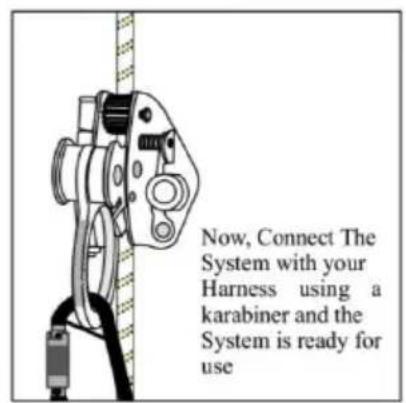

4) Attach snap hook with integrated Fall Arrest to applicable harness D-r
5) To move along lifeline, compress and hold Fall Arrest handle. ALWAY Fall Arrest to reduce slack in the system as much as possible. When a Fall Arrest and moving along work surface, ALWAYS do so by moving along rope, and NEVER by moving only the rope itself. For example, if from a roof edge to the roof peak, engage handle of fall Arrester ad n Fall Arrester while walking to peak. DO NOT move up to the roof peak Fall Arrester and keep Fall Arrest stationary; doing so can create free fa of levels permitted by the system.
6) To restrict Fall Arrest movement along lifeline, release Fall Arrest han
7) Fall Arrester comes with an anti-panic feature that automatically acts the user holds the fall arrester and grasps it too tightly. However, care taken that never grab a fall arrester in the event of a fall.
8) NEVER work above the Fall Arrester unless free fall is limited to 6 connection per Fall Arrester. NEVER attempt to remove components from Arrester.
PERIODIC CHECKING OFPERSONAL PROTECTIVE EQUIPMENT
PERIODIC CHECKING OF PERSONAL PROTECTIVE EQUIPMENT GENERAL REMARKS
Carrying out regular periodic checks (at intervals predetermined by the manufacturer) is vital for ensuring the equipment's efficiency and durability and user's safety. The performance of regular periodic inspections is required by ASTM F887-16 standard and it is therefore mandatory only for some device categories, whose instructions for use will expressly indicate such obligation. Carrying out periodical controls doesn't relieve the user from the obligation to perform the controls before and after each use, nor to require an extraordinary periodic check, in case an outstanding event occurs (ex, a fall, even from a
height, a change of user etc.), or in case of doubts about the correct function of the device. Attention! Before first use, the owner/user of PPE must fill in the "device identification sheet" when present in the user's instructions of the same Attention! The Inspector, after having carried out the periodic inspection, is responsible for the proper functioning of a PPE. The check must be performed at the highest accuracy, without haste, and after completing all the necessary steps
Regular periodic checks must be carried out: if the previous use of the device is unknown; at least every 12 months, with normal/standard use; in the presence of anomalies found during the inspections before and after each use; except for exceptions, whenever there is a change of user; filling the periodic inspection is in.; Attention! The periodic inspection sheet also exists in the optimized version kits or systems of PPE. Attention! Provided that the minimum mandatory frequency for the periodic inspection is 12 months, it can be increased (i.e. 3 months, months etc.) according to the national regulations in force or the frequency, intensity and method of use (i.e. heavy use, use in a marine environment, corrosive atmospheres etc.).
The periodic inspection sheet must be filled out: following the specific procedure for each type of device. climbing technology.com);consulting the photographic material available, where present;consulting the instructions for use of the device;examining the device in a suitable, tidy and well-lit environment. The photographic material at the end of the procedures is accompanied by an explication caption and by the following symbols:
| The device is in good condition or has only minor damages therefore suitable for use. | |
| The device has medium/major damages that affect its primary functions and, as a consequence, must be discarded. | |
| The device has defects that can be solved through lubrication cleaning. If such defects are not solved, the device must be discarded. | |
| The device has defects. |
DEVICE PERIODIC CHECK SHEET
| 1) Known product history | |
| 1.1 | Check the existence and the readability of the marking details |
| 1.2 | Check that device has not exceeded the storage and/or in-use as stated in the specific instructions for use. |
| 1.3 | Check that the device is intact and no parts are missing (check new product). |
| 1.4 | Check that the device has not been modified outside the factory serviced in a non-approved centre (check against a new product |
| 1.5 | Any PPE showing unexpected degradation should be quarantined pending a detailed inspection. The user should: - Provide precise information on the usage conditions. - Report any exceptional event regarding his PPE. (Examples: fa arrest, use or storage at extreme temperatures, modification outs manufacturer's facilities...). |

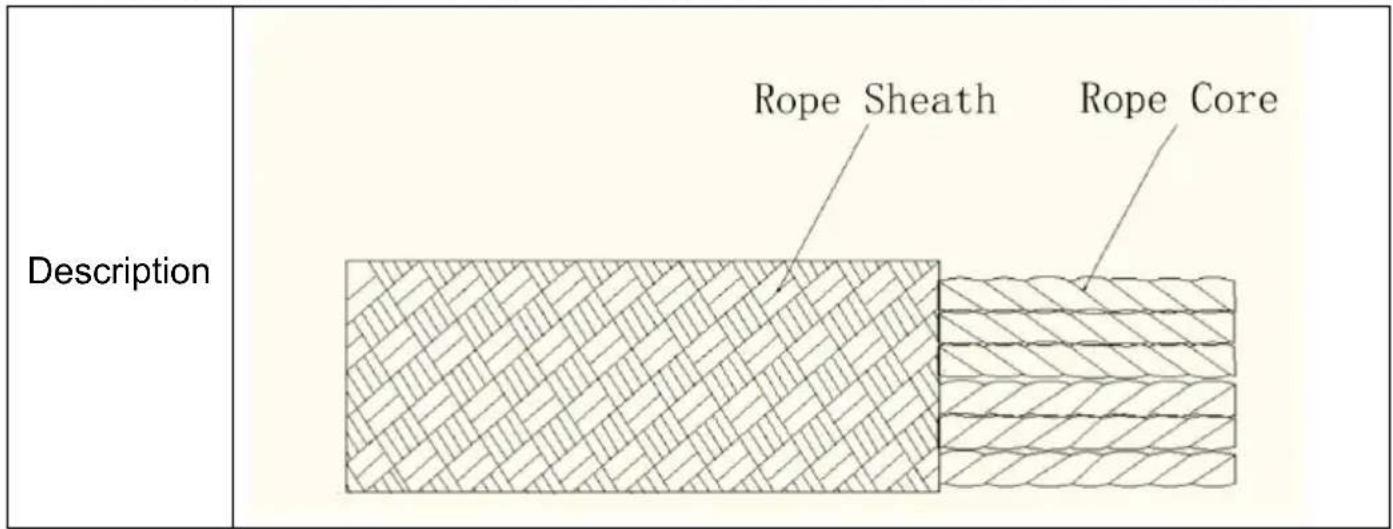

| 2) Checking the condition of the sheath | |
| 2.1 | Check the condition of the sheath over the full length of the ro sure there are nocuts, burns, frayed strands, fuzzy areas, or sig chemicals... |
| 3) Checking the condition of the core | |
| 3.1 | Do a tactile inspection of the core over the full length of the indicated in the drawing. This allows you to detect areas where is damaged (hard spots, swelling, soft or crushed areas...). |
| 4) Checking the condition of the core | |
| 4.1 | To check the length of your rope, follow the steps below:1. Co uncoil the rope.2. Check the middle mark of the rope. There is way to find the middle of the rope: hold the two rope ends to slide the two strands simultaneously through your hands until the of the rope is reached. If your rope has a middle mark, check accuracy. If the mark is OK, go to the next step. If the mark right place or if there is no middle mark, place a piece of adj at the rope's midpoint to help measure its length. |
| DEVICE PERIODIC CHECK SHEET | ||||||
| No. | Date | Reasonfor check | Name and signature of the person responsible for checking. | Notes (defects found, repairs performed or otherrelevant information) | Check results | Date of next check |
| 1 | ☐Periodic☐Additional | ☐Device fit for use. | ||||
| ☐Device unfit for use | ||||||
| 2 | ☐Periodic ☐Additional | ☐Device fit for use. ☐Device unfit for use | ||||
| 3 | ☐Periodic ☐Additional | ☐Device fit for use. ☐Device unfit for use | ||||
| 4 | ☐Periodic ☐Additional | ☐Device fit for use. ☐Device unfit for use | ||||
| 5 | ☐Periodic ☐Additional | ☐Device fit for use. ☐Device unfit for use | ||||
| 6 | ☐Periodic ☐Additional | ☐Device fit for use. ☐Device unfit for use | ||||
| WARNING | ||||||
| MAX 30°C + NEUTRAL SOAP | MAX 30°C | C3 | ||||
PHOTO APPENDIX

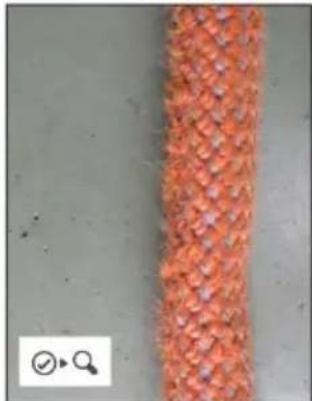

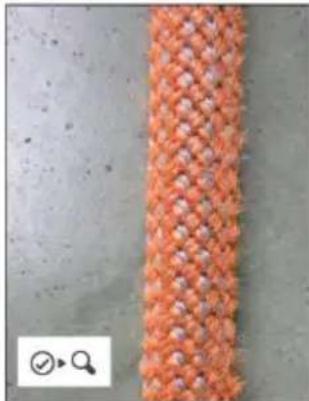

Fuzzy rope
Fuzzy rope
Fuzzy area
- Damaged rope end
- Cut
Cut

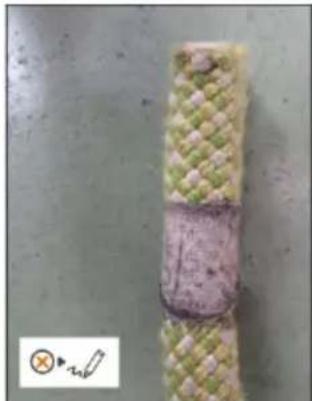

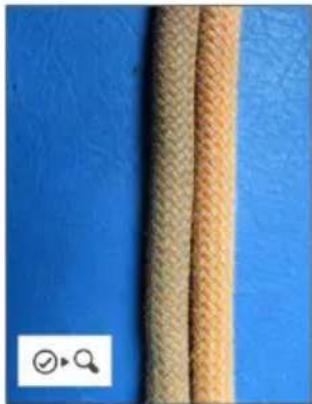

- Discoloration
Trace of paint
- Illegible marking
- Illegible marking
Trace of chemicals
Trace of chemicals
COMPLETION
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
LIGNES DE VIE DE PROTECTION CONTR LES CHUTES MANUEL DE L'UTILISATEUR
N° DE MODELE : CORDE-S-25, CORDE-S-50,
CORDE-S-100, CORDE-Z-14-150
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
N° DE MODELE : CORDE-S-25 , CORDE-S-50 , CORDE-S-100 , CORDE-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
AVERTISSEMENT:
Follow these steps to install the Fall Arrester
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
Technique Assistance et certificat de garantie electronique www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELLNR.: ROPE-S-25, ROPE-S-50, ROPE-S-100, ROPE-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
Follow these steps to install the Fall Arrester
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2
VEVOR
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELLO N.: CORDA-S-25, CORDA-S-50, CORDA-S-100, CORDA-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
AVVERTIMENTO:
Follow these steps to install the Fall Arrester
Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
N.° DE MODELO: CUERDA-S-25, CUERDA-S-50, CUERDA-S-100, CUERDA-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
ADVERTENCIA:
Follow these steps to install the Fall Arrester
Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
NR MODELU: LINA-S-25, LINA-S-50, LINA-S-100, LINA-Z-14-150
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
OSTRZEJEZENIE:

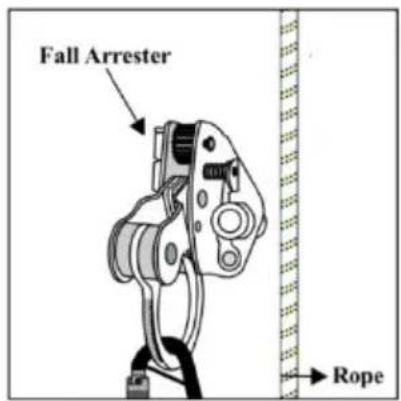

Follow these steps to install the Fall Arrester
