USER MANUAL AL-2-DROP6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BALL MOUNT HITCHES

MODEL: AL-2-DROP6"

AL-2-DROP8"

AL-2.5-DROP4"

AL-2.5-DROP8"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BALL MOUNT HITCHES

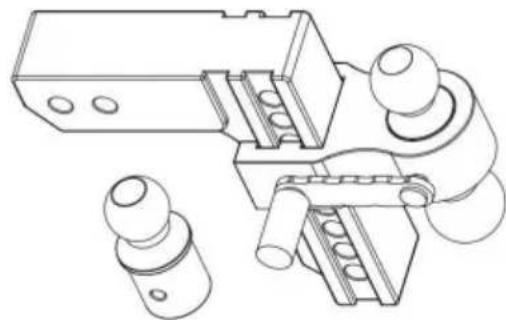

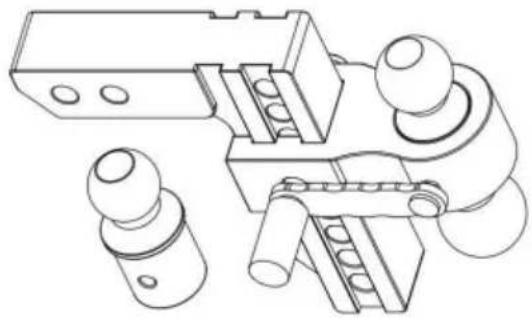

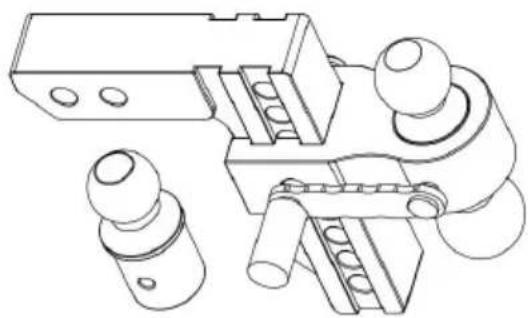

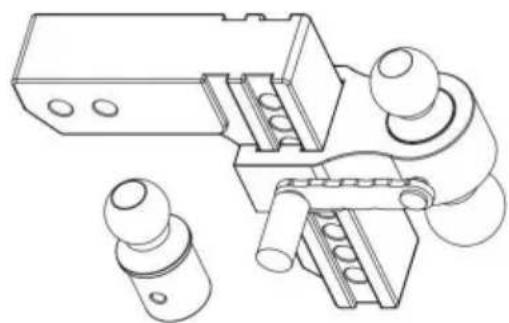

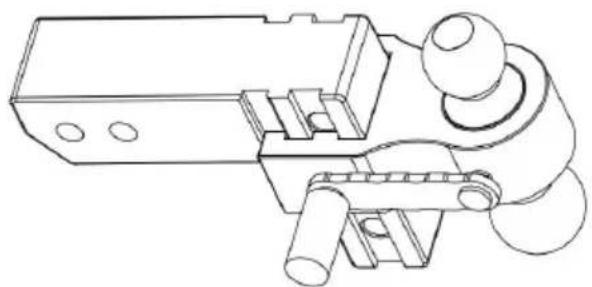

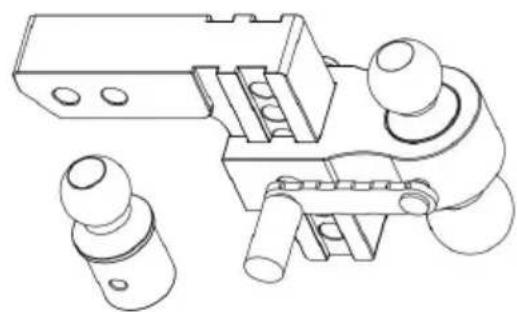

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

AL-2-DROP6"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

AL-2-DROP8"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

AL-2.5-DROP4"

Technical line drawing of mechanical components including a bracket, clamping mechanism, and two cylindrical parts (no text or symbols)

AL-2.5-DROP8"

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

NOTE: Please match your purchase.

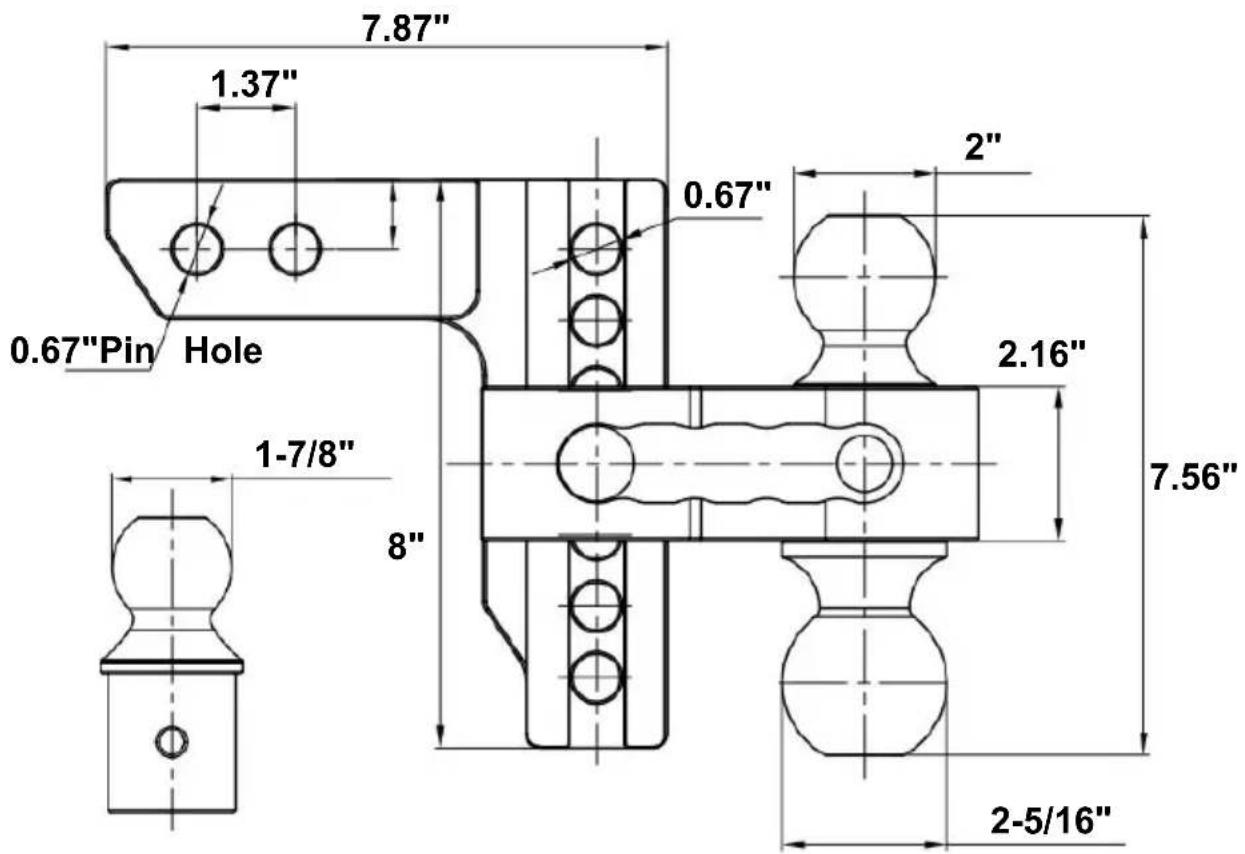

7.87" 1.37" 0.67" Pin Hole 0.67" 2" 2.16" 1-7/8" 7.56" 8" 2-5/16"

Parts list:

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two small accessories (no visible text or symbols)

Model	AL-2-drop6"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	6"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

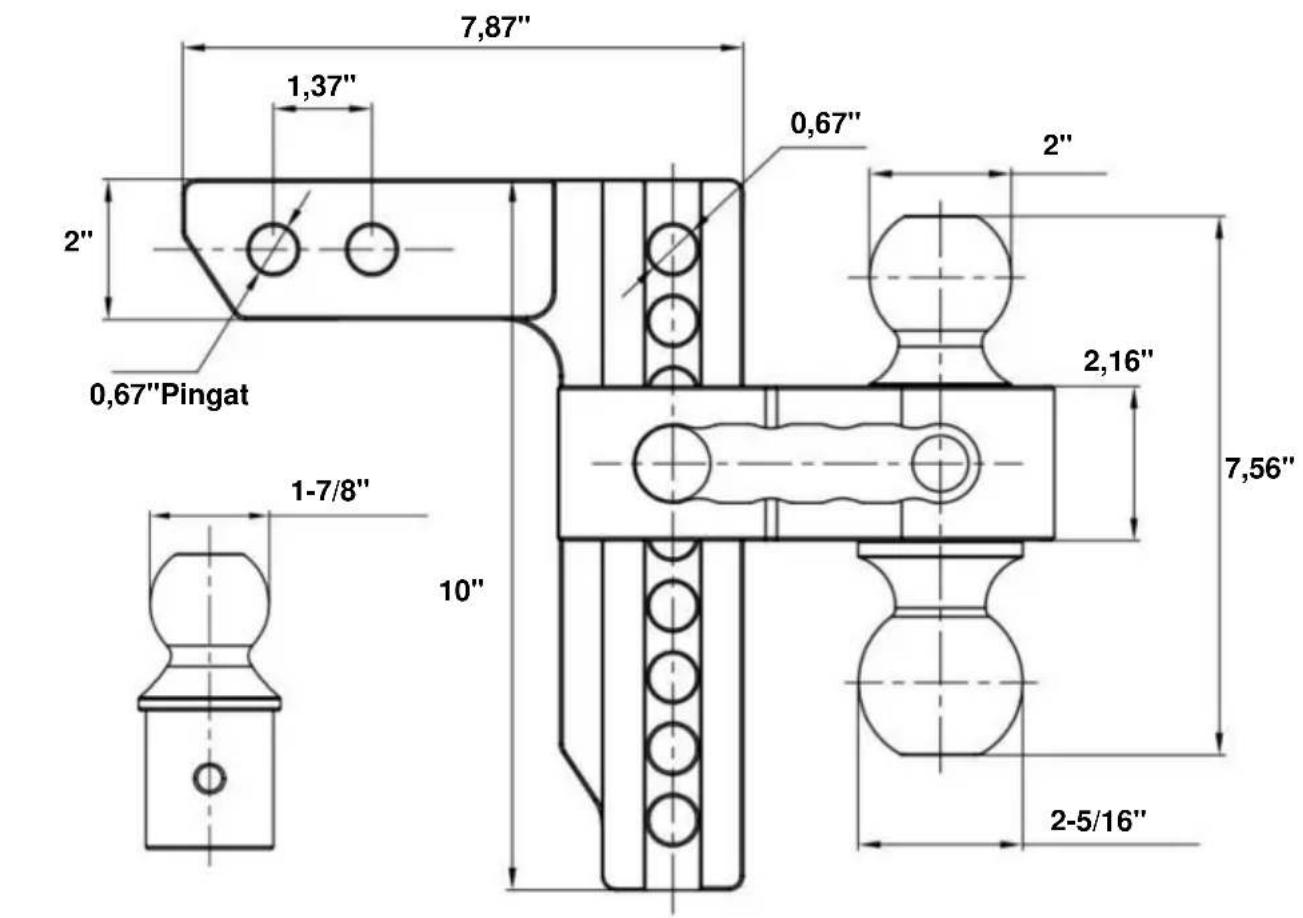

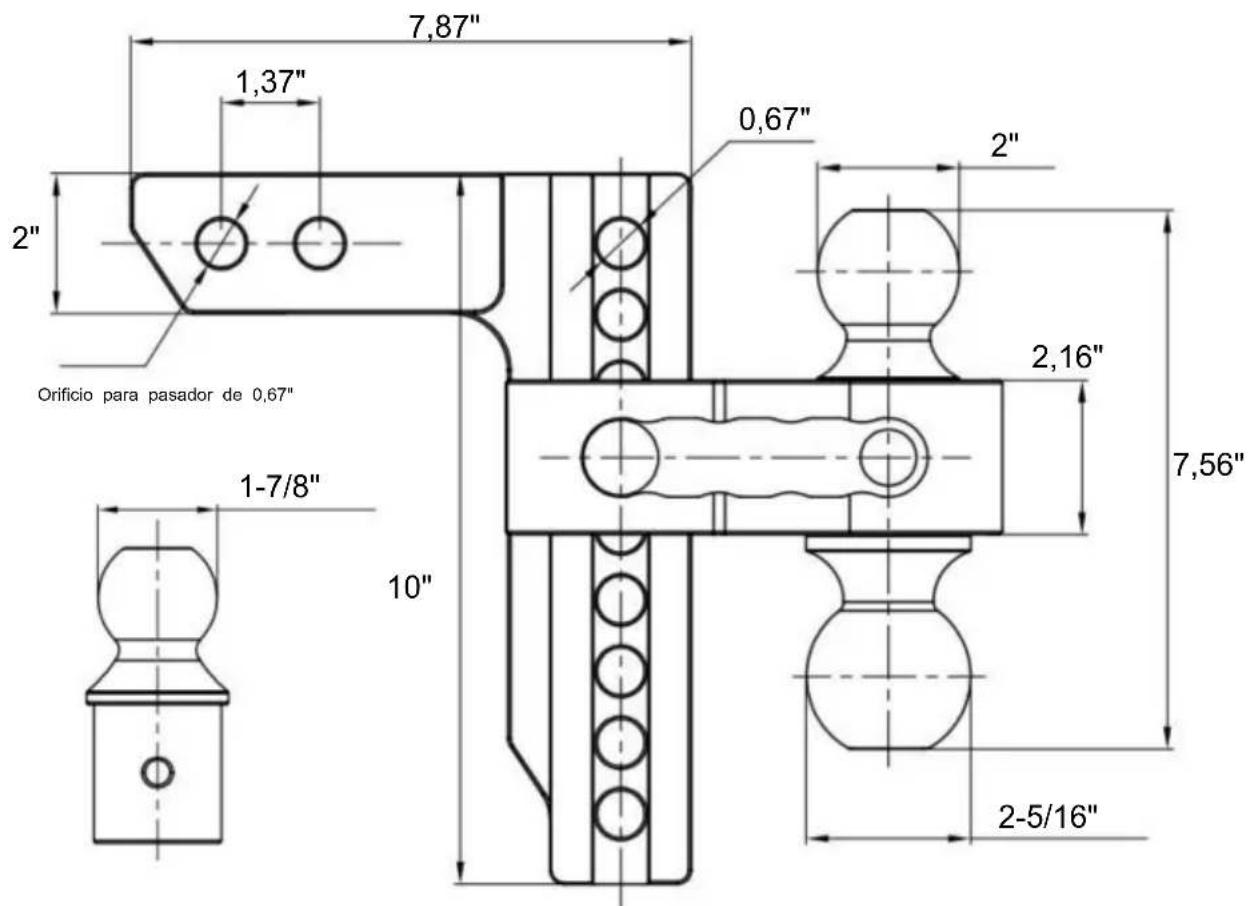

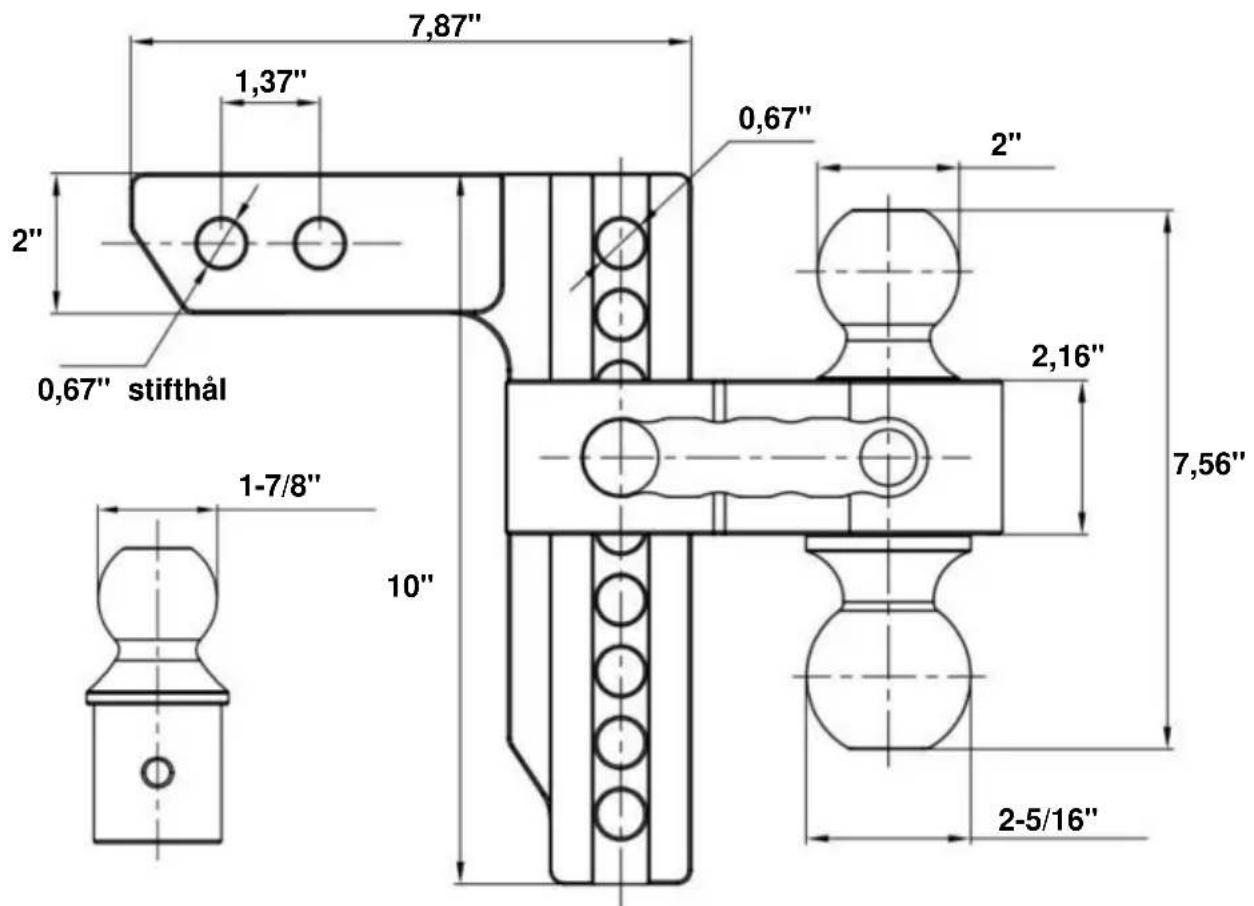

7.87" 1.37" 2" 0.67"Pin Hole 0.67" 2" 2" 2.16" 7.56" 1-7/8" 10" 2-5/16"

Parts list:

Four identical black rectangular shapes arranged horizontally on a white background (no text or symbols)

Two black cylindrical electronic components with two metallic clips attached (no text or symbols visible)

Model	AL-2-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

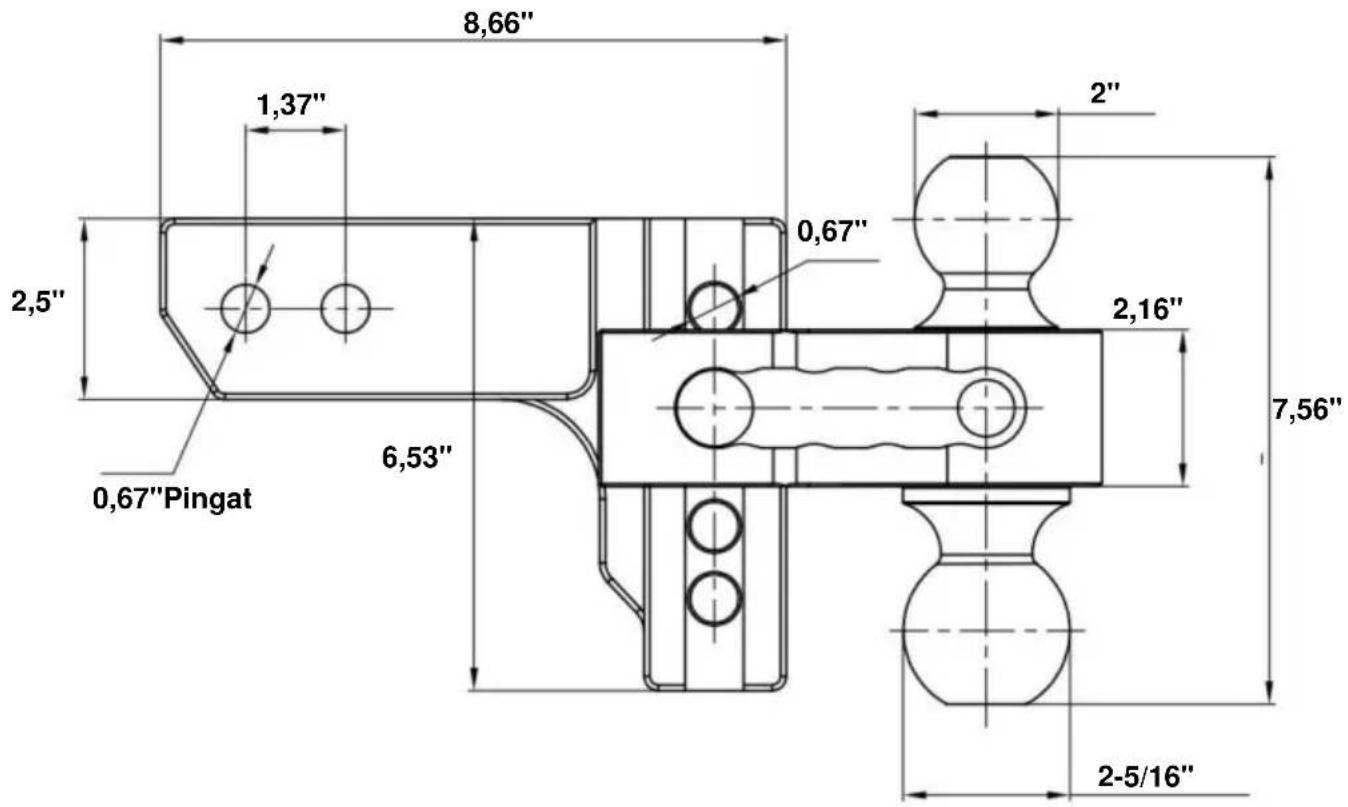

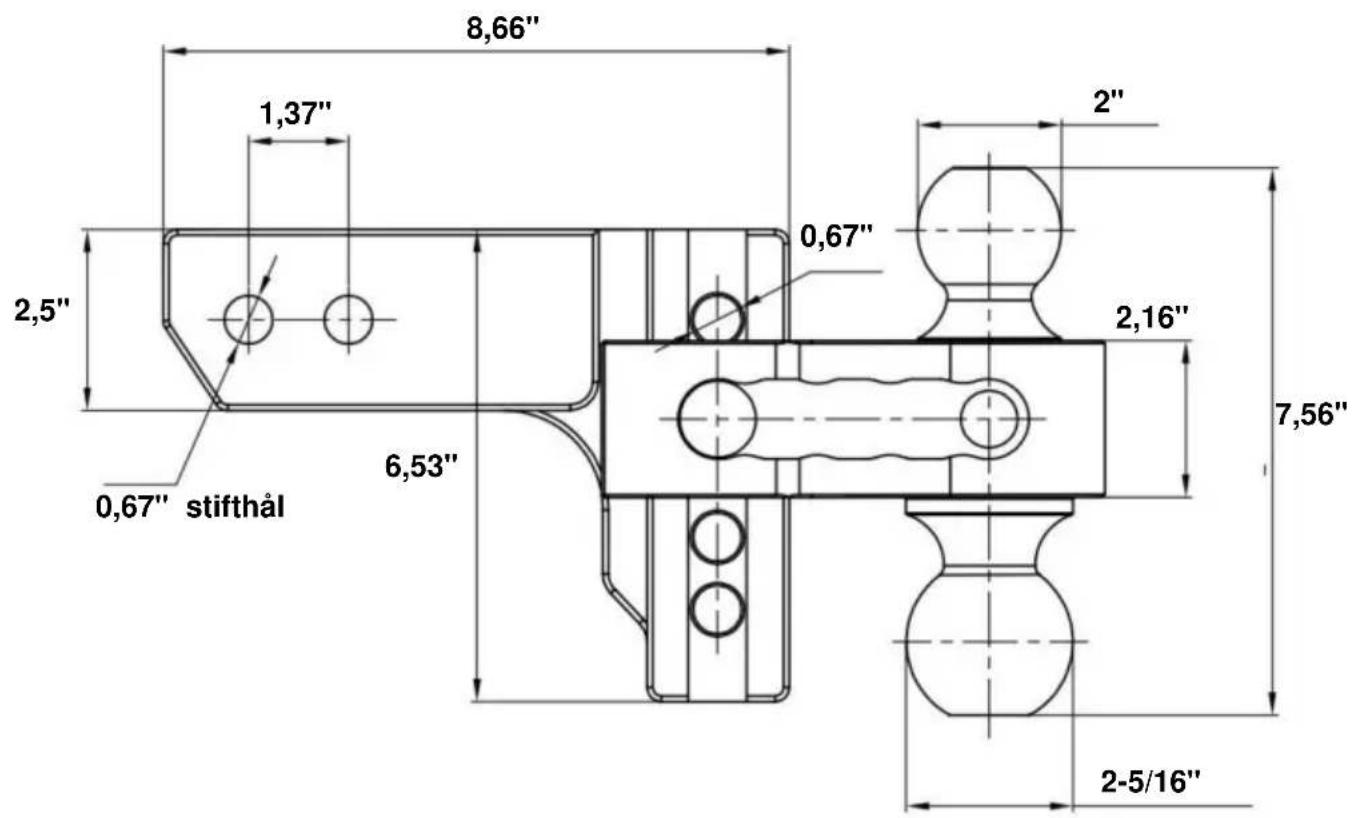

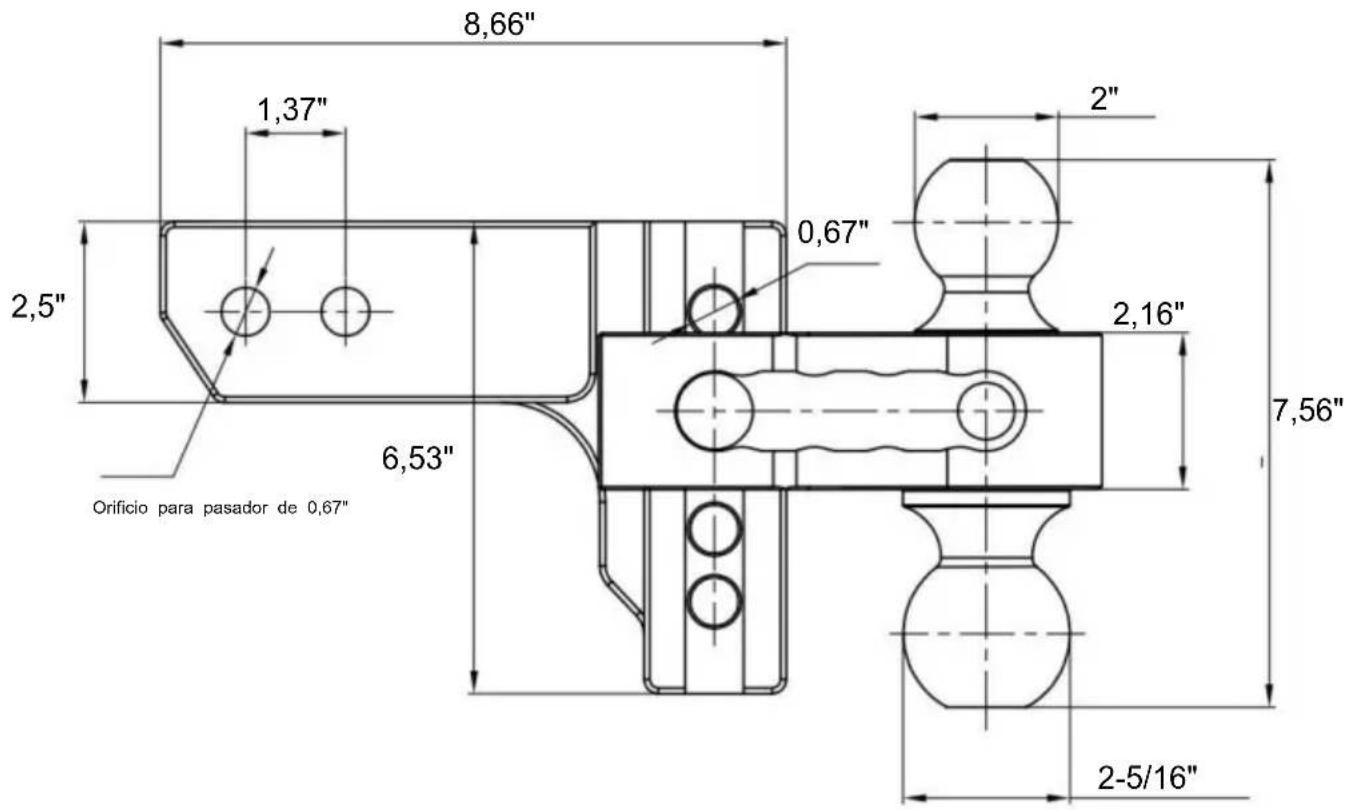

8.66" 1.37" 2.5" 0.67"Pin Hole 6.53" 0.67" 2" 2.16" 7.56" 2-5/16"

Parts list:

Four black rectangular blocks arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with two separate small accessories (no text or symbols visible)

Model	AL-2.5-drop4"
Trailer Ball	2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	4"
Max. Gross Trailer W	8000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

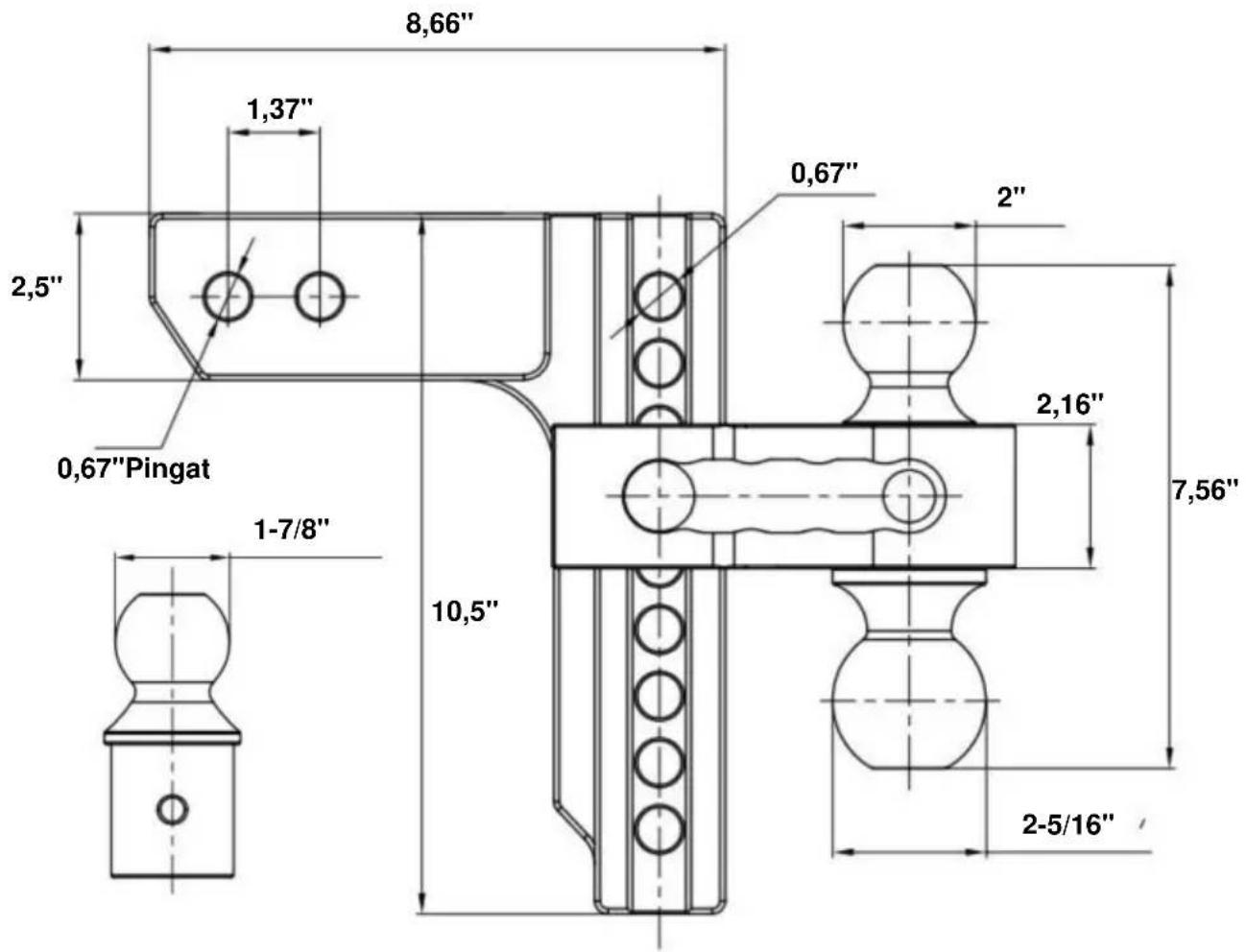

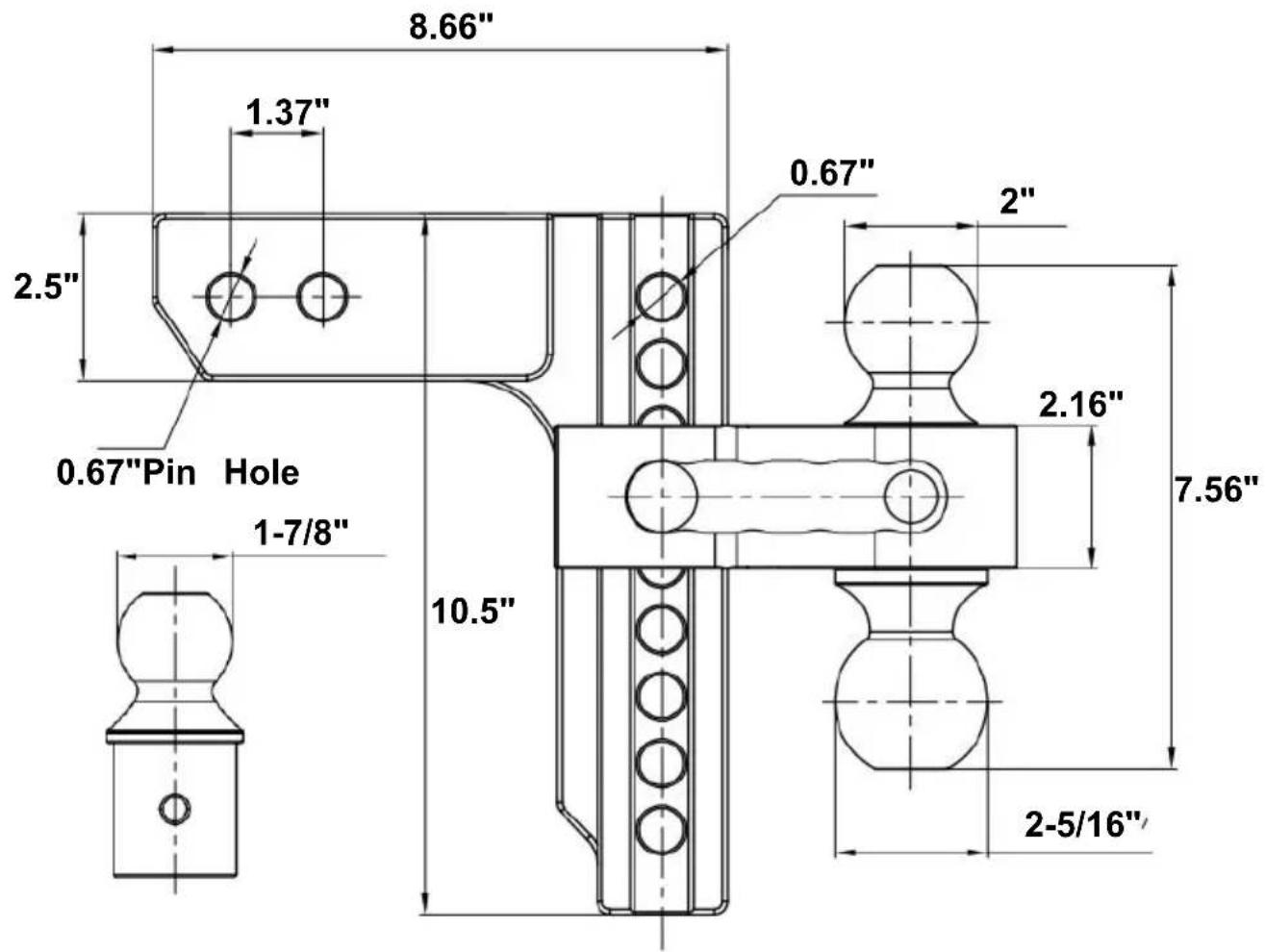

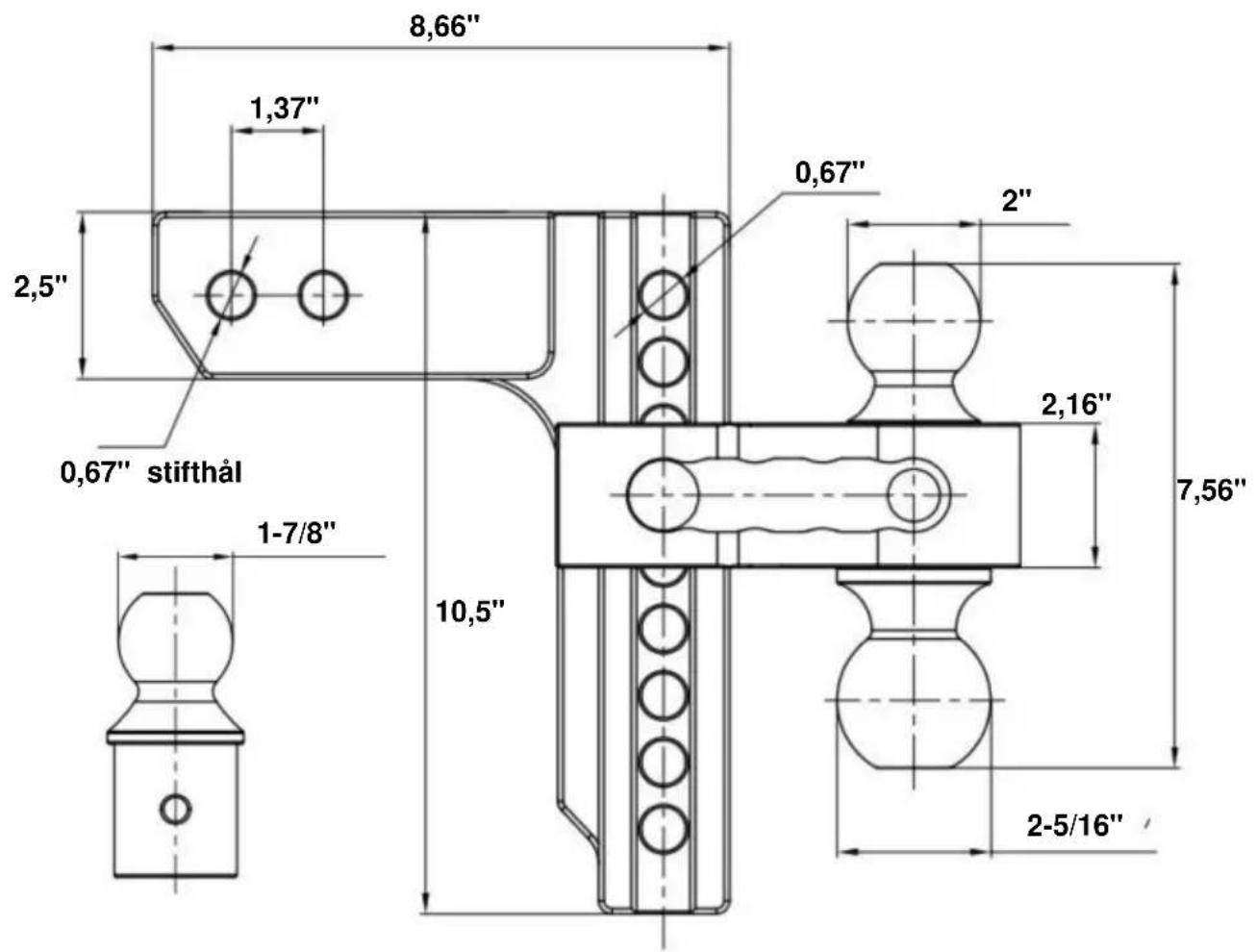

8.66" 1.37" 2.5" 0.67"Pin Hole 1-7/8" 10.5" 0.67" 2" 2.16" 7.56" 2-5/16"

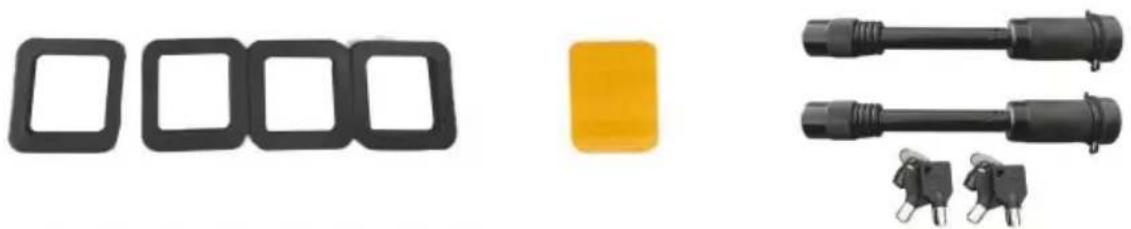

Parts list:

Product display showing four black rectangular components and two yellow square buttons with three small accessories (no text or symbols visible)

Model	AL-2.5-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/15000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

INSTALLATION

This product has a unique design, the ball head can be quickly and easily replaced! It can prevent the ball head from being stolen.

The following installation procedure uses the model AL-2-drop6" as an example. Other models are similar.

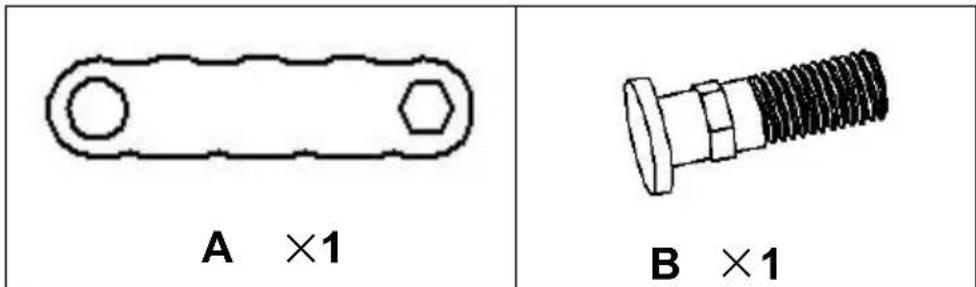

NOTE: Please check you have the key parts as shown below.

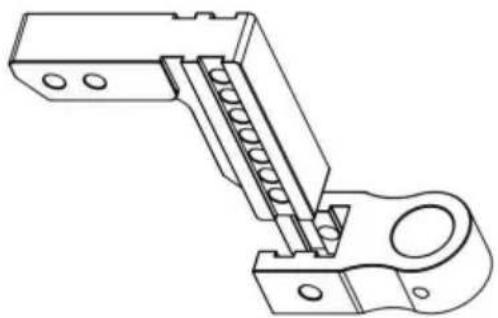

STEP 1: Install the ball seat.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

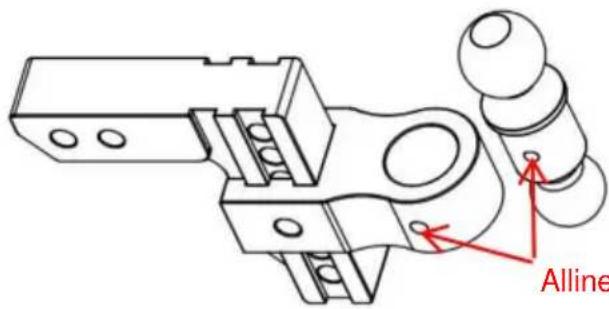

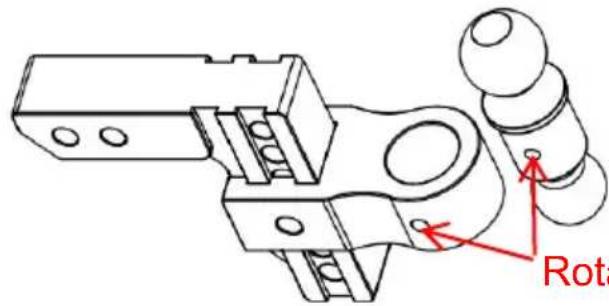

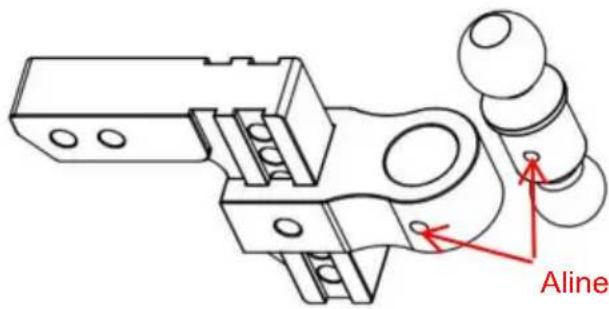

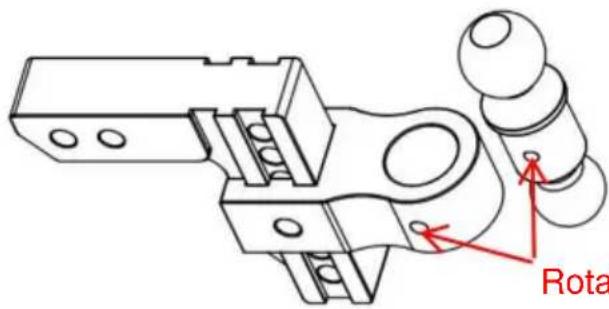

STEP 2: Install the ball.

Rota

Note: If the hole pair is not com turn it over and try again.

Rotation alignment

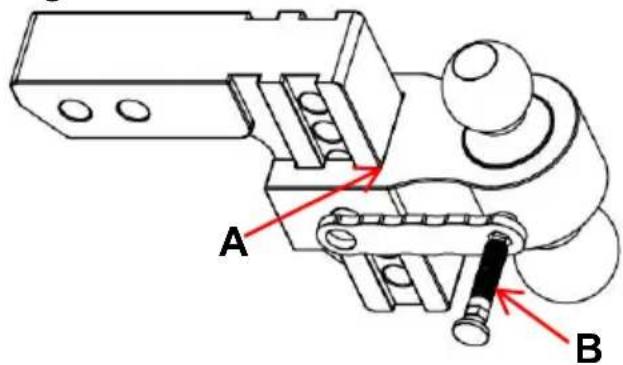

STEP 3: B goes through A, spins into the ball, and twists with your until it is slightly tight.

A B

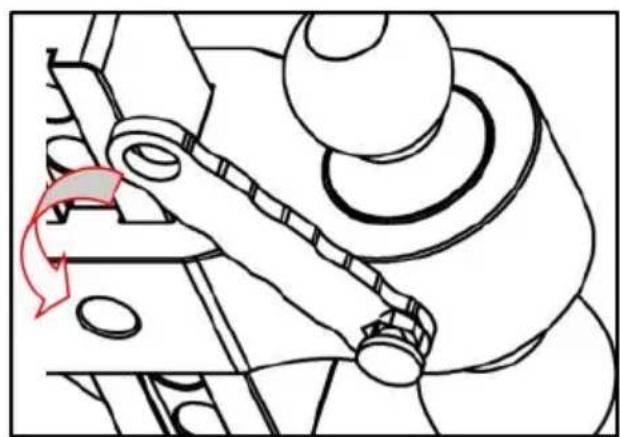

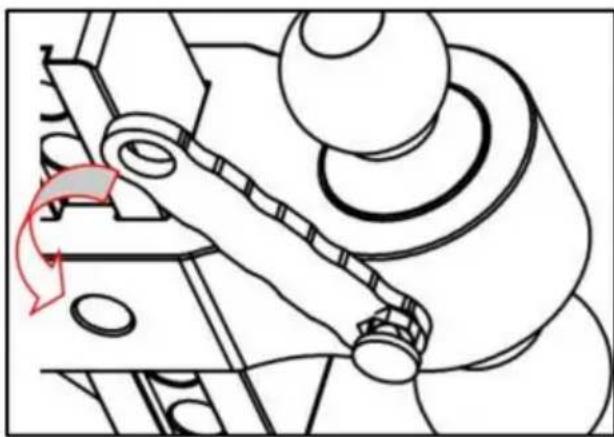

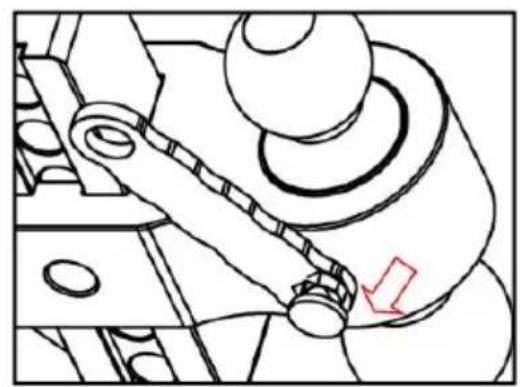

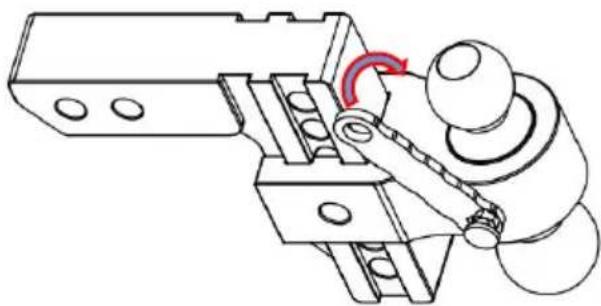

STEP 4: Use A to continue tightening bolt B.

Technical line drawing of a mechanical assembly with a red rotation arrow indicating motion (no text or symbols)

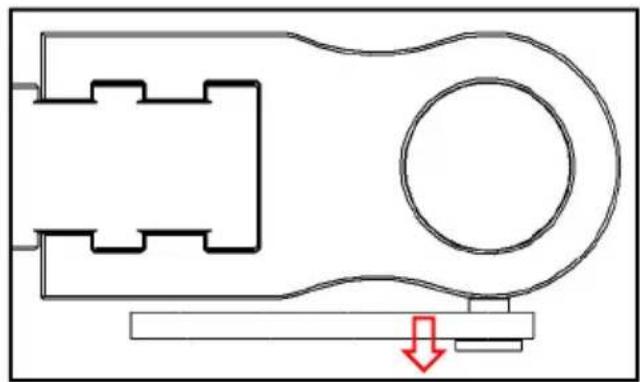

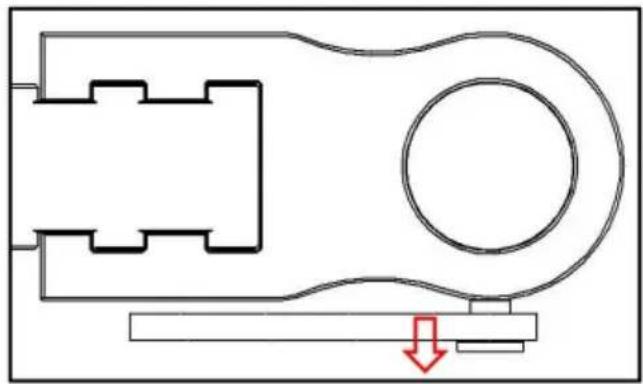

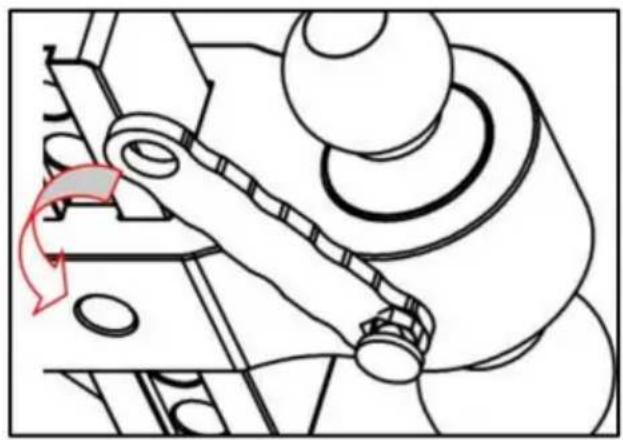

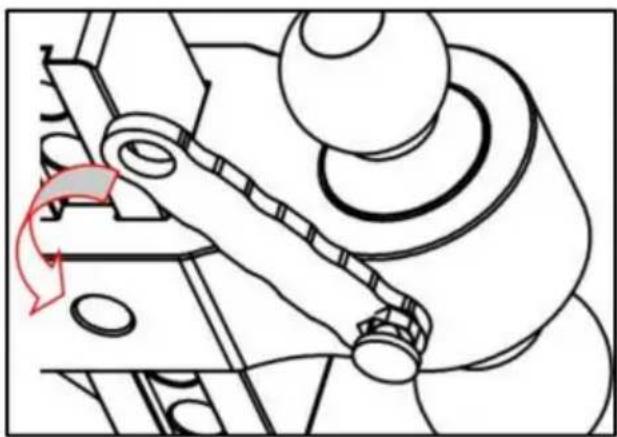

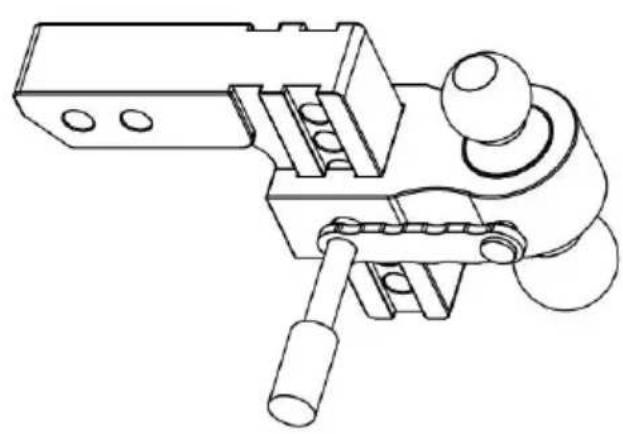

STEP 5: A go out, and rotate to line up with the tee hole.

Mechanical assembly diagram showing a chain and bearing mechanism (no text or labels)

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing a chain and rotating components with a red arrow indicating motion (no text or symbols)

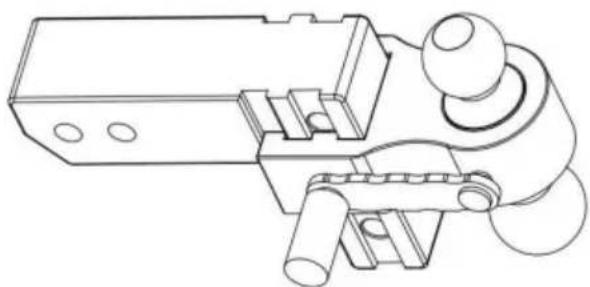

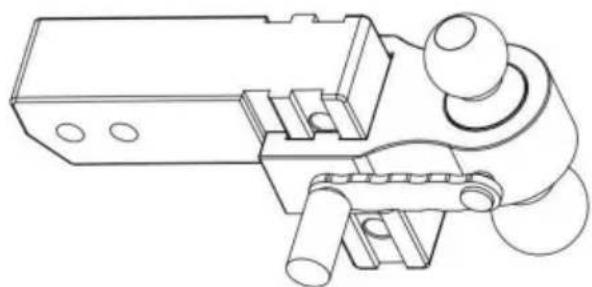

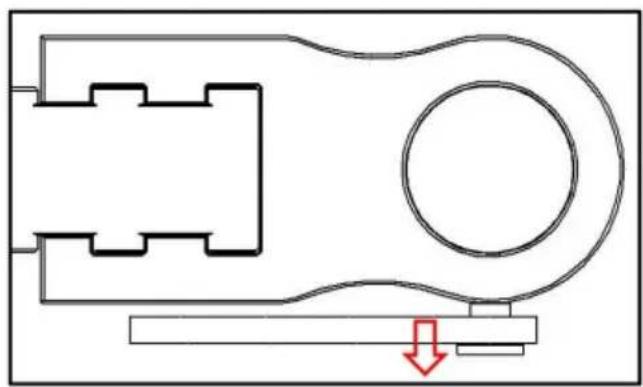

STEP 6: Fix with the trailer lock after moving to the appropriate height

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

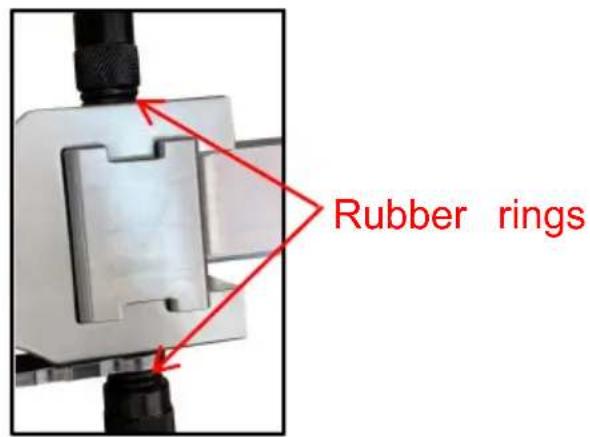

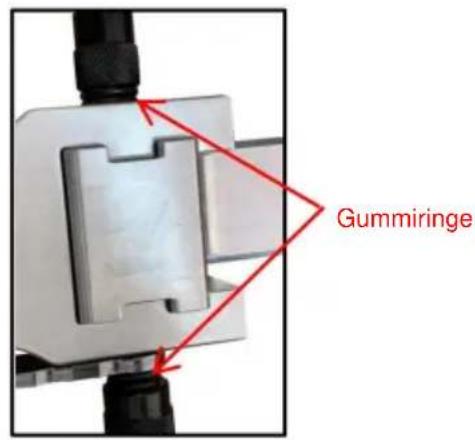

Rubber rings

NOTE: Rubber rings are placed on both inner sides as needed to re noise.

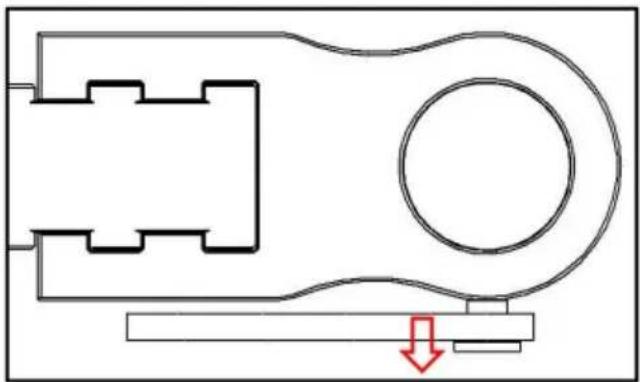

STEP 7: Installation complete. If you need to remove and replace other ball heads, refer to the preceding steps.

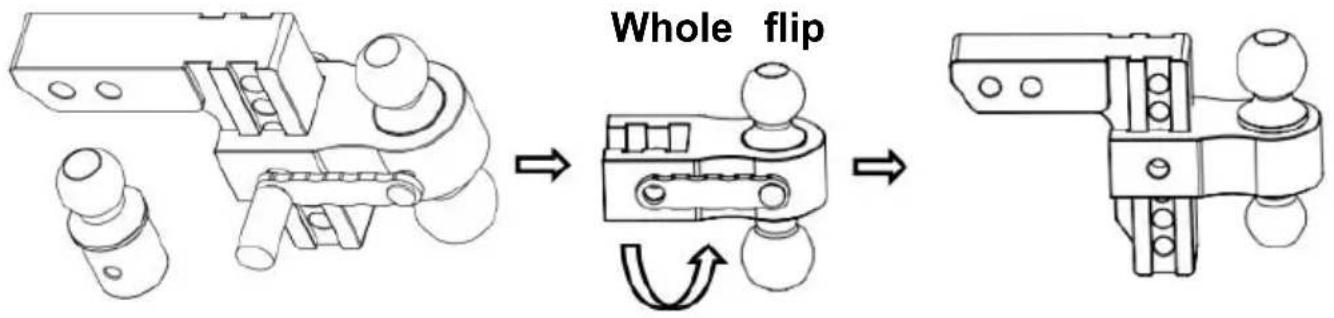

NOTE!

The conversion of 2" and 2-5/16" ball heads does not require separate removal of the ball heads, only the whole component is turned over a installed.

Whole flip

APPLICATION SCENARIOS

Two outdoor vehicles: a blue MiQICTOUR trailer with a bicycle on top and a green off-road vehicle with 'Offshore' branding, both parked in an open field.

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
