INTRODUCTION

Congratulations on the purchase of your new Rotary Surface Cleaner! can be assured this Cleaner was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the high level of acceptance.

This surface cleaner is designed for high-pressure cleaning of various outdoor surfaces such as concrete, asphalt, paving stone walkways, po decks, etc. Connect the rotary surface cleaner to your pressure washer pull the trigger, and walk behind for fast and efficient cleaning!

SPECIFICATIONS

Max. Pressure(PSI/BAR)	4,000/276
Min. Pressure(PSI/BAR)	2,000/138
Max. Flow Rate(GPM/LPM)	3.9/14.7
Max. Temperature(°FC)	140/60

IMPORTANT SAFETY INFORMATION

A WARNING

Read and understand all instructions. Failure to follow all instructions result in serious injury or property damage.

- The warnings, cautions, and instructions in this manual cannot cover possible conditions or situations that could occur. Exercise common se and caution when using this tool.

Always be aware of the environment and ensure the tool is used safely and responsibly.

- Do not allow persons to operate or assemble the product until they read this manual and have developed a thorough understanding of how works.

- Do not modify this product in any way. Unauthorized modification m

impair the function and/or safety and could affect the life of the product. There are specific applications for which the product was designed.

- Use the right tool for the job.DO NOT attempt to force small equipment do the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will do the job better and safely at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.

WORK AREA SAFETY

- Inspect the work area before each use. Keep the work area clean, clutter-free, and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put you danger close to other cutting tools and rotating parts.

- Do not use the product where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. product can create sparks, which may ignite the flammable liquids, ga or dust.

- Do not allow the product to come into contact with an electrical so. The tool is not insulated and contact will cause electrical shock.

- Keep children and bystanders away from the work area while operate the tool. Do not allow children to handle the product.

- Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may I hidden from your view and may cause personal injury and/or property damage if contacted.

PERSONAL SAFETY

- Stay alert, watch what your actions, and use common sense when operating the tool. Do not use the tool while you are tired or under influence of drugs, alcohol, or medication. A moment of inattention who operating the tool may result in serious personal injury.

- Dress properly. Do not wear loose clothing, dangling objects, or jewel. Keep your hair, clothing and gloves away from moving parts. Loose of jewelry, or long hair can be caught in moving parts. Air vents on the often cover moving parts and should be avoided.

- Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side sh or when needed, a face shield. Use a dust mask in dusty work con

Also use non-skid safety shoes, hardhat, gloves, dust collection system and hearing protection when appropriate. This applies to all persons in work area.

- Do not overreach. Keep proper footing and balance at all times.

- Do not use the tool when tired or under the influence of drugs, a medication.

- Remove keys or wrenches before connecting the tool to an air supply power supply, or turning on the tool. A left wrench or key attached rotating part of the tool may cause personal injury.

- Secure the work with clamps or a vise instead of your hand when practical. This safety precaution allows for proper tool operation using hands.

CLEANER USE AND CARE

- Do not force the cleaner. Tools do a better and safer job when u manner for which they are designed. Plan your work, and use the co tool for the job.

- Check for damaged parts before each use and before connecting the cleaner to a pressure washer. Carefully check that the cleaner will or properly and perform its intended function. Replace damaged or worn p immediately. Never operate the cleaner with a damaged part.

- Store the cleaner when it is not in use. Store it in a dry, secure play the reach of children. Inspect the cleaner for good working condition be storage and re-use.

- Use only replacement parts that the distributor recommends.

Parts that may be suitable for one cleaner may create a risk of inj used with another cleaner.

- Never use a part with a lower operating pressure than the cleaner.

- Do not leave the cleaner unattended when it is pressurized.

- Do not turn the cleaner over when it is pressurized by connection operating pressure washer to avoid high-pressure spraying water that could cause personal injury.

· DO NOT exceed the rated PSI capacity.
- Keep body parts clear of nozzle heads and away from skirt while operating machine.
· DO NOT lift machine from surface or point nozzle heads at people operating.
- Wear the proper safety gear including ANSI Z87.1 approved safety glasses.
- Use only on hard level surfaces.
- No altercations shall be made to this product.
- Only attachments and/or adapters supplied by the manufacturer shall used.
- Not for use by or around children.

PACKAGE LIST

1 x Pressure Washer Surface Cleaner
2 x Replacement Nozzles
1 x Teflon Tape
4 x O-rings
1 x Through-hole Needle
1 x Wrench
2 x Adapter
1 x Quick Adapter Kit
1 x Operating Instruction

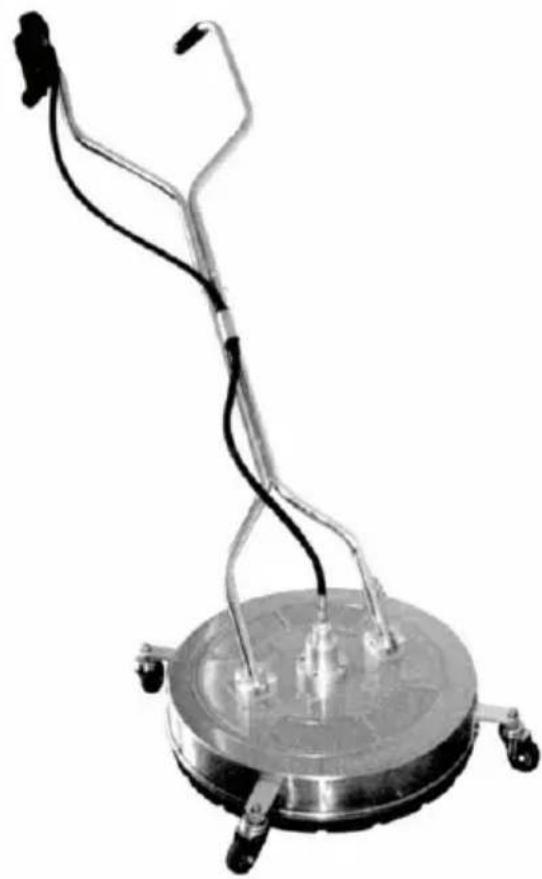

Technical line drawing of a cleaning or cleaning machine with attached circular base (no text or symbols)

Figure 1

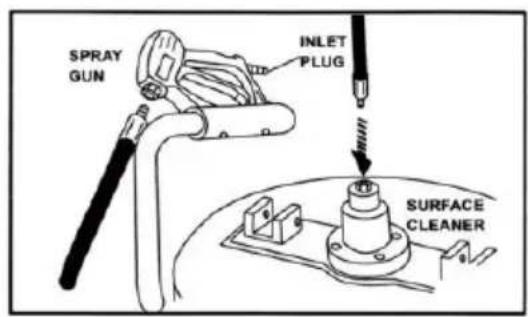

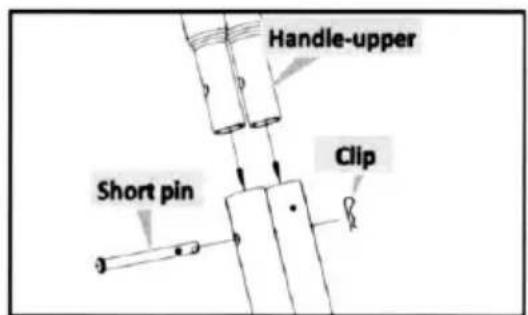

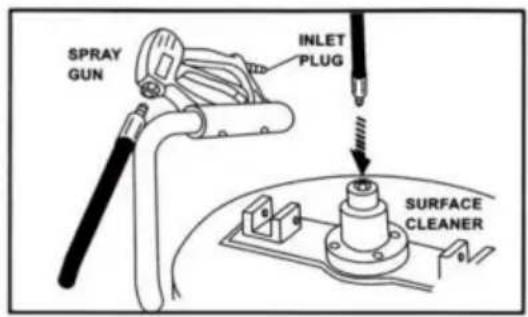

SPRAY GUN INLET PLUG SURFACE CLEANER

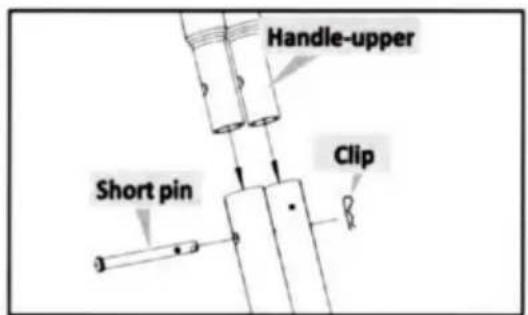

Handle-upper Clip Short pin

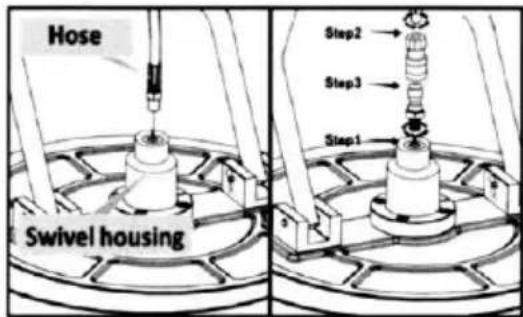

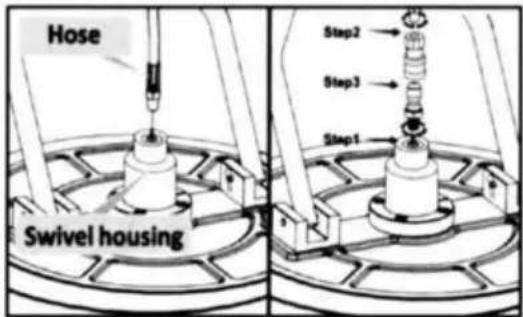

Hose Swivel housing Step2 Step3 Step1

UNIT ASSEMBLY(See Figure 1.)

1. Line up the holes on the lower part of handle with the holes on assembly. Insert the long pins through the handle and cover holes are attach to the clips.
2. Attach the upper handle by lining up the upper and lower handle hole. Push the short pin through the aligned hole and attach it to the clip.
3. Connect the hose to the trigger handle and to the swivel located unit base. Tip:Package includes 1/4" quick connect set for quicker connection.

SET-UP

1. Locate the high pressure discharge hose on your pressure washer ensure it is securely connected to the water outlet of the pressure w Quick connect the other end of the high pressure discharge hose to gun on the Rotary Surface Cleaner.

2. Connect the water supply hose, one end to your pressure washer, other end to a pressurized water supply.

1. Clear any loose debris from the area to be cleaned.
2. Never attempt to clean surface with objects that protrude from the surface being cleaned. Striking any raised obstacle during operation will

damage machine. If contact does oc and results in vibration when operat machine, STOP cleaning and check spray bar.

START-UP

1. Lock the trigger gun on the Rot Surface Cleaner in the "OFF" position (move the lever on the gun handle 90^ angle so it rests against the grip).

2. Ensure all connections are secure.

3. Unlock the trigger gun and tune the Trigger while starting the Pressur Washer.

4. Water will begin flowing from the nozzles of the Surface Cleaner.Ensure nozzles are not clogged and spray

Line drawing of a person cleaning a tiled floor with a power tool (no text or symbols)

Turn the pressure washer and water supply off and change nozzles by proceeding if problems exist.

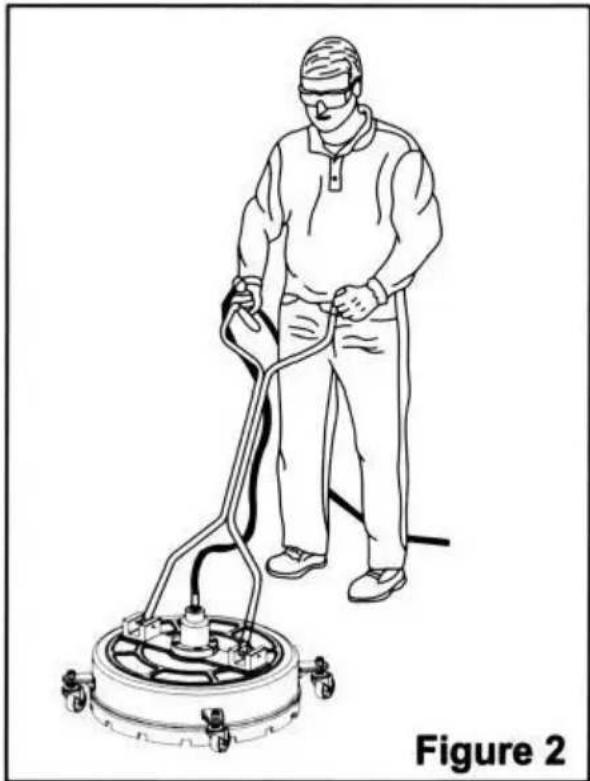

1. Walk slowly behind the unit, cleaning as you go. If striping occurs down the pace. Do not allow machine to remain stationary on soft s such as wood.

SHUT-DOWN

1. Turn the Pressure Washer off.

2. Turn the water supply off.

3. Squeeze the trigger gun to relieve water pressure.

4. Disconnect and drain the water hose and wipe down unit. Store th in a dry environment.

AFTER EACH USE

Perform the following inspections after each use to clean the cleaner ready it for the next use.

- Clean out any dirt or foreign material from under the housing and casters. If necessary, use a cloth or sponge to wash the surface clean and rinse it with tap water.

- Check for loose parts and any damage.

NOZZLE CLEANING

See Figure3.

Excessive pump pressure (a pulsing sensation felt while squeezing the trigger) OR inadequate cleaning power may be the result of a clogge dirty nozzle

1. Turn off the pressure washer and shut off the water supply. Pull tr to release water pressure and disconnect surface cleaner from high pressure hose.

2. Using a wrench, remove the nozzle from the spray bar. Using a no cleaner (provided) to clean the nozzles.

3. Using a garden hose, fush debris out of nozzle by back flushing (in the water through the nozzle backward or from the outside to the ins

4. Reconnect the nozzle to the spray bar and tighten it securely.

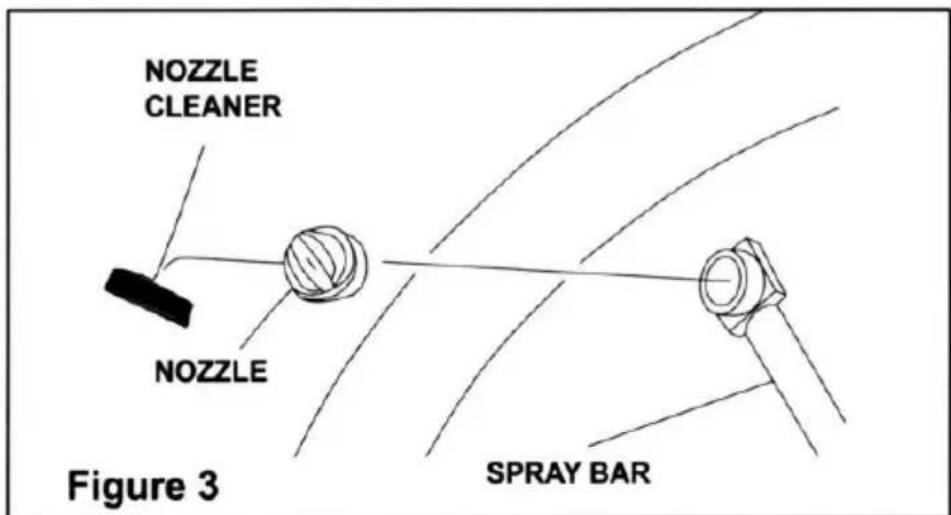

NOZZLE CLEANER NOZZLE Figure 3 SPRAY BAR

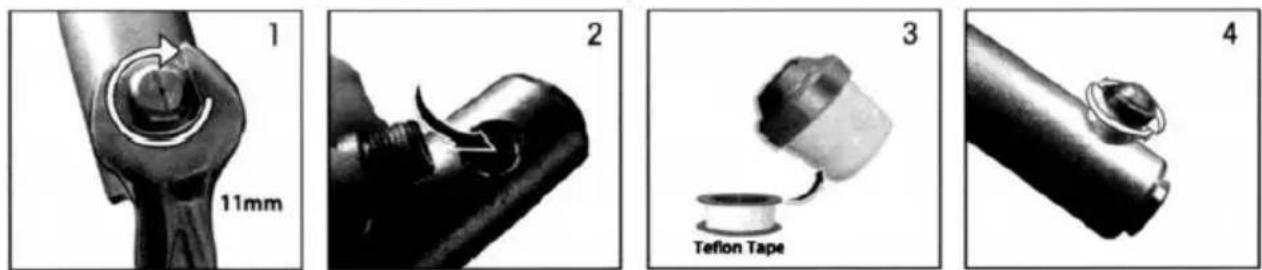

NOZZLE REPLACEMENT

1. Remove the nozzle from spray bar with an appropriate wrench.
2. Rinse mounting holes with fresh water to clean impurities.
3. Cover new nozzles thread with attached teflon tape.
4. Align the nozzle opening, reinstall nozzles to the spray bar. Tighten securely.

Note: If the nozzle is difficult to remove, please heat it with a hot blc before removing.

1 11mm 2 3 Teflon Tape 4

TROUBLESHOOTING
PROBLEM	PROBABLE CAUSE	CORRECTIVE ACTION
Missing parts	Damaged package	Contact our Customer Service for help.
Inadequate cleaning power	Not enough PSI from pressure washer	Ensure unit produces a minimum pressure washe 2,000 PSI.
	Nozzle obstructed or worn	Clean or replace the nozzles.
Spray bar will rotate	Defective, snap ring dislodged	Do not use! Contact our Customer Service for help.
	Unstable connection, the spray bar fell off
	Seal malfunction, wate shooting from swivel
Excessive vibration of surface cleaner	Nozzle clogged	Clean or replace the nozzles.
Streaked cleaning pattern	Nozzle clogged	Clean or replace the nozzles.
	Cleaning too fast	Slow down pace.
