USER MANUAL QD-XDP11 Vevor

Affordable. Reliable. Home Improvement.

PRESSURE WASHER SURFACE CLEANER

MODEL:QD-XDP11

MODEL:QD-XDP11

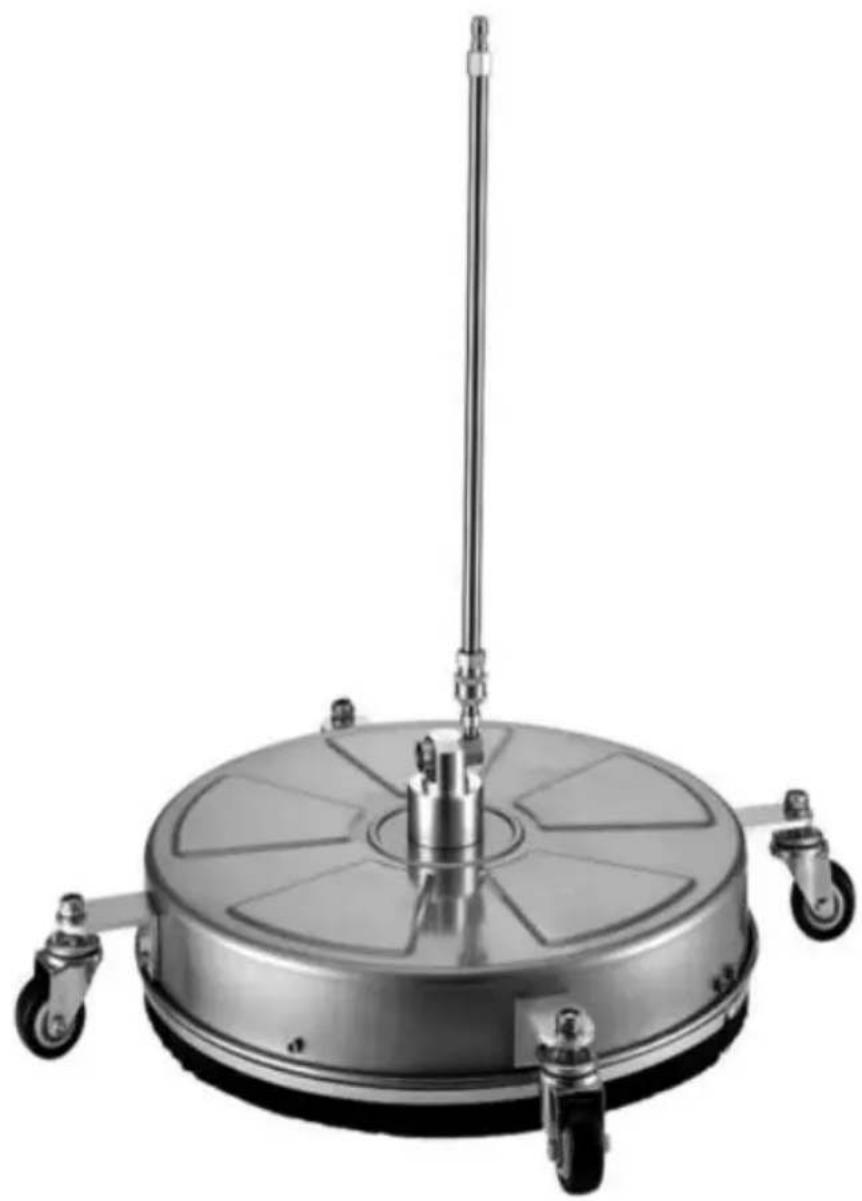

Metallic circular industrial component with four wheels and a central pole, no visible text or symbols.

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

INTRODUCTION

Congratulations on the purchase of your new Rotary Surface Cleaner! can be assured this Cleaner was constructed and designed with quali and performance in mind. Each component has been rigorously tested ensure the high level of acceptance.

This surface cleaner is designed for high-pressure cleaning of various outdoor surfaces such as concrete, asphalt, paving stone walkways, pe decks, etc. Connect the rotary surface cleaner to your pressure washer pull the trigger, and walk behind for fast and efficient cleaning!

SPECIFICATIONS

Max. Pressure(PSI/BAR)	4000 / 276
Min. Pressure(PSI/BAR)	1500 / 104
Max. Flow Rate(gal/min)	4

IMPORTANT SAFETY INFORMATION

A WARNING

Read and understand all instructions. Failure to follow all instructions result in serious injury or property damage.

- The warnings, cautions, and instructions in this manual cannot cover possible conditions or situations that could occur. Exercise common se and caution when using this tool.

Always be aware of the environment and ensure the tool is used as responsibly.

• Do not allow persons to operate or assemble the product until they read this manual and have thoroughly understood how it works.
• Do not modify this product in any way. Unauthorized modification m impair the function and/or safety and could affect the product's life.
• There are specific applications for which the product was designed.
• Use the right tool for the job.DO NOT attempt to force small equipment for the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will do the job better and safely at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.

WORK AREA SAFETY

- Inspect the work area before each use. Keep work area clean, dry clutter, and well lit. Cluttered, wet, or dark work areas can result in in. Using the product in confined work areas may put you dangerously of other cutting tools and rotating parts.

- Do not use the product where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. product can create sparks, which may ignite the flammable liquids, ga or dust.

- Do not allow the product to come into contact with an electrical so. The tool is not insulated and contact will cause electrical shock.

- Keep children and bystanders away from the work area while operate the tool. Do not allow children to handle the product.

- Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may I hidden from your view and may cause personal injury and/or property damage if contacted.

PERSONAL SAFETY

• Stay alert, watch what your actions, and use common sense when operating the tool. Do not use the tool while you are tired or under influence of drugs, alcohol, or medication. A moment of inattention who operating the tool may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewel. Keep your hair, clothing and gloves away from moving parts. Loose of jewelry, or long hair can be caught in moving parts. Air vents on the

often cover moving parts and should be avoided.

- Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side sh or when needed, a face shield. Use a dust mask in dusty work con Also use non-skid safety shoes, hardhat, gloves, dust collection system and hearing protection when appropriate. This applies to all persons in work area.

- Do not overreach. Keep proper footing and balance at all times.

- Do not use the tool when tired or under the influence of drugs, a medication.

- Remove keys or wrenches before connecting the tool to an air supply power supply, or turning on the tool. A left wrench or key attached rotating part of the tool may cause personal injury.

- Secure the work with clamps or a vise instead of your hand when practical. This safety precaution allows for proper tool operation using hands.

CLEANER USE AND CARE

- Do not force the cleaner. Tools do a better and safer job when u manner for which they are designed. Plan your work, and use the co tool for the job.

- Check for damaged parts before each use and before connecting the cleaner to a pressure washer. Carefully check that the cleaner will or properly and perform its intended function. Replace damaged or worn p immediately. Never operate the cleaner with a damaged part.

- Store the cleaner when it is not in use. Store it in a dry, secure p the reach of children. Inspect the cleaner for good working condition be storage and re-use.

- Use only replacement parts that are recommended by the distributor Parts that may be suitable for one cleaner may create a risk of inju used with another cleaner.

- Never use a part with a lower operating pressure than the cleaner.

- Do not leave the cleaner unattended when it is pressurized.

- Do not turn the cleaner over when it is pressurized by connection operating pressure washer to avoid high-pressure spraying water that could cause personal injury.

• DO NOT exceed the rated PSI capacity.

- Keep body parts clear of nozzle heads and away from skirt while operating machine.

• DO NOT lift machine from surface or point nozzle heads at people operating.

- Wear the proper safety gear including ANSI Z87.1 approved safety glasses.

- Use only on hard level surfaces.

- No altercations shall be made to this product.

- Only attachments and/or adapters supplied by the manufacturer shall used.

• Not for use by or around children.

PartList
Code	Name	Picture	QTY.
1	Pressure WasherSurface Cleaner		1
2	Extension Rod		2
3	Teflon Tape		1
4	O-rings(large)		2
5	O-rings(small)		2
6	Replacement Nozzles		2
7	Through-hole Needle		1

Spray wand 1 2 3 Surface cleaner

1. Pull back collar on quick-connect end of wand.

2. Push the surface cleaner into place.

3.Push the collar forward, insert surface cleaner and release collar.Ens the collar slides all the way forward. Tug on surface cleaner to make is securely in place.

SURFACE PREPARATION

1. Clear any loose debris from the area to be cleaned.

2. Never attempt to clean surface with objects that protrude from the surface being cleaned. Striking any raised obstacle during operation will damage machine. If contact does occur and results in vibration when operating machine, STOP cleaning and check the spray bar.

START- UP

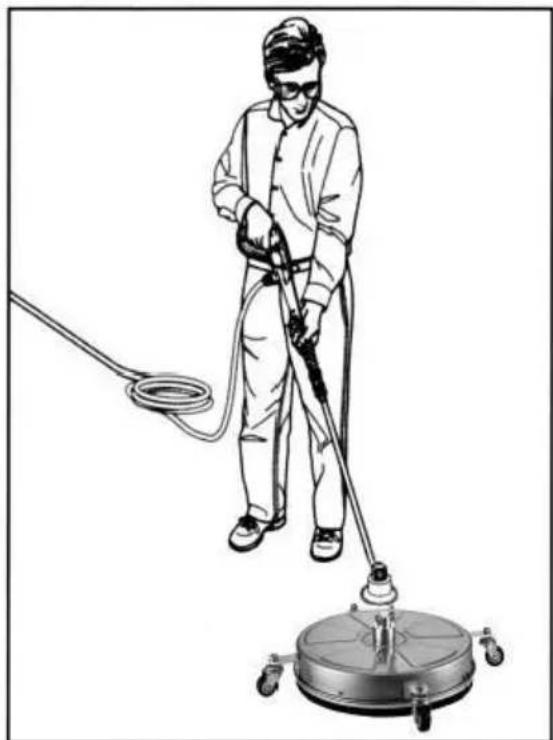

Illustration of a person cleaning a tiled floor with a power tool (no text or symbols)

1. Ensure all connections are secure.
2. Unlock the trigger gun and squeeze the trigger while starting the Pressure Washer.
3. Water will begin flowing from the nozzles of the Surface Cleaner. E nozzles are not clogged and spray pattern is not erratic.
4. Walk slowly behind the unit, cleaning as you go. If striping occurs, down the pace. Do not allow machine to remain stationary on soft s such as wood.

SHUT- DOWN

1. Turn the Pressure Washer off.
2. Turn the water supply off.
   3.Squeeze the trigger gun to relieve water pressure.
   4.Disconnect pressure washer handle and wipe down unit.Store the un a dry environment.

AFTER EACH USE

Perform the following inspections after each use to clean the cleaner ready it for the next use.

• Clean out any dirt or foreign material from under the housing and casters. If necessary, use a cloth or sponge to wash the surface cle and rinse it with tap water.
• Check for loose parts and any damage.

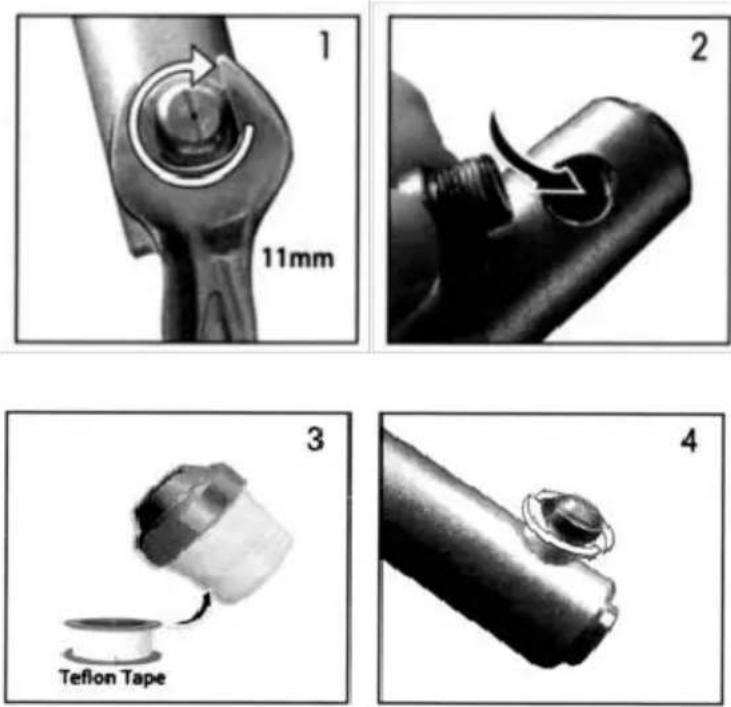

NOOZLE CLEANING & REPLACEMENT

1. Remove the nozzle with appropriate wrench(11 mm)
2. Rinse holes with fresh water to clean impurity.
3. Cover nozzles thread with attached teflon tape.
4. Align the nozzle opening and reinstall the nozzles to the spray ba Tighten it securely.

Note: If the nozzle is difficult to remove, please heat it with a hot k before removing.

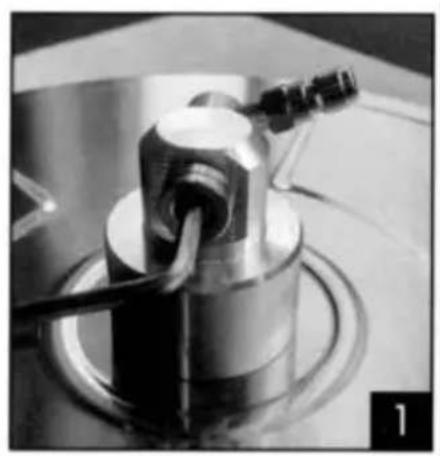

TOP MAINTENANCE

If the pivot connection leaks, please change the o-rings.

Please refer to the following steps:

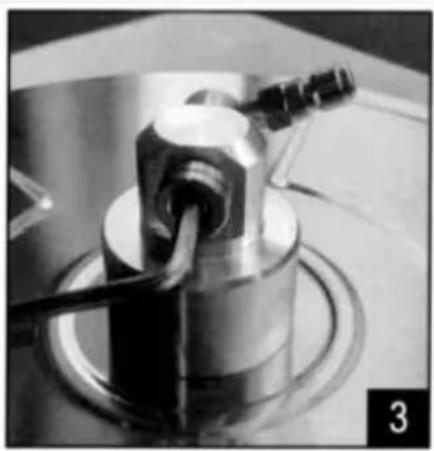

1. Remove the screw from the body by using a 5 mm hex wrench.

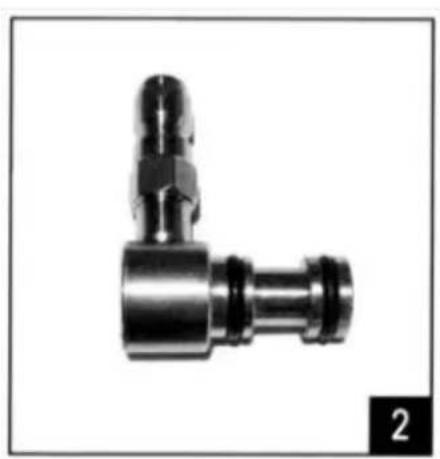

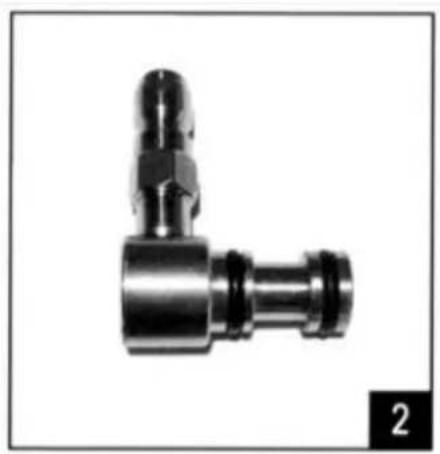

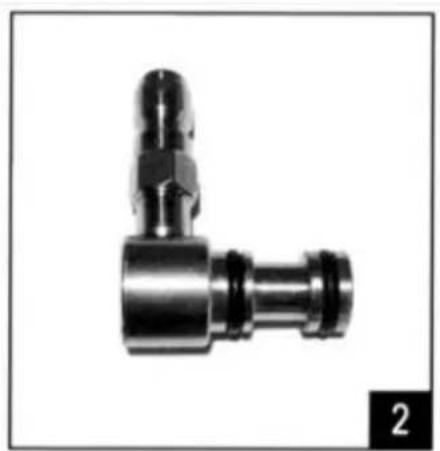

2. Replace the original broken o-ring with new o-rings.

3. Reinstall the screw by using a 5 mm hex wrench.

Close-up of a metallic mechanical component with a cylindrical body and protruding shaft (no visible text or symbols)

Close-up of a metallic T-junction connector (no text or symbols visible)

Close-up of a mechanical component with a cylindrical body and protruding shaft, no visible text or symbols


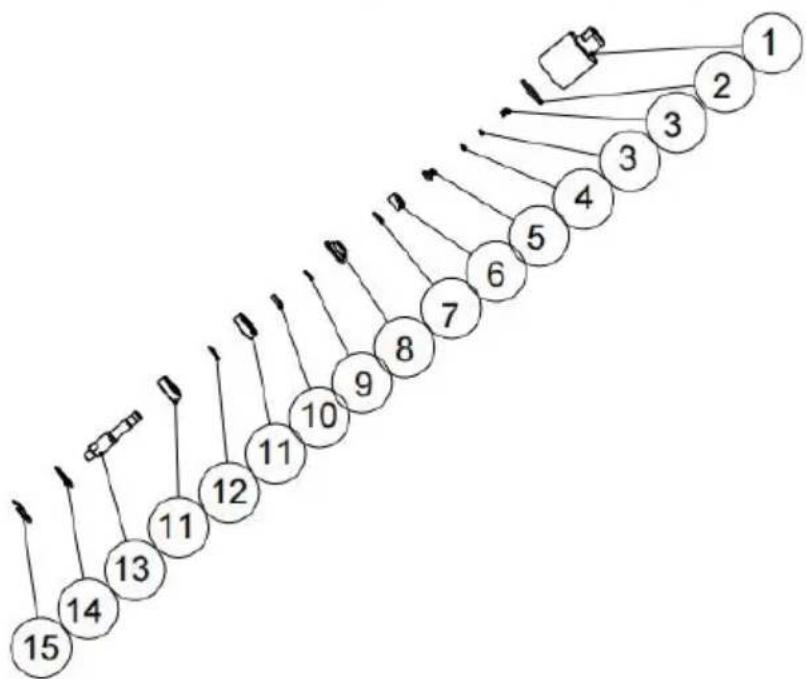

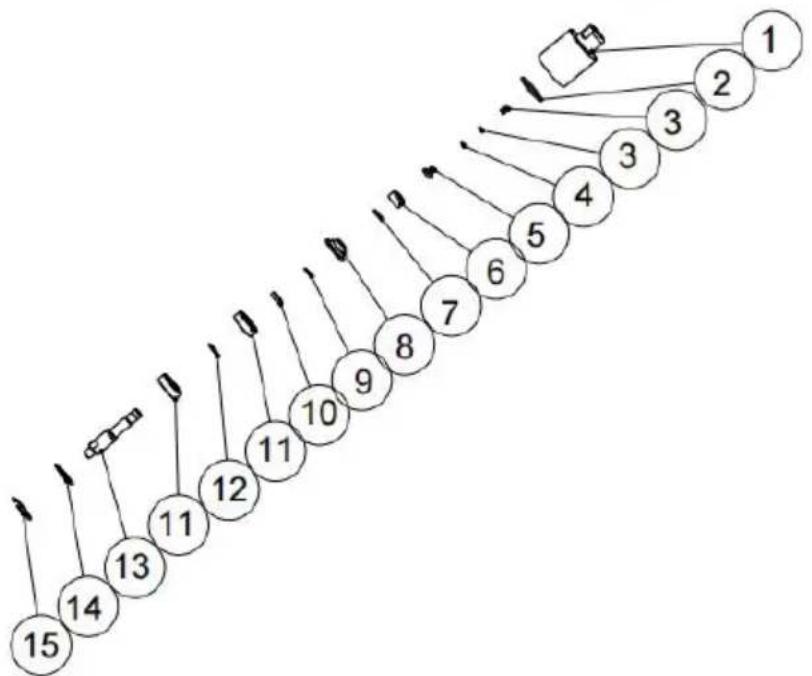

No.	Name	Qty	No.	Name	Qty
1	Shaft Housing	1	9	Circlip for shaft D	1
2	O - ring 40.94*2.6	1	10	Spacing Collar	1
3	Compression Spring	1	11	Deep Groove Ball Bearing S6302RS	2
4	O - ring 5.28*1.78	2	12	Washer	1
5	Flanged Drive Hub	1	13	Shaft	1
6	Shaft End Cap	1	14	Washer	1
7	O - ring14.2*2.4	1	15	Circlip for hole	1
8	Bushing	1

TROUBLESHOOTING
PROBLEM	PROBABLE CAUSE	CORRECTIVE ACTION
Missing parts	Damaged package	Contact our Customer Service for help.
Inadequate cleaning powe	Not enough PSI from pressure washer	Ensure unit produces a minimum pressure washer 2,000 PSI.
	Nozzle obstructed or wo	Clean or replace the nozz
Spray bar wi not rotate	Defective, snap ring dislodged	Do not use! Contact our Customer Service for help.
	Unstable connection, the spray bar fell off
	Seal malfunction, water shooting from swivel
Excessive vibration of surface cleaner	Nozzle clogged	Clean or replace the nozz
Streaked cleaning pattern	Nozzle clogged	Clean or replace the nozz
	Cleaning too fast	Slow down pace.
Top leaks	The o-ring is broken	Please refer to instruction
