USER MANUAL QD-XDP06 Vevor

Affordable. Reliable. Home Improvement.

PRESSURE WASHER SURFACE CLEANER

MODEL: QD-XDP06

MODEL:QD-XDP06

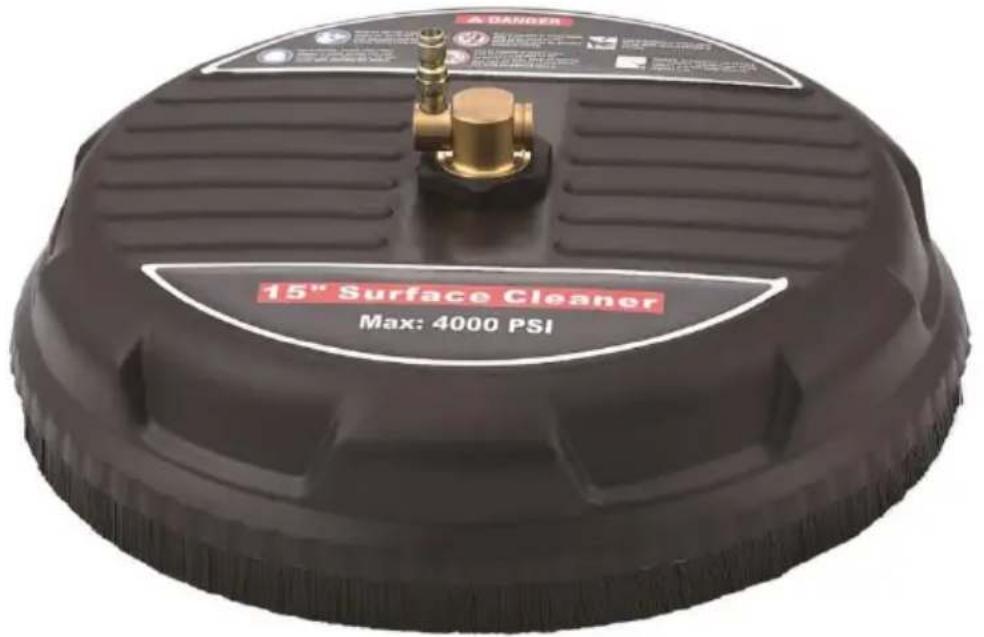

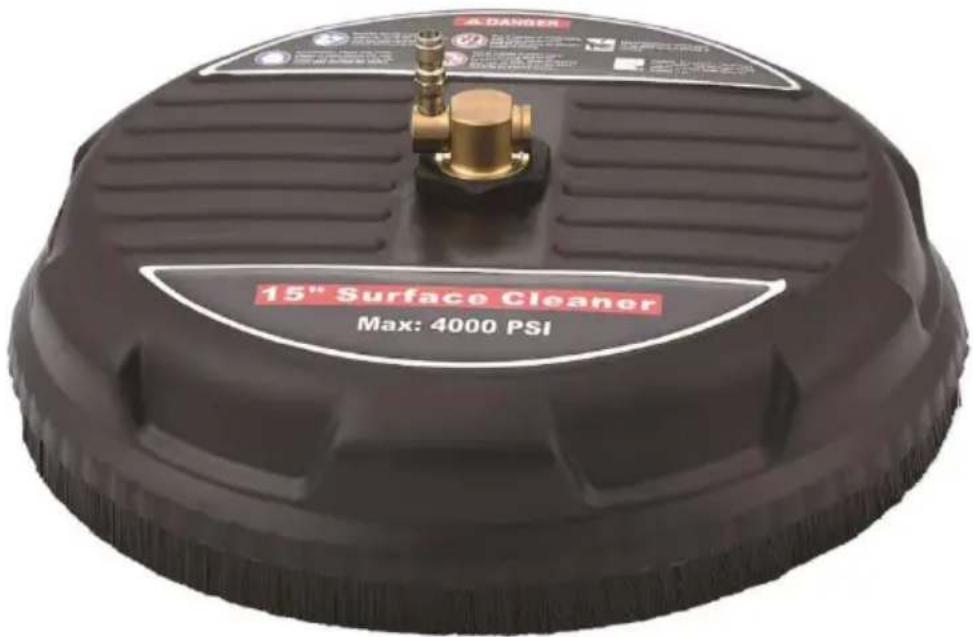

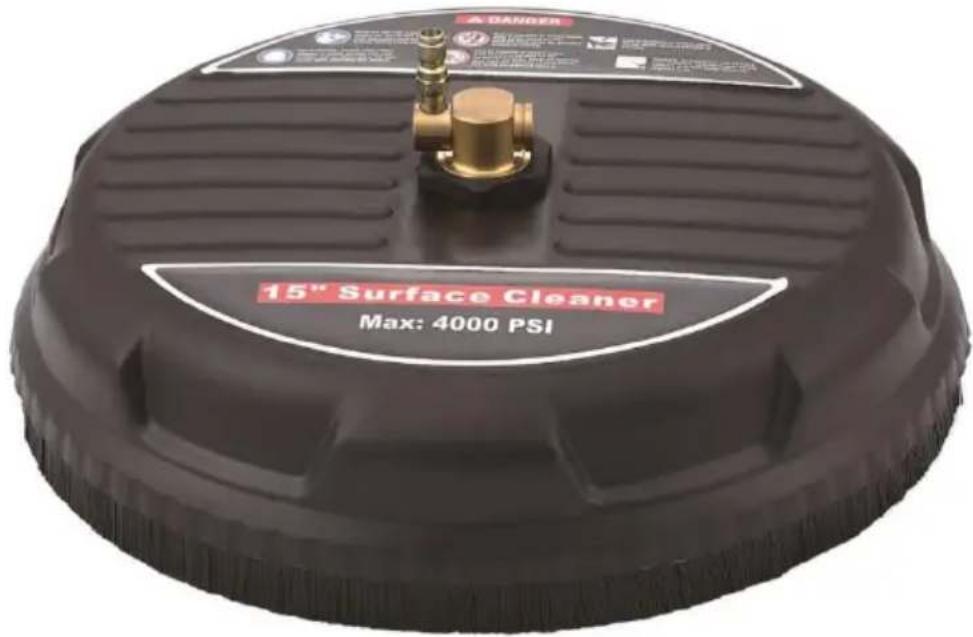

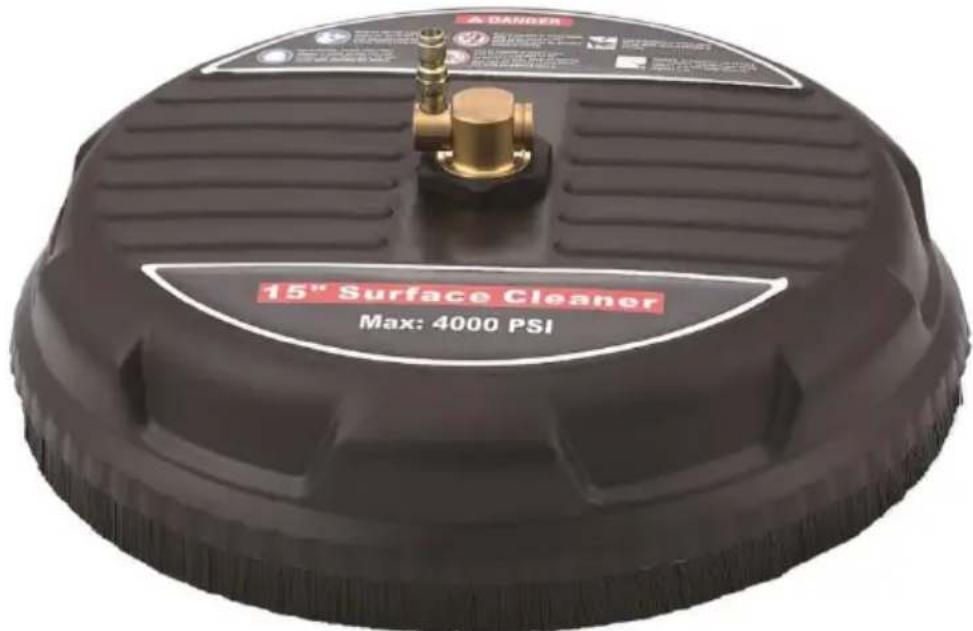

15TH Surface Cleaner Max: 4000 PSI

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

INTRODUCTION

Congratulations on the purchase of your new Rotary Surface Cleaner! can be assured this Cleaner was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the high level of acceptance.

This surface cleaner is designed for high-pressure cleaning of a variety of outdoor surfaces such as concrete, asphalt, paving stone walkways pool decks etc. Simply connect the rotary surface cleaner to your pressure washer, pull the trigger and walk behind for fast and efficient cleaning.

SPECIFICATIONS
Max. Pressure(PSI/BAR)	3,000 / 207
Min. Pressure(PSI/BAR)	1,000 / 69
Max. Flow Rate(gal/min)	4

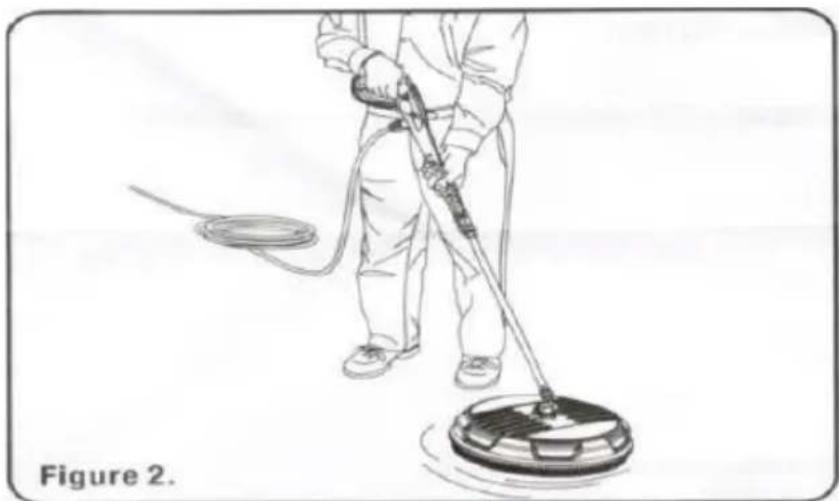

Package Lists: 1 x 15" Surface Cleaner Operation (Figure 2.)

Person cleaning a tiled floor with a power tool, labeled as Figure 2 (no text on the diagram itself)

1. Connect hose to the pressure washer and start pressure washer.

2. Walk slowly behind the cleaning forward.

NOTE: It striping or swirling occurs, slow your pace. If striping or sw continues, the surface cleaner skirt bristles may be worn and in need replacement.

NOTE: Always squeeze the gun's trigger to release any residual press immediately after use. Engage the trigger lock when not in use.

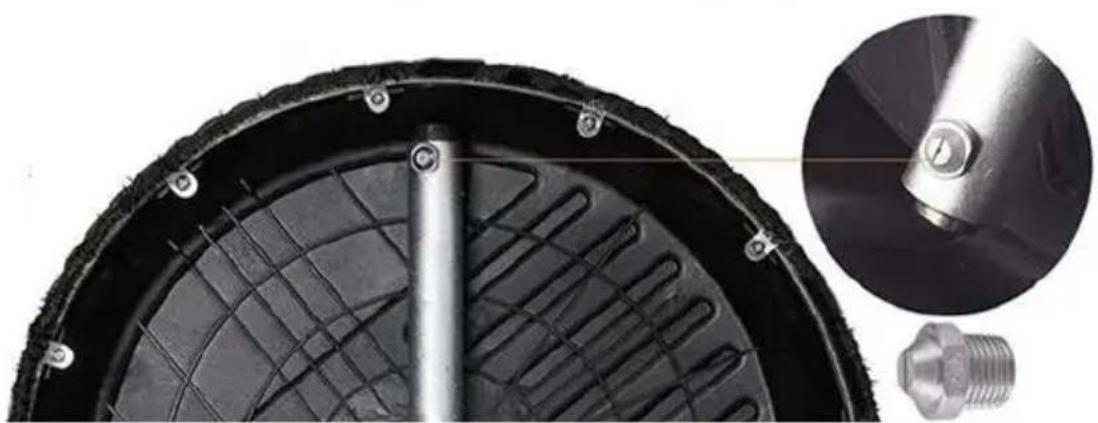

How to Replace Nozzle for Surface Cleaner

1. Use a water inline filter to avoid a nozzle blocked by sand or other 2. If blocked, remove the nozzle. clean with needle and rinse with fresh water.

If the nozzle is severely blocked and not work, using an appropriately wrench remove the nozzle from the spray bar. Align the nozzle open to reinstall the new nozzle to the spray bar. Tighten it securely.

Close-up of a car tire with mesh pattern and a close-up inset showing a mechanical component (no text or symbols visible)

CAUTION

1. High pressure in surface cleaner area. Risk of injury caused by improperly locked surface cleaner. Ensure you hear the "click" when inserting the surface cleaner tip into the quick connection.

2. Pull the surface cleaner to make sure it is seated properly before operating your unit.

3. Striking any raised obstacle while using the surface cleaner will da the unit. If contact does occur and causes vibration when operating the pressure washer, stop use immediately. Continuing to operate the unit could result in serious injury.

4. Do not use on windows. Do not run over freestanding corners.
5. Never operate in the same area for more than 2 seconds, or dar may occur.
6. The surface cleaner is not suited to scouring or scrubbing.

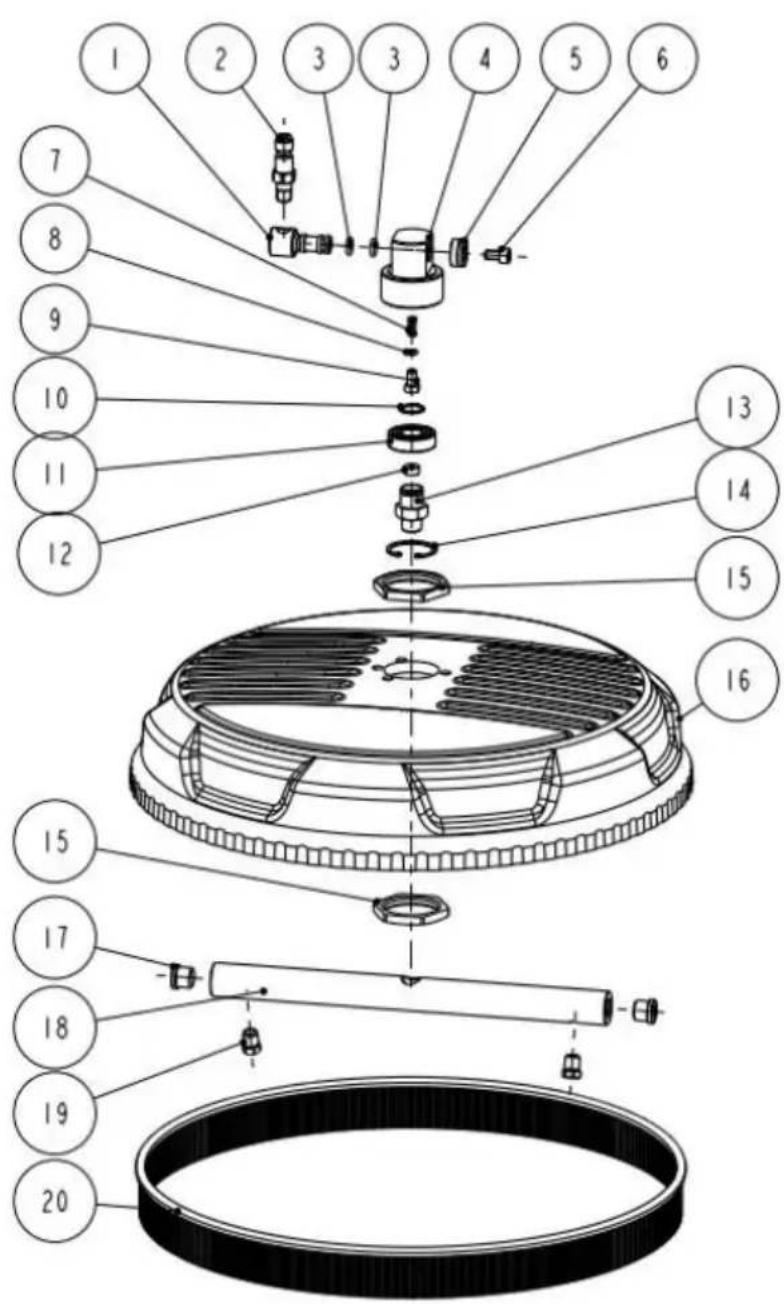

Exploded view diagram of a mechanical assembly with numbered parts for identification

Number	Name	Quantity
1	Horizontal Axis	1
2	Quick-Connect Coupling	1
3	O-Ring	2
4	Bearing Housing	1
5	Bearing Cap	1
6	Hex Socket Pan Head Scr	1
7	Spring	1
8	O-Ring	1
9	Valve Cartridge	1
10	Circlip for shaft	1
11	Deep Groove Ball Bearing	1
12	Ceramic Tile	1
13	Shaft	1
14	Circlip for hole	1
15	Nut	2
16	Plastic Chassis	1
17	Hex Socket Pipe Plug	2
18	274Rotating Rod	1
19	Spray Nozzle with Thread	2
20	Brush	1
