USER MANUAL HNT-6in-10 Vevor
Affordable. Reliable. Home Improvement.

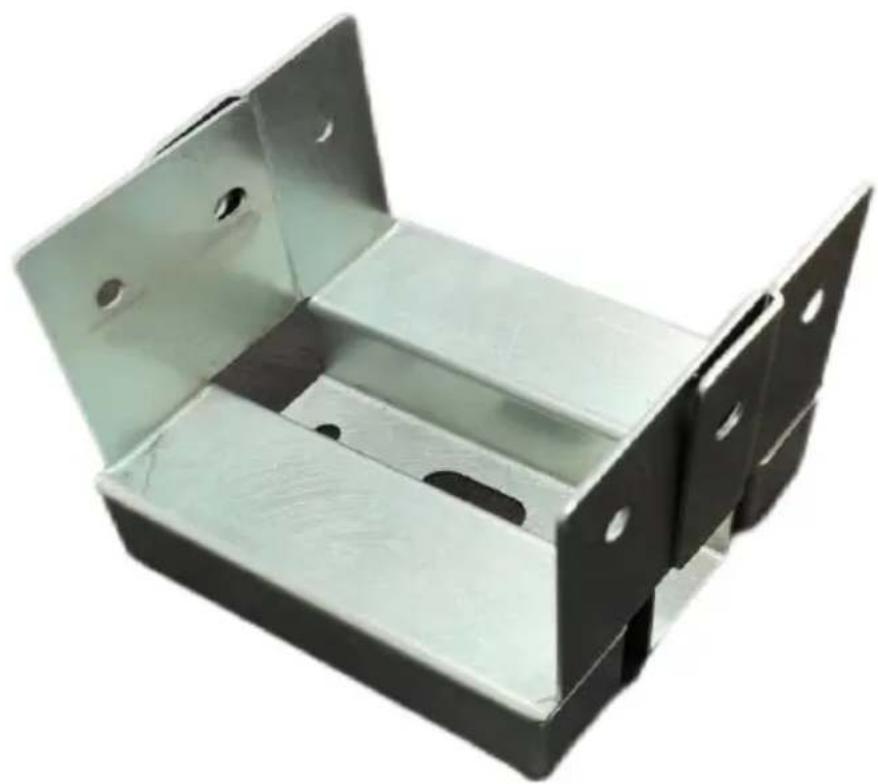

POST BASE FOR CONCRETE
MODEL:HNT-4in-10/HNT-6in-10
Technical Support and E-Warranty Certificate
www.vevor.com/support
MODEL:HNT-4in-10/HNT-6in-10
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must instructions manual carefully.
Safety Instructions
Read and understand this entire manual before assembling,installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
ALL AROUND USE
For securing wooden posts to existing concrete to ensure robust support system. Better protect the wood to provide a solid foundation for your terrace, pavilion and pavilion.
- Do not allow children to climb on the unit. 2. Keep children and away during assembly.
ASSEMBLY PRECAUTIONS
- Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
- Please wear safety goggles and work gloves properly during assembly
- Do not try to assemble the product when feeling tired or when ui influence of alcohol, drugs or medication.
- Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
- Separate and count all parts and hardware.
- Prepare the following tool: Philips Head Screwdriver.
- If using power tools, please be careful to slow down and stop when needed.
- Two people are required for assembly.
- Follow the intended uses only.

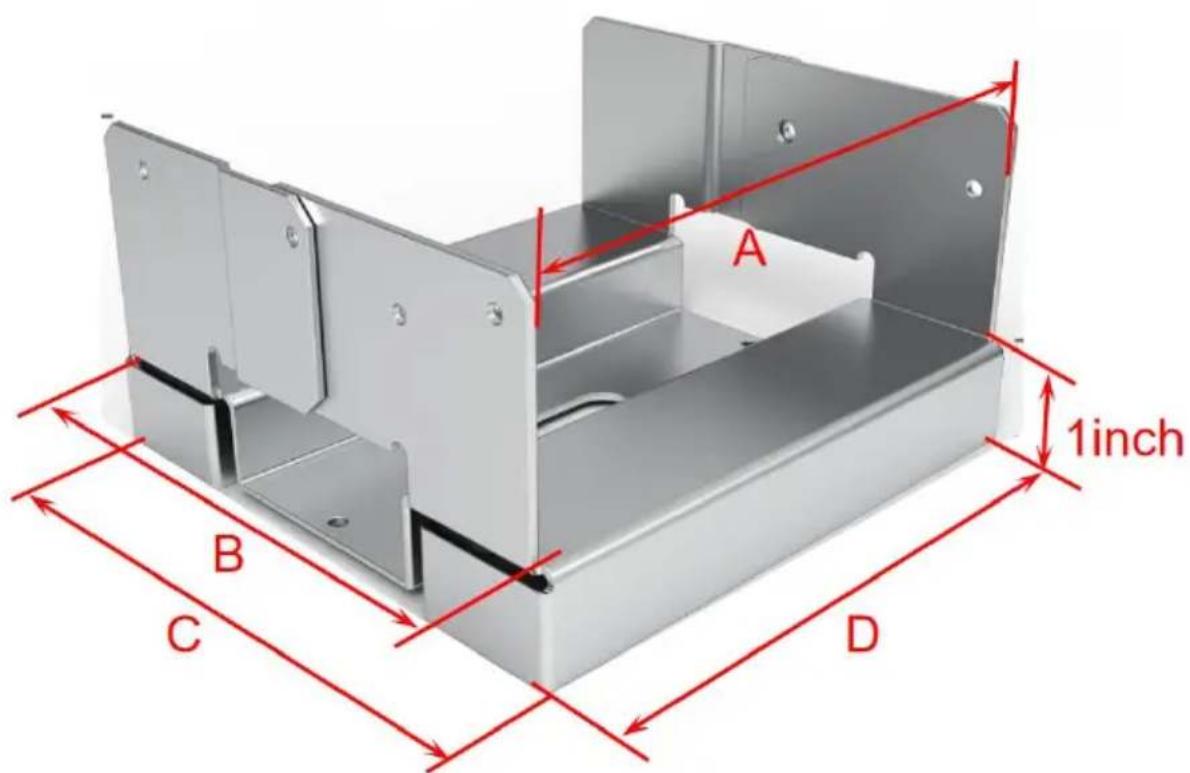

PARAMETER LIST
| Product Model | HNT-4in-10 | HNT-6in-10 |
| Number of kits | 10pcs | 10pcs |
| Product cavity size (A*B) | 3.53×3.56inch (89.6×90.5mm) | 5.49×5.57inch (139.5×141.5mm) |
| Base size (C*D) | 3.78×3.56inch (96×90.5mm) | 5.68×5.57inc (144.5×141.5mm) |
PARTS LIST
| Product Model | HNT-4in-10 | HNT-6in-10 |
| E:Post Base | 10pcs | |
| F:Self-tapping Screw | 10pcs | |
| G:Serrated Expansion Sleeve | 10pcs | |
| H::washer | 10pcs | |
| I:Self-tapping Screw | 80pcs | 100pcs |
Our products are constantly updated, the pictures may be different fro shape of the actual items, please refer to the actual items.
Count the parts when receiving samples.
Wrench J is used to turn the screws
INSTALLATION GUIDE

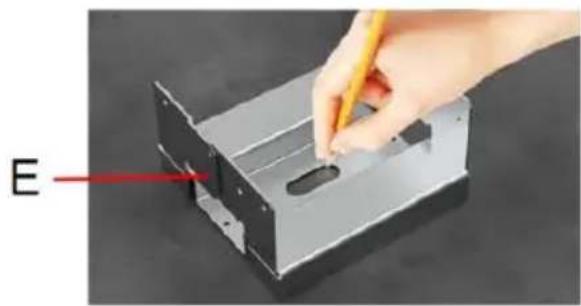

1.Mark 1 points on the ground through 1 holes at the Post Base E of the base;Drilling in the marking position using a 29 / 64'' Drill Bit;T depth of the hole was 65mm .
2.Install the 1 Serrated Expansion Sleeve I into the finished holes.

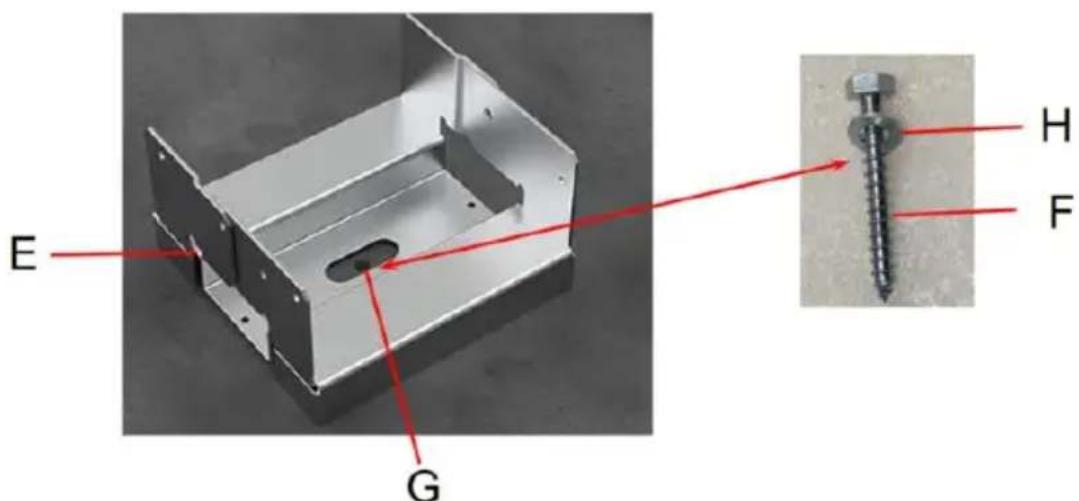

- Align the post base E-base face to the serrated expansion sleeve ( 3.2.Pass self-tapping screw F through the washer H and lock it to se expansion sleeve G.

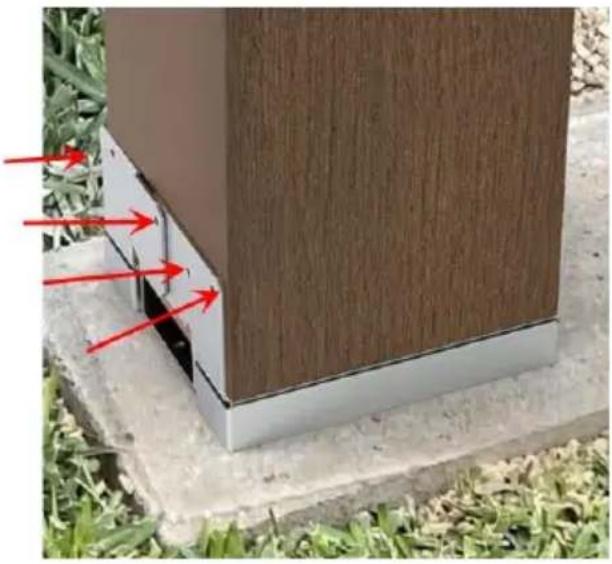

- Place wood above Post Base E and mount with 4 Self-tapping Screon each side .
Model HNT-4in-10 uses 3 Self-tapping Screws I on each side It is recommended that the wood section is 0.1inch smaller than the size.
Manufacturer: Shanghaiuxinmuyeyouxiangonsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
| EC | REP |
