Product Type	Steel Post Base for Concrete
Brand	Vevor
Model	HNT-4in-10
Number of pieces per kit	10
Cavity dimensions (L x W)	89.6 x 90.5 mm (3.53 x 3.56 in)
Base dimensions (L x W)	96 x 90.5 mm (3.78 x 3.56 in)
Material	Galvanized steel
Kit weight (estimated)	Approximately 2.5 kg
Intended use	Fixing wooden posts on concrete surface
Applications	Decks, pavilions, garden sheds, pergolas
Fixing type	Self-tapping screws and expansion anchors
Screws provided	80 self-tapping screws (type I) + 10 screws (type F)
Washers provided	10 washers (type H)
Expansion anchors provided	10 serrated expansion sleeves (type G)
Required tools	Phillips screwdriver, drill, drill bit Φ11.5 mm (29/64 in)
Recommended number of people	2
Safety instructions	Wear safety glasses and gloves, keep children away, do not use under influence
Maintenance	Periodically check the tightness of screws and the condition of the base
Corrosion resistance	Yes, thanks to galvanized steel
Warranty	Electronic warranty via Vevor support website
Origin	Imported by Sanven Technology Ltd., USA

Frequently Asked Questions - HNT-4in-10 Vevor

How many post bases does the HNT-4in-10 kit contain?

The kit contains 10 complete post bases, with corresponding screws, washers and anchors.

What are the dimensions of the cavity for the post?

The cavity measures 89.6 x 90.5 mm (3.53 x 3.56 inches). It is recommended that the wooden post section be about 0.1 inch smaller.

What type of screws are provided with the kit?

The kit includes self-tapping screws (type I) to fix the post in the base, as well as screws (type F) to fix the base to the concrete via the expansion anchors.

How to install the base on existing concrete?

Mark the hole locations, drill with a Φ11.5 mm (29/64 inch) drill bit to a depth of 65 mm, insert the expansion anchors, then screw the base with the provided screws and washers.

What tool is needed for drilling?

You will need a drill and a 11.5 mm diameter drill bit (29/64 inch) for the holes in the concrete. A Phillips screwdriver is needed for the screws.

How many people are needed for assembly?

Assembly is easier with two people to hold the base and post in place during screwing.

Can I use this product for a garden shed?

Yes, this product is designed to fix wooden posts on concrete, which is perfect for garden sheds, decks, pavilions and pergolas.

Is the product rust resistant?

Yes, the base is made of galvanized steel, which offers good corrosion and rust resistance for outdoor use.

How to maintain the post base?

It is recommended to periodically check the tightness of the screws and clean the base if necessary to avoid dirt or debris accumulation.

Is there a warranty for this product?

Yes, Vevor offers an electronic warranty. You can register your product on www.vevor.com/support for details.

USER MANUAL HNT-4in-10 Vevor

Affordable. Reliable. Home Improvement.

POST BASE FOR CONCRETE

MODEL:HNT-4in-10/HNT-6in-10

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Post Base For Concre

MODEL:HNT-4in-10/HNT-6in-10

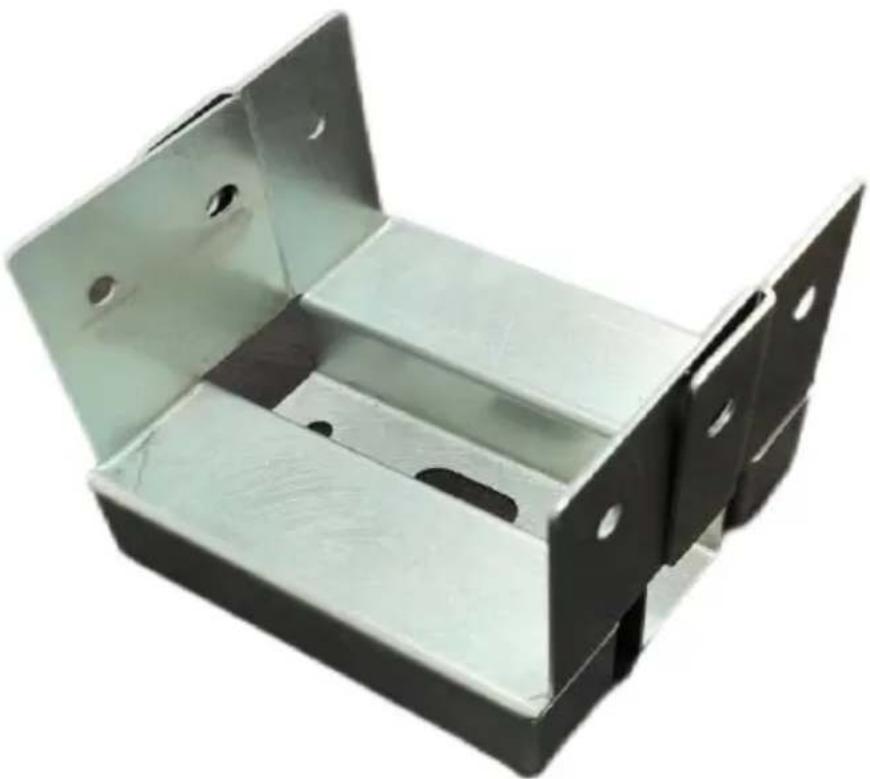

Metal bracket component with two mounting holes and a U-shaped opening (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must instructions manual carefully.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ALL AROUND USE

For securing wooden posts to existing concrete to ensure robust support system. Better protect the wood to provide a solid foundation for your terrace, pavilion and pavilion.

1. Do not allow children to climb on the unit. 2. Keep children and away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.

2. Please wear safety goggles and work gloves properly during assem

3. Do not try to assemble the product when feeling tired or when un influence of alcohol, drugs or medication.

4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.

5. Separate and count all parts and hardware.

6. Prepare the following tool: Philips Head Screwdriver.

7. If using power tools, please be careful to slow down and stop when needed.

8. Two people are required for assembly.

9. Follow the intended uses only.

PARAMETER LIST

Product Model	HNT-4in-10	HNT-6in-10
Number of kits	10pcs	10pcs

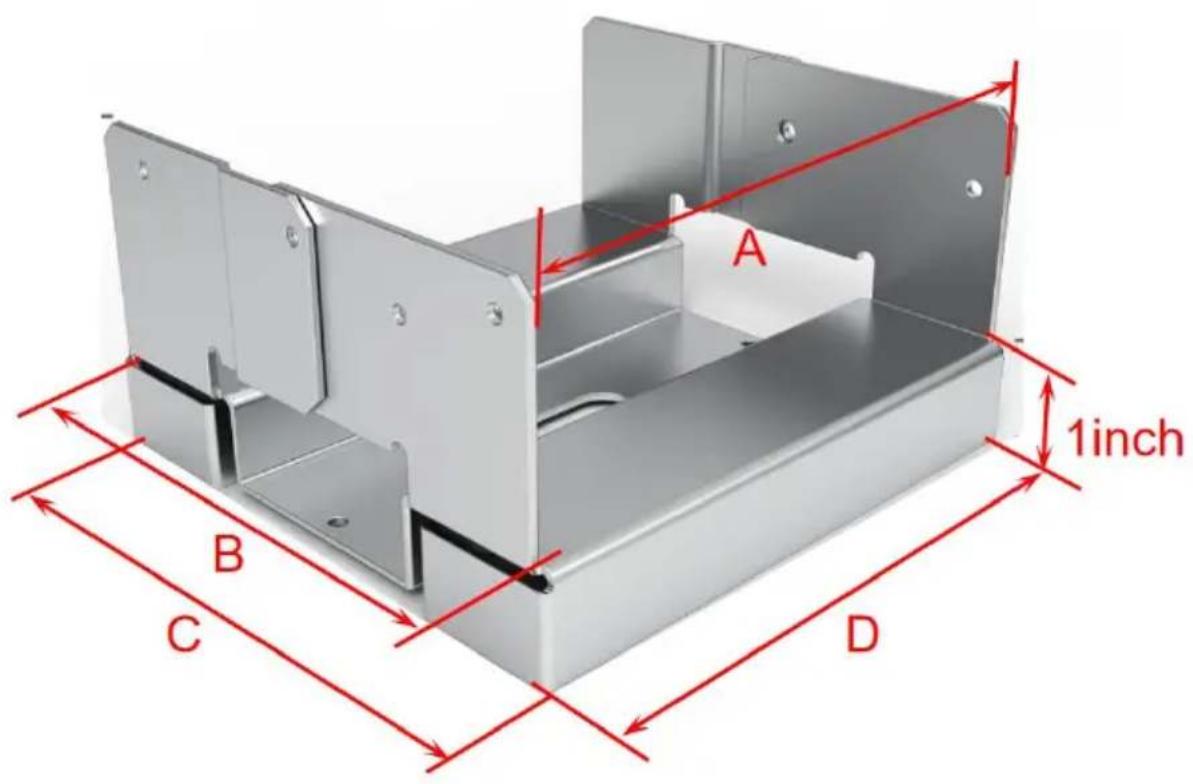

Product cavity size (A*B)	3.53×3.56inch(89.6×90.5mm)	5.49×5.57inch(139.5×141.5mm)
Base size (C*D)	3.78×3.56inch(96×90.5mm)	5.68×5.57inc(144.5×141.5mm)

PARTS LIST

Product Model	HNT-4in-10	HNT-6in-10
E:Post Base	10pcs
F:Self-tapping Screw	10pcs
G:Serrated Expansion Sleeve	10pcs
H::washer	10pcs
I:Self-tapping Screw	80pcs	100pcs

Our products are constantly updated, the pictures may be different from shape of the actual items, please refer to the actual items.

Count the parts when receiving samples.

Wrench J is used to turn the screws

INSTALLATION GUIDE

1. Mark 1 points on the ground through 1 holes at the Post Base E of the base; Drilling in the marking position using a 29 / 64" Drill Bit; T depth of the hole was 65 ~mm .

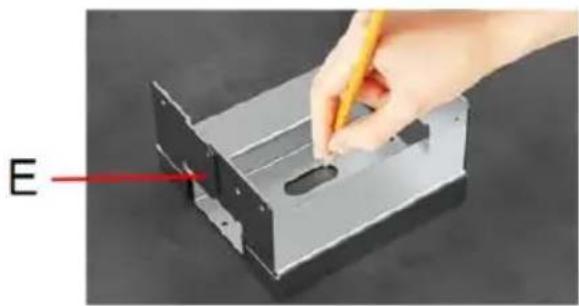

Hand using a pencil to cut a metal bracket with a red arrow labeled 'E' pointing to the part (no text or symbols on the object itself)

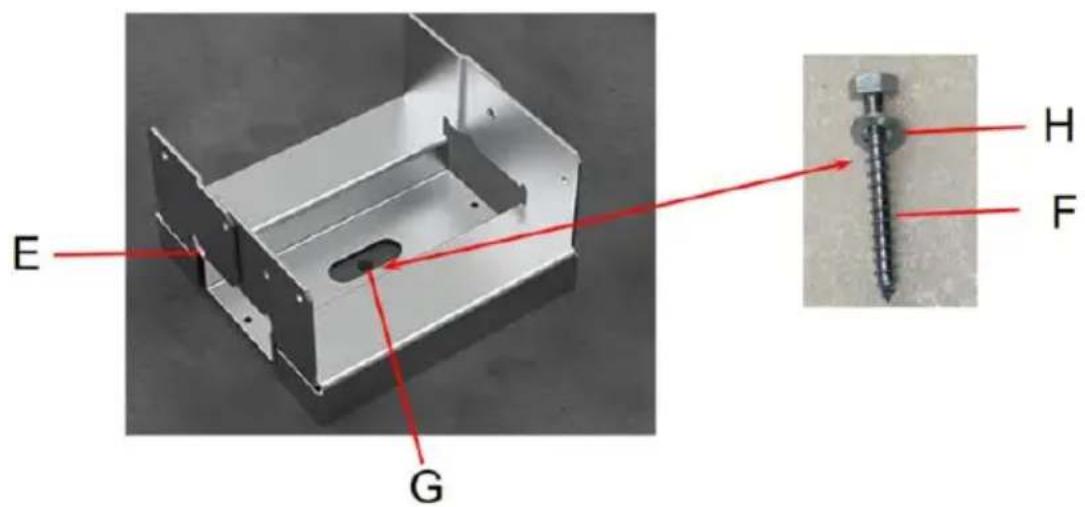

1. Install the 1 Serrated Expansion Sleeve I into the finished holes.

2. Align the post base E-base face to the serrated expansion sleeve (C) 3.2. Pass self-tapping screw F through the washer H and lock it to set expansion sleeve G.

1. Place wood above Post Base E and mount with 4 Self-tapping Screen on each side.

Model HNT-4in-10 uses 3 Self-tapping Screws I on each side It is recommended that the wood section is 0.1inch smaller than the size.

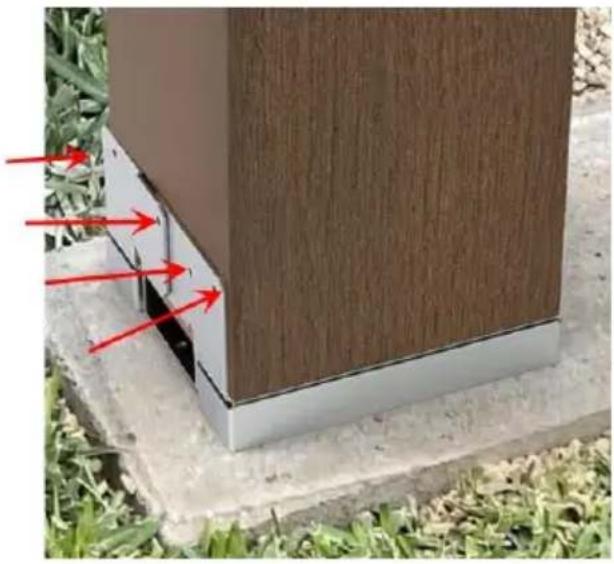

Exterior view of a wooden panel structure with red arrows pointing to corner details (no text or symbols visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
