USER MANUAL FC80FD-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

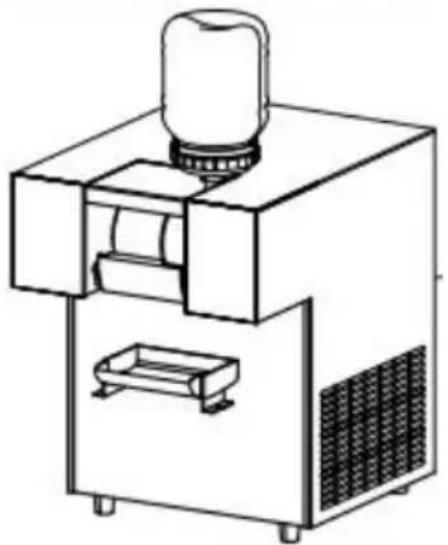

SNOWFLAKE ICE MACHINE

MODEL:FC80FD-1/FC80FD/FC125FD-1/FC125FD/FC170FD-1

/FC170FD/QLX100F2-1/QLX100F2/QLX230F10-1/QLX230F10

/QLX260F15-1/QLX260F15/QLX1203-1/QLX1203 /QLX1603-1/QLX1603/QLX1752-1/QLX1752

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:FC80FD-1/FC80FD/FC125FD-1/FC125FD/FC170FD-1/FC170FD

/QLX100F2-1/QLX100F2/QLX230F10-1/QLX230F10

/QLX260F15-1/QLX260F15/QLX1203-1/QLX1203/QLX1603-1/QLX1603/

QLX1752-1/QLX1752

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instru manual carefully.

FC

FCC Information: CAUTION: Changes or modifications not expressly approved the party responsible for compliance could void the user's to operate the equipment! This device complies with Part 15 of the FCC Rules. Ope subject to the following two conditions: 1) This product may cause harmful interference. 2)This product must accept any interference received, includ interference that may cause undesired operation. WARNING: Changes or modifications to this product not ex approved by the party.responsible for compliance could void user's authority to operate the product. Note: This product has been tested and found to comply limits for a Class B digital device pursuant to Part 15 of Rules, These limits are designed to provide reasonable pro against harmful interference in a residential installation. This product generates, uses and can radiate radio frequen energy, and if not installed and used in accordance with t instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfere will not occur in a particular installation. If this product does harmful interference to radio or television reception,which ca determined by turning the product off and on, the user is encouraged to try to correct the interference by one or mo following measures. ·Reorient or relocate the receiving antenna. ·Increase the distance between the product and receiver. ·Connect the product to an outlet on a circuit different from which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician assistance.

CORRECT DISPOSAL:

This product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed th indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic devices

1.Product overview

Thank you for choosing snowflake ice machine. This snowflake ice machine adopts international advanced technology. Technical production, using international famous brand compressors and high-quality refrigeration accessories. Beautiful appearance, reliable performance, in line with the national food machinery safety standards and. Electrical sa standards, widely used in high-end bars, coffee shops, tea shops. And high-end cold drink shops, please read it carefully before using this machine. In this manual, the machine is installed in strict accordance the provisions of this manual. Debugging and operation.

2.Matters needing attention

1. The machine is for indoor use only and should be placed in a hot and dry sturdy. On the table, there should be no heat source with a temperature higher than 70^ in the surrounding 50cm range.
2. The inlet temperature of the water-cooled machine shall not exceed 30^ , and the water pressure shall not be allowed. Lower than 0.05m The exhaust outlet of the air cooler shall not be blocked by sundries 3. According to the national electrical safety standard, this machine m be

installed.Independent power supply, power cord wearing area must not less than 2.5mm , must have good. Grounding device to ensure that the power supply line of the machine is equipped with a short circuit dev The voltage fluctuation range of single-phase power supply is between

3.Safety rules

Note: the machine will inevitably be shaken in the course of transport and must be. Put it for 2 hours before use, the machine should avoid sunlight

and high temperature.Radiant heat source.

Warning:

In order to ensure safety, the machine must be operated by personnel trained in operation.

If the supply cord is damaged, it must be replaced by the manufacture service agent or similarly qualified persons in order to avoid a hazard machine breaks down ois damaged, it is necessary to avoid danger.

It will be handled by professional maintenance personnel. When the machine is not in use for a long time, please cut off the power of machine and connect it with the raw materials. The parts of the mach contact are cleaned and then dried and stored.

This appliance can be used by children aged from 8 years and abc persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

Danger:

1. when the skin is bare, wet, wearing wet gloves or wearing wet clothes. Do not touch live plugs or switches. Do not operate those that not properly grounded.Machine, do not carry out any maintenance work on the machine before the power supply is cut off.

2. This appliance contains flammable refrigerant and foaming agent cyclopentane. Please avoid contact fire when you transport and use it. Please ask professional for servicing when the machine broke down.

Please send it to your local appointed disposal station when you disc

During using, service and disposal the appliance, please pa

attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. risk of fire warning symbol. There are flammable materials in refrigerapipes and compressor. Please be far away fire source during using, s and disposal.

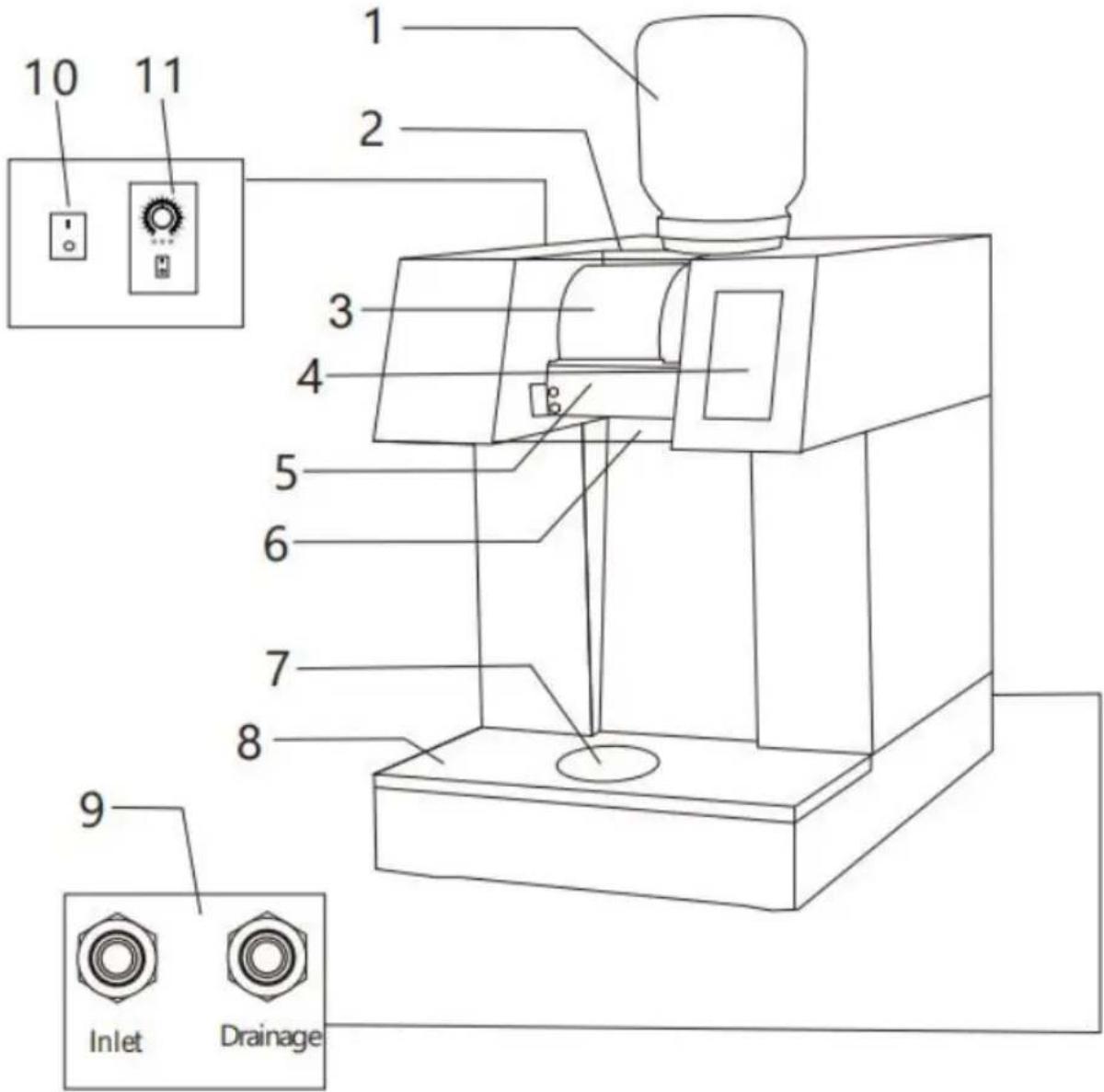

4-machine structure

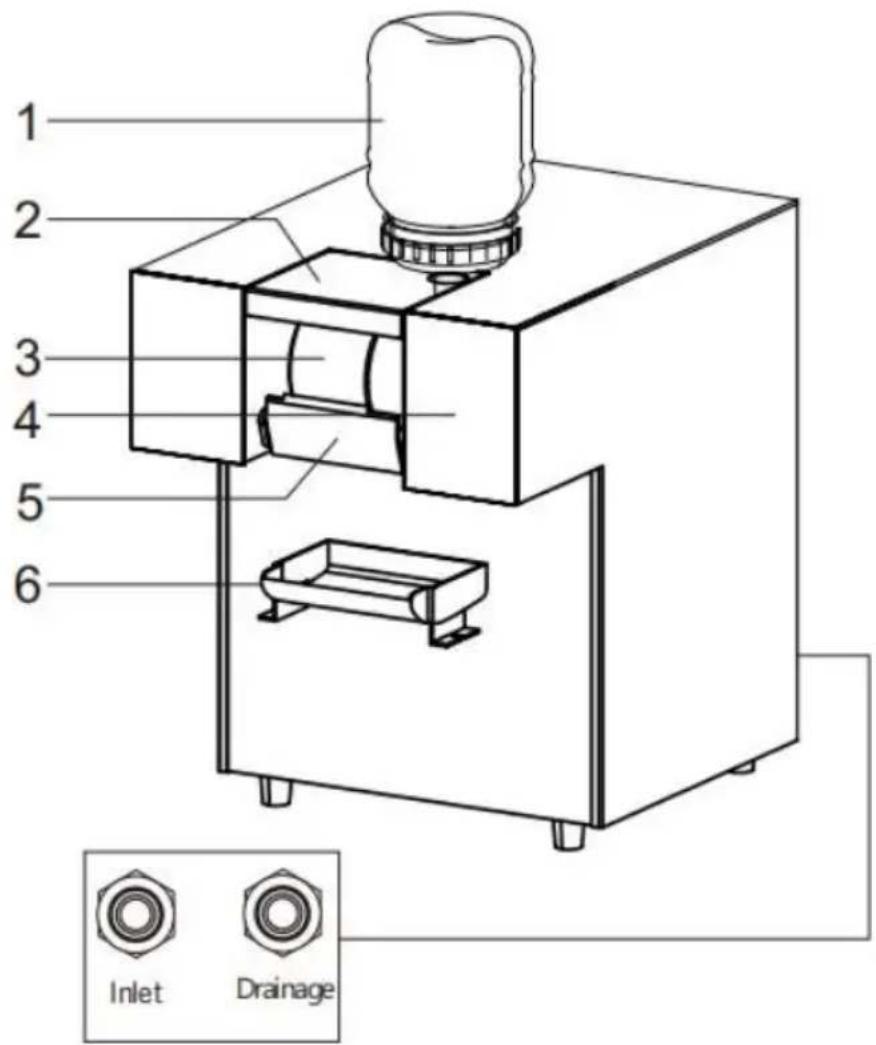

Water-cooled model with rotating plate

1.Material bucket
2.Dustproof plate
4. Operation
6.Material box

3.Evaporator
5.knife
7.Rotating disc
8.Front cover plate
9.Water inlet and outlet
10.Power switch
11.Speed

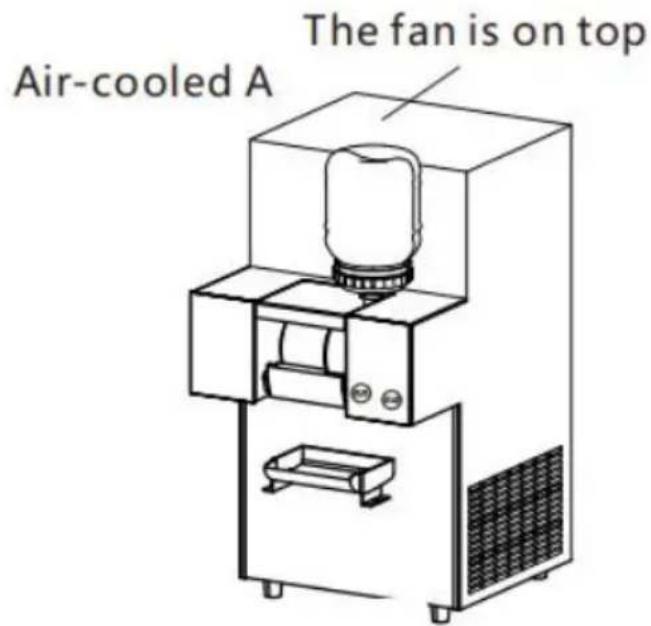

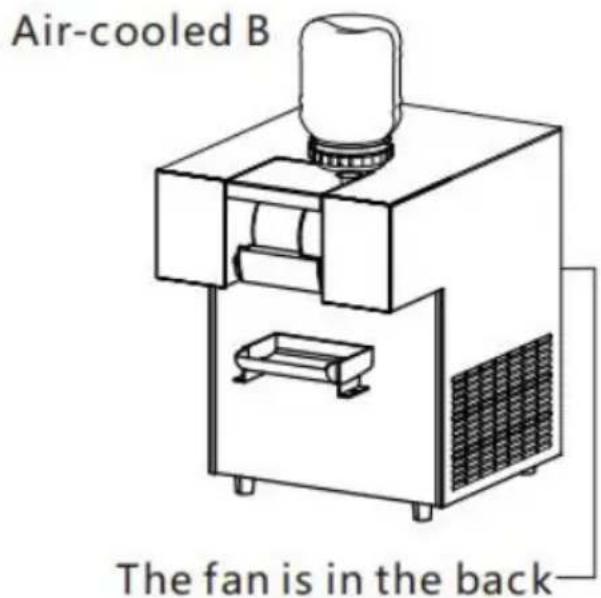

Water-cooled model without rotating plate

1.Material bucket
2.Dustproof plate
3.Evaporator
4.0operation
5.knife
6.Material box

5.Installation and debugging

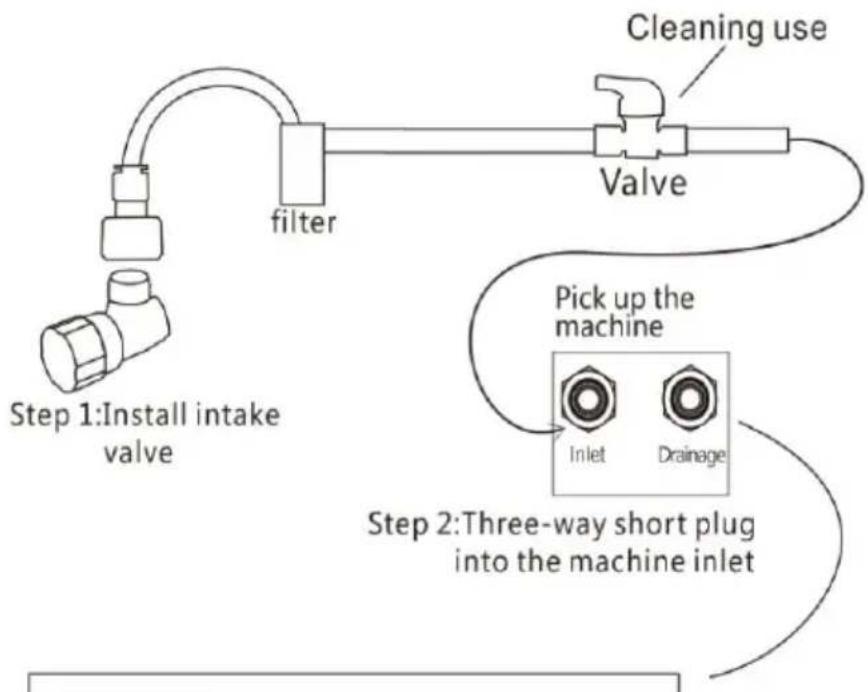

Installation of inlet and outlet pipes

A. Opening the valve is the intake pipe

B.The straight pipe is the drain pipe

Drain pipe

Step 3: Insert the drain into the outlet of the machine. The total length of intake pipe should not exceed 4m , too long will affect the cooling effect, theinfluent

temperature shall not exceed 28 degrees.

The water storage basin drain pipe is discharged into the sewer (only for self-contained rotating disk models.

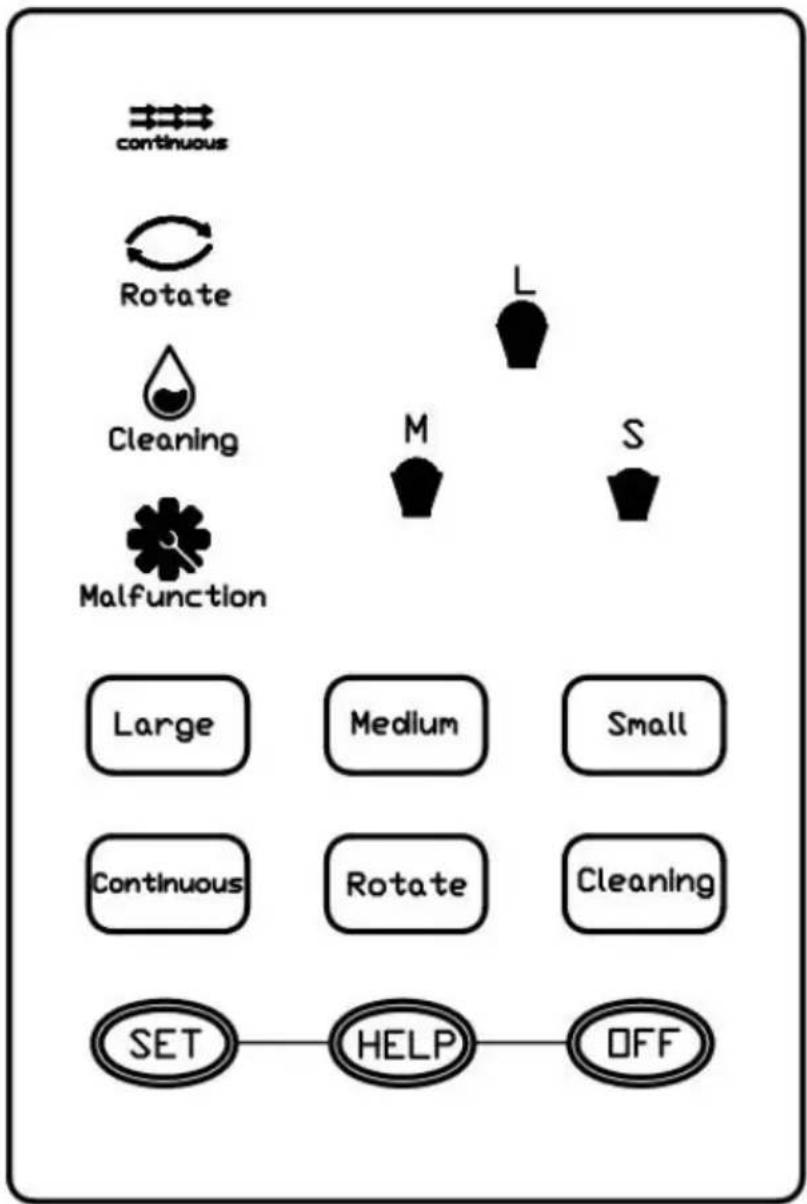

6. Operation instructions

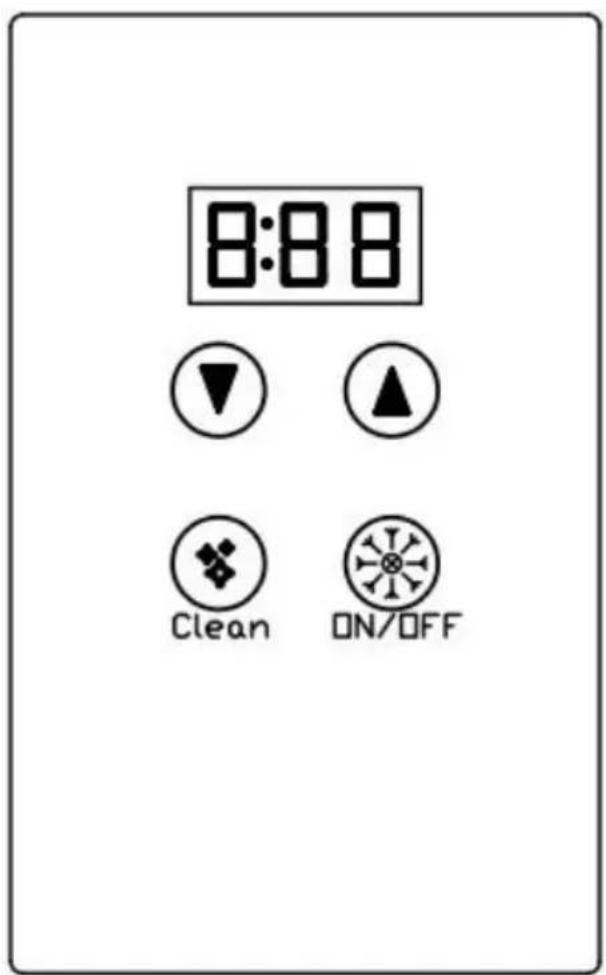

A:Section A operation panel

Press: Large,Medium,Small, work, countdown to 0.stop

Press:continuous.the machine works continuously,

press:SET,enter the settings interface

press:HEIP,go to the operation instructions page,

B.Evaporator adjustment of rotating speed, twist the adjusting knob to adjust the speed of the evaporator, just adjust to the desired ice sha

B: Section B operation panel

A:Section A operation panel

Double-click the power button and the light is on, enter standby mode, press: continuous the machine works continuously, press stop again, press:L,M,S, the machine enters the countdown to work, stop at 0.

press:clean the evaporator rotates without cooling,flush the machine with a cleaning pipe.

L,M,S, Time setting:press+,- Lights flashing,pressa gain in 6 seconds+,-set the time, automatic memory without operation after 6 seconds,

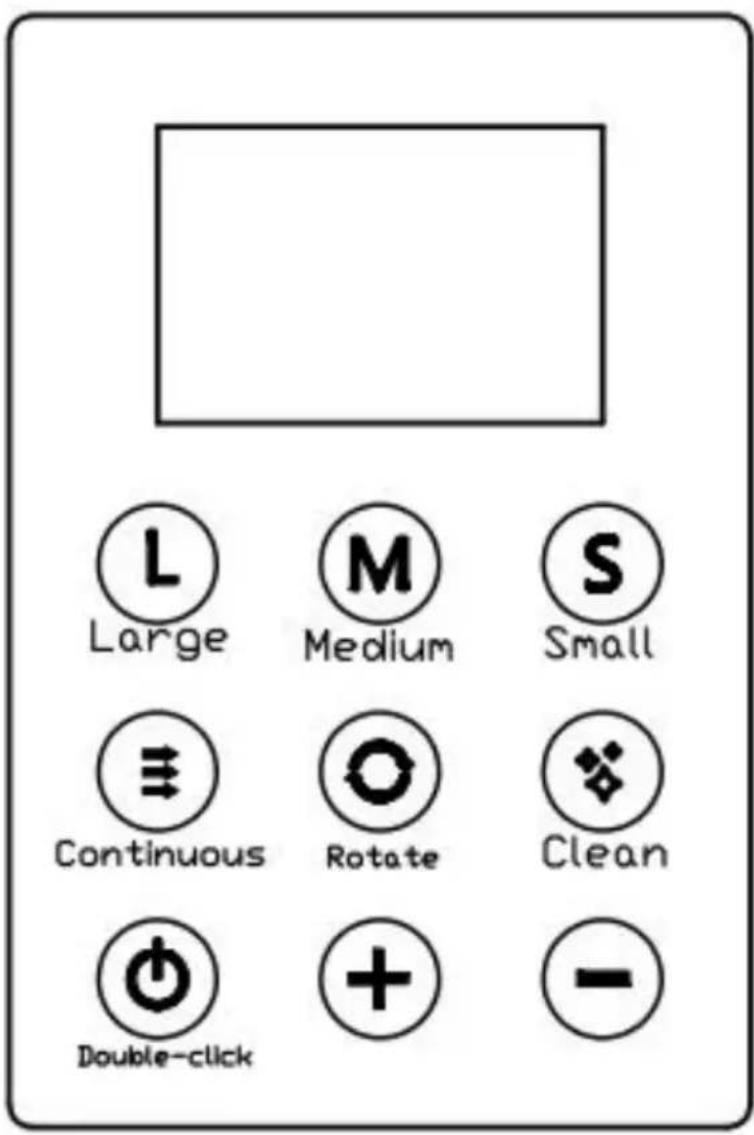

C: Two-button touch operation instruction

Press the ON/OFF key for 2 seconds, then stop for 2 seconds, and 1 or 2 keys to adjust the speed of the drum evaporatorduring the ice

work.

CLEAN: press clean2 seconds for a long time and the drum evaporator starts to rotate and clean. press 1 or 2 keys during cleaning to adjust cleaning time.

please check whether the machine has poor heat dissipation when E2 displayed.

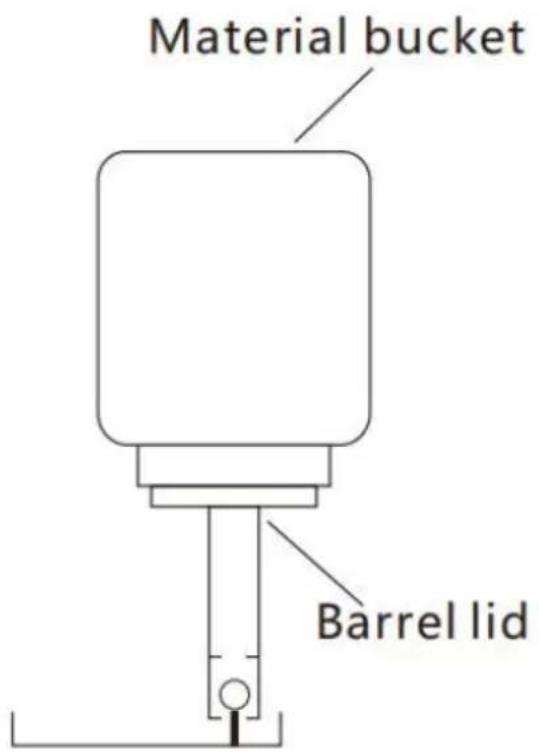

Installation method of material barrel:

Barrel loading, close the lid, and then turn the bucket upside down, put down through the dustproof board. As shown in the figure, Machine cleaning

Please check when the fault is displayed Please check the hot water the water-cooled machine,

Please check the fan for the air-cooled model, and cleaning the radia

7.Machine maintenance

After using it every day, the machine should be cleaned, first remove material box and clean it, then rinse the evaporator and knife with a cleaning pipe, at the same time, press the switch to make the evaporator turn. Air-cooled model: The radiator should clean the dust every 3 months gently sweep the radiator with a brush when cleaning,

Water-cooled machine: the influent filter is cleaned every 6 months, so not to affect the cooling effect.

Warranty description

As this machine is used abroad, our company is unable to provide warranty service.If the machine breaks down within one year from the purchase date, our company can provide spare parts free of charge. But transportation and maintenance costs are not included. Get free accessories with machine nameplate and purchase record as proc

8.Malfunction analysis

Trouble	Reason	Analyze	Maintain
The machine is not responding	No electricity	Socket loosening	To repair or repla
	There is power and cannot be operated	This switch or controller is broken	To repair or repla
Uncooled	Compressor doesnot work	Bad compressor or controller	To repair or repla
	The compressor is not refrigerate	Refrigerant leakage	Inspection and maintenance
Cooling difference	The middle part freezes	Refrigerant leakage	Inspection and maintenance
	Ice is not hard	Poor heat dissipation	Change fan or clean radiator
			Check the water source
Deicing particle difference	Uneven icing	Raw material problem	Change raw materials
		The blade is n sharp	Change the blade
		Small blade gap	Adjust the gap(0.6mm)
Evaporator	The electric motor does not turn	Chain shedding	To repair or repla
	The motor does not run	The motor or controller is broken	Change the motor or controller
The rotating disk does not rotate	The motor does not run	The motor is broken	Change motor
Leaking material	Bucket lid loose	The lid is not tightened	Tighten or change the sealing ring
