USER MANUAL SCB721 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

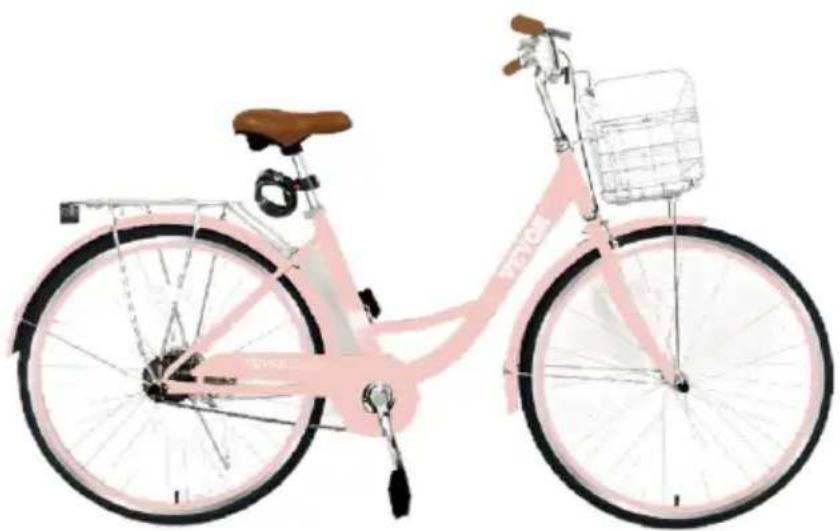

CRUISER BIKE

MODEL: SCB721-B/SCB122-B/SCB122-P/SCB722-B/SCB722-P

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SCB721-B/SCB122-B/SCB122-P/SCB722-B/SCB722-P

Illustration of a pink bicycle with a basket and front seat, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning - To reduce the risk of injury, user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this product.

WARNING

1. General Notice

• Read all these instructions completely prior to assembly, use, adjustment, and maintenance.
• Contact customer service if any point is unclear.
• Provide this manual to anyone who will use or service this bicycle and provide it with this bicycle (whether already assembled or not) if it is ever given or sold to a third party.
• Only assemble, use, adjust, and maintain this bicycle in accordance with these instructions.
• Failure to follow these instructions may lead to serious property damage and severe personal injury.

2. Traffic Rules

● Always obey all applicable local and national laws and regulations while riding.
- Do not allow use by children, by persons unfamiliar with this bicycle or these instructions, or by anyone whose physical or mental impairment precludes safe use.
- Do not ride this bicycle while tired or under the influence of drugs or medication.
- Do not ride this bicycle in ANY area prohibited to manual bicycles.
● Always maintain your reflectors and other required safety equipment.
- It is advisable to equip your bicycle with a warning device such as a horn, bell, and light in case you are riding at times of poor visibility.

3. Clothing

• Consult the legal and regulatory documents in your jurisdiction to determine whether helmets or other protective gear that meets safety standards is required for riding a manual bicycle on roads.
  ● Always wear appropriate hand protection during assembly, disassembly, adjustment, or repair of this bicycle.
• Do not wear loose footwear or clothing that may become caught in the wheels or any other moving parts while riding.
• Do not ride this bicycle with bare feet.
  ● Always wear closed-toe shoes with good traction to maintain grip on the pedals and provide protection for your feet.
• Gloves with grip padding are strongly recommended for riding. They can strengthen your hold on the handlebars and protect your hands in case of a fall.
• Wear sunglasses or other clear protective eyewear to shield your eyes from dust, debris, and insects.
• In sunny conditions, it is advisable to wear a hat or a cycling cap to shield your head and face from the sun (if helmets are not legally required).
• Also apply sunscreen to exposed skin, especially for long rides.
• For best results, choose brightly colored or reflective clothing or attach reflective accessories or strips to your clothing to enhance visibility from all angles, especially during low-light conditions.

4. Safety Checks

● Always check that both the front and the rear brakes are positioned properly before riding.
● Always check that all components and fasteners are intact and securely tightened before and after riding.
- Regularly check the reflectors to make sure that they are clean, straight, unbroken, and securely mounted.
- Also perform this check for lights if any have already been installed. Riding with low light or without reflectors or lights is extremely dangerous.
- Do not ride this bicycle if any part is damaged or shows any sign of malfunction.
● Repair or replace worn and broken components before further use, especially

bent or broken spokes and wheel rims.

- Never replace any components or fasteners with non-identical ones.

5. Sensible Use

• Only allow one person to ride this bicycle at a time.
• Do not carry children or pets on the rear rack while riding.
• If carrying pets in the front basket, ensure that this act is permitted in your jurisdiction and they are safely secured with comfort.
• For optimal safety, it is not recommended to ride your bicycle at night or in environments with poor visibility (e.g., foggy or snowy conditions).
• If you have an emergency that makes it necessary to do so, be sure to have proper lights and ride at low speed.
• Do not ride this bicycle in extreme weather conditions, such as thunderstorms and hurricanes.
• If you meet with them during a ride, stop your bicycle, find a safe shelter, and wait until they pass.
• When meeting a strong wind, keep a firm grip on the handlebars, lean into the wind, and adjust your position as needed to maintain control.
• In wet weather, be careful to avoid sharp turns, which are easy to cause an accidental fall.
  ● Always be mindful of your speed.
• Be sure to have sufficient room to brake in an emergency.
  ● Always allow more distance for braking when riding through leaves, loose gravel, or other debris, as these can affect the stopping power of your brakes.
  ● Always be cautious when using the front brake.
• While riding down slopes, do not use the front brake only BUT apply both brakes simultaneously.
  ● Always be alert for people, animals, or any obstacles that may appear in front of you while riding your bicycle.
  ● Always be careful when passing parked cars, whose doors might open suddenly.

• It is advisable to install warning devices to draw their attention, BUT always be ready to turn safely out of their way if needed.
  ● Always be careful at road and rail crossings.

• Slow down and check both ways for oncoming traffic.

• Do not ride this bicycle near precipices or on highly uneven, sandy, or sloped surfaces.
• Do not carry packages or objects on your bicycle in a way that obstructs your view of the road.

- Do not load this bicycle with more than 330 pounds (149.68 kg), including 11 pounds (5 kg) in the front basket and 110.2 pounds (50 kg) on the rear rack.

- Do not use harsh abrasives or caustic chemicals to maintain this bicycle.

- In winter and summer, it is recommended to inflate the tire in 40psi.

- Place this bicycle in locations inaccessible to children after each use.

- Otherwise, provide constant supervision to avoid accidents.

- To prevent theft, use the provided cable lock and other appropriate tools to lock this bicycle to immovable objects between uses, especially when parking it outdoors.

PRODUCT CONFIGURATION

Model	SCB721-B	SCB122-B	SCB122-P	SCB722-B	SCB722-P
Wheel Specifications (inch)	24	26	26	26	26
Adjustable Speed	7th gear	1th gear	1th gear	7th gear	7th gear
Suggested Inflation Pressure (psi)	40	40	40	40	40
Total Max Capacity (lbs)	330	330	330	330	330
Rider Height Range (cm)	135-170	155+	155+	155+	155+
Front Basket Max Capacity (lbs)	11	11	11	11	11
Rear Rack Max Capacity (lbs)	110	110	110	110	110
Colour	Light Blue	Light Blue	Pink	Light Blue	Pink

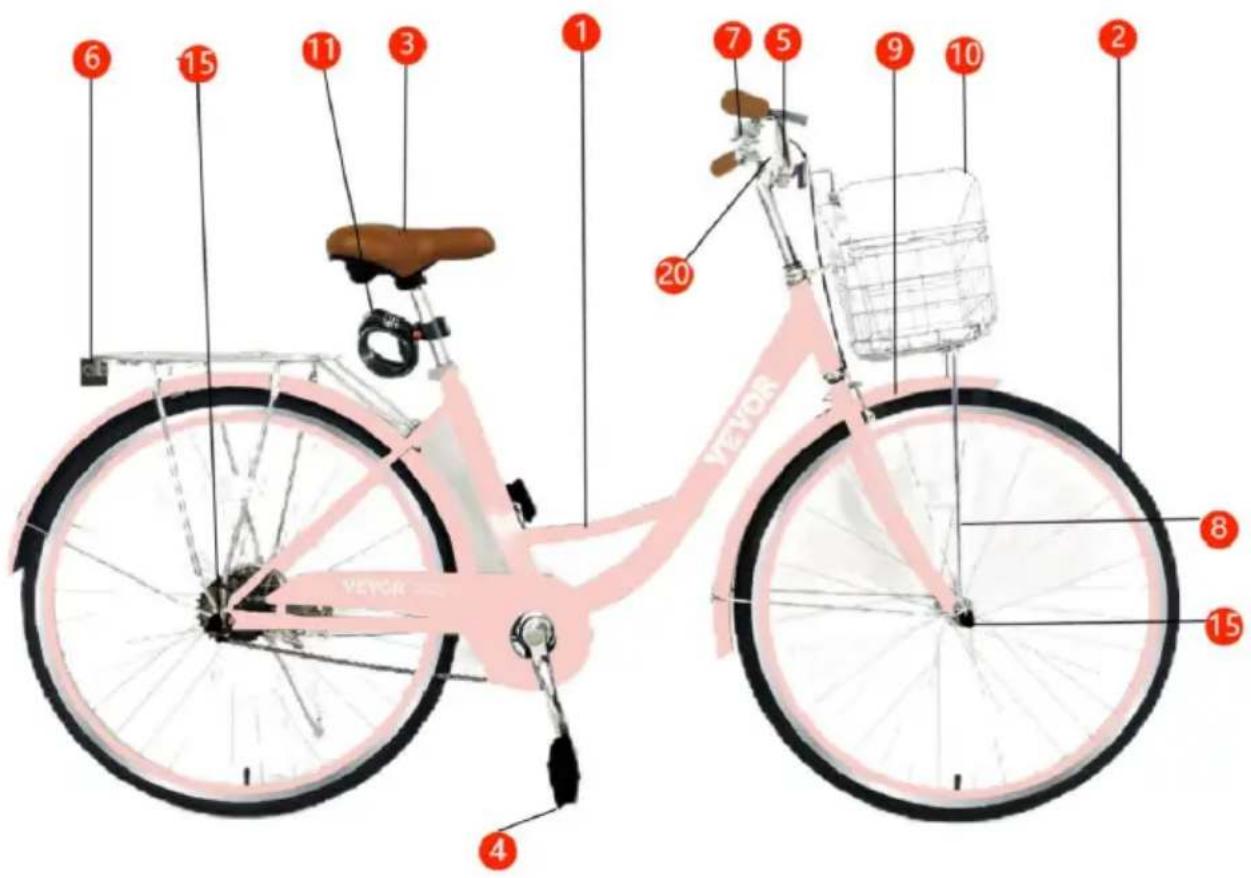

PARTS LIST

1 2 3 4 5 6 7 8 9 10 11 15 20 Veyor Veyor

No.	Name	Photo		Qty.

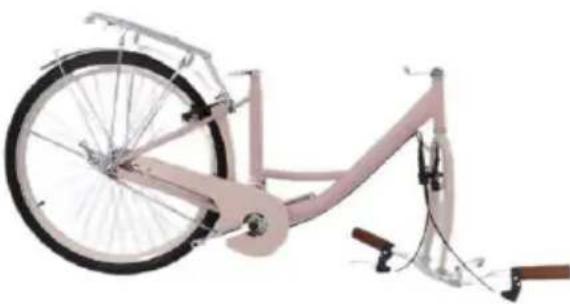

1	Main Frame With Rear Wheel			1
2	Front Wheel			1
3	Seat And Seat Post			1
4	Pedals			2
5	Front Reflector			1
6	Rear Reflector With 2 Nuts			1
7	Bell			1
8	Front Basket Support			1
9	Front Fender With Stay			1
10	Front Basket			1
11	Cable Lock			1
12	Manual	[BTW3]		1
13	Gloves			1
14	Front Basket Parts Sets	A.M5×16 Phillips Bolts		4
		B. Installation board		3
		C.M5 nuts		2
15	Wheel Caps			4
16	5 mm Hex Wrench			1
17	6 mm Hex Wrench			1
18	8×10 mm Wrench			1
19	13×15 mm Wrench			1
20	Phillips Screwdriver			1
21	Decorative Cover			1

INSTALLATION INSTRUCTIONS

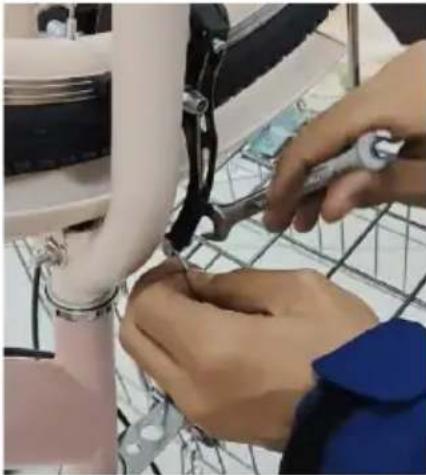

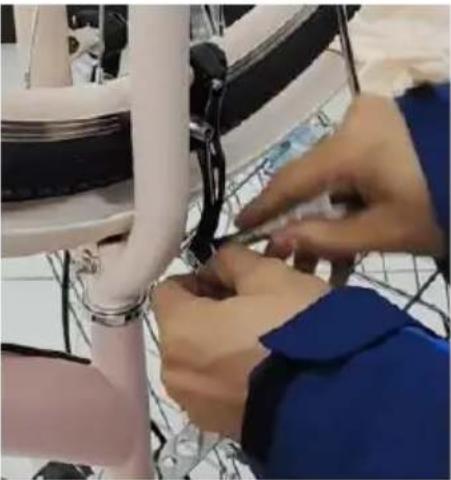

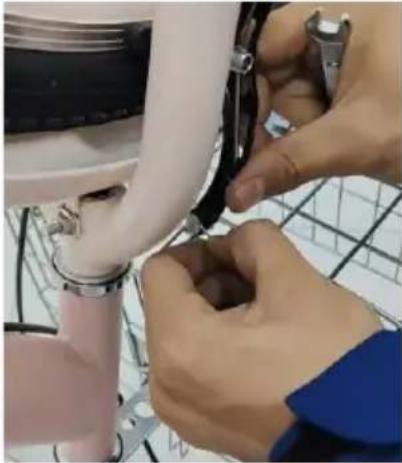

Adjustment: Brake cable tensions

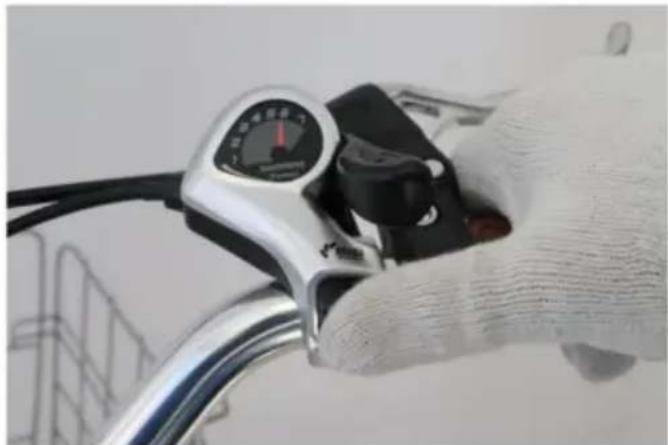

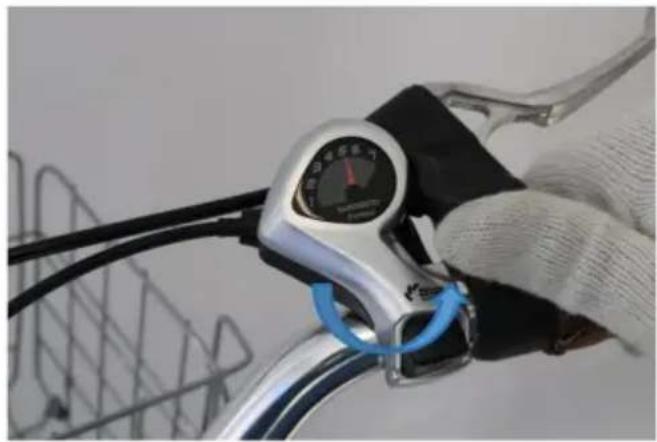

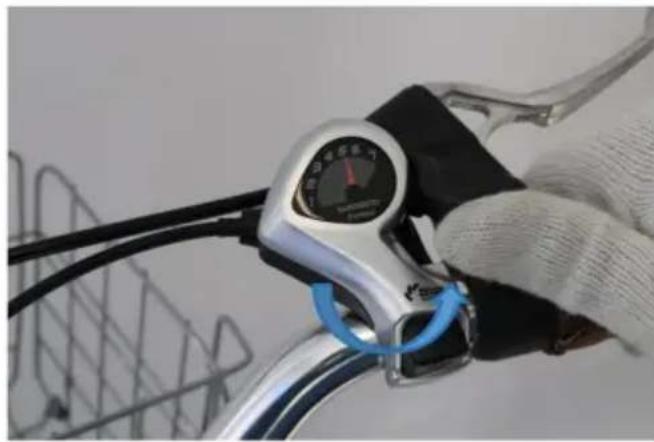

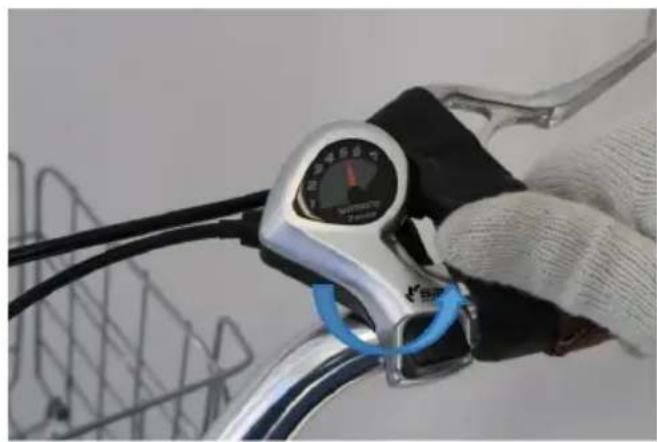

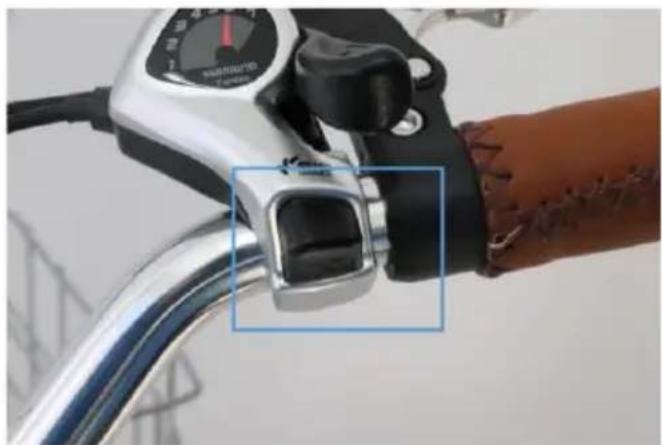

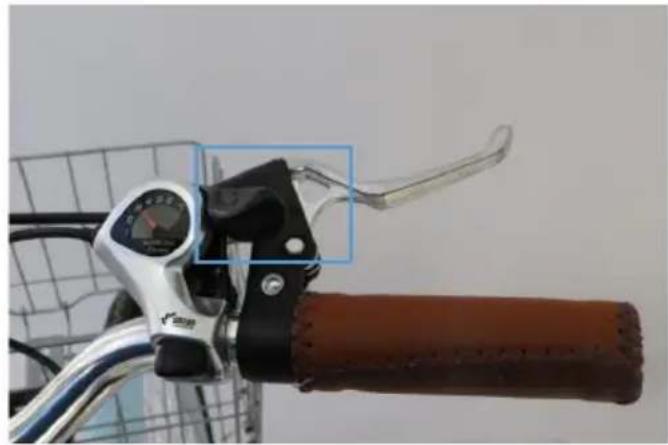

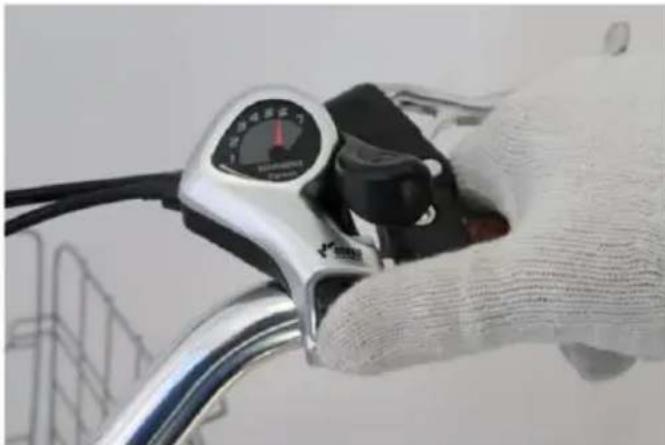

Adjus Gear

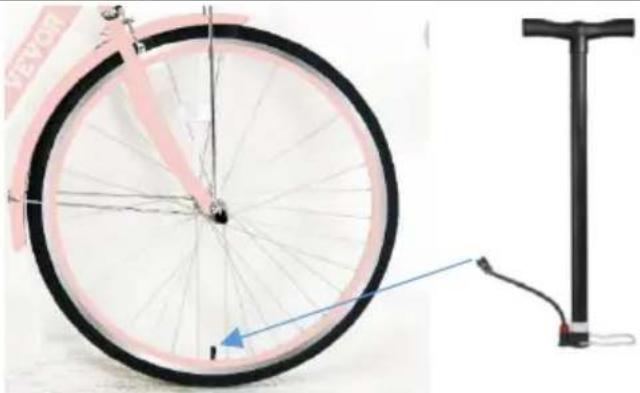

Inflatable nozzle

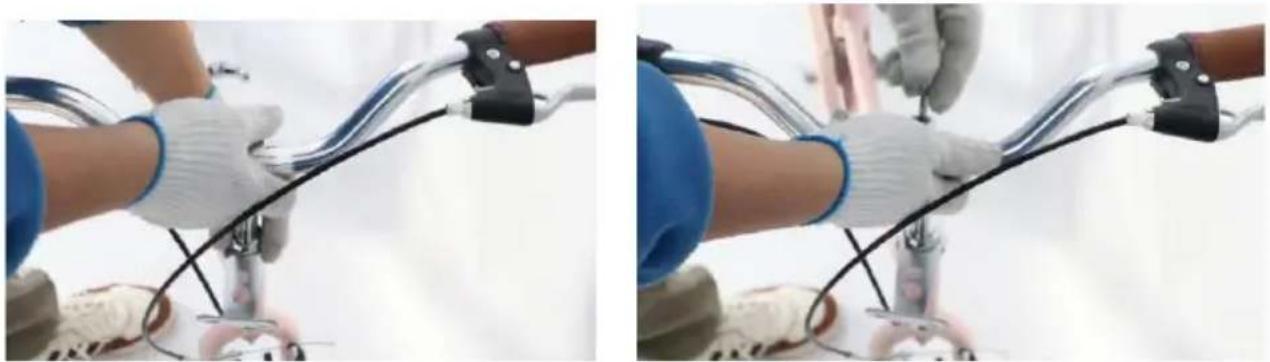

Step 1: Handlebar Installation

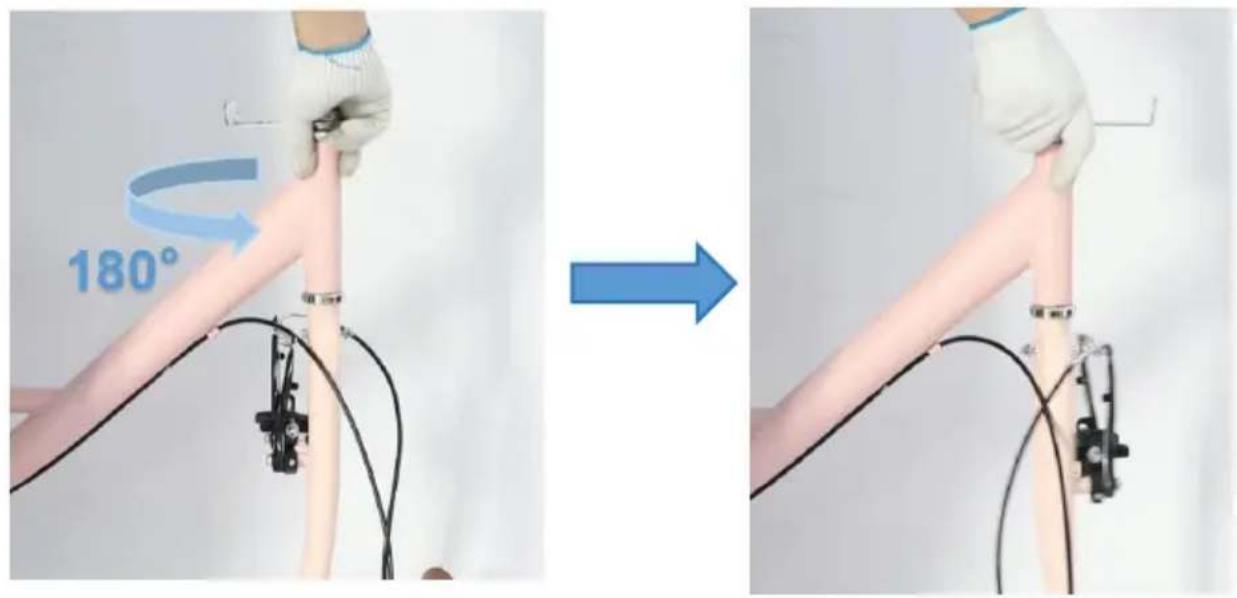

a. Please turn the front fork 180°clockwise before assembling the stem.

180°

b. Then use the 6 mm hex wrench (17) to install the stem as following pictures.

Two-panel photo showing hands using a medical or diagnostic tool on a patient's arm, with no visible text or symbols.

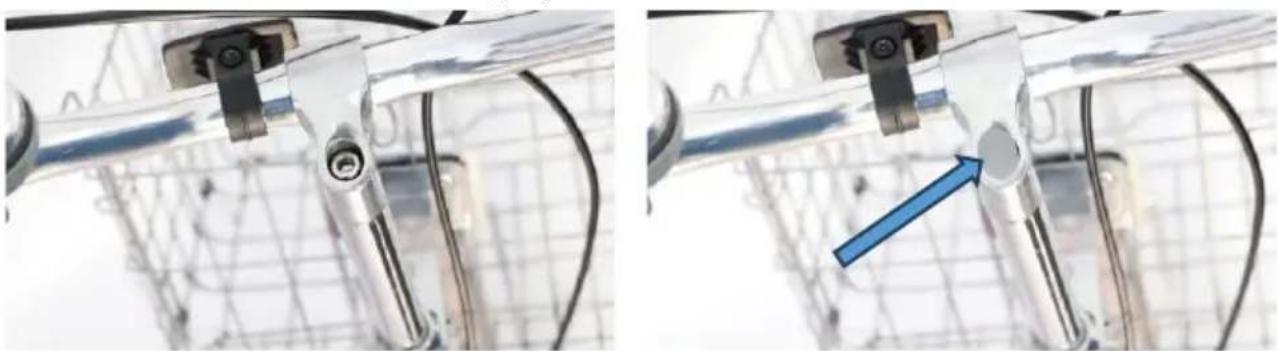

c. Press the decorative cover (21) onto the bolt to shield it.

Close-up of a transparent mechanical device with metal brackets and wiring, showing a blue arrow pointing to a circular component (no text or symbols visible)

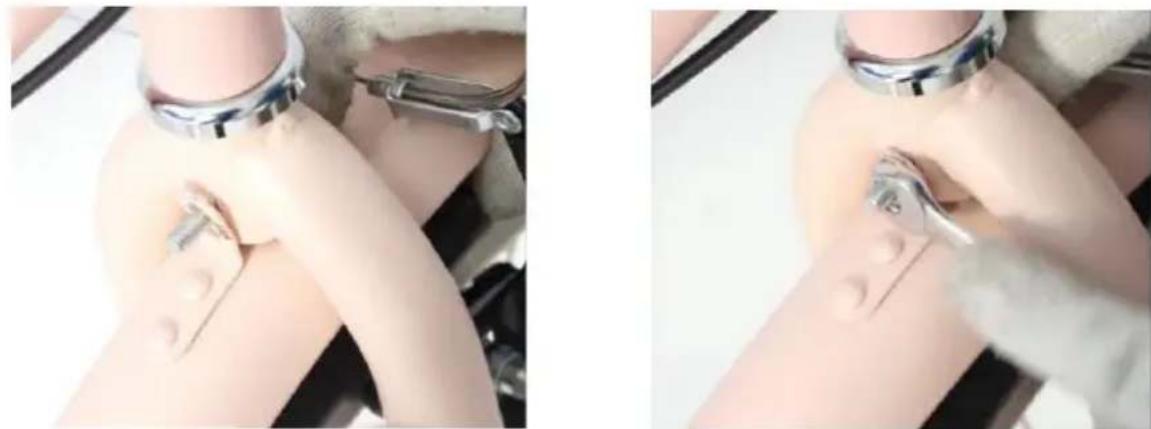

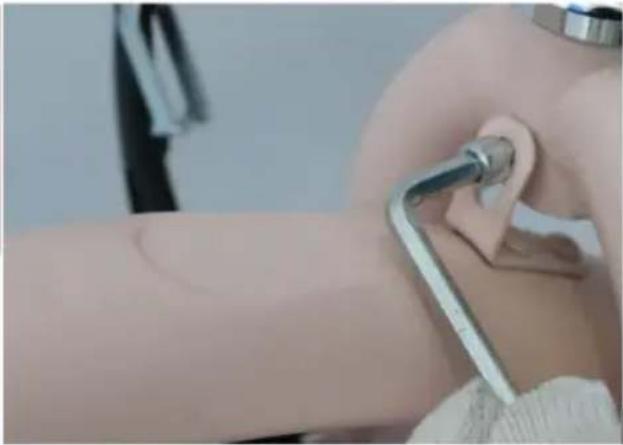

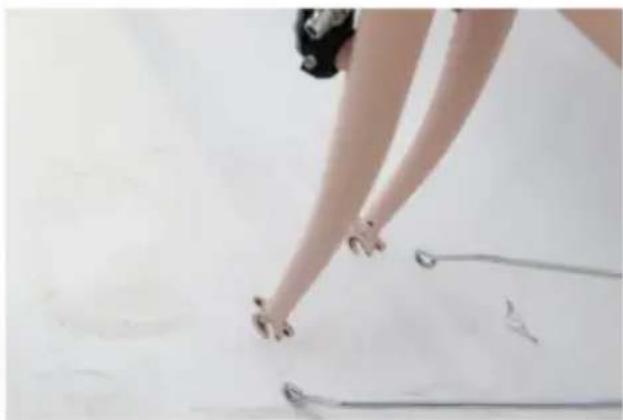

Step 2 : Front Fender Installation

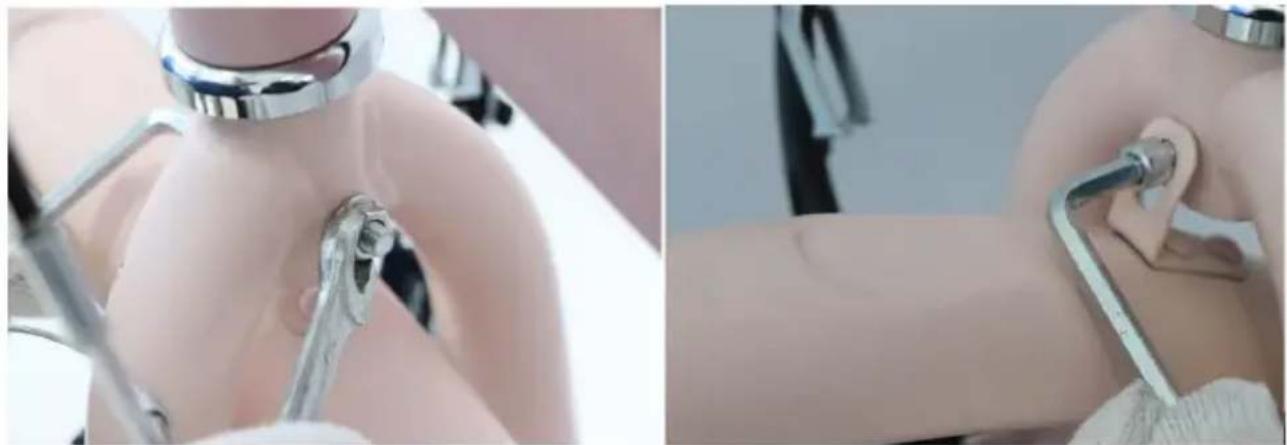

a. Before putting the front fender on the fork, please loosen the screw on the front fork with 8-10mm wrench (18) and 5mm Hex Wrench (16).

Close-up of a dental procedure on a patient's arm, showing tool manipulation and implant installation (no visible text or symbols)

b.Tighten the hex bolt and nut using the tools mentioned in Step a.

Close-up of a medical procedure showing a hand holding a syringe and a close-up of a needle inserted into a patient's arm (no visible text or symbols)

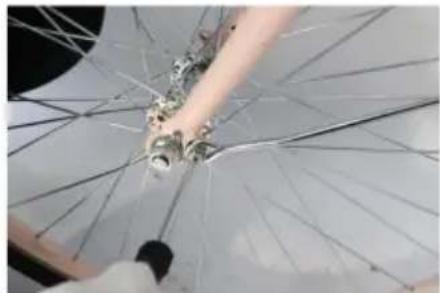

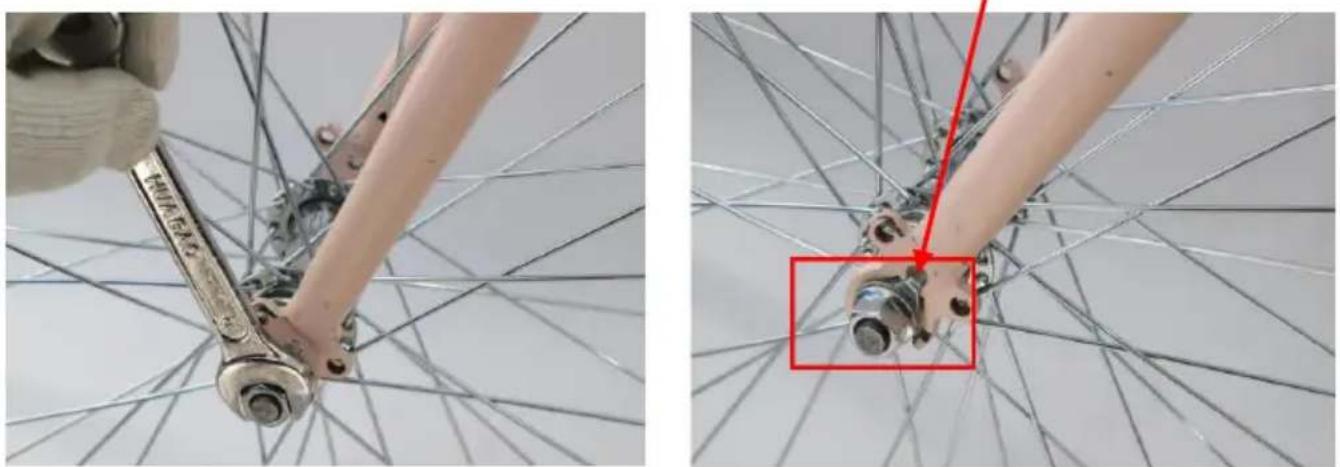

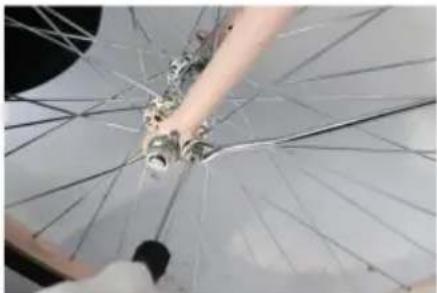

Step 3: Front Wheel Installation

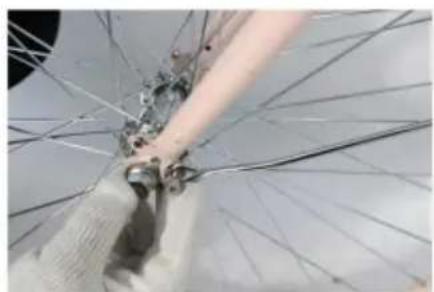

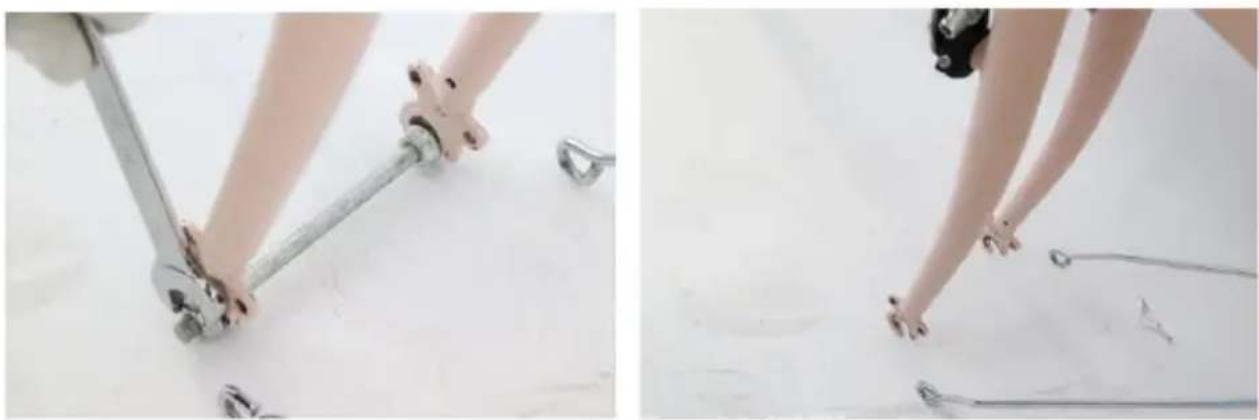

a. Please use 13-15mm wrench (19) to loosen the screw of the front hub and remove the fork protector.

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

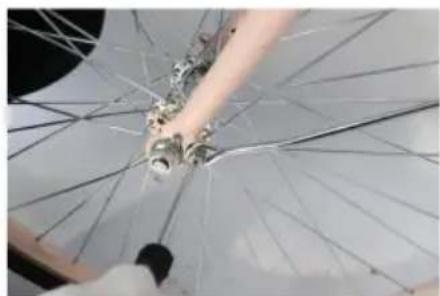

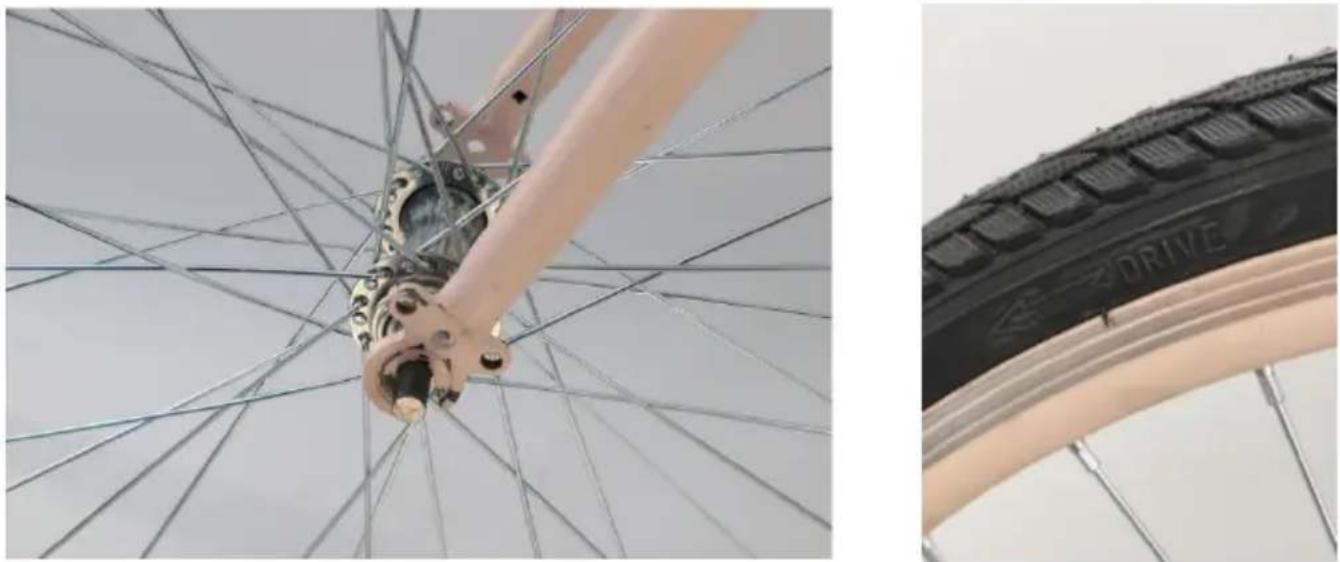

b. Please use 13-15mm wrench (19) to install the front wheel (2). Then please test if the front wheel is fixed tightly.

(Note: The front wheels are oriented forward.)

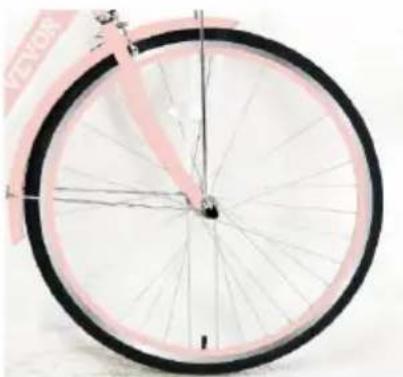

Close-up of a bicycle wheel with visible tire marking and mechanical components (no text or symbols)

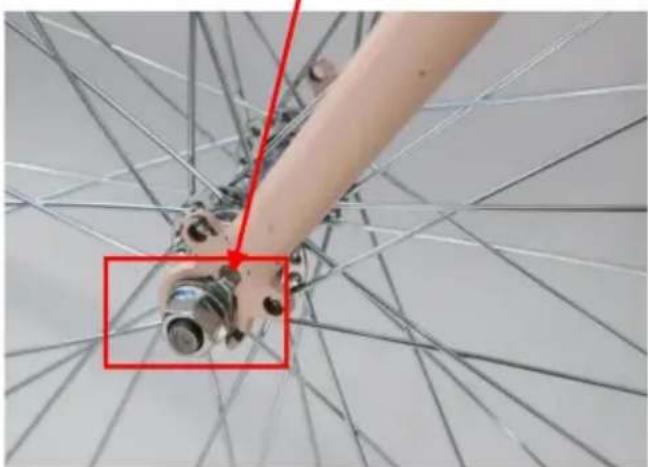

Note: Pay attention to insert this hole

Close-up of a bicycle wheel with metal hardware and a red annotation highlighting a mechanical component (no text or symbols present)

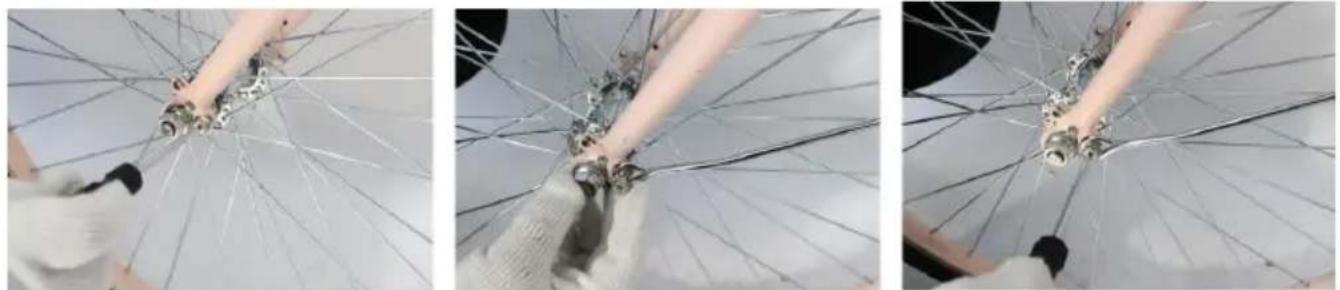

c. Locate the front fender stay (9) and the hole.
d. Align either slot on the stay with the bolt hole at the same side.
e. Use the screwdriver (20) to tighten a Phillips bolt.

Three-panel sequence showing hands using a bicycle wheel to adjust the rim, with no visible text or symbols.

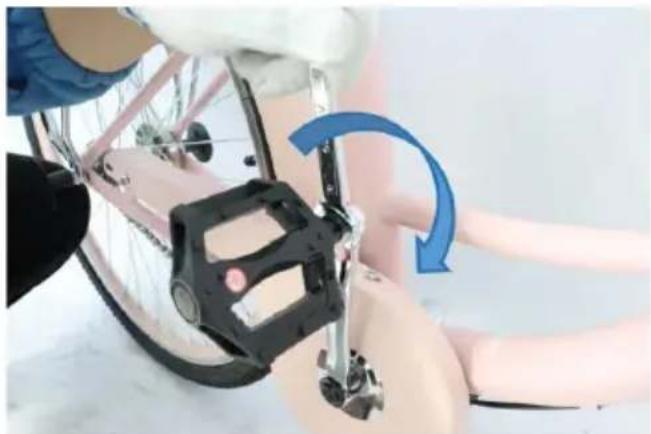

Step 4: Pedal Installation

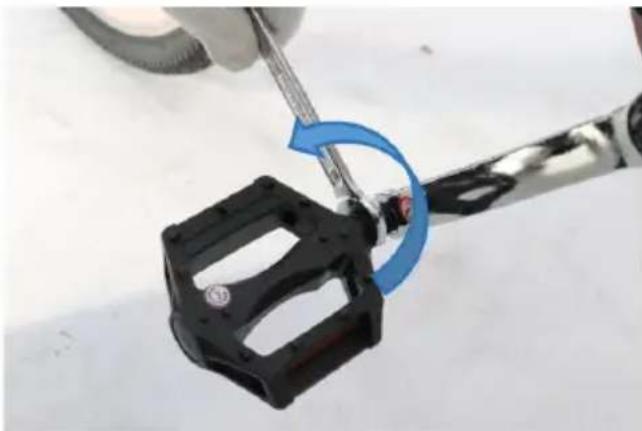

Find the 13-15 mm wrench (19) to install the pedals (4) on the left and right sides. L represents the left side, R represents the right side, follow the corresponding crank to tighten the pedals with the wrench.

(Note: Twist the right pedal clockwise and the left pedal counterclockwise)

Person assembling a bicycle frame with a blue arrow indicating rotation (no text or symbols visible)

Close-up of a robotic device being adjusted with a blue circular motion arrow (no text or symbols visible)

Note: The two pedals are different and should not be mixed up. The right pedal is marked with an R and the left with an L.

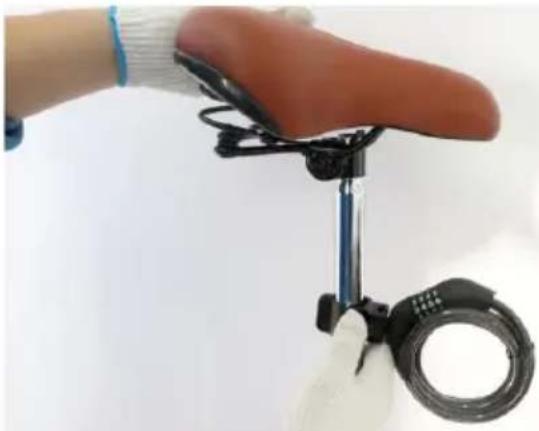

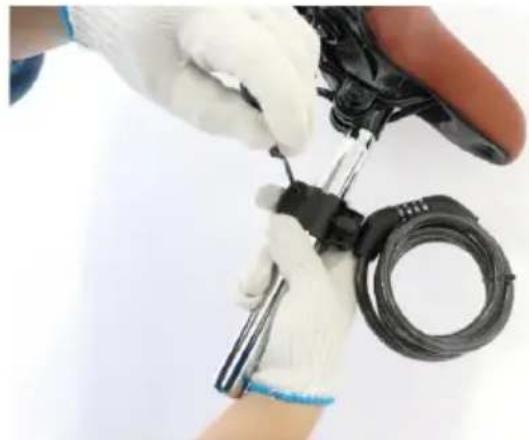

Step 5: Cable Lock and Saddle Installation

a. Wrap the clamp around the saddle post.

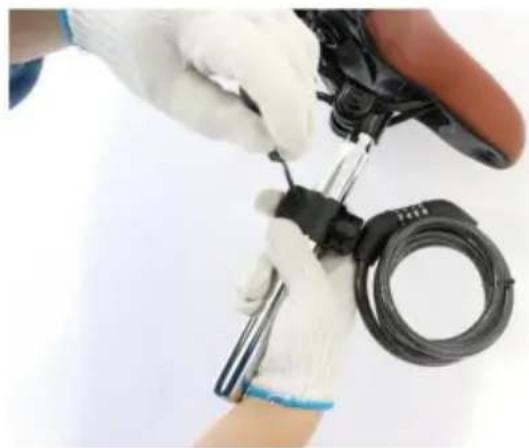

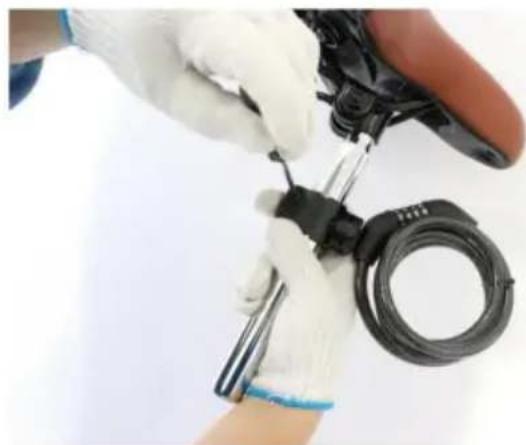

b. Use the screwdriver (20) to tighten a Phillips bolt.

Close-up of a hand holding a brown athletic shoe mounted on a metal bracket with a black strap (no text or symbols visible)

Close-up of gloved hands holding a medical device with a coiled cable (no visible text or symbols)

c. Release the locking lever on the seat tube.
d. Insert the seat post into the seat tube, adjusting it to your preferred height.
e. Spin the lever to lock the seat post in place.

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a medical procedure showing gloved hands using a surgical tool to adjust or install a patient's abdomen (no visible text or symbols)

Close-up of a gloved hand holding a small mechanical device with a brown seat, no visible text or symbols

Note: It is recommended to sit on the seat after the seat quick-release lever is locked to confirm whether there is any looseness and shaking.

Step 6: Front Basket Installation

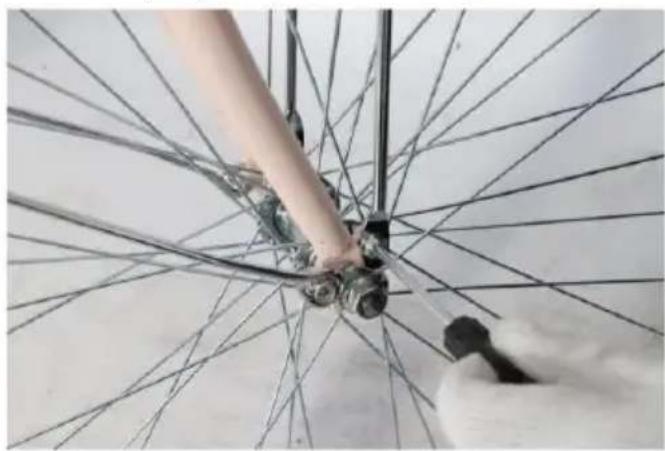

a. Mount the front basket support (8) onto the front wheel axle using its slots and tighten using 8-10mm wench (18).

Close-up of a bicycle wheel being adjusted for installation, showing metal components and wiring (no text or symbols visible)

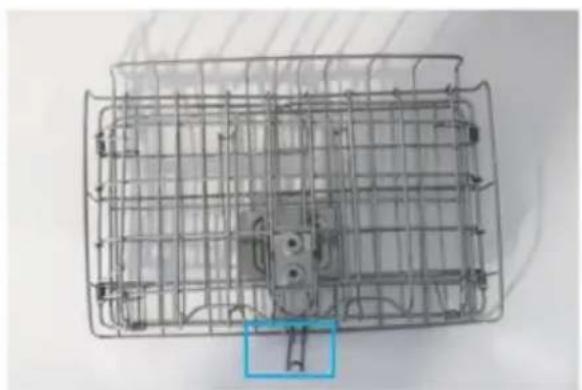

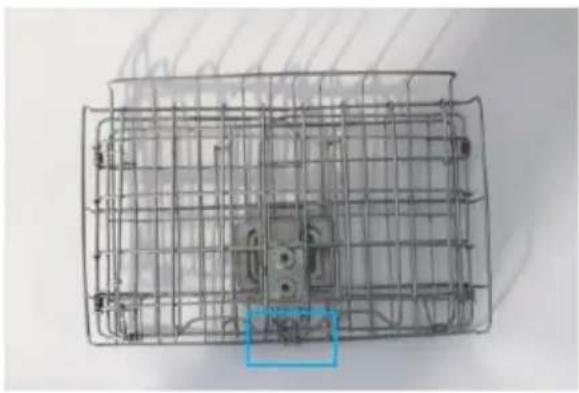

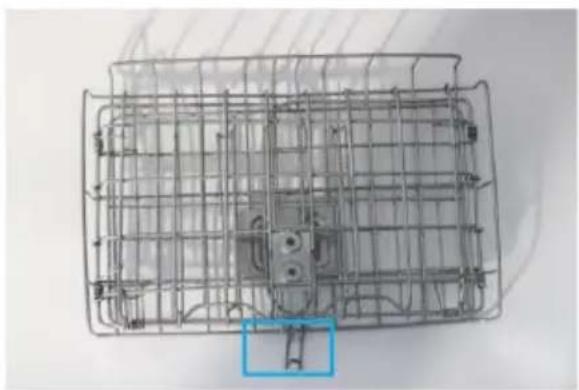

b. Unfold the basket (10) then put it on the position above the front basket support (8).

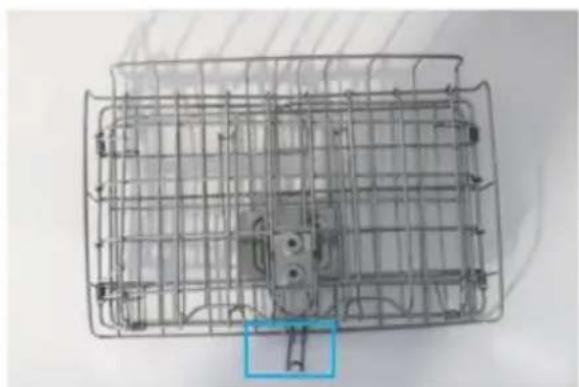

Top-down view of a wire cage with internal components and mounting holes (no text or symbols visible)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

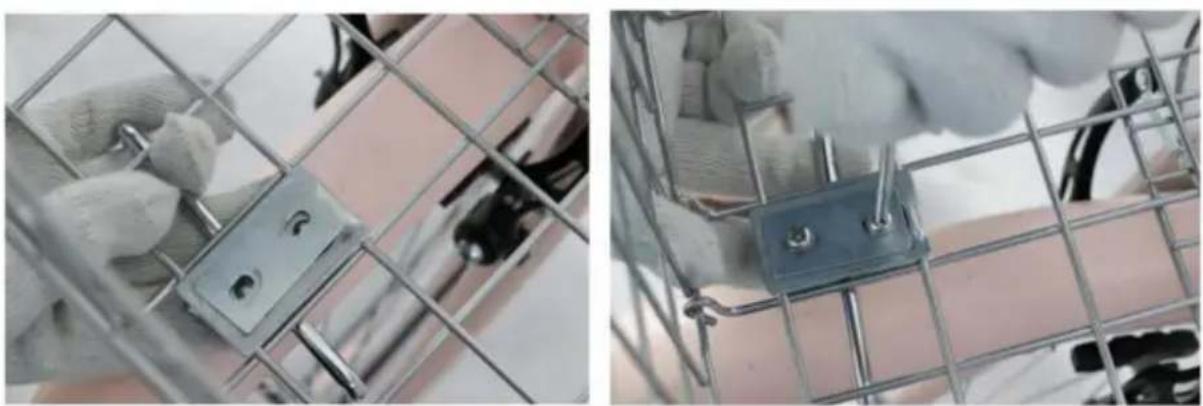

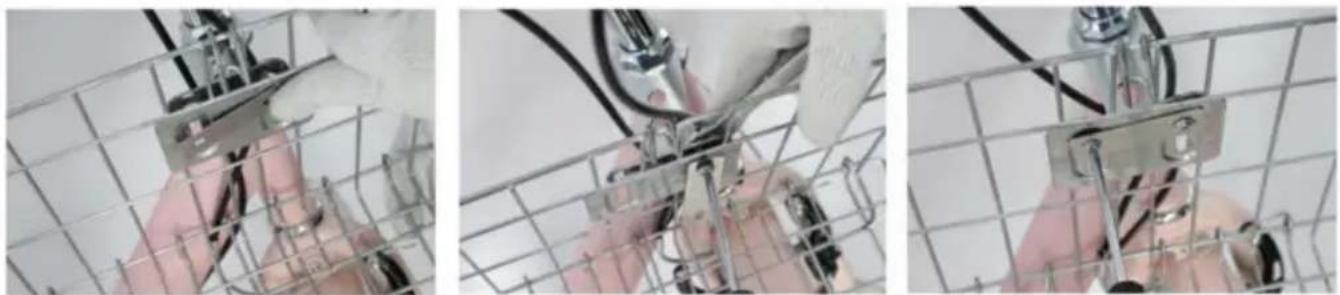

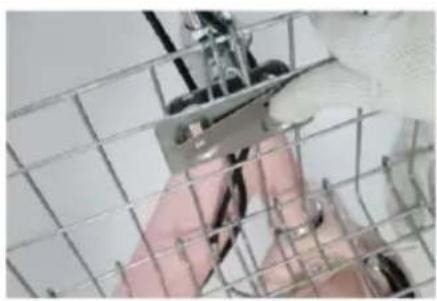

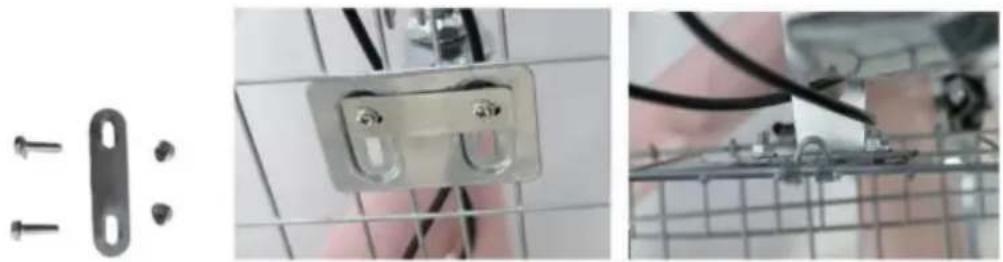

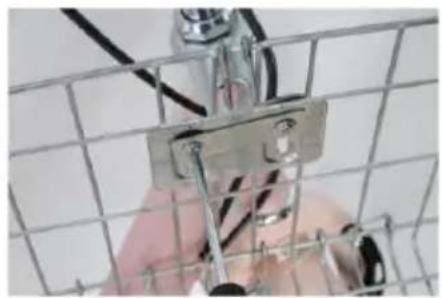

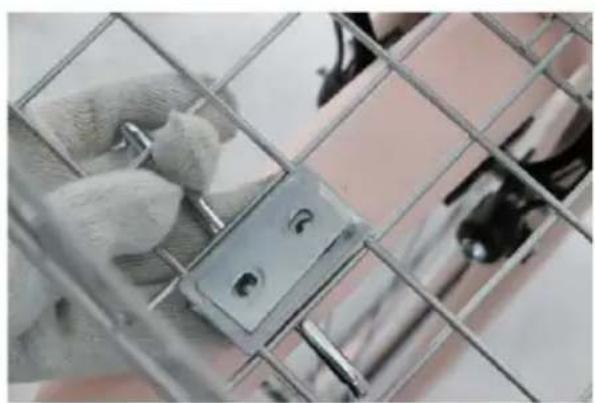

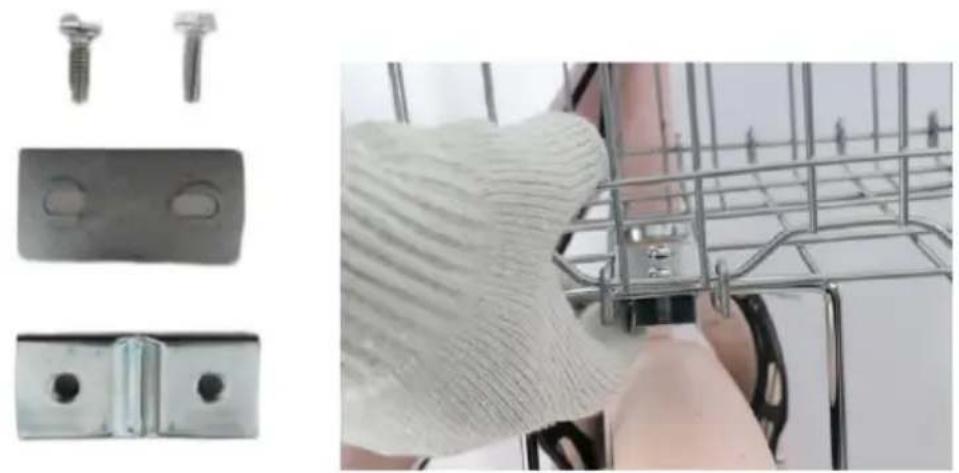

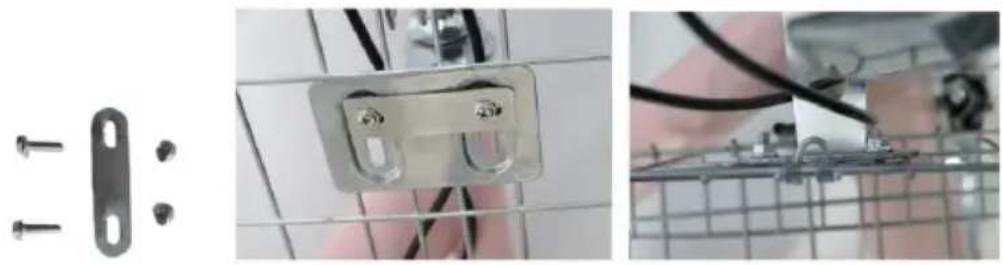

c. Install the front basket on the pre-assembled bracket by using M5x16 Phillips Bolts(14A), over plate(14B), M5 nuts. (14C)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Close-up of gloved hands using a metal tool to clean or store items in a wire cage (no visible text or symbols)

Close-up of a hand using a tool on a metal grid device (no visible text or symbols)

Close-up of a hand holding a metal electrical connector inside a wire cage (no visible text or symbols)

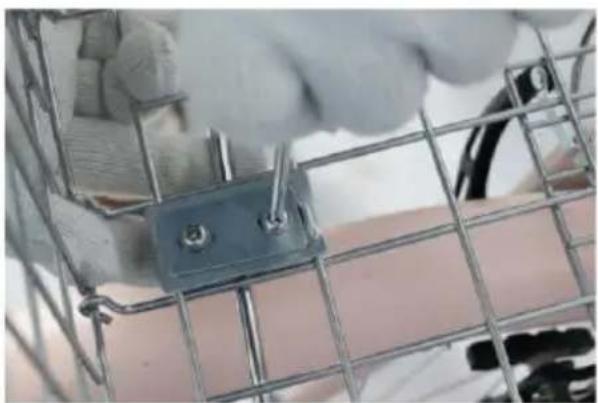

d. Check that the bottom and Installation board are well aligned with each other. e. Join the two M5×16 Phillips bolts (14A). Tighten these bolts using the provided screwdriver (20).

Close-up of a hand using a wire mesh tool to clean or repair a metal cage (no text or symbols visible)

Close-up of a metal bracket with white gloves and black components, no visible text or symbols

Close-up of a metal wire cage with a small metallic component inserted, showing a gloved hand holding a white object (no text or symbols visible)

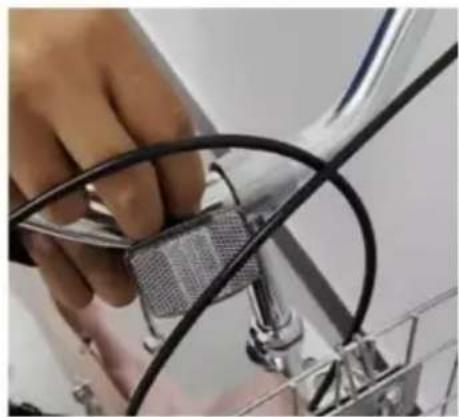

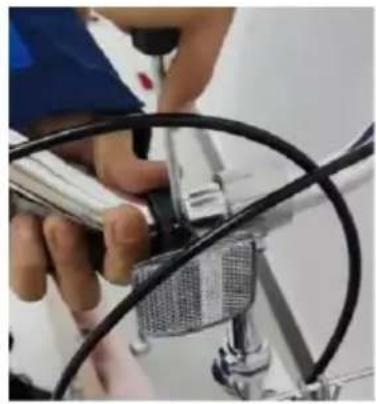

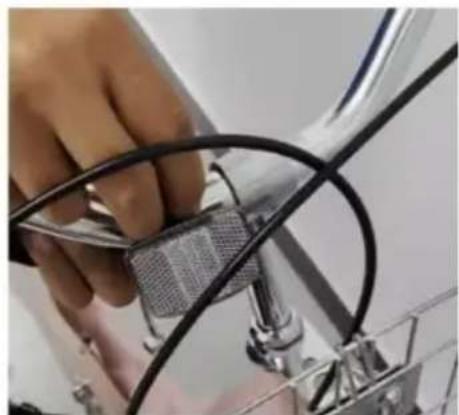

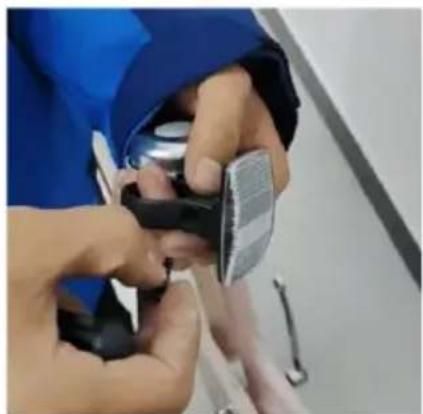

Step 7: Front reflector Installation

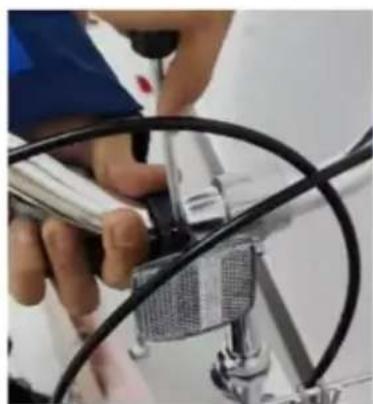

a. Unscrew the bolt using the provided screwdriver (20).

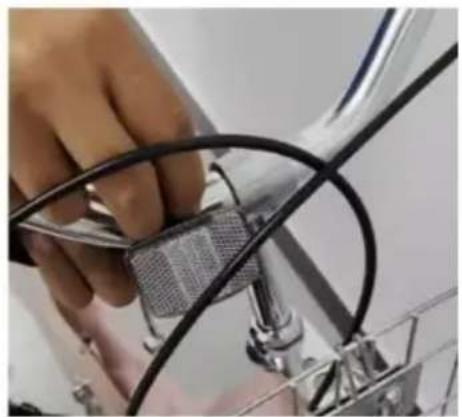

b. Attach the reflector to the handlebars using its clamp.

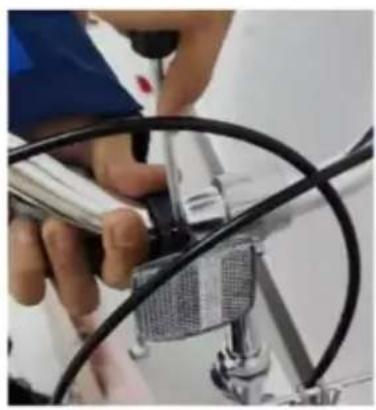

c. Replace and tighten the Philips bolt to secure the reflector into place.

Close-up of hands using a tool to adjust or install a small component, no visible text or symbols

Close-up of a hand holding a flexible wire with a small electronic device attached, next to a metallic mechanical component (no visible text or symbols)

Close-up of hands holding a microphone and cable, no visible text or symbols

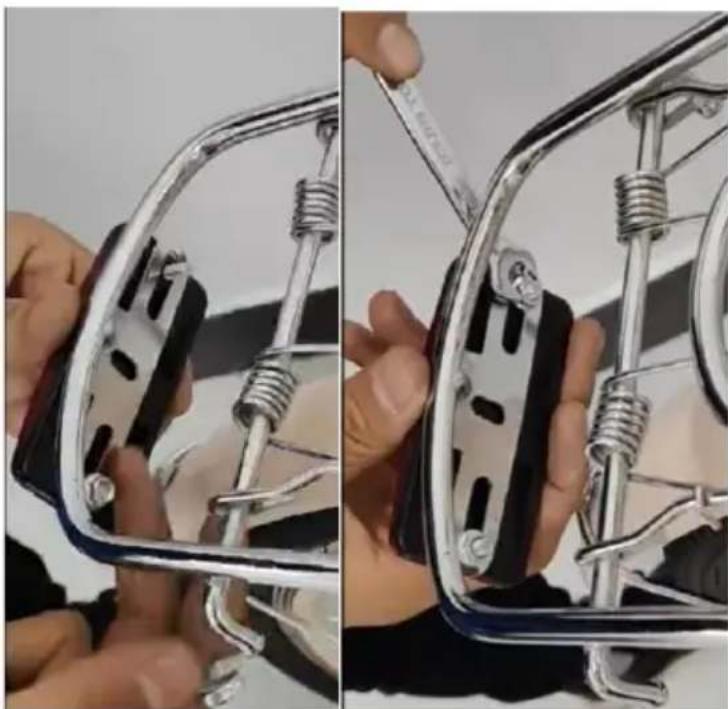

Step 8: Rear reflector Installation

Use 13×15 mm Wrench (19) to tighten bolt.

Close-up of hands installing a mechanical component with screws and metal brackets (no text or symbols visible)

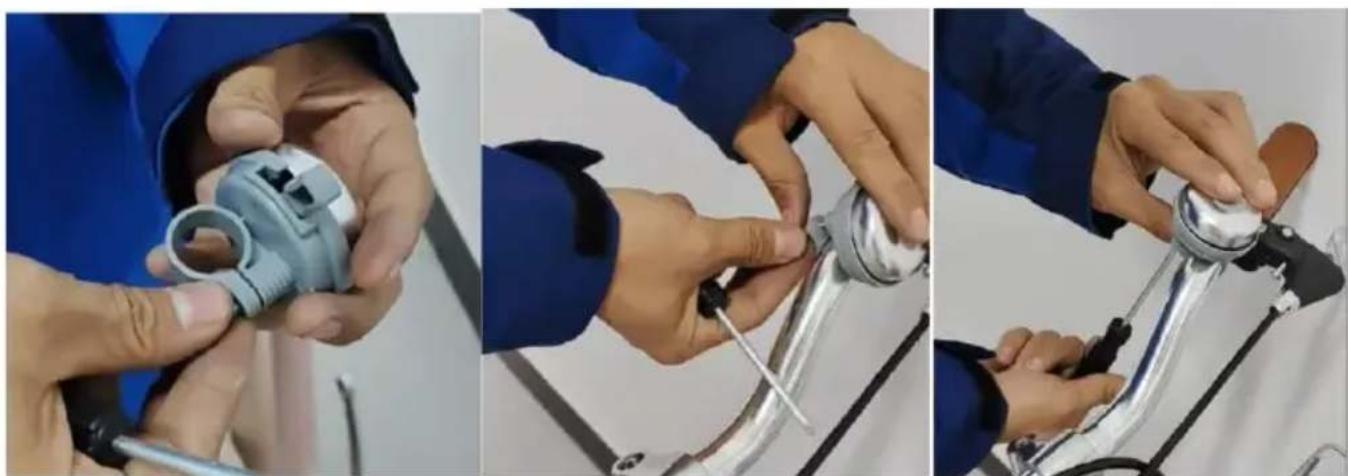

Step 9: Bell Installation

a. Unscrew the bolt using the provided screwdriver (20).
b. Attach the bell (7) to a convenient position on the handlebars using its clamp.
c. Replace and tighten the Philips bolt to secure the bell into place.

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

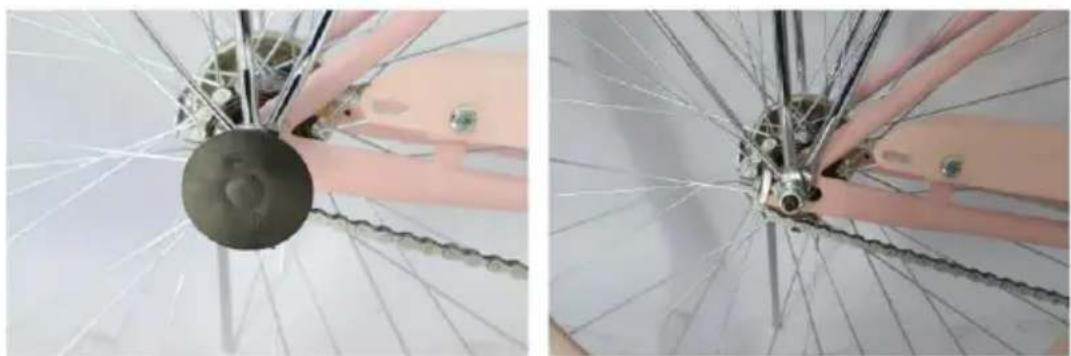

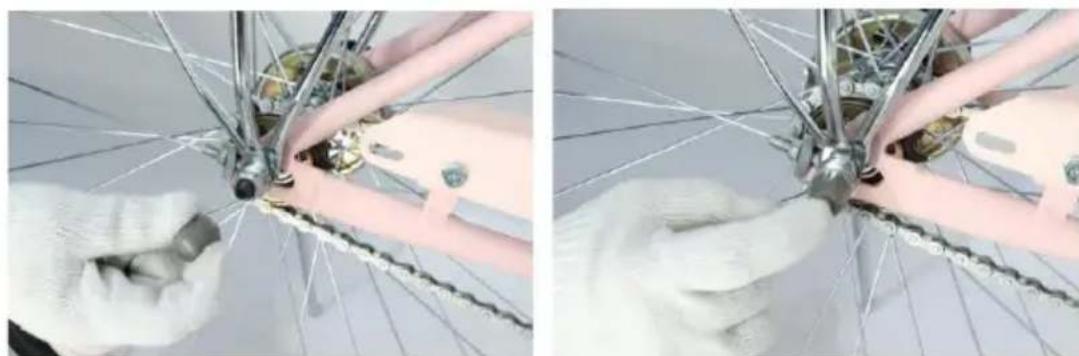

Step 10: Wheel Caps Installation

a. Remove the protective cover from the side of the rear wheel axle.

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

b. Push a wheel cap (15) onto the axle's nut. (Install a wheel cap on the front wheel hub at the left side in the same fashion. Repeat these steps for the wheel hubs at the right side.)

Close-up of hands assembling a bicycle wheel with chains and components (no visible text or symbols)

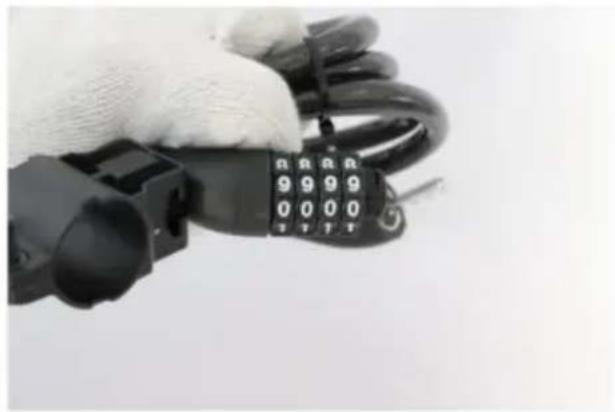

Step 11: Resetting the password of cable lock

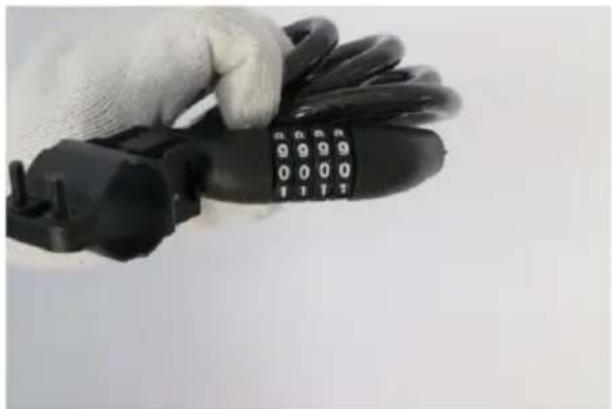

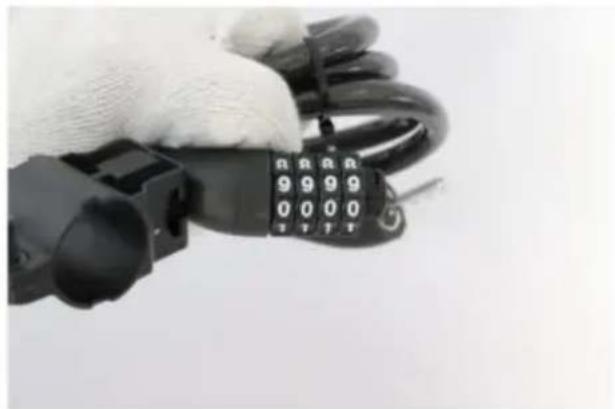

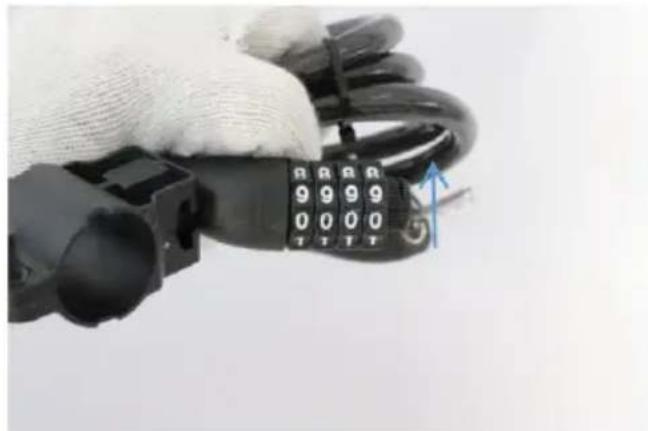

a. Dial the default password (0000) and pull the cable apart.

Hand holding a black handheld phone with visible keypad (no text or symbols)

Close-up of a gloved hand holding a black cable with a keypad and connector (no visible text or symbols)

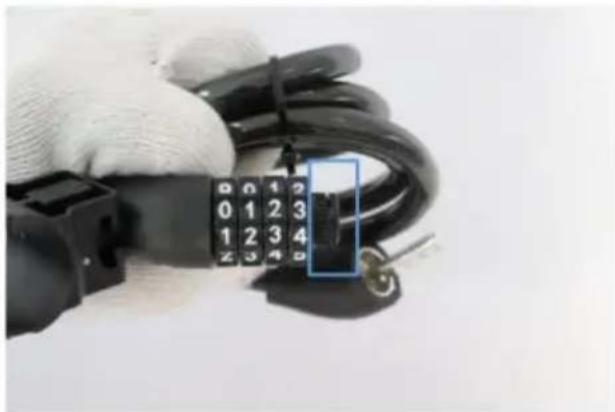

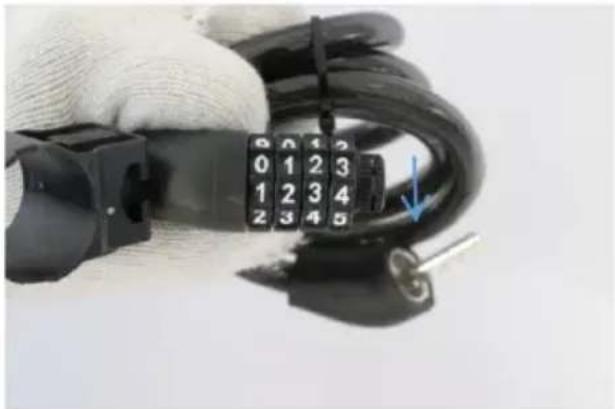

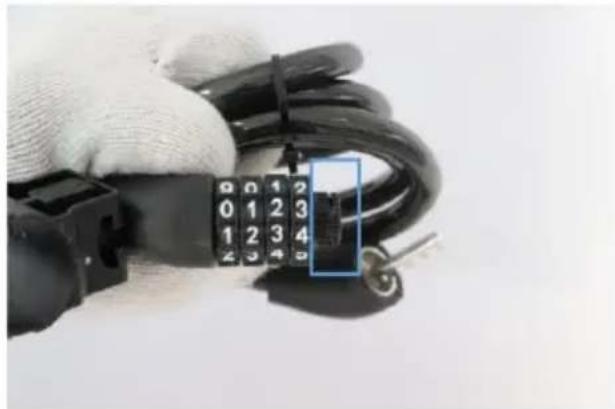

b. Turn the RESET wheel completely clockwise as shown.

Close-up of a hand holding a black cable with a keypad and a blue arrow indicating clockwise motion (no text or symbols visible)

Close-up of a gloved hand holding a black cable with a keypad and lock, showing no text or symbols.

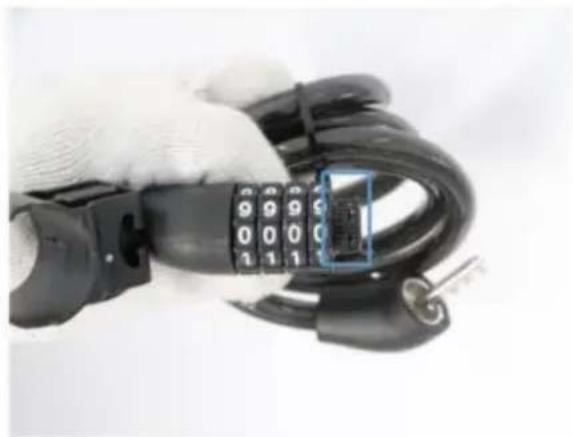

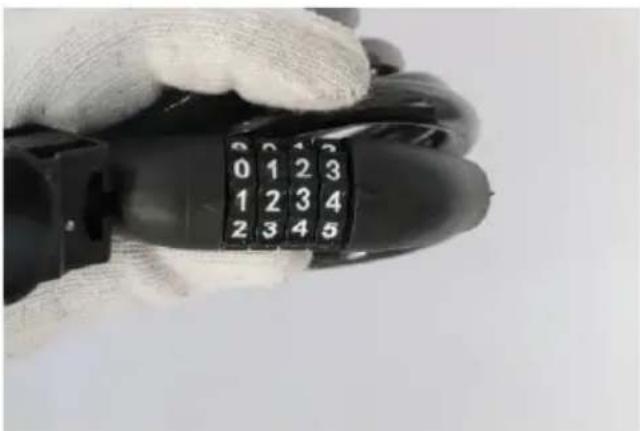

c. Set your new password using the dials.

Turn the RESET wheel completely counterclockwise to confirm your change.

Close-up of a gloved hand holding a black cable with numbered buttons and a blue arrow pointing to it (no text or symbols visible)

Close-up of a gloved hand holding a black cable with numbered components, no visible text or symbols

d. Rejoin the cable parts completely and disarrange the combination, testing that the cable cannot be pulled apart.

0 1 2 3 1 2 3 4 2 3 4 5

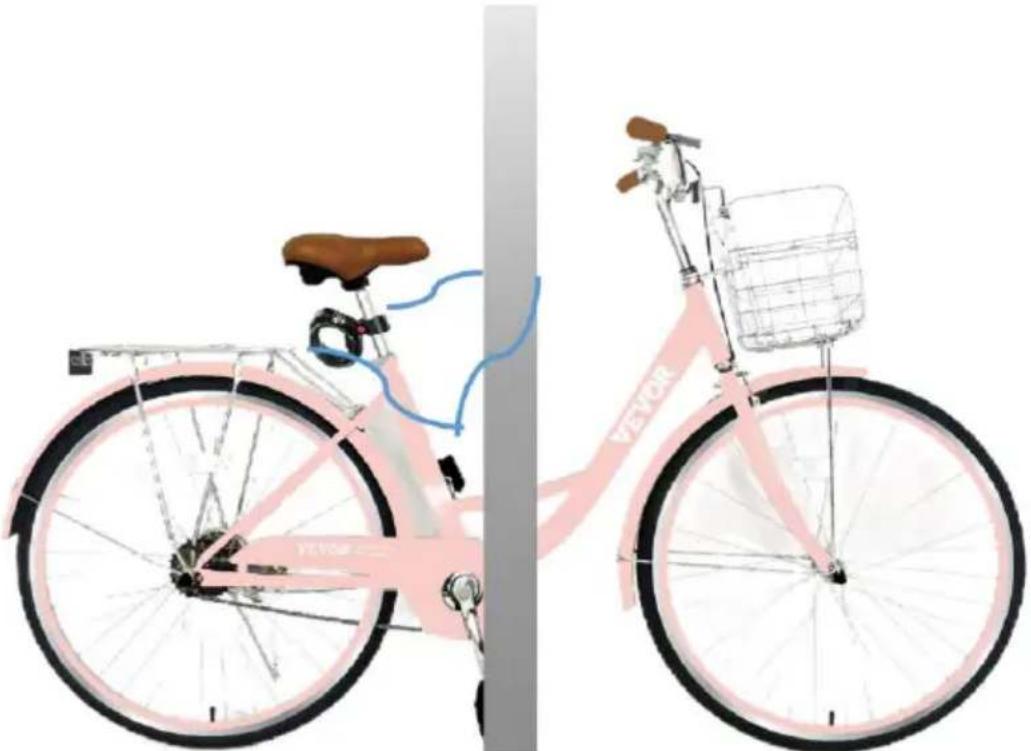

e. Extend the cable from the saddle post, wrapping it around an immovable object as well as the rear wheel and the seat tube.

Side view of a pink bicycle with blue cable and basket, no visible text or symbols on the bike itself

Note: The saddle is not permanently attached to the bicycle frame and should be secured together with the frame.

ADJUSTMENT

1. Brake cable tensions

Use 13-15mm wench (19) to unscrew the bolt on the V brake.	If the brake is loose, pull the brake wire outward, otherwise, if the brake is tight, pull the brake wire upward.	Don't forget to tighten the bolt using 13-15mm wench (19).

2. Inflating a Tire Tube

Connect your hand pump to this Schradel valve port.	Inflate the tire within the pressure range marked on the outer tire.When finished, remove your pump and replace the valve cap.

Note:

In winter and summer, it is recommended to inflate the tire in 40psi.

Do not exceed 40PSI, or it will explode.

3. Gear system adjustment.

1-7 speed: 1 speed is the fastest speed. 7 speed is the slowest speed. When you want to speed up, push this rod up.

Close-up of a bicycle handwheel with a black handle and white headplate, mounted on a metal bicycle rack (no visible text or symbols)

Close-up of a hand holding a bicycle brake caliper with a blue adjustment knob (no visible text or symbols)

When you want to slow down, Press the button.

Close-up of a bicycle's wrist strap and steering wheel (no visible text or symbols)

Close-up of a bicycle hand gripping a steering wheel, showing the speedometer and grip (no text or symbols visible)

MAINTENANCE

1. Regularly check for looseness: Check the parts of the bicycle for any looseness, stiffness, wear, or damage after each use. Tighten, lubricate, repair, or replace any problematic parts before further use. only replace components of this bicycle and its accessories with identical parts.

If your bicycle will not be used for an extended period, store everything in a cool dry place away from direct sunlight and inaccessible to children. Avoid storing

electronics in plastic bags, which might allow humidity to build up over time.

1. Brake loosening adjustment: Turning the adjuster clockwise with a wrench can make the brakes tighter, and counterclockwise can make the brakes looser. When adjusting, it is recommended to adjust little by little, and try the performance of the brakes every time you adjust until you find the most suitable tightness.
2. Chain lubrication: Always add lubrication after each cleaning, wiping, or solvent cleaning of the chain. (It is not recommended to use organic solvents to clean the chain) - Make sure your chain is dry before applying the lube. - Penetrate the lubricating oil into the chain bearing and allow to thicken or dry. This lubricates the parts of the chain that are prone to wear.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a pink bicycle with a brown seat and basket, no text or symbols present

BESOIN D'AIDE? CONTACTEZ-NOUS!

CONFIGURATION DU PRODUIT

Two-panel photo showing a person's wrist with medical instruments and a curved wire, no visible text or symbols

Close-up of a bicycle frame with metal brackets and cable, showing a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Two-panel image showing a hand inserting a medical device into a patient's arm, with no visible text or symbols.

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Close-up of bicycle wheel and tire assembly, showing mechanical components and a close-up view (no text or symbols)

Close-up of bicycle wheel components with metal hardware, showing a close-up of the head and neck assembly (no text or symbols visible)

Three-panel sequence showing hands assembling a bicycle wheel with metal components, no visible text or symbols

Two-panel image showing bicycle frame adjustment: one with blue arrow indicating rotation, the other with black arrow indicating cycle (no text or symbols)

Close-up of a hand holding a bicycle brake lever with a black strap (no text or symbols visible)

Close-up of gloved hands holding a black mechanical device with a coiled cable (no visible text or symbols)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a gloved hand holding a brown object, with another hand partially visible and no text or symbols present.

Close-up of a person wearing a blue medical gowns and gloves, handling a bicycle seat with a metal frame (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight (no text or symbols)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with tools, no visible text or symbols

Close-up of a hand using a wire meshing tool to adjust metal components on a wire cage (no text or symbols visible)

Two-panel image showing metal wire cage components: one with white gloves and another with gloved hands holding a small object (no visible text or symbols)

Close-up of hands installing or adjusting a metal component with a tool (no visible text or symbols)

Close-up of a hand holding a microphone next to a wire, with no visible text or symbols

Close-up of hands using a tool to adjust or install a mechanical component with wires (no visible text or symbols)

Close-up of hands assembling a bicycle frame with metal hardware (no visible text or symbols)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing front and side views (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Hand holding a black remote phone with visible keypad (no text or symbols on device)

Close-up of a gloved hand holding a black cable with a 3D-style lock, no visible text or symbols.

Close-up of a hand holding a black cable with a 3-digit number keypad, no visible text or symbols

Close-up of a gloved hand holding a black cable with a 3D keypad and a blue highlighted component (no text or symbols visible)

Close-up of a gloved hand holding a black cable with numbered keys and a blue arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a black electrical plug with numbered terminals and a blue square highlighting a key (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with multiple numbered buttons (0–5), no visible text or symbols on the device itself.

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handwheel with a wooden handle and control lever, mounted on a metal frame (no visible text or symbols)

Close-up of a hand holding a bicycle brake caliper with a speedometer and blue adjustment knob (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand adjusting the grip, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel, showing the speedometer and grip (no text or symbols visible)

ENTRETIEN

A/S YH Consulting Limited Bureau 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

Illustration of a pink bicycle with a brown seat, basket, and front wheel (no text or symbols)

Two-panel photo showing a person's wrist with medical instruments and a curved wire, no visible text or symbols

Close-up of a bicycle frame with metal brackets and a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure with metallic instruments and tubing (no visible text or symbols)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm (no visible text or symbols)

Close-up of a person's arm with a medical device attached, no visible text or symbols

Close-up of a gloved hand applying a medical injection into a patient's arm (no visible text or symbols)

Close-up of hands using a metal clamp tool to handle a piece of metal, with no visible text or symbols.

Close-up of a person's legs and feet on ice, with no visible text or symbols

Machine Translated by Google

Close-up of a bicycle wheel with metal hardware and a hand adjusting the shaft (no visible text or symbols)

Close-up of a bicycle wheel with a red annotation highlighting the mechanical component (no text or symbols present)

Close-up of hands adjusting a bicycle wheel rim with metal components (no visible text or symbols)

Close-up of a hand holding a metal object against a grid-patterned background (no visible text or symbols)

Close-up of a bicycle wheel with visible spokes and hub, no text or symbols present

Schritt 4: Pedalinstallation

Two-panel image showing bicycle frame adjustment: one with blue arrow indicating rotation, the other with black arrow indicating change (no text or symbols)

Close-up of a hand holding a bicycle seat with a black strap, no visible text or symbols

Close-up of gloved hands holding a black mechanical device with a coiled cable, no visible text or symbols

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a gloved hand holding a brown object, with another hand partially visible and no text or symbols present.

Close-up of a person wearing a blue medical gowns and gloves, handling a bicycle seat with a metal frame (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight on the side (no text or symbols visible)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with tools, no visible text or symbols

Close-up of a hand using a wire mesh to clean metal components on a wire cage (no text or symbols visible)

Two-panel photo showing metal wire cage components: one with hands holding white objects, the other with gloves and a metal bracket (no visible text or symbols)

Close-up of hands installing or adjusting a metal component, no visible text or symbols

Close-up of a hand holding a microphone next to a wire, with no visible text or symbols

Close-up of hands using a tool to adjust or install a mechanical component with wires (no visible text or symbols)

Close-up of hands installing a mechanical component with metal screws and spring-like fixtures (no text or symbols visible)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Hand holding a black remote control device with visible keypad (no text or symbols)

Close-up of a gloved hand holding a black cable with a 3D-style lock, no visible text or symbols.

Close-up of a hand holding a black cable with a 3-digit number keypad, no visible text or symbols

Close-up of a gloved hand holding a black cable with a 3D keypad and a blue highlighted connector (no text or symbols visible)

Close-up of a gloved hand holding a black cable with numbered keys and a blue arrow pointing to the pad (no text or symbols visible)

Close-up of a hand holding a black electrical plug with numbered terminals and a blue square highlighting a key (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with visible numeric keypad (no text or symbols on the device itself)

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle steering wheel with a hand strap and gauge, mounted on a metal frame (no visible text or symbols)

Close-up of a bicycle steering wheel with a speedometer and blue cable, being handled by gloved hands (no visible text or symbols)

Close-up of a white bicycle steering wheel with black grip and hand strap, showing a close-up of the wrist (no text or symbols visible)

Close-up of a bicycle hand gripping a steering wheel, showing the speedometer and grip (no text or symbols visible)

WARTUNG

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a pink bicycle with a brown seat and basket, no text or symbols present

Two-panel photo showing a person using a medical or diagnostic tool on a curved line, with no visible text or symbols.

Close-up of a bicycle frame with metal brackets and a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Two-panel image showing a hand inserting a medical device into a patient's arm, with no visible text or symbols.

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Close-up of bicycle wheel and tire assembly, showing mechanical components and a close-up view (no text or symbols visible)

Close-up of bicycle wheel components with metal hardware, showing a close-up of the head and neck assembly (no text or symbols visible)

Three-panel sequence showing hands assembling a bicycle wheel with metal components, no visible text or symbols

Two-panel image showing a person using a bicycle brake pedal mechanism, with blue arrows indicating the motion direction (no text or symbols present)

Close-up of a hand holding a bicycle brake lever with a black strap (no text or symbols visible)

Close-up of gloved hands holding a black mechanical device with a coiled cable (no visible text or symbols)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a person's leg and hand holding a small brown object, possibly a medical or lab device (no visible text or symbols)

Person in blue gloves and white gloves assembling a bicycle wheel (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight (no text or symbols)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with tools, no visible text or symbols

Close-up of a hand using a wire meshing tool to adjust metal components on a wire cage (no text or symbols visible)

Two-panel image showing metal wire cage components: one with white gloves and another with gloved hands holding a small metallic object (no visible text or symbols)

Close-up of hands installing or adjusting a small mechanical component (no visible text or symbols)

Close-up of a hand holding a flexible wire with a mesh component, next to a mechanical device (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands assembling a bicycle brake cage with metal screws (no text or symbols visible)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing front and side views (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Hand holding a black remote phone with visible keypad (no text or symbols on device)

Close-up of a gloved hand holding a black cable with a 3D-style lock, no visible text or symbols.

Close-up of a hand holding a black cable with a 3-digit number keypad, no visible text or symbols

Close-up of a gloved hand holding a black cable with a 3D keypad and a blue inset highlighting the internal structure (no text or symbols visible)

Close-up of a gloved hand holding a black cable with numbered keys and a blue arrow pointing to the padlock (no text or symbols visible)

Close-up of a gloved hand holding a black electrical plug with numbered dials and a blue bracket highlighting a key (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with multiple numbered buttons (0–5), no visible text or symbols on the device itself.

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handset with steering wheel and dashboard, no visible text or symbols

Close-up of a hand holding a bicycle brake lever with a speedometer and cable (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand strap and gait pattern, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel and speedometer (no visible text or symbols)

MANUTENZIONE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a pink bicycle with a brown seat and basket, no text or symbols present

Two-panel photo showing a person's wrist with medical instruments and a curved wire, no visible text or symbols

Close-up of a bicycle frame with metal brackets and cable, showing a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Close-up of a medical procedure on a patient's arm, showing injection and implant steps (no visible text or symbols)

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Machine Translated by Google

Close-up of a hand using a wrench to adjust a bicycle wheel rim (no text or symbols visible)

Close-up of a bicycle wheel with a metallic connector and a red annotation box highlighting the component (no text or symbols present)

Close-up of hands adjusting a bicycle wheel rim with metal components (no visible text or symbols)

Close-up of a hand holding a small metallic object against a grid-patterned background (no visible text or symbols)

Close-up of a mechanical component with visible teeth and wires, no text or symbols present

Two-panel image showing a person using a bicycle brake pedal mechanism, with blue arrows indicating the motion direction (no text or symbols present)

Two-panel photo showing hands assembling a flexible electronic device with a black strap and cable (no text or symbols visible)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a gloved hand holding a brown object, with another hand partially visible and no text or symbols present.

Close-up of a person wearing a blue medical gowns and gloves, handling a bicycle seat with a metal frame (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight on the side (no text or symbols visible)

Top-down view of a wire cage structure with internal components and mounting points (no text or symbols visible)

c. Instale la cesta delantera en el soporte preensamblado utilizando pernos Phillips M5x16 (14A), placa superior (14B) y tuercas M5. (14C)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with metal components (no visible text or symbols)

Close-up of a hand using a wire mesh to clean metal components on a wire cage (no text or symbols visible)

Two-panel photo showing metal wire cage components: one with hands holding white objects, the other with gloves and a metal bracket (no visible text or symbols)

Close-up of hands installing or adjusting a small mechanical component (no visible text or symbols)

Close-up of a hand holding a black cable with a mesh component, next to a metallic pipe or wire (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands assembling a bicycle brake cage with metal screws and spring components (no text or symbols visible)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing front and side views (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Hand holding a black remote control device with visible keypad (no text or symbols)

Close-up of a gloved hand holding a black cable with a keypad and terminal labels (no readable text or symbols)

Close-up of a hand holding a black electrical plug with a 3-digit number keypad, partially open by a blue arrow (no text or symbols visible)

Close-up of a hand holding a black cable with a keypad and lock, no visible text or symbols

Close-up of a gloved hand holding a black cable with numbered buttons and a blue arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a black electrical plug with numbered terminals and a blue indicator box (no readable text or symbols)

Close-up of a gloved hand holding a black handheld device with visible numeric keypad (no text or symbols on the device itself)

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handset with steering wheel and dashboard, mounted on a metal cage (no visible text or symbols)

Close-up of a bicycle steering wheel with a speedometer and blue cable, being handled by gloved hands (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand adjusting the grip, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel and speedometer (no visible text or symbols)

MANTENIMIENTO

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

Illustration of a pink bicycle with a brown seat, basket, and front wheel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Machine Translated by Google

Modyfil Regulac

Modyfikacja:

Two-panel photo showing a person's wrist with medical instruments and a curved wire, no visible text or symbols

Close-up of a bicycle frame with metal brackets and cable, showing a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Close-up of a medical procedure on a patient's arm, showing injection and implant steps (no visible text or symbols)

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Close-up of a hand using a wrench to adjust a bicycle wheel rim (no text or symbols visible)

Close-up of a bicycle wheel with a metallic connector and a red annotation box highlighting the component (no text or symbols present)

Close-up of hands adjusting a bicycle wheel rim with metal components (no visible text or symbols)

Close-up of a hand holding a metal object against a grid-patterned background (no visible text or symbols)

Close-up of a mechanical component with visible teeth and wires, no text or symbols present

Two-panel image showing a person using a bicycle brake pedal mechanism, with blue arrows indicating the motion direction (no text or symbols present)

Close-up of a hand holding a bicycle seat with a black strap, no visible text or symbols

Close-up of gloved hands holding a black mechanical device with a coiled cable (no visible text or symbols)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a gloved hand holding a brown object, with another hand partially visible and no text or symbols present.

Close-up of a person wearing a blue medical gowns and gloves, handling a bicycle seat with a metal frame (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight (no text or symbols)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with metal components (no visible text or symbols)

Close-up of a hand using a wire mesh to clean metal components on a wire cage (no text or symbols visible)

Two-panel photo showing metal wire cage components: one with hands holding white objects, the other with gloves and a metal bracket (no visible text or symbols)

Close-up of hands installing or adjusting a small mechanical component (no visible text or symbols)

Close-up of a hand holding a flexible wire with a mesh component, next to a metallic pipe or cable (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands installing a mechanical component with spring scales, showing part assembly (no text or symbols visible)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Close-up of a hand holding a black handheld device with multiple buttons, partially open (no visible text or symbols)

Close-up of hands holding a black cable with a 9-pin connector, showing the mechanism and component details (no text or symbols visible)

Close-up of a gloved hand holding a black cable with multiple dials and a blue arrow pointing to a component (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with multiple numbered buttons (0–5), no visible text or symbols on the device itself.

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handset with steering wheel and dashboard, mounted on a metal frame (no visible text or symbols)

Close-up of a hand holding a bicycle brake lever with a speedometer and cable (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand strap and gait pattern, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel and speedometer (no visible text or symbols)

KONSERWACJA

C/O YH Consulting Limited Biuro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a pink bicycle with a brown seat, basket, and front wheel (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Two-panel photo showing a person performing a medical procedure on a curved wire, with no visible text or symbols.

Close-up of a bicycle frame with metal clamps and a blue arrow pointing to a circular component (no text or symbols visible)

Steg 2: Installation av framskärm a.

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Two-panel image showing a hand inserting a medical device into a patient's arm, with no visible text or symbols.

Steg 3: Framhjulsinstallation

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Close-up of a hand using a wrench to adjust a bicycle wheel rim (no text or symbols visible)

Close-up of a bicycle wheel with a metallic connector and a red annotation box highlighting the component (no text or symbols present)

Close-up of hands adjusting a bicycle wheel rim with metal components (no visible text or symbols)

Close-up of a hand holding a metal object against a grid-patterned background (no visible text or symbols)

Close-up of a mechanical component with visible mesh and joints, no text or symbols present

Steg 4: Pedalinstallation

Two-panel image showing a person using a bicycle brake pedal mechanism, with blue arrows indicating the motion direction (no text or symbols present)

Two-panel image showing a hand holding a flexible black cable with a wrist strap, being adjusted by gloved hands (no text or symbols visible)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a person in medical attire performing a medical procedure on a patient's leg, with no visible text or symbols.

Person in blue gloves and white gloves operating a bicycle seat with a mounted lever (no visible text or symbols)

Close-up of a bicycle wheel with metal pins and a hand adjusting the rim (no text or symbols visible)

Metal wire cage with internal components, no visible text or symbols

Top-down view of a wire cage structure with internal components (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with metal components (no visible text or symbols)

Close-up of a hand using a wire mesh tool to clean or install metal components on a wire cage (no text or symbols visible)

Two-panel photo showing metal wire cage components: one with hands holding white objects, the other with gloves and a metal bracket (no visible text or symbols)

Steg 7: Montering av frontreflektor a.

Close-up of hands installing a mechanical component with spring scales, showing part assembly (no text or symbols visible)

Steg 9: Bellinstallation a.

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Steg 10: Installation av hjulkapslar

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Close-up of a hand holding a black handheld device with multiple buttons, partially open (no visible text or symbols)

Close-up of hands holding a black cable with a 9-pin connector, showing a close-up of the internal structure (no text or symbols visible)

Close-up of a hand holding a black cable with multiple dials and a blue arrow pointing to a component (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with multiple numbered buttons (0–5), no visible text or symbols on the device itself.

Illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handwheel with a wooden handle and control lever, mounted on a metal frame (no visible text or symbols)

Close-up of a hand holding a bicycle brake lever with a speedometer and blue cable (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand adjusting the grip, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel, showing the speedometer and grip (no text or symbols visible)

UNDERHÅLL

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

CRUISER FIETS

MODEL: SCB721-B/SCB122-B/SCB122-P/SCB722-B/SCB722-P

Illustration of a pink bicycle with a brown seat, basket, and front wheel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Two-panel photo showing a person's wrist with medical instruments and a tool, no visible text or symbols

Close-up of a bicycle frame with metal brackets and a blue arrow pointing to a circular component (no text or symbols visible)

Close-up of a medical procedure showing a hand holding a metallic tool near a patient's arm, with no visible text or symbols.

Two-panel image showing a hand inserting a medical device into a patient's arm, with no visible text or symbols.

Two-panel image showing hands using a wrench to lift weights on a white surface, with no visible text or symbols.

Close-up of bicycle wheel and tire assembly, showing mechanical components and a close-up view (no text or symbols visible)

Close-up of bicycle wheel components with metal hardware, showing a close-up of the head and neck assembly (no text or symbols visible)

Three-panel sequence showing hands assembling a bicycle wheel with metal components, no visible text or symbols

Stap 4: Pedaalinstallatie

Two-panel image showing bicycle frame adjustment: one with blue arrow indicating rotation, the other with black arrow indicating cycle (no text or symbols)

Close-up of a hand holding a bicycle seat with a black strap, no visible text or symbols

Close-up of gloved hands holding a black mechanical device with a coiled cable (no visible text or symbols)

Person in blue gloves and white gloves using a tool on a kitchen sink (no visible text or symbols)

Close-up of a gloved hand holding a brown object, with another hand partially visible and no text or symbols present.

Close-up of a person wearing a blue medical gowns and gloves, handling a bicycle seat with a metal frame (no visible text or symbols)

Close-up of a bicycle wheel being adjusted for a cable, showing metal components and wiring (no text or symbols visible)

Metal wire cage with internal components and a blue square highlight (no text or symbols)

Top-down view of a wire cage structure with internal components and mounting holes (no text or symbols visible)

Close-up of a metal electrical socket mounted on a grid, with wiring and a close-up view of its cable being inserted (no text or symbols visible)

Three-panel photo showing hands assembling a wire cage with tools, no visible text or symbols

Close-up of a hand using a wire meshing tool to adjust metal components on a wire cage (no text or symbols visible)

Two-panel image showing metal wire cage components: one with white gloves and another with gloved hands holding a small metallic object (no visible text or symbols)

Close-up of hands installing or adjusting a metal component, no visible text or symbols

Close-up of a hand holding a microphone and wire, with no visible text or symbols

Close-up of hands using a tool to adjust or install a mechanical component with wires (no visible text or symbols)

Close-up of hands assembling a bicycle frame with metal hardware (no visible text or symbols)

Three-panel photo showing hands assembling a mechanical component, no visible text or symbols

Close-up of hands assembling a bicycle wheel assembly, showing front and side views (no text or symbols visible)

Close-up of hands assembling a bicycle wheel assembly, showing mechanical components and wiring (no text or symbols visible)

Hand holding a black remote phone with visible keypad (no text or symbols on device)

Close-up of a gloved hand holding a black cable with a 3D-style lock, no visible text or symbols.

Close-up of a hand holding a black cable with a keypad and blue arrow indicating a step (no text or symbols visible)

Hand holding a black cable with a keypad and keychain, no visible text or symbols

Close-up of a gloved hand holding a black cable with numbered keys and a blue arrow pointing to it (no text or symbols visible)

Close-up of a gloved hand holding a black electrical plug with numbered dials and a blue indicator light (no text or symbols visible)

Close-up of a gloved hand holding a black handheld device with visible numeric keypad (no text or symbols on the device itself)

Side profile illustration of a pink bicycle with a blue cable and brown seat, shown from front and side views (no text or symbols)

Close-up of a bicycle handwheel with a wooden handle and control lever, mounted on a metal frame (no visible text or symbols)

Close-up of a hand holding a bicycle brake lever with a speedometer and blue cable (no visible text or symbols)

Close-up of a bicycle steering wheel with a hand resting on the wrist, showing no visible text or symbols.

Close-up of a bicycle hand gripping a steering wheel, showing the speedometer and grip (no text or symbols visible)

ONDERHOUD

C/O YH Consulting Limited Kantoor 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support
