Product Type	Balance Bike for Children
Brand	Vevor
Model	C98
Recommended Age	3-6 years
Maximum User Weight	25 kg
Bike Weight	3 kg
Wheel Size	12 inches
Frame Material	Steel
Adjustable Seat Height	Yes, with safety marking
Adjustable Handlebar Height	Yes, with safety marking
Brakes	None (balance bike)
Safety	Helmet required, adult supervision
Usage	Flat surface, not on roads
Assembly Required	Yes (fork, handlebar, seat)
Tools Included	Hex key
Maintenance	Lubricate bearings every 6 months, clean with wax
Spare Parts Available	Fork, handlebar, seat, bearings
Warranty	Electronic warranty certificate
Manual Contents	Instructions in French and other languages

Frequently Asked Questions - C98 Vevor

How to assemble the Vevor C98 balance bike?

Follow the steps: install the front fork with the washers, then the handlebar by tightening the screw with a torque of 18 N.m, finally the seat with a torque of 12 N.m. Respect the height safety markings.

What is the recommended age for this bike?

The bike is recommended for children aged 3 to 6 years.

Is a helmet required to use this bike?

Yes, wearing a helmet is mandatory for the child's safety.

How to maintain the bike?

After two weeks, readjust the axles. Lubricate rotating parts with grease every six months. Clean the paint with a dry cloth and use wax if necessary.

Can I use this bike on the road?

No, it is a children's toy, to be used only on flat surfaces and under adult supervision.

How to adjust the handlebar height?

Loosen the vertical screw with the hex tool, adjust the height (do not exceed the safety marking), then tighten to 18 N.m.

What if the seat is loose?

Loosen the hex screw on the seat clamp, adjust the height, then tighten to 12 N.m.

How to lubricate the bearings?

Disassemble the bearings, clean them, apply grease, then reassemble.

What are the risks if parts are damaged?

Stop use immediately and replace defective parts with original parts.

Where to find spare parts?

Contact technical support via www.vevor.com/support.

USER MANUAL C98 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

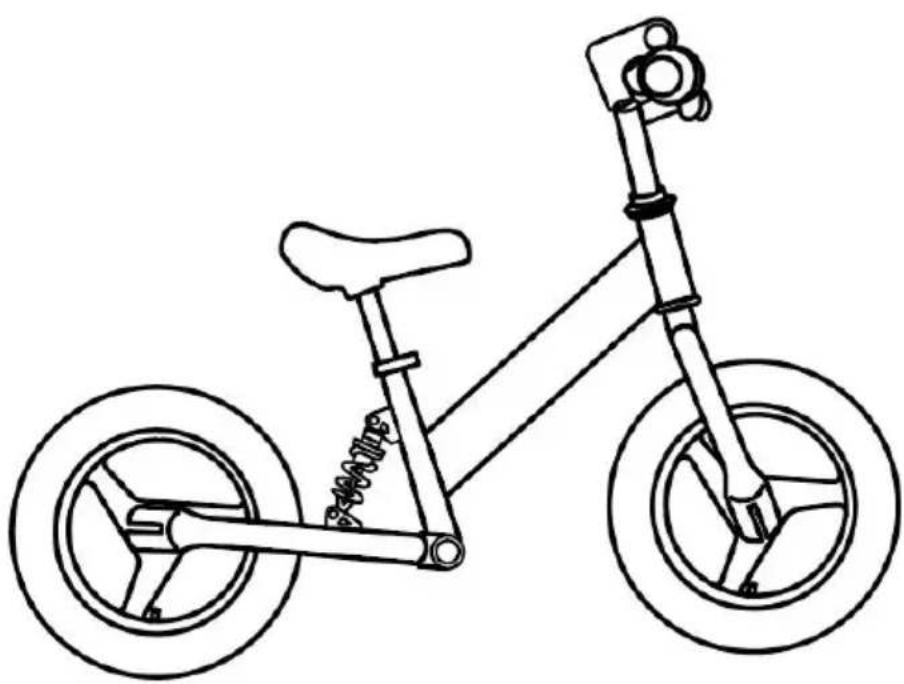

Kids’ Balance Bike

MODEL: C98

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: C98

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Kids'Balance Bike. Please rea of the instructions before using it. The information will help you achieve best possible results.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury. For safe driving of your baby the followi warnings must be noted:

1. Assembly and adjustment of the product must be carried out by a Please keep children away from moving parts. This product contains s parts. If swallowed, it will pose a choking hazard. Keep these small away from children when assembling!
2. Children should ride under adult supervision.
3. This bike is a children's toy and shall not be used as a means of transportation on highways and streets
4. Children must wear safety helmets when riding.
5. Do not ride on bumpy terrain.
6. Before each use, the balance car should be inspected to ensure
7. Use as intended only. Do not stand on the product.
8. inspect before every use. Do not use it if parts are loose or dan
9. If any parts are missing, broken, damaged, or worn, stop using the until repairs are made and actory replacement parts are installed.
   Age of application: 3-6 years old.

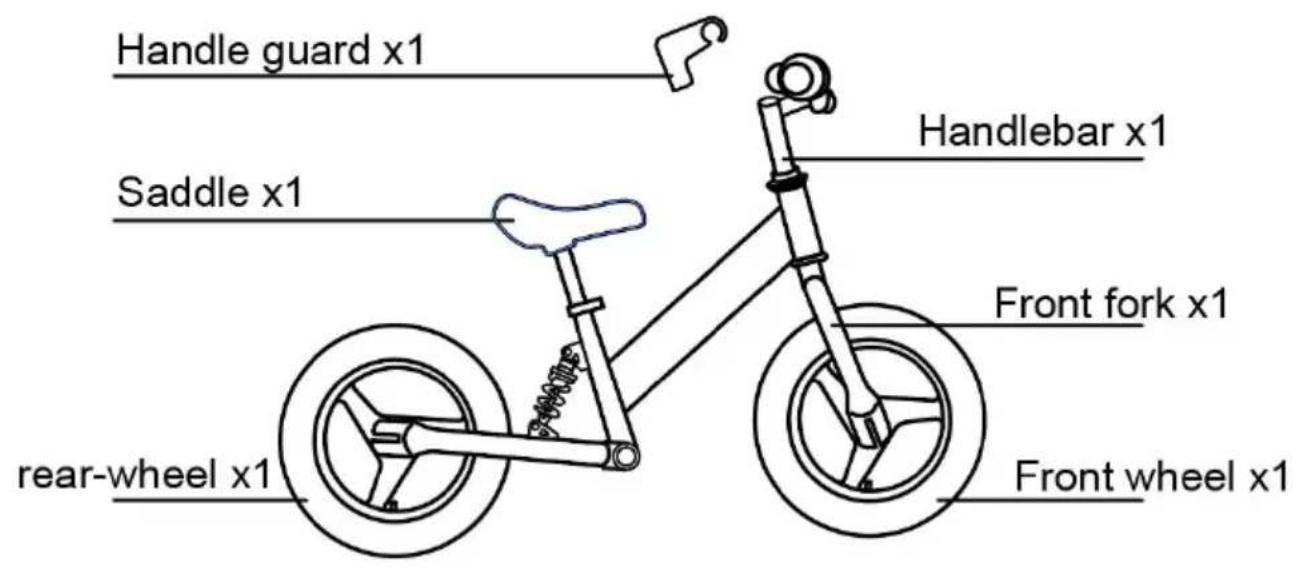

Installation and use

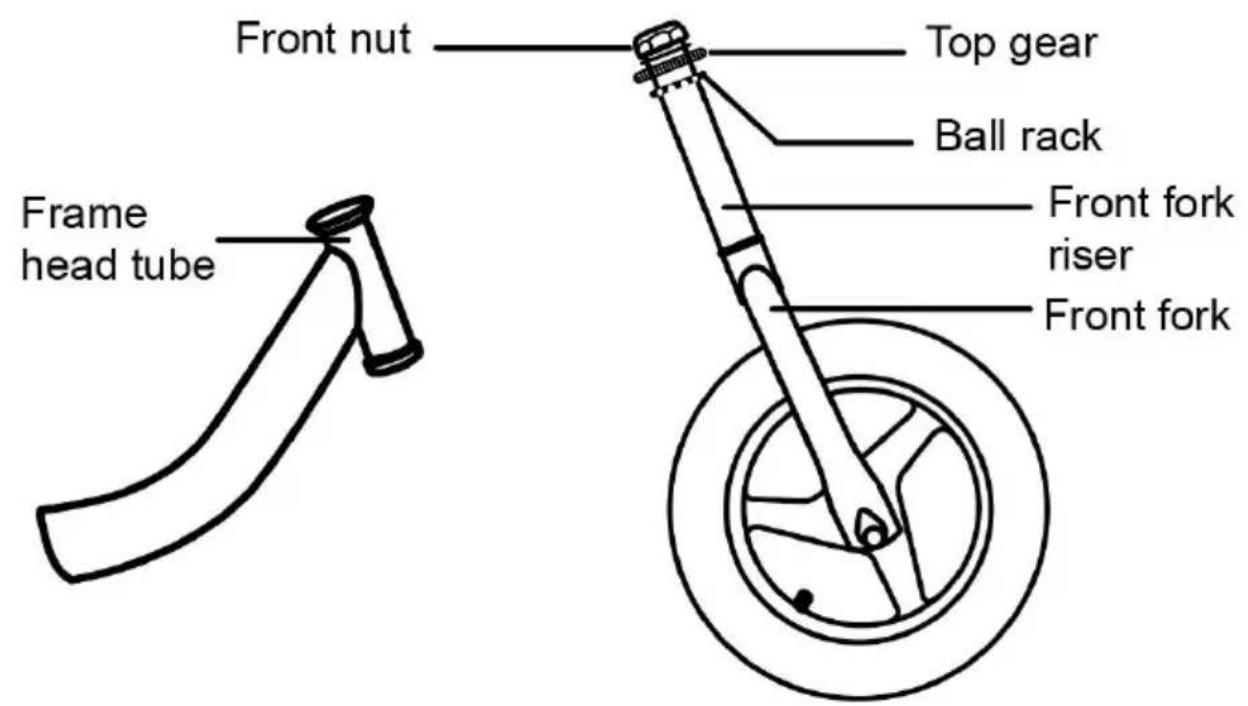

1. Install the front fork

① Remove the front fork lock, gasket, upper stop and ball carrier
② Keep the front wheel pattern consistent with the rear wheel, and put the front riser into the head tube of the frame, and then install carrier (exposing the steel ball side down), the upper stop and tighter then install the gasket in turn, and lock the front mother and tighten.

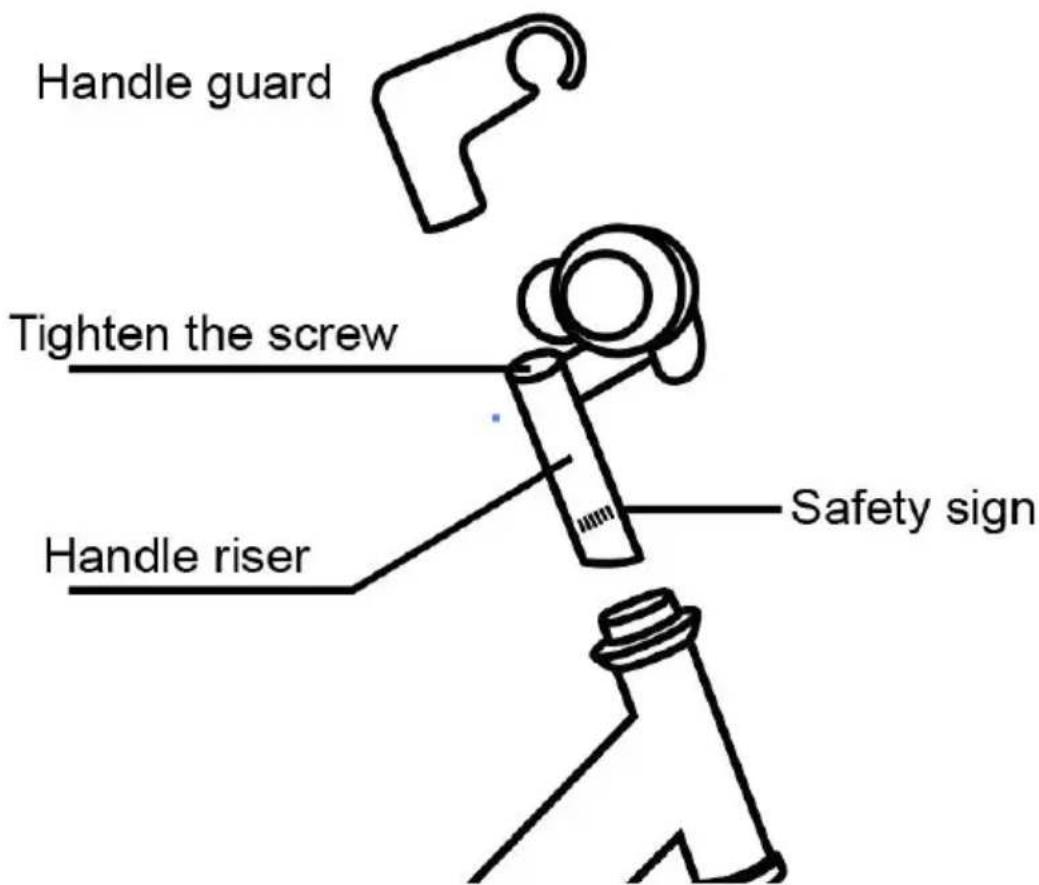

2. Install handlebars

1 Remove the vertical cover, use the hex tool to loosen the lifting 2 inserted the riser into the front fork riser, adjusted the handlebar direction, so that the handlebar is perpendicular to the direction of the bicycle, adjusted the height of the handlebar, to suit the height of the (note: the maximum height of the handlebar can not see the safety in tightened the lifting screw (tightening torque is not less than 18N.m), Finally snap into the handle stand cover.

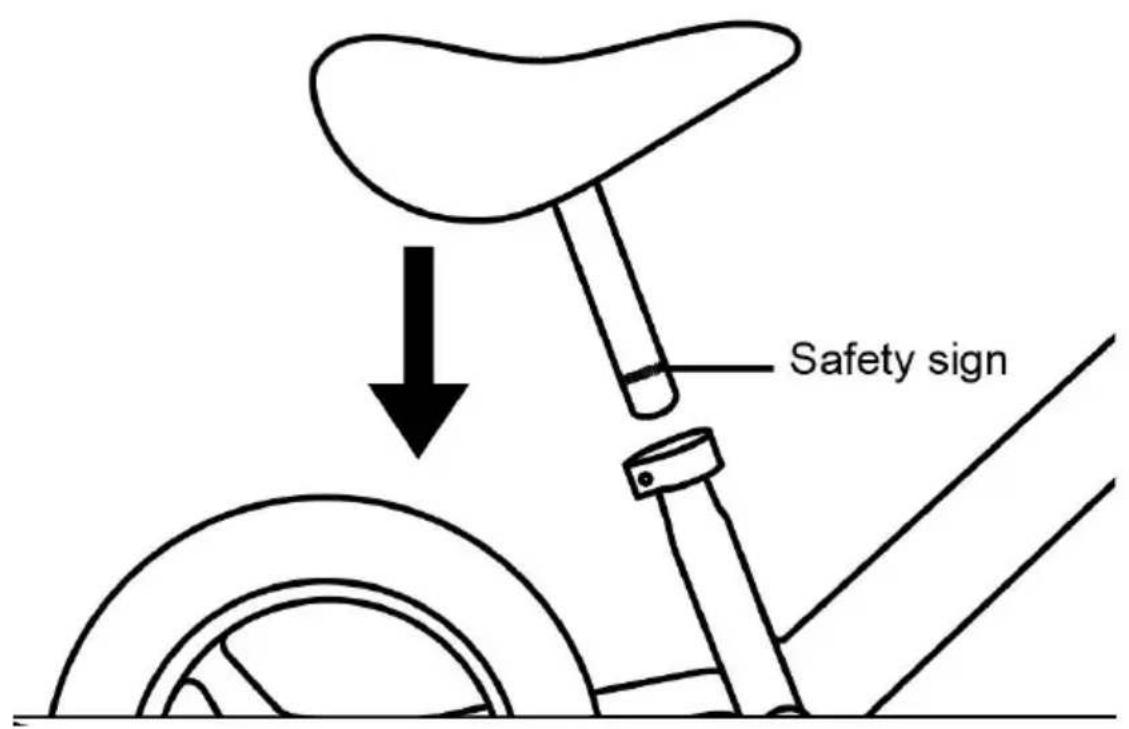

3. Install the saddle

① Loosen the saddle chuck hex socket screw with a wrench.
② Insert the saddle tube into the frame riser, adjust the saddle to rider's height (note: the maximum height of the saddle is subject to the safety mark of the saddle tube), and then lock the saddle chuck hex (locking torque is not less than 12N.m).

Maintenance and repair

1. When a new car is used for about two weeks, it is necessary to the rotating front axle, rear axle and wheels to maintain normal opera
2. The rotating parts of the balance car should be constantly lubricated with butter to extend the service life. Disassemble and wash the whole six months, and fill the rotating part with butter.
3. Paint: The surface should not be wrapped in plastic bags and cloth, not wipe with a wet cloth, so as to avoid loss of light, bubbles, peeling, case of luster decline, you can choose high quality car wax wipe, incr, brightness.
4. Electroplating parts: If the surface is found to be yellowish-brown network, you can use neutral oil or sewing machine oil to wipe freq prevent the network from expanding.
5. The front bowl is loose: first loosen the front and lock the mother, remove the gasket, and then adjust the gap between the upper bowl, the steel ball with a wrench, and then install the gasket and tighten and lock the mother.
6. If the front axle is loose or too tight, it will affect the operation of When adjusting, first loosen the nut on one side of the front axle, then adjust the tight nut with a wrench, and support the wheel in the front middle, and finally tighten the nut.
