USER MANUAL RC-1837B+C Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

BIKE RACK

MODEL:RC-1837B+C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:RC-1837B+C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety Notices

Risk of injury!

• Thoroughly read the assembly and operating instructions prior assembly and follow the individual steps as described in the assembly instructions.

WARNING! Do not exceed the maximum load capacity! Injuries or product damages may result.

Routinely inspect all parts on the bike rack. Tighten loose screws replace defective parts to avoid product damage.

WARNING! Only set up the bike rack on solid and even surfaces prevent the product from tipping.

WARNING! Do not sit persons on the mounted bicycle. Risk of inj

DO NOT STEP, CLIMB, OR HANG ON THE STORAGE RACK.

DO NOT ALLOW SMALL CHILDREN OR PETS TO PLAY IN, O AROUND THE STORAGE RACK. IMPROPER INSTALLATION AND/OR USE OF THE STORAGE RACK COULD CAUSE SERIOUS INJURY AND/OR DEATH.

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specification and component parts with prior notice.

IMPORTANT:

No liability is accepted for incorrect use of this product.

• Do not exceed a max load of 65 lbs. x 4Bikes

• Ensure that the storage rack is level before hanging the bicycle.

• Load heaviest bikes at bottom hanger first.

• Do not move your bike side to side after hanging.

• This storage rack is not a toy. Please keep children away from mounted/loaded unit.

CAUTION !

Unconventional or even improper use may put persons at risk or result in damage to the bicycle.

SAVE THESE INSTRUCTIONS

Placement Quantity	4 pcs
Maximum Bearing Capacity Of Cantilever	65 lbs / 29.5kg
Maximum Total Bearing Capac	260 lbs / 118kg
Adjustment Range Of Cantilever (Right)	Upper Cantilever : 1137-1898mm
	Lower Cantilever : 306-850mm
Adjustment Range Of Cantilever (Left)	Upper Cantilever : 1197-1958mm
	Lower Cantilever : 366-910mm
Product Size	725×715×2047mm

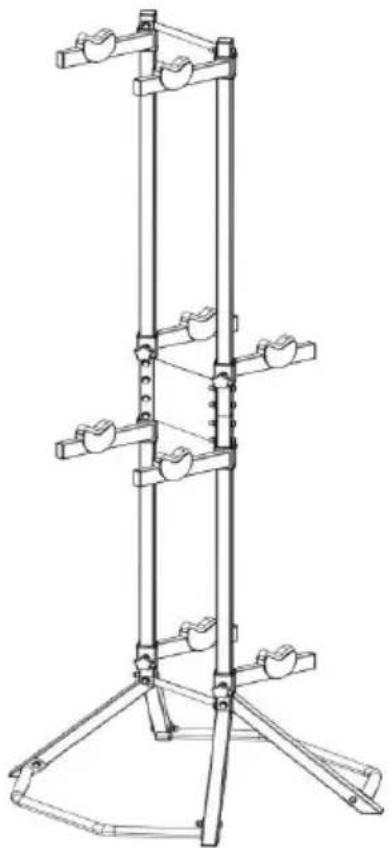

Assembly

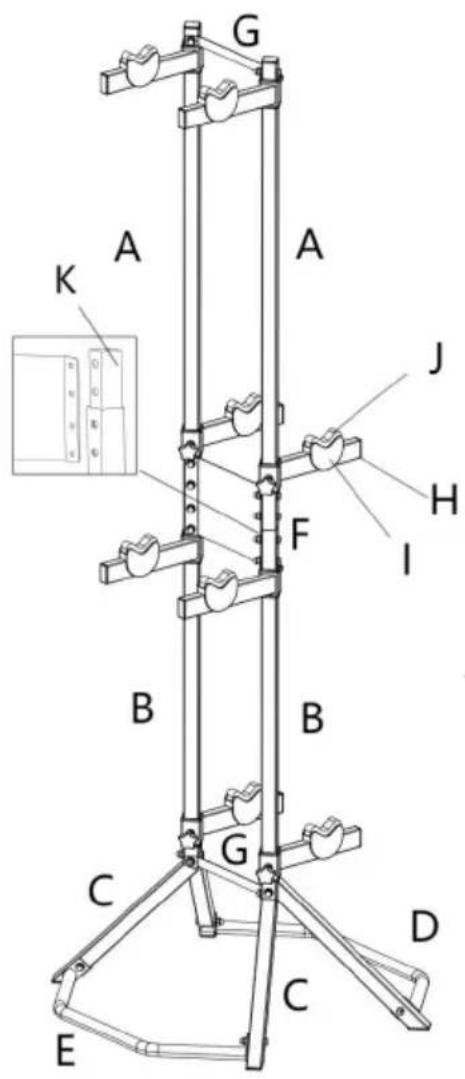

A. Top Vertical Upright 2pcs

B. Bottom Vertical/Leg Upright 2pcs

C. Back Leg 2pcs

D. Front Stabilizer Bar 1pcs

E. Rear Stabilizer Bar 1pcs

F.Middle Plate 1pcs

G. Top/Bottom Connectors 2pcs

H. Bike Arm Bar 8pcs

I. Plastic Bike Cradle 8pcs

J. Rubber Insert for Bike Cra 8pcs

K. Upright Internal Connectors 2pcs

L. Parts Bag :

(Note:One

M8*45 screw, or M8*40 screw an four washers are extra.)

	8pcs
M8*45	9pcs
M8*40	11pcs
	38pcs
	18pcs
	2pcs

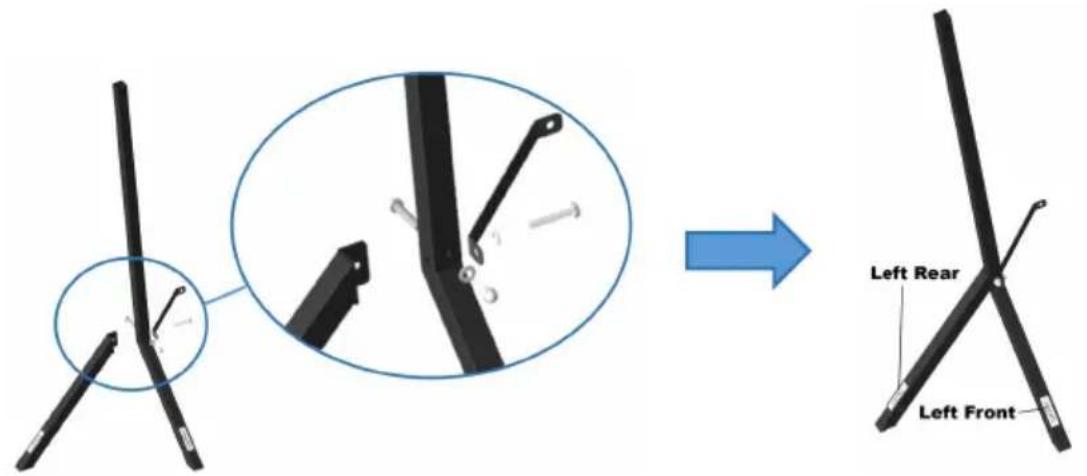

STEP 1: Assemble left support tube. (Need M8*45 2pcs washer 3pcs and Nut M8 1pc.)

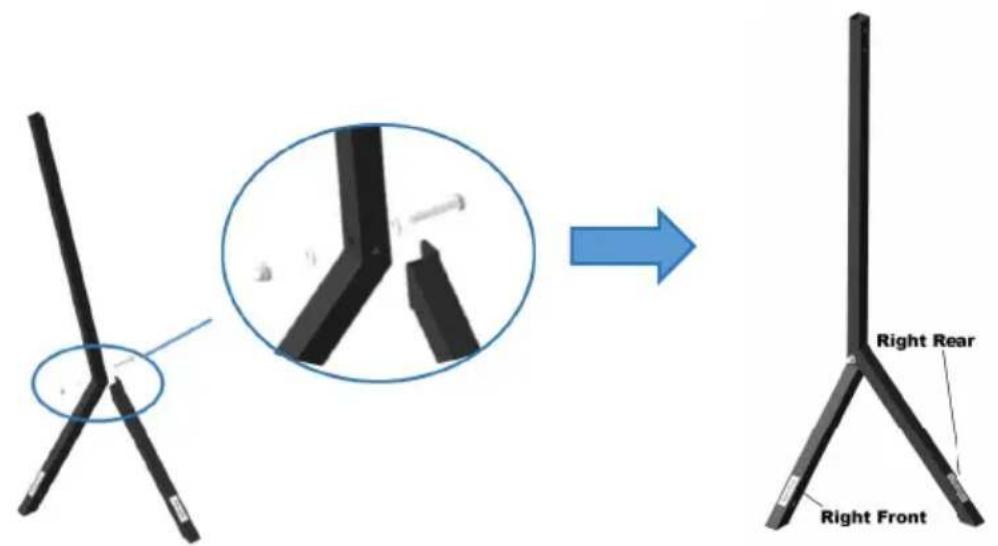

STEP 2:Assemble right support tube. (Need M8*45 1pc washer 2pcs and Nut M8 1pc.)

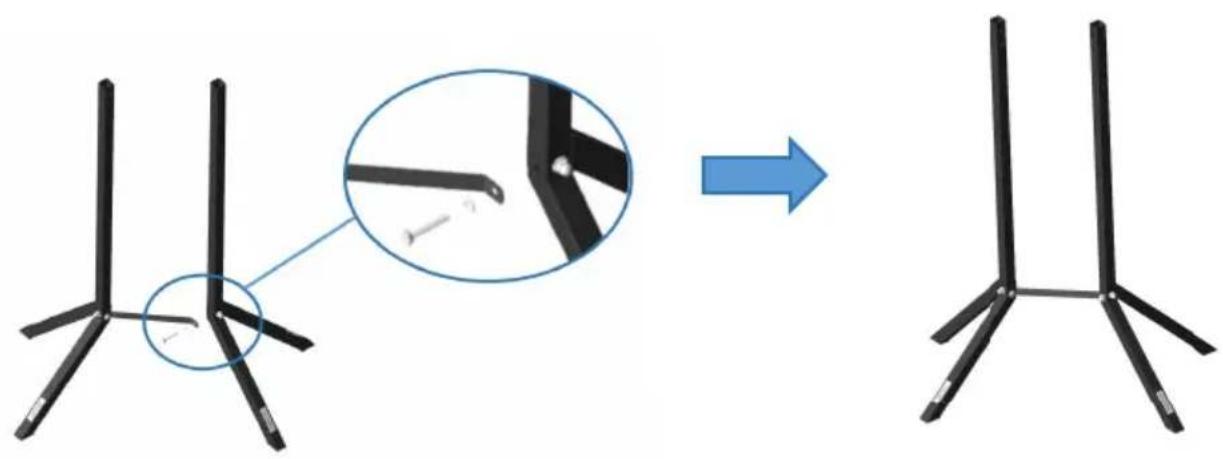

STEP 3:Connect the left and right support tubes. (Need M8*45 1pc washer 1pc.)

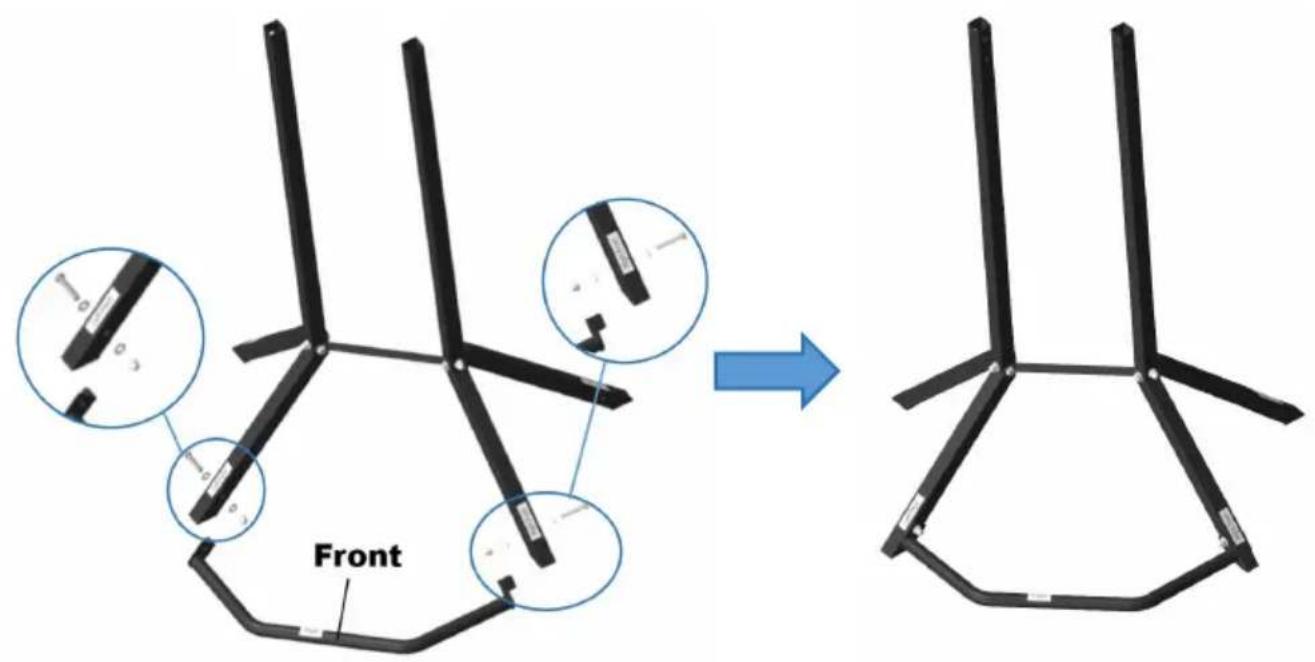

STEP 4:Assemble the front connector. (Need M8*45 2pcs washer 4pcs and Nut M8 2pcs.)

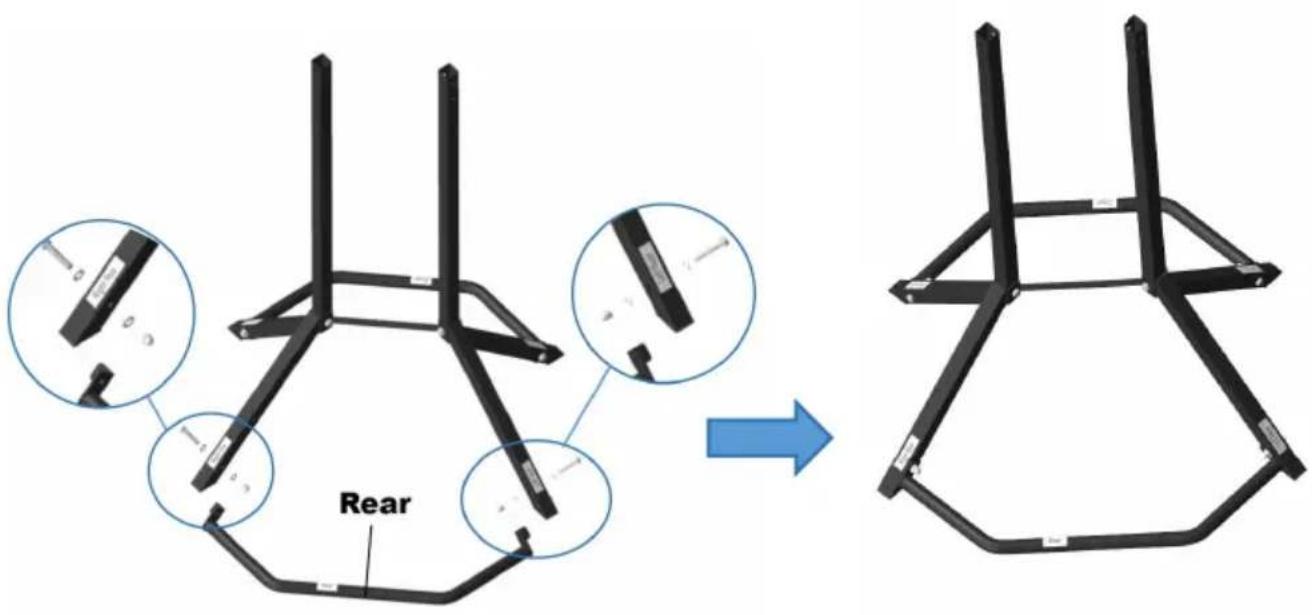

STEP 5:Assemble the rear connector.(Need M8*45 2pcs washer 4pcs and Nut M8 2pcs.)

STEP 6:Assemble the cantilever.

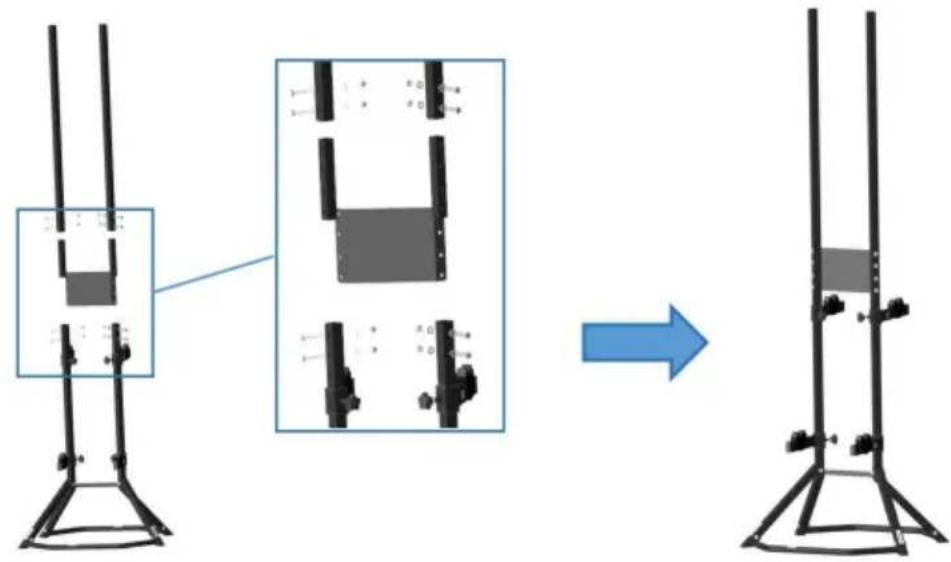

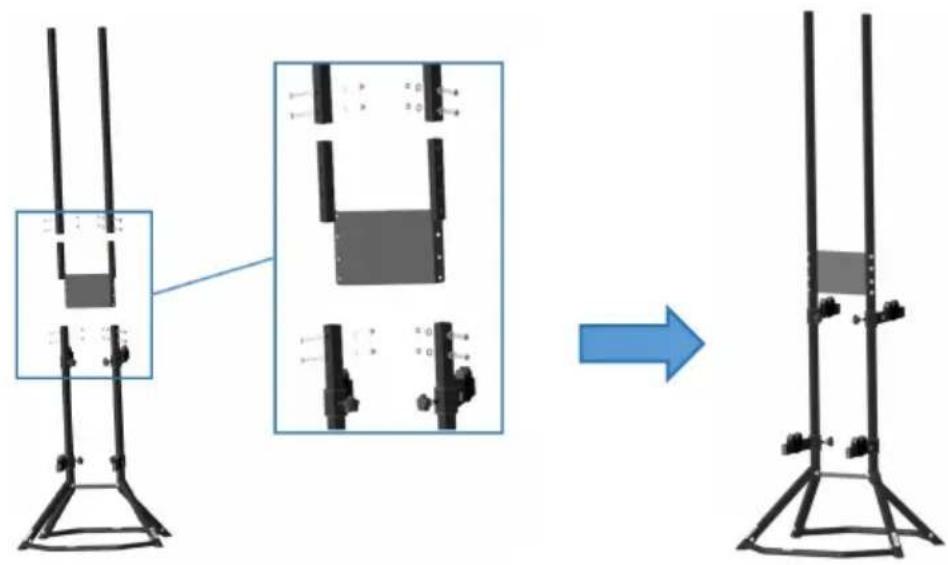

STEP 7:Assemble upper strut and connecting plate.(Need M8*40 8p washer 16pcs and Nut M8 8pcs.)

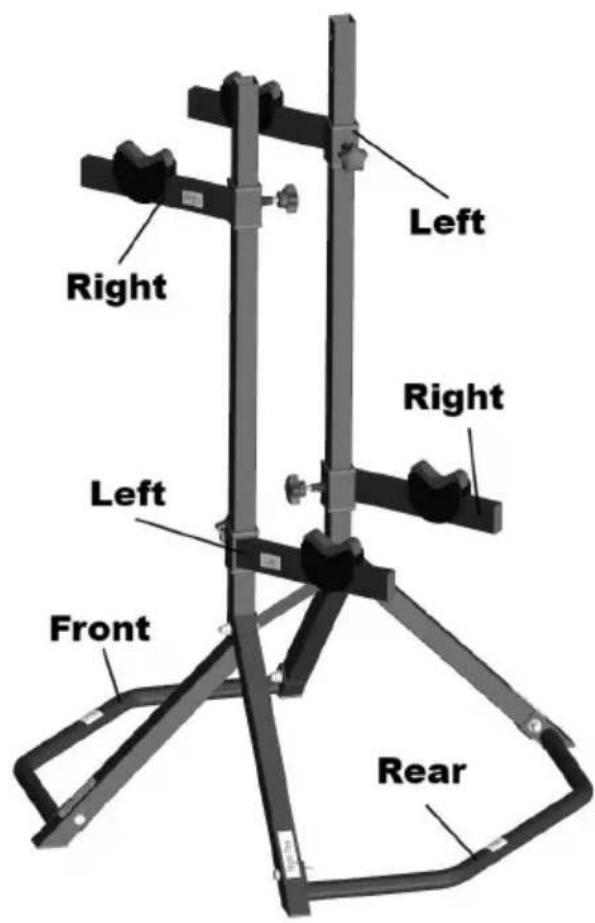

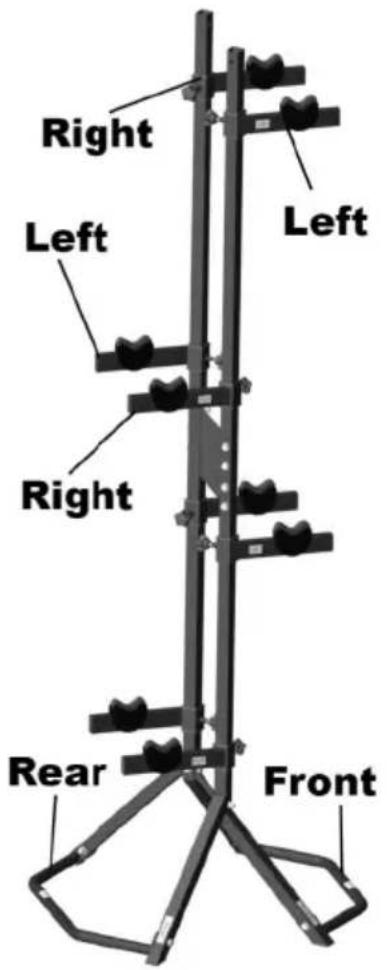

STEP 8:Assemble the cantilever.

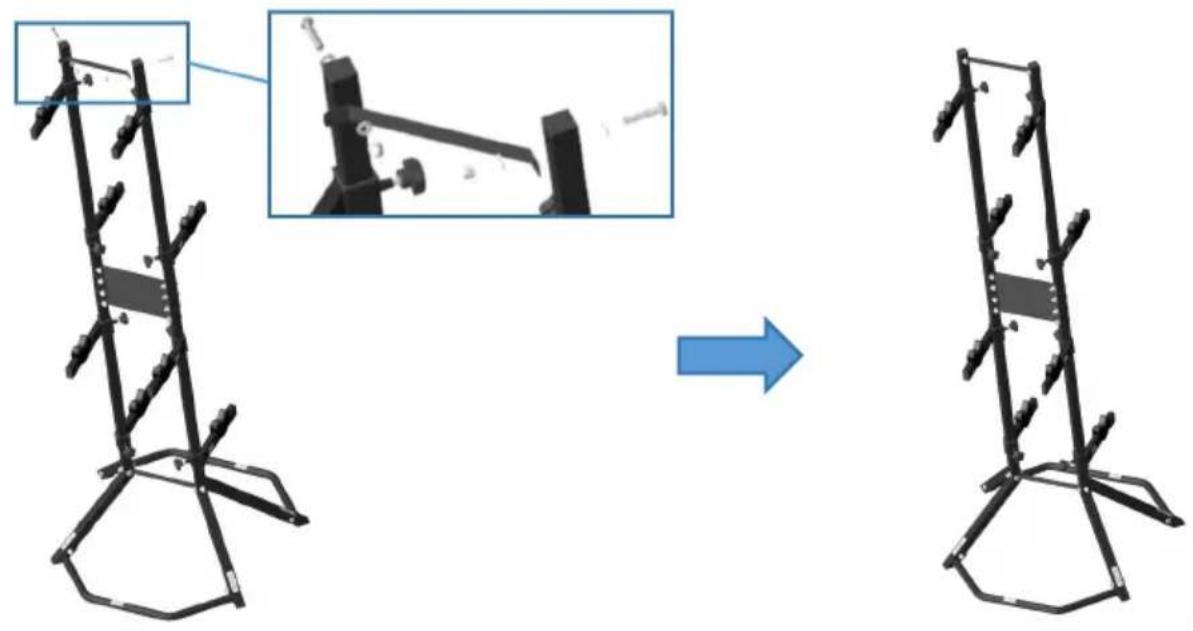

STEP 9:Assembly strip.(Need M8*40 2pcs washer 4pcs and Nut M8 2pcs.)
